PKTNODEBVS1Node B Base Station

V5 Node B Installation Guide Version 1.0.6 Page 1 of 44 V5 Node B Installation Guide V5 Node B Installation Guide Version 1.0.6 Page 2 of 44 Information in this document and the products described are subject to change without notice. ©2000-2007 IPWireless, Inc. All rights reserved. Reproduction, alteration, or distribution in any manner whatsoever without the written permission of IPWireless Inc, is strictly forbidden. Trademarks used in this text: the IPWireless logo, icon and IPWireless Broadband Modem are trademarks of IPWireless, Inc.; Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products, IPWireless, Inc., disclaims any proprietary interest in trademarks and trade names other than its own. February 2010 Part No. IPW-1442 V5 Node B Installation Guide Version 1.0.6 Page 3 of 44 WEEE Compliance In compliance with the requirements for marking electrical and electronic equipment as directed in article 11 (2) of Directive 2002/96/EC, Waste from Electrical and Electronic Equipment (WEEE), IPWireless applies a crossed-out bin symbol to all Node B products. The mark signifies that the IPWireless equipment is to be reprocessed or recycled using IPWireless authorized recyclers and processes. This minimizes the disposal of unsorted municipal waste, achieves a high level of separate collection of WEEE, and ensures the environmentally sound disposal of electrical and electronic equipment placed on the market after 13 August 2005. To dispose of equipment marked with the WEEE symbol, IPWireless has contracted with certified companies that can reprocess this equipment per European Union requirements. To find out further information regarding disposal of IPWireless equipment within the EU visit the IPWireless web site, ipwireless.com, or contact your IPWireless representative. V5 Node B Installation Guide Version 1.0.6 Page 4 of 44 Contents 1. Release Version ..................................................................................... 6 2. Safety Precautions ................................................................................ 7 3. General Warnings .................................................................................. 7 4. Overview ................................................................................................. 9 5. General Specifications ........................................................................ 10 6. Installation ............................................................................................ 15 Step 1 Pre-Installation ........................................................................................ 15 Step 2 Parts Shipped & Tools Required ........................................................... 16 Step 3 Site Preparations for Node B Installation ............................................. 20 Step 4 Mounting Installations ............................................................................ 24 Step 5 Ground Installation ................................................................................. 27 Step 6 DC Power Connection-Control Shelf .................................................... 28 Step 7 DC Power Connection-Radio Equipment Shelf .................................... 29 Step 8 Inter-Shelf Connections ......................................................................... 30 Step 9 Backhaul Connections (Iub) to INC ....................................................... 32 Step 9 Backhaul Connections (Iub) to INC ....................................................... 32 Step 10 Antenna Cabling - Installation ............................................................. 35 Step 11 Alarm Connections ............................................................................... 36 Step 12 GPS Installation & Operation ............................................................... 38 Step 13 TTLNA Interfaces .................................................................................. 40 7. APPENDIX ............................................................................................ 41 Appendix A - Installation Check Card ............................................................... 41 Appendix B – Glossary ...................................................................................... 42 V5 Node B Installation Guide Version 1.0.6 Page 5 of 44 Tables Table 2-1 : Safety Symbols ................................................................................................... 7 Table 5-1 : Specifications ................................................................................................... 10 Table 5-2 : Node B Model Types ........................................................................................ 12 Table 6-1 : Control Shelf - Packing List ............................................................................. 17 Table 6-2 : Radio Equipment Shelf - Packing List ............................................................ 18 Table 6-3 : Tools Required .................................................................................................. 19 Table 6-4 : Materials Required ............................................................................................ 19 Table 6-5 : Site Preparation Checklist ............................................................................... 20 Table 6-6 : Ethernet Pin-outs using RJ45 ......................................................................... 33 Table 6-7 : T1/E1 Pin-outs (RJ48C) .................................................................................... 34 Table 6-8 : Alarm Inputs & Outputs ................................................................................... 37 Figures Figure 5-1 : Node B Rack Mount – Control Shelf Physical Dimensions ........................ 11 Figure 5-2 : No…

Text truncated - open the document above for the full version.

IPWireless 2.5GHz V5 Radio Shelf Model: VS FCC ID: PKTNODEBVS1 External Photographs Figure 1: Front of Radio Shelf Figure 2: Right Side of Radio Shelf Figure 3: Rear of Radio Shelf Figure 4: Left Side of Radio Shelf

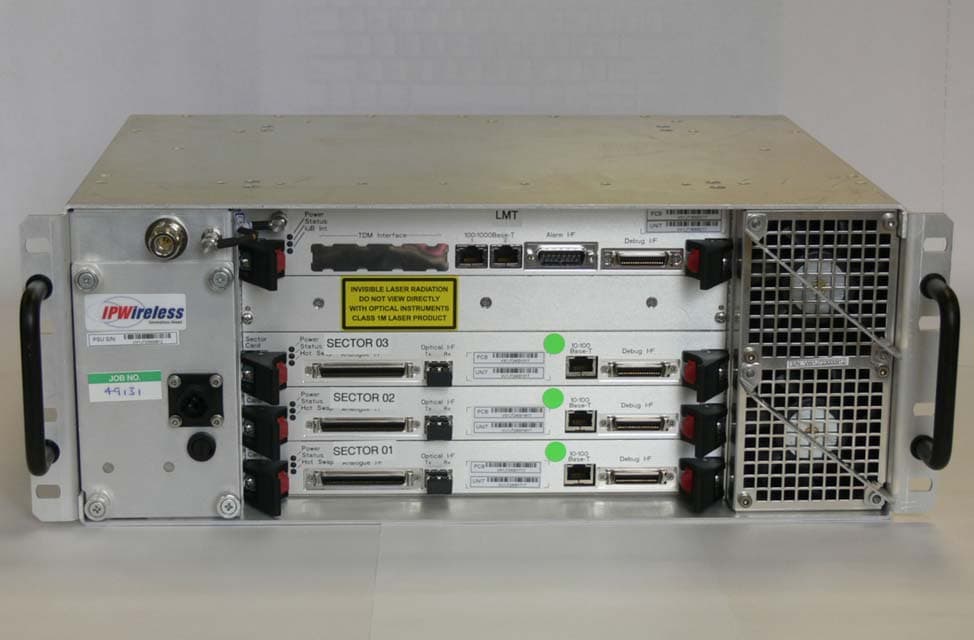

IPWireless V5 Digital Shelf Model: VT External Photographs Figure 1: Front of Digital Shelf Figure 2: Right Side of Digital Shelf Figure 3: Rear of Digital Shelf Figure 4: Left Side of Digital Shelf

IPWireless 2.5GHz V5 Radio Shelf Model: VS FCC ID: PKTNODEBVS1 Internal Photographs Figure 1: Radio Shelf – Top Cover Removed Figure 2: Radio Shelf – Bottom Cover Removed Figure 3: Radio Card In Clamshell Figure 4: 12VDC Power Supply Figure 5: RF Power Amplifier – External Figure 6: PA Internal – Lid Removed Figure 7: RF Patch Card – Top Figure 8: RF Patch Card – Bottom Figure 9: Radio Card ‐ Top Figure 10: Radio Card‐ Bottom

IPWireless V5 Digital Shelf Model: VT Internal Photographs Figure 1: Digital Shelf with Cards & PSU Figure 2: Digital Shelf Empty Figure 3: Digital Shelf – Control Card Top Figure 4: Digital Shelf – Control Card Bottom Figure 5: GPS & Memory Modules ‐ Top Figure 6: GPS & Memory Modules ‐ Bottom Figure 7: Digital Shelf Sector Card – Top Figure 8: Digital Shelf Sector Card – Bottom Figure 9: Digital Shelf Power Supply Module Figure 10: 12VDC Power Supply

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: IPWireless 2.5 GHz Node B Model: VS/VT To: FCC Part 27: 2008 Subpart C Test Report Serial No: RFI/RPT2/RP75540JD01A This Test Report Supersedes Test Report Serial No: RFI/RPT1/RP75540JD01A This Test Report Is Issued Under The Authority Of Brian Watson, Operations Director: Checked By: Nigel Davison Signature: Date of Issue: 04 February 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI/RPT2/RP75540JD01A ISSUE DATE: 04 FEBRUARY 2010 Page 2 of 92 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI/RPT2/RP75540JD01A ISSUE DATE: 04 FEBRUARY 2010 RFI Global Services Ltd Page 3 of 92 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 7 4. Operation and Monitoring of the EUT during Testing ............................................................. 10 5. Measurements, Examinations and Derived Results ................................................................ 11 6. Measurement Uncertainty .......................................................................................................... 91 Appendix 1. Test Equipment Used ................................................................................................92 TEST REPORT SERIAL NO: RFI/RPT2/RP75540JD01A ISSUE DATE: 04 FEBRUARY 2010 Page 4 of 92 RFI Global Services Ltd 1. Customer Information Company Name: IPWireless (UK) Ltd Address: Unit 7 Greenways Business Park Bellinger Close Chippenham Wilts SN15 1BN TEST REPORT SERIAL NO: RFI/RPT2/RP75540JD01A ISSUE DATE: 04 FEBRUARY 2010 RFI Global Services Ltd Page 5 of 92 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR27 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2008: Part 27 Subpart C (Miscellaneous Wireless Communication Services) Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 16 November 2009 to 22 November 2009 2.2. Summary of Test Results – High & Low Chip Rates FCC Reference (47CFR) Measurement Port Type Result Part 15.207 Transmitter AC Conducted Spurious Emissions AC Mains Parts 2.1046, 27.50(h)(1) Transmitter Conducted Carrier Output Power and Equivalent Isotropic Radiated Power (EIRP) Antenna Terminals Part 27.54 Transmitter Frequency Stability (Temperature & Voltage Variation) Antenna Terminals Part 2.1049 Transmitter Occupied Bandwidth Antenna Terminals Parts 2.1051, 27.53 Transmitter Conducted Emissions - Channel Edge Antenna Terminals Parts 2.1051, 27.53 Transmitter Conducted Emissions Antenna Terminals Parts 2.1051, 27.53 Transmitter Conducted Emissions at Band Edges Antenna Terminals Parts 2.1051, 27.53 Transmitter Radiated Spurious Emissions Antenna Parts 2.1051, 27.53 Transmitter Radiated Spurious Emissions at Band Edges Antenna Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI/RPT2/RP75540JD01A ISSUE DATE: 04 FEBRUARY 2010 Page 6 of 92 RFI Global Services Ltd 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2003) Title: American National Standard Methods of Measurement of Electromagnetic Emissions from Low Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI/RPT2/RP75540JD01A ISSUE DATE: 04 FEBRUARY 2010 RFI Global Services Ltd Page 7 of 92 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Description: Radio Shelf Brand Name: IPWireless Model Name or Number: VS Serial Number: VS1J724001Y12 FCC ID Number: PKTNODEBVS1 Date of Receipt: 16 November 2009 Description: Digital Shelf Brand Name: IPWireless Model Name or Number: VT Serial Number: VT1J736009517 FCC ID Number: N/A Date of Receipt: 16 November 2009 Description: Sector card 2 (part of VT digital shelf) Brand Name: IPWireless Model Name or Number: Sector card Serial Number: VU1J73700RV17 Date of Receipt: 16 November 2009 3.2. Description of EUT The equipment under test was a Node B, FDD wireless base station transceiver 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: RFI/RPT2/RP75540JD01A ISSUE DATE: 04 FEBRUARY 2010 Page 8 of 92 RFI Global Services Ltd 3.4. Additional Information Related to Testing Power Supply Requirement: -48.0 V DC ±15% Type of Unit: FDD Wireless base station transceiver Modulation Type: QPSK, 16QAM and 64QAM Duty Cycle: 80% Antenna Ports: Two x 7/16 female. Marked ANT 1 and ANT 2 Antenna Gain: Up to +20 dBi (Stated) HIGH CHIP RATE Chip Rate: 7.68 Mcps Declared Channel Bandwidth: 11 MHz Transmit / Receive Frequency Range: 2496 MHz to 2690 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 12507 2501.4 Middle 12965 2593.0 Transmit / Receive Channels Tested: Top 13420 2684.6 LOW CHIP RATE Chip Rate: 3.84 Mcps Declared Channel …
