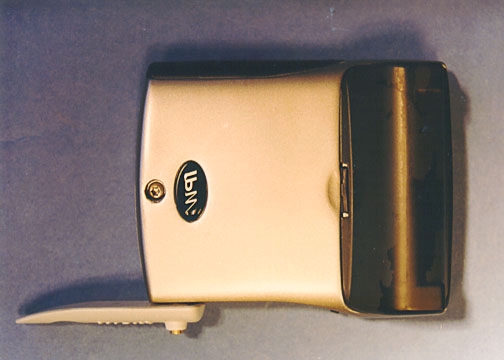

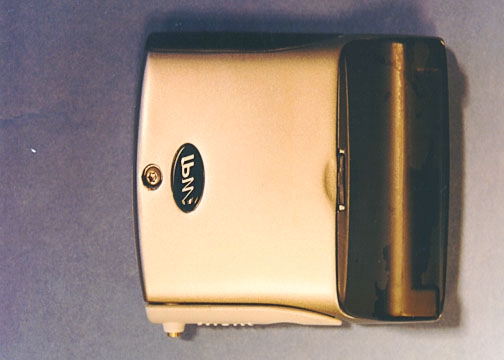

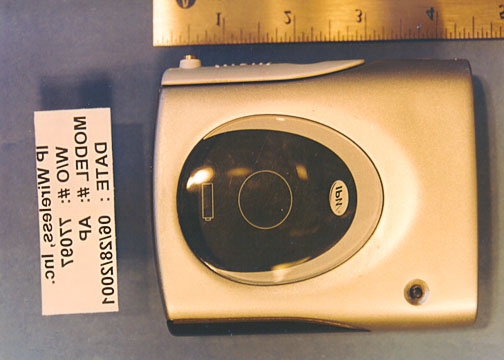

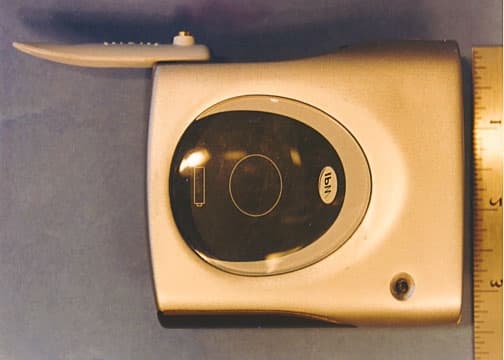

PKTP1BAPBroadband Modem

[IPWireless] Broadband Modem User Guide – Draft v.3 1 Model AP Broadband Modem User Guide – Draft Version 3 June 29, 2001 [IPWireless] Broadband Modem User Guide – Draft v.3 2 Information in this document and the products described are subject to change without notice. © 2000-2001 [IPWireless], Inc. All rights reserved. Reproduction, alteration, or distribution in any manner whatsoever without the written permission of [IPWireless] Inc., is strictly forbidden. Trademarks used in this text: the [IPWireless] logo, icon, and [IPWireless] Broadband Modem are trademarks of [IPWireless], Inc.; Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. [IPWireless], Inc., disclaims any proprietary interest in trademarks and trade names other than its own. Printed in the U.S.A. June 2001Part No. IPW-0029 [IPWireless] Broadband Modem User Guide – Draft v.3 3 Table of Contents Introduction ........................................................................................................................................6 Technical Support.............................................................................................................................................6 Chapter 1 – Safety and Care Instructions .............................................................8 Safety Guidelines for Power Connection.........................................................................................................8 Safety Guidelines for the [IPWireless] Broadband Modem.............................................................................8 Exposure to Radio Frequency Signals..............................................................................................................9 RF Safety Information...................................................................................................................................9 FCC Radio Frequency Interference Statement...........................................................................................9 Electronic Emission Notice............................................................................................................................9 Care and Cleaning Guidelines..........................................................................................................................9 Chapter 2 - Getting Started ...............................................................................................11 Required Equipment.......................................................................................................................................11 Package Contents............................................................................................................................................11 Computer Interface Cable...............................................................................................................................11 AC Power Adapter.........................................................................................................................................11 Installation CD................................................................................................................................................11 Quick Start Guide...........................................................................................................................................11 Other Informational Material.........................................................................................................................11 Key Areas on Your [IPWireless] Broadband Modem....................................................................................13 Chapter 3 – Installation and Registration ...........................................................15 Support the [IPWireless] Broadband Modem Using the Stand......................................................................15 Connect the AC Power Adapter.....................................................................................................................15 Find the Best Radio Signal.............................................................................................................................16 Install the [IPWireless] PC Software..............................................................................................................17 Copying the Modem Driver Files..................................................................................................................21 USB Cable Connection...................................................................................................................................21 RS-232 Serial Cable Connection....................................................................................................................22 Connect the RS-232 Serial Cable...................................................................................................................24 Perform Registration.......................................................................................................................................24 [IPWireless] Broadband Modem User Guide – Draft v.3 4 Chapter 3 – Connect to the Internet .........................................................................26 Establish Connection to the Internet...............................................................................................................27 Appendix A – Troubleshooting Tips .........................................................................28 Troubleshooting Tips......................................................................................................................................28 T HE P OWER BUTTON IS ON BUT THE DISPLAY DOES NOT ILLUMINATE ...............................................28 N O S IGNAL R ING INDICAT…

Text truncated - open the document above for the full version.

User Equipment – Product Labelling The following labels are placed on the product - RF Exposure Caution Label Part No.: UEB-060-L - Product & Approvals Label Part No.: UEB-037-L 20cm ( 8 i nches) i s re qui red between thi s devi ce & all per sons 47CFR1.13 07&1 .1310 a mi ni mum separ ati on di stance of To comply with FCC RF exposure r equi rements i n 20cm (8 inche s) is require d betwee n this device & all persons 47CFR1.1 307&1 .1310 a min imum sep ara tion distance of To co mply with FCC RF exposu re requ iremen ts in SCALE 3:1 RF Exposure Caution Label Position part no.: UEB-060-L Product Approval label The following information shall be on the certification label 1. UL mark and Listed number – solid fill printed 2. FCC & FCC ID – solid fill printed Figure 1: AP - Approvals Label SCALE 2:1 FOR READING CLARITY IPWIRELESS - UEP1B 3G MODEM Complies with FCC Regulations Pa rt 15 FCC ID: PKTP1BAP LISTED 1AD3 BARCODE LABEL POSITION VOLTAGE: 5V DC CURRENT: 2.2A MODEL: APFREQUENCY: 2500MHz-2700MHz ORIGIN: UK Figure 2: Position of Product & Approvals Label Product/Approval Label part no.UEB-037-L Location beneath battery cover on PCB see below Figure 3: AP – Product & Approval Label Position Beneath Rear Battery Cover Product/Approval Label Location part no.:UEB-037-L Beneath battery cover on PCB

1250 Bayhill Drive, Suite 113 San Bruno Ca 94066 U.S.A. Telephone: (650) 794 2615 Facsim ile: (650) 794 2668 Email: r [email protected] August 15, 2001 RE: IPWireless Compliance with 47 C FR 21.122 To Whom it May Concern: Derivation of Data Rates to Show compliance to 47 CFR 21.122 The air interface employed by the Model AP uses complex spreading of the baseband data as a result of the complex direct sequence code division multiple access (DS- CDMA) multiplexing and QPSK modulation. The air interface chip rate used by the Model AP is 7.68 Mcps. Using QPSK and a spreading factor (SF) of one, the maximum baseband data rate supported by the AP is thus two times the chip rate, or 15.36 Mbps. To comply with 47CFR21.122, a bit rate of 10 Mbps is required. This is due to the necessary bandwidth being specified as 12 MHz, which includes 2 MHz of guard channel from adjacent channel transmitters. The Model AN air interface supports a maximum bit rate that is 28% higher than the specified requirement including the guard band, and is 53.6% higher than the requirement if the guard band is not included in the calculation as allo wed in 21.122 (a).

Page 1 of 52 Report No.: FC01-047 IPWIRELESS, INC. TEST REPORT FOR THE BROADBAND MODEM, MODEL AP FCC PART 21 SUBPART K AND FCC PART 15 SUBPART B SECTIONS 15.107 & 15.109 CLASS B COMPLIANCE DATE OF ISSUE: AUGUST 2, 2001 PREPARED FOR: IPWireless, Inc. 1250 Bayhill Drive Suite 113 San Bruno, Ca 94066 PREPARED BY: Joyce Walker CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 1009 W.O. No.: 77097 Date of test: June 18 - July 13, 2001 Report No.: FC01-047 This report contains a total of 52 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Page 2 of 52 Report No.: FC01-047 TABLE OF CONTENTS Administrative Information .........................................................................................................3 Summary of Results.....................................................................................................................4 Modifications Required for Compliance .....................................................................................4 Temperature and Humidity During Testing.................................................................................4 Approvals.....................................................................................................................................4 Equipment Under Test (EUT) Description ..................................................................................5 Equipment Under Test .................................................................................................................5 Peripheral Devices .......................................................................................................................5 2.1033(c)(3) User’s Manual.........................................................................................................6 2.1033(c)(4) Type of Emissions ..................................................................................................6 2.1033(c)(5) Frequency Range ....................................................................................................6 2.1033(c)(6) Operating Power .....................................................................................................6 2.1033(c)(7) Maximum Power Rating .........................................................................................6 2.1033(c)(8) DC Voltages............................................................................................................7 2.1033(c)(9) Tune-Up Procedure.................................................................................................7 2.1033(c)(10) Schematics and Circuitry Description ..................................................................7 2.1033(c)(11) Label and Placement .............................................................................................7 2.1033(c)(12) Submittal Photos ...................................................................................................7 2.1033(c)(13) Modulation Information........................................................................................7 2.1033(c)(14)/2.1046/21.904(e) RF Power Output & 2.1033(c)(14)/2.1049(i)/21.908(d) - Occupied Bandwidth..........................................................8 2.1033(c)(14)/2.1047(b) - Modulation Characteristics - Audio Frequency Response.................15 2.1033(c)(14)/2.1047(b) - Modulation Characteristics - Modulation Limiting Response ...........15 2.1033(c)(14)/2.1051/21.908(d) - Spurious Emissions at Antenna Terminal..............................16 2.1033(c)(14)/2.1053/21.908(d) - Field Strength of Spurious Radiation.....................................23 2.1033(c)(14)/2.1055/21.101 - Frequency Stability.....................................................................36 15.107 – AC Conducted Emissions .............................................................................................39 15.109 – Radiated Emissions .......................................................................................................48 Page 3 of 52 Report No.: FC01-047 CKC Laboratories, Inc. has received Certificates of Accreditation from the following agencies: A2LA (USA); DATech (Germany); BSMI (Taiwan); Nemko (Norway); and GOST (Russia). CKC Laboratories, Inc has received test site Registration Acceptance from the following agencies: FCC (USA); VCCI (Japan); and Industry Canada. CKC Laboratories, Inc. has received Letters of Acceptance through an MRA for the following agencies: ACA/NATA (Australia); SABS (South Africa); SWEDAC (Sweden); Radio Communications Agency (RA); HOKLAS (Hong Kong); Bakom (Swiss); BIPT (Belgium); Denmark Telestyrelsen; RvA (Netherlands); SEE (Luxembourg) SITTEL (Bolivia); and UKAS (UK). ADMINISTRATIVE INFORMATION DATE OF TEST: June 18 - July 13, 2001 DATE OF RECEIPT: June 18, 2001 PURPOSE OF TEST: To demonstrate the compliance of the Broadband Modem, Model AP with the requirements for FCC Part 21 Subpart K and FCC Part 15 Subpart B Sections 15.107 & 15.109 Class B devices. TEST METHOD: ANSI C63.4 (1992) MANUFACTURER: IPWireless, Inc. 1250 Bayhill Drive Suite 113 San Bruno, Ca 94066 REPRESENTATIVE: Roger Quayle TEST LOCATION: CKC Laboratories, Inc. 1653 Los Vibros Road, Hollister, CA 95023 b 5473A Clouds Rest, Mariposa, CA 95338 Page 4 of 52 Report No.: FC01-047 SUMMARY OF RESULTS As received, the IPWireless, Inc. Broadband Modem, Model AP was found to be fully compliant with the following standards and specifications: United States ! FCC Part 15 Subpart B Section 15.107 and 15.109 Class B ! FCC Part 21 Subpart K ! FCC Part 74 Subpart I, using FCC Part 21 Subpart K ! ANSI C63.4 (1992) method The results in this report apply only to the items tested, as identified herein. MODIFICATIONS REQUIRED FOR COMPLIANCE Production EMI gasketing added to periphery of EUT enclosure. TEMPERATURE AND HUMIDITY DURING TESTING The temperature during testing was …

Text truncated - open the document above for the full version.

IP Wireless, Inc.WO: 77097 06/18/2001Model: AP Test Lab: Hollister, Site A FCC 21.908(d) Sample Calculations for Specification Limits Using the Relative Method in 21.908(e). Definitions: P = channel power in dBW normalized to 6MHz (for value, refer to Emissions Mask Data Sheet, Page NN, “Power normalized to 6MHz band” for each channel). Pa = average power @ 100kHz (for value, refer to Emissions Mask Data Sheet, Page NN, “Pwr 100k” for each channel). This average power value is used with the average value readings at the band/channel edges for calculating the specification limits. Puce = upper channel edge power limit Plce = lower channel edge power limit Formulas: Puce = Pa – 25 dB Plce = Pa – 25 dB Puce + 250 kHz = Pa – 33+10log(P) dB Plce – 250 kHz = Pa – 33+10log(P) dB Puce + 3 MHz = Pa – 43+10log(P) dB Plce – 3 MHz = Pa – 43+10log(P) dB Since the all measurements were performed using RBW = 100 kHz, no bandwidth correction was necessary. Sample calculations: (shown for the upper channel side only— the lower side limits will be identical) Channel = 2506 MHz P = -12.40 dBW Pa = -11.87 dBm Puce = -11.87 – 25 dBc = -36.87 dBm Puce + 250 kHz = -11.87 – 20.60 dBc = -32.47 dBm Puce + 3 MHz = -11.87 – 30.60 dBc = -42.47 dBm Channel = 2596 MHz P = -12.30 dBW Pa = -11.37 dBm Puce = -11.37 – 25 dBc = -36.37 dBm Puce + 250 kHz = -11.37 – 20.70 dBc = -32.07 dBm Puce + 3 MHz = -11.37 – 30.70 dBc = -42.07 dBm Channel = 2680 MHz P = -12.10 dBW Pa = -11.03 dBm Puce = -11.03 – 25 dBc = -36.03 dBm Puce + 250 kHz = -11.03 – 20.90 dBc = -31.93 dBm Puce + 3 MHz = -11.03 – 30.90 dBc = -41.93 dBm
