PKTP1CGYWirelaee Broadband Modem

PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com I P W i r e l e s s B r o a d b a n d M o d e m U s e r G u i d e 1 IPWireless Broadband Modem 1C User Guide Version 1.0 Feb 18, 2003 PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com I P W i r e l e s s B r o a d b a n d M o d e m U s e r G u i d e 2 Information in this document and the products described are subject to change without notice. © 2000-2003 IPWireless, Inc. All rights reserved. Reproduction, alteration, or distribut ion in any manner whatsoeve r without the written permission of IPW ireless Inc., is strictly forbidden. Trademarks used in this text : the IPW ireless logo, icon, and IPW ireless Broadband Modem are tr ademarks of IPW ireless, Inc.; Microsoft, W indows, and W indows NT are registered trademarks of Microsoft Corporation. Other trademarks and trade names may be used in this docum ent to refer to either the ent ities claiming the marks and names or the ir products. IPW ireless, Inc., disc laims any proprietary interest in trademarks and trade names other tha n its own. Feb 2003 Part No. IPW-0392 PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com I P W i r e l e s s B r o a d b a n d M o d e m U s e r G u i d e 3 Table of Contents Introduction............................................................................................................................................6 Technical Support.....................................................................................................................................6 Chapter 1 – Safety and Care Instructions..............................................................................................7 Safety Guidelines for Power Connection....................................................................................................7 Safety Guidelines for the IPWireless Broadband Modem...........................................................................7 Exposure to Radio Frequency Signals........................................................................................................8 Care and Cleaning Guidelines....................................................................................................................8 Chapter 2 - Getting Started..................................................................................................................10 Required Equipment................................................................................................................................10 Package Contents....................................................................................................................................11 Computer Interface Cable........................................................................................................................11 AC Power Adapter..................................................................................................................................11 Installation CD........................................................................................................................................11 External Stand.........................................................................................................................................11 Other Informational Material...................................................................................................................11 Key Areas on Your IPWireless Broadband Modem..................................................................................12 Chapter 3 – Installation and Registration............................................................................................14 Support the IPWireless Broadband Modem Using the Built-in Stand........................................................14 Support the IPWireless Broadband Modem Using the External Stand.......................................................15 Connect the AC Power Adapter...............................................................................................................16 Find the Best Radio Signal......................................................................................................................16 Install the IPWireless PC Software..........................................................................................................18 Connect Cable between the Modem and the Computer.............................................................................18 USB Cable Connection............................................................................................................................19 Ethernet Cable Connection......................................................................................................................19 Perform Registration...............................................................................................................................19 Windows Operating System Patches........................................................................................................21 Windows Internet Configuration Setting..................................................................................................21 Chapter 4 – Connect to the Internet.....................................................................................................22 Establishing the Connection to the Internet..............................................................................................24 Appendix A – Troubleshooting Tips.....................................................................................................26 Troubleshooting Tips..............................................................................................................................26 THE POWER BUTTON IS…

Text truncated - open the document above for the full version.

3-6 Charlton Business Park Crudwell Road Malmesbury Wiltshire SN16 9RU Telephone: 01666 828700 Facsimile: 01666 828701 IPWireless U.K. Ltd Registered Office as above Reg. No: 4218312 VAT No: 771 3836 15 4 th March 2003 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: PKTP1CGY It is requested that the following information is to be held confidential on behalf of IPWireless (UK) Ltd. FCC Rules Part 0.459 refers. UE P1C FCC Information 1 file 27 pages UE P1C Block Diagram 1 file 4 pages All Schematics 2 files - All Bills of Materials 3 files - The above identified materials contain trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Yours sincerely Peter Warburg Technical Associate.

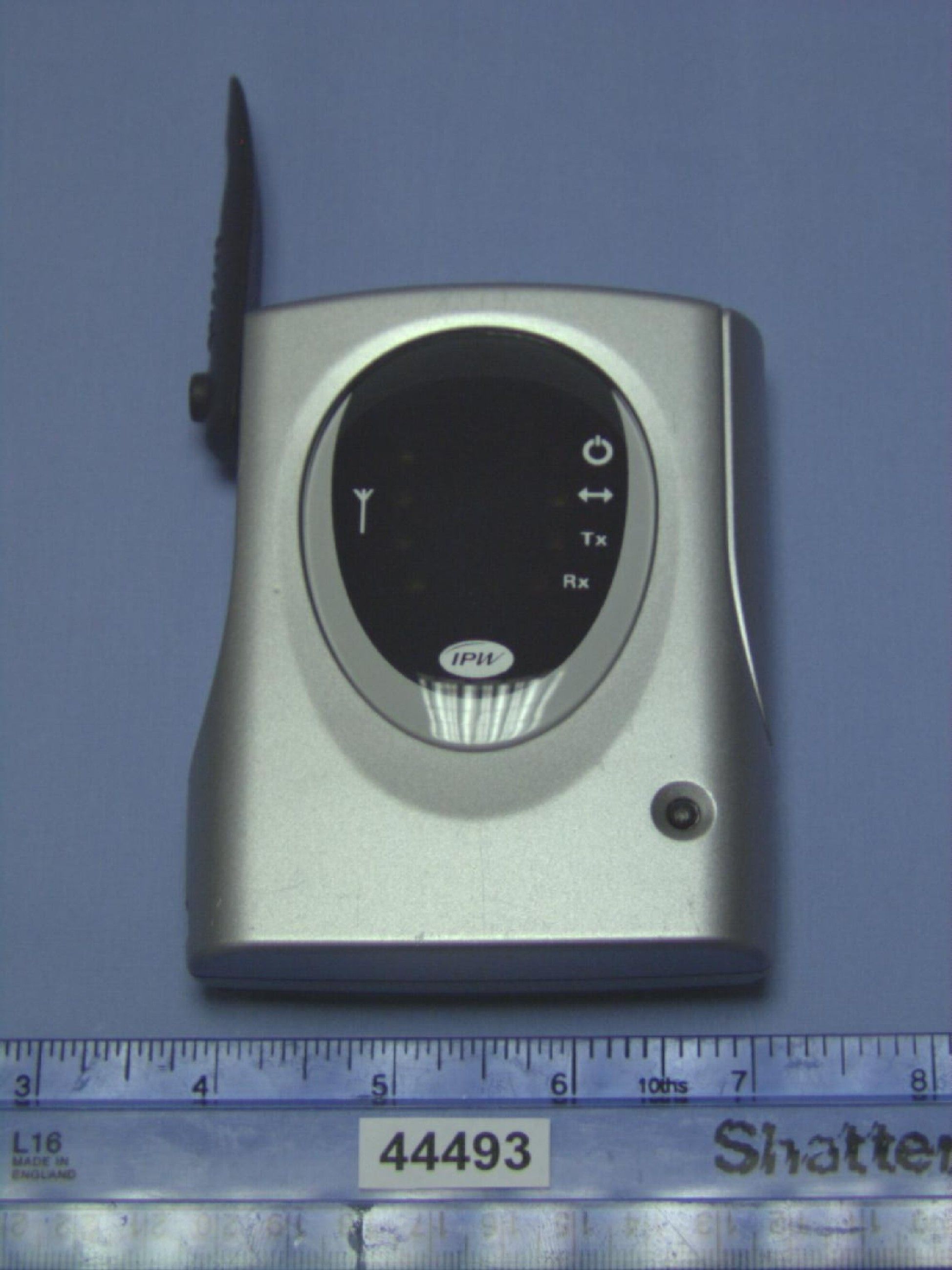

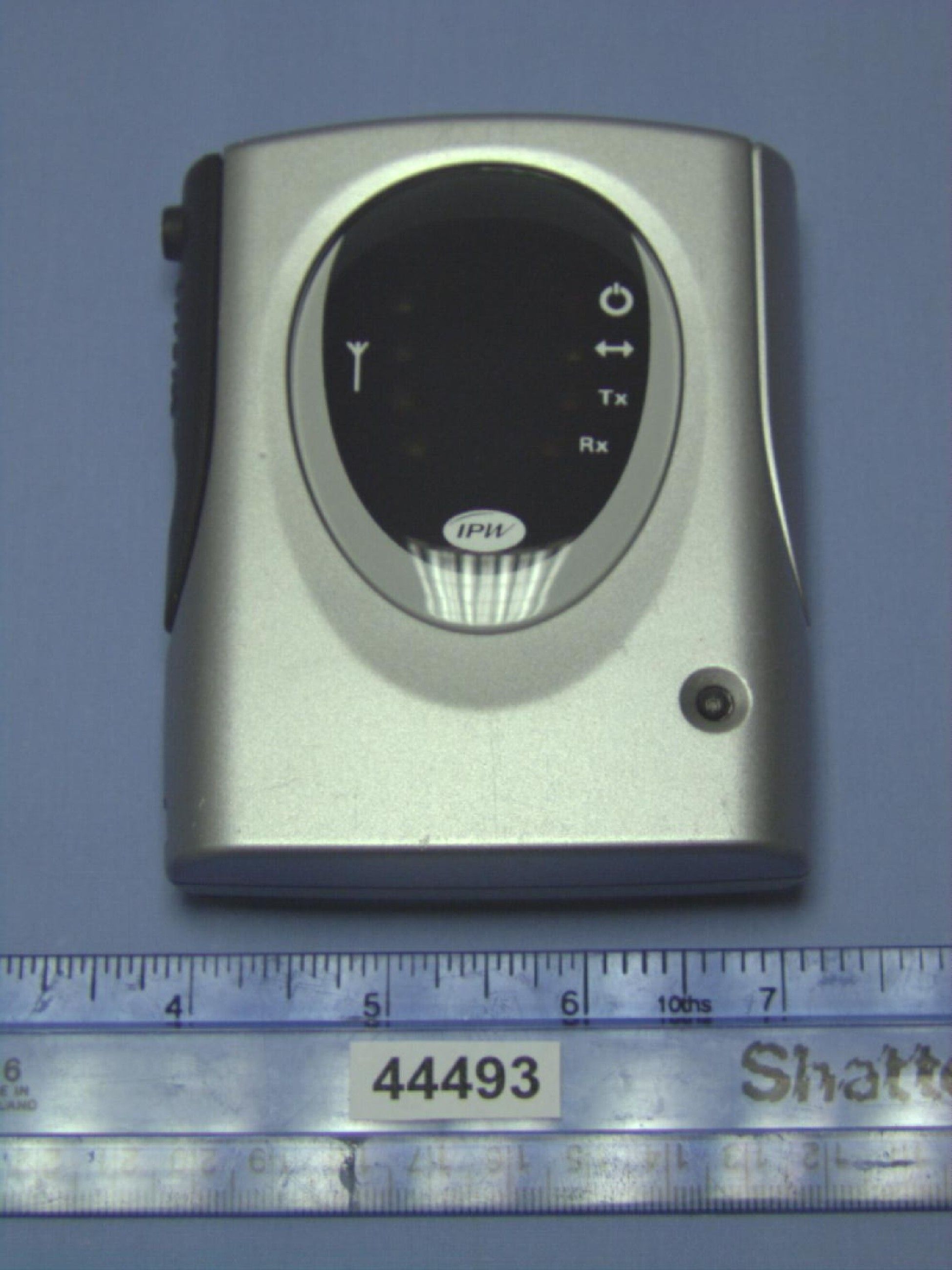

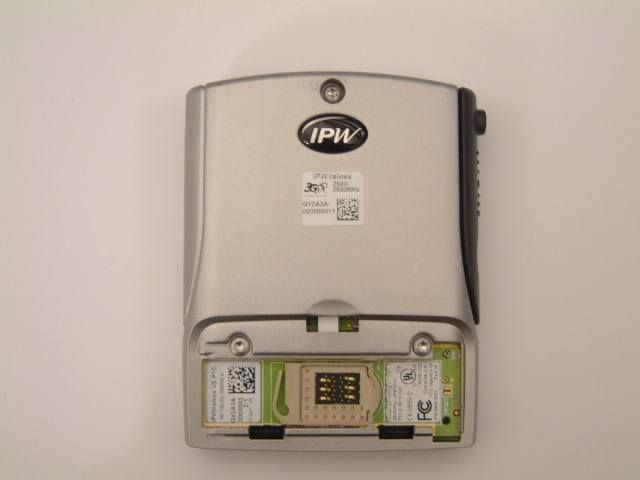

PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com C o m p l i e s w i t h F C C r e g u l a t i o n s P a r t 1 5 . I T E U L I S T E D 1 A D 3 L M o d e l : G Y R a t i n g : 5 V D C / 1 . 0 A 2 5 0 0 M H z - 2 6 9 0 M H z F C C I D : P K T P 1 C G Y 0 8 8 9 !

PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com I P W i r e l e s s U E P 1 C 3 5 X X X X - 0 0 - 0 0 0 4 8 8 - 0 X X X X X X - 0 0 0 0 0 0 1 X X O r i g i n : U K

PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com I P W i r e l e s s 2 5 0 0 M H z t o 2 6 8 6 M H z O r i g i n : U K X X X X X X - 0 0 0 0 0 0 1 X X

This device is set at the factory, there is no tune-up procedure.

Units 3-6 Charlton Business Park Crudwell Road Malmesbury Wiltshire SN16 9RU Telephone: 01666 828700 Facsimile: 01666 828701 IPWireless UK Limited Registered Office: Units 3-6, Charlton Business Park, Crudwell Road, Malmesbury SN16 9RU Registered in England No. 4218312 4 th March 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Dear Sir/Madam RE: Maximum Permissible Exposure (MPE) for the IPWireless Broadband Modem Model No: GY The FCC identification number for this device is PKTP1CGY. Background The IPWireless Inc. broadband wireless modem Model No: GY is intended for connection to a personal computer, this can either be a desktop or laptop computer. To provide information to ensure the device is used in a safe manner, the power density at a distance of 20cm from the radiating structure of the device to the user or any other person has been calculated based on the MPE limits for the general population/uncontrolled exposure category. The calculations below take into account the worst case normal operation of the device i.e. the user is using the full data bandwidth of the device. The RF interface operates using a time division duplex implementation whereby the modem transmits using 4 out of a total of 15 timeslots in a radio frame. This provides good justification for using source based averaging of the transmitter power as defined in rule 2.1091 section (d) subsection (2). Applicable Limits to RF Exposure The RF exposure limits for radio transmitters are established in 47CFR1.1310. These limits are established for different frequency ranges and the type of environment the device is expected to be used in. For the IPWireless Inc. broadband wireless modem Model No. GY, the applicable power density limit is given in Table 1 part (b) as: 1 mW/cm 2 (general population, uncontrolled exposure) Model GY Device Parameters used in MPE Calculation The Model GY has a maximum conducted output power to the antenna of +24dBm, the integral antenna gain is 2 dBi, providing a maximum EIRP of +26dBm. This emission is spread over 12 MHz of channel bandwidth, providing a maximum power level of +23dBm in a 6MHz MMDS channel. This unit is being qualified under the low power response station rules contained in both 47CFR21.908 (d) and 47CFR74.936 (f), which defines the maximum transmitter power limit of –6dBW EIRP in a 6MHz channel. This device operates in a 12 MHz channel and as such, the maximum EIRP allowed is –6dBW + 3dB = -3dBW EIRP. The maximum EIRP of the modem using the integral antenna is as follows: EIRP = +24dBm + 2dB (ant. gain) = +26dBm = -4dBW Therefore the EIRP complies with the –3 dBW limit allowed for a 12 MHz bandwidth emission for a low power response station. Distance to Power Density Limit Calculation For the purpose of calculating the MPE level at a distance of 20cm from the Model GY integral antenna, the –4 dBW (+26 dBm) EIRP value is used. The formula used to calculate the exposure level at a distance of 20cm is defined in FCC Bulletin 65. S = PG Equation (1) 4πR 2 Where: S= Power Density Limit of 1mW/cm2 P= Transmitter Power G= Numerical Antenna Gain R = Distance from Antenna The table below shows the calculation of power density at a distance of 20cm from the antenna to demonstrate compliance with the 1mW/cm 2 MPE limit defined for the general population/uncontrolled exposure environment. MPE distance calculation for PKTP1CGY Integral Antenna gain 2 dBi line loss 0 dB Effective antenna gain (ratio) 1.58 Model GY PA conducted output power 24 dBm 26 dBm Model GY maximum EIRP 397 mW Model GY maximum EIRP -4 dBW 21.908 (d) EIRP limit in 12 MHz bandwidth -3 dBW MPE limit from 1.1310, MMDS band 1 mW/cm 2 (general population, uncontrolled exposure) Power Density = (EIRP/(4*pi*distance from antenna)) Power Density at 20cm from Antenna = 0.079 mW/cm 2 (without source-based averaging) Source-based duty cycle adjustment Total timeslots in frame 15 Timeslots used for uplink transmit 4 Percent of uplink time device is transmitting 100% Average attenuation of signal (power control) 0 dB Power Density at 20cm from Antenna = 0.021 mW/cm 2 (with source-based averaging) Conclusion The table above shows the device meets the 1mW/cm 2 exposure limit at a distance 20cm from the integral antenna during worst case normal operation. The user guide provides instructions to the user of the modem to ensure operation of the device in a safe manner. Yours Sincerely, Peter Warburg Technical Associate

Units 3-6 Charlton Business Park Crudwell Road Malmesbury Wiltshire SN16 9RU Telephone: 01666 828700 Facsimile: 01666 828701 IPWireless UK Limited Registered Office: Units 3-6, Charlton Business Park, Crudwell Road, Malmesbury SN16 9RU Registered in England No. 4218312 15 th January 2002 Federal Communications Commission 445 12th Street SW Washington, DC 20554 To whom it may concern, RE: The application of Source Based Averaging to the RF Exposure Calculation The IPWireless UE P1C is a time division duplex W-CDMA based wireless modem and the design/operation is based on the UMTS 3GPP TDD air interface requirements. The air interface supports a radio frame length of 10ms, this radio frame is divided into 15 timeslots each of duration 666.67μS. As defined in the applicable 3GPP/ETSI documentation, of these 15 timeslots, timeslots 0-9 are assigned to the downlink (UE P1C receive) and timeslots 10-14 are assigned to the uplink (UE P1C transmit). Of the timeslots assigned to the uplink, timeslots 11-14 are used to transmit the subscriber’s data and control signals to the base station. Timeslot 10 is reserved for the call setup procedure as a call can only be initiated by the subscriber. Timeslot 10 transmits the Random Access CHannel to the base station as part of the call setup procedure, once the call setup procedure has been completed, the RACH is no longer transmitted for remaining duration of the call and the UE P1C only transmits on the remaining timeslots 11-14. 1 DL 2 DL 4 DL 3 DL 5 DL 0 DL 6 DL 7 DL 8 DL 9 DL 10 UL 11 UL 12 UL 13 UL 14 UL FACH DSCH DSCH DSCH DSCH BCH / FACH DSCHDSCHDSCHDSCHRACHUSCHUSCH USCH USCH Based on the inherent operation of the UE P1C, source based averaging has been applied to the MPE calculations with the unit transmitting on 4 out of 15 timeslots as this is normal operation of the unit when transmitting. Yours sincerely Peter Warburg Technical Associate IPWireless Inc.

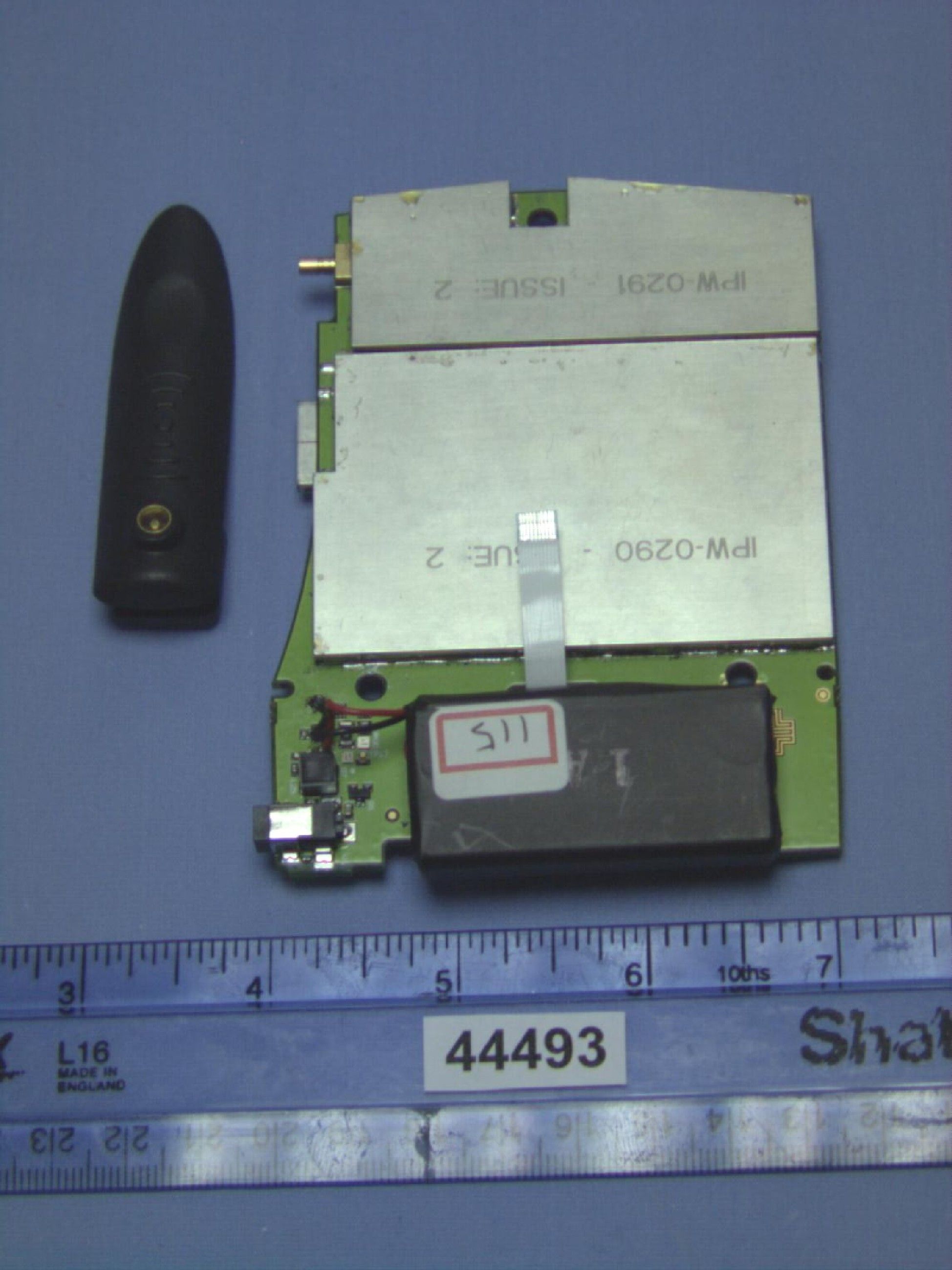

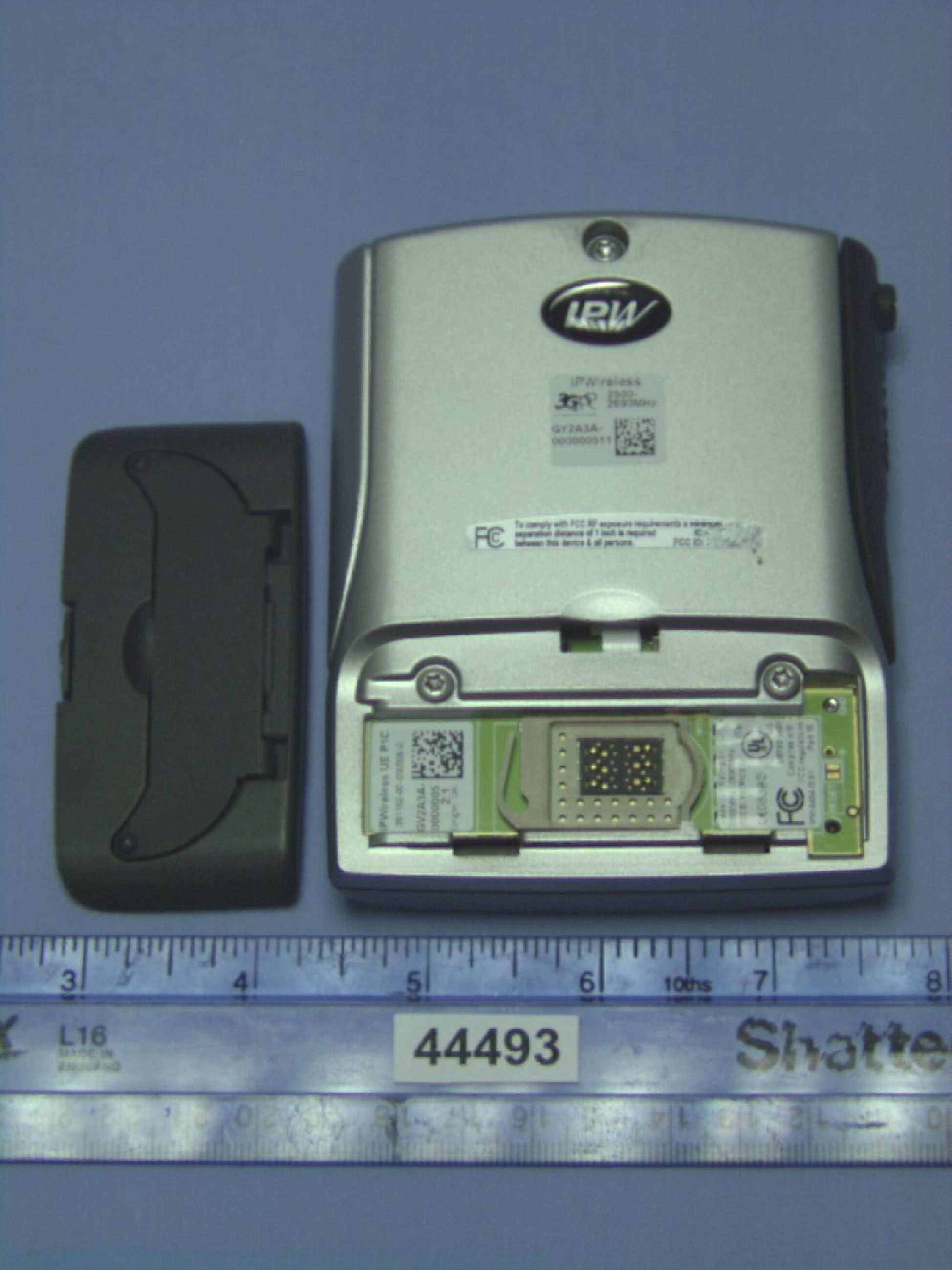

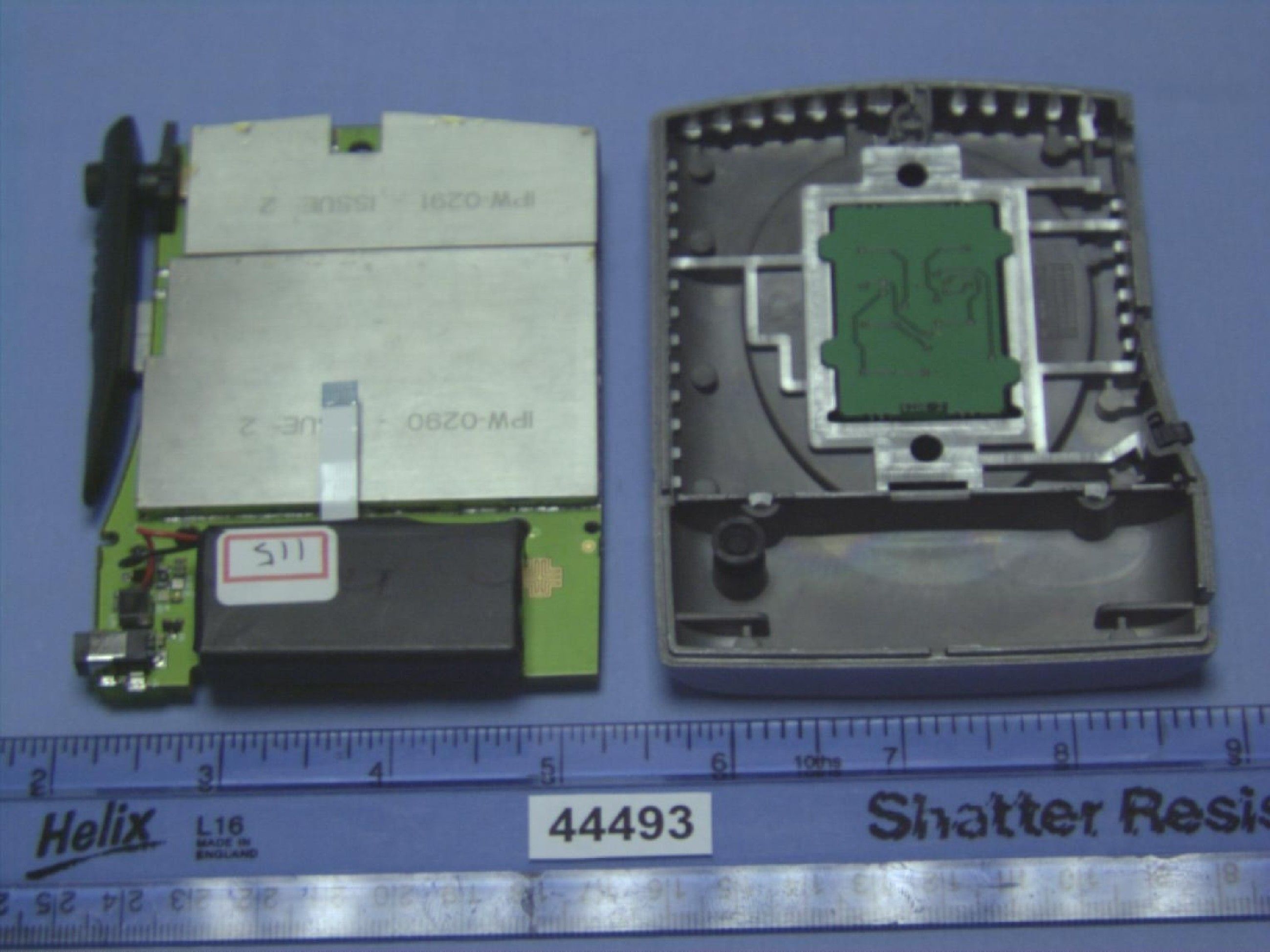

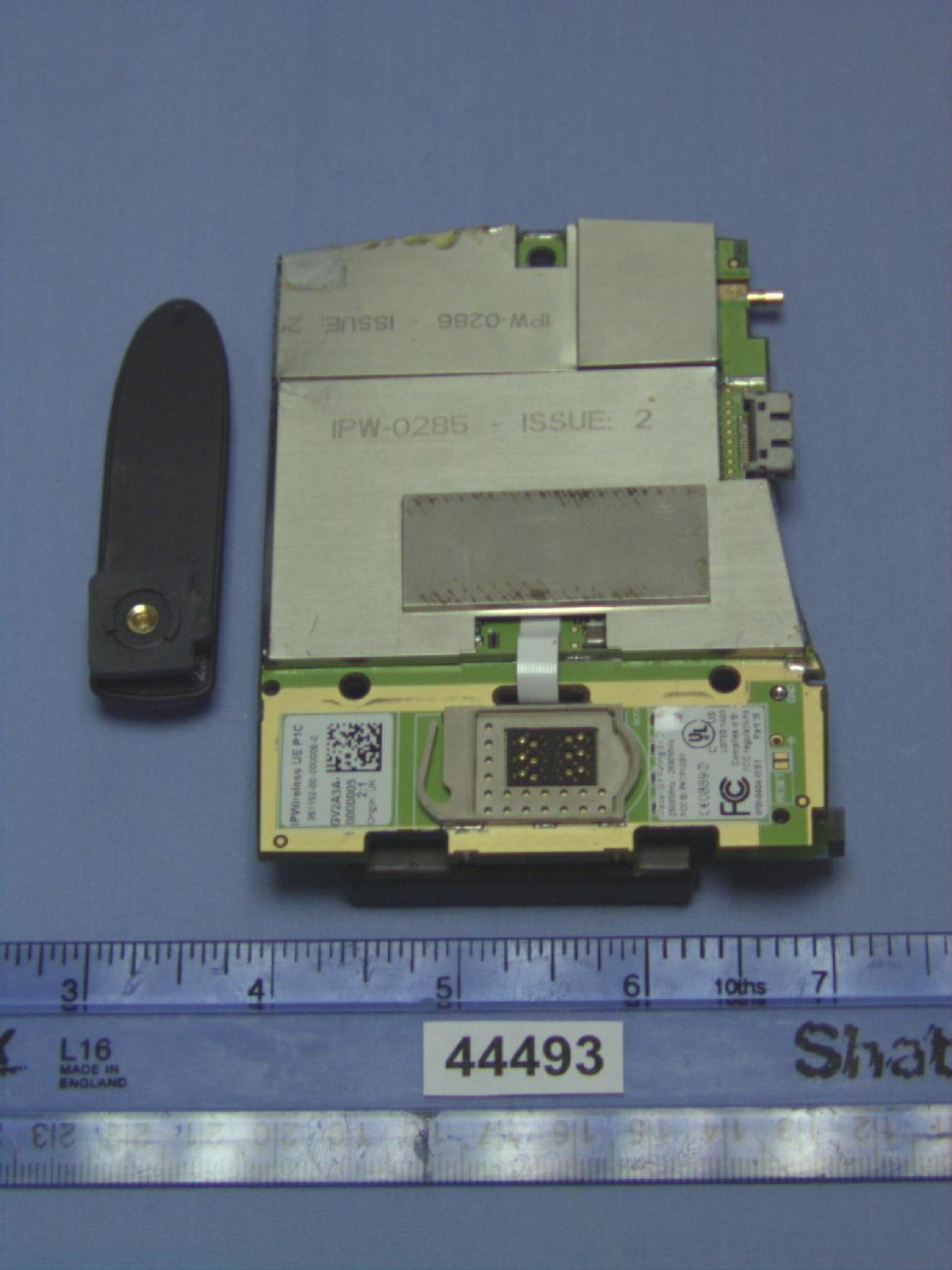

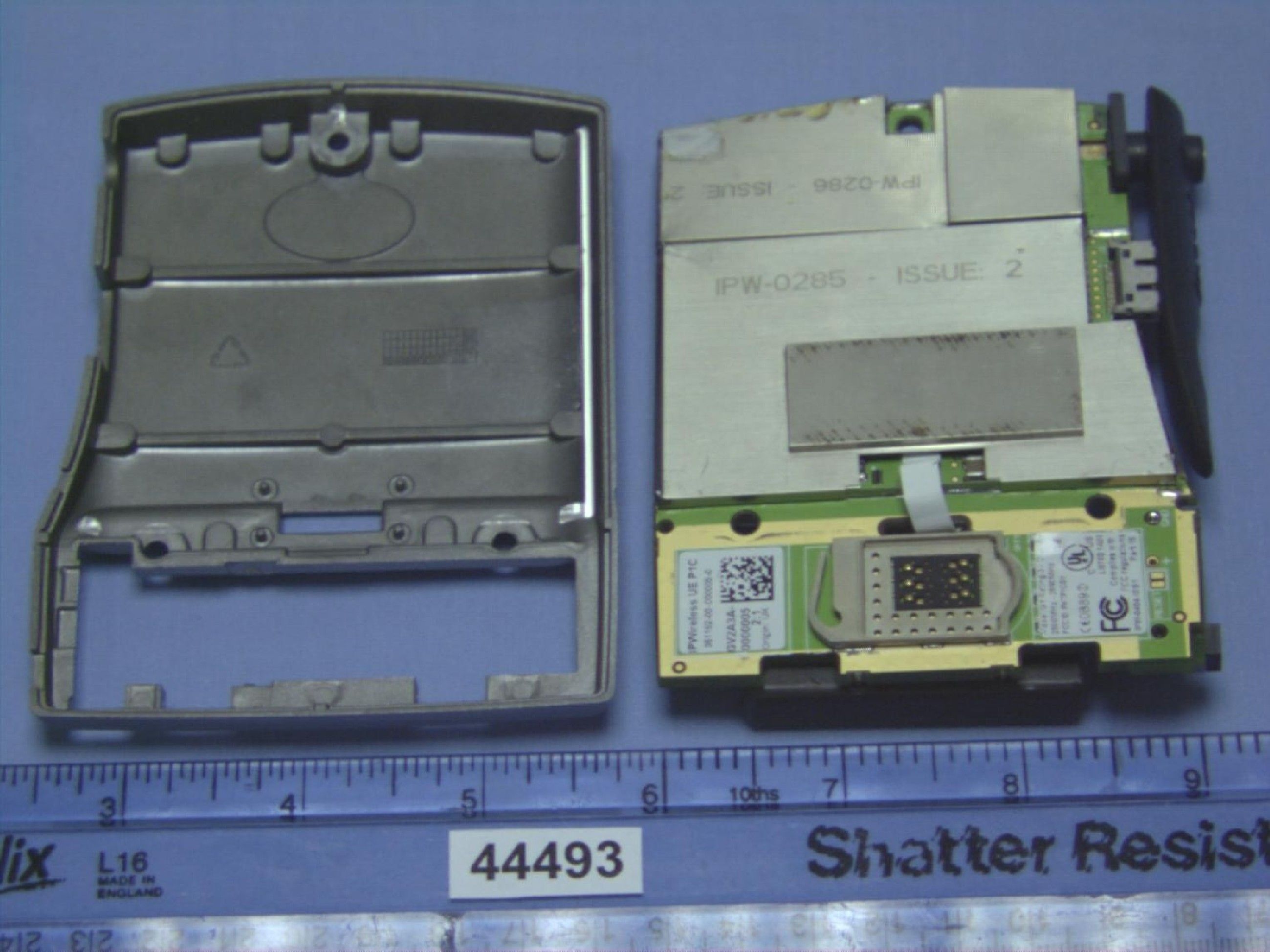

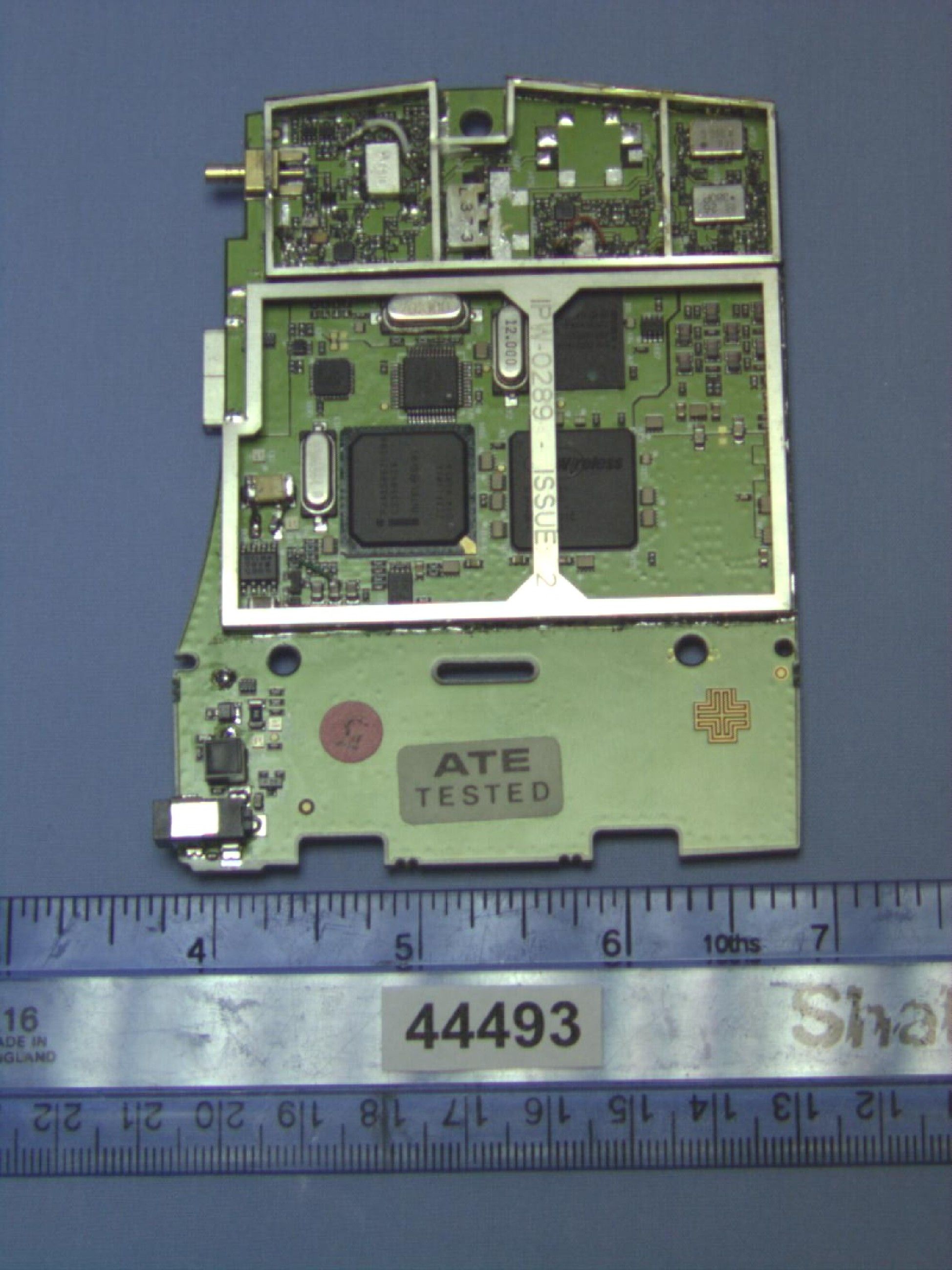

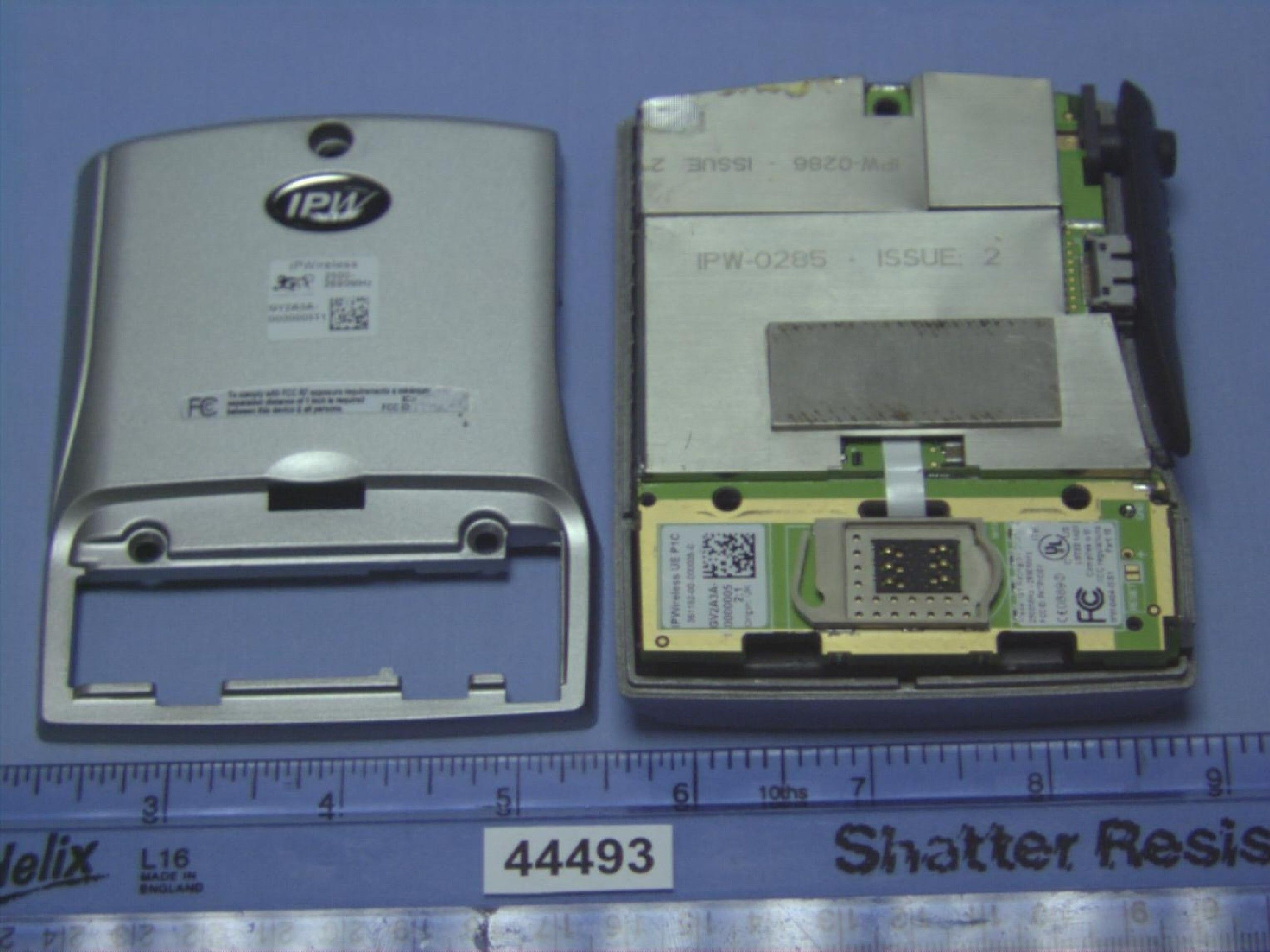

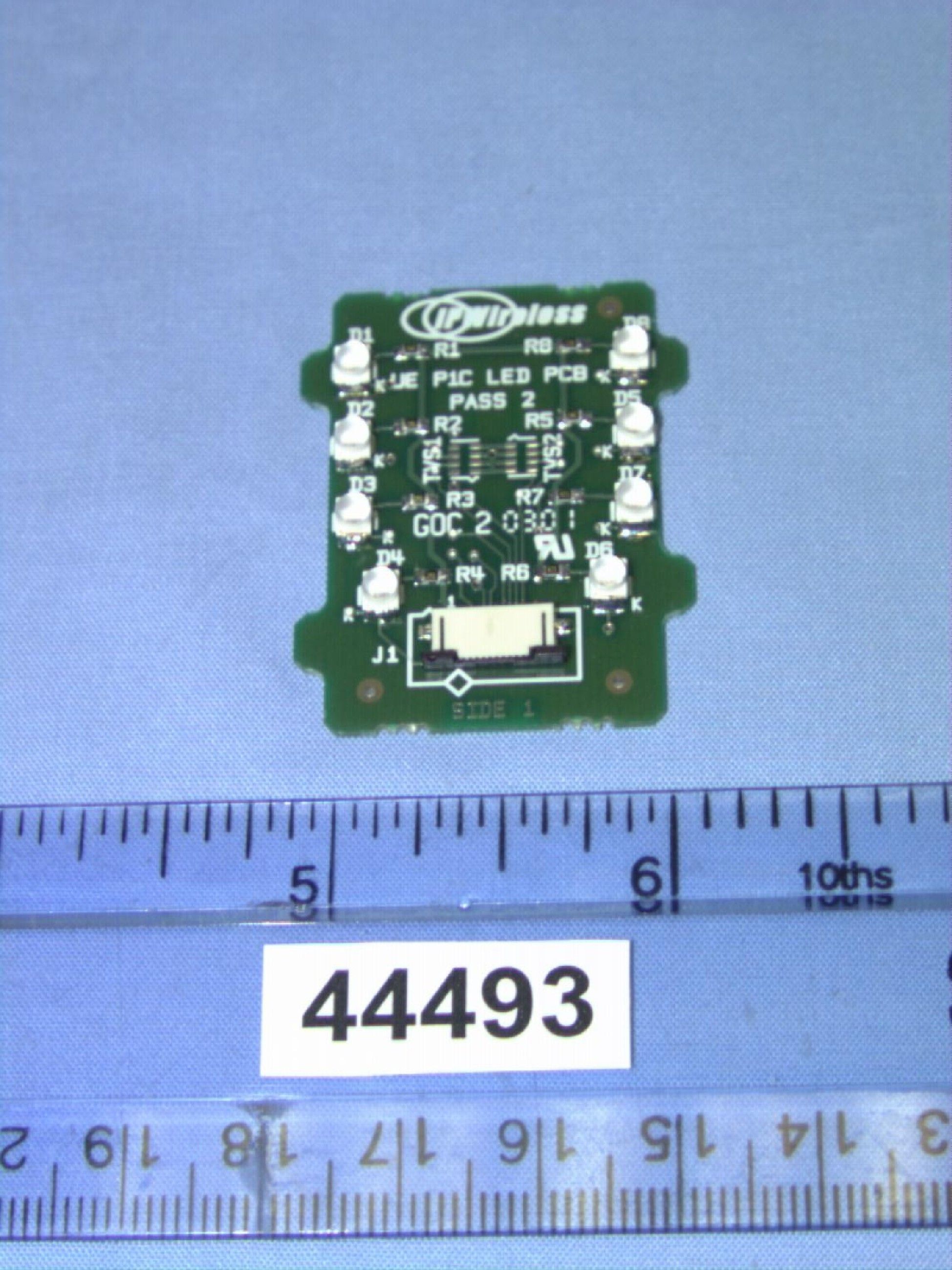

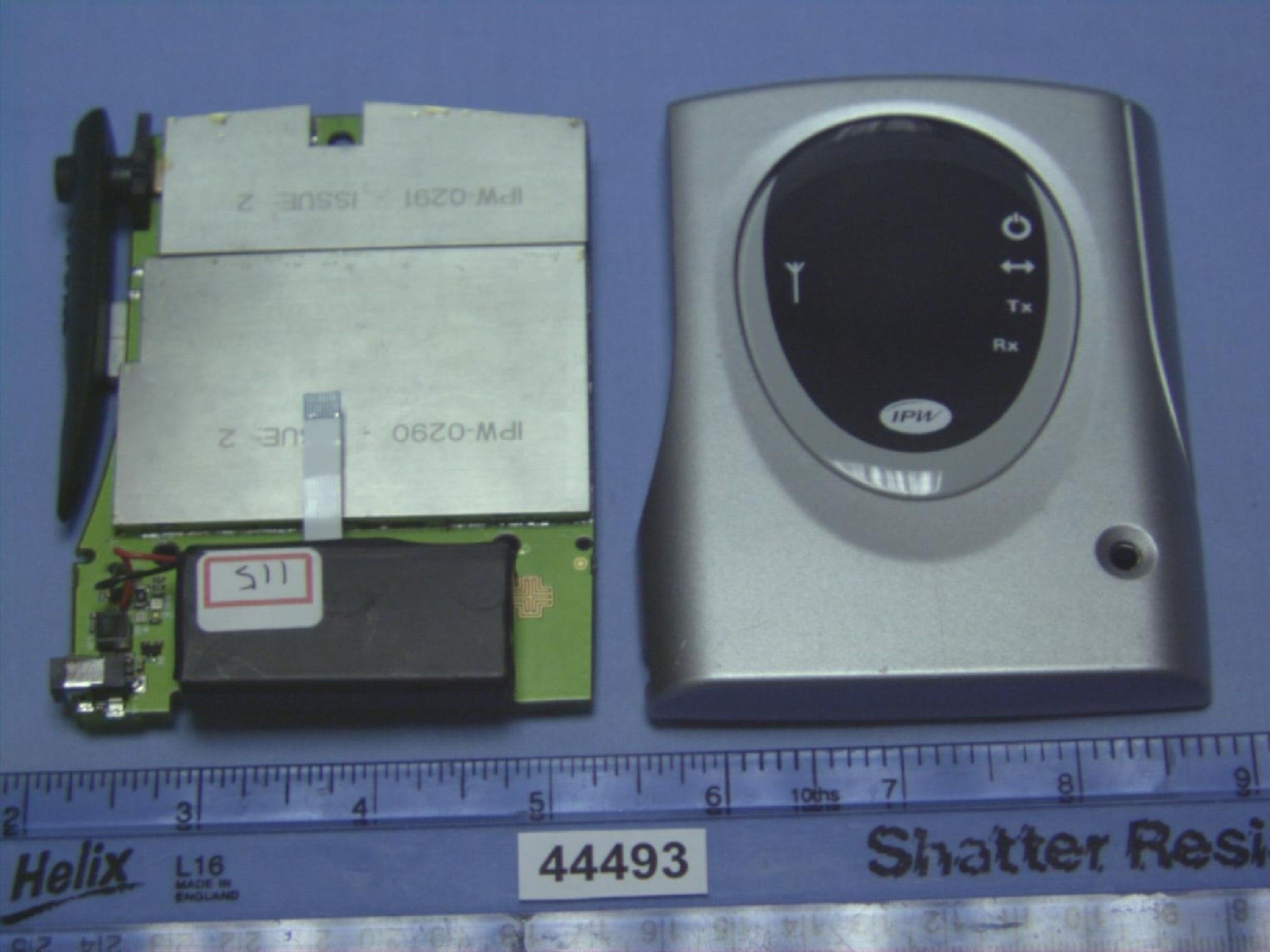

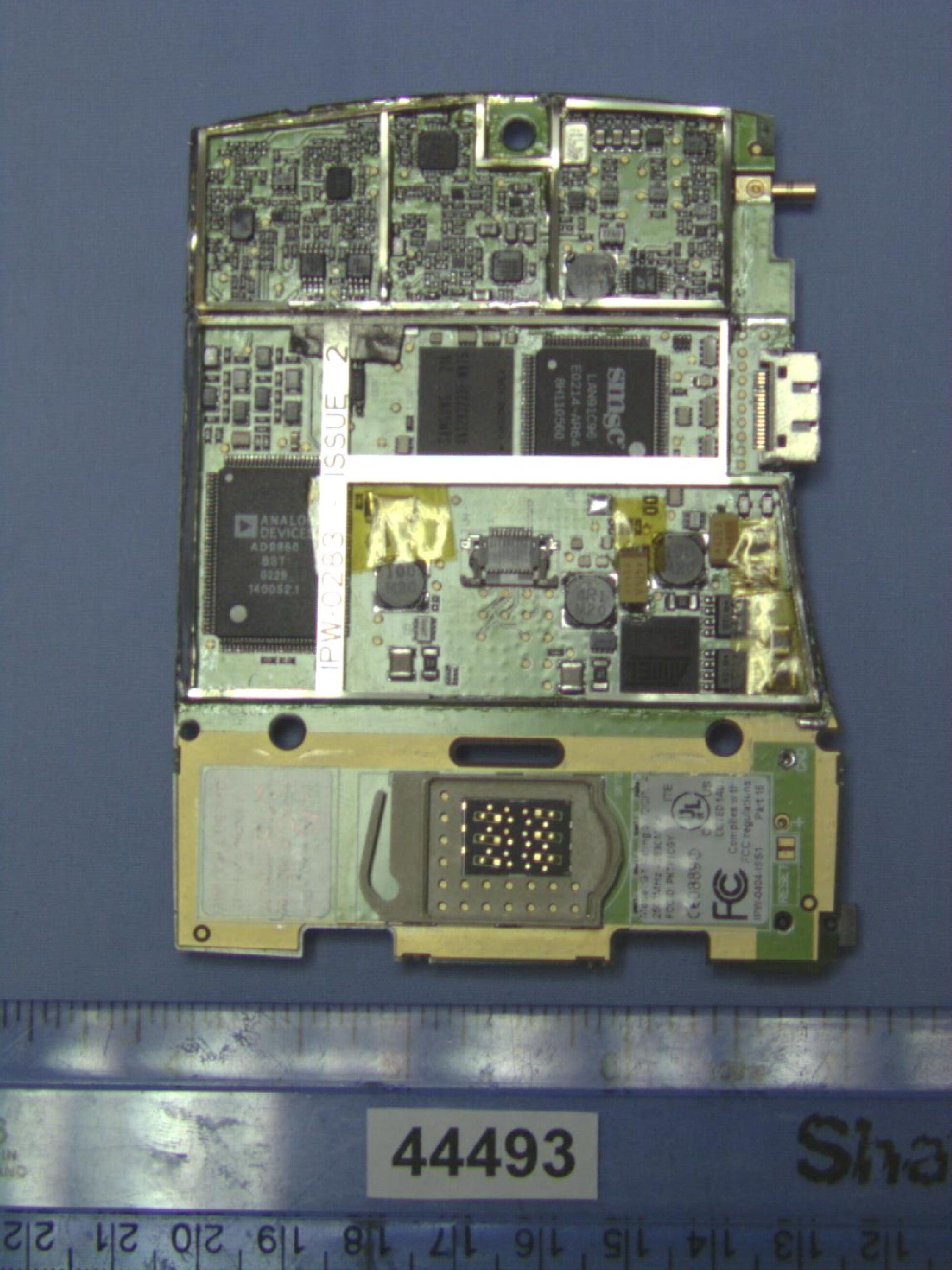

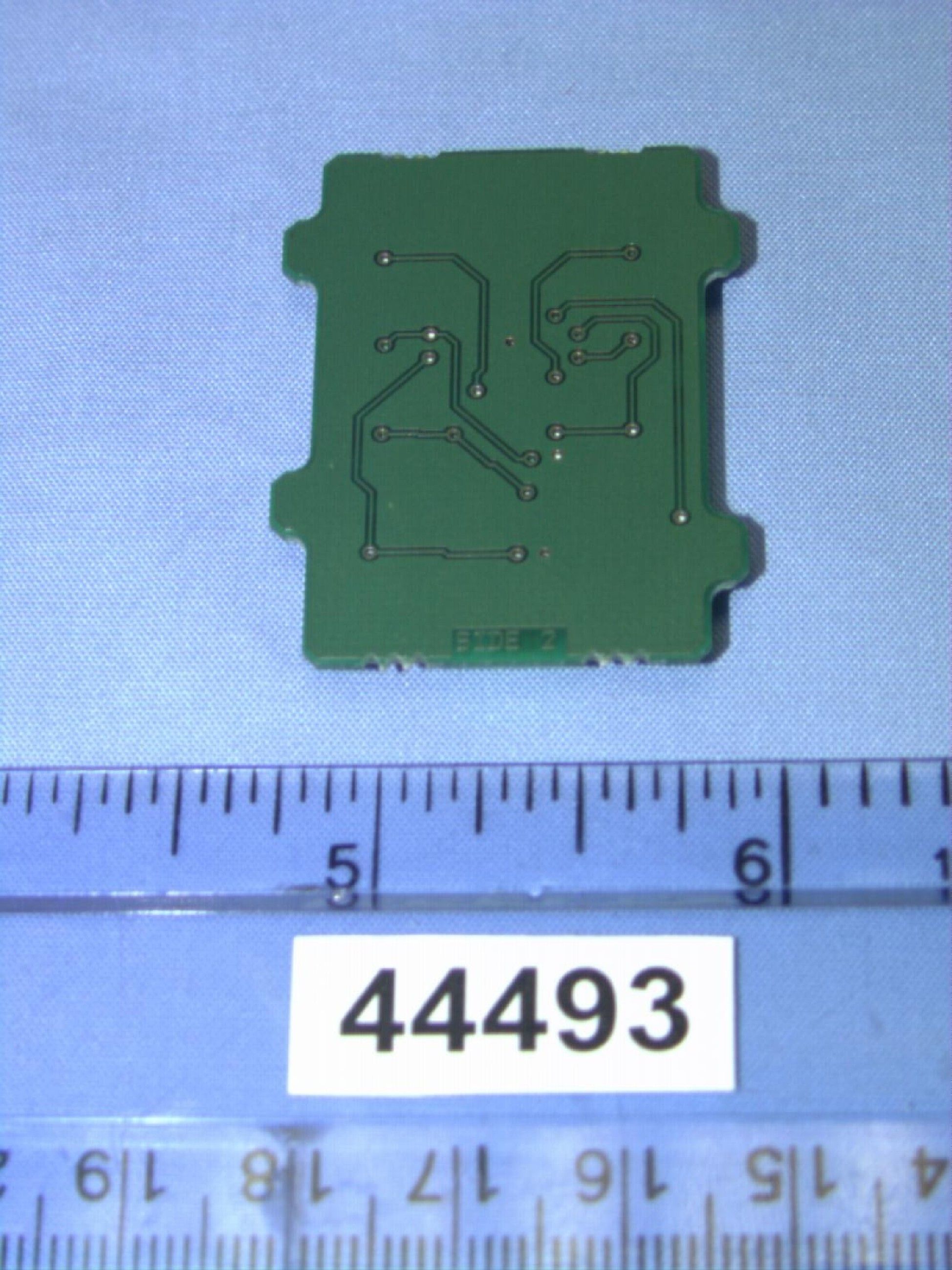

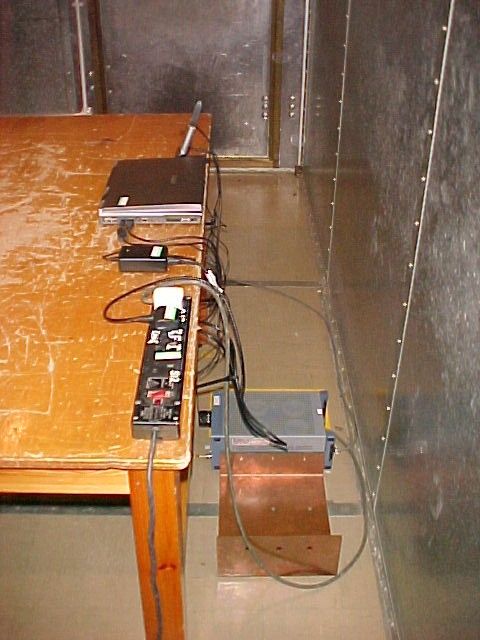

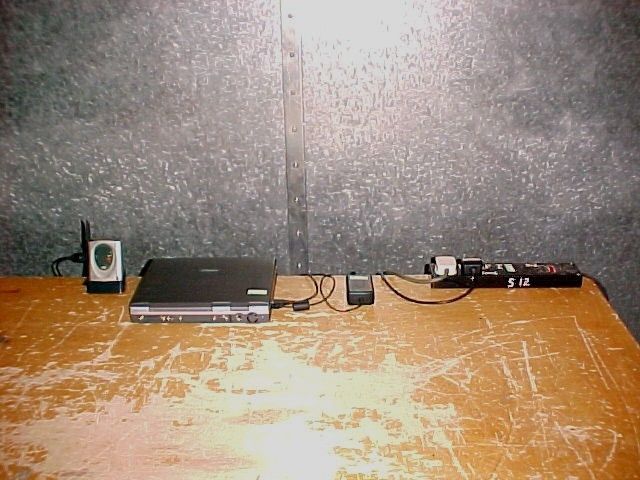

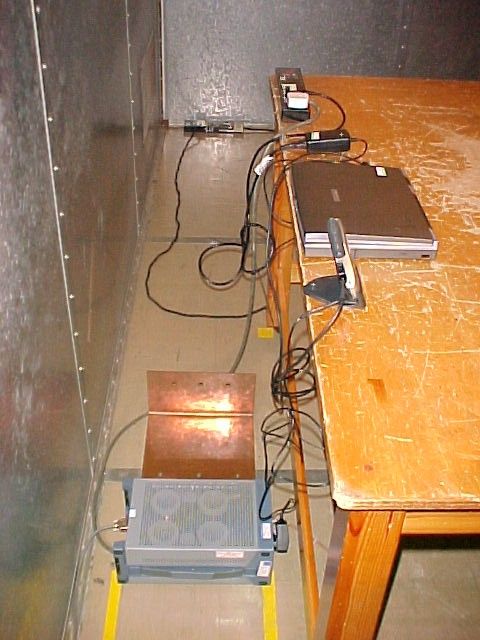

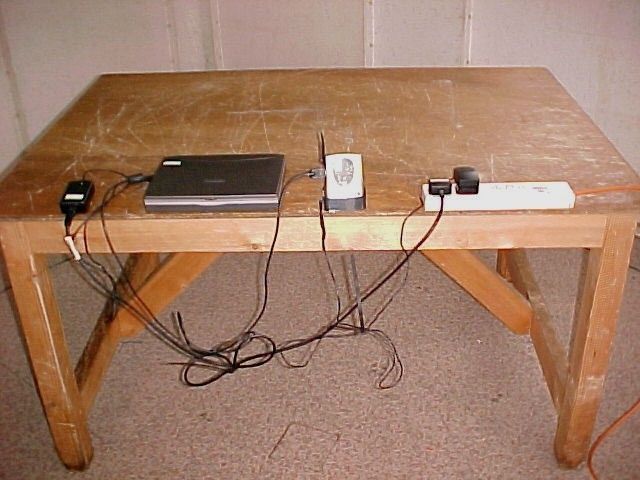

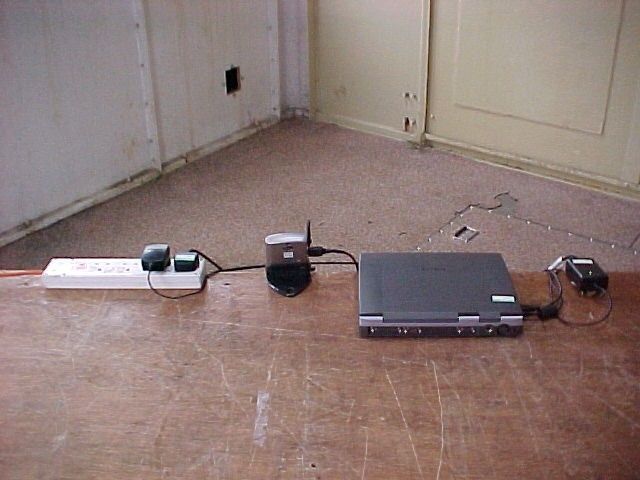

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: IPWireless U.K. Ltd. UE P1C Model: GY To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 Test Report Serial No: RFI/MPTB1/RP44493JD01A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: pp Checked By: pp Tested By: Release Version No: PDF01 Issue Date: 26 March 2003 Test Dates: 20 February 2003 to 28 February 2003 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44493JD01A Operations Department Page 2 of 104 Issue Date: 26 March 2003 Test Of: IPWireless U.K. Ltd. UE P1C Model: GY To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44493JD01A Operations Department Page 3 of 104 Issue Date: 26 March 2003 Test Of: IPWireless U.K. Ltd. UE P1C Model: GY To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 Table of Contents 1. Client Information..............................................................................................................4 2. Equipment Under Test (EUT) ...........................................................................................5 3. Test Specification, Methods And Procedures ................................................................9 4. Deviations From The Test Specification .......................................................................11 5. Operation Of The EUT During Testing ..........................................................................12 6. Summary Of Test Results...............................................................................................13 7. Measurements, Examinations And Derived Results....................................................15 8. Measurement Uncertainty ..............................................................................................30 Appendix 1. Test Equipment Used ....................................................................................31 Appendix 2. Measurement Methods ..................................................................................33 Appendix 3. Test Configuration Drawings........................................................................44 Appendix 4. Graphical Test Results ..................................................................................49 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44493JD01A Operations Department Page 4 of 104 Issue Date: 26 March 2003 Test Of: IPWireless U.K. Ltd. UE P1C Model: GY To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 1. Client Information Company Name: IPWireless UK Ltd. Address: Units 3-6 Charlton Business Park Crudwell Road Malmesbury SN16 9RU Contact Name: Mr P Warburg RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44493JD01A Operations Department Page 5 of 104 Issue Date: 26 March 2003 Test Of: IPWireless U.K. Ltd. UE P1C Model: GY To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 2. Equipment Under Test (EUT) The following information has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: IPWireless Broadband Modem Model Name or Number: UE P1C Unique Type Identification: GY Serial Number: GY2A3A-000000511 Country of Manufacture: UK FCC ID Number: PKTP1CGY Date of Receipt: 19 February 2003 Brand Name: Phihong Model Name or Number: Switching Power Supply Unique Type Identification: PSC05R-050 Serial Number: None stated Country of Manufacture: China Date of Receipt: 19 February 2003 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44493JD01A Operations Department Page 6 of 104 Issue Date: 26 March 2003 Test Of: IPWireless U.K. Ltd. UE P1C Model: GY To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 2.2. Description Of EUT The equipment under test is a wireless broadband modem. 2.3. Modifications Incorporated In EUT The EUT has not been modified from what is described by the Model Number and Unique Type Identification stated above. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44493JD01A Operations Department Page 7 of 104 Issue Date: 26 March 2003 Test Of: IPWireless U.K. Ltd. UE P1C Model: GY To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 2.4. Additional Information Related To Testing Power Supply Requirement: Nominal 110V, 60 Hz, AC Mains Supply Intended Operating Environment: Residential, Commercial, Light Industry Equipment Category: Multipoint Distribution Service / Instructional Television Fixed Service Response Station Type of Unit: Wireless Broadband Modem Weight: 125 g without battery Dimensions: 130 x 40 x 15 mm Interface Ports: USB Port Mains 110 VAC Input Antenna Port Transmit Frequency Range 2.506 GHz to 2.680 GHz Channel ID Channel Number Channel Frequency (MHz) Bottom N/A 2506 Middle N/A 2596 Transmit Channels Tested Top N/A 2680 Receive Frequency Range 2.506 GHz to 2.680 GHz Channel ID Channel Number Channel Frequency (MHz) Bottom N/A 2506 Middle N/A 2596 Receive Channels Tested Top N/A 2680 Highest Fundamental Frequency 2680 MHz Highest Oscillator Frequency 2300 MHz Maximum Power Output (EIRP) 25.7 dBm RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44493JD01A Operations Department Pa…

Text truncated - open the document above for the full version.
