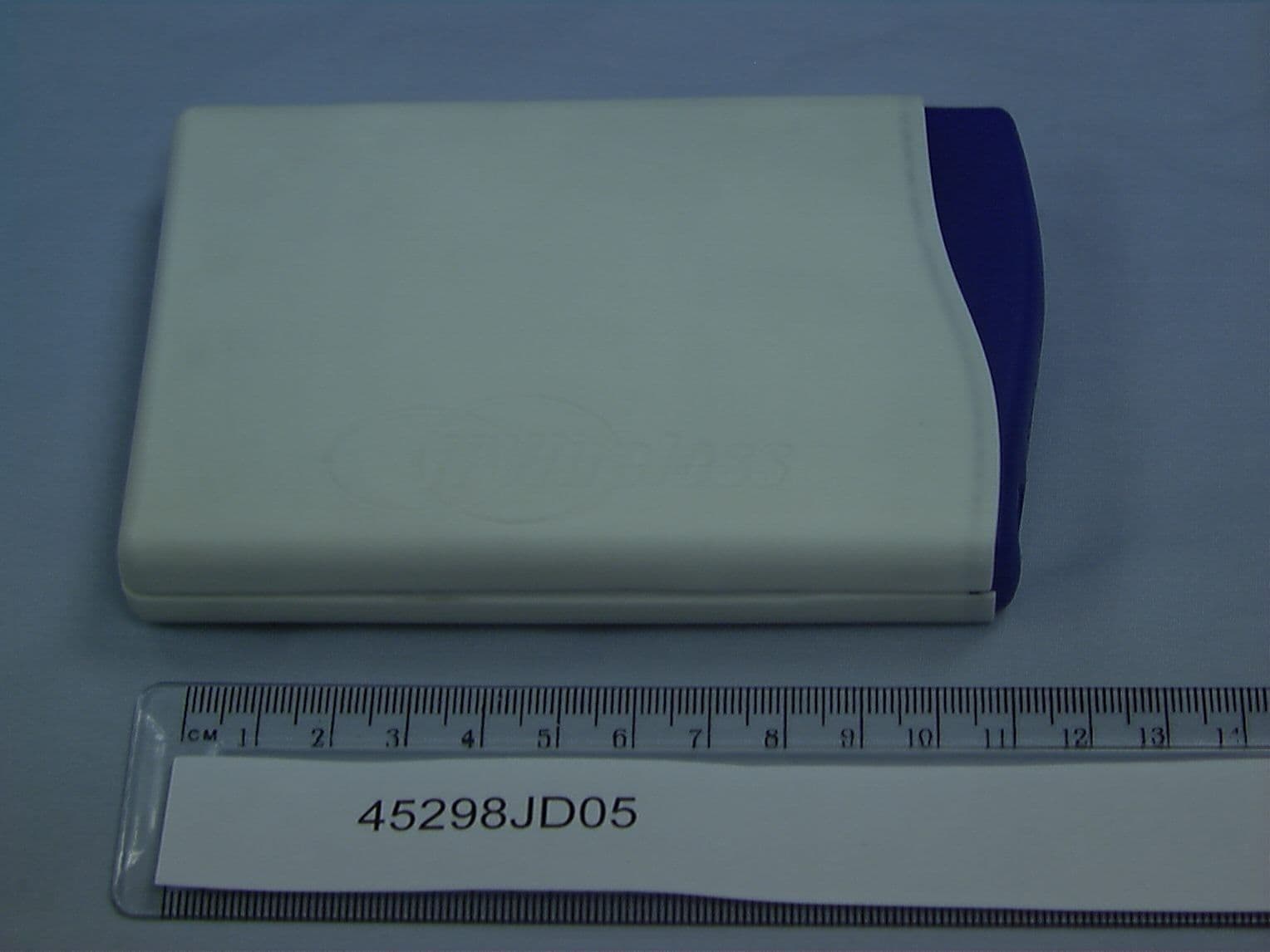

PKTP1DKFWireless Broadband Modem

Copyright IP Wireless 2003 – October 2003 – Version 1.0 P P 1 1 D D W W i i r r e e l l e e s s s s B B r r o o a a d d b b a a n n d d M M o o d d e e m m U U S S E E R R M M A A N N U U A A L L P1D Wireless Broadband Modem User Manual - Page 2 of 46 - NOTICE Information in this document and the products described are subject to change without notice. IP Wireless offers this manual with no warranty, either explicit or implied. Reproduction, alteration, or distribution in any manner whatsoever without the written permission of IPWireless Inc., is strictly forbidden. Trademarks used in this text: the IPWireless logo, icon, and Wireless Broadband Modem are trademarks of IPWireless, Inc.; Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming t he marks and names or their products. IPWireless, Inc., disclaims any proprietary interest in trademarks and trade names other than its own. P1D Wireless Broadband Modem User Manual - Page 3 of 46 - CONTENTS S ECTION 1 – I NTRODUCTION 5 Safety Guidelines for Power Connection 5 Safety Guidelines for the P1D Wireless Broadband Modem 5 Exposure to Radio Frequency Signals 6 Care and Cleaning Guidelines 6 Pack Contents 7 S ECTION 2 – G ETTING S TARTED 8 Key Areas on Your Wireless Broadband Modem 8 Required Equipment 10 S ECTION 3 – I NSTALLATION AND R EGISTRATION 11 Prepare the P1D Modem for use 11 Find the best radio signal 12 Install the software on your computer 13 Connect the interface cable to your computer 14  USB Cable Connection 14  Ethernet LAN Cable Connection 14 Perform Registration 14 Microsoft Windows Operating System Patches 16 Windows Internet Configuration Setting 16 S ECTION 4 – C ONNECT TO THE I NTERNET 17 A PPENDIX A – T ROUBLESHOOTING T IPS 21 Troubleshooting Tips 21 A PPENDIX B – B ATTERY I NFORMATION 26 Internal Battery 26 Battery Safety Guidelines 26 A PPENDIX C – F REQUENTLY A SKED Q UESTIONS 27 Q. W HERE CAN I FIND A COVERAGE MAP ? 27 Q. H OW DO I CHANGE MY SERVICE LEVEL ? 27 P1D Wireless Broadband Modem User Manual - Page 4 of 46 - Q. H OW DO I SET COOKIE PREFERENCES ON MY BROWSER ? 27 Q. H OW DO I SET MY HOME PAGE ? 27 Q. H OW WILL I KNOW WHEN TO UPGRADE MY PC SOFTWARE ? 28 Q. H OW DO I PERFORM A W IRELESS B ROADBAND M ODEM PC S OFTWARE U PGRADE ? 28 Q. H OW WILL I KNOW WHEN TO UPGRADE MY W IRELESS B ROADBAND M ODEM ? 28 Q. H OW DO I PERFORM A W IRELESS B ROADBAND M ODEM U PGRADE ? 28 Q. A RE ANY M ODEM ACCESSORIES AVAILABLE ? 28 Q. H OW DO I INSTALL MY M ODEM ON A DIFFERENT COMPUTER ? 29 Q. W HEN SHOULD I DE - INSTALL THE MODEM AND / OR PC S OFTWARE ? 29 A PPENDIX D – M ODEM D ISPLAY W ARNINGS 30 Power-On Self Test Failure 30 Software Upgrade Warning 30 A PPENDIX E – [T ECHNICAL S PECIFICATIONS ] 31 A PPENDIX F – [PPP O E R OUTERS T ESTED ] 33 A PPENDIX G – [PPP O E C LIENTS T ESTED ] 34 A PPENDIX H – E RROR M ESSAGES 35 Microsoft Remote Access Service (RAS) Error Codes 37 Wireless Broadband Modem Extended Errors 40 A PPENDIX I – T HIRD P ARTY S OFTWARE 44 R EGULATORY I NFORMATION 45 North America and Canada 45 Europe 46 Statements of Conformity 46 P1D Wireless Broadband Modem User Manual - Page 5 of 46 - Section 1 – Introduction Before using your Wireless Broadband Modem for the first time, please read and follow all warnings, safety, care, cleaning and operating instructions on the Wireless Broadband Modem label and in this guide. These guidelines will help protect your Wireless Broadband Modem from potential damage and ensure your personal safety. Safety Guidelines for Power Connection Danger - Do not place or use the P1D Wireless Broadband Modem near any body of water. Accidental immersion can result in electric shock. Danger - Never alter the AC adapter or plug. If the plug will not fit into the electrical outlet without force, contact a qualified electrician to install a proper outlet. Connect the AC adapter to 120V or 230V electrical outlets only. To disconnect the unit from mains power, remove the AC adapter from the wall socket. To reduce the risk of damage, always remove each end of the power cable by pulling the plug rather than the cable. Do not allow anything to rest on the power cable. Do not position the power cable in any area where people will step on it. Do not use the P1D Modem if the power cable becomes frayed or damaged in any way. Do not overload the power outlet. Power overloads are often caused by too many electrical devices connected by extension cords and can result in electric shock or fire. See Appendix B for important safety information about the internal battery. Safety Guidelines for the P1D Wireless Broadband Modem Do not attempt to disassemble the Wireless Broadband Modem; doing so may expose you to unsafe conditions. The Wireless Broadband Modem does not contain consumer serviceable components. Service should be performed by the Service Provider Service Center only. Contact Service Provider Customer Service to find the nearest Service Centre. Position the Wireless Broadband Modem so that it is protected from falling objects. Do not allow liquids to spill on or into the Wireless Broadband Modem. Do not expose the Wireless Broadband Modem to extreme heat (over 131° F/+55°C) or cold (under 14° F/-10°C) temperatures. Do not leave the Wireless Broadband Modem in a motor vehicle parked in direct sunlight for more than fifteen minutes. P1D Wireless Broadband Modem User Manual - Page 6 of 46 - Do not expose the P1D Modem to open flames. Switch your P1D Modem off when near medical equipment, fuel, chemicals, a potentially explosive atmosphere such as a gasoline station, or when in an area in which blasting is in progress. Also, switch it off before boarding an aircraft. Follow any other rules, regulations, or posted notices that apply to the use of electronic or radio equipment. Before using the P1D Modem near a pacemaker or similar device, consult a physician or the d…

Text truncated - open the document above for the full version.

UE P1D Block Diagram 21 March 2001 Proprietary Information Page 1 of 4 UE P1D Block Diagram V01.00 UE P1D Block Diagram 21 March 2001 Proprietary Information Page 2 of 4 Table of Figures Figure 1: RF Block Diagram.................................................................................................................... 3 Figure 2: Digital Block Diagram .............................................................................................................. 4 UE P1D Block Diagram 21 March 2001 Proprietary Information Page 3 of 4 1 RF Block Diagram Figure 1: RF Block Diagram Quadrature Mo dul at o r Quadrature Demodulator Tx I Tx Q Rx I Rx Q Transmit IF Stages Receive IF Stages IF Local Oscillator 380MHz RF Local Oscillator 2120-2300MHz To/From Integral Antenna RF Band Filter Power Amplifier Low Noise Amplifier Tx/Rx Switch To/From External Ant enna UE P1D Block Diagram 21 March 2001 Proprietary Information Page 4 of 4 2 Digital Block Diagram Figure 2: Digital Block Diagram Control Processor SIM Card Interface Power Management User Interface Base band Processor Analog to Digital Convertor Radio Interface Digital to Analog Convertor LED Display Internal Batter y Transmit I & Q Receive I & Q External Power External Computer

PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com N o t e s : 1 . L a b e l m a t e r i a l & a d h e s i v e t o b e U L a p p r o v e d 2 . T a b l e h a s t h e f i e l d c o n t e n t s t h a t a r e f i l l e d i n p e r m o d e l n u m b e r . 3 . S N - S e r i a l N u m b e r f i e l d i s c o m p l e t e d a t t h e f a c t o r y 4 . T e x t p r i n t c o l o u r B L A C K o n S I L V E R b a c k g r o u n d 5 . A d d i t i o n a l s h e e t s i l l u s t r a t e t h e v a r i a n t s 6 . L a b e l i s p u r c h a s e d b l a n k a s s h o w n o n s h e e t 1 & a l l p r i n t i s a d d e d o n d e m a n d @ f a c t o r y 7 . W h e r e t h e r e a r e n o a p p r o v a l s t h e g e n e r i c l a b e l s h e e t 2 s h o u l d b e u s e d . PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com F C C I D : P K T P 1 D K F C o m p l i e s w i t h F C C R e g u l a t i o n s P a r t 1 5 . PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com PDFMAILER.COM Print and send PDF files as Emails with any application, ad-sponsored and free of charge www.pdfmailer.com

This device is set at the factory, there is no tune-up procedure.

Units 3-6 Charlton Business Park Crudwell Road Malmesbury Wiltshire SN16 9RU Telephone: 01666 828700 Facsimile: 01666 828701 IPWireless UK Limited Registered Office: Units 3-6, Charlton Business Park, Crudwell Road, Malmesbury SN16 9RU Registered in England No. 4218312 4 th March 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Dear Sir/Madam RE: Maximum Permissible Exposure (MPE) for the IPWireless Broadband Modem Model No: KF The FCC identification number for this device is PKTP1DKF. Background The IPWireless Inc. broadband wireless modem Model No: KF is intended for connection to a personal computer, this can either be a desktop or laptop computer. To provide information to ensure the device is used in a safe manner, the power density at a distance of 20cm from the radiating structure of the device to the user or any other person has been calculated based on the MPE limits for the general population/uncontrolled exposure category. The calculations below take into account the worst case normal operation of the device i.e. the user is using the full data bandwidth of the device. The RF interface operates using a time division duplex implementation whereby the modem transmits using 4 out of a total of 15 timeslots in a radio frame. This provides good justification for using source based averaging of the transmitter power as defined in rule 2.1091 section (d) subsection (2). Applicable Limits to RF Exposure The RF exposure limits for radio transmitters are established in 47CFR1.1310. These limits are established for different frequency ranges and the type of environments the device is expected to be operated in. For the IPWireless Inc. broadband wireless modem Model No. KF, the applicable power density limit is given in Table 1 part (b) as: 1 mW/cm 2 (general population, uncontrolled exposure) Model KF Device Parameters used in MPE Calculation The Model KF has a maximum conducted output power to the antenna of +24dBm, the integral antenna gain is 2 dBi, providing a maximum EIRP of +26dBm. This emission is spread over 12 MHz of channel bandwidth, providing a maximum EIRP of +23dBm in a 6MHz MMDS channel. This unit is being qualified under the low power response station rules contained in both 47CFR21.908 (d) and 47CFR74.936 (f), which defines the maximum transmitter power limit of –6dBW EIRP in a 6MHz channel. This device operates in a 12 MHz channel and as such, the maximum EIRP allowed is –6dBW + 3dB = -3dBW EIRP. The maximum EIRP of the modem using the integral antenna is as follows: EIRP = +24dBm + 2dB (ant. gain) = +26dBm = -4dBW Therefore the EIRP complies with the –3dBW limit allowed for a 12MHz bandwidth emission for a low power response station. Distance to Power Density Limit Calculation For the purpose of calculating the MPE level at a distance of 20cm from the Model KF integral antenna, the –4dBW (+26 dBm) EIRP value is used. The formula used to calculate the exposure level at a distance of 20cm is defined in FCC Bulletin 65. S = PG Equation (1) 4πR 2 Where: S= Power Density Limit of 1mW/cm2 P= Transmitter Power G= Numerical Antenna Gain R = Distance from Antenna The table below shows the calculation of power density at a distance of 20cm from the antenna to demonstrate compliance with the 1mW/cm 2 MPE limit defined for the general population/uncontrolled exposure environment. MPE distance calculation for PKTP1DKF Integral Antenna gain 2 dBi line loss 0 dB Effective antenna gain (ratio) 1.58 Model KF PA conducted output power 24 dBm 26 dBm Model KF maximum EIRP 397 mW Model KF maximum EIRP -4 dBW 21.908 (d) EIRP limit in 12 MHz bandwidth -3 dBW MPE limit from 1.1310, MMDS band 1 mW/cm 2 (general population, uncontrolled exposure) Power Density = (EIRP/(4*pi*distance from antenna)) Power Density at 20cm from Antenna = 0.079 mW/cm 2 (without source-based averaging) Source-based duty cycle adjustment Total timeslots in frame 15 Timeslots used for uplink transmit 4 Percent of uplink time device is transmitting 100% Average attenuation of signal (power control) 0 dB Power Density at 20cm from Antenna = 0.021 mW/cm 2 (with source-based averaging) Conclusion The table above shows the device meets the 1mW/cm 2 exposure limit at a distance 20cm from the integral antenna during worst case normal operation. The user guide provides instructions to the user of the modem to ensure operation of the device in a safe manner. Yours Sincerely, Peter Warburg Technical Associate

Units 3-6 Charlton Business Park Crudwell Road Malmesbury Wiltshire SN16 9RU Telephone: 01666 828700 Facsimile: 01666 828701 IPWireless UK Limited Registered Office: Units 3-6, Charlton Business Park, Crudwell Road, Malmesbury SN16 9RU Registered in England No. 4218312 15 th January 2002 Federal Communications Commission 445 12th Street SW Washington, DC 20554 To whom it may concern, RE: The application of Source Based Averaging to the RF Exposure Calculation The IPWireless UE P1D is a time division duplex W-CDMA based wireless modem and the design/operation is based on the UMTS 3GPP TDD air interface requirements. The air interface supports a radio frame length of 10ms, this radio frame is divided into 15 timeslots each of duration 666.67μS. As defined in the applicable 3GPP/ETSI documentation, of these 15 timeslots, timeslots 0-9 are assigned to the downlink (UEP1B receive) and timeslots 10-14 are assigned to the uplink (UEP1B transmit). Of the timeslots assigned to the uplink, timeslots 11-14 are used to transmit the subscriber’s data and control signals to the base station. Timeslot 10 is reserved for the call setup procedure as a call can only be initiated by the subscriber. Timeslot 10 transmits the Random Access CHannel to the base station as part of the call setup procedure, once the call setup procedure has been completed, the RACH is no longer transmitted for remaining duration of the call and the UEP1B only transmits on the remaining timeslots 11-14. 1 DL 2 DL 4 DL 3 DL 5 DL 0 DL 6 DL 7 DL 8 DL 9 DL 10 UL 11 UL 12 UL 13 UL 14 UL FACH DSCH DSCH DSCH DSCH BCH / FACH DSCHDSCHDSCHDSCHRACHUSCHUSCH USCH USCH Based on the inherent operation of the UE P1D, source based averaging has been applied to the MPE calculations with the unit transmitting on 4 out of 15 timeslots as this is normal operation of the unit when transmitting. Yours sincerely Peter Warburg Technical Associate IPWireless Inc.

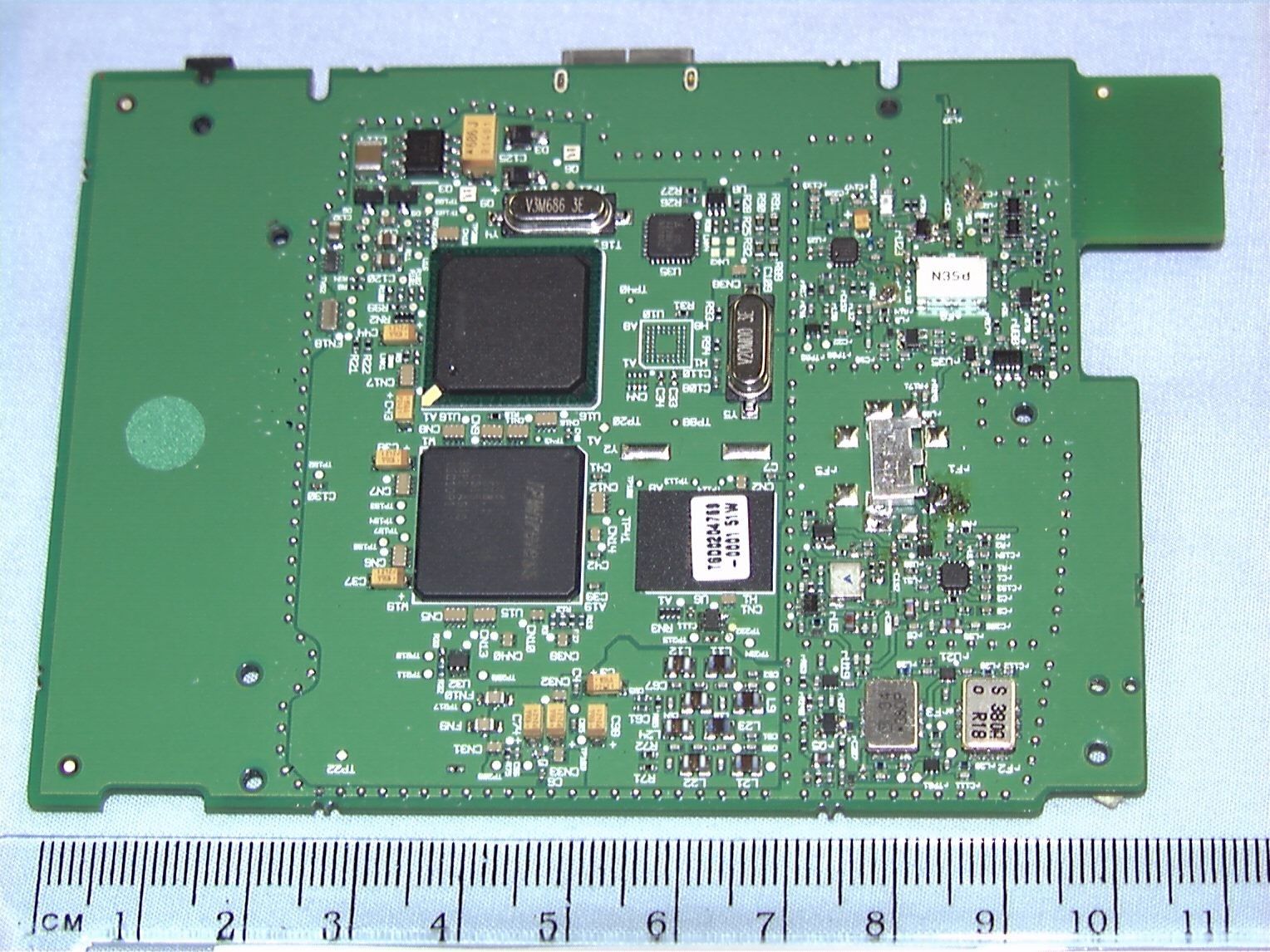

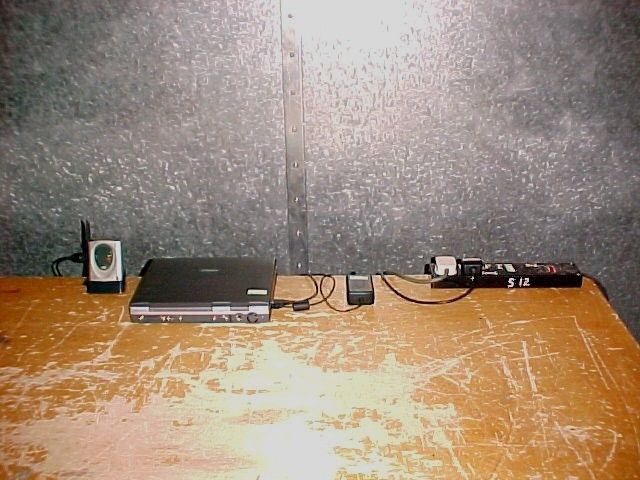

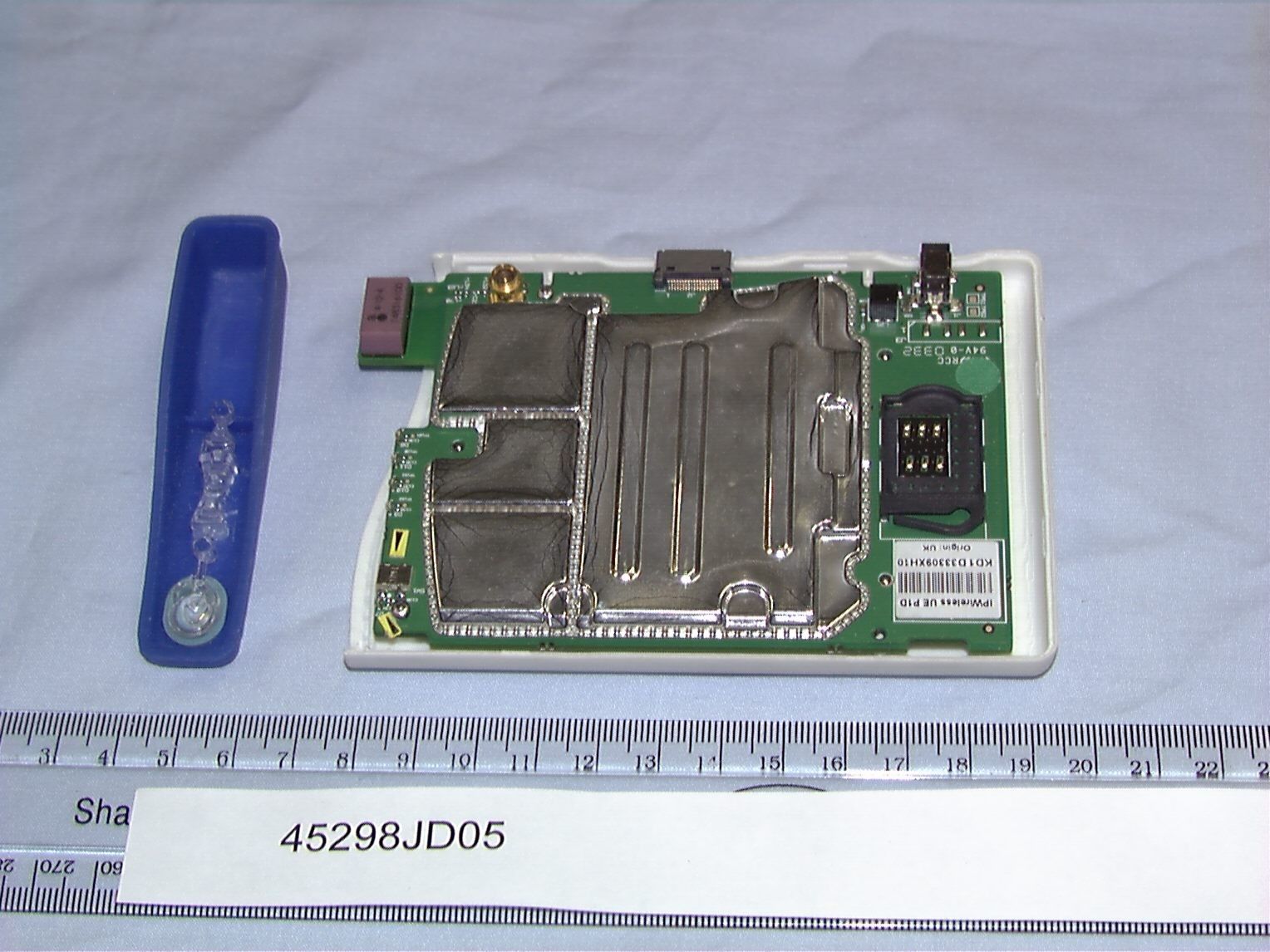

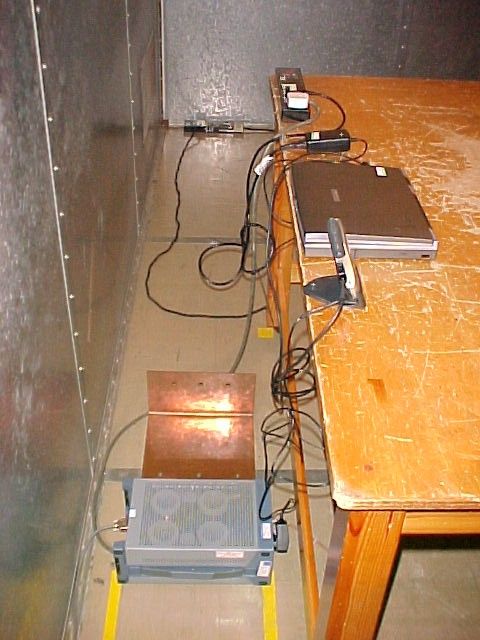

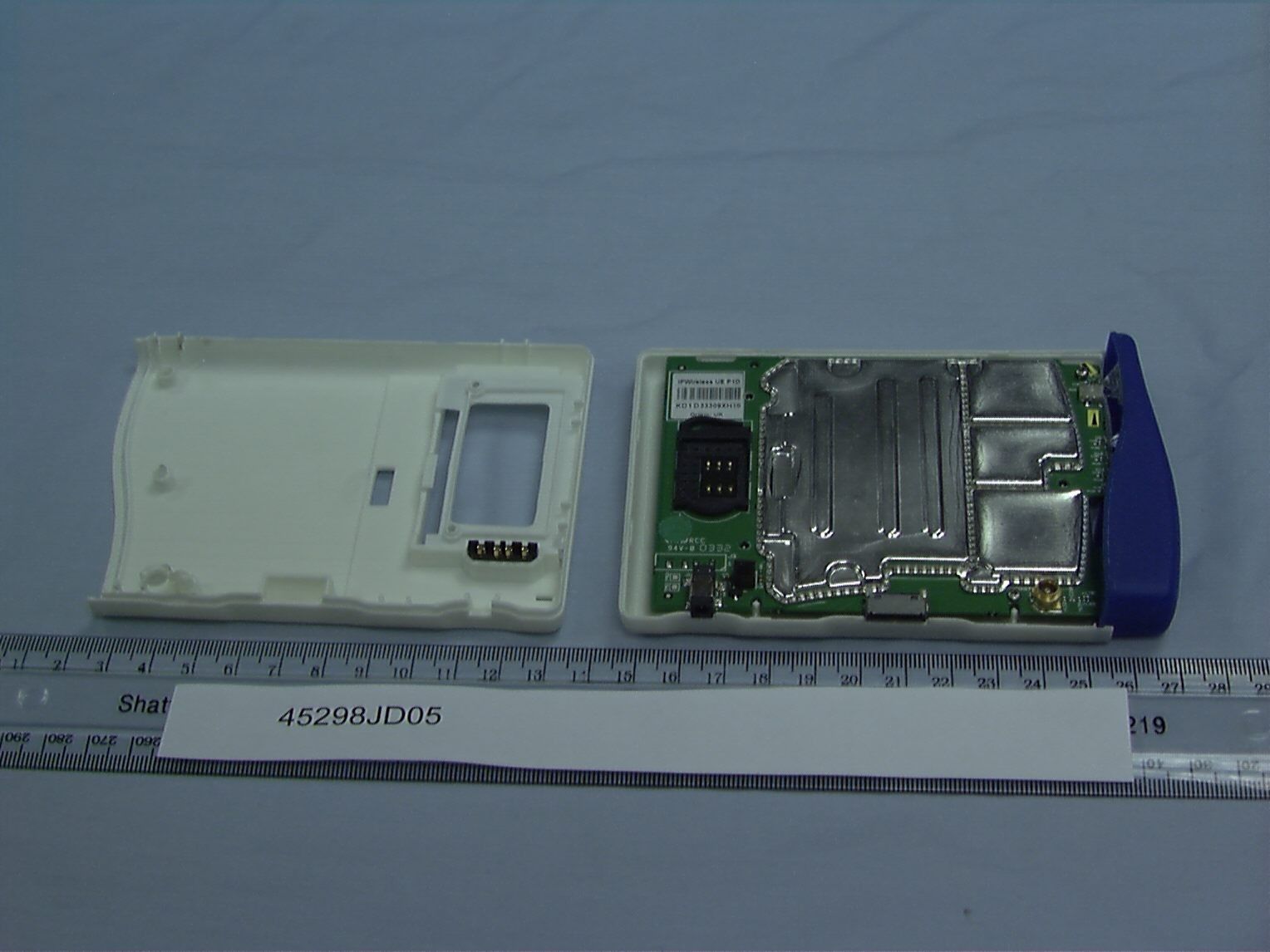

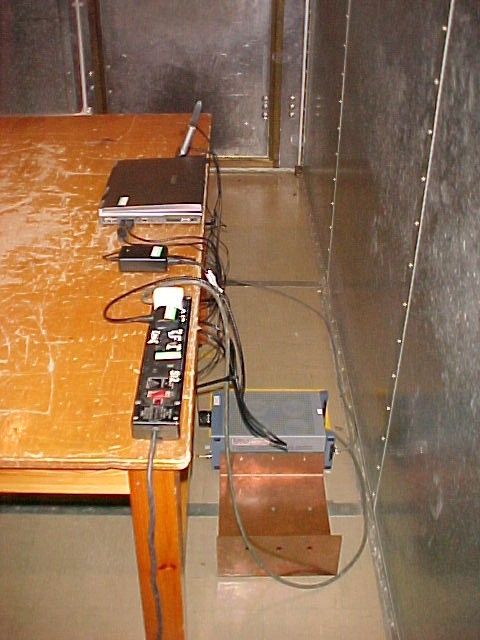

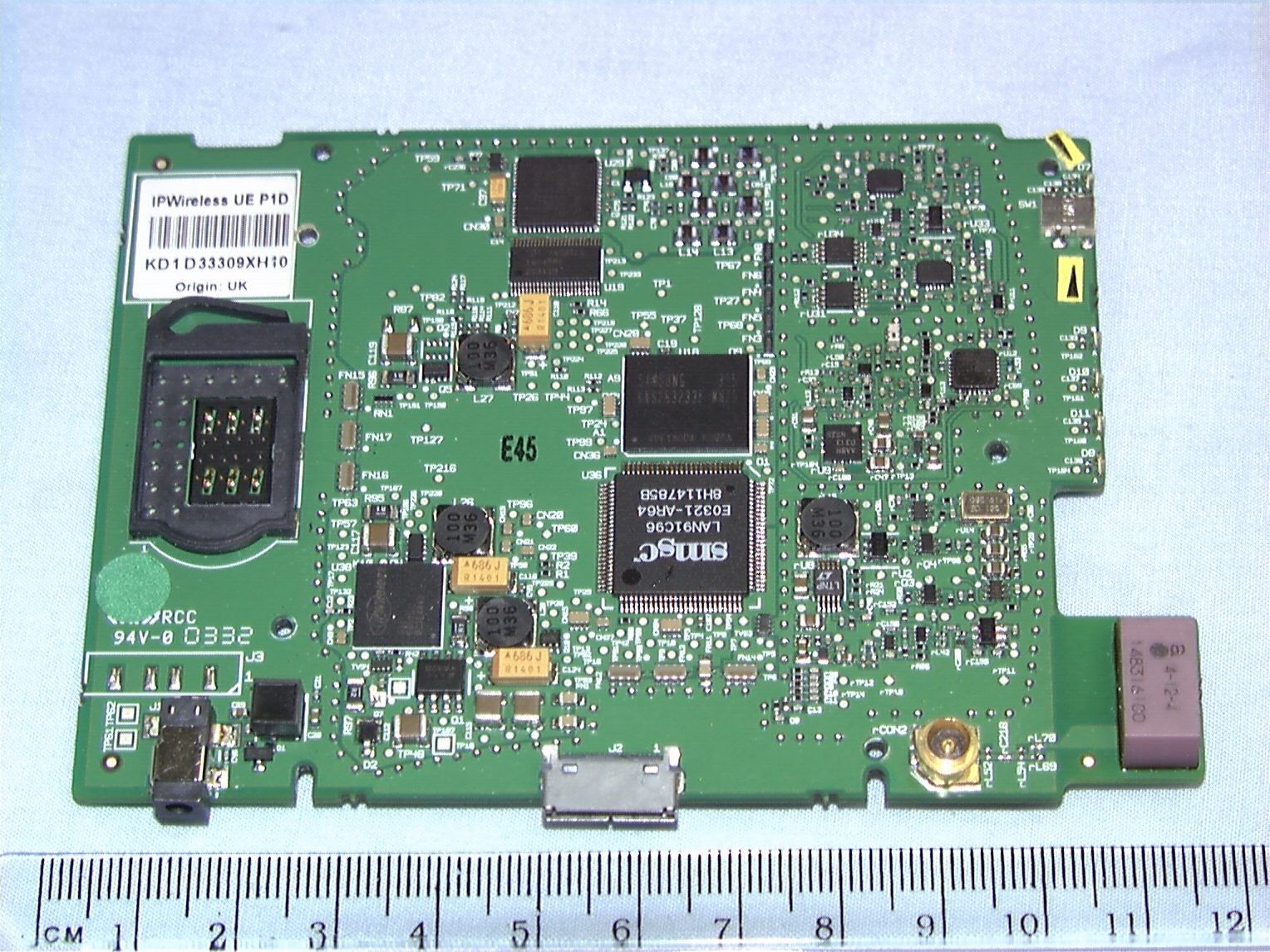

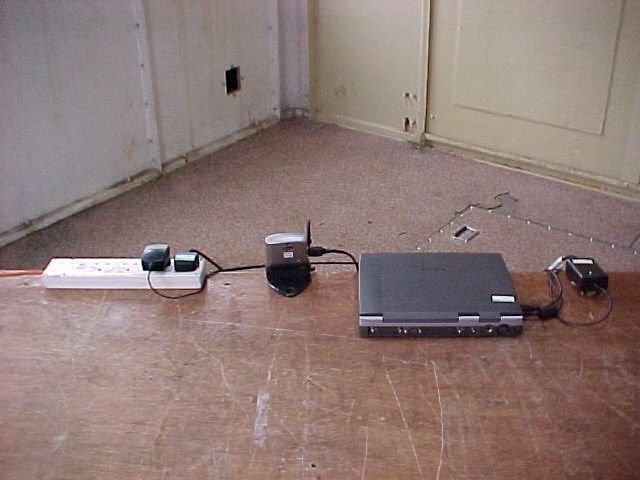

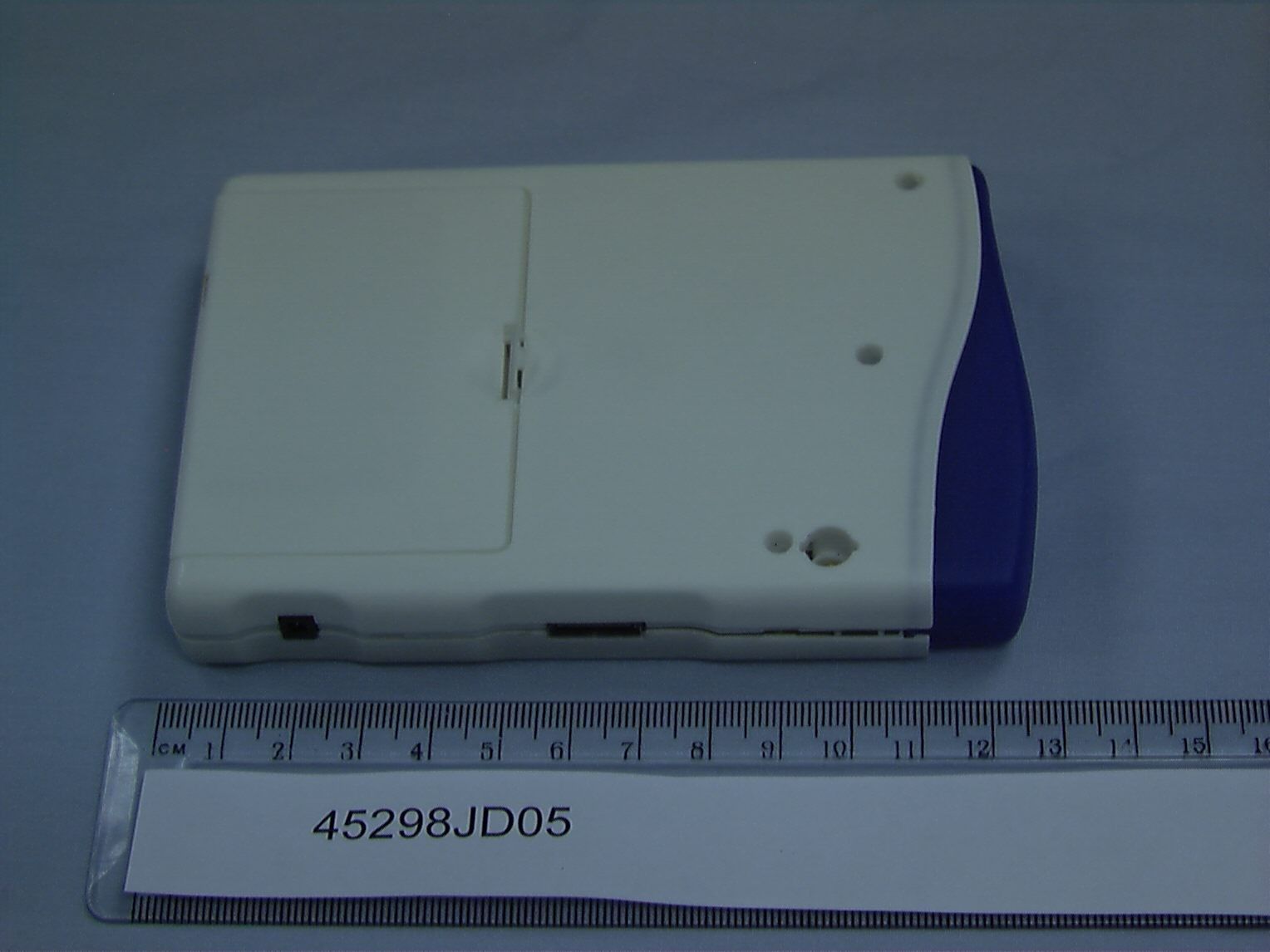

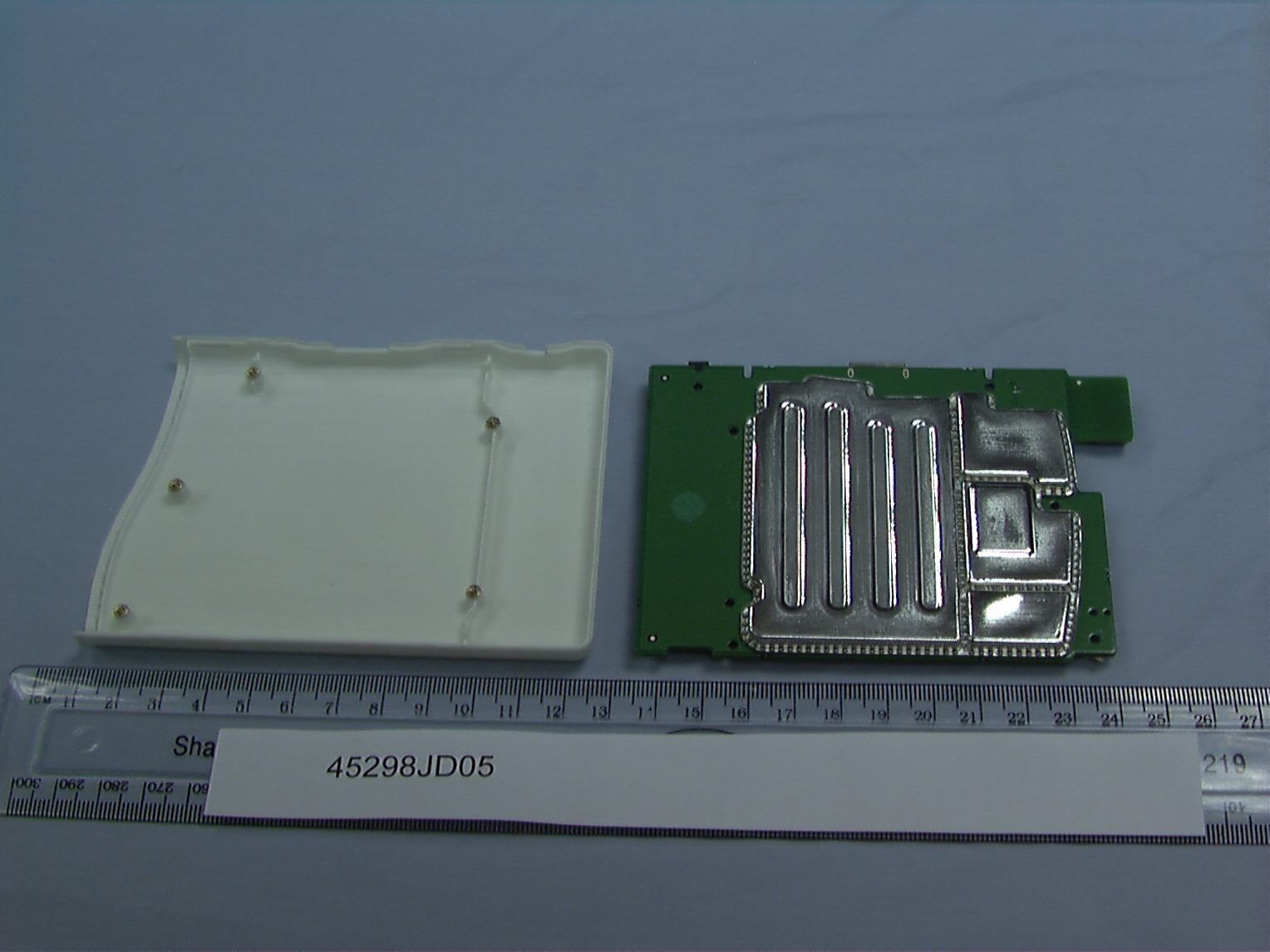

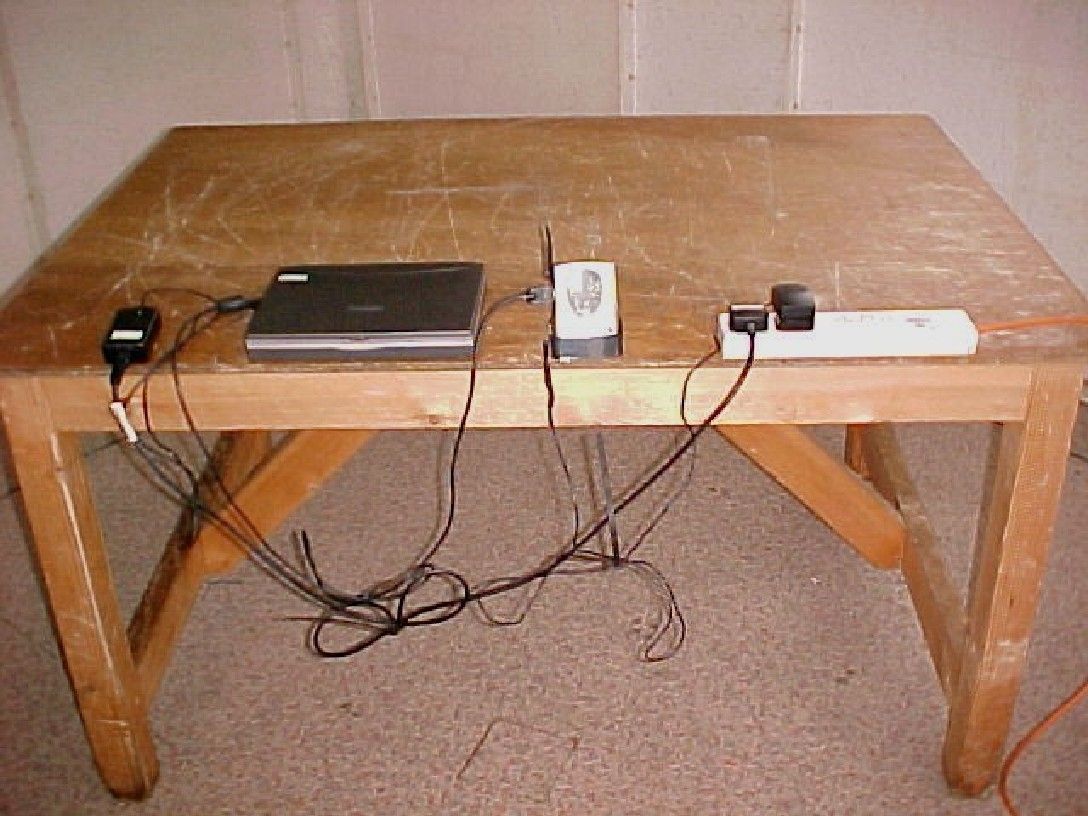

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: IPWireless U.K. Ltd. UE P1D Model: KF To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 Test Report Serial No: RFI/MPTB3/RP45298JD05 Supersedes Test Report Serial No: RFI/MPTB2/RP45298JD05 This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: pp Release Version No: PDF01 Issue Date: 17 December 2003 Test Dates: 08 September 2003 to 12 September 2003 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB3/RP45298JD05 Operations Department Page 2 of 70 Issue Date: 17 December 2003 Test Of: IPWireless U.K. Ltd. UE P1D Model: KF To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB3/RP45298JD05 Operations Department Page 3 of 70 Issue Date: 17 December 2003 Test Of: IPWireless U.K. Ltd. UE P1D Model: KF To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 Table of Contents 1. Client Information..............................................................................................................4 2. Equipment Under Test (EUT) ...........................................................................................5 3. Test Specification, Methods And Procedures ................................................................9 4. Deviations From The Test Specification .......................................................................11 5. Operation Of The EUT During Testing ..........................................................................12 6. Summary Of Test Results...............................................................................................13 7. Measurements, Examinations And Derived Results....................................................14 8. Measurement Uncertainty ..............................................................................................54 9. Measurement Methods ...................................................................................................55 Appendix 1. Test Equipment Used ....................................................................................64 Appendix 2. Test Configuration Drawings........................................................................67 Test Report Serial No: RFI/MPTB3/RP45298JD05 Supersedes Test Report Serial No: RFI/MPTB2/RP45298JD05 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB3/RP45298JD05 Operations Department Page 4 of 70 Issue Date: 17 December 2003 Test Of: IPWireless U.K. Ltd. UE P1D Model: KF To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 1. Client Information Company Name: IPWireless UK Ltd. Address: Units 3-6 Charlton Business Park Crudwell Road Malmesbury SN16 9RU Contact Name: Mr P Warburg RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB3/RP45298JD05 Operations Department Page 5 of 70 Issue Date: 17 December 2003 Test Of: IPWireless U.K. Ltd. UE P1D Model: KF To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 2. Equipment Under Test (EUT) The following information has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Wireless Broadband Modem Model Name or Number: KF Unique Type Identification: None stated Serial Number: None stated Country of Manufacture: UK FCC ID Number: PKTP1DKF Date of Receipt: 08 September 2003 Brand Name: Phihong PSU Model Name or Number: PSC05R-050 (IP) Unique Type Identification: None stated Serial Number: None stated Country of Manufacture: Taiwan Date of Receipt: 08 September 2003 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB3/RP45298JD05 Operations Department Page 6 of 70 Issue Date: 17 December 2003 Test Of: IPWireless U.K. Ltd. UE P1D Model: KF To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 2.2. Description Of EUT The equipment under test is a wireless broadband modem; the modem provides high- speed internet access when used with a host computer. 2.3. Modifications Incorporated In EUT The EUT has not been modified from what is described by the Model Number and Unique Type Identification stated above. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB3/RP45298JD05 Operations Department Page 7 of 70 Issue Date: 17 December 2003 Test Of: IPWireless U.K. Ltd. UE P1D Model: KF To: FCC Part 15: 2001, Part 21: 2001 & Part 74: 2001 2.4. Additional Information Related To Testing Power Supply Requirement: Nominal 110V, 60 Hz, AC Mains Supply Intended Operating Environment: Residential, Commercial, Light Industry Equipment Category: Multipoint Distribution Service / Instructional Television Fixed Service Response Station Type of Unit: Wireless Broadband Modem Weight: 105 g without battery Dimensions: 125 x 85 x 20 mm Interface Ports: USB Port Mains 110 VAC Input Antenna Port Transmit Frequency Range 2.506 GHz to 2.680 GHz Band Edges 2.500 GHz and 2.690 GHz Channel ID Channel Number Channel Frequency (MHz) Bottom N/A 2506 Middle N/A 2596 Transmit Channels Tested Top N/A 2680 Receive Frequency Range 2.506 GHz to 2.680 GHz Channel ID Channel Number Channel Frequency (MHz) Bottom N/A 2506 Middle N/A 2596 Receive Channels Tested Top N/A 2680 Highest Fundamental Frequency 2680 MHz Highest Os…

Text truncated - open the document above for the full version.
