PKW-BEFCMUH4Cable Gateway

Linksys BEFCMUH4 Cable Gatewayr + 802.11b Wireless-Ready Linksys BEFCMUH4 Cable Gateway with 4-Port Switch/USB/HomePNA and 802.11b Wireless-Ready Quick Guide COPYRIGHT & TRADEMARKS Copyright 2002 RCA, All Rights Reserved. Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks and brand names are the property of their respective proprietors. FCC STATEMENT The Linksys BEFCMUH4 has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interface in a residential installation. This equipment generates, uses, and can radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measure: • Reorient or relocate the receiving antenna • Increase the separation between the equipment of devices • Connect the equipment to an outlet other than the receiver • Consult a dealer or an experienced radio/TV technician for assistance 0 Linksys BEFCMUH4 Cable Gatewayr + 802.11b Wireless-Ready Table of Contents CHAPTER 1: INTRODUCTION..............................................................................2 O VERVIEW .................................................................................................................2 S OFTWARE F EATURES ................................................................................................2 M INIMUM R EQUIREMENTS .........................................................................................4 P ACKAGE C ONTENTS ..................................................................................................4 CHAPTER 2: USING THE LINKSYS BEFCMUH4.............................................6 T HE L INKSYS BEFCMUH4’ S R EAR P ANEL ...............................................................6 T HE L INKSYS BEFCMUH4’ S F RONT P ANEL .............................................................7 CHAPTER 3: CONNECT THE GATEWAY...........................................................9 O VERVIEW .................................................................................................................9 C ONNECTING Y OUR H ARDWARE T OGETHER AND B OOTING U P .................................9 CHAPTER 4: CONFIGURE YOUR PCS...............................................................11 O VERVIEW ...............................................................................................................11 C ONFIGURING W INDOWS 95, 98, AND M ILLENNIUM PC S ........................................11 C ONFIGURING W INDOWS 2000 PC S ........................................................................13 C ONFIGURING W INDOWS XP PC S ...........................................................................14 CHAPTER 5: CONFIGURE THE GATEWAY.....................................................15 C ONFIGURING THE L INKSYS BEFCMUH4..............................................................15 APPENDIX A: TROUBLESHOOTING................................................................18 C OMMON P ROBLEMS AND S OLUTIONS .....................................................................18 F REQUENTLY A SKED Q UESTIONS .............................................................................29 APPENDIX B: GLOSSARY....................................................................................32 APPENDIX C: INSTALLING THE TCP/IP PROTOCOL.................................40 APPENDIX D: FINDING THE MAC ADDRESS AND IP ADDRESS FOR YOUR ETHERNET ADAPTER.............................................................................43 APPENDIX E: SPECFICATIONS..........................................................................46 1 Linksys BEFCMUH4 Cable Gatewayr + 802.11b Wireless-Ready Chapter 1: Introduction Overview Thank you for purchasing the Linksys BEFCMUH4 Cable Gateway. The Linksys BEFCMUH4 provides the ideal solution for connecting your wireless network to a high-speed broadband Internet connection and a 10/100 Fast Ethernet backbone. Configurable as a DHCP server for your existing network, the Linksys BEFCMUH4 acts as the only externally recognized Internet gateway on your local area network (LAN) and serve as an Internet NAT firewall against unwanted outside intruders. The Linksys BEFCMUH4 can also be configured to filter internal users’ access to the Internet. A typical gateway relies on a hub or a switch to share its Internet connection, but the Linksys BEFCMUH4 channels this connection through the blazing, full duplex of its built-in 10/100 4-Port Switch. This cutting-edge combination of wireless router and switch technology eliminates the need to buy an additional hub or switch and extends the range of your wireless network. Now your entire wireless network can enjoy blazing broadband Internet connections supported by its robust switched backbone. With the dual-function speed and power of the Linksys BEFCMUH4, your network will take off at speeds faster than you ever imagined possible. Software Features DOCSIS Features z Cable Modem (CM) is 1.0 and non 1.1 upgradeable z Concatenation, Fragmentation, Payload Header suppression, IGMP and BPI and BPI Plus are supported features for DOCSIS 1.1 z 4/16/32/64/128/256/512/1024 QAM Downstream Receiver z 2/4/8/16/32/64/128/256 QAM Advanced TDMA Upstream Transmitter z Both IP and LLC filters are supported z Sixteen (16) destination address filters and 256 multicast/unicast DA filters z Sixteen (16) independent upstream queues for multiple QoS support 2 Linksys BEFCMUH4 Cable Gatewayr + 802.11b Wir…

Text truncated - open the document above for the full version.

FCC ID: PKW-BEFCMUH4 User Manual additionally: 15.21 CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Prohibition of co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Caution Statement of the FCC Radio Frequency Exposure This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247(b)(4) addressing RF Exposure from radio frequency devices. The radiation output power of this Wireless LAN device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation—as a mobile device but use in a body-worn way is strictly prohibit. When using this device, a certain separation distance between antenna and nearby persons has to be kept to ensure RF exposure compliance. In order to comply with the RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20cm. Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. MPE Statement (Safety Information) Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. Safety Information CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.

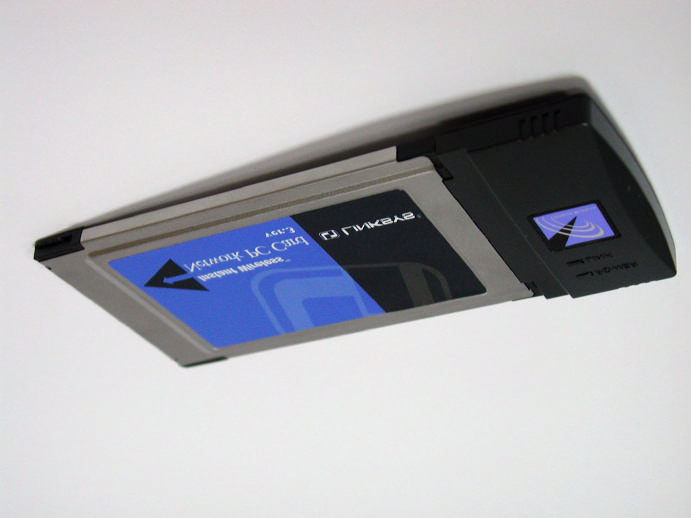

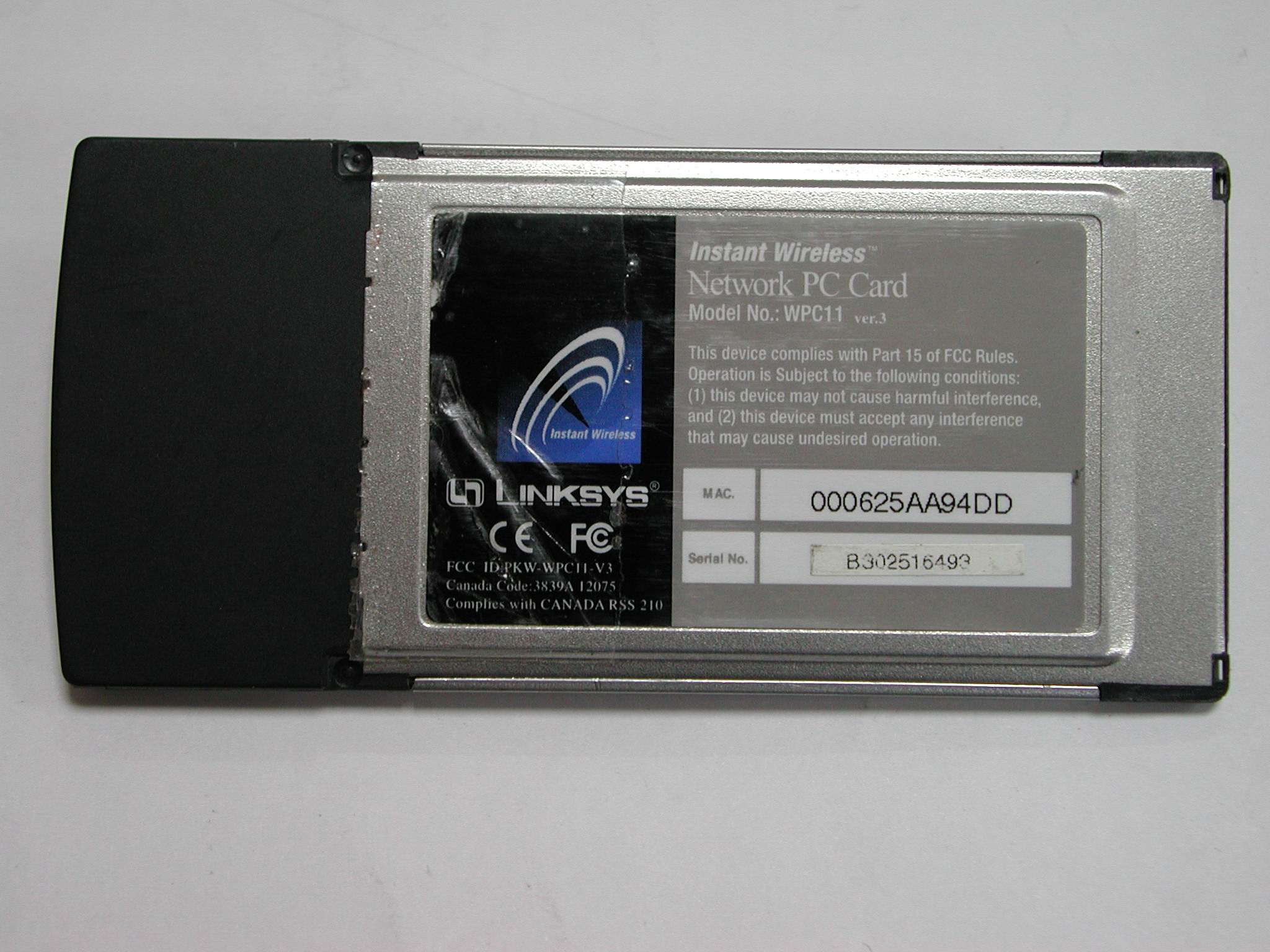

Training Research Co., Ltd. No. 2, Lane 194, Huan-Ho St., Hsi-Chih, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® March 31, 2003 Re: Linksys Group Inc. FCC ID: PKW-BEFCMUH4 Dear Timothy: To: Mr. Timothy R. Johnson, In responses to your ATCB comments_031303 on 2003/3/13. Q1: The attachment (uploaded) is block diagram of PCMCIA card . Q2: The attachment (uploaded) file is photograph of the label of the PCMCIA card. Q3 and Q4: The attachment (uploaded) file is confidentiality letter. Q5: The attachment (uploaded) is schematics of PCMCIA card . Q6: The device is including telecom interface. Q7: See attached page 6 of quick guide which is statement “Wireless PC Card”. Q8: User’s manual additionally. See attachment file. Q9: Precaution of PCMCIA card . See attachment. Q10: The device is low of RF power which not find any harmonic emission at >1GHz. It is finding that spurious emission described report of band-edge. See attachment file (Test of band-edge revised). Q11. Firstly, The plot set RBW=VBW=100KHz that check 20 dB below the highest emission level then peak (RBW=VBW=1MHz) and average (RBW=1MHz/VBW=10Hz) mode is measured. See attachment file (Test of band-edge revised). Best regards, Jack Tsai [email protected] Training Research Co., Ltd.

Training Research Co., Ltd. No. 2, Lane 194, Huan-Ho St., Hsi-Chih, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® April 2, 2003 Re: Linksys Group Inc. FCC ID: PKW-BEFCMUH4 Dear Timothy: To: Mr. Timothy R. Johnson, In responses to your ATCB comments on 2003/3/31. Q1 and Q2: New update manual, See up-loaded file Q3: They are always packaged together when export (sold). So, we change label statement. See attached format of label. Q4: Applied to current limits. Q5: I had been answering your question on 2003/3/31. Now, I re-explain VBW and RBW of the plots. Firstly, the band-edge plots apply to VBW=RBW= 100KHz then perform radiated emission testing in PKW-BEFCMUH4. (Peak Mode : VBW=RBW= 1MHz , Averaged Mode: VBW=1MHz and RBW= 10Hz.) Best regards, Jack Tsai [email protected] Training Research Co., Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 13, 2003 RE: Linksys Group Inc. FCC ID: PKW-BEFCMUH4 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Since the TX PCMCIA card is also built by Linksys, please provide the block diagram of the Tx portion of the device. Please note that the block diagram should show the frequencies of all oscillators in the device (CFR 2.1033(a)(5)). 2) Please provide a photograph of the label of the PC card which shows its FCC ID Number. Note the label of the cable modem references FCC ID: FCC ID:PKW-WPC11-V3. 3) The operational description was uploaded as confidential, but not listed in the confidentiality letter. Please confirm if this exhibit is considered confidential and if so, please updated the confidentiality letter. 4) The parts list is not necessary. Please correct the confidentiality letter by removing this. 5) Please provide the schematics for the PCMCIA . 6) The label contains information relative to Part 68 (Ringer Equivalence, FCC Registration Number, and USOC codes). If this device does not contain a telco interface, this information is not necessary. If this information is not necessary, please remove. 7) The users manual does not appear to contain any information regarding use of the PCMCIA Card. Additionally, information required by 15. 8) The required statements given in 15.21 should be added to the users manual. Additionally, the users manual is missing information regarding RF exposure statements. 9) Please explain what precautions are built into the device so that it only functions with the particular PCMCIA card specified. 10) Given that the TX is a 2.4 GHz TX, please explain why there is not any radiated spurious emissions data for > 1 GHz. 11) Please provide information regarding the VBW and RBW of the plots provided at the bandedge. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 31, 2003 RE: Linksys Group Inc. FCC ID: PKW-BEFCMUH4 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The users manual is missing the prohibition of co-location information as part of the RF exposure statements. Please add the following to the users manual, " This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter". 2) Please remove the reference to "portable" in the Caution Statement of the FCC Radio Frequency Exposure portion of the users manual. This device is considered as a mobile device only. 3) The label states the TX is optional. Please explain if the PCMCIA card is always included with the Cable Modem when sold. Are they always packaged together? If not, please explain how the device is built (using software/hardware blocks, etc) so that a user can only use the PCMCIA cards intended by the manufacturer and not any PCMCIA card they desire. 4) The conducted emissions provided do not show any reading from 150 kHz to 450 kHz. Due to the data given in the tables and the test method specified in 4.1 of the test report, it appears that the device was only tested from 450 kHz - 30 MHz to the older FCC limits. Please confirm if additional test data will be provided to show compliance with the new limits (0.150 - 0.450 MHz was not previously tested), or if we should proceed using the current data. This is because the grant will be issued with one of the following grant notes depending on which set of limits it is shown to have met: Current Limits NOTE: The manufacture and importation of this device must cease on July 10, 2005 pursuant to 15.37(j) or 18.123 transition provisions adopted under FCC 02-157 (ET Docket 98-80). Future Limits (CISPR) NOTE: This device has shown compliance with the conducted emissions limits in 15.107, 15.207, or 18.307 adopted under FCC 02-157 (ET Docket 98-80) and may be marketed after July 11, 2005 and is not affected by the 15.37(j) or 18.123 transition provisions. 5) Please provide information regarding the VBW and RBW of the plots provided at the bandedge. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT EUT : Cable Gateway Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Model No. : BEFCMUH4 Granted FCC ID : PKW-BEFCMUH4 Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel: 11 Channel Modulation Skill : DBPSK, DQPSK, CCK Power Type : Powered by the AC-DC adapter M/N: DSA-0151A-12 Input: 100-120VAC, 50Hz-60Hz, 40VA Output: +12VDC, 1.25A Applicant : The Linksys Group, Inc. 17401 Armstrong Ave., Irvine, CA 92614, U.S.A. Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, equation for predicting RF fields, by the Friis Transmission Formula: Power density at the specific separation (portable): 23 22 /10337.5 )20(4 79.096.33 4 cmmW R PG S − ×= × == ππ Estimated safe separation: cm PG R461.1 4 79.096.33 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 1.461 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (-1 / 10) = 0.79

Test Report ------------------------------------------------------------------------------ 1/45 Report No.: L2115753 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of CABLE GATEWAY Applicant : The Linksys Group Inc. Model No. : BEFCMUH4 EUT : Cable Gateway FCC ID : PKW-BEFCMUH4 Report No. : L2115753 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------ 3/45 Report No.: L2115753 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ..................................................................................................................... 5 1.1 Introduction .............................................................................................................. 5 1.2 Description of EUT .................................................................................................. 5 1.3 Description of Support Equipment ........................................................................... 6 1.4 Configuration of System Under Test ........................................................................ 9 1.5 Verify the Frequency and Channel .......................................................................... 13 1.6 Test Procedure ........................................................................................................ 14 1.7 Location of the Test Site ......................................................................................... 14 1.8 General Test Condition ........................................................................................... 14 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators................ 15 III. Section 15.203 : Antenna Requirement........................................................................ 16 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units ............. 17 4.1 Test Condition & Setup ........................................................................................... 17 4.2 List of Test Instruments ........................................................................................... 17 4.3 Test Configuration .................................................................................................. 18 4.4 Test Result of Conducted Emissions ....................................................................... 19 V. Section 15.247(a) : Technical Description of the EUT................................................. 20 VI. Section 15.247(a)(2) : Bandwidth for Direct Sequence System ................................. 21 6.1 Test Condition & Setup ........................................................................................... 21 6.2 Test Instruments Configuration ............................................................................... 21 6.3 List of Test Instruments ........................................................................................... 21 6.4 Test Result of Bandwidth ......................................................................................... 22 VII. Section 15.247(b) : Power Output ............................................................................... 26 7.1 Test Condition & Setup ........................................................................................... 26 7.2 List of Test Instruments ........................................................................................... 27 7.3 Test Result .............................................................................................................. 27 Test Report ------------------------------------------------------------------------------ 4/45 Report No.: L2115753 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 VIII. Section 15.247(c) : Spurious Emissions (Radiated) ................................................. 28 8.1 Test Condition & Setup ........................................................................................... 28 8.2 List of Test Instruments ........................................................................................... 29 8.3 Test Instruments Configuration ............................................................................... 30 8.4 Test Result of Spurious Radiated Emissions ........................................................... 32 8.5 Test Result of Bandedge........................................................................................... 35 IX. Section 15.247(d) : Power Spectral Density ................................................................ 38 9.1 Test Condition & Setup ........................................................................................... 38 9.2 Test Instruments Configuration ............................................................................... 38 9.3 List of Test Instruments............................................................................................ 38 9.4 Test Result of Power Spectral Density .................................................................... 39 X. Output Signal Test ......................................................................................................... 43 10.1 Test Condition & Setup ........................................................................................................ 43 10.2 Test Configuration of Output Signal Test.............................................................................. 43 10.3Output Signal Test Result......................................................................................... 44 Appendix A: Set Up Procedure .......................................................................................... 45 Test Report ------------------------------------------------------------------------------ 5/45 Repor…

Text truncated - open the document above for the full version.

Test Report -------------------------------------------------------------------------------- 35/45 Report No.: L2115753 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 8.5 Test Result of the Bandedge If any 100 kHz bandwidth outside these frequency bands, the radio frequency power that is produced by the modulation products of the spreading sequence, the information sequence and the carrier frequency shall be either at least 20 dB below that in any 100 kHz bandwidth within the band that contains the highest level of the desired power or shall not exceed the general levels specified id 15.209(a), We perform this section by the conducted manner, the RBW is set to 100kHz and VBW>RBW. We’d made the observation up to 10 th harmonics and the criterion is all the harmonic/spurious emissions must be 20dB below the highest emission level measured. If the emissions fall in the restricted bands stated in the Part15.205(a) must also comply with the radiated emission limits specified in Part15.209(a). (Peak mode: RBW=VBW=1MHz. Average mode: RBW=1MHz, VBW=10Hz) The following pages show our observations referring to the channel 1 and 11 respectively. Test Condition & Setup: same as 3.1 Test Report -------------------------------------------------------------------------------- 36/45 Report No.: L2115753 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Channel 1 Channel 11 Test Report -------------------------------------------------------------------------------- 37/45 Report No.: L2115753 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 This is the hard copy of our bandedge measurement generated by our bandedge testing program. The pictures shown above is the band-edge of channel 1 and 11. 1. The lob right and left by the fundamental side is already 20dB below the highest emission level. 2. The emissions recorded in the restricted band is do comply with the Part 15.209(a) – as below. Radiated Emissions : Band-edge and spurious for CH 1 Radiated Emission FCC Class B ( 3m ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Frequency (MHz) Ant. P. Ant. H. (m) Table ( ) Factors (dB) Peak Average Peak Ave. Margin (dB) 2261.12 Ver 1.00 195 3.59 46.12 --- 74.00 53.96 -7.84 2261.12 Hor 1.00 267 3.59 49.19 --- 74.00 53.96 -4.77 2374.07 Hor 1.00 55 3.90 48.61 --- 74.00 53.96 -5.35 2390.07 Ver 1.00 168 3.90 43.98 --- 74.00 53.96 -9.98 Radiated Emissions : Spurious for CH 6 Radiated Emission FCC Class B ( 3m ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Frequency (MHz) Ant. P. Ant. H. (m) Table ( ) Factors (dB) Peak Average Peak Ave. Margin (dB) 2284.87 Ver 1.00 257 3.66 46.54 --- 74.00 53.96 -7.42 2284.87 Hor 1.00 39 3.66 51.76 --- 74.00 53.96 -2.20 Radiated Emissions : Band-edge and spurious for CH 11 Radiated Emission FCC Class B ( 3m ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Frequency (MHz) Ant. P. Ant. H. (m) Table ( ) Factors (dB) Peak Average Peak Ave. Margin (dB) 2311.00 Ver 1.00 166 3.73 47.87 --- 74.00 53.96 -6.09 2311.00 Hor 1.00 248 3.73 53.23 43.07 74.00 53.96 -10.89 2500.25 Hor 1.00 167 4.01 47.57 --- 74.00 53.96 -6.39 2500.25 Ver 1.00 155 4.01 42.82 --- 74.00 53.96 -11.14 Note: Margi…

Text truncated - open the document above for the full version.
