PKW-NWP11B11 Mbps WLAN Cardbus Card

I n s t a n t Wi r e l e s s T M S e r i e s Wireless Notebook Adapter U s e r G u i d e Use this Guide to install: NWP11B COPYRIGHT & TRADEMARKS Copyright © 2002 Linksys, All Rights Reserved. Instant Wireless™ is a registered trade- mark of Linksys. Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks and brand names are the property of their respective proprietors. LIMITED WARRANTY Linksys guarantees that every Instant Wireless™ Network PCCard ver. 3.0 is free from physical defects in material and workmanship for one year from the date of purchase, when used within the limits set forth in the Specifications chapter of this User Guide. If these products prove defective during this warranty period, call Linksys Technical Support in order to obtain a Return Authorization Number. BE SURE TO HAVE YOUR PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCT’S PACKAGING ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product, mark the Return Authorization Number clearly on the outside of the package and include your original proof of pur- chase. All customers located outside of the United States of America and Canada shall be held responsible for shipping and handling charges. IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE PROD- UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM- AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT- WARE, OR ITS DOCUMENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY PRODUCT. Linksys makes no warranty or representation, expressed, implied, or statuto- ry, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, mer- chantability, or fitness for any particular purpose. Linksys reserves the right to revise or update its products, software, or documentation without obligation to notify any individ- ual or entity. Please direct all inquiries to: Linksys P.O. Box 18558, Irvine, CA 92623. FCC STATEMENT This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea- sonable protection against harmful interference in a residential installation. This equip- ment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communi- cations. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment or devices • Connect the equipment to an outlet other than the receiver’s • Consult a dealer or an experienced radio/TV technician for assistance UG-011702B KL Table of Contents C hapter 1: I ntr oduction1 T he I nstant Wireless T M 1 F eatures1 Package C ontents 2 System R equirements2 C hapter 2: P lanning Your Wir eless N etwor k3 N etwork T opology3 R oaming3 C hapter 3: I nstalling the Dr iver s and C onfigur ation U tility for Windows 95, 98, ME and 20004 B efore You Start4 R unning the A uto Driver I nstallation4 A d-H oc V ersus I nfrastructure Mode8 I nfrastructure Mode9 A d-H oc Mode11 C hapter 4: I nstalling the Dr iver s and C onfigur ation U tility for Windows X P14 C hapter 5: I nstalling the N etwor k P C C ar d16 C hapter 6: I nstalling the Dr iver s and C onfigur ation U tility for Windows N T17 Overview17 I nstalling the N etwork PC C ard in Your N otebook PC17 I nstalling the Drivers for Windows N T18 I nstalling the C onfiguration U tility for Windows N T30 C hapter 7: C onfigur ation U tility30 U sing the C onfiguration U tility30 C hapter 8: I nstalling N etwor k P r otocols39 Network PC Card Instant Wireless TM Series C hapter 9: A dvanced P r oper ties41 A dvanced Properties for Windows 95, 98, ME , and 200041 A dvanced Properties for Windows N T49 C hapter 10: T r oubleshooting56 C ommon Problems and Solutions56 F requently A sked Questions57 C hapter 11: G lossar y61 C hapter 12: Specifications68 E nvironmental 68 C hapter 13: War r anty I nfor mation69 C hapter 14: C ontact I nfor mation70 2 • One I nstant Wireless T M N etwork PC C ard ver. 3.0 • One Setup U tility C D-R OM (U ser G uide on C D) • Quick I nstallation insert and R egistration C ard (not shown) • A 16-bit PC MC I A Type I Ior Type I I Islot • PC MC I A revisions 2.10 compliant card and socket services • Windows 95, 98, Millennium, NT, 2000, or X P • 600 K bytes of free disk space for utility and driver installation P a c k a g e C o n t e n t s S y s t e m R e q u i r e me n t s Instant Wireless TM Series 1 Chapter 1: Introduction Put the “ mobile” back into mobile computing! Whether you’ re at your desk or in the boardroom, the I nstant Wireless™ N etwork PC C ard allows you to share printers, files, and other resources anywhere within your L A N infrastructure, increasing your productivity and keeping you “ in touch.” T he I nstant Wireless™ N etwork PC C ard now has a new, higher-powered antenna that provides a greater range than ever. T he increased sensitivity helps filter out interference and “ noise” to keep your signal clear. I mproved error correction in the chipset keeps you operating at higher transmission rates for longer distances. A nd, since you only need one T ype I I or I I I PC MC I A slot, you’ re free to use your other slots for additional accessories. R eady to run in Type I I or I I I PC MC I A -equipped notebook PC s running Windows 95, 98, Millennium, N T , 2000, and XP, the I nstant Wireless™ N etwork PC C ard ver. 3.0 is truly a “ must-have” …

Text truncated - open the document above for the full version.

Chapter 5: Installing the Network PC Card 1.L ocate an available T ype I Ior T ype I I IP C MC I A slot on your notebook computer. 2.With the N etwor k P C C ar d’ s 68-pin connector facing the P C MC I A slot and the “ N etwork PCC ard” label facing up, as shown in F igure 5-1, slide the N etwork PCC ard completely into the PC MC I A slot while the computer is restarting and before the Windows desktop appears. 3.You may see sever al scr eens appear as the dr iver installation is finalized. T his is normal. N o input should be necessary, and the screens should dis- appear when the card is ready for use. T he H ar dwar e I nstallation is complete. Your Wir eless N etwor k P CC ar d is set up and r eady for use. You may continue r eading to lear n about the car d’ s C onfigur ation U tility in C hapter 6 for Windows N T or C hapter 7 for other Windows O per ating Systems. T he Windows X P compatibility screen will appear, as shown in F igure 4-2. A s this card has been tested to work with Windows XP, click the C ontinue A nyway button to continue. On the final instal- lation screen, click the F inish button to complete instal- lation. T he H ar dwar e I nstallation is complete. Windows X P automatically detects and configures the N etwork PC C ard for your wireless network. T o adjust these settings, refer to your Windows X P doc- umentation. 15 Figure 4-2 Figure 4-3 Instant Wireless TM Series Network PC Card 16 Windows NT will set up the Network PCCard differently depending upon whether you’ve previously installed network hardware or not. Please follow the instructions appropriate for you. If You Have Never Installed Network Hardware: 1.Windows NT is not a Plug-and-Play Operating System and will not auto- matically identify the Network PCCard. To begin setup, insert the Setup Utility CDinto your CD-ROM drive. If the Setup Utility CD attempts to autorun, exit out of the utility to the desktop by clicking the Exittab. Select Settingsfrom the StartMenu and bring up the Control Panel (as shown in Figure 6-1). Double-click the Networkicon. 2.Windows will display the screen in Figure 6- 2, showing that Networking has not been installed. Click the Yesbutton to con- tinue. Installing the Drivers for Windows NT 17 Figure 6-1 Figure 6-2 Chapter 6: Installing the Drivers and Configuration Utility for Windows NT The installation of the Network PC Card is different for users of Windows NT because it is not a Plug-and-Play (PnP)operating system. This means it will not automatically detect the presence of the Card when it is inserted. Consequently, the order of the installation is different. The steps involved in the installation are different, as well. If you are using any other operating sys- tem than Windows NT, stop here and refer to the chapters regarding those oper- ating systems. 1.Locate an available Type IIor Type IIIPCMCIA slot on your notebook computer. 2.With the Network PC Card’s 68-pin connector facing the PCMCIA slot and the “Network PCCard” label facing up, slide the Network PC Card completely into the PCMCIA slot while the computer is restarting and before the Windows desktop appears. The Hardware Installation is complete. Proceed to the next section for driver installation. Overview Installing the Network PC Card In Your Notebook PC Network PC Card Instant Wireless TM Series 18 5.A list of adapters will appear as in Figure 6-5. You will not want to select one of these, howev- er, as your installa- tion disk (the Setup Utility CD) has all of the appropriate drivers. Click the Have Diskbutton to continue. 6. When the Insert Disk screen appears (shown in Figure 6-6), type “D:\WINNT” in the field provided and click the OKbutton to con- tinue. 7.The Select OEMOption screen (shown in Figure 6-7) will display all available adapters. Make sure that Instant Wireless - Network PC Card V3.0 is highlighted and click the OKbutton to continue. 19 Figure 6-5 Figure 6-6 Figure 6-7 3.Installation will begin and you will reach the screen in Figure 6-3. You will want to select the box that reads Wired to the networksince you are adding network hardware. Click the Nextbutton to continue. 4.The screen shown in Figure 6-4 will not show any Network Adapters installed on your system; this signifies that no network adapter has been pre- viously installed. Click the Select from listbutton to continue. Network PC Card Figure 6-3 Figure 6-4 Instant WirelessSeries 20 10. On the screen showing Network Services(Figure 6-10), the selections are automatically made. Click the Nextbutton to continue. 11.As displayed in Figure 6-11, Windows NTwill now be ready to start installing networking components. After verifying your selections, click the Nextbutton to continue or click the Backbutton to make any necessary corrections. 21 Figure 6-10 Figure 6-11 8. On the next screen, make sure there is a check mark in the box beside Instant Wireless - Network PCCard(as shown in Figure 6-8). Then click the Next button to continue. 9.The next screen (Figure 6-9) will show the list of network protocols used on your network. While the TCP/IPProtocolis already selected by default, you should check with your network administrator before installing any addi- tional network protocols. Click the Nextbutton to continue. Network PC Card Figure 6-8 Figure 6-9 Instant Wireless TM Series 22 14. After setting the Resource and Propertiesfields, Windows NT will begin installing the network components you’ve selected. You may be presented with the screen shown in Figure 6-14, asking if you would like to configure the protocols with a DHCPserver on your network. Click the Yesor No button to continue. This setting may also be changed at a later time. 15. In the event that the screen shown in Figure 6-15 appears, do not make any changes unless you are proficient with the advanced networking properties of Windows NT. Click the Nextbutton to continue. 16. At this point, Windows NTwill let you know that it is ready to start the net- work. If you’d like t…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 25, 2002 RE: THE LINKSYS GROUP, INC. FCC ID: PKW-NWP11B After a review of the submitted information, I have a few comments on the above referenced Application. Please Note that SAR issues will be sent under a separate letter (when this exhibit has been provided). These comments are all made upon the assumption that the EUT's full conducted output power is 63.0 mW and the antenna gain is 1.0 dBi. EMC Issues 1) The block diagram should show the frequency of all oscillators in the device (CFR 2.1033(a)(5)). 2) The operational description explains the device is to be used with 2.5 cm spacing. The device may be used as a general purpose PCMCIA card in a variety of devices including laptops & PDA's, etc. (some of these devices may be used in the lap or while on the body). Therefore touch position IS considered applicable and the device must be subject to portable exposure conditions (2.5 cm separation distance is NOT considered applicable). Please remove the phrase "This equipment should be installed and operated with a minimum distance of 2.5 cm between the radiator and your body." from the users manual as this is not considered applicable. 3) The RF exposure information states 2.5 cm which is no longer considered valid. However, an email mentioned that a SAR report will be uploaded. This exhibit will replace the MPE calculations provided. 4) Note: SAR REPORT NOT YET PROVIDED. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 5, 2002 RE: THE LINKSYS GROUP, INC. FCC ID: PKW-NWP11B After a review of the submitted information, I have a few comments on the above referenced Application. SAR Issues 1) A field probe must be calibrated in tissue media with the target dielectric parameters specified in Appendix C of IEEE 1528, corresponding to the operating frequency ranges of the test device. Probe conversion factors by extrapolation is not allowed for TCB approval and the calibration should be performed within 5% target dielectric property window for the testing performed (dielectric information was not specified in calibration information). It appears that the additional conversion factors provided by the manufacturer may be extrapolated factors. Please comment or provide additional probe calibration information for the 2.4 GHz band measured. 2) The test procedure does not appear to report probe tip distance to phantom inner surface during the scan. 3) The report does not appear to a) list measurement and interpolation resolutions of “zoom” scan procedures, b) contain descriptions of extrapolation procedures used to estimate SAR values adjacent to phantom surface, c) description of averaging (integration) procedures to get 1-g SAR from final interpolated grid. Please provide this information. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

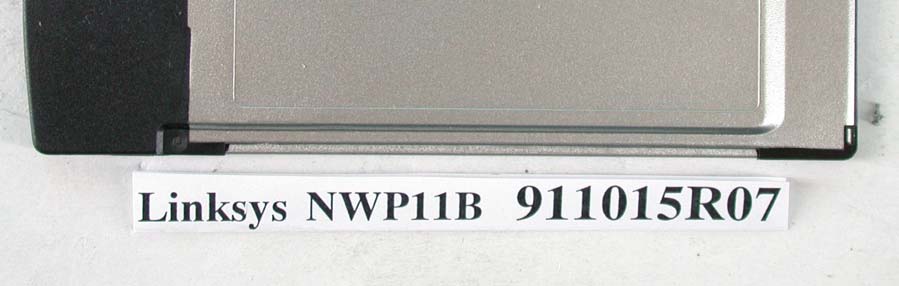

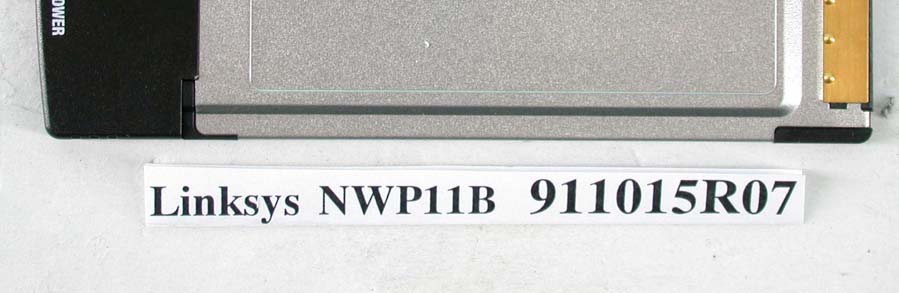

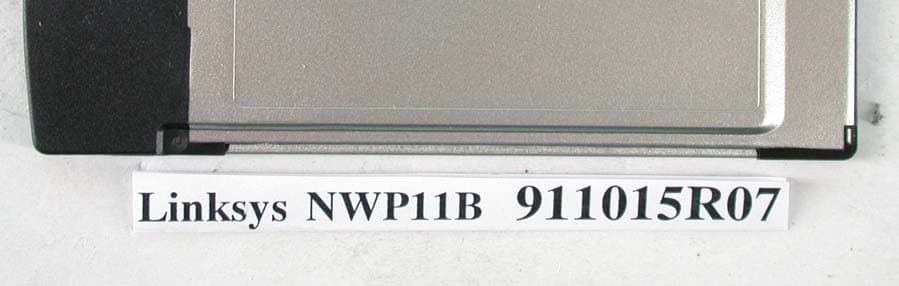

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4 Page 5

FCC ID: PKW-NWP11B ADT No.911015R07 Operational Description The transmitter of the EUT is powered by host equipment. The antenna is Chip antenna. There is no antenna connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate. The bit rates are 1,2,5.5,11,22Mbps, the symbol rates are 1,1,1.375,1.375,1.375 Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8,8,and16 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

Test Report S/N: 091002-278PKW Test Date(s): September 13, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc. 1 of 21 Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC §2.1093 and was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 (General Population / Uncontrolled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Research Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information THE LINKSYS GROUP INC. 17401 Armstrong Avenue Irvine, CA 92614 FCC Rule Part(s): §2.1093 Test Procedure(s): FCC OET Bulletin 65, Supplement C (01-01) Device Classification: Part 15 Spread Spectrum Transmitter (DSS) FCC ID: PKW-NWP11B Model(s): NWP11B EUT Type: DSSS Wireless Notebook Adapter for Laptop PC Tx Frequency Range: 2412 - 2462 MHz Conducted Power Tested: 17.99 dBm (2412 MHz) 17.54 dBm (2437 MHz) 16.87 dBm (2462 MHz) Antenna Type: Internal Power Supply: from host Laptop PC Max. SAR Measured: 0.989 W/kg Test Report S/N: 091002-278PKW Test Date(s): September 13, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.2 of 21 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF EUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 7 7.0SYSTEM VALIDATION............................................................. 8 8.0EQUIVALENT TISSUES........................................................... 9 9.0SAR LIMITS........................................................................... 9 10.0SYSTEM SPECIFICATIONS......................................................10 11.0PROBE SPECIFICATION.......................................................... 11 12.0SAM PHANTOM......................................................................11 13.0DEVICE HOLDER.................................................................... 11 14.0TEST EQUIPMENT LIST...........................................................12 15.0MEASUREMENT UNCERTAINTIES............................................ 13 16.0REFERENCES........................................................................ 14 APPENDIX A - SAR MEASUREMENT DATA............................................. 15 APPENDIX B - SYSTEM VALIDATION.....................................................16 APPENDIX C - DIPOLE CALIBRATION...................................................17 APPENDIX D - PROBE CALIBRATION....................................................18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................19 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY..............20 APPENDIX G - SAR TEST SETUP & EUT PHOTOGRAPHS........................21 Test Report S/N: 091002-278PKW Test Date(s): September 13, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.THE LINKSYS GROUP INC. FCC ID: PKW-NWP11B3 of 21 DSSS Wireless Notebook Adapter for Laptop PC (2412-2462MHz) 1.0 INTRODUCTION This measurement report demonstrates that THE LINKSYS GROUP INC. Model: NWP11B DSSS Wireless Notebook Adapter (for Laptop PC)FCC ID: PKW-NWP11B complies with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]). The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see Reference [2]) were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) FCC Rule Part(s) 47 CFR §2.1093 FCC Test Procedure OET Bulletin 65, Supplement C (01-01) FCC Device Classification Part 15 Spread Spectrum Transmitter (DSS) Device Type DSSS Wireless Notebook Adapter (for Laptop PC) FCC ID PKW-NWP11B Model(s) NWP11B Serial No. Pre-production Tx Frequency Range 2412 - 2462 MHz RF Conducted Power Tested 17.99 dBm (2412 MHz) 17.54 dBm (2437 MHz) 16.87 dBm (2462 MHz) Antenna Type Internal Power Supply from host Laptop PC Test Report S/N: 091002-278PKW Test Date(s): September 13, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.THE LINKSYS GROUP INC. FCC ID: PKW-NWP11B4 of 21 DSSS Wireless Notebook Adapter for Laptop PC (2412-2462MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, specific anthropomorphic mannequin (SAM) phantom, and various planar phantoms for brain or body SAR evaluations. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnet…

Text truncated - open the document above for the full version.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com November 7, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue McLean, VA 22101 Attn: Timothy Johnson SUBJECT: The Linksys Group, Inc. FCC ID: PKW-NWP11B SAR Evaluation Dear Tim, On behalf of The Linksys Group, Inc. is our response to your e-mail dated 11/05/02 requesting additional information for the subject application. 1. The probe conversion factors used for the evaluation were certified by the system manufacturer using numerical modeling. According to correspondence from Tim Harrington with the FCC on 11/06/02, system manufacturer’s certified probe conversion factors are permitted in accordance with Supplement C and P1528 draft. 2. The probe tip distance to phantom inner surface during the scan was 1.3 +/- 0.2 mm (probe manufacturer’s specification, shown in Appendix D of the SAR report). 3. Please refer to the attached revised SAR evaluation procedures (page 7 of SAR report). If you have any further questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Research Inc. Test Report S/N: 091002-278PKW Test Date(s): September 13, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc. THE LINKSYS GROUP INC. FCC ID: PKW-NWP11B 7 of 22 DSSS Wireless Notebook Adapter for Laptop PC (2412-2462MHz) 6.0 EVALUATION PROCEDURES a. (i) The evaluation was performed in the applicable area of the phantom depending on the type of device being tested. For devices held to the ear during normal operation, both the left and right ear positions were evaluated in accordance with FCC OET Bulletin 65, Supplement C (Edition 01-01) using the SAM phantom. (ii) For body-worn and face-held devices a planar phantom was used. b. The SAR was determined by a pre-defined procedure within the DASY3 software. Upon completion of a reference and optical surface check, the exposed region of the phantom was scanned near the inner surface with a grid spacing of 20mm x 20mm. c. Based on the area scan data, the area of maximum absorption was determined by spline interpolation. Around this point, a volume of 40 x 40 x 35 mm (fine resolution volume scan, zoom scan) was assessed by measuring 5 x 5 x 7 points. d. The 1g and 10g spatial peak SAR was determined as follows: 1. The first step was an extrapolation to find the points between the dipole center of the probe and the surface of the phantom. This data cannot be measured, since the center of the dipoles is 2.7 mm away form the tip of the probe and the distance between the surface and the lowest measuring point is 1.3 mm (see probe calibration document in Appendix D). The extrapolation was based on a least square algorithm [W. Gander, Computermathematik, p.168-180]. Through the points in the first 3 cm in all z-axis, polynomials of the fourth order were calculated. This polynomial was then used to evaluate the points between the surface and the probe tip. 2. The next step used 3D-spline interpolation to get all points within the measured volume in a 1mm grid (35000 points). The 3D-spline is composed of three one-dimensional splines with the "Not a knot" condition [W. Gander, Computermathematik, p.141-150] (x, y and z -direction) [Numerical Recipes in C, Second Edition, p.123ff]. 3. The maximal interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed using the 3D-spline interpolation algorithm. 8000 points (20x20x20) were interpolated to calculate the average.

FCC ID: PKW-NWP11B Report No.: RF910814R04B1Issued: October 18, 2002 Reference No.: RF910814R04 FCC TEST REPORT REPORT NO.: RF910814R04B MODEL NO.: NWP11B RECEIVED: October 15, 2002 TESTED: July 16 ~ August 24, 2002 APPLICANT: The Linksys Group, INC. ADDRESS: 17401 Armstrong Ave. Irvine, CA 92614 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 50 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PKW-NWP11B Report No.: RF910814R04B2Issued: October 18, 2002 Reference No.: RF910814R04 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST PROCEDURES...........................................................................................10 4.1.4DEVIATION FROM TEST STANDARD...............................................................10 4.1.5TEST SETUP..........................................................................................................11 4.1.6EUT OPERATING CONDITIONS........................................................................12 4.1.7TEST RESULTS......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT..........................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................19 4.2.2TEST INSTRUMENTS...........................................................................................20 4.2.3TEST PROCEDUR…

Text truncated - open the document above for the full version.
