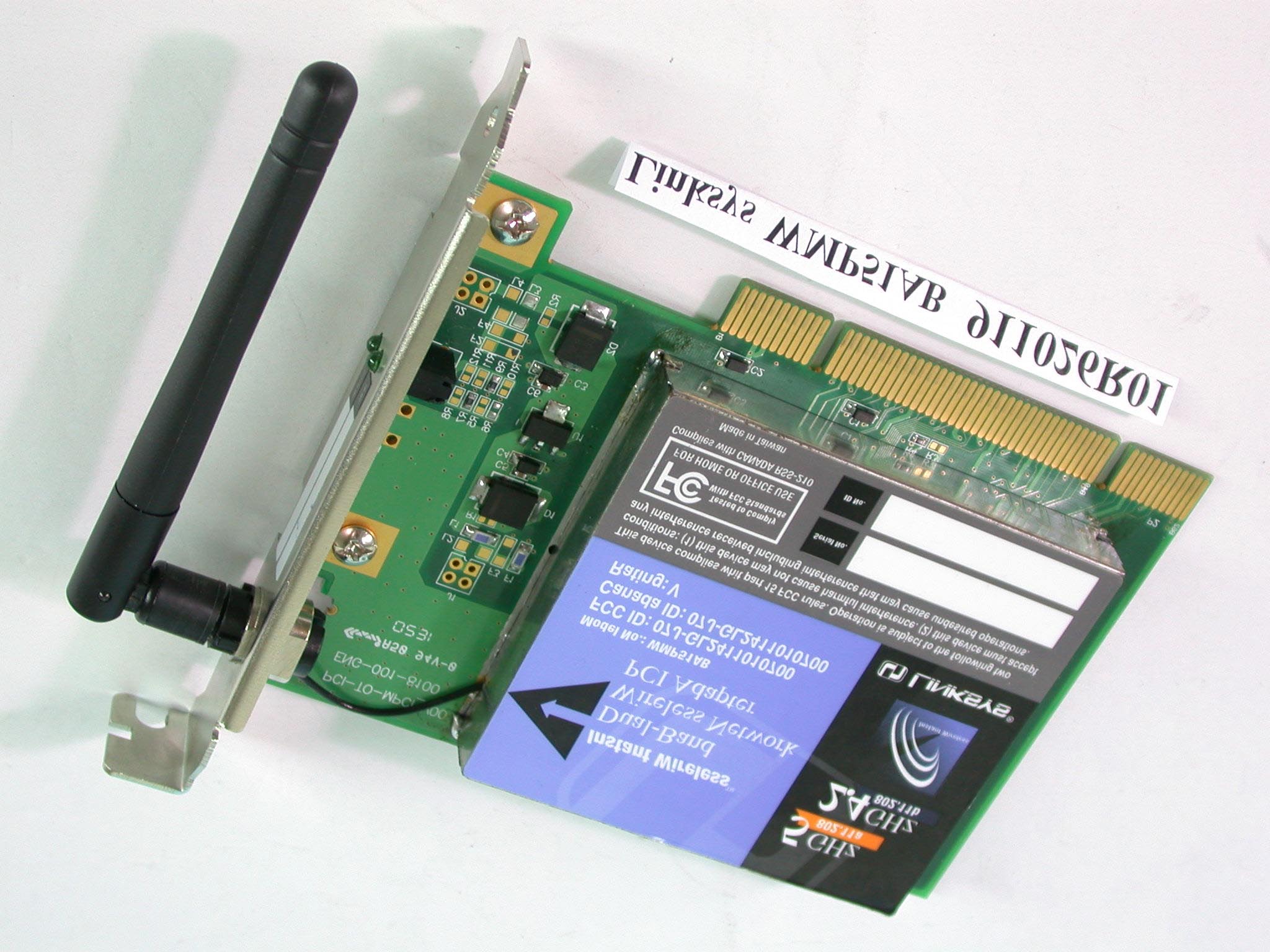

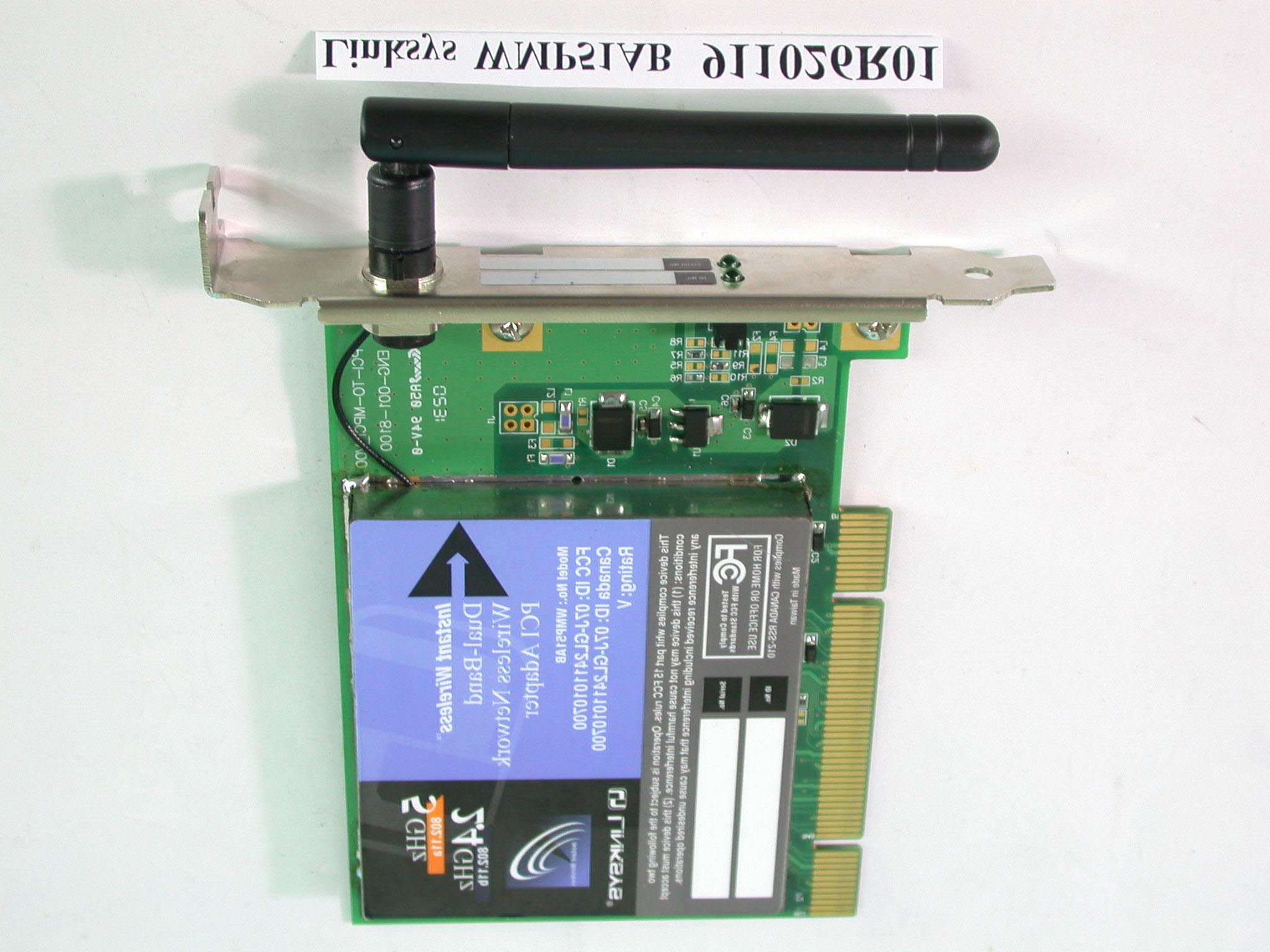

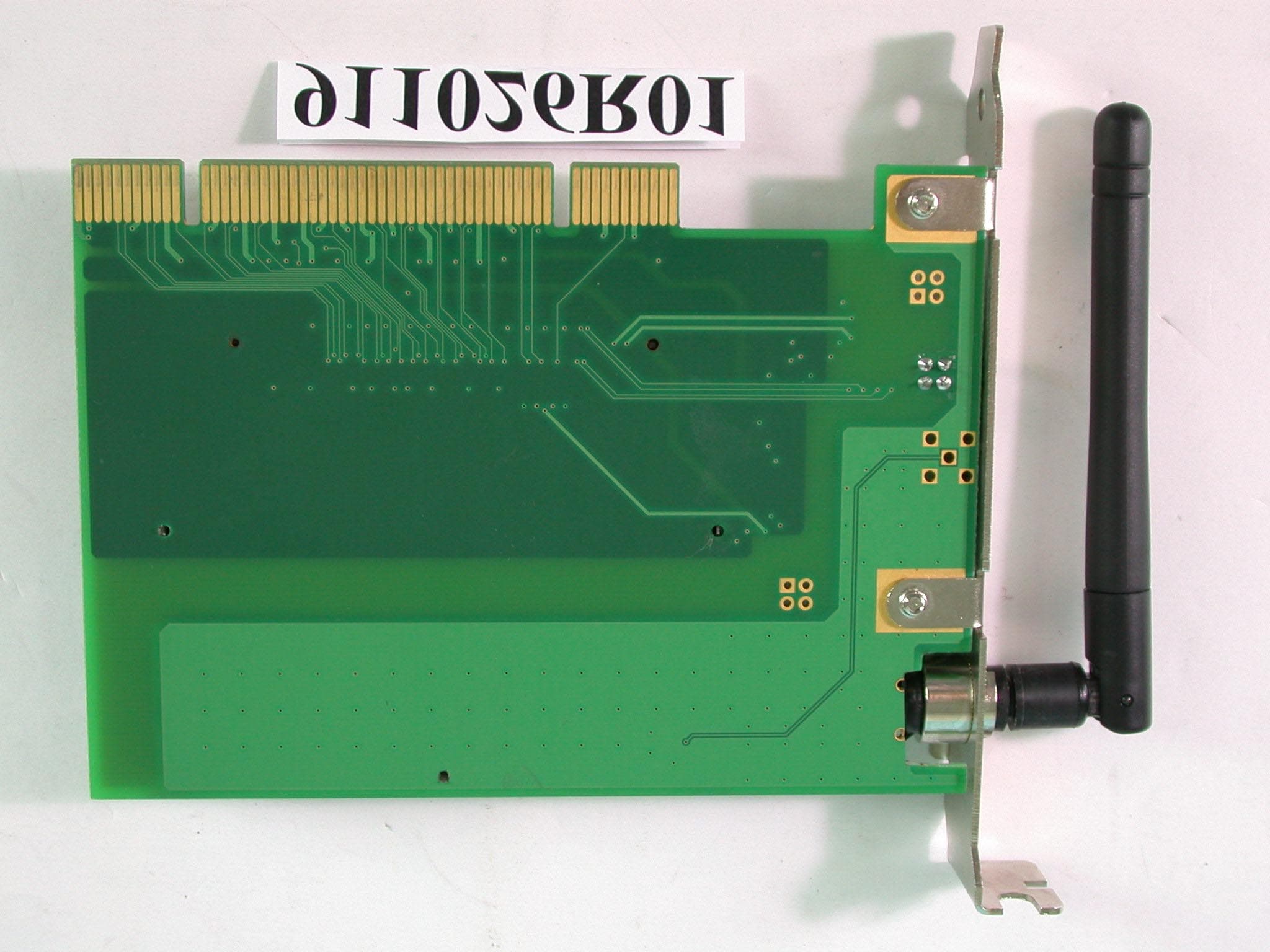

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: PKW-WMP51AB ADT No.911026R01 Technical Description The transmitter of the EUT (Dual-Band Wireless A+B PCI Adapter) is powered by host equipment and pluged in PCI slot. The antenna is Dipole antenna. There is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a Dual-Band Wireless A+B PCI Adapter which can operate in both the 5GHz and 2.4GHz bands and can not transmitting simultaneously, the maximum data rate could be 72Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

ADT No: 911026R01 1 FCC TEST REPORT REPORT NO.: RF911005R01 MODEL NO.: WMP51AB ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:The Linksys Group, Inc. ADDRESS:17401 Armstrong Ave., Irvine, CA 92614 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 ADT No: 911026R01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz ADT No: 911026R01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 20 deg. C and 63 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. ADT No: 911026R01 4 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2.4dBi or 1.74 (numeric) for 2.4GHz and 2.7dBi or 1.86 (numeric) 5GHz. 7.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241230.342.05 6243734.202.17 11246227.291.94 For Part 802.11a: Normal Mode: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1518041.881.77 4524045.292.59 5526036.902.34 8532041.592.48 Turbo Mode: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1521046.242.62 2525037.762.37 3529039.262.41 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

Mini PCI Type IIIA V1.0 1 of 6 2002/11/06 WL-556B GEMTEK CONFIDENTIAL WL-556B - 802.11a and 802.11b Combo Radio Title: Size: Directory: Design: File: Appvd: Rev: Sheet: Now date: Present date: N/C N/C N/C N/C N/C 2 of 6 2002/11/06 WL-556B V1.0 GEMTEK CONFIDENTIAL Title: Size: Directory: Design: File: Appvd: Rev: Sheet: Now date: Present date: AD28 PCI_SERR_L AD8 PCI_PAR PCI_CBE1_L PCI_PERR_L AD12 AD19 AD9 PCI_CBE2_L AD14 DACP_I AD26 PCI_TRDY_L AD31 PCI_STOP_L PCI_INT_L DACP_Q PCI_FRAME_L AD7 DACN_Q AD30 AD4 AD20 AD2 AD11 AD29 PCI_CBE3_L AD0 DACN_I AD6 AD15 AD13 PCI_IRDY_L AD23 AD22AD21 PCI_GNT_L AD18 AD16 AD27 PCI_CBE0_L AD17 PCI_CLKRUN_L AD10 PCI_CLK PCI_IDSEL_L AD25 PCI_REQ_L AD3 PCI_DEVSEL_L AD5 AD24 PCI_PME_L AD1 ATTEN5 AD24 RFSHIFT LED1 RX5 ADCN_Q AD10 PCI_REQ_L RFDATAOUT0 PCI_CLKRUN_L AD6 PCI_TRDY_L PCI_CBE1_L RFRESET_L GPIO_2 ADCP_Q AD12 PCI_STOP_L PCI_PAR AD29 PCI_DEVSEL_L AD19 PCI_IRDY_L PCI_CLK SLEEP DAC_IN TCLK AD31 RFDATAOUT1 AD26 GPIO_1 ADCP_I AD0 AD13 EPRM_CS RFDATAOUT2 DAC_QN AD7 AD11 AD3 MPCI_14 PCI_INT_L GPIO_3 ADCISEL ADCN_I AD16 AD9 PCI_CBE0_L AD28 RFDATAOUT3 TRST_L AD20 RX2 TMS EPRM_CLK PCI_PME_L AD14 EPRM_DO EPRM_DI AD23 PCI_CBE2_L PCI_PERR_L AD5 AD22 PCI_CBE3_L AD30 AD27 RFDATAIN5 DAC_IP LED0 DAC_QP EPRM_EN_L AD17 PCI_SERR_L AD8 PCI_FRAME_L TDO RFLOAD TX2 PCI_IDSEL_L AD4 TDI RX_CLEAR AD18 AD15 AD1 AD25 PCI_GNT_L HITUNE5 AD21 AD2 ADCRES TX5 RFDATAIN2 MPCI_13 GPIO_0 PCI_RST_LPCI_RST_L LED1 GPIO_0 MPCI_12 MPCI_13 LED0MPCI_14 GPIO_3 GPIO_1 LED1 GPIO_2 MPCI_12 MPCI_11 MPCI_11 LED0 ANTA ANTB ATTEN2 AR2111_CLKOUT ANTB5 DACN_Q3 ADCN_I3 RFDATAIN53 RFDATAOUT13,4 AR2111_CLKOUT4 RFDATAOUT23,4 ADCP_Q3 RFDATAOUT33,4 ANTD5 ADCN_Q3 DACP_Q3 DACN_I3 RFLOAD3,4 RX55 TX54,5 ADCP_I3 DACP_I3 RFDATAOUT03,4 RFSHIFT3,4 SLEEP6 RX25 RFDATAIN24 ANTA5 TX24,5 ANTC5 RFRESET_L3,4 ATTEN24 ATTEN54 3.3V 2.5V_D 3.3V 3.3V2.5V_D3.3V2.5V_ADCDAC 2.5V_ADCDAC 3.3V3.3V3.3V3.3V 3.3V TP4 1 C121 8.2pF C199 1pF 1 2 TP29 1 R60 0 12 C196 10pF 1 2 C128 0.1uF R83 R 12 C136 0.1uF TP3 1 C122 8.2pF TP19 1 L37 1uH 5% 78-102LJ-000 12 C133 0.01uF R88 0 12 C123 0.01uF TP11 1 TP8 1 R57 R 1 2 C194 1pF 1 2 C125 0.01uF C5 2.2pF 1 2 TP12 1 R58 187 1 2 C137 10pF 1 2 R56R 12 E4 1 C134 0.1uF L2918nH 12 TP7 1 C127 0.1uF R50 365 1% R86 R 12 TP1 1 C132 0.01uF L38 1uH 5% 78-102LJ-000 12 TP2 1 E3 1 R82 R 12 R87 0 12 U7 AT93C86-10TI-2.7 1 2 3 45 6 7 8 CS SK DI DOGND NC NC VCC TP25 1 L406.8nH 12 C124 0.01uF L3018nH 12 TP16 1 R61 R 1 2 TP26 1 R54 10K 1% 1 2 J3 Mini PCI -Type III 12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536 3738 3940 4142 4344 4546 4748 4950 5152 5354 5556 5758 5960 6162 6364 6566 6768 6970 7172 7374 7576 7778 7980 8182 8384 8586 8788 8990 9192 9394 9596 9798 99100 101102 103104 105106 107108 109110 111112 113114 115116 117118 119120 121122 123124 TIPRING 8PMJ-38PMJ-1 8PMJ-68PMJ-2 8PMJ-78PMJ-4 8PMJ-88PMJ-5 LED1-GRNPLED2-YELP LED1-GRNNLED2-YELN CHSGNDRESERVED1 INTB#5V 3.3VINTA# RESERVED2RESERVED3 GND3.3VAUX CLKRST# GND3.3V REQ#GNT# 3.3VGND AD31PME# AD29RESERVED4 GNDAD30 AD273.3V AD25AD28 RESERVED5AD26 CBE3#AD24 AD23IDSEL GNDGND AD21AD22 AD19AD20 GNDPAR AD17AD18 CBE2#AD16 IRDY#GND 3.3VFRAME# CLKRUN#TRDY# SERR#STOP# GND3.3V PERR#DEVSEL# CBE1#GND AD14AD15 GNDAD13 AD12AD11 AD10GND GNDAD9 AD8CBE0# AD73.3V 3.3VAD6 AD5AD4 RESERVED6AD2 AD3AD0 5VRESERVED-WIP1 AD1RESERVED-WIP2 GNDGND AC_SYNCM66EN AC_SDATA_INAC_SDATA_OUT AC_BIT_CLKAC_CODEC_ID0# AC_CODEC_ID1#AC_RESET# MOD_AUDIO_MONRESERVED7 AUDIO_GNDGND SYS_AUDIO_OUTSYS_AUDIO_IN SYS_AUDIO_OUT GNDSYS_AUDIO_IN GND AUDIO_GNDAUDIO_GND RESERVED8MPCIACT# VCC5VA3.3VAUX TP15 1 R51 6.19K 1% C131 0.01uF R85 R 12 TP17 1 TP13 1 R55 R 1 2 R52 365 1% C130 0.1uF C135 0.1uF E2 1 C129 0.1uF L416.8nH 12 L36 1uH 5% 78-102LJ-000 12 L39 1uH 5% 78-102LJ-000 12 TP18 1 C120 22pF C126 0.01uF U6 AR5211 N7 K13 L14 M14 N13 N12 M11 N11 P10 P4 N3 C2 A3 N6 K14 N8 K12 L12 N14 P13 P12 D9 P11 N5 M4 A2 J1 C1 H12 B3 P2 L13 M13 M7 G3 D1 M9 P5 N4 L1 G14 J13 A4B4C4 P7 E4 D11 G4H4 E5 K4 E6 J14 D6 F14 A5B5 G12 D5 N2B13E7E8E9E10 L5M5 F12 A14 A6B6C7 F4F5F6F7F8F9F10F11C12 E1 A1 A7B7C6D7 G5G6G7G8G9G10 L7H3 B1 E13 A8B8C8D8 H5H6H7H8H9H10 L8 P3 E12 F3 A9B9C9 J4J5J6J7J8J9J10J11D4 H14 H13 A10B10C10D10 K5K6K7K8K9K10 L10M10 D3 D2 A11B11C11 L4 E11 L6 G11H11 L9 K11 L11 E2 E3 G13 A12 B12 M3 D12 C14 C3 P8 P9 B2 L2 K1 M12 J12 C5 A13 F2 C13 D13 N10 M6 N1 N9 M2 K3 J3 P1 F1 H2 H1 B14 E14 D14 F13 M1 M8 P6 L3 K2 J2 P14 G2 G1 PCI_TRDY_L PCI_AD1 PCI_AD3 PCI_AD6 PCI_AD9 PCI_AD11 PCI_AD13 PCI_AD14 PCI_AD16 PCI_AD19 PCI_AD22 TDO TMS PCI_FRAME_L PCI_AD0 PCI_STOP_L PCI_AD2 PCI_AD5 PCI_AD8 PCI_AD10 PCI_AD12 GND PCI_AD15 PCI_AD18 PCI_AD21 TDI PCI_CLKRUN_L TCLK SLEEP AGND PCI_SERR_L PCI_AD4 PCI_AD7 PCI_DEVSEL_L VDD2_5 RX2 PCI_IDSEL PCI_AD17 PCI_AD20 PCI_PME_L GPIO_5 ANTB ADC_QN ADC_QP AVDD_ADC PCI_CLK VDD3_3 GND VDD2_5VDD2_5 GND VDD3_3 GND ANTA GND NC0 AGNDAGND HITUNE5 VDD3_3 GNDGNDGNDGNDGNDGND VDD3_3VDD3_3 ANTD RFDATAOUT_0 ADC_IP ADC_IN NC2 GNDGNDGNDGNDGNDGNDGNDGNDGND RX5 EPRM_EN_L AGND AVDD_ADC ADC_RES VDD2_5 GNDGNDGNDGNDGNDGND VDD2_5VDD2_5 TRST_L TX2 DAC_QN DAC_QP AVDD_DAC VDD2_5 GNDGNDGNDGNDGNDGND VDD2_5 PCI_RST_L TX5 RX_CLEAR AGNDAGND AVDD_DAC GNDGNDGNDGNDGNDGNDGNDGNDGND LED_1 LED_0 DAC_IP DAC_IN AVDD_PLL VDD3_3 GNDGNDGNDGNDGNDGND VDD3_3VDD3_3 GPIO_1 GPIO_0 AGND VDD_PLL GND GND VDD3_3 GND VDD2_5VDD2_5 GND VDD3_3 GND GPIO_2 GPIO_3 GPIO_4 RFRESET_L RFLOAD GND ANTC RFDATAOUT_3 GND PCI_INT_L PCI_PERR_L GND PCI_AD26 PCI_AD29 GND ATTEN2 PCI_MODE RFSHIFT EPRM_DI RFDATAOUT_2 RFDATAIN5 PCI_CBE1_L PCI_CBE2_L PCI_REQ_L PCI_PAR PCI_AD24 PCI_AD27 PCI_AD30 PCI_AD23 EPRM_DO ATTEN5 EPRM_CLK RFDATAOUT_1 PLLBYPASS REFCLK NC1 PCI_CBE3_L PCI_GNT_L PCI_IRDY_L PCI_AD25 PCI_AD28 PCI_AD31 PCI_CBE0_L RFDATAIN2 EPRM_CS C4 2.2pF 1 2 E1 1 R59 187 1 2 C112 10pF 1 2 C195 1pF 1 2 TP14 1 R84 0 12 Place 1pF capacitors close to chip pins W15 L20 W15 L20 W17 L(624)W25 L100 W5 L53 W17 L20 W5 L160W5 L160 W25 L90W40 L40 GEMTEK CONFIDENTIAL 3 of 6 2002/11/06 WL-556B V1.0 Title: Size: Directory: Design: File: Appvd: Rev: Sheet: Now date: Present date: DETN…

Text truncated - open the document above for the full version.

FCC ID: PKW-WMP51AB Report No.: RF911026R01 1 Issued: Nov. 25, 2002 FCC TEST REPORT REPORT NO.: RF911026R01 MODEL NO.: WMP51AB RECEIVED: Oct. 7, 2002 TESTED: Oct. 8 ~ Nov. 12, 2002 APPLICANT:The Linksys Group, Inc. ADDRESS:17401 Armstrong Ave., Irvine, CA 92614 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 121 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PKW-WMP51AB Report No.: RF911026R01 2 Issued: Nov. 25, 2002 Table of Contents 1.CERTIFICATION........................................................................................... 5 2.SUMMARY OF TEST RESULTS .................................................................. 6 3.GENERAL INFORMATION ........................................................................... 8 3.1GENERAL DESCRIPTION OF EUT ...................................................................................... 8 3.2DESCRIPTION OF TEST MODES ........................................................................................ 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ..................................................... 10 3.4DESCRIPTION OF SUPPORT UNITS................................................................................. 11 4.TEST TYPES AND RESULTS (FOR PART 802.11b) ................................. 12 4.1CONDUCTED EMISSION MEASUREMENT....................................................................... 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 12 4.1.2TEST INSTRUMENTS ......................................................................................................... 12 4.1.3TEST PROCEDURES .......................................................................................................... 13 4.1.4DEVIATION FROM TEST STANDARD ................................................................................ 13 4.1.5TEST SETUP ....................................................................................................................... 14 4.1.6EUT OPERATING CONDITIONS......................................................................................... 14 4.1.7TEST RESULTS ................................................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT ............................................................................ 21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 21 4.2.2TEST INSTRUMENTS ......................................................................................................... 22 4.2.3TEST PROCEDURES .......................................................................................................... 23 4.2.4DEVIATION FROM TEST STANDARD ................................................................................ 23 4.2.5TEST SETUP ....................................................................................................................... 24 4.2.6EUT OPERATING CONDITIONS......................................................................................... 24 4.2.7TEST RESULTS ................................................................................................................... 25 4.36dB BANDWIDTH MEASUREMENT ................................................................................... 29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 29 4.3.2TEST INSTRUMENTS ......................................................................................................... 29 4.3.3TEST PROCEDURE ............................................................................................................30 4.3.4DEVIATION FROM TEST STANDARD ................................................................................ 30 4.3.5TEST SETUP ....................................................................................................................... 30 4.3.6EUT OPERATING CONDITIONS......................................................................................... 30 4.3.7TEST RESULTS ................................................................................................................... 31 4.4MAXIMUM PEAK OUTPUT POWER ................................................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 35 4.4.2INSTRUMENTS.................................................................................................................... 35 4.4.3TEST PROCEDURES .......................................................................................................... 36 4.4.4DEVIATION FROM TEST STANDARD ................................................................................ 36 4.4.5TEST SETUP ....................................................................................................................... 36 4.4.6EUT OPERATING CONDITIONS......................................................................................... 36 FCC ID: PKW-WMP51AB Report No.: RF911026R01 3 Issued: Nov. 25, 2002 4.4.7TEST RESULTS ................................................................................................................... 37 4.5POWER SPECTRAL DENSITY MEASUREMENT .............................................................. 38 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ........................................... 38 4.5.2TEST INSTRUMENTS ...…

Text truncated - open the document above for the full version.

FCC ID: PKW-WMP51AB Report No.: RF911026R01 119 Issued: Nov. 25, 2002 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PKW-WMP51AB Report No.: RF911026R01 120 Issued: Nov. 25, 2002 RADIATED EMISSION TEST
