PKW-WMP55AGDual-Band A+G Wireless Network PCI Adapter

Instant Wireless ® Series Dual-Band Wireless A+G PCI Adapter Use this guide to install:WMP55AG User Guide COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2003 Linksys, All RightsReserved. Instant Wireless, Linksys, and the Linksys logo are registered trademarks ofLinksys Group, Inc. Microsoft, Windows, and the Windows logo are registered trade-marks of Microsoft Corporation. All other trademarks and brand names are the proper-ty of their respective proprietors. LIMITED WARRANTY Linksys guarantees that every Instant Wireless ® Dual-Band Wireless A+G PCI Adapter will be free from physical defects in material and workmanship for one year from the dateof purchase, when used within the limits set forth in the Specifications chapter of thisUser Guide. TT hh ii ss WW aa rr rr aa nn tt yy ii ss vv aa ll ii dd aa nn dd mm aa yy bb ee pp rr oo cc ee ss ss ee dd oo nn ll yy ii nn tt hh ee cc oo uu nn tt rr yy oo ff pp uu rr cc hh aa ss ee .. If the product proves defective during this warranty period, go to the Linksys website at www.linksys.com for complete RMA (Return Merchandise Authorization) assistance. You can also call Linksys Technical Support in order to obtain a RMA Number. BE SURE TOHAVE YOUR PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCT’S PACK-AGING ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSEDWITHOUT PROOF OF PURCHASE. When returning a product, mark the RMA Numberclearly on the outside of the package and include a copy of your original proof of pur-chase. All customers located outside of the United States of America and Canada shallbe held responsible for shipping and handling charges.IN NO EVENT SHALL LINKSYS'S LIABILITY EXCEED THE PRICE PAID FOR THE PROD-UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-WARE, OR ITS DOCUMENTATION. LINKSYS OFFERS NO REFUNDS FOR ITS PROD-UCTS. Linksys makes no warranty or representation, expressed, implied, or statutory,with respect to its products or the contents or use of this documentation and all accom-panying software, and specifically disclaims its quality, performance, merchantability, orfitness for any particular purpose. Linksys reserves the right to revise or update its prod-ucts, software, or documentation without obligation to notify any individual or entity.Please direct all inquiries to:Linksys P.O. Box 18558, Irvine, CA 92623. SAFETY AND REGULATORY NOTICESFCC STATEMENTThe Instant Wireless Dual-Band Wireless A+G PCI Adapter has been tested and foundto comply with the specifications for a Class B digital device, pursuant to Part 15 of theFCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates, uses, and can radiate radio fre-quency energy and, if not installed and used according to the instructions, may causeharmful interference to radio communications. However, there is no guarantee that inter-ference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which is found by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment or devices • Connect the equipment to an outlet other than the receiver's • Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any change or modification to the product not expressly approved byLinksys could void the user's authority to operate the device.FCC Caution: Operation within the 5150 to 5250GHz band is restricted to indoor use only.FCC RF Radiation Exposure StatementTo comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for thisdevice must comply with the following:• Access points with 2.4 GHz or 5 GHz integrated antenna must operate with a sepa-ration distance of at least 20 cm from all persons using the cable provided and mustnot be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operations for satisfying RF exposure compli-ance.Note: Dual antennas used for diversity operation are not considered co-located.INDUSTRY CANADA (CANADA)This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.The use of this device in a system operating either partially or completely outdoors mayrequire the user to obtain a license for the system according to the Canadian regulations.EC DECLARATION OF CONFORMITY (EUROPE)Linksys Group declares that the Instant Wireless ® Series products included in the Instant Wireless ® Series conform to the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC, EMC directive 89/336/EEC, and Low Voltagedirective 73/23/EEC: For 11Mbps, 2.4 GHz devices with 100 mW radios, the following standards were applied: • ETS 300-826, 301 489-1 General EMC requirements for Radio equipment. • EN 609 50 Safety • ETS 300-328-2 Technical requirements for Radio equipment. For 54Mbps, 5 GHz devices with 40 mW radios, the following standards were applied: • ETS 301 489-1, 301 489-17 General EMC requirements for Radio equipment. • EN 609 50 Safety • ETS 301-893 Technical requirements for Radio equipment. Caution: The frequencies used by 802.11a wireless LAN devices are not yet harmonizedwithin the European community, 802.11a products are designed for use only in specificcountries, and are not allowed to be operated in countries other than those of designat-ed use. Contact local A…

Text truncated - open the document above for the full version.

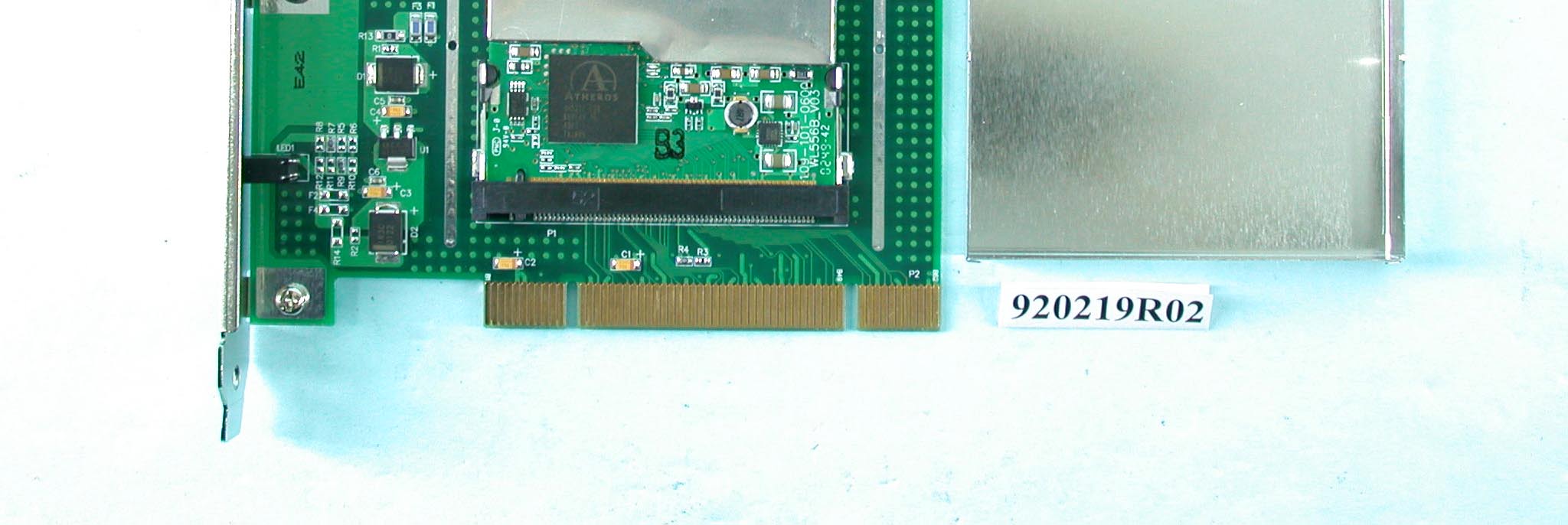

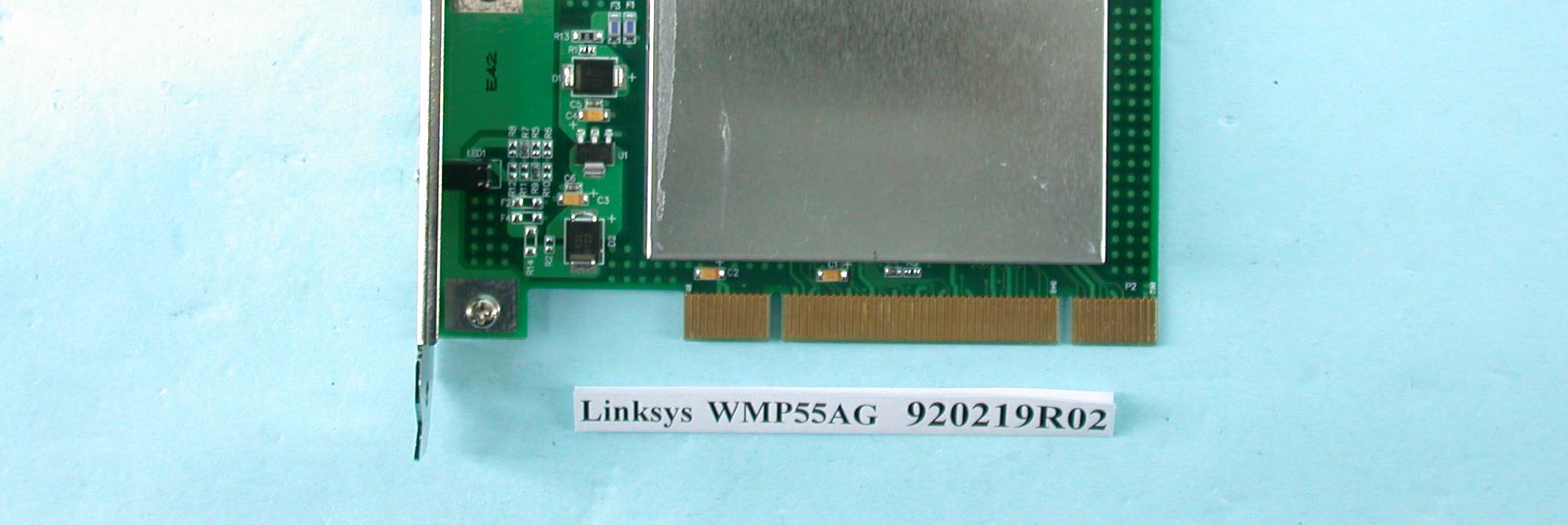

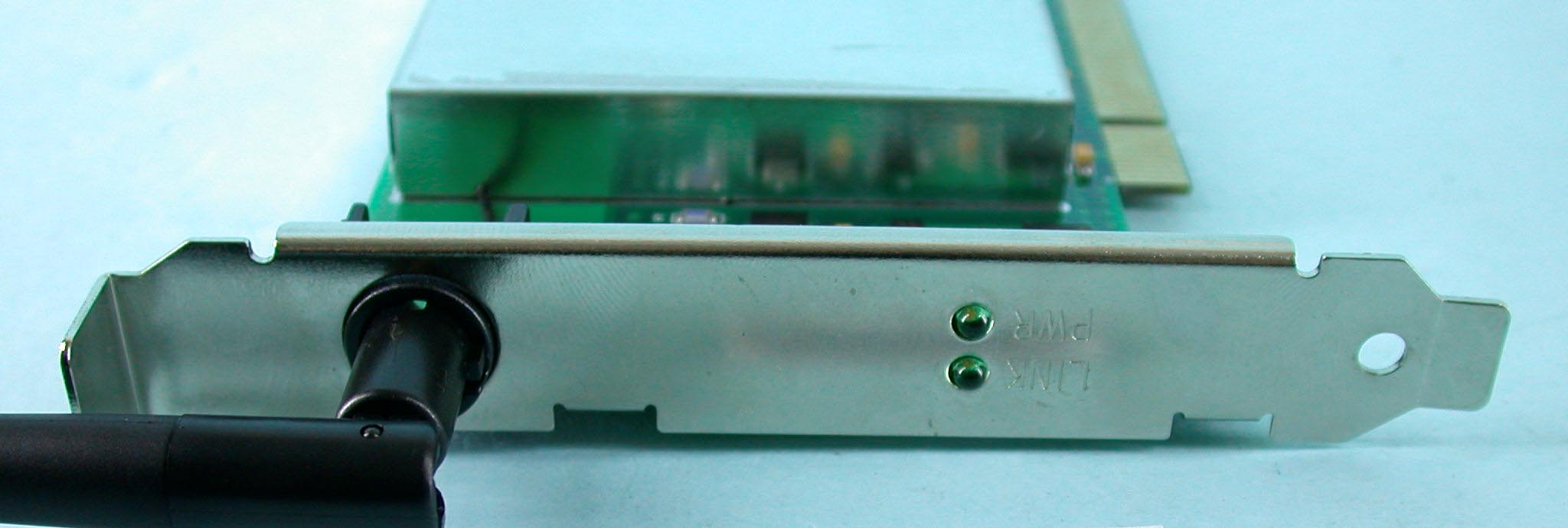

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6

FCC ID: PKW-WMP55AG ADT No.911026R01A Technical Description The transmitter of the EUT (Dual-Band A+G Wireless Network PCI Adapter) is powered by host equipment and pluged in PCI slot. The antenna is Dipole antenna. There is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a Dual-Band A+G Wireless Network PCI Adapter which operates in both of the 5GHz and 2.4GHz bands and can not transmitting simultaneously, the maximum data rate could be 72Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No: 911026R01A 1 RF EXPOSURE REPORT REPORT NO.: RF911026R01A MODEL NO.: WMP55AG ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:The Linksys Group, Inc. ADDRESS:17401 Armstrong Ave., Irvine, CA 92614 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 Report No: 911026R01A 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: 911026R01A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. Report No: 911026R01A 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1dBi or 1.26 (numeric) for 2.4GHz and 2dBi or 1.58 (numeric) for 5GHz. 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( R ) FROM SKIN (Centi-Meter) 1241293.333.06 6243785.512.93 11246281.102.85 For Part 802.11a: Normal Mode: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( R ) FROM SKIN (Centi-Meter) 1518041.881.77 4524045.292.59 5526036.902.34 8532041.592.48 9574731.622.00 12580530.201.95 Turbo Mode: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( R ) FROM SKIN (Centi-Meter) 1521046.242.62 2525037.762.37 3529039.262.41 4576028.181.77 5580025.121.78 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

ADT No: 911026R01A 1 FCC TEST REPORT REPORT NO.: RF911026R01A MODEL NO.: WMP55AG ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:The Linksys Group, Inc. ADDRESS:17401 Armstrong Ave., Irvine, CA 92614 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 ADT No: 911026R01A 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz ADT No: 911026R01A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 20 deg. C and 63 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. ADT No: 911026R01A 4 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1dBi or 1.26 (numeric) for 2.4GHz and 2dBi or 1.58 (numeric) for 5GHz. 7.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241293.330.0231.0 6243785.510.0211.0 11246281.100.0201.0 For 802.11a (5GHz Band): Normal Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518041.880.0131.0 4524045.290.0141.0 5526036.900.0121.0 8532041.590.0131.0 9574531.620.0101.0 12580530.200.0101.0 Turbo Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521046.240.0151.0 2525037.760.0121.0 3529039.260.0121.0 4576028.180.0091.0 5580025.120.0081.0

FCC ID: PKW-WMP55AG Report No.: RF911026R01A 1 Issued: Mar. 7, 2003 FCC TEST REPORT REPORT NO.: RF911026R01A MODEL NO.: WMP55AG RECEIVED: Feb. 12, 2003 TESTED: Feb. 13, 2003 ~ Mar. 7, 2003 APPLICANT:The Linksys Group, Inc. ADDRESS:17401 Armstrong Ave., Irvine, CA 92614 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 160 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 2 Issued: Mar. 7, 2003 Table of Contents 1.CERTIFICATION .................................................................................................................... 5 2.SUMMARY OF TEST RESULTS............................................................................................ 6 3.GENERAL INFORMATION .................................................................................................... 8 3.1GENERAL DESCRIPTION OF EUT ...................................................................................... 8 3.2DESCRIPTION OF TEST MODES ........................................................................................ 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ..................................................... 10 3.4DESCRIPTION OF SUPPORT UNITS................................................................................. 11 4.TEST TYPES AND RESULTS (For Part 802.11b & draft 802.11g)...................................... 12 4.1CONDUCTED EMISSION MEASUREMENT....................................................................... 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 12 4.1.2TEST INSTRUMENTS ......................................................................................................... 12 4.1.3TEST PROCEDURES .......................................................................................................... 13 4.1.4DEVIATION FROM TEST STANDARD ................................................................................ 13 4.1.5TEST SETUP ....................................................................................................................... 14 4.1.6EUT OPERATING CONDITIONS......................................................................................... 14 4.1.7TEST RESULTS (A) ............................................................................................................. 15 4.1.8TEST RESULTS (B) ............................................................................................................. 17 4.2RADIATED EMISSION MEASUREMENT ............................................................................ 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 19 4.2.2TEST INSTRUMENTS ......................................................................................................... 20 4.2.3TEST PROCEDURES .......................................................................................................... 21 4.2.4DEVIATION FROM TEST STANDARD ................................................................................ 21 4.2.5TEST SETUP ....................................................................................................................... 22 4.2.6EUT OPERATING CONDITIONS......................................................................................... 22 4.2.7TEST RESULTS ................................................................................................................... 23 4.2.8TEST RESULTS (A) ............................................................................................................. 24 4.2.9TEST RESULTS (B) ............................................................................................................. 27 4.2.10 TEST RESULTS (C) ............................................................................................................. 30 4.36dB BANDWIDTH MEASUREMENT ................................................................................... 31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 31 4.3.2TEST INSTRUMENTS ......................................................................................................... 31 4.3.3TEST PROCEDURE ............................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD ................................................................................ 32 4.3.5TEST SETUP ....................................................................................................................... 32 4.3.6EUT OPERATING CONDITIONS......................................................................................... 32 4.3.7TEST RESULTS (A) ............................................................................................................. 33 4.3.8TEST RESULTS (B) ............................................................................................................. 37 4.3.9TEST RESULTS (C) ............................................................................................................. 41 4.4MAXIMUM PEAK OUTPUT POWER ................................................................................... 43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 43 4.4.2INSTRUMENTS.................................................................................................................... 43 FCC ID: PKW-WMP55AG Report No…

Text truncated - open the document above for the full version.

FCC ID: PKW-WMP55AG Report No.: RF911026R01A 97 Issued: Mar. 7, 2003 CHANNEL 1 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 98 Issued: Mar. 7, 2003 CHANNEL 4 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 99 Issued: Mar. 7, 2003 CHANNEL 5 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 100 Issued: Mar. 7, 2003 CHANNEL 8 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 101 Issued: Mar. 7, 2003 CHANNEL 9 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 102 Issued: Mar. 7, 2003 CHANNEL 12 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 103 Issued: Mar. 7, 2003 EUT Dual-Band A+G Wireless Network PCI Adapter MODEL WMP55AG MODE Turbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH, 1005hPa TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/FAIL 1521016.6517.0050.76PASS 2525015.7717.0047.04PASS 3529015.9424.0048.96PASS 4576014.5030.0052.56PASS 5580014.0030.0050.53PASS NOTE: The 26dBc Occupied Bandwidth plot, please refer to the following pages. FCC ID: PKW-WMP55AG Report No.: RF911026R01A 104 Issued: Mar. 7, 2003 CHANNEL 1 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 105 Issued: Mar. 7, 2003 CHANNEL 2 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 106 Issued: Mar. 7, 2003 CHANNEL 3 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 107 Issued: Mar. 7, 2003 CHANNEL 4 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 108 Issued: Mar. 7, 2003 CHANNEL 5 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 109 Issued: Mar. 7, 2003 CHANNEL 1 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 110 Issued: Mar. 7, 2003 CHANNEL 2 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 111 Issued: Mar. 7, 2003 CHANNEL 3 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 112 Issued: Mar. 7, 2003 CHANNEL 4 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 113 Issued: Mar. 7, 2003 CHANNEL 5 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 114 Issued: Mar. 7, 2003 5.4 PEAK POWER EXCURSION MEASUREMENT 5.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz13dB 5.25 – 5.35 GHz13dB 5.725 – 5.825 GHz13dB 5.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 SPECTRUM ANALYZER8564EC4208A00660Nov. 20, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: PKW-WMP55AG Report No.: RF911026R01A 115 Issued: Mar. 7, 2003 5.4.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set the spectrum bandwidth span to view the entire spectrum. 3. Using peak detector and Max-hold function for Trace 1 (RB=1MHz, VB=3MHz) and 2 (RB=1MHz, VB=100KHz). 4. The largest difference between Trace 1 and Trace 2 in any 1MHz band on any frequency was recorded. 5.4.4 DEVIATION FROM TEST STANDARD No deviation 5.4.5 TEST SETUP 5.4.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUT SPECTRUM FCC ID: PKW-WMP55AG Report No.: RF911026R01A 116 Issued: Mar. 7, 2003 5.4.7 TEST RESULTS EUT Dual-Band A+G Wireless Network PCI Adapter MODEL WMP55AG MODE Normal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH, 1005hPa TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AV E R AG E EXCURSION LIMIT (dB) PASS/FAIL 151808.4413PASS 452407.7013PASS 552608.9413PASS 853208.8513PASS 957458.1713PASS 1258059.5013PASS FCC ID: PKW-WMP55AG Report No.: RF911026R01A 117 Issued: Mar. 7, 2003 CHANNEL 1 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 118 Issued: Mar. 7, 2003 CHANNEL 4 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 119 Issued: Mar. 7, 2003 CHANNEL 5 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 120 Issued: Mar. 7, 2003 CHANNEL 8 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 121 Issued: Mar. 7, 2003 CHANNEL 9 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 122 Issued: Mar. 7, 2003 CHANNEL 12 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 123 Issued: Mar. 7, 2003 EUT Dual-Band A+G Wireless Network PCI Adapter MODEL WMP55AG MODE Turbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH, 1005hPa TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AV E R AG E EXCURSION LIMIT (dB) PASS/FAIL 152108.7313PASS 252509.1713PASS 352909.0713PASS 4576010.6713PASS 5580011.0013PASS FCC ID: PKW-WMP55AG Report No.: RF911026R01A 124 Issued: Mar. 7, 2003 CHANNEL 1 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 125 Issued: Mar. 7, 2003 CHANNEL 2 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 126 Issued: Mar. 7, 2003 CHANNEL 3 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 127 Issued: Mar. 7, 2003 CHANNEL 4 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 128 Issued: Mar. 7, 2003 CHANNEL 5

FCC ID: PKW-WMP55AG Report No.: RF911026R01A 129 Issued: Mar. 7, 2003 5.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT 5.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT Frequency BandLimit 5.15 – 5.25GHz4dBm 5.25 – 5.35GHz11dBm 5.725 – 5.825GHz17dBm 5.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 SPECTRUM ANALYZER8564EC4208A00660Nov. 20, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: PKW-WMP55AG Report No.: RF911026R01A 130 Issued: Mar. 7, 2003 5.5.3 TEST PROCEDURES 1. The transmitter output was connected to the spectrum analyzer. 2. Set RBW=1MHz, VBW=3MHz. The PPSD is the highest level found across the emission in any 1MHz band. 5.5.4 DEVIATION FROM TEST STANDARD No deviation 5.5.5 TEST SETUP 5.5.6 EUT OPERATING CONDITIONS Same as 5.3.6 EUT SPECTRUM ANALYZER FCC ID: PKW-WMP55AG Report No.: RF911026R01A 131 Issued: Mar. 7, 2003 5.5.7 TEST RESULTS EUT Dual-Band A+G Wireless Network PCI Adapter MODEL WMP55AG MODE Normal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH, 1005hPa TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 151801.564PASS 452402.014PASS 552600.7811PASS 853201.4111PASS 957450.1717PASS 1258050.5017PASS FCC ID: PKW-WMP55AG Report No.: RF911026R01A 132 Issued: Mar. 7, 2003 CHANNEL 1 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 133 Issued: Mar. 7, 2003 CHANNEL 4 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 134 Issued: Mar. 7, 2003 CHANNEL 5 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 135 Issued: Mar. 7, 2003 CHANNEL 8 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 136 Issued: Mar. 7, 2003 CHANNEL 9 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 137 Issued: Mar. 7, 2003 CHANNEL 12 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 138 Issued: Mar. 7, 2003 EUT Dual-Band A+G Wireless Network PCI Adapter MODEL WMP55AG MODE Turbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH, 1005hPa TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1 MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 15210-0.844PASS 25250-1.784PASS 35290-2.1511PASS 45760-2.5017PASS 55800-3.0017PASS FCC ID: PKW-WMP55AG Report No.: RF911026R01A 139 Issued: Mar. 7, 2003 CHANNEL 1 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 140 Issued: Mar. 7, 2003 CHANNEL 2 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 141 Issued: Mar. 7, 2003 CHANNEL 3 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 142 Issued: Mar. 7, 2003 CHANNEL 4 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 143 Issued: Mar. 7, 2003 CHANNEL 5 FCC ID: PKW-WMP55AG Report No.: RF911026R01A 144 Issued: Mar. 7, 2003 5.6 FREQUENCY STABILITY 5.6.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT The frequency tolerance of the carrier signal shall be maintained within +/- 0.02% of the operating frequency over a temperature variation of –30 degrees to 50 degrees C at normal supply voltage, and for a variation in the primary supply voltage from 85% to 115% of the rated supply voltage at a temperature of 20 degrees C. 5.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ANRITSU SPECTRUM ANALYZERMS2667CM10281Mar. 15, 2003 WIT STANDARD TEMPERATURE AND HUMIDITY CHAMBER TH-4S-CW901030Jun. 24, 2003 NOTE: The calibration interva…
