PKW-WPC54G-2Instant Wireless Wireless-G Notebook Adapter

Instant Wireless ® Series User Guide Wireless-GNotebook AdapterUse this Guide to install the following:WPC54G V2 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2003 Linksys, All RightsReserved. Instant Wireless, Linksys, and the Linksys logo are registered trademarks ofLinksys Group, Inc. Microsoft, Windows, and the Windows logo are registered trade-marks of Microsoft Corporation. All other trademarks and brand names are the proper-ty of their respective proprietors. LIMITED WARRANTY Linksys guarantees that every Instant Wireless ® Wireless-G Notebook Adapter will be free from physical defects in material and workmanship for one year from the date of pur-chase, when used within the limits set forth in the Specifications section of this UserGuide. If the product proves defective during this warranty period, call Linksys TechnicalSupport in order to obtain a Return Authorization number. BE SURE TO HAVE YOURPROOF OF PURCHASE ON HAND WHEN CALLING. When returning a product, markthe Return Authorization number clearly on the outside of the package and include acopy of your original proof of purchase. RETURN REQUESTS CANNOT BE PROCESSEDWITHOUT PROOF OF PURCHASE. All customers located outside of the United Statesof America and Canada shall be held responsible for shipping and handling charges.IN NO EVENT SHALL LINKSYS'S LIABILITY EXCEED THE PRICE PAID FOR THE PROD-UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-WARE, OR ITS DOCUMENTATION. LINKSYS OFFERS NO REFUNDS FOR ITS PROD-UCTS. Linksys makes no warranty or representation, expressed, implied, or statutory,with respect to its products or the contents or use of this documentation and all accom-panying software, and specifically disclaims its quality, performance, merchantability, orfitness for any particular purpose. Linksys reserves the right to revise or update its prod-ucts, software, or documentation without obligation to notify any individual or entity.Please direct all inquiries to:Linksys P.O. Box 18558, Irvine, CA 92623. SAFETY AND REGULATORY NOTICESFCC STATEMENTThe Instant Wireless ® Wireless-G Notebook Adapter has been tested and found to com- ply with the specifications for a Class B digital device, pursuant to Part 15 of the FCCRules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates, uses, and can radiate radio fre-quency energy and, if not installed and used according to the instructions, may causeharmful interference to radio communications. However, there is no guarantee that inter-ference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which is found by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment or devices • Connect the equipment to an outlet other than the receiver's • Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any change or modification to the product not expressly approved byLinksys could void the user's authority to operate the device.FCC RF Radiation Exposure StatementTo comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for thisdevice must comply with the following:• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Canadian Department of Communications Industry Canada (IC) NoticeThis Class B digital apparatus complies with Canadian ICES-003 and RSS-210.Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR-210du Canada."To prevent radio interference to the licensed service, this device is intended to be oper-ated indoors and away from windows to provide maximum shielding. Equipment (or itstransmit antenna) that is installed outdoors is subject to licensing."" Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'unelicence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournirun écran de blindage maximal. Si le matériel (ou son antenne d'émission) est installé àl'extérieur, il doit faire l'objet d'une licence. "EC DECLARATION OF CONFORMITY (EUROPE)Linksys Group declares that the Instant Wireless ® Series products included in the Instant Wireless ® Series conform to the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC, EMC directive 89/336/EEC, and Low Voltagedirective 73/23/EEC: For 11Mpbs, 2.4 GHz devices with 100 mW radios, the following standards were applied: • ETS 300-826, 301 489-1 General EMC requirements for Radio equipment. • EN 609 50 Safety • ETS 300-328-2 Technical requirements for Radio equipment. Caution: This equipment is intended to be used in all EU and EFTA countries. Outdooruse may be restricted to certain frequencies and/or may require a license for operation.Contact local Authority for procedure to follow. Note: Combinations of power levels and antennas resulting in a radiated power level ofabove 100 mW equivalent isotropic radiated power (EIRP) are considered as not com-pliant with the above mentioned directive and are not allowed for use within the Europeancommunity and countries that have adopted the European R&TTE directive 1999/5/ECand/or the CEPT recommendation Rec 70.03. For more details on legal combinations of power levels and antennas, contact LinksysCorporate Compliance.• Linksys Group vakuuttaa täten että Instant Wireless ® Wireless-G Notebook Adapter…

Text truncated - open the document above for the full version.

Wireless-G Notebook AdapterChapter 6: Driver Installation andConfiguration for Windows XPAfter inserting the Adapter into your notebook, you will install the driver andconfigure the Adapter.1. Windows XP will automatically detect the Adapter. Insert the Setup CD- ROM into the CD-ROM drive. Click the radio button next to Install the software automatically (Recommended) . Then click the Next button. 11 Figure 6-1 OverviewDriver Installation for Windows XP Instant Wireless ® Series 10 Chapter 5: Hardware Installation1. Turn off your notebook PC. 2. Locate an available CardBus slot on your notebook PC. 3. With the Adapter’s label facing up, asshown in Figure 5-1,slide the Adaptercompletely into theCardBus slot. 4. Restart your note- book PC. 5. Windows will begin copying the driver files to your computer. If Windows asks you for the original Windows CD-ROM, insert the CD-ROM, anddirect Windows to its proper location (e.g., D:\ ). If your PC is using Windows 98SE, Me, or 2000, proceed to the next sec- tion, “Chapter 7: Using the WLAN Monitor for Windows 98SE, Me, and 2000.” If your PC is using Windows XP, proceed to “Chapter 6: Driver Installation and Configuration for Windows XP.” Figure 5-1 Important for Windows 98SE, Me, and 2000 users: You must run the Setup Wizard to install the software before installing the hardware. Important for Windows XP users: You must install the Adapter’s hardware before installing the software. Wireless-G Notebook Adapter 13 Instant Wireless ® Series 2. When Windows has finished installing the driver, click the Finish button. You have now completed the driver installation for the Adapter. To configure the Adapter, proceed to the next section, “Windows XP Wireless Zero Configuration.” 12 Figure 6-2 1. After installing the Adapter, the Windows XP Wireless ZeroConfiguration icon will appear inyour computer’s system tray (seeFigure 6-3). Double-click the icon. 2. The screen that appears will show any available wirelessnetwork. Select the networkyou want. If this network has WEPencryption enabled, go tostep 3. If this network doesnot have WEP encryptionenabled, then the screen inFigure 6-4 will appear.Check the box next to Allow me to connect to the selectedwireless network, eventhough it is not secure . Then click the Connect button and go to step 4. For Windows XP users: Windows XP has a built-in configuration tool. Use Windows XP Wireless Zero Configuration (in the system tray atthe bottom of your screen) to configure the Adapter. Figure 6-3 Figure 6-4 Note: In Steps 2 and 3, these are the instructions and screenshots for Windows XP with Service Pack 1 installed. If you have not installedService Pack 1, select the network you want, and click the Connect button. If the network has WEP encryption enabled, enter the WEPkey in the Network key field, and then click the Connect button. Windows XP Wireless Zero Configuration Wireless-G Notebook Adapter 15 Instant Wireless ® Series 14 Chapter 7: Using the WLA NMonitor for Windows 98SE, Me,and 2000Use the WLAN Monitor to check the link information, search for availablewireless networks, or create profiles that hold different configuration settings.After installing the Adapter, the Wireless-G Notebook AdapterWLAN Monitor icon will appear in your system tray. Double-click the icon (see Figure 7-1).The Link Information screen will appear. From this screen, you can find out how strong the current wireless signal is and how good the connection’s quali-ty is. You can also click the More Information button to view additional status information about the current wireless connection. To search for available wire-less networks, click the Site Survey tab. To perform configuration changes, click the Profiles tab. Figure 7-1 Figure 7-2 Accessing the WLAN MonitorOverview 3. The screen in Figure 6-5 will appear. Enter the WEP key of your wireless network in the Network key field, and re-enter it in the Confirm network key field. Click the Connect button. 4. The screen in Figure 6-6 will appear if your connection isactive. For more information about WEP, refer to your access point’s documentation,or visit www.linksys.com . For more information about wireless networking on a Windows XP computer,enter the keyword wireless in the Windows XP search engine. Congratulations! Your notebook is now connected to your wireless network. Figure 6-5 Note: Wireless Zero Configuration does not support the use of a passphrase. Enter the exact WEP key used by your access point. Figure 6-6 Wireless-G Notebook Adapter 17 Instant Wireless ® Series The Link Information screen displays signal strength and link quality informa- tion about the current connection and provides a button to click for additionalstatus information. Ad-Hoc Mode or Infrastructure Mode - The screen indicates whether the Adapter is currently working in ad-hoc or infrastructure mode. Signal Strength - The Signal Strength bar indicates signal strength, from 0 to 100%. Link Quality - The Link Quality bar indicates the quality of the wireless net- work connection, from 0 to 100%.Click the More Information button to view more information about the wire- less network connection.Click the X (Close) button in the upper right corner to exit the WLAN Monitor. 16 TCP/IP SettingIP Address - The IP Address of the Adapter. Subnet Mask - The Subnet Mask of the Adapter. Default Gateway - The Default Gateway address of the Adapter. DHCP - The status of the DHCP client. DNS - The DNS address of the Adapter. Wireless Network StatusState - The status of the wireless network connection. SSID - The unique name of the wireless network. Wireless Mode - The mode of the wireless network currently in use. Transfer Rate - The data transfer rate of the current connection. Channel - The channel to which the wireless network devices are set. WEP - The status of the WEP encryption security feature. MAC - The MAC address of the wireless network’s access point. Signal Strength - The Signal Strength bar indicates signal st…

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Instant Wireless Wireless-G Notebook Adapter (Receiver Part) MODEL NO.: WPC54G TRADE NAME: Linksys IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920120R05 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: The Linksys Group, INC. Company name: The Linksys Group, INC. Address: 17401 Armstrong Ave. Irvine, CA 92614 Address: 17401 Armstrong Ave. Irvine, CA 92614 Contact Person: Ben Sakai Contact Person: Ben Sakai Title: Serior Manager of Product Management Title: Serior Manager of Product Management Tel/Fax: Tel: 949-748-1803 Fax: 949-261-8868 Tel/Fax: Tel: 949-748-1803 Fax: 949-261-8868

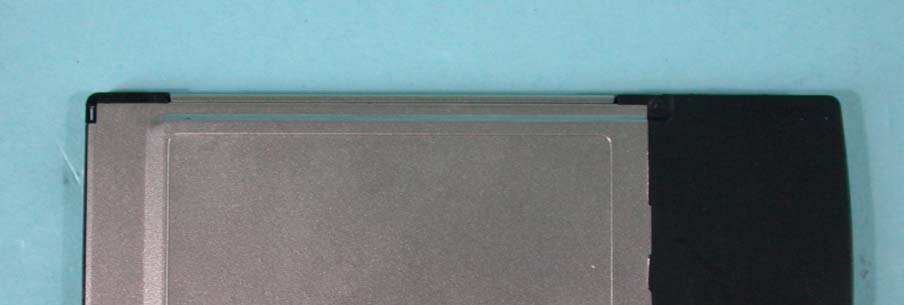

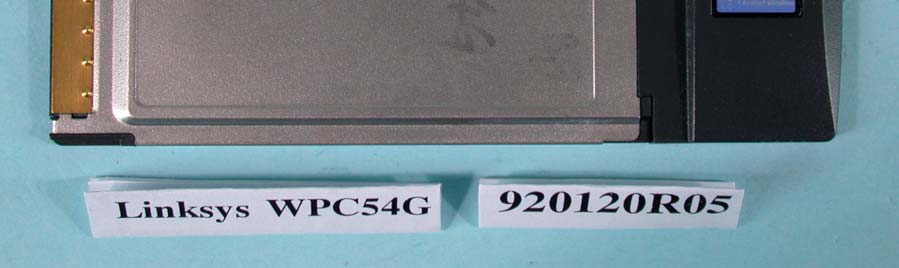

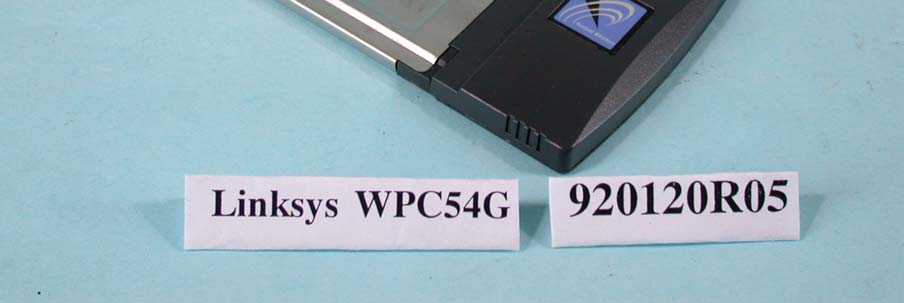

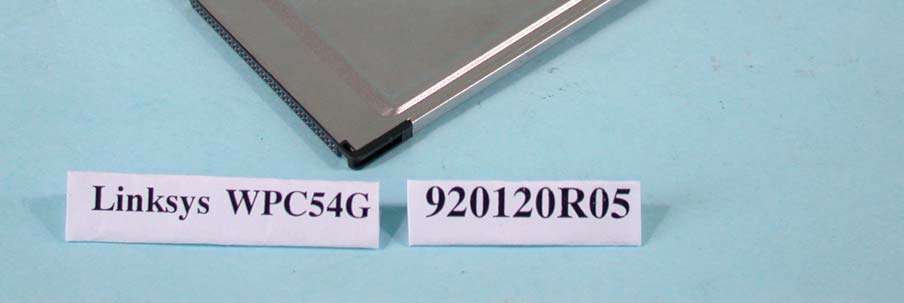

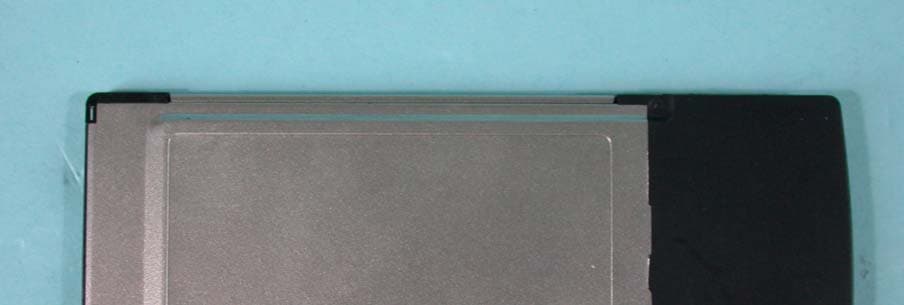

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

bottom label location (400x300x16M bmp)

canada WPC54G (873x585x16M bmp)

Page 3 Page 4 Page 5 Page 6

FCC ID: PKW-WPC54G-2 ADT No.920120R05 Operational Description This device is a Instant Wireless Wireless-G Notebook Adapter which operates in 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCMCIA interface. The antenna is Printed antenna. There is no antenna connector. The other instruction, please have a look at the users manual.

FCC ID: PKW-WPC54G-2 Report No.: SA920120R051Issued: Jan. 24, 2003 SAR TEST REPORT REPORT NO.: SA920120R05 MODEL NO.: WPC54G RECEIVED: Jan. 20, 2003 TESTED: Jan. 22, 2003 APPLICANT: The Linksys Group, INC. ADDRESS: 17401 Armstrong Ave. Irvine, CA 92614 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 15 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: PKW-WPC54G-2 Report No.: SA920120R052Issued: Jan. 24, 2003 Table of Contents 1.CERTIFICATION ........................................................................................... 3 2.GENERAL INFORMATION ........................................................................... 4 2.1GENERAL DESCRIPTION OF EUT.............................................................. 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 4 2.3GENERAL INOFRMATION OF THE TEST SYSTEM.................................... 5 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ...................... 7 4.DESCRIPTION OF SUPPORT UNITS .......................................................... 8 5.TEST RESULTS............................................................................................ 9 5.1TEST PROCEDURES................................................................................... 9 5.2MEASURED SAR RESULT........................................................................... 9 5.3SAR LIMITS ................................................................................................ 10 5.4EUT CONDUCTED POWER VARIATION ................................................... 10 5.5TISSUE ........................................................................................................11 5.6TEST EQUIPMENT FOR TISSUE PROPERTY...........................................11 6.SYSTEM VALIDATION................................................................................ 12 7.MEASUREMENT UNCERTAINTIES ........................................................... 13 8.INFORMATION ON THE TESTING LABORATORIES ................................ 15 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: PKW-WPC54G-2 Report No.: SA920120R053Issued: Jan. 24, 2003 1. CERTIFICATION PRODUCT : Instant Wireless Wireless-G Notebook Adapter MODEL NO. : WPC54G BRAND : Linksys APPLICANT : The Linksys Group, INC. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 22 nd Jan. 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts for the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: PKW-WPC54G-2 Report No.: SA920120R054Issued: Jan. 24, 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Instant Wireless Wireless-G Notebook Adapter MODEL NO. WPC54G POWER SUPPLY 3.3VDC powered by host MODULATION TYPE BPSK, QPSK, CCK, OFDM TRANSFER RATE 1/2/5.5/6/9/11/12/18/24/36/48/54Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 CONDUCTED OUTPUT POWER 87.09 mW ANTENNA TYPE Internal Printed Antenna PEAK SAR 0.042 W/kg DATA CABLE NA I/O PORTS PCMCIA ASSOCIATED DEVICES NA 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC 47 CFR Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) RSS-102 All tests have been performed and recorded as per the above standards. FCC ID: PKW-WPC54G-2 Report No.: SA920120R055Issued: Jan. 24, 2003 2.3 GENERAL INOFRMATION OF THE TEST SYSTEM ET3DV6 ISOTROPIC E-FIELD PROBE Construction Symmetrical design with triangular core. Built-in optical fiber for surface detection system. Built-in shielding against static charges. PEEK enclosure material (resistant to organic solvents, e.g., glycolether). Calibration Basic Broad Band Calibration in air: 10-2500 MHz Conversion Factors (CF) for HSL 900 and HSL 1800 CF-Calibration for other liquids and frequencies upon request Frequency 10 MHz to 3 GHz; Linearity: ± 0.2 dB (30 MHz to 3 GHz) Directivity ± 0.2 dB in HSL (rotation around probe axis) ± 0.4 dB in HSL (rotation normal to probe axis) Dynamic Range 5 μW/g to > 100 mW/g; Linearity: ± 0.2 dB Optical Surface Detection ± 0.2 mm repeatability in air and clear liquids over diffuse reflecting surfaces Dimensions Overall length: 330 mm (Tip Length: 16 mm) Tip diameter: 6.8 mm (Body diameter: 12 mm) Distance from probe tip to dipole centers: 2.7 mm Application General dosimetric measurements up to 3 GHz Compliance tests of mobile phones Fast automatic scanning in arbitrary phantoms (ET3DV6) FCC ID: PKW-WPC54G-2 Report No.: SA920120R056Issued: Jan. 24, 2003 TWIN SAM V4.0 Construction The shell corresponds to the specifications of the Specific Anthropomorphic Mannequin (SAM) phantom defined in IEEE 1528-200X, CENELEC 50361 and IEC 62209. It enables the dosimetric evaluation of left and right hand phone usage as well as body mounted usage at the flat phantom region. A cover prevents evaporation of the liquid. Reference markings on the phantom allow the complete setup of all predefined phantom positions and measurement grids by manually teaching three points with the robot. Shell Thickness 2 ± 0.2 mm Filling Volume Approx. 25 liters Dimensions Height: 810 mm; L…

Text truncated - open the document above for the full version.

FCC ID: PKW-WPC54G-2 Report No.: RF920120R051Issued: January 24, 2003 FCC TEST REPORT REPORT NO.: RF920120R05 MODEL NO.: WPC54G RECEIVED: Jan. 20, 2003 TESTED: Jan. 20 ~ Jan. 21, 2003 APPLICANT: The Linksys Group, Inc. ADDRESS: 17401 Armstrong Ave. Irvine, CA 92614 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PKW-WPC54G-2 Report No.: RF920120R052Issued: January 24, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS................................................................ 12 4.1.7TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES................................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 21 4.2.5TEST SETUP .............................................................................................. 22 4.2.6EUT OPERATING CONDITIONS................................................................ 22 4.2.7TEST RESULTS.......................................................................................... 23 4.2.8TEST RESULTS (A) .................................................................................... 24 4.2.9TEST RESULTS (B) .................................................................................... 27 4.36dB BANDWIDTH MEASUREMENT .......................................................... 30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 30 4.3.2TEST INSTRUMENTS ................................................................................ 30 4.3.3TEST PROCEDURE ................................................................................... 31 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 31 4.3.5TEST SETUP .............................................................................................. 31 4.3.6EUT OPERATING CONDITIONS................................................................ 31 4.3.7TEST RESULTS (A) .................................................................................... 32 4.3.8TEST RESULTS (B) .................................................................................... 36 FCC ID: PKW-WPC54G-2 Report No.: RF920120R053Issued: January 24, 2003 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 40 4.4.2TEST INSTRUMENTS ................................................................................ 40 4.4.3TEST PROCEDURES................................................................................. 41 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 41 4.4.5TEST SETUP .............................................................................................. 41 4.4.6EUT OPERATING CONDITIONS................................................................ 41 4.4.7TEST RESULTS (A) .................................................................................... 42 4.4.8TEST RESULTS (B) .................................................................................... 42 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 43 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 43 4.5.2TEST INSTRUMENTS ................................................................................ 43 4.5.3TEST PROCEDURE ................................................................................... 44 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 44 4.5.5TEST SETUP .............................................................................................. 44 4.5.6EUT OPERATING CONDITIONS................................................................ 4…

Text truncated - open the document above for the full version.

FCC ID: PKW-WPC54G-2 Report No.: RF920120R0561Issued: January 24, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PKW-WPC54G-2 Report No.: RF920120R0562Issued: January 24, 2003 RADIATED EMISSION TEST
