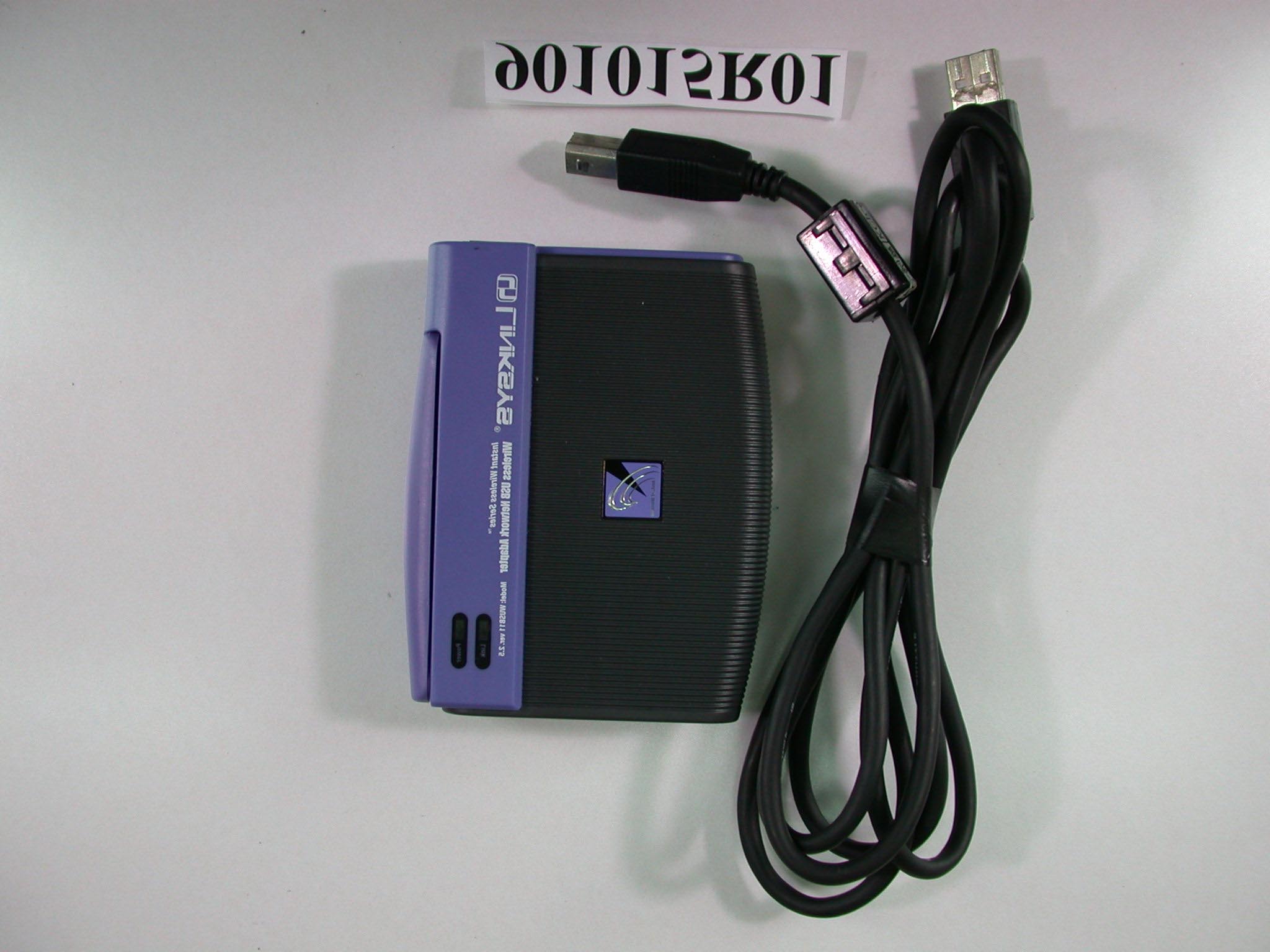

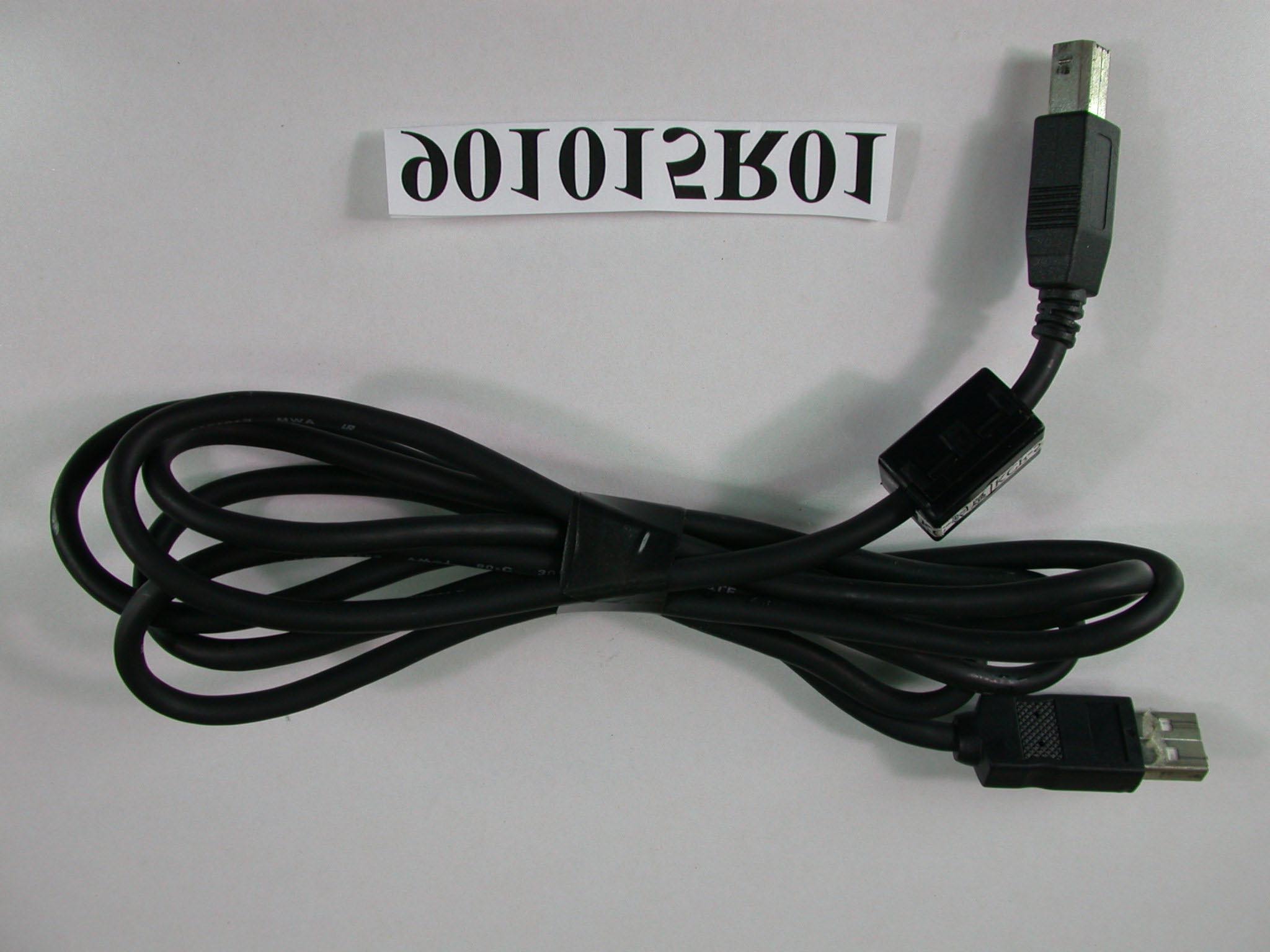

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

FCC ID Label Location

Page 3

Page 4 Page 5

FCC ID: PKW-WUSB11-V2 ADT No.901015R01 Operational Description The transmitter of the EUT (Wireless USB Network Adapter) is powered by host equipment from USB port. The antenna is Monopole antenna, and the antenna connector is MCX connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: PKW-WUSB11-V2 ADT No.: 901015R01 FCC TEST REPORT REPORT NO.: RF901015R01 MODEL NO.: WUSB11 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: The Linksys Group, Inc. ADDRESS: 17401 Armstrong Ave. Irvine, CA 92614 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 FCC ID: PKW-WUSB11-V2 ADT No.: 901015R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: PKW-WUSB11-V2 ADT No.: 901015R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: PKW-WUSB11-V2 ADT No.: 901015R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.0 dBi or 1.28 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241265.462.58 6243765.612.59 11246266.682.61 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: PKW-WUSB11-V2 Report No.: RF901015R01 1 Issued: October 18, 2001 FCC TEST REPORT REPORT NO.: RF901015R01 MODEL NO.: WUSB11 RECEIVED: October 15, 2001 TESTED: Oct. 15 ~ Oct. 16, 2001 APPLICANT: The Linksys Group, Inc. ADDRESS: 17401 Armstrong Ave. Irvine, CA 92614 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 50 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 Lab Code: 200102-0 FCC ID: PKW-WUSB11-V2 Report No.: RF901015R01 2 Issued: October 18, 2001 Table of Contents 1CERTIFICATION ...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION ...........................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...............................7 3.4DESCRIPTION OF SUPPORT UNITS..........................................................8 4TEST TYPES AND RESULTS.......................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ................................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..............................9 4.1.2 TEST INSTRUMENTS ..................................................................................9 4.1.3 TEST PROCEDURES .................................................................................10 4.1.4 TEST SETUP ..............................................................................................10 4.1.5 EUT OPERATING CONDITIONS................................................................11 4.1.6 TEST RESULTS..........................................................................................12 4.2RADIATED EMISSION MEASUREMENT ...................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................18 4.2.2 TEST INSTRUMENTS ................................................................................19 4.2.3 TEST PROCEDURES .................................................................................20 4.2.4 TEST SETUP ..............................................................................................21 4.2.5 EUT OPERATING CONDITIONS................................................................21 4.2.6 TEST RESULTS..........................................................................................22 4.36DB BANDWIDTH MEASUREMENT ..........................................................28 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................28 4.3.2 TEST INSTRUMENTS ................................................................................28 4.3.3 TEST PROCEDURE ...................................................................................29 4.3.4 TEST SETUP ..............................................................................................29 4.3.5 EUT OPERATING CONDITIONS................................................................29 4.3.6 TEST RESULTS..........................................................................................30 4.4MAXIMUM PEAK OUTPUT POWER ..........................................................34 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...........34 4.4.2 INSTRUMENTS ..........................................................................................34 4.4.3 TEST PROCEDURES .................................................................................35 4.4.4 TEST SETUP ..............................................................................................35 4.4.5 EUT OPERATING CONDITIONS................................................................35 4.4.6 TEST RESULTS..........................................................................................36 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................37 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...................37 4.5.2 TEST INSTRUMENTS ................................................................................37 4.5.3 TEST PROCEDURE ...................................................................................38 FCC ID: PKW-WUSB11-V2 Report No.: RF901015R01 3 Issued: October 18, 2001 4.5.4 TEST SETUP ..............................................................................................38 4.5.5 EUT OPERATING CONDITION ..................................................................38 4.5.6 TEST RESULTS..........................................................................................39 4.6BAND EDGES MEASUREMENT ................................................................43 4.6.1 LIMITS OF BAND EDGES MEASUREMENT..............................................43 4.6.2 TEST INSTRUMENTS ................................................................................43 4.6.3 TEST PROCEDURE ...................................................................................43 4.6.4 EUT OPERATING CONDITION ..................................................................44 4.6.5 TEST RESULTS..........................................................................................44 4.7ANTENNA REQUIREMENT........................................................................47 4.7.1 STANDARD APPLICABLE .................................................................…

Text truncated - open the document above for the full version.

FCC ID: PKW-WUSB11-V2 Report No.: RF901015R01 48 Issued: October 18, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PKW-WUSB11-V2 Report No.: RF901015R01 49 Issued: October 18, 2001 RADIATED EMISSION TEST
