PLE-ER5201SmartBox

Copyright 2013 Gigastone Corporation. All Rights Reserved. EN CN B 1. Open WiFi network setting on iPhone or Android. 2. Join Smartbox_xxxxxx WiFi network. 1. 點選 iPhone 或 Android WiFi 網路設定 2. 選取 Smartbox_xxxxxx WiFi 無線網路連線 Connect to Smart Box over WiFi TW 建立 WiFi 連線至 Smart Box 1. 点选 iPhone 或 Android WiFi 网络设定。 2. 选取 Smartbox_xxxxxx WiFi 无线网络联机 1. iPhone や Android の W-fi ネットワークの設定を開きます 2. 表示されているネットワークの中から Smartbox_xxxxxx ( デ フォル トの SSID) を選択します JP WiFi を経由して Smart Box に接続する建立 WiFi 联机至 Smart Box F A D E Smart Box is on and connecting to smart phone or tablet: 1. Plug smart phone to Smart Box USB2. 2. Press the power button and Smart Box will start charging phone. Smart Box is on and plugged to USB2.0 portable storage: 1. Plug portable storage to Sma rt Box USB A-type 1. 2. Smart Box start sharing portable storage data via WiFi. 當 Smart Box 電源為開啟狀態連接手機或平板電腦 : 1. 將智慧型手機連接至 Smart Box USB2。 2. 按開關後 Smart Box 開始為手機充電。 當 Smart Box 電源為開啟狀態連接 USB2.0 隨身存儲裝置 : 1. 將 USB2.0 隨身存儲裝置連接至 Smart Box USB 1 連接埠。 2. Smart Box 開始以 WiFi 分享 USB2.0 隨身存儲裝置內的資料。 当 Smart Box 电源为开启状态连接智能手机或平板机 : 1. 将智能型手机连接至 Smart Box USB2。 2. 按开关后 Smart Box 开始为手机充电。 当 Smart Box 电源为开启状态连接 USB2.0 随身存储装置 : 1. 将 USB2.0 随身存储装置连接至 Smart Box USB 1 端口。 2. Smart Box 开始以 WiFi 分享 USB2.0 随身存储装置内的数据。 Smart Box がパワーオンのとき , 電話またはタブレットを接続するためにオンになっている場合： 1. Smart Box USB2 にスマートフォンを接続してください。 2. ボタンスイッチを押して Smart Box はスマートフォンの充電を始めます。 Smart Box がパワーオンのとき , USB2.0 ポータブルストレージデバイスを接続するには : 1. プラグポータブルストレージへ Smart Box USB ポート 1。 2. Smart Box 開始 Wifi はポータブルストレージでデータを共有する。 Return Merchandise & Quality Assurance 異常返修 品質保證 异常返修 质量保证 商品を 品質保証 までご返品 下さい One Year Global Warranty 一年全球原廠保固 一年全球原厂保固 1 年グローバル保証 Limited Warranty 產品 保證書 产品 保证书 製品 保証 型號 購買 日期 姓名 聯絡 地址 聯絡 電話 電子 郵件 Model Purchase Date Name Address Phone e-mail 型号 购买 日期 全名 地址 电话 电子 邮件 製品名 購入日 名前 アドレス 電話 電子 メール / / Gigastone ® 台灣 350 苗栗縣竹南鎮群義路 69 號 Tel: +886-37-288-389 U.S.A. 15770 Laguna Canyon Road, #100 Irvine, California 92618 中国 518057 深圳市南山區科技園南區高新南一道中科大廈 21B1 Tel: +86-755-2693-5558 日本 東京都中央區日本橋小傳馬町 7 番 2 號 Tel: +81-3-5643-6645 e-mail [email protected] EN Charging the Smart Phone / Read USB2.0 portable storage data TW 為您的智慧型手機充電 / 讀取 USB2.0 隨身存儲裝置資料 JP スマートフォンを充電する / USB 2.0 ポータブルストレージデバイスのデータを読む CN 为您的智能型手机充电 / 读取 USB2.0 随身存储装置数据 USB 1 USB 2 C 1. Search for the Key words: Gigastone 2. Select Gigastone Smart Box A4 App. 3. Tap "INSTALL" or "Download" button to setup App on your device 1. 搜尋 Gigastone; 2. 選擇 Gigastone Smart Box A4 應用程式。 3. 點擊 " 安裝 " 按鈕。 1. キーワード : Gigastone で検索します 2. Gigastone Smart Box A4 アプリを選択します 3. " インストール " ボタンをタップしてアプリをインストール してください 1. 搜寻 Gigastone 2. 选择 Gigastone Smart Box A4 应用程序。 3. 点击 " 安装 " 按钮。 * 应用程序下载点： iPhone / iPad： 苹果 App Store Android： Google Play 商店，安卓市场，机锋网，豌豆荚 腾讯手机应用，360 手机应用 ... 等。 EN Search Smart Box App JP Smart Box を検索してください TW 搜尋 Smart Box 應用程式 CN 搜寻 Smart Box 应用程序 1. Connecting to Smart Box over WiFi 2. Open a web browser and type "192.168.1.2" or “gigastone.SmartBox” in the URL field 3. Open the web page to access the contents in Smart Box * URL mode doesn't support "multi-select" function 1. 透過 WiFi 無線網路與 Smart Box 進行連線。 2. 開啟網頁瀏覽器並於網址列輸入 :"192.168.1.2" 或 "gigastone.SmartBox" 3. 開啟頁面存取 Smart Box 內的檔案內容。 * 網頁存取模式不支援多重選取功能。 EN Access Smart Box Via Browsers TW 透過網頁瀏覽器連接 Smart Box 1. 透过 WiFi 无线网络与 Smart Box 进行联机。 2. 开启网页浏览器并于网址列输入 "192.168.1.2" 或 "gigastone.SmartBox" 3. 开启页面存取 Smart Box 内的档案内容。 * 网页存取模式不支持多重选取功能。 1. WiFi 経由で Smart Box に接続します 2. ウェブブラウザを開き、URL 欄に "192.168.1.2" または “gigastone.SmartBox”と入力してください 3. Smart Box 内のコンテンツにアクセスするためのウェブペー ジが開きます * URL モードは " マルチセレクト " 機能をサポートしていません JP WiFi を経由して Smart Box に接続する CN 透过网页浏览器连接 Smart Box EN EN JP JP CN CN Launching the Smart Box App Launching the Smart Box App 主選單 : a. 網際網路連線顯示 b. 存取照片與圖像類型檔案 c. 文件上傳 d. 存取文件檔案 e. Smart Box 設定选项 設定 Smart Box f. WiFi 無線網路連線狀態 g. 網際網路連線狀態 h. 清除相片快取 i. 使用者設定 Smart Box 連線 SSID 與密碼 j. 點選後可重開 Smart Box k. 點選後可恢復 Smart Box 原廠預設值 l. 設定管理者密碼 ( 預設密碼 : 0000) 網際網路連線設定 m. 選擇網際網路連線熱點 n. 輸入熱點密碼 主選單 : a. Smart Box: 多媒體檔案庫 b. 下載 : 已下載的文件 c. 本機內容 :Android 裝置上的檔案內容 d. 設定 :Smart Box 與無線網路功能選項 e. WiFi 無線網路連線狀態 f. 重新整理 g. 更多選項 設定 Smart Box h. 上傳圖片 / 照片 i. 通訊錄備份 j. 建立新資料夾 k. 排序檔案 l. 搜尋檔案 m. 電量顯示與系統資訊 網際網路連線設定 n. 選擇網際網路連線熱點 * 管理者設定預設密碼 : 0000 A. Card slot support SDXC B. Power Button: - Press 1 sec: Power Check - Press 5 sec: Power On / Off C. WiFi / Internet bridge indicator (Blue LED x2) D. Power level indicator (Green LEDx5) E. SDXC card read indicator (Orange LED x1) F. USB A-type 1: USB2.0 Data / 500mA Output for charging G. USB A-type 2: 2A Output for charging *Total power output: 2A H. RJ45 10/100M Ethernet port I. microUSB: DC-IN 5V/1A power input J. Reset button メインメニュー : a. ブリッジ接続表示 b. Photo: 写真 / イメージ形式のファイル c. Document: ドキュメント形式のファイル d. アップロード e. 設定 :Smart Box の設定 Smart Box とその状態を設定する f. WiFi 接続状態 g. インターネット接続状態 h. クリアフォトキャッシュ i. Smart Box の SSID とパスワードを変更します j. Smart Box を再起動します k. Smart Box を初期設定に戻す l. 管理者パスワードの設定 ( パスワード：0000) インターネット接続の設定 m. セレクト WiFi ホットスポットは、インターネットに接続 n. 入力ホットスポットのパスワードに メインメニュー : a. Smart Box: Smart Box 内のマルチメディア b. ダウンロード : ダウンロードしたコンテンツ c. ローカルドライブ :Android 機器のローカルコンテンツ d. 設定 :Smart Box と WiFi の設定 e. WiFi 接続状態 f. リフレッシュ g. その他のオプション Smart Box とその状態を設定する h. をタップするとアップロードします i コンタクト j. 新しいフォルダーを作成する k. ファイルをソート l. ファイルの検索 m. パワー / システム情報表示 インターネット接続の設定 n. セレクト WiFi ホットスポットは、インターネットに接続 * 管理者パスワードの設定 ( パスワード：0000) 主选单 : a. 因特网联机显示 b. 存取照片与图像类型档案 c. 文件上传 d. 存取文件档案 e. Smart Box 设定选项 设定 Smart Box f. WiFi 无线网络联机状态 g. 因特网联机状态 h. 清除相片快取 i. 使用者设定 Smart Box 联机 SSID 与密码 j. 点选后可重开 Smart Box k. 点选后可恢复 Smart Box 原厂默认值 l. 设定管理者密码 ( 默认密码 : 0000) 因特网联机设定 m. 选择因特网联机热点 n. 输入热点密码 主选单 : a. Smart Box: 多媒体档案库 b. 下载 : 已下载的文件 c. 本机内容 :Android 装置上的档案内容 d. 设定 :Smart Box 与无线网络功能选项 e. WiFi 无线网络联机状态 f. 重新整理 g. 更多选项 设定 Smart Box h. 上传图片 / 照片 i. 通讯簿备份 j. 建立新文件夹 k. 排序档案 l. 搜寻档案 m. 电量显示与系统信息 因特网联机设定 n. 选择因特网联机热点 * 管理者设定默认密码 : 0000 Main Menu: a. Internet access indication b. Photos c. Upload files d. Documents e. Settings Settings f. WiFi connection status g. Internet bridge status h. Clear …

Text truncated - open the document above for the full version.

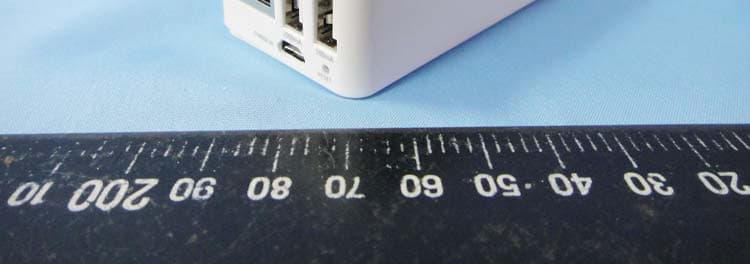

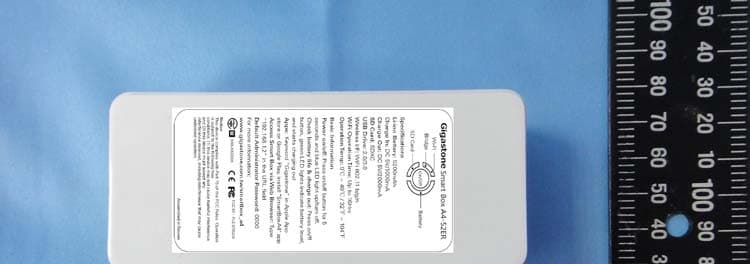

1 of 5 External Photos Model Number: A4-52ER FCC ID: PLE-ER5201 2 of 5 EUT Photo 1 ) EUT Photo 2 ) 3 of 5 EUT Photo 3 ) EUT Photo 4 ) 4 of 5 EUT Photo 5 ) EUT Photo 6 ) 5 of 5 EUT Photo 7 ) EUT Photo 8 )

Label Information Trade Name：Gigastone Model Number：A4‐52ER FCC ID：PLE‐ER5201 Label:

1 of 6 Internal Photos Model Number: A4-52ER FCC ID: PLE-ER5201 2 of 6 EUT Photo 1 ) EUT Photo 2 ) 3 of 6 EUT Photo 3 ) EUT Photo 4 ) 4 of 6 EUT Photo 5 ) EUT Photo 6 ) WLAN ANT. 5 of 6 EUT Photo 7 ) EUT Photo 8 ) 6 of 6 EUT Photo 9 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1309FS16 Applicant ： Gigastone Corp. Manufacturer ： Gigastone Corp. Product Type ： SmartBox Trade Name ： Gigastone Model Number ： A4-52ER Date of Received ： Aug. 30, 2013 Test Period ： Sep. 12, 2013 Date of Issued ： Sep. 30, 2013 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1992 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Bill Hu) (Sky Chou) Report Number: 1309FS16Page 1 of 6 ©2013 A Test Lab Techno Corp. Contents 1. Description of Equipment under Test (EUT)............................................................... 3 2. Human Exposure Assessment .................................................................................... 4 3. RF Output Power........................................................................................................... 5 4. Test Result.....................................................................................................................6 Report Number: 1309FS16Page 2 of 6 ©2013 A Test Lab Techno Corp. 1. Description of Equipment under Test (EUT) Applicant Gigastone Corp. Applicant Address 12F, No. 480, Rueiguang Rd., Neihu Dist., Taipei 114, Taiwan Manufacturer Gigastone Corp. Manufacturer Address 12F, No. 480, Rueiguang Rd., Neihu Dist., Taipei 114, Taiwan Product Type SmartBox Trade Name Gigastone Model Number A4-52ER FCC ID PLE-ER5201 Frequency Range IEEE 802.11b / IEEE 802.11g / 802.11n 2.4GHz (20MHz): 2412 ~ 2462 MHz IEEE 802.11n 2.4GHz (40MHz): 2422 ~ 2452 MHz Transmit Power IEEE 802.11b: 0.019 W / 12.69 dBm (conducted power) IEEE 802.11g: 0.019 W / 12.72 dBm IEEE 802.11n 2.4GHz (20MHz): 0.015 W / 11.78 dBm IEEE 802.11n 2.4GHz (40MHz): 0.014 W / 11.39 dBm Antenna used Trade name: Auden, Model number: BT-1008 Antenna Specification IEEE 802.11b, IEEE 802.11g: 2.6 dBi IEEE 802.11n 2.4GHz Standard-20MHz / Wide-40MHz: 2.6 dBi Antenna Designation Monopole Antenna Temperature Range -30 ~ +70°C The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties Report Number: 1309FS16Page 3 of 6 ©2013 A Test Lab Techno Corp. 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Report Number: 1309FS16Page 4 of 6 ©2013 A Test Lab Techno Corp. 3. RF Output Power Band Date Rate CH Frequency (MHz) Conducted power Time-Avg. (dBm) 1 2412.0 12.45 6 2437.0 12.69 1M 11 2462.0 12.54 2M 6 2437.0 12.65 5.5M 6 2437.0 12.64 IEEE 802.11b 11M 6 2437.0 12.62 1 2412.0 12.32 6 2437.0 12.72 6M 11 2462.0 12.69 9M 6 2437.0 12.28 12M 6 2437.0 12.54 18M 6 2437.0 12.59 24M 6 2437.0 12.58 36M 6 2437.0 12.56 48M 6 2437.0 12.54 IEEE 802.11g 54M 6 2437.0 12.51 1 2412.0 11.76 6 2437.0 11.58 6.5M 11 2462.0 11.78 13M 6 2437.0 11.55 19.5M 6 2437.0 11.52 26M 6 2437.0 11.50 39M 6 2437.0 11.49 52M 6 2437.0 11.46 58.5M 6 2437.0 11.45 IEEE 802.11n 2.4GHz (20MHz) 65M 6 2437.0 11.47 3 2422.0 11.26 6 2437.0 11.39 13.5M 9 2452.0 11.27 27M 6 2437.0 11.37 40.5M 6 2437.0 11.35 54M 6 2437.0 11.33 81M 6 2437.0 11.29 108M 6 2437.0 11.26 121.5M 6 2437.0 11.25 IEEE 802.11n 2.4GHz (40MHz) 135M 6 2437.0 11.24 Report Number: 1309FS16Page 5 of 6 ©2013 A Test Lab Techno Corp. 4. Test Result Band Data Rate Frequency (MHz) Limit (mw/cm 2 ) Distance (cm) [R] Max Tune-up Power (upper limit)…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C Product Type ： SmartBox Applicant ： Gigastone Corp. Address ： 2F, No. 480, Rueiguang Rd., Neihu Dist., Taipei 114, Taiwan Trade Name ： Gigastone Model Number ： A4-52ER Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2012 ANSI C63.4-2009 Receive Date ： Aug. 30, 2013 Test Period ： Sep. 11 ~ Sep. 12, 2013 Issue Date ： Sep. 30, 2013 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number: 1309FR15 1 of 67 Revision History Rev. Issue Date Revisions Revised By 00 Sep. 30, 2013 Initial Issue A Test Lab Techno Corp. Report Number: 1309FR15 2 of 67 A Test Lab Techno Corp. Report Number: 1309FR15 3 of 67 Verification of Compliance Issued Date: 09/30/2013 Product Type : SmartBox Applicant : Gigastone Corp. Address : 2F, No. 480, Rueiguang Rd., Neihu Dist., Taipei 114, Taiwan Trade Name : Gigastone Model Number : A4-52ER FCC ID : PLE-ER5201 EUT Rated Voltage : DC 5V (USB Interface) Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2012 ANSI C63.4-2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Cran Yang) (Testing Engineer) (Fly Lu) TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 2 EUT Description ............................................................................................................................................. 7 3 Test Methodology .......................................................................................................................................... 8 3.1. Mode of Operation.................................................................................................................................. 8 3.2. EUT Exercise Software.......................................................................................................................... 8 3.3. Configuration of Test System Details ..................................................................................................... 9 3.4. Test Site Environment ............................................................................................................................ 9 4 Radiated Emission Measurement............................................................................................................... 10 4.1. Limit ...................................................................................................................................................... 10 4.2. Test Instruments ................................................................................................................................... 10 4.3. Setup .....................................................................................................................................................11 4.4. Test Procedure ..................................................................................................................................... 12 4.5. Test Result............................................................................................................................................ 14 5 Maximum Conducted Output Power Measurement.................................................................................. 21 5.1. Limit ...................................................................................................................................................... 21 5.2. Test Setup............................................................................................................................................. 21 5.3. Test Instruments ................................................................................................................................... 21 5.4. Test Procedure ..................................................................................................................................... 21 5.5. Test Result............................................................................................................................................ 22 6 6dB RF Bandwidth and 99 % Occupied Bandwidth Measurement ......................................................... 24 6.1. Limit ...................................................................................................................................................... 24 6.2. Test Setup............................................................................................................................................. 24 6.3. Test Instruments .........................................................................................…

Text truncated - open the document above for the full version.

Part 15C Test Setup Photographs Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1309FR15 1 of 2 Above 1GHz _ Front View Above 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1309FR15 2 of 2
