PLE-TRR1011Wireless Router

EN AP MODE Convert existing LAN to wireless network. Suited to directly connecting to an existing LAN network. TW AP模式 CN AP模式 JP 由現有的有線區域網路延伸出無線網路。 適用於連接現有區域網路。 由现有的有线局域网络延伸出无线网络。 适用于连接现有局域网络。 既存のLAN からワイヤレスネットワーク に変換。既存のLANから直接ワイヤレス ネットワークに接続します。 Gigastone OPERATING MODES --- ROUTER MODE Convert modem to wireless network. Suited to connecting directly to a modem. ROUTER模式 ROUTER模式 將數據機有線網路轉為無線網路。適用於 直接連接數據機。 将调制解调器有线网络转为无线网络。适 用于直接连接调制解调器。 モデムからワイヤレスネットワークへ変 換。直接モデムに接続します。 Gigastone REPEATER MODE Extend the range of existing wireless signal. 增強無線電信號以擴大信號覆蓋區域。 既存のワイヤレス表示範囲を拡大。 Gigastone REPEATER模式 REPEATER模式 增强无线电信号以扩大信号覆盖区域。 CLIENT MODE Connects a device with a wired connection to a wireless network through R101. CLIENT模式 CLIENT模式 將只支援有線網路的裝置透過R101連接至 無線網路。 将只支持有线网络的装置透过R101连接至 无线网络。 デバイスとR101を有線で接続し、ワイヤ レスネットワークに接続します。 Gigastone R101 Quick Installation Guide - 快速安裝說明書 - 快速安装说明书 - 取り扱い説明書 HARDWARE INTRODUCTION Package Contents: R101 Wireless Router, USB Cable, Quick Installation Guide LED Signal: Stable and Bright - The device is ready for use. Flashing - The device is booting. LAN/WAN: Works as WAN in Router/AP mode and as LAN in all other modes. Power: Connect to 5V power adapter. Reset: Restore R101 to factory defaults. 介紹 介绍 內容物：R101無線路由器，USB電源線， 快速安裝說明書 LED燈狀態說明: 穩定發亮 - 可正常使用 閃爍 - 開機過程中，請等待 LAN/WAN插座： 在AP/Router模式下， 作為WAN的有線插座。在其他模式下，作 為LAN的有線插座。 Power：連接5伏特的電源。 Reset：恢復出廠設定按鍵。 内容物：R101无线路由器，USB电源线， 快速安装说明书 LED灯状态说明: 稳定发亮 - 可正常使用 闪烁 - 开机进行中，请等待 LAN/WAN插座： 在AP/Router模式下， 作为WAN的有线插座。在其他模式下，作 为LAN的有线插座。 Power：连接5伏特的电源。 Reset：恢复出厂设置按键。 同梱内容: R101, USBケーブル, 取扱説明書 LED表示: 点灯– 待機中 点滅 – 起動中 ルーター/APモードの時はWANで動作し、 その以外のモードの時はLANで動作します 内蔵電池: 入力DC 5V。 リセット: R101をお買い上げ時の初期設定 に戻します。 POWERING DEVICE 1. Connect the MicroUSB (smaller end) of the USB cable that came in the box to R101. 2. Plug the other end (larger end) into a 5V USB power source. Please prepare your own power source. 電源連接方式 电源连接方式 1. 將盒內所附USB線的MicroUSB插頭 （小的插頭）插入R101的插座。 2. 將USB線的另一端（大的插頭）插入5V 的USB電源插座，USB電源須自備。 1. 将盒内所附USB线的MicroUSB插头 （小的插头）插入R101的插座。 2. 将USB线的另一端（大的插头）插入 5V 的USB电源插座，USB电源须自备。 RESET TO FACTORY DEFAULTS If you want to set R101 back to factory default settings, first connect R101 to a power source, then press the Reset button for 5 seconds. Please note that this action will erase all previous setup. 恢復出廠設定 恢复出厂设置 お買い上げ時の初期設定に リセットする R101的Reset孔內部有按鍵。如要使R101 的所有設定恢復成出廠狀態，先將R101連 接電源後，以細長的工具按下內部按鍵5秒 ，即可恢復出廠值。請注意此動作完成後 將遺失所有先前的設定。 R101的Reset孔内部有按键。如要使R101 的所有设置恢复成出厂状态，先将R101连 接电源后，以细长的工具按下内部按键5秒 ，即可恢复出厂值。请注意此动作完成后 将丢失所有先前的设置。 1. MicroUSB(先端が小さい方)ケーブルを R101のソケットに挿入する。 2. もう片方（先端が大きい方）のケーブル を5VUSB電源に差し込む。ご自分の電源を ご準備下さい。 お買い上げ時の初期設定にリセットする 場合は、R101の電源を入れ、リセットボ タンを5秒間程押し続けて下さい。このリ セットを行うと、全ての設定はお買い上 げ時の初期設定に戻りますのでご注意く ださい。 EN TW CNJP Note: The default mode of R101 is AP mode. Please choose your mode according to your network. 1. Connect R101 and your computer or mobile device with an Ethernet cable and disconnect from all wireless networks. Wait until the LED is blue. 2. Enter http://192.168.16.254 into the url address bar of a web browser. Enter the username and password printed on the sticker located on the back of R101 (usually both are admin). Both are case sensitive. 3. Click ‘Quick Setup’ and then ‘Next’. Choose your mode, follow the below mode setup, and click 'Next'’ to complete configuration. 注意：R101出廠的預設模式為AP模 式。請依據您的網路環境選擇。 1. 將R101透過網路線連接電腦或其他 支援有線網路的裝置，並停止電腦或 裝置連接其他的有線或無線網路。等 待R101的LED燈不再閃爍。 2. 在電腦或裝置上的瀏覽器輸入鏈接 http://192.168.16.254。接著輸入 R101背面貼紙上標示的使用者名稱及 密碼（通常兩者都是admin，英文字 母大小寫必須與標示一致），即可進 入設定網頁。 3. 點選網頁上的“快速設定”，再點 選“下一步”，即可進入工作模式設 定。請參考下方模式設定進行，設定 完成後再點選“下一步”，即可完成 工作模式設定。 注意：R101出厂的默认模式为AP模 式。请依据您的网络环境选择。 1. 将R101透过网线连接计算机或其 他支持有线网络的装置，并停止计算 机或装置连接其他的有线或无线网络 。等待R101的LED灯不再闪烁。 2. 在计算机或装置上的浏览器输入链 接http://192.168.16.254。接着输 入R101背面贴纸上标示的用户名称 及密码（通常两者都是admin，英文 字母的大小写必须与标示一致），即 可进入设置网页。 3. 点选网页上的“快速设置”，再点 选“下一步”，即可进入工作模式设 置。请参考下方模式设置进行，设置 完成后再点击“下一步”，即可完成 工作模式设置。 注意: R101の初期設定モードはAP モードです。 1. 全ての無線ネットワークとの接 続を切断し、R101とパソコン又は モバイル端末をイーサネットケー ブルで接続し、ＬＥＤライトが青 色になるまでお待ちください。 2. Webブラウザのアドレスバーに 、http://192.168.16.254を入力し て下さい。さらに、R101本体の後 ろに貼ってあるシールに記載され たユーザー名とパスワードを入力 して下さい（パスワードは大文字 と小文字を区別します）。 3. ‘Quick Setup’の次に‘Next’ をクリックして下さい。モードを 選択し、‘Next’をクリックして 設定を終了させてください。 OPERATING MODE CONFIGURATION -工作模式設定 -工作模式设置- オペレーティングモード設定 EN TWCN JP AP and Router Modes - AP, Router 模式 - AP, Router 模式 - AP とルーターモード 1. Set your wireless parameters. 1. 設定無線網路參數。 1. 设置无线网络参数。 2. Click ‘Save’. 2. 點選“儲存”。 2. 点选“保存”。 3. Click ‘Refresh’ after 40 seconds. 3. 點選“更新”並等待約40秒。 3. 点选“刷新”并等待约40秒。 1. ワイヤレス設定値を 設定して下さい。 2. ‘Save’をクリック。3. 40秒後に、 ‘Refresh’ をクリック。 1. Choose the network you want to connect to. 1. 選擇將要連接的無線網路。 1. 选择将要连接的无线网络。 1. 接続したいネットワークを 選択して下さい。 2. Click ‘Save’. 2. 點選“儲存”。 2. 点选“保存” 2. ‘Save’をクリック。 Router Mode AP Mode Repeater Mode Client Mode Admin Help Repeater and Client Modes - Repeater, Client 模式 - Repeater, Client 模式 - リピーターとクライアントモード EN EN TW TW CN CN JP JP Note: This step is specific to AP and Router modes. The default setting of R101 is AP mode. To change modes, please follow the instructions under ‘Operating Mode Configuration’. You will need the username and password printed on the sticker located on the back of R101. Both are case sensitive. 1. Complete hardware connection of R101: Upon connecting R101 to a power source, wait until the LED light stops blinking and stabilizes. Connect an Ethernet cable to the LAN/WAN port of R101. 注意：本步驟只針對常用的AP及 Router模式。R101出廠的預設模式為AP模 式，如要改為Router模式，請先依“工作 模式設定”的說明進行修改。設定網路需要 用到R101背面貼紙上標示的Username及 Password，英文字母的大小寫必須與標示 一致。 1. 完成R101的接線: R101接上電源，等待LED燈不再閃爍，保 持穩定發光後, 將網線插上R101的 LAN/WAN的插座。 注意：本步骤只针对常用的AP及 Router模式。R101出厂的默认模式为AP 模式，如要改为Router模式，请先依“工 作模式设置”的说明进行修改。设置网络 需要用到R101背面贴纸上标示的 Username及Password，英文字母的大小 写必须与标示一致。 1. 完成R101的接线: R101接上电源，等待LED灯不再闪烁，保 持稳定发光后, 将网线插上R101的 LAN/WAN插座。 注意: この手順はAPとルーターモー ドの仕様です。R101の初期設定モードはAP モードです。モード設定を変更するには、オ ペレーティングモード設定をご参照ください 。モード設定を変更する際、R101本体の後 ろに貼ってあるシールに記載されたユーザー 名とパスワードを入力して下さい（パスワー ドは大文字と小文字を区別します）。 1. R101とハードウェアの接続： R101の電源を入…

Text truncated - open the document above for the full version.

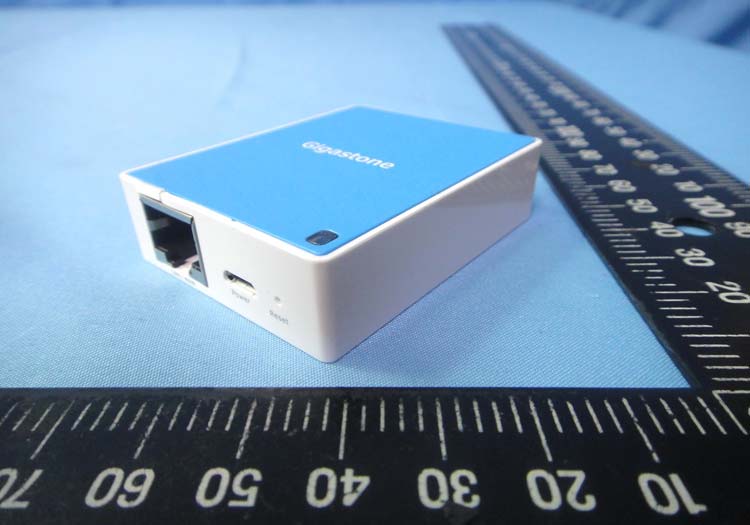

1 of 5 External Photos Model Number: R101 FCC ID: PLE-TRR1011 2 of 5 EUT Photo 1 ) EUT Photo 2 ) 3 of 5 EUT Photo 3 ) EUT Photo 4 ) 4 of 5 EUT Photo 5 ) EUT Photo 6 ) 5 of 5 EUT Photo 7 )

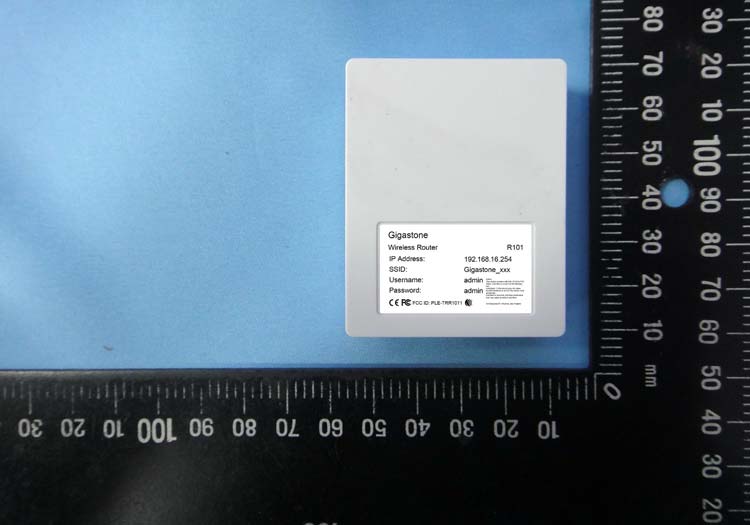

Label Information Trade Name：Gigastone Model Number：R101 FCC ID：PLE‐TRR1011 Label:

1 of 4 Internal Photos Model Number: R101 FCC ID: PLE-TRR1011 2 of 4 EUT Photo 1 ) EUT Photo 2 ) 3 of 4 EUT Photo 3 ) EUT Photo 4 ) Wi-Fi ANT. 4 of 4 EUT Photo 5 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1311FS14 Applicant ： Gigastone Corporation Manufacturer ： Gigastone Corporation Product Type ： Wireless Router Trade Name ： Gigastone Model Number ： R101 Date of Received ： Oct. 28, 2013 Test Period ： Nov. 05, 2013 Date of Issued ： Nov. 15, 2013 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1992 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Bill Hu) (Sky Chou) Report Number: 1311FS14Page 1 of 6 ©2013 A Test Lab Techno Corp. Contents 1. Description of Equipment under Test (EUT)............................................................... 3 2. Human Exposure Assessment .................................................................................... 4 3. RF Output Power........................................................................................................... 5 4. Test Result.....................................................................................................................6 Report Number: 1311FS14Page 2 of 6 ©2013 A Test Lab Techno Corp. 1. Description of Equipment under Test (EUT) Applicant Gigastone Corporation Applicant Address 12F, No. 480, Rueiguang Rd., Neihu Dist., Taipei 114, Taiwan Manufacturer Gigastone Corporation Manufacturer Address 12F, No. 480, Rueiguang Rd., Neihu Dist., Taipei 114, Taiwan Product Type Wireless Router Trade Name Gigastone Model Number R101 FCC ID PLE-TRR1011 Frequency Range IEEE 802.11b / 802.11g / 802.11n 2.4GHz (20MHz): 2412 ~ 2462 MHz IEEE 802.11n 2.4GHz (40MHz): 2422 ~ 2452 MHz Transmit Power IEEE 802.11b: 0.024 W / 13.76 dBm (conducted power) IEEE 802.11g: 0.017 W / 12.39 dBm IEEE 802.11n 2.4GHz (20MHz): 0.010 W / 10.21 dBm IEEE 802.11n 2.4GHz (40MHz): 0.011 W / 10.39 dBm Antenna used Manufacturer: Unictron Technologies Corporation, Model number: AA055 Antenna Specification IEEE 802.11b, IEEE 802.11g: 2.5 dBi IEEE 802.11n 2.4GHz Standard-20MHz / Wide-40MHz: 2.5 dBi IEEE 802.11a, IEEE 802.11n 5GHz Standard-20MHz / Wide-40MHz: 2.5 dBi Antenna Designation Chip Antenna Temperature Range -30 ~ +70°C RF Evaluation 0.09 W/m 2 The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties Report Number: 1311FS14Page 3 of 6 ©2013 A Test Lab Techno Corp. 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Report Number: 1311FS14Page 4 of 6 ©2013 A Test Lab Techno Corp. 3. RF Output Power Band Date Rate CH Frequency (MHz) Conducted power Time-Avg. (dBm) 1 2412.0 12.86 6 2437.0 13.18 1M 11 2462.0 13.76 2M 6 2437.0 12.11 5.5M 6 2437.0 12.36 IEEE 802.11b 11M 6 2437.0 12.43 1 2412.0 11.63 6 2437.0 12.05 6M 11 2462.0 12.39 9M 6 2437.0 11.44 12M 6 2437.0 11.40 18M 6 2437.0 11.22 24M 6 2437.0 11.23 36M 6 2437.0 11.39 48M 6 2437.0 11.19 IEEE 802.11g 54M 6 2437.0 11.15 1 2412.0 10.04 6 2437.0 10.13 6.5M 11 2462.0 10.21 13M 6 2437.0 9.77 19.5M 6 2437.0 9.69 26M 6 2437.0 9.61 39M 6 2437.0 9.47 52M 6 2437.0 9.44 58.5M 6 2437.0 9.40 IEEE 802.11n 2.4GHz (20MHz) 65M 6 2437.0 9.37 3 2422.0 10.39 6 2437.0 10.27 13.5M 9 2452.0 10.04 27M 6 2437.0 10.11 40.5M 6 2437.0 9.86 54M 6 2437.0 9.68 81M 6 2437.0 9.51 108M 6 2437.0 9.32 121.5M 6 2437.0 9.24 IEEE 802.11n 2.4GHz (40MHz) 135M 6 2437.0 9.16 Report Number: 1311FS14Page 5 of 6 ©2013 A T…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C Product Type ： Wireless Router Applicant ： Gigastone Corp. Address ： 12F, No. 480, Rueiguang Rd., Neihu Dist., Taipei 114, Taiwan Trade Name ： Gigastone Model Number ： R101 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2012 ANSI C63.4:2009 Receive Date ： Oct. 28, 2013 Test Period ： Nov. 02~Nov.05, 2013 Issue Date ： Nov. 15, 2013 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1311FR13 1 of 69 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Nov. 15, 2013 Initial Issue Report Number: 1311FR13 2 of 69 A Test Lab Techno Corp. Verification of Compliance Issued Date: 11/15/2013 Product Type : Wireless Router Applicant : Gigastone Corp. Address : 12F, No. 480, Rueiguang Rd., Neihu Dist., Taipei 114, Taiwan Trade Name : Gigastone Model Number : R101 FCC ID : PLE-TRR1011 EUT Rated Voltage : DC 5V (USB Interface) Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2012 ANSI C63.4:2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Cran Yang) (Testing Engineer) (Fly Lu) Report Number: 1311FR13 3 of 69 A Test Lab Techno Corp. TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 2 EUT Description ............................................................................................................................................. 7 3 Test Methodology .......................................................................................................................................... 8 3.1. Mode of Operation.................................................................................................................................. 8 3.2. EUT Exercise Software.......................................................................................................................... 8 3.3. Configuration of Test System Details ..................................................................................................... 9 3.4. Test Site Environment ............................................................................................................................ 9 4 Conducted Emission Measurement ........................................................................................................... 10 4.1. Limit ...................................................................................................................................................... 10 4.2. Test Instruments ................................................................................................................................... 10 4.3. Test Setup............................................................................................................................................. 10 4.4. Test Procedure ......................................................................................................................................11 4.5. Test Result.............................................................................................................................................11 5 Radiated Emission Measurement............................................................................................................... 12 5.1. Limit ...................................................................................................................................................... 12 5.2. Test Instruments ................................................................................................................................... 12 5.3. Setup .................................................................................................................................................... 13 5.4. Test Procedure ..................................................................................................................................... 14 5.5. Test Result............................................................................................................................................ 16 6 Maximum Conducted Output Power Measurement.................................................................................. 23 6.1. Limit ...................................................................................................................................................... 23 6.2. Test Setup............................................................................................................................................. 23 6.3. Test Instruments .........................................................…

Text truncated - open the document above for the full version.

Part 15C Test Setup Photographs Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: 1311FR13 1 of 2 A Test Lab Techno Corp. Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: 1311FR13 2 of 2 A Test Lab Techno Corp.
