PLE-WD2501SmartBox

Copyright 2012 Gigastone Corporation. All Rights Reserved. Gigastone ® Product NameGigastone SmartBox Part NumberSmartBox A2 Dimension (mm)75 x 60 x 16.1 weight (g)75 Li-ion Battery2500mAh Charge In/OutDC 5V / 1000mA Storage MemorySDHC card, up to 32GB USB PortUSB A for charge in/out and data Wireless I/FWi-Fi 802.11b/g/n (2.400GHz~2.4835GHz) WiFi OutreachApprox. 10M WiFi Operation time8Hr WiFi Standby time16Hr Operation Temp. -20°C ~ 60°C Charging Temp. 0°C ~ 45°C Operating systemiOSAndroid PhotoJPG, JPEG, PNG, BMP AudioMP3, WAV Video MOV, M4VMP4 DocumentDOC, XLS, PPT, PDF, TXT Wireless Portable Drive Wireless file server Wireless video/audio playback Support up to 6 devices simultaneously Wireless SD card reader USB mass storage USB pen drive USB SD card reader Portable Power Bank DC 5V/500mA or DC 5V/1000mA output Wireless Portable Drive User Manual Thank you for purchasing the Gigastone SmartBox. This manual describes the operating instructions and safety precautions for using the SmartBox Series. Ensure that you have read this manual before using the product. After reading this manual, store it somewhere safe for future reference. Play Media Files in AndroidPlay Media Files in iPhone Tap to access music in SmartBox. Tap a music file to playback. Tap to access music in SmartBox. Tap a music file to playback. Tap to access video in SmartBox. Tap a video file to playback. Tap a video file to playback. Tap to access Video in SmartBox. Repeat play Repeat play off Repeat play all Shuffle play Shuffle play off Shuffle play all Shuffle play Shuffle play off Shuffle play all Shuffle play Shuffle play off Shuffle play all Repeat play Repeat play off Repeat play all Repeat play selected one Tap to access photo in SmartBox. Tap to call out function keys for download and sliede mode. Tap to access photo in SmartBox. Long press a thumbnail to download or delete. Tap to call out function keys for further operations. Tap & to call out function keys for further operations. Open Gallery in Android device. Tap and pick Select photos and tap to upload. Using SmartBox App Setup SmartBox App in Android Pick SmartBox (default) WiFi network to join. The default password: 123456789 Open the Google Play. Search for the Key words: Gigastone Select Gigastone SmartBox app. Tap "Download" button. Search for the Key words: Gigastone Select Gigastone SmartBox app. Tap "INSTALL" button. Setup SmartBox App in iPhone Photo: Photo/image types of files. Music: Represents music or audio files. Video: Represents MP4 video type files. Document: Downloaded Documents. Others: Lists file types other than above. File Manager: Acts as a file browser. Open WiFi network setting on Android Tap the SmartBox App icon on Android to launch WiFi connection status: WiFi not connected to SmartBox WiFi connected to SmartBox Home Button SmartBox: Multimedia contents in SmartBox Download: Downloaded contents Local drive: Local contents on Android device Settings: Configuring SmartBox & WiFi Tap SmartBox icon access media contents in SmartBox Tap configuration icon to open the setting page. Key in the WiFi SSID of SmartBox Key in the WiFi password of SmartBox Enter Administrator Setting Password: 0000 Set the WiFi SSID & password of SmartBox Reboot the SmartBox Reset SmartBox to default setting SmartBox App Installation and Settings Tap the SmartBox App icon on iphone to launch. SmartBox: Multimedia contents in SmartBox Photo: Camera Roll & downloaded photos Media: Downloaded Music & videos Document: Downloaded Documents Configuration: Configuring SmartBox Open WiFi network setting on iPhone. Pick SmartBox (default) WiFi network to join. The default password: 123456789 Open the App Store. WiFi connection status: WiFi successfully connected SD card status Customize SmartBox SSID & password Reboot the SmartBox Reset SmartBox to default setting Tap configuration icon to open the setting page. Tap SmartBox icon access media contents in SmartBox Function key Search function Document: Document types of files. Music: Represents music or audio files. Others: lists file types other than photo/image, music, video, and document. Photo: Represents photo/image types of files. Video: Represents video files. Open folder in SmartBox app. Tap button to select photos. Tap to upload. Shuffle play Shuffle play off Shuffle play all Battery factory prior to part of the charge only for detection. It is recommended to use after the battery fully charged. CBAD 1 Multi-select & advanced option > Scan QR code to get SmartBox App > Search SmartBox on App Store 1 Connect to SmartBox over WiFi 2 Launching the SmartBox App 3 Access media contents in SmartBox 2 Launching the SmartBox App > Scan QR code to get SmartBox App > Search SmartBox on Google Play 1 Multi-select & advanced option 2 Photo 2 Photo 3 Music 4 Video 5 Upload Contents 5 Upload Contents 3 Music Indication SmartBox StatusLED Signal Wi-Fi Booting UpSolid Blue LED StandbyBlue LED flashes every 2 second TransmittingBlue LED flashes every 0.5 second Battery Low Power (<40%)Red LED flashes every 3 second Low Power (<20%)Solid Red LED Charging Charging Battery Low-LevelON/OFF 1sec /1sec Middle-LevelON/OFF 3sec/2sec High-LevelON/OFF 5sec/4sec Charge Completed SmartBox Power OffSolid Purple LED SmartBox Power OnBlue LED flashes (WiFi Active signal) Connecting to a PC Charging the Smart Phone 1. Connect SmartBox to a PC. 2. Press power button to trigger card reader mode. 3. Wait 5 sec for PC to detect the disk drive. 4. Copy contents form PC to SmartBox. SmartBox is power-off : 1. Plug smart phone to SmartBox 2. Press SmartBox power button to charge phone SmartBox is power-on : 1. Plug smart phone to SmartBox 2. SmartBox start charging phone 3. SmartBox will turn off the WiFi automatically in 5 sec (Blue LED flashing signal off ) • Connecting to SmartBox over WiFi • Open a web browser and type "192.168.1.2" or “gigastone.smartbox” in the URL field • Open the web page to access the contents in SmartBox Access SmartB…

Text truncated - open the document above for the full version.

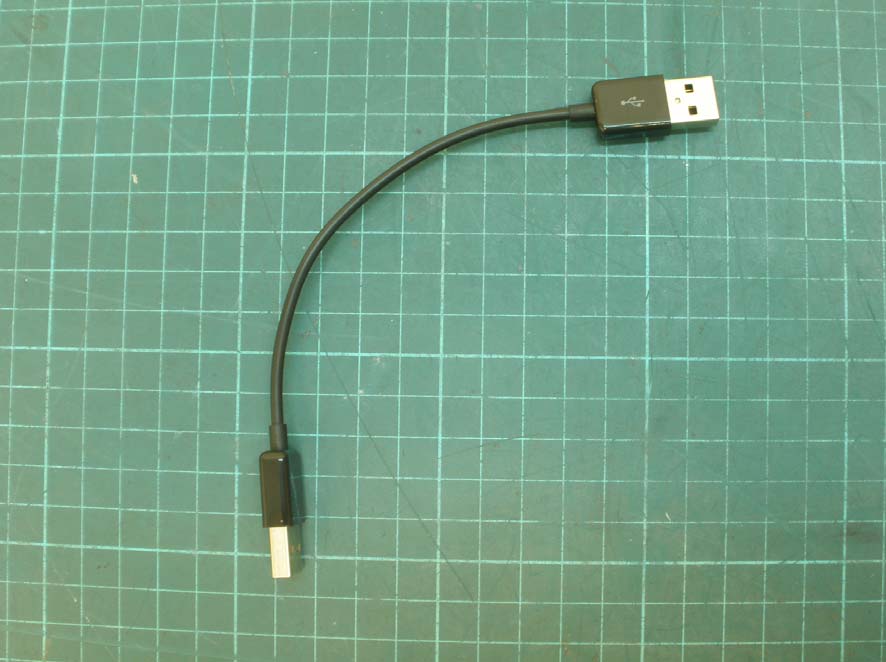

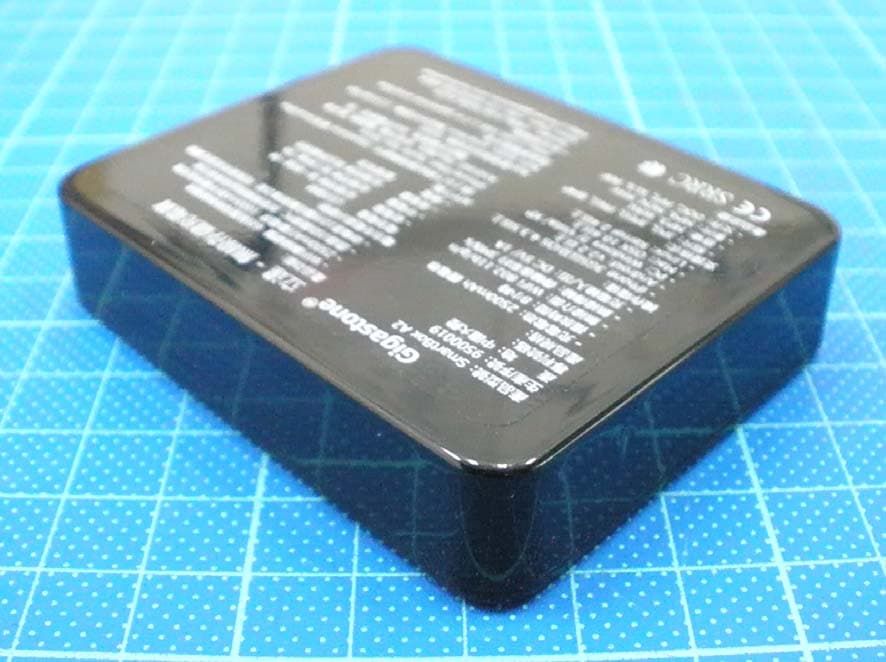

External photo of EUT Model: SmartBox A2, SmartBox A2-25B Model: SmartBox A2, SmartBox A2-25B External photo of EUT Model: SmartBox A2-50B Model: SmartBox A2-50B External photo of EUT Model: SmartBox A2-50B USB Cable

Label FCC ID Label Location

Internal photo of EUT Internal photo of EUT Antenna Internal photo of EUT

FCC ID: PLE-WD2501 Report No.: TS12080119-EME RF Exposure Statement Equipment Information Type of equipment: SmartBox Type / Model: SmartBox A2, SmartBox A2-25B, SmartBox A2-50B Applicant: Gigastone Corp. 12F, No. 480, Rueiguang Rd., Neihu Dist., Taipei 114, Taiwan The EUT is SmartBox, and was defined as information technology equipment. The customer confirmed the models listed as below were series model to model SmartBox A2 (EUT), the difference between main model and series model are listed as below. Model Number Difference SmartBox A2 Lithium-ion Battery Capacity = 2500mAh SmartBox A2-25B SmartBox A2 w/ WiFi Bridge function + SDXC Support SmartBox A2-50B SmartBox A2 w/WiFi Bridge function + SDXC Support + 5000mAh Li-ion Battery Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Measurement Result: The unit is a portable device with the max. average output power 13.5 dBm (22.38mW) lower than the low threshold 60/f GHz mW (24.37 mW). Therefore, the SAR measurement is not necessary. Date of issue: Dec. 04, 2012 Jimmy Yang Engineer Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan

FCC ID.: PLE-WD2501 Report No.: TS12080120-EME Page 1 of 75 0597 EMC TEST REPORT Report No.: TS12080120-EME Model No.: SmartBox A2, SmartBox A2-25B, SmartBox A2-50B Issued Date: Dec. 04, 2012 Applicant: Gigastone Corp. 12F, No. 480, Rueiguang Rd., Neihu Dist., Taipei 114, Taiw an Test Method / Standard: CFR 47 FCC Part 15.247 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Jill Chen / Assistant These measurements were taken by: Sign on File Hugo Yeh / Engineer The test report was reviewed by: Name Jimmy Yang Title Engineer FCC ID.: PLE-WD2501 Report No.: TS12080120-EME Page 2 of 75 Table of Contents 1. Summary of Test Data ............................................................................................ 3 2. General Information ................................................................................................ 4 3. Maximum 6 dB Bandwidth ...................................................................................... 7 4. 99 % Occupied Bandwidth.................................................................................... 15 5. Maximum Output Power ....................................................................................... 23 6. Power Spectral Density ........................................................................................ 25 7. RF Antenna Conducted Spurious ......................................................................... 33 8. Radiated Spurious Emission................................................................................. 52 9. Emission on Band Edge ....................................................................................... 61 10. AC power line conducted emission..................................................................... 71 Appendix: Test Equipment List................................................................................. 75 FCC ID.: PLE-WD2501 Report No.: TS12080120-EME Page 3 of 75 1. Summary of Test Data Test/Requirement Description Applicable Rule Result Minimum 6 dB Bandwidth 15.247(a)(2) Pass Maximum Output Power 15.247(b) Pass Power Spectral Density 15.247(e) Pass RF Antenna Conducted Spurious 15.247(d) Pass Radiated Spurious Emission 15.247(d), 15.205, 15.209 Pass Emission on the Band Edge 15.247(d) Pass AC Power Line Conducted Emission 15.207 Pass FCC ID.: PLE-WD2501 Report No.: TS12080120-EME Page 4 of 75 2. General Information Identification of the EUT Product: SmartBox Model No.: SmartBox A2 FCC ID.: PLE-WD2501 Frequency Range: 1. 2412 MHz ~ 2462 MHz for 802.11b, 802.11g, 802.11n HT20 2. 2422 MHz ~ 2452 MHz for 802.11n HT40 Channel Number: 1. 11 channels for 2412 MHz ~ 2462 MHz 2. 7 channels for 2422 MHz ~ 2452 MHz Type of Modulation: DSSS, OFDM Rated Power: DC 5 V from Notebook PC Power Cord: N/A Data Cable: USB cable 0.2 meter × 1 Sample Received: Aug. 16, 2012 Test Date(s): Oct. 29, 2012 ~ Dec. 03, 2012 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID.: PLE-WD2501 Report No.: TS12080120-EME Page 5 of 75 Description of EUT The EUT is SmartBox, and was defined as information technology equipment. The customer confirmed the models listed as below were series model to model SmartBox A2 (EUT), the difference between main model and series model are listed as below. Model Number Difference SmartBox A2 Lithium-ion Battery Capacity = 2500mAh SmartBox A2-25B SmartBox A2 w/WiFi Bridge function + SDXC Support SmartBox A2-50B SmartBox A2 w/WiFi Bridge function + SDXC Support + 5000mAh Li-ion Battery For more detail features, please refer to User's manual as file name “Installation guide.pdf” Antenna description The EUT uses a permanently connected antenna. Antenna Model : SP03AE2450B-0030 Antenna Gain : 1 dBi Antenna Type : Chip Antenna Connector Type : Fixed type Peripherals equipment Peripherals Brand Model No. Serial No. Data Cable Notebook PC IBM 1860 L3BTAG6 USB cable 0.2 meter × 1 Printer HP DeskJet 400 SG5CQ170C0 RS-232 cable 1 meter × 1 Modem LEMEL MD-56KVT-100 00V230A00078 422 Parallel printer cable 1 meter × 1 Memory Card Transcend TS1GSDC-CP 1GB N/A N/A Operation mode The EUT was supplied with DC 5 V from Notebook PC (Test voltage: 120Vac, 60 Hz). The EUT was tested in TX mode that was controlled by “artgui.exe” program and transmitted continuously during the test. With individual verifying, the maximum output power was found out 1 Mbps data rate for 802.11b mode, 6 Mbps data rate for 802.11g mode, 6.5 Mbps data rate for 802.11n HT 20 mode and 13.5 Mbps data rate for 802.11n HT 40 mode. FCC ID.: PLE-WD2501 Report No.: TS12080120-EME Page 6 of 75 The final tests were executed under these conditions reco…

Text truncated - open the document above for the full version.

Conducted Set-up photo of EUT

Radiated Set-up photo of EUT
