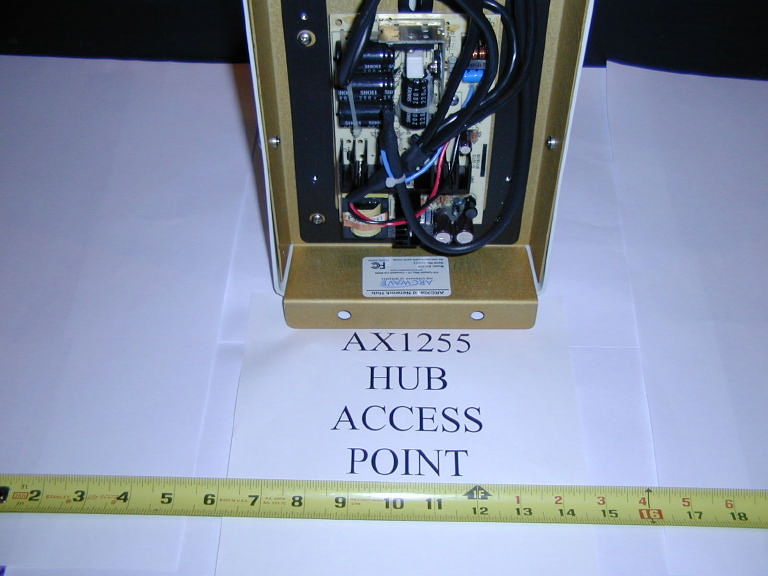

PLRAX125500Point To Multipoint Wireless System

ARCXtend System Planning and Installation Guide A License-Free Point-To-Multipoint Wireless Cable Plant Extension Solution October 2003 © 2001-2003 Arcwave, Inc. 910 Campisi Way, Suite 1F, Campbell, CA 95008 USA, Phone: 408-558-2300 www.arcwaveinc.com Customer Service: 408-748-7570 [email protected] PN: 920-20003-001 LIMITED WARRANTY. Arcwave warrants to Buyer at the time of delivery that the equipment will be free from defects in material and workmanship under normal use and service. Arcwave's sole obligation under these warranties is limited to replacing or repairing, at its option, at its factory, any equipment that is returned to Arcwave, transportation, duties, and taxes prepaid, within twelve (12) months after delivery. In the case of products not of Arcwave's own manufacture, the only warranty available is that provided by the original equipment manufacturer. Arcwave shall return the equipment to Buyer freight prepaid. THIS WARRANTY IS EXPRESSED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF Arcwave, AND IT NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR ARCWAVEANY OTHER LIABILITIES IN CONNECTION WITH THE SALE OF PRODUCTS. IN NO EVENT WILL Arcwave BE LIABLE FOR CONSEQUENTIAL DAMAGES EVEN IF Arcwave HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. This Warranty does not apply to any of such products, which shall have been repaired or altered, except by Arcwave, or which shall have been subjected to misuse, negligence, or accident or operation outside the environmental specifications. Repairs or replacements of Equipment made during the warranty period or thereafter will be warranted, as provided above, for the remainder of the original warranty period or for ninety days from the date of return, as applicable, whichever is longer. RETURN OF EQUIPMENT UNDER WARRANTY: If an item of Equipment malfunctions or fails in normal intended usage and maintenance within the applicable Warranty Period: (a) The Customer shall promptly notify Arcwave of the problem and the serial number of the defective item; (b) Arcwave shall, at its sole option, either resolve the problem over the telephone or provide the Customer with a Returned Materials Authorization number (RMA #) and the address of the location to which the Customer may ship the defective item; (c) If the problem is not resolved over the telephone, the Customer shall attach a label to each returned item describing the fault and the Customer's return address. The Customer shall, at its cost, properly pack the item to be returned, prepay the insurance and shipping charges, and ship the item to the specified location; (d) If the Arcwave product shall prove to be defective in material or workmanship upon examination by Arcwave, Arcwave shall either repair or replace the returned item at its sole option. The replacement item may be new or refurbished; if refurbished, it shall be equivalent in operation to new Equipment. If Arcwave replaces a returned item, the Customer agrees that the returned item shall become the property of Arcwave. (e) Arcwave shall ship the repaired item or replacement to the Customer's return address by carrier and method of delivery chosen by Arcwave at its cost. If Customer has requested some other form of conveyance, such as express shipping, then the Customer shall pay the cost of return shipment. NOTE: This publication may include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of this publication. Arcwave may make improvements and/or changes in the product(s) described in this publication at any time without notice. FCC NOTICE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. : ARCell, ARCXtend and DBWA are Trademarks of Arcwave, Inc. DOCSIS is a registered trademark of Cable Television Laboratories, Inc. Other product and company names mentioned herein may be the trademarks of their respective owners. ARCXtend manual, August 2003 ii FCC Requirements for Operation in the Unites States Radio Frequency Interference Warnings & Instructions This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected • Consult the dealer or an experienced radio/TV technician for help Modifications made to the product, unless expressly approved by Arcwave, Inc. could void the user’s right to operate the equipment. RF Exposure CAUTION: To ensure compliance with FCC RF exposure requirements, the antenna used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operated in conjunction with any other antenna or radio tran…

Text truncated - open the document above for the full version.

Figure 3-10: Pole Mount with temporary pivot bracket detail. It is often convenient to temporarily mount a spare pair of brackets below where the Access Point will be placed. This serves as a pivot point, as well as stopping slippage during installation, as in Figure 3-10. While downtilt is normally not needed, the nuts on either side of the Access Point’s “ears” also serve to establish downtilt. The following Figures 3-11 & 3-12 show the measurement, and the difference in the top and bottom measurements creates the downtilt. ARCXtend manual, August 2003 3-16 Figure 3-11: Measuring bottom spacing. Figure 3-12: Measuring top spacing. ARCXtend manual, August 2003 3-17 3.8.1 Bracket Mount There is a wide range of hardware vendors and approaches to mounting a pipe on a utility pole. For example, Valmont or RFS Celwave (Figures 3-13 & 3-14) will mount on the common wooden utility pole and any pipe of the proper OD can be clamped to it. Arcwave makes a bracket with the pipe welded to the bracket, which is simpler and lighter than the general purpose mounting kits. This was shown in the previous photographs. The industry has many variations on utility pole materials, e.g., metal & cement, and there are many solutions to mounting a pipe on those poles. The Vertical-Mount Access Point mounts on the pipe. Figure 3-13: Valmont Chain-Mount Pipe-Mount Kit combination. ARCXtend manual, August 2003 3-18 Figure 3-14: RFS Celwave Pole Brackets. 3.9 Strand Mount The majority of Access Points are expected to be mounted on the wire strand that supports the coaxial cable system. The strand-mount kit is designed to support a Horizontal-Mount Access Point. There is an arm at each end of the Horizontal Access Point. The top of the arm is clamped to the strand, as in Figure 3-15. The top of the arm is designed to slip in between the strand and the coaxial cable, which is usually spiral wrapped to the strand. ARCXtend manual, August 2003 3-19 Figure 3-15: Strand-mounted Access Point. In high-wind installations, the Access Point can be stabilized by clamping the bottom of the arm to a second strand. ARCXtend manual, August 2003 3-20 Figure 3-16: Strand Mount bracket detail. Figure 3-16 shows the detail of the strand mount bracket. ARCXtend manual, August 2003 3-21 Figure 3-17: Strand-mounted Access Point with dual clamping. 3.10 Verify Service Area When the Access Point is installed, its coverage should be verified by a sampling of building locations. ARCXtend manual, August 2003 3-22 4 Command Line Interface The ARCXtend has a Command Line Interface (CLI) function. The commands will be used by a technician in preparing an Access Point for service and field installation. Some technicians like to “burn-in” a unit prior to field deployment, and this burn-in period is a practical time to also pre-configure a unit via CLI for the parameters used in the network. 4.1 Physical Interface The physical interface is a four-wire EIA/TIA-485, which is a buss interface. The EIA/TIA-485 interface parameter settings are: 9600 baud, 8 bit, 1 stop bit, no parity, no flow control, local echo OFF. NOTE: Most PCs will require an RS-232 to EIA-485 converter. 4.2 Command Line Characteristics All valid commands are automatically saved as soon as they are accepted. Saved commands are not changed by power cycling (ON/OFF). All valid commands are echoed by the Module being addressed, so a technician can visually verify that the correct action has been taken. Commands or parameter values that are not used by the Module are refused (no change in settings) and echoed with the message: “Invalid Command/Parameter”, or a similar response, and a list of the acceptable input options. The “invalid” message is followed by the login response. Commands and parameters are NOT case sensitive. Commands have no spaces. Characters are 8-bit ASCII visible characters. Backspace is the only permitted invisible ASCII character. Login addresses for the Modules inside the Access Point are: 1. 01 = AR250 DX Module 2. 02 = AR150 TX Module 3. 03 = AR105 RX Module Commands that are common to all three modules are: 4. Login 5. Help 6. Quit 7. Banner ARCXtend manual, August 2003 4-1 8. Title 9. Initialize The system response and output is slightly different for each module, as will be explained. From/to tap (RF + Vac) V Power Pickoff Power Supply TXRXDX DX AR250 RX AR105 Receive Module TX AR150 Transmit Module RX & TX Antennas AC RF Control RS485 > Figure 4-1: Block Diagram AX1255 Access Point. 4.3 TX Command Line Interface The commands unique to the TX Module are: 1. Downstream Air Frequency 2. Downstream Enable These will be explained here. 4.3.1 TX Login The LOG Login command is required to establish one-to-one communications with a particular Module. Because this is a bussed system, one and only one Module can be active at any one time. Prior to the complete Login command, no responses or echo backs will occur. Once logged into one Module, one-to-one communications can occur. It is only necessary to log into a Module once to establish communications. *LOG<nnmm>, where nn = mm = {01, 02, ... 7F} is the hexadecimal address of the Module within the ARCell Transceiver/Antenna unit and is entered twice, i.e., nn and mm are identical. ARCXtend manual, August 2003 4-2 Note that the Login command begins with an asterisk (*), and the Module’s address is repeated twice. Prior to Login, no Module is active, and no character echo back will be received on the PC. Example, to log into the Transmit Module (AR150): Type: *log0202 (all of which is hidden because it is not echoed) AR150TX [02] (this is what the Module sends to indicate successful login) The information above echoed by the addressed Module is: the Module type (AR150), the function (TX = Transmitter), and the hex address (02). The LOG command will automatically make any other active Module Quit (logout) if it was previously enabled. 4.3.2 TX Downstream Air Frequency The Downstream Air center Frequency is set within th…

Text truncated - open the document above for the full version.

1 Mike Kuo From: Claire Hoque Sent: December152003Monday 3:38 PM To: Mike Kuo Cc: Michael Heckrotte; Chuck Cowden Subject: CORRECTed ANSWER: Arcwave, Inc. FCC ID:PLRAX125500, AN03T3396 Hi Mike, Arcwave notified me the antenna spec. they provided last time is incorrect, here are the revised answers with correct spec. Question #1: Please provide antenna specification sheet. <Claire>no formal antenna spec. per client. >The strand mount (AX1255) antennas are: > > > >TX gain - 11 dBi > >Beamwidth - 90 degress > > > >RX gain - 10 dBi > >Beamwidth - 90 degrees Question #2: Section 2 EUT description, the frequency band information does not match with operating frequency of the device. Please make necessary correction. <Claire>pls see revised test report. Revised 03U2037-3 FCC Report(A... << File: Revised 03U2037-3 FCC Report(AX1255).PDF >> Question #3: User manual does not contain information to address RF exposure compliance. Please provide revised user manual. <Claire>pls see revised user's manual. Revised User Manual(AX1255).pd... << File: Revised User Manual(AX1255).pdf >> Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION ARCWAVE, INC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PLRAX125500 FCC ID LABEL

REPORT NO: 03U2037-3 DATE: OCTOBER 2, 2003 EUT: POINT TO MULTIPOINT WIRELESS SYSTEM FCC ID: PLRAX125500 Page 49 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 03U2037-3 DATE: OCTOBER 2, 2003 EUT: POINT TO MULTIPOINT WIRELESS SYSTEM FCC ID: PLRAX125500 Page 50 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 03U2037-3 DATE: OCTOBER 2, 2003 EUT: POINT TO MULTIPOINT WIRELESS SYSTEM FCC ID: PLRAX125500 Page 51 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 03U2037-3 DATE: OCTOBER 2, 2003 EUT: POINT TO MULTIPOINT WIRELESS SYSTEM FCC ID: PLRAX125500 Page 52 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 03U2037-3 DATE: OCTOBER 2, 2003 EUT: POINT TO MULTIPOINT WIRELESS SYSTEM FCC ID: PLRAX125500 Page 53 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
