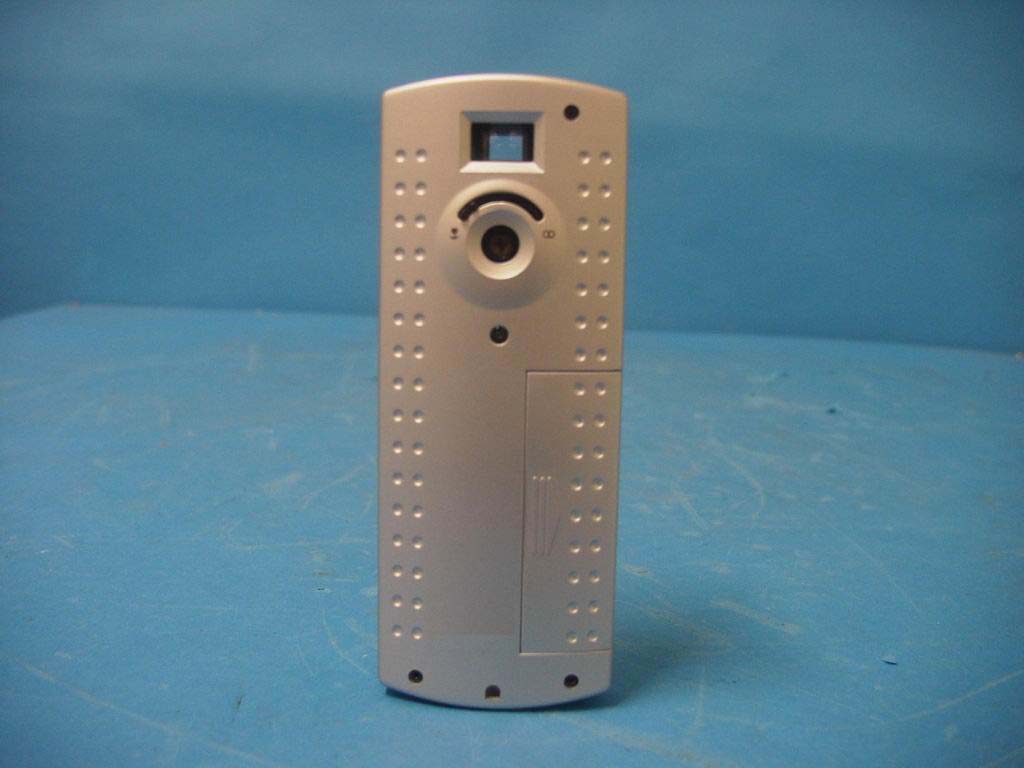

PNWDVC-500DVC-500 Digital Voice Camera

DVC-500 Block Diagram Digital, 3Vpp, 0.1~1 MHz Digital, 3Vpp, 4 MHz Analog Ground Digital, 3Vpp, 2 MHz Digital, 3Vpp, 100 Hz Analog, 1 Vpp, 300 ~ 5 kHz Analog Ground USB & Camera Controller Clock : 48 MHz Flash Memory LENSE Voice DSP Clock : 40.96 MHz CMOS Image Sensor Clock : 27 MHz Micro Controller (Toshiba, 8 bit) ROM : 32kbyte LCD controller Clock : 8 MHz LCD Audio CODEC Speaker Interface 3V DC/DC Converter 5V DC/DC Converter

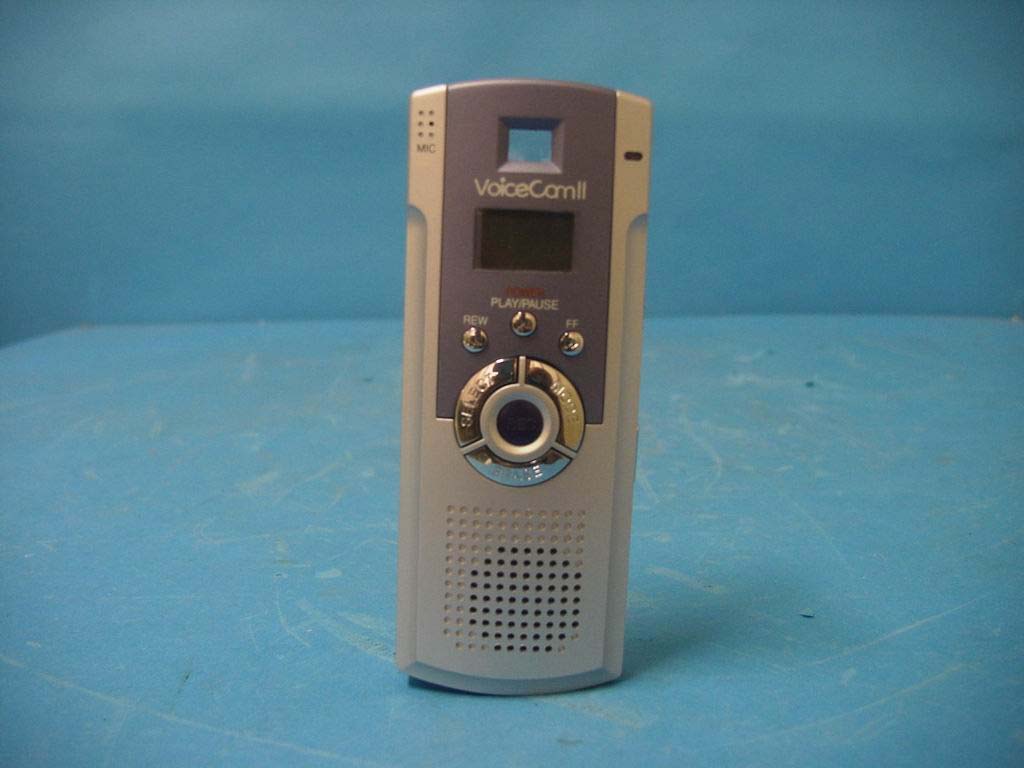

ID Label Sample & Location Information VoiceCamll Digital Voice Camera DVC-500 Battery 1.5 V AAAx2 FCC ID: PNWDVC-500 Made in Korea

1. Operational Description 1-1. Power off - Operating state(battery) : Power Off - Power off : 1mA - Frequency : NONE 1-2. Voice Recoder mode Stand-by - Operating state : voice recorder mode stand-by - Image sensor, voice DSP, Flash memory : power-down & stand-bymode & image sensor clock off - Frequency : 8MHz, 100Hz, 48MHz, 40.96MHz 1-3. Voice Recording mode - Operating state(battery) : recording mode - Image sensor Power-down & clock off - Voice DSP operating : voice signal -> codec convertor -> Audio signal compress -> micro controller(30m sec : flash memory wite) - Frequency : 8MHz, 100Hz, 48MHz, 40.96MHz 1-4. Voice Playing mode - Operating state : playing mode - Image sensor Power-down & clock off - Voice Play Operating : Micro Controller(30m sec :flash memory write) -> flash read -> codec (electrical transmission) -> speaker (audio out) - Frequency : 8MHz, 100Hz, 48MHz, 40.96MHz 1-5. Camera mode stand-by - Operating state : camera stand-by mode - Voice DSP : Power-down & stand-by - Image sensor : stand-by - Image sensor pixel data : shutter button select -> flash memory(storage) - Frequency : 8MHz, 100Hz, 48MHz, 27MHz 1-6. Camera photographing - Operating state : camera stand-by mode - Voice DSP : power-down stand-by - Image sensor pixel data : shutter button select -> flash memory(storage) - Frequency : 8MHz, 100Hz, 48MHz, 27MHz 1-7. USB upload - Operating state : PC & DVC100 interface mode( - Voice DSP : power-down stand-by - Image sensor : power down mode - USB upload : micro controller -> flash memory read -> usb controller(electrical transmission)-> pc down(storage) - Frequency : 8MHz, 100Hz, 48MHz, 27MHz

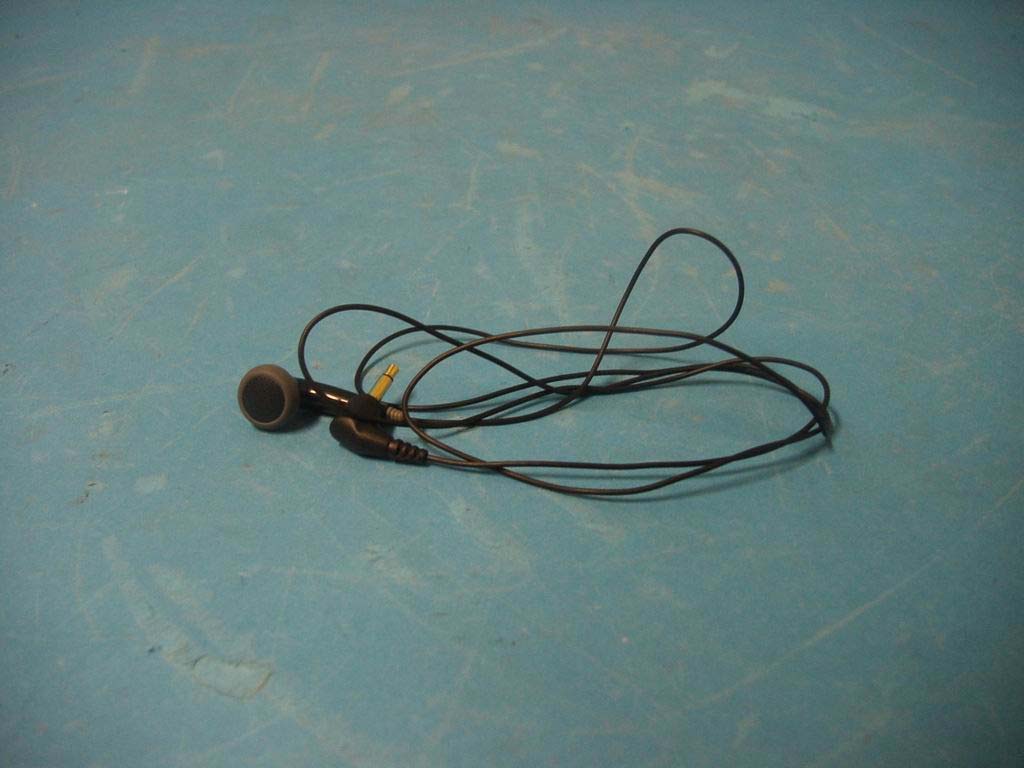

NO ITEMNAMESPECMATERIALLOCATIONQ'TY 1 WASHER-WAVE:15.5,:12.8,*1.2-81X 1 2RUBBER-MICRUBBER(BLACK) X 1 3TOP CASEABS+PC,SPRAY/SILKSILVER SPRAY X 1 4BOTTOM CASEABS+PC,SPRAY/SILK SILVER SPRAYX 1 5INDICATOR-LEDPC(MILKY) X 1 6FNCTION BUTTONABS,SELECT/MODE/ERASE BUTTON X 1 7HOLDER KEYABS,HOLDER KEY X 1 8SHUTTER BUTTONABS,SHUTTER BUTTON X 1 9PLAY BUTTONABS,PLAY BUTTON X 1 10 WINDOW-SENSORPC() X 1 11 REC BUTTONABS,POWER BUTTON X 1 12 WINDOW-DISPLAYPC() X 1 13 DECORATIONABS+PC,SPRAY/SILKSILVER SPRAY X 1 14 VIEW FINDER() X 1 15 VIEW FINDER() X 1 16 BATTERY COVERABS+PC,SPRAY/SILKSILVER SPRAY X 1 17 FINDER-HOLDER(L) ABSBLACK X 1 18 FINDER-HOLDER(R)ABSBLACK X 1 19 BARCODEART PAPERX 1 20 COLOR STICKERROUND STICKERX 1 21 MANUAL? ? X 1 22 MASTER CARTON BOXDW1 X 1 23 GIFT BOXEW 1  X 1 24 PVC PADPVCX 1 25 INNER PADEW X 1 26 SPEAKER SHEET X 1 27 SPEAKER PADEVAX 1 28 TAPPING SCREWBH T1.6 X 3.5 / 5 X0.5 SPEAKER 2 29 TAPPING SCREW BH T1.6 X 5.0 / 2.5 X 1.0PCB 2 30 TAPPING SCREW BH T1.6 X 10.0 / 2.5 X 1.0SET 3 31 BATTERY 1.5V AAA(LR03)1.5V, AAA DURACELL x2 BT1 2 32 USB CABLE CSVC-03043 MINI USB CABLE(black),EMI FILTER X 1 33 EARPHONEMS-1005MONO,BLACK,EMI FILTER X 1 34 INSTALL CD5.25"X 1 35 HAND STRAPDVC-100FX 1 36 GREASEHIGH VACUUM GREASELENS HOLDER + LENS  X 1 37 BATTERY SPONGE 1 38 SPEAKER-REAR 1 39 WINDOW SHEET 1 40 COVER DUST 1 41 BUZZER SHEET 1 42 CD CASEART PAPER, 5.25" 1 VoiceCam II(DVC500) ASS'Y 1   1

A A B B C C D D E E 44 33 22 11 CLCC 48 OV_RESET OV_RESET VSYNC SCL SDA SD0 SD1 SD2KIN0 KIN2 KIN1 OV_PWDN V3 HREF BCOM2 V1 BSEG6 V6 PCLK BSEG1 OV_PWDN SD2 BSEG12 BSEG10 BSEG2 BCOM3 BSEG9 SD0 SDA V4 BSEG5 V0 V7 V5 BSEG13 BSEG8 BSEG11 BSEG4 SD1 V2 BSEG3 5V_CTRL BSEG7 SCL VSYNC HREF BCOM4 BCOM1 KIN1 KIN0 KIN2 OV_RESET V7 V0 V6 V1 V2 V4 V3 V5 BCOM4 BCOM3 BCOM2 BCOM1 BSEG13 BSEG12 BSEG11 BSEG10 BSEG9 BSEG8 BSEG7 BSEG6 BSEG5 BSEG4 BSEG3 BSEG2 BSEG1 VBAT LED LED VBAT5V_CTRL MUTE PCMOUT PCMIN SPK_CTRL PCMCLK SYNC VBAT 5V_CTRL GAIN_HL 3V-D1 5V-D1 5V-D1 3V-D1 5V-D1 3V-D1 5V-A1 5V-A1 3V-D1 5V-D1 5V-D1 5V-A1 5V-A1 5V-D1 3V-D1 1 2 1 2 TACK1/POWER 12 1 2 TACK1/ERASE 12 12 1 2 1 2 12 12 HEADER 14X2 12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 12 12 1 2 12 1 2 1 2 TACK1/SELECT 12 TACK1/FF 12 1 2 TACK1/REW 12 1 2 0 12 1 2 0 12 PCLK 1 12 HEADER 14X2 12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 TACK2/REC 12 OV7620 123456 7 8 9 10 11 12 13 14 15 16 17 18 192021222324252627282930 31 32 33 34 35 36 37 38 39 40 41 42 434445464748 SVDD RESET AGCEN FREX VRCAP2 ASUB AGND AVDD PWDN VRCAP1 VRCAP3 IICB VTO ADVDD ADGND VSYNC/CSYNC FODD/CLK HREF/VSFRAM UV7/B8UV6/ABKENUV5/MIRUV4UV3UV2/QCIFUV1/CCIR656UV0/GAMMACLK1CLK2DVDDDGND DGND DOVDD PWDB/PCLK CS0/Y7 CS2/Y6 SHARP/Y5 CS1/Y4 RGB/Y3 G2X/Y2 Y1 CBAR/Y0 BW/CHSYNC DEGNDDEVDD SCL SDA MULT SGND 12 + 1 2 VDC100-LCD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 COM1 COM2 COM3 COM4 1 2 12 1 212 1 2 TACK1/MODE 12 1 2 1 2 1 2 TACK1/SHUTTER 12 1 2 5 5 4 4 3 3 2 2 1 1 DD CC BB AA PCMOUT PCMCLK SYNC PCMIN GAIN_HL SPK_CTRL MUTE 3V-A1 3V-A1 3V-AA 3V-AA 3V-A1 3V-A1 5V-A1 3 2 1 2N2222A 3 2 1 KTA1505(Y) 3 2 1 CON2 1 2 MICROPHONE + 3 2 1 PHONEJACK 3 2 1 + 2 1 2 3 45 6 7 8 OUTA V+ OUTB GNDB- B+ A+ A- + 0.22uF 1 2 3 4 5 6 7 8 9 1011 12 13 14 15 16 17 18 19 20 SGC SG AOUT VDD NC NC DG PDN RSYNC PCMINPCMOUT XSYNC BCLK AG NC NC ARAW GSX AIN- AIN+ + + + - 1 2 3 4 8 + + + + A A B B C C D D E E 44 33 22 11 VBAT 5V_CTRL 5V_CTRL 3V-D1 3V-D1 3V-A1 5V-D15V-A1 12 12 1 2 34 5 6 NC PS SHDNLX GND NC 12 + 1 2 0 12 47uH 1212 1 2 + 1 2 1 2 0 12 1 2 3 1 2 + 47uF 1 2 3 2 1 1 2 34 5 6 NC VOUT CEEXT VSS NC 47K 12 1 2 1 2 + 1 2 12 12 + 1 2 3 2 1 + 1 2 + 1 2 5 5 4 4 3 3 2 2 1 1 DD CC BB AA 1 2 3 4 5 6 7 8 9 11 12 10 13 14 15 16 17 18 19 20 21 22 23 24 2526 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 VDD DQ0 DQ1 VSSQ DQ2 DQ3 VDDQ DQ4 DQ5 DQ6 DQ7 VSSQ VDDQ LDQM WE CAS RAS CS BA A10/AP A0 A1 A2 A3 VDDVSS A4 A5 A6 A7 A8 A9 NC CKE CLK UDQM NC/RFU VDDQ DQ8 DQ9 VSSQ DQ10 DQ11 VDDQ DQ12 DQ13 VSSQ DQ14 DQ15 VSS USB_CON_MINI 1 3 2 4 VCC DP DM GND 12 MV301 12345678910111213141516171819202122232425 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51525354555657585960616263646566676869707172737475 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 test_se vss1 vdd1 dio0dio1dio2dio3dio4dio5dio6dio7 vss2web ceb vdd2 rasbcasbdqm vss3 dio8dio9 dio10dio11dio12dio13 dio14 dio15 vss4 vdd3 daddr0 daddr1 daddr2 daddr3 daddr4 daddr5 daddr6 vss5 daddr7 daddr8 daddr9 daddr10 daddr11 vss6 md7 md6 md5 md4 md3 md2 md1 md0vss7clk27_0vdd4irqnmrenmwenaddr0addr1addr2addr3mcu_csdsc_modemcu_convss8clk_dvdd5clx27_gvss9din7din6din5din4din3din2 din1 din0 vss10 reset_in vdd6 pclk dsc_pwdn snap_on vsync href scl sda reset_out vss11 clk48_d vdd7 clk48_g pwrdn1 pull_up dp dp_c dm dm_c tsc tm 1 2 34 5 INA INB GNDOUT VCC 1 2 1 2 3 GND IN OUT 5 5 4 4 3 3 2 2 1 1 DD CC BB AA /ACK MV_A0 /PRD /PWR D0 D1 D2 D3 D4 D5 D6 D7 #DATAFLAG MUTE2 SPK_CTRL2 /DSPCS SYNC2 DSP_RESET PCMCLK2 PCMOUT2 PCMIN2 GNDD2 3V-D2 GAIN_HL2 DSP_PWDN 3V-D2 3V-D2 3V-D2 3V-D2 3V-D2 3V-D2 12 1 2 1 2 1 2 12 D6571E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25262728293031323334353637383940 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65666768697071727374757677787980 ADDR15/CE3 ADDR14 ACK HI/LO HSTRD HSTWR HSTDB7 HSTDB6 HSTDB5 HSTDB4 HSTDB3 HSTDB2 HSTDB1 HSTDB0 GND CLKOUT XOUT XIN VCC SCLK RESET PDN FSYNC DXI DX0DR1DR0GPIO5GPIO4GPIO3GNDVCCGPIO2GPIO1GPIO0FLWRFLRDNCDB0DB1 DB2 DB3 DB4 DB5 DB6 DB7 DB8 DB9 DB10 DB11 DB12 DB13 VCC GND NC NC DB14 DB15 ADDR0 ADDR1 ADDR2 ADDR3 ADDR4 ADDR5 ADDR6ADDR7ADDR8ADDR9 ADDR10ADDR11ADDR12ADDR13 VCC GND CE0 CE2/VPCS DSPCS ALE CLECE1 1 2 3 12 1 2 12 1M 12 A A B B C C D D E E 44 33 22 11 48 TSOP1 D0D1D2D3D4D5D6D7 SDA SCL SEG12 SEG11 SEG10 SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 COM4 COM3 COM2 COM1 R/B OV_PWDN OVRESET2 SEG13 /DSPCS /ACK KIN0 CLE #RE #WE #RE CLE ALE KIN2 KIN1 HOLD_KEY HOLD_KEY DSC_MODE MV_RESET SDRAM_CKE MV_CS MV_A0 D0 COM2 D2 D1 COM3 SCL SDA 5V_CTRL SEG13 SEG9 SEG3 SEG5 SEG1 SEG7 OV_PWDN KIN0 KIN1 COM4 KIN2 COM1 SEG11 SEG2 SEG4 SEG6 SEG8 SEG10 SEG12 D7 D6 D5 D4 D3 D2 D1 D0 VBAT2 MV_A1 MV_A2 MV_A0 MV_CS SNAP SDRAM_CKE DSP_RESET /PRD /DSPCS /PWR MV_RESET DSC_MODE #WE D7 D2 D4 D0 D3 D5 D1 ALE D6 R/B #RE #CE0 CLE /PWR /PRD MV_A1 MV_A2 #CE0 #WE DSP_RESET DSP_PWDN OVRESET2 SNAP DSP_PWDNOPT2 OPT2 BEEP2 BEEP2 LED2 LED2 VBAT2 5V_CTRL #DATAFLAG /DSPCS /ACK DSC_MODE D0 D1 D2 D3 D4 D5 D6 D7 YUV0YUV1 YUV2YUV3 YUV4YUV5 YUV7 VSYNC2 PCLK2 YUV6 HREF2 USB_POWER2 MV_RESET SDRAM_CKE MV_A0 VBAT2 MV_A3 USB_PULLUP MV_IRQ MV_CS SPK_CTRL2 PCMCLK2 SYNC2 MUTE2 PCMIN2 VBAT2 GNDD2 3V-D2 /PWR /PRD MV_A1 MV_A2 PCMOUT2 DSP_RESET SNAP GAIN_HL2 DSP_PWDN SDA SCL 5V-D1 5V-D1 3V-D2 3V-D2 5V-D2 5V-D1 3V-D2 3V-D2 5V-D2 3V-D2 3V-D23V-D2 3V-D2 3V-D23V-D2 5V-D2 HEADER 14X2 12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 1 1 2 3 HEADER 14X2 12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 43K 12 12 12 12 TMP87CH21DF 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 1234567891011121314151617181920 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 4142434445464748495051525354555657585960 SEG11 SEG10 SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0 COM3 COM2 COM1 COM0 VLC NC NC NC VSSXOUTXINRESETP22P21TEST(INT5/STOP)P20(INT3/TC3…

Text truncated - open the document above for the full version.

File No. 01-IST-142/FB IST EMC LAB. Page 1 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 01-IST-142/FB Date of issue : Nov. 15, 2001 Model / Type No. : DVC-500 ■ Basic □ Alternate Kind of product Brand name Applicant Manufacturer License holder Address : Digital Voice Camera : VoiceCamII : InterMagic, Corp. : InterMagic, Corp. : InterMagic, Corp. : 7F., Yoojin Bldg., 37-2, Daebang-dong, Dongjak-ku, Seoul, Korea Test result according to the regulation(s) „ Positive † Negative at page 3. This test report with appendix consists of 19 pages. The test result only responds to the tested sample (EUT No : IST-011015273). It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 01-IST-142/FB IST EMC LAB. Page 2 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Environmental Conditions Test Conditions Equipment under Test Test Result Test-setup (Figures) Summary 2 3 3 4 ~ 5 6 7 8 ~ 9 19 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 10~12 13~18 C) Appendix File No. 01-IST-142/FB IST EMC LAB. Page 3 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ■ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. ENVIRONMENTAL CONDITIONS Temperature Humidity Atmospheric pressure 18 40 % 1000 mbar File No. 01-IST-142/FB IST EMC LAB. Page 4 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jun. 16, 2001 861742/015 3725/2 LISN EMCO Jul. 30, 2001 9101-2068 KNW-407 LISN Hyup-Rip Jul. 26, 2001 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 13, 2001 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. File No. 01-IST-142/FB IST EMC LAB. Page 5 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde & Schwarz Jun. 12, 2001 861744/018 VULB 9160 Antenna Schwarzbeck Jun. 04, 2001 3048 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “Method of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. File No. 01-IST-142/FB IST EMC LAB. Page 6 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description The Equipment Under Test (EUT) is the Digital Voice Camera of Intermagic corp. Power Requirement DC 3V (AAA Size) Power Consumption 260mW(Play) / 260mW(Rec) / 375mW(Photo) Dimension 110mm x 45mm x 21mm(WxHxD) Weight 80g (including 2pcs of battery) USB Upload Max 12Mbps Recording Media Built in 16MB Flash Memory Voice Recording mode DSPG TrueSpeech TM Voice Input / Output Speaker, Earphone, Microphone Camera Resolution 130 Frames (640x480) / 500 Frames (320x240) Cam…
