PNWIHP3-064MP3 Player

EVOLUTION EVOLUTION IHP3 IHP3 - - 064 064 ’ ‘’ ‘’ ‘’ THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:(1) THIS DEVICE MAY NOT CAUSE HARFUL INTERFACE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID : PNWIHP3-064MADE IN KOREA FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment Only supplied interface cable should be used, or may cause undesired operation. ‘’ ‘’ ‘’ ‘’ ‘’ “”

From: Mike Kuo Sent: Thursday, June 27, 2002 2:01 PM To: '[email protected]' Subject: FW: Intermagic Corp., FCC ID:PNWIHP3-064, AN02T2079 -----Original Message----- From: CERTADM Sent: Thursday, June 27, 2002 1:58 PM To: '[email protected]' Subject: Intermagic Corp., FCC ID:PNWIHP3-064, AN02T2079 Notice_content ------------- Question #1: The test setup used during final compliance tests do not comply with ANSI C63.4 Section 11.2 requirements. Section 11.2 requires to have at least two different I/O protocols to be connected with associated peripherals. Please redo the radiated and conducted emissions and provide setup photos, peripheral list and test data. Question #2: User manual does not contain information required per section 15.21 of FCC rules. Please provide revised user manual. Question #3: In the test report, please provide the manufacturer name , model name/no of support equipment used during final compliance tests. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

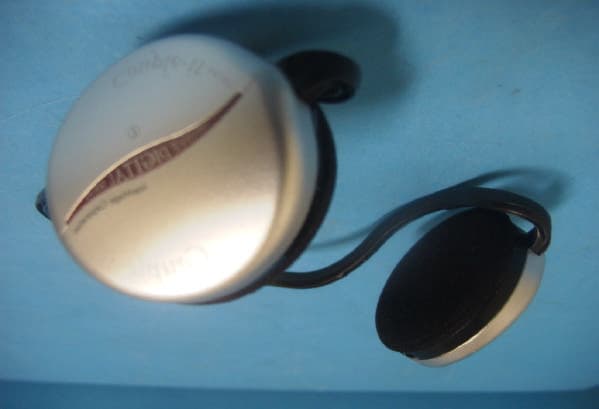

IST Co., Ltd. EMC LABORATORY EUT Photos-External IHP3-064 / Ref. TEST REPORT NO. : 02-IST-127

IST Co., Ltd. EMC LABORATORY EUT Label Sample & Location IHP3-064 / Ref. TEST REPORT NO. : 02-IST-127 FCC ID : PNWIHP3-064

IST Co., Ltd. EMC LABORATORY EUT Photos-Internal IHP3-064 / Ref. TEST REPORT NO. : 02-IST-127 1 of 2 IST Co., Ltd. EMC LABORATORY EUT Photos-Internal IHP3-064 / Ref. TEST REPORT NO. : 02-IST-127 2 of 2

IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 02-IST-127 1 of 12 Certification of Compliance CFR 47 Part 15 Subpart B Test Report File No. : 02-IST-127 Date of Issue : June 26, 2002 Model(s) : IHP3-064 Kind of Product : MP3 PLAYER Applicant : Intermagic Corp. Address : 7F,Yoojin Bldg.,37-2,Daebang-dong,Dongjak-ku Seoul, Korea 156-807 Manufacturer : Intermagic Corp. Address : 7F,Yoojin Bldg.,37-2,Daebang-dong,Dongjak-ku Seoul, Korea 156-807 Test Result Positive Negative Reviewed By Approved By - The test report with appendix consists of 12 pages. - The test result only responds to the tested sample. - This device is classified by PC peripherals. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 1992. G. Chung / Chief IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 02-IST-127 2 of 12 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental condition, Power used 3 Description of test Conducted Emission 4 Radiated Emission 5 Summary 6 Test conditions and data Conducted emissions 450 kHz – 30 MHz Applicable Test equipment 7 Data and plots 8-9 Radiated emissions 30 MHz – 1 GHz Applicable Test equipment 10 Data / plots 11 Appendix A The EUT Photos 12 IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 02-IST-127 3 of 12 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd.(FCC Filing Lab) San 21-8, Goan-Ri, Baekam-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 4093 FAX : +82 31 333 4094 ENVIRONMENTAL CONDITIONS Temperature 28 Humidity 34 % Atmospheric pressure 999 mbar POWER SUPPLY SYSTEM USED Power supply system DC 1.5V (AAA Battery x1) - EMC suppression device is not used during the test. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 02-IST-127 4 of 12 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50/50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within an bandwidth of 10KHz or for "quasi-peak" within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1m X 1.5m wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The R/S ESH3-Z5 and EMCO 3825/2 LISN are bonded to bottom of the shielded room. The DUT is located on the wooden table with distance more than 80cm from the LISN and powered from the EMCO LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the DUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the EMCO LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the DUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the DUT. The frequency producing the maximum level was reexamined using Quasi-Peak mode by manual measurement, after scanned by automatic Peak mode for frequency range from 0.45 to 30MHz. The bandwidth of the receiver was set to 10kHz. The DUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. 215 >150>40 80 Receiver DUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Front side Equipment under test Coaxial cable Artificial mains network Screened room Non-metallic support 80 < Side View > < Concept Drawing > IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 02-IST-127 5 of 12 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120KHz. - Procedure of Test Preliminary measurements were made at 3 meter using bi-conical and log-periodic antennas, and spectrum analyzer to determine the frequency producing the max. emission in anechoic chamber. Appropriate precaution was taken to ensure that all emission from the DUT were maximized and investigated. The system configuration, mode of operation, turn-table azimuth and height with respect to the antenna were noted for each frequency found. The spectrum was scanned from 40MHz to 300MHz using S/B bi-conical antenna and 300 to 1000MHz using S/B log-periodic antenna. Above 1GHz, linearly polarized double ridge horn antennas were used. Final measurements were made at open site with 3-meters test distance using S/B bi-log antenna or horn antenna. The OATS have been verified in regular for its normalized site attenuations. The test equipment was placed on a wooden table. Sufficient time for the DUT, peripheral equipment, and test equipment was allowed in order for them to warm up to their normal operating condition. Each frequency found during pre-scan measurements was re-examined by manual. The detector function was set to CISPR quasi-peak mode and the bandwidth of the receiver was set to 120kHz or 1MHz depending on the frequency of type of signal. The DUT, peripheral equipment and interconnecting cables were re-configured to the set-up producing the max. emission for the frequency and were placed on top of a 0.8- meter high nonmetallic 1 x 1.5 meter table. The DUT, peripheral equi…
