PNWIMP200MP3 Player

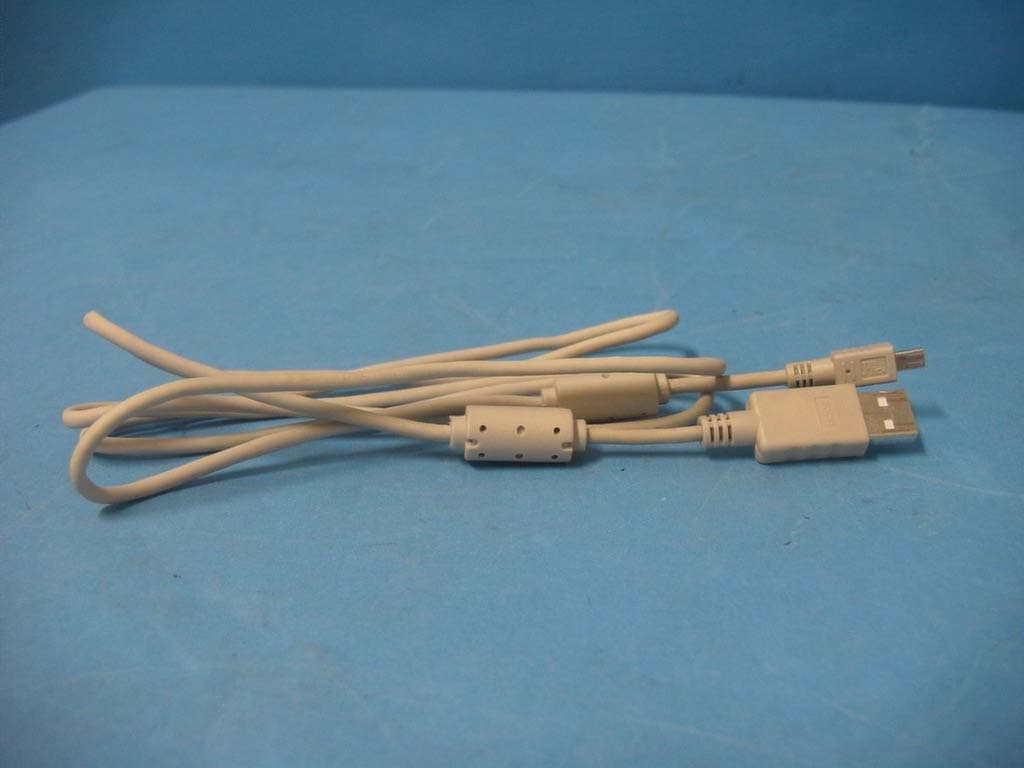

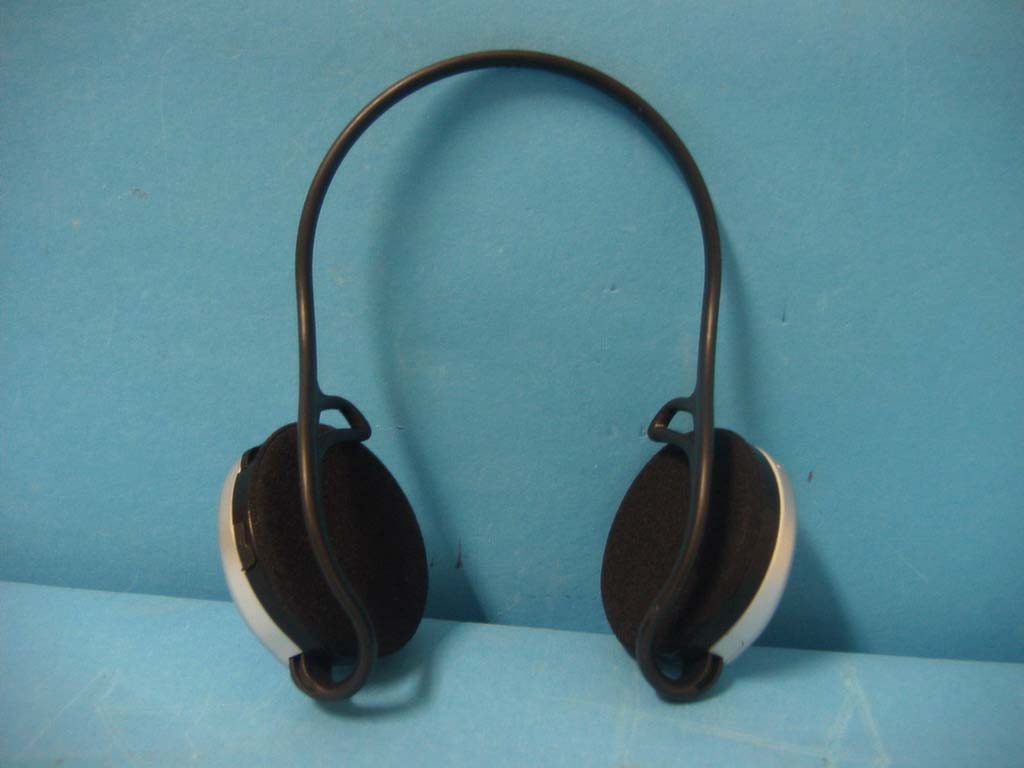

NECKBAND NECKBAND - - STYLE STYLE DIGITAL AUDIO PLAYER DIGITAL AUDIO PLAYER Designed for comfort as well as outstanding listening enjoyment! FCC RFINTERFERENCE STATEMENTNOTE :This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inte rference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio, TV technical for help.Only shielded interface cable should be used.Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could voidthe users authority to operate such equipment, INTRODUCTION ƒ What are MP3s? MP3s are digital audio files that have been shrunken down While still maintaining their original sound quality. Before there were MP3s, digital audio files took hours to download. But on a 56K Modem, most MP3s can download in just a few minutes. MP3s are widely recognized as the most popular format for storing and listeni ng to music on the World Wide Web. ƒ What are WMAs? ƒ What is ‘Digital Audio Player’? MP3 Player is a Digital Audio Player which can decode MP3 files storedin flash memory. With MP3 Player, you can enjoy your favorite music which you downloaded from Internet and also can record / play backlectures or important business meetings. Windows Media Audio(WMA)s are digi tal audio files that developed by Microsoft. WMA delivers the highest fi delity audio including CD quality with full stereo at bitrates as low as 64Kbps. This lower bitrates enablesWindows Media Player to deliver at CD quality audio at half the size ofMP3(128Kbps). 1. Insert the software CD in to the computer’s CD-ROM or DVD-ROM drive. 2. - From the Windows taskba r, click ‘Start and Run’. -Type D: ₩ setup (where D: is the drive letter of your CD-ROM) -Click OK 3. When the following message appears, click on ‘Next’. HOW TO INSTALL THE SOFTWARE 4. When the following message appears, click on ‘Next’, Otherwise, select the location in which the software will be installed. HOW TO INSTALL THE SOFTWARE 5. When the following message appears, click on ‘Next’, Otherwise, select the program group in which the software will be installed. 6. The installation is automatically proceeding.7. After completing installation, you can see an icon named ‘Couple-it Manager’ on the screen HOW TO INSTALL THE SOFTWARE MANAGEMENT SOFTWARE MANAGEMENT SOFTWARE Memory FormatTo download audio files in your memory, the memory should be formatted first. RefreshTo refresh the memory. UploadTo upload audio files from the player to your PC. DownloadTo download audio files fr om PC to your player, • If [Open] window is displayed, choose the songs you to desire to download and clic k [Open] to start download DeleteTo delete files, choose the files you desire to delete. CONTROLS AND CONNECTION R PLAY/PAUSE, FF, REW Jog Shuttle USB Connector POWER ON/OFF Slide Switch VOLUME Rotary Switch FUNCTION OF BUTTONS -For moving to the next song-It will fast forward within the track as much as press. -When you double clicking this button, move to the next 10 song. Jog Shuttle FF Volume control Rotary VOLUME -For moving to the previous song-It will fast rewind within the track as much as press. -When you double clicking this button, move to the 10 previous song. Jog Shuttle REW -Play / Pause-When you push this button more than 1.5 seconds, it power off. -When in no operating mode more over 60 seconds, it automatically power off. Jog Shuttle Play / Pause Power On & Off Slide Power On / Off Operation Type Name ※ Low Battery Warning Please change the battery within 1 hour when it beep at an interval of 1 minute.

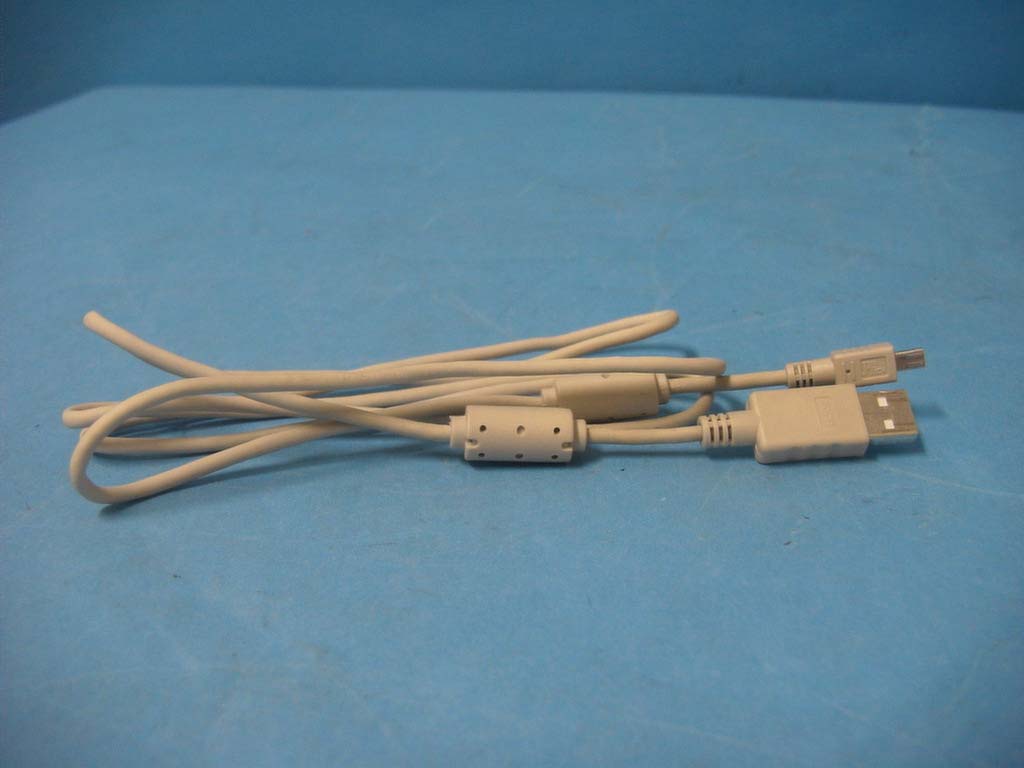

IMP200(EV-128 MNX) Block Diagram CPU TCC730 32768Hz Reset IC DS1815 NAND Flash 0 K9F128U0M NAND Flash 1 K9F128U0M Nor Flash SST39VF400 ADC/DAC WM8731 DC/DC MAX1706 LDO R1120N331B USB Conn AAA Battery 1EA CoupleIt Block Diagram

ID Label Sample & Location Information Intermagic, Corp. Model Name : IMP200 MEMORY: 128M BATT: AAA x 1 INPUT: DC 1.5V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PNWIMP200 Made in Korea

File No. 02-IST-156/FB IST EMC LAB. Page 1 of 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 02-IST-156/FB Date of issue : Aug. 02, 2002. Model / Type No. Kind of product Brand name Applicant Manufacturer Address : MP3 Player : InterMagic : InterMagic, Corp. : InterMagic, Corp. : InterMagic, Corp. : 7F., Yoojin Bldg., 37-2, Daebang-dong, Dongjak-ku, Seoul, Korea Test result according to the regulation(s) „ Positive † Negative at page 3. This test report without appendix consists of 20 pages. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 02-IST-156/FB IST EMC LAB. Page 2 of 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Environmental Conditions Test Conditions Equipment under Test Test Result Test-setups (Photos ) Test-setup (Figures) Summary 2 3 3 4~5 6 7 8~10 11~12 20 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 13~15 16~19 C) Appendix File No. 02-IST-156/FB IST EMC LAB. Page 3 of 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ■ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. ENVIRONMENTAL CONDITIONS Temperature Humidity Atmospheric pressure 27 46 % 1003 mbar File No. 02-IST-156/FB IST EMC LAB. Page 4 of 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jul. 25, 2002 861742/015 3725/2 LISN EMCO Jul. 27, 2002 9101-2068 KNW-407 LISN Hyup-Rip Jul. 26, 2002 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 25, 2002 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : Y.J.Kim / Research Engineer IST EMC Lab. File No. 02-IST-156/FB IST EMC LAB. Page 5 of 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde & Schwarz Jul. 26, 2002 860688/011 VULB 9160 Antenna Schwarzbeck Jul. 10, 2002 3048 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “Method of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : Y.J.Kim / Research Engineer IST EMC Lab. File No. 02-IST-156/FB IST EMC LAB. Page 6 of 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description The Equipment Under Test (EUT) is the MP3 Player of Intermagic, Corp. Outer dimensions 170.0(W) x 160.0(H) x 70.0(D) (mm) Weight 50g(without battery) Power requirements DC 1.5V, AAA x 1 battery Flash memory 128MB Singnal to Noise Ratio 90dB Battery Life time 7 Hour Frequency Range 20Hz ~ 20kHz PC Interface USB(Universal Serial Bus) File download speed down to 2.5Mbps internal memory PC OS Windows 98, ME, 2000, XP EUT Type : Table-Top. Floor-Standing. Tab…

Text truncated - open the document above for the full version.

Play : Radiated Emission 30MHz ~ 1000MHz Files download : Radiated Emission 30MHz ~ 1000MHz Files download : Conducted Emission 450kHz ~ 30MHz
