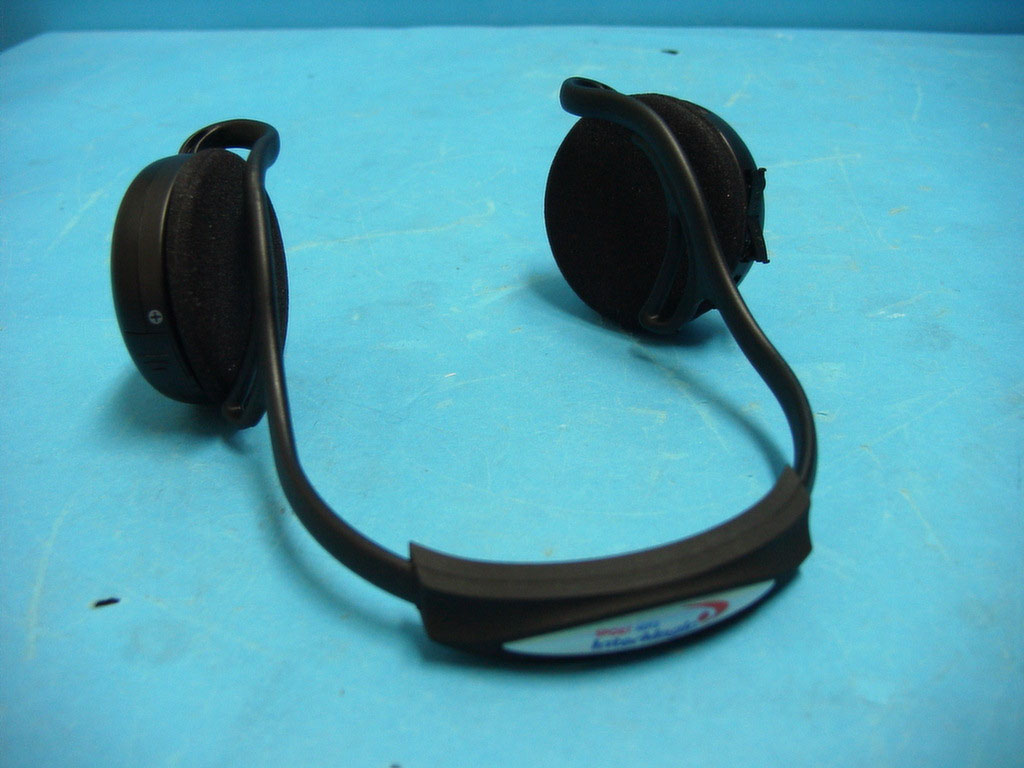

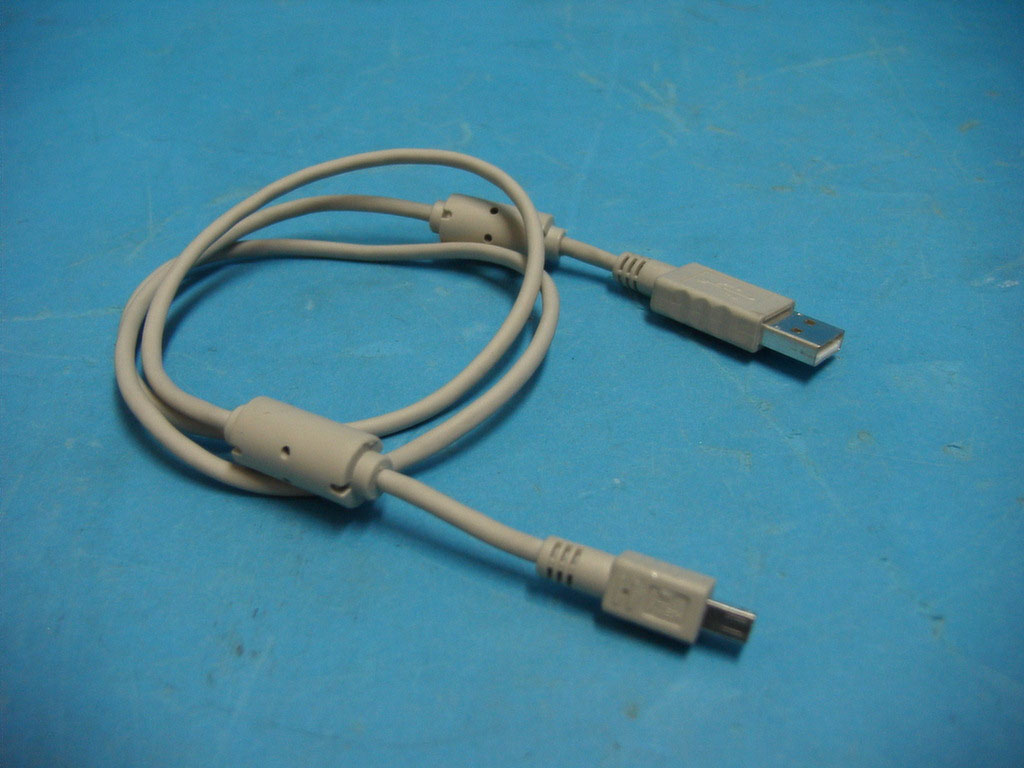

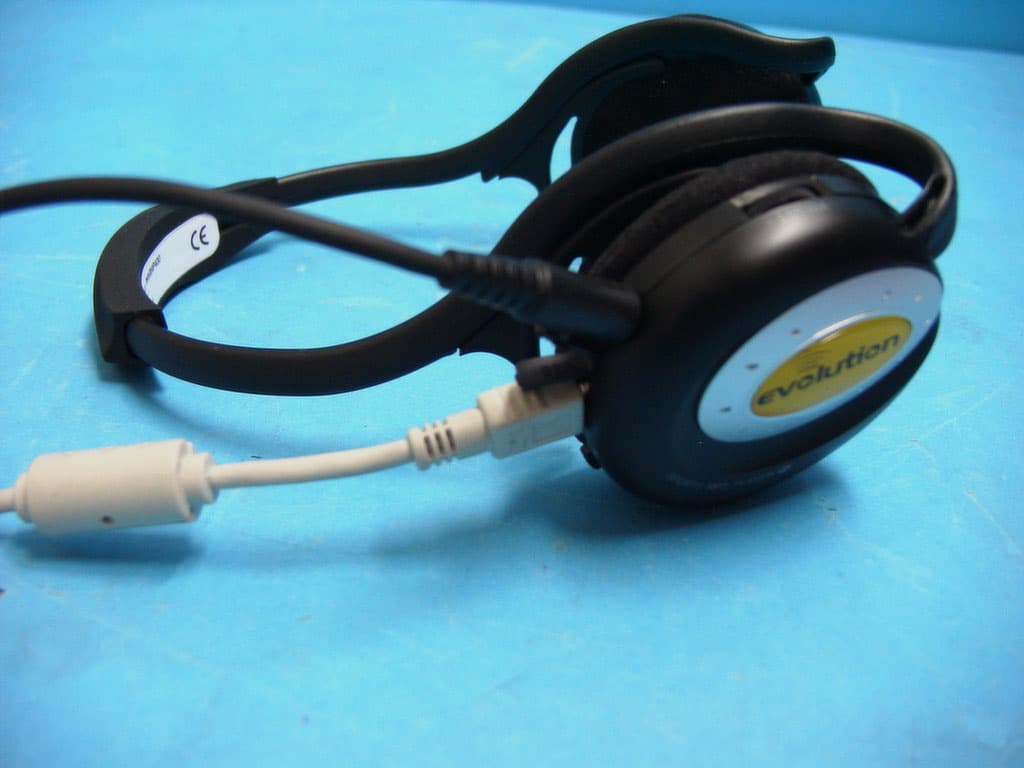

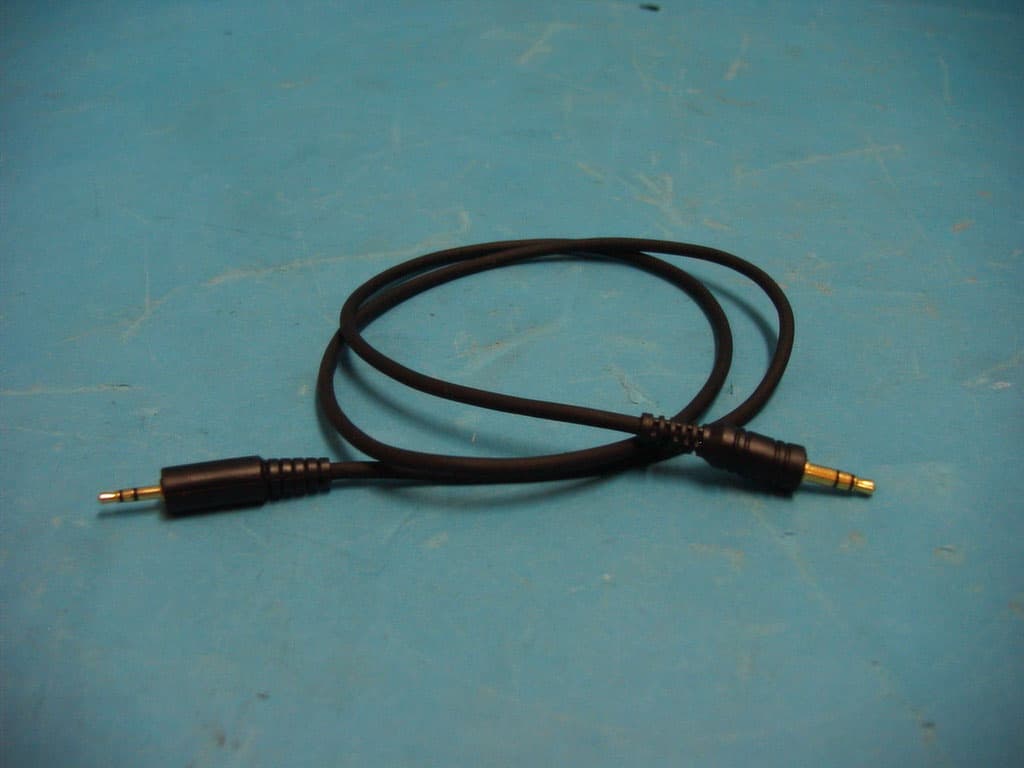

PNWIMP400MP3 Player

Thank you for choosing NeckPhone.Specifications and design may be changed without prior notice.Before using this product, please read this manual carefully to ensure you knowhow to operate it safely and correctly.Please reserve this manual within your reach for proper use. CONTENT Class B This product is designed to provide reasonable protection against harmful interference to radio frequency in a residential installation. Notice* Intermagic Corporation has reserved the right of this manual and NeckPhone software.Without prior approval, it is banned copy ofparts or whole documents and distribute. * Any type of files (MP2, MP3, MP3 Pro and WMA file) made from NeckPhone cannot beused for commercial purpose or any serviceexcept personal use. It will be in contraventionof the law & Intellectual property if you donot follow this notice. Before You Use General NoticeAccessoriesSystem RequirementsLocation of Controls & ConnectionsFunctions of Buttons per mode & LED DisplayPower On/Off/DeleteMode Selection/Volume Control Operation in Music ModeOperation in FM ModeOperation in Encoding ModeOperation of the NeckPhone on PC NeckPhone Manager Program InstallationConnecting NeckPhone with PCDevice Driver InstallationNeckPhone Manager Menu & FunctionHow to Use NeckPhone Manager Appendix SpecificationsTroubleshooting BEFORE YOU USE BEFORE YOU USE General Notice* Do not leave this product in hot or humid locations such as inside of a closed place under direct sunlight or beach in the summer and heater. * Avoid from strong shock or drop* Do not attempt to modify the device.* Do not place the device on the top of or near electronic appliances such as TVs or refrigerators, etc.* Do not disconnect USB cable during data uploading.* Do not push band with heavy power. 02 03 Location of Controls and Connections Jog Shuttle Ɯ / ȯ Play / Stop, FM Radio ON/OFF, Recording Stop ȯ ȯ Move to next file/Fast Forward/Increase frequency ȭ ȭ Move to previous file/Fast Rewind/Decrease Frequency Mode Key MUSIC Play Music file FM FM Radio Selection & Recording ENCODING Recording from external device audio source and using as headphone Volume Key Volume + Increase Volume - Decrease REC/DEL Key REC/DEL Recording / Delete USB Port USB Connecting with PC External Port LINE IN Connecting with external device LED GREEN & RED Display operating status AccessoriesNeckphone / USB Cable / User's Manual / CD-ROM (Install Program) /Stereo Jack (for external device)System RequirementsComputer : Pentium 133MHz or higher IBM Compatible PC supporting USB port Memory :128MB/256MB HDD : 500MB free space CD-ROM Drive : 4X speed or higher Sound Card : Sound Blaster Compatible Operating System : Windows ˇ 98SE/ME/2000/XP Ӏ We can not guarantee 100% compatibility to any PC system and it may cause some influence to depending on PC system. R LED NeckBand VOLUME LINE-IN USB PORT JOG SHUTTLE REC/DELMODE BEFORE YOU USE BEFORE YOU USE Functions of Buttons per mode & led display[ BUTTON FUNCTIONS PER MODE ]Ɨ MUSIC Mode Ɨ FM Mode Key ȯ / Ɯ ȯ ȯ ȭ ȭ REC/DEL FunctionPlay / Pause / StopMove to next fileMove to after 10 songFast Forward within fileMove to previous fileFast Backward before 10 songFast Back ward within fileDelete current playing file ControlPush one time shortlyPush one time shortlyPush two times shortlyAs much as pushedPush one time shortlyPush two times shortlyAs much as pushedPush one time shortly 04 05 Battery Installation [ LED DISPLAY ] ModePowerMUSICFMENCODING LEDGREEN & REDGREEN & REDGREENREDGREEN & REDGREEN & REDGREENREDGREENREDGREEN & REDGREEN & REDGREENREDGREENREDGREEN & REDGREEN & RED LED DisplayOff after blinking 2~3 sec.OffOffOffOffOffBlinkOffOffBlinkOffOffOffBlinkBlinkOffOffOff StatusONOFFPLAYPAUSEWaitFM ListeningFM RecordingFM RecordingWaitingRecordingHeadphone FunctionHeadphone OFFWaiting Key ȯ / Ɯ ȯ ȯ ȭ ȭ REC/DEL FunctionFM Radio ON / OFFStop FM recordingIncrease FM frequency(0.05MHz)Move to next PresetAuto Searching next FM frequencyDecrease FM frequency(0.05MHz) Move to previous PresetAuto Searching previous FM frequencyFM Radio Recording / Pause ControlPush one time shortlyPush one time shortlyPush one time shortlyPush two times shortlyPush longer than 1.5 sec.Push one time shortlyPush two times shortlyPush longer than 1.5 sec.Push one time shortly Ɨ ENCODING Mode Key ȯ / Ɯ REC/DEL FunctionEncoding StopConverting to earphone / returnRecording / Pause ControlPush one time shortlyPush one time shortlyPush one time shortly 1. Open battery Cover.2. Insert 'AAA' Battery, after checking +, - and then cover up.Ɨ Battery Change Indication If you hear beep sound continually between track and track, please change battery. OPERATION IN MUSIC MODE BEFORE YOU USE Power On/OffƗ Power On Power on if push Jog Shuttle Button 06 07 Music Mode Ɨ Delete 1) During play,push REC/DEL button shortly to delete current file. You could hear voice guide for confirmation. 2) Push REC/DEL button again within 3 seconds to delete current file. If fail to push REC/DEL within 3 seconds afterconfirmation message or push other key, delete is cancelled. Press longerthan 1.5 sec. Ɨ Power Off Power off if Press Jog Shuttle Button longerthan 1.5 sec.*Auto Power off in any mode (MUSIC Mode, FM Mode, ENCODING Mode) without anyoperation longer than 60 sec. *Remove battery if you do not use long time. Jog shuttle Button Mode Selection / Volume ControlƗ Mode Selection Select among MUSIC / FM / ENCODING bymode switch*MUSIC Mode - Play MP2, MP3, MP3 Pro, WMA file *FM Mode - Listening FM Radio & Recording*ENCODING Mode - Recording any sound through external device by using LINE-IN and usingas headphone Ɨ Volume Control Decrease volume by turning volume switchupward and increase volume by turning volume switch downward. *Battery Life is be variable according to Volume. ENCODING VOLUME MUSIC FM REC/DEL (-) Decrease Push shortly Move to previous fileMove to next file (+) Increase Jog shuttle Button Ɨ Play 1) Select Music mode.2) Push Jog Shuttle button downward( Ɯ / ȯ ) shor…

Text truncated - open the document above for the full version.

From: [email protected] Sent: Friday, May 30, 2003 1:13 AM To: Mike Kuo Subject: Re: Intermagic Corp., FCC ID:PNWIMP400, AN03T2862 Dear Mr. Kuo, Thanks for your effort. According to your comment, the report and photos, which had been modified, are re-uploaded to your web site. Please proceed on your job. Best regards, S.G.Kim / EMC Engineer ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: <[email protected]> Sent: Friday, May 30, 2003 10:30 AM Subject: FW: Intermagic Corp., FCC ID:PNWIMP400, AN03T2862 > > > -----Original Message----- > From: CERTADM > Sent: Thursday, May 29, 2003 6:24 PM > To: '[email protected]' > Subject: Intermagic Corp., FCC ID:PNWIMP400, AN03T2862 > > > Notice_content > ------------- > Question #1: This device can be operated in two different ways. When it > used for listening the music, this device is powered by battery. When this > device is connected to PC to download the music files, it is considered as > PC peripheral. When this device is used as PC peripheral, it is connected > to PC via USB cable. Per section 15.107(f) AC line conducted test is > required to demonstrate 15.107 requirements. Please provide AC line > conducted test data and setup photos. > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

ID Label Sample & Location Information

File No. 03-IST-135/FB IST EMC LAB. 1 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 03-IST-135/FB Date of issue : May 06, 2003 Model / Type No. : IMP400 Basic Alternate Kind of product Brand name Applicant Manufacturer License holder Address : MP3 Player : InterMagic : InterMagic Corporation : InterMagic Corporation : InterMagic Corporation : #37-2 Yoojin Bldg., 6F. Daebang-dong, Dongjak-gu, Seoul Korea Test result according to the regulation(s) Positive Negative at page 3. This test report with appendix consists of 23 pages. The test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 03-IST-135/FB IST EMC LAB. 2 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Information of Test Regulation Equipment under Test Test Conditions Test Result Measurement Uncertainty Test-setup Summary 2 3 3 4 5 ~ 6 7 8 9 ~ 13 23 B) Test Data. Conducted emissions (Mains) Radiated emissions Play Mode Download Mode Encoding Mode : 150 kHz - 30 MHz : 30 MHz – 1 GHz 14 ~ 16 17 ~ 18 19 ~ 20 21 ~ 22 C) Appendix File No. 03-IST-135/FB IST EMC LAB. 3 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. File No. 03-IST-135/FB IST EMC LAB. 4 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description : PC interface USB 1.1, over 4 Mbps Audio format MP2, MP3, MP3Pro, WMA Encoding quality High (128 kbps) / Low (32 kbps) Download speed 12 Mbps Frequency range 20 Hz ~ 20 kHz S/N ratio of DAC 96 dB THD -88 dB Power consumption 90 mA (at MP3 mode) File system FAT 32/16 compatible EUT Type : Table-Top. Floor-Standing. Table-Top and Floor-Standing(Combination). Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : Standby. Operational Condition : 1) Play Mode 2) Files Download Mode 3) Encoding Mode Configuration of the equipment under test : Following peripheral devices and interface cables were connected during the measurement : Equipment Type Brand Serial No. PC Vectra VL420MT HP SG23101784 Monitor 103F Daewoo Unknown Keyboard SK-2502C HP M020321066 PS/2 Mouse M-S48a HP LZC20602926 Serial Mouse M-S428 Logitech LCA53305547 Printer A0302384 Northern Telecom 26633S60168 Connecting Interface Cables : - Unshielded AC power cable : 1.8 m - Shielded monitor’s signal cable (with two ferrite core) : 1.5 m - Shielded printer’s signal cable (with two ferrite core) : 1.8 m - Unshielded USB cable (with two ferrite core) : 0.8 m - Unshielded Audio I/O cable : 0.7 m File No. 03-IST-135/FB IST EMC LAB. 5 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jul. 25, 2002 892108/018 3725/2 LISN EMCO Aug. 22, 2002 9101-2068 KNW-407 LISN Hyup-Rip Aug. 21, 2002 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 25, 2002 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 ? /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. File No. 03-IST-135/FB IST EMC LAB. 6 23 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde & Schwarz…

Text truncated - open the document above for the full version.
