POO-R237999Remote Controller

Français p. XXX Español p. XXX Operations Manual 14 15 System Components System Components Wii U Pro Controller (optional accessory) Ř The Wii U Pro Controller is sold separately. This controller only works with Wii U software that supports Wii U Pro Controller gameplay (see game packaging for compatibility informa-tion). This controller can be used with the Wii U Menu and for Wii U system operations. Front ViewBack View L Stick Ř Can also function as a button when pressed. L & ZL Buttons USB Port Connects to the USB cable for charging the controller (p. 18) . Battery LED Indicates charging status and remaining battery life (p. 19) . R & ZR Buttons R Stick Ř Can also function as a button when pressed. – Button/SELECT HOME Button Displays the HOME Menu, where you can configure or check the battery life of the Wii U Pro Controller or view pre-installed electronic manuals (see the Wii U Electronic Manual ( ), on the HOME Menu. + Button/START A/B/X/Y Buttons Player LED Indicates the player number assigned to the controller currently in use. POWER Button Press to turn the Wii U console and Wii U GamePad on or off (p. 20) . + Control Pad Battery Cover You can remove the cover if you need to replace the rechargeable battery (p. 40) . Ř Do not remove the cover unless you need to replace the battery or check battery installation. SYNC Button Press this to pair the Wii U Pro Controller with the console (p. 22) . RESET Button See the Wii U Electronic Manual ( ), Troubleshooting , “The Wii U Pro Controller does not respond,” for more information. 18 19 Charging the Wii U Pro Controller Charging the Wii U Pro Controller Charging the Wii U Pro Controller The Wii U Pro Controller is a dedicated wireless controller for the Wii U system. This accessory is sold separately.The battery LED will light orange when the battery is charging and turn off when charging is complete.Ř Be sure to fully charge the battery before use for the first time, or if the system has not been used for a long time. Ř Optimal charging temperature is between 50°F-95°F (10°C-35°C). Ř Before use with the Wii U system, wireless controllers must be paired with the console (p. 22) . NOTE: The Wii U console must be turned on to charge the controller. Charging Procedure Connect the USB cable, Model No. WUP-018, included with the Wii U Pro Controller as shown below. Make sure all plugs are inserted straight all the way into the connectors. Estimated Charging Time and Battery LifeŘ Charging Time: approx. 4.5 hoursCharging time will vary depending on how the system is being used and how much charge is left in the battery. Ř Battery Life: approx. 80 hoursActual battery life depends on the features used, such as the rumble feature or wireless communication use, ambient temperature, and other factors. Battery LED Status The color and status of the LED changes depending on the remaining battery charge.Ř If you run out of battery life while playing a game, you will not be able to use the controller. If the battery LED turns red, charge the Wii U Pro Controller. Full charge Low Very low Remaining battery lifeBattery LED status (Steady red) (Off) (Blinking red) 42 Battery Replacement 43 Replace the battery cover. After replacing the battery cover, tighten the two screws, being careful not to overtighten them.IMPORTANT: Always be sure to replace the battery cover and tighten the screws before resuming use. PLEASE RECYCLE YOUR USED BATTERIESWhen disposing of a rechargeable battery, take care to follow appropriate local guidelines and regulations.Cover the terminals with tape before recycling.Ř Do not disassemble, attempt to repair, or deform the battery pack. Ř Do not dispose of rechargeable batteries in a fire. To find a collection site near you, contact your local solid waste authority or, in the United States, visit: http://www.epa.gov/osw/conserve/materials/battery.htmFor more information or for assistance from Nintendo, visit: recycle.nintendo.com Battery for the Wii U GamePad Battery for the Wii U Pro Controller Wii U Pro Controller Do not use any battery other than the Wii U Pro Controller rechargeable battery, Model No. CTR-003. A replacement battery can be ordered from the Nintendo website at store.nintendo.com (USA/Canada only) or by calling Customer Service at 1-800-255-3700.Ř Before replacing the battery, turn the Wii U console power off and disconnect the USB cable if it is connected to the controller. Ř To avoid damage to the screw or threads, use a screwdriver that is appropriate for the screw (crosshead style, size 0). Loosen the screw and remove the battery cover. The battery cover is designed so the screw can be loosened, but not fully removed. Remove the battery. Insert the stylus from the Wii U GamePad under the battery, as shown below, and gently lift the edge, allowing you to remove the battery.Ř Please recycle the used battery (p. 43) . Wait at least 10 seconds before inserting the new battery. Make sure the battery is oriented correctly, as show in the illustration.Ř Waiting 10 seconds will allow the power LED to reset correctly. Battery Replacement 53 52 Warranty and Service Information Regulations for Equipment Use Warranty and Service Information Regulations for Equipment Use You may need only simple instructions to correct a problem with your product. Try our website at support.nintendo.com or call our Consumer Assistance Hotline at 1-800-255-3700, rather than going to your retailer. Hours of operation are 6 a.m. to 7 p.m., Pacific Time, Monday - Sunday (times subject to change). If the problem cannot be solved with the troubleshooting information available online or over the telephone, you will be offered express factory service through Nintendo. Please do not send any products to Nintendo without contacting us first.HARDWARE WARRANTYNintendo of America Inc. (“Nintendo”) warrants to the original purchaser that the hardware product shall be free from defects in material and workmanship for twelve (12) month…

Text truncated - open the document above for the full version.

Ext Mod ternal Ph del: WUP- hoto 005 1 2 3 4

Lab Mod  bel and el: WUP-0  Label L 05  L Location Label Loca L a n ation (Botto abel Diagra om Side) am

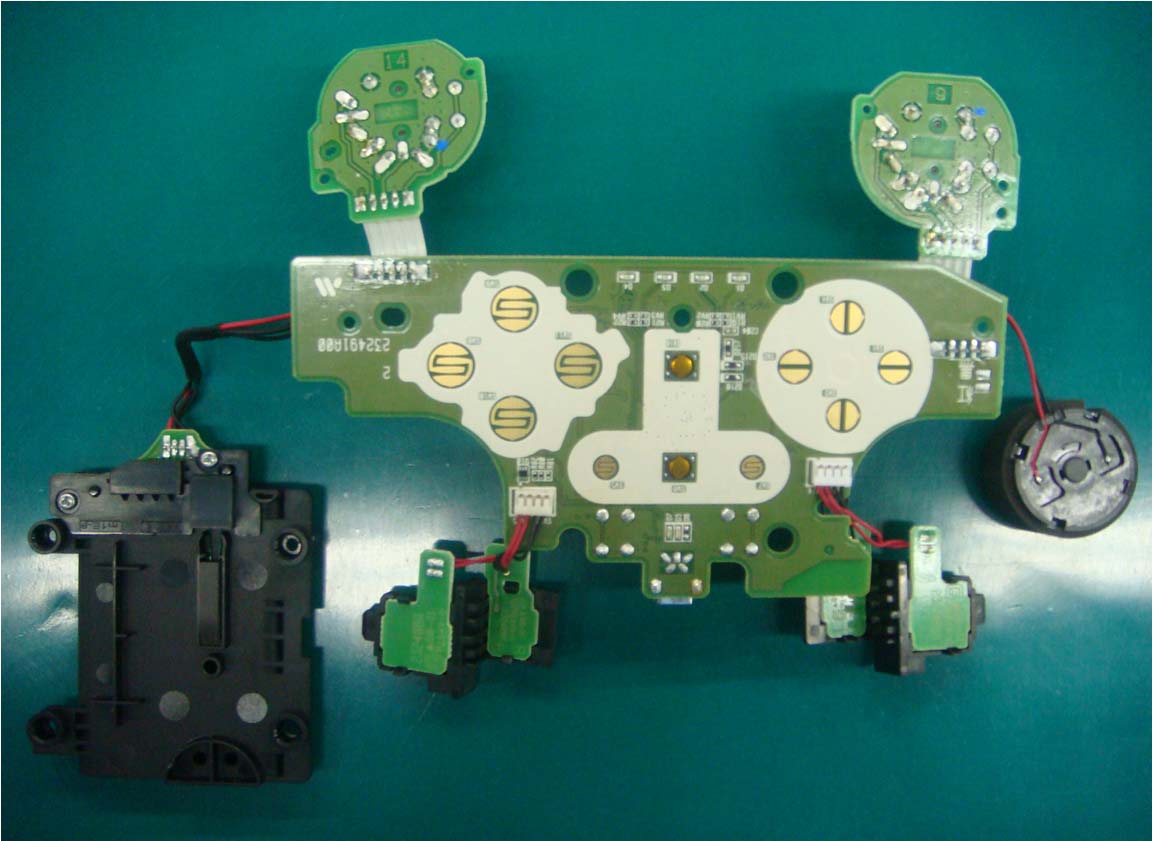

Internal Photo Model: WUP-005

NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/abo ut/mark1/index.jsp#nvlap FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR Remote Controller MODEL NUMBER: WUP-005 FCC ID: POO-R237999 REPORT NUMBER: 32JE0252-AP-01-A ISSUE DATE: July 2, 2012 Prepared for Mitsumi Electric Co., Ltd. 2-11-2, Tsurumaki, Tama-shi, Tokyo, 206-8567 Japan Prepared by UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 REPORT NO: 32JE0252-AP-01-A DATE: July 2, 2012 FCC ID: POO-R237999 Page 2 of 48 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. Revision History Rev. Issue Date Revisions Revised By -- 07/02/12 Initial Issue T.Hatakeda REPORT NO: 32JE0252-AP-01-A DATE: July 2, 2012 FCC ID: POO-R237999 Page 3 of 48 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ............................................................................ 4 2. TEST METHODOLOGY ................................................................................................ 5 3. FACILITIES AND ACCREDITATION ............................................................................ 5 4. CALIBRATION AND UNCERTAINTY ........................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION .......................................................... 5 4.2. SAMPLE CALCULATION ........................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY........................................................................... 6 5. EQUIPMENT UNDER TEST .......................................................................................... 7 5.1. DESCRIPTION OF EUT .......................................................................................... 7 5.2. MAXIMUM OUTPUT POWER ................................................................................. 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .......................................................... 7 5.4. SOFTWARE AND FIRMWARE ............................................................................... 7 5.5. WORST-CASE CONFIGURATIONS AND MODE ................................................... 7 5.6. DESCRIPTION OF TEST SETUP ........................................................................... 8 6. ANTENNA PORT TEST RESULTS ............................................................................. 12 6.1. BASIC DATA RATE GFSK MODULATION ............................................................ 12 6.1.1. 20 dB AND 99% BANDWIDTH ....................................................................... 12 6.1.2. HOPPING FREQUENCY SEPARATION ........................................................ 15 6.1.3. NUMBER OF HOPPING CHANNELS ............................................................. 18 6.1.4. AVERAGE TIME OF OCCUPANCY ............................................................... 21 6.1.5. MAXIMUM PEAK OUTPUT POWER .............................................................. 25 6.1.6. AVERAGE POWER ........................................................................................ 26 6.1.7. CONDUCTED SPURIOUS EMISSIONS ......................................................... 27 7. RADIATED TEST RESULTS ....................................................................................... 37 7.1. LIMITS AND PROCEDURE ................................................................................... 37 7.2. TRANSMITTER RADIATED TEST RESULT (DH5) ............................................... 38 8. AC POWER LINE CONDUCTED EMISSIONS ............................................................ 41 9. MAXIMUM PERMISSIBLE EXPOSURE ...................................................................... 43 10. SETUP PHOTOS ...................................................................................................... 46 REPORT NO: 32JE0252-AP-01-A DATE: July 2, 2012 FCC ID: POO-R237999 Page 4 of 48 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Mitsumi Electric Co., Ltd. 2-11-2, Tsurumaki, Tama-shi, Tokyo, 206-8567 Japan EUT DESCRIPTION: Remote Controller MODEL: WUP-005 SERIAL NUMBER: DP1001 DATE TESTED: June 21 to 28, 2012 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass UL Japan, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Japan, Inc based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Japan, Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Japan, Inc. will constitute fraud and shall nullify the document. No part…

Text truncated - open the document above for the full version.

REPORT NO: 32JE0252-AP-01-A DATE: July 2, 2012 FCC ID: POO-R237999 Page 46 of 48 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. 10. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 32JE0252-AP-01-A DATE: July 2, 2012 FCC ID: POO-R237999 Page 47 of 48 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION FRONT PHOTO BACK PHOTO REPORT NO: 32JE0252-AP-01-A DATE: July 2, 2012 FCC ID: POO-R237999 Page 48 of 48 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO
