POOCTR012RFID Product

Nintendo 3DS NFC Reader/Writer Operations Manual This accessory is only for use with Nintendo 3DS or Nintendo 3DS XL systems. NOTE: Before using an amiibo™ or other NFC-supported devices with this accessory, read the Nintendo 3DS/Nintendo 3DS XL Operations Manual, the instructions for the amiibo or other NFC-supported device, and the intructions for the game you are playing for information on using these products. Be sure to carefully read Health and Safety Information and Usage Guidelines in the Nintendo 3DS or 3DS XL Operations Manual. Failure to do so may result in injury or damage to your system. If this product will be used by young children, this manual should be read and explained to them by an adult. Also read the built-in Health and Safety information on your system by tapping when the HOME Menu is displayed on the Touch Screen. Components Battery Cover NFC area Touch an NFC-supported device to read or write data (when using compatible software). Infrared transceiver Sends and receives informtion using infrared communication. Power LED POWER Button Installing Batteries NOTE: A parent or guardian should install or replace the batteries if a child is using this product. This accessory uses 2 AA alkaline batteries. Remove the battery cover and insert the batteries negative end first, as shown in the illustration. When replacing the batteries, remove the positive end first. When installing the battery cover, insert the edge with the two tabs first and then press the cover into its recess until it clicks into place. NOTE: Battery life will vary depending on the frequency of communication and the operat- ing environment, such as temperature. Nintendo 3DS is a trademark of Nintendo. © 2015 Nintendo Usage Instructions Make sure wireless communication is enabled on the Nintendo 3DS system. Place your Nintendo 3DS system and the reader/writer on a flat, level surface. Follow the on-screen instructions for the game you are playing and touch an amiibo or other NFC-supported device to the NFC area. This will allow data to be written or read. NOTE: The Nintendo 3DS/Nintendo 3DS XL system may need a system or software update in order to use the NFC reader/writer. Press the POWER Button. The power indicator LED will turn on blue. •The LED will turn red when the battery power is getting low. •The accessory will turn off automatically after 5 minutes of inactivity. Orient your system to the reader/writer as shown below. The power indicator LED will blink when the NFC reader/writer is correctly facing the Nintendo 3DS infrared transceiver and communicating with the system. Nintendo 3DS system 7.5” (20cm) or less. NFC Reader/Writer Troubleshooting If this accessory fails to operate correctly, check the following conditions before seeking assistance. If it still does not operate correctly after trying the troubleshooting steps, visit support.nintendo.com for assistance and additional troubleshooting and repair options or call 1-800-255-3700. The accessory does not turn on: •Make sure the batteries are installed correctly. •Make sure the batteries are not depleted. Unable to read or write data: •Make sure the software you are using supports NFC devices. Check the game packaging and look for this icon for support of this feature: •Make sure that your system has wireless communication enabled and that your system and the reader/writer are oriented correctly and placed the correct distance from each other. •Make sure you are correctly using the NFC-compatible product with the software. Review the instructions for the software you are using for details on using NFC-compatible products. •Make sure you are touching the NFC-compatible product to the center of the NFC area. Do not move the NFC-compatible product while writing or reading data. •Make sure you are using the correct NFC-compatible product with the software you are using. Visit support.nintendo.com/3ds/amiibo for more information. •Make sure that there is nothing inferfering with infrared communication, such as direct sunlight or other sources of stong light, heat, or electromagnetic energy. •Make sure the IR transceivers are not dirty. Clean with a soft cloth if necessary. NOTE: After infrared communication is inactive for a certain period of time (5 minutes after turning the power on or approximately 90 minutes after finishing communication), the power will automatically turn off. Lecteur/enregistreur CCP Nintendo 3DS Mode d’emploi Cet accessoire peut seulement être utilisé avec les consoles Nintendo 3DS et Nintendo 3DS XL. NOTE : Avant d’utiliser un amiibo ou un autre appareil CCP supporté avec cet accessoire, veuillez lire le mode d’emploi de la console Nintendo 3DS ou Nintendo 3DS XL. Veuillez égale- ment lire les instructions pour l’amiibo ou l’appareil CCP supporté, ainsi que les instructions du jeu auquel vous êtes en train de jouer avant d’utiliser ces produits. Veuillez lire attentivement les informations sur la santé et la sécurité et consignes d’utilisation du mode d’emploi de la console Nintendo 3DS et Nintendo 3DS XL. Le non-respect de ces consignes peut entraîner des blessures ou endommager votre console. Si ce produit est destiné à de jeunes enfants, ce manuel devrait leur être lu et expliqué par un adulte. Veuillez également lire les informations sur la santé et la sécurité sur votre console en touchant quand le menu HOME est affiché sur l’écran tactile. Composants Couvercle des piles Zone CCP Placez l’appareil CCP supporté à cet endroit pour lire ou enregis- trer des données (lorsque vous utilisez un logiciel compatible). Port infrarouge Envoie et reçoit de l’information en utilisant la communication infrarouge. Témoin d’alimentation Bouton POWER Installation des piles NOTE : Si la console est utilisée par un enfant, un parent ou tuteur légal devrait installer ou remplacer les piles à sa place. Cet accessoire utilise deux piles au lithium AA. Enlevez le couvercle des piles et insérez le pôle des piles en premier, comme montré da…

Text truncated - open the document above for the full version.

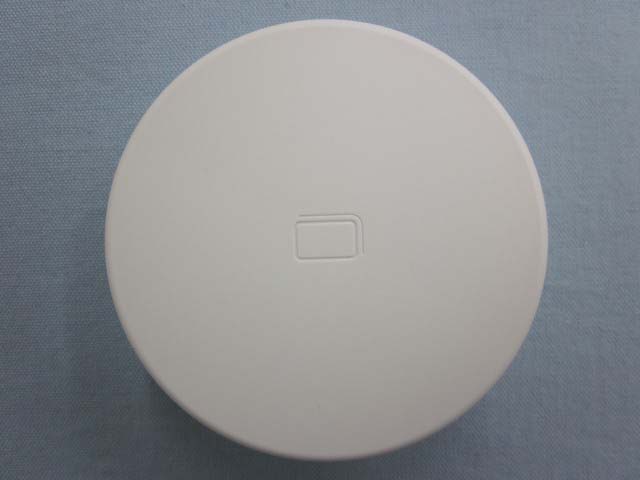

Photo Dimensions: L77 x W77 x H31.4 (mm) Photo

Test report No. : 10005707S-A Page : 21 of 23 Photographs of NFC Tags Front Back Type A Type B Type F

䠄㻝㻛㻝䠅 㻸㼍㼎㼑㼘䚷㻸㼍㼥㼛㼡㼠 㻸㼍㼎㼑㼘䚷㻰㼑㼟㼕㼓㼚 MITSUMI ELECTRIC CO.,LTD 㻯㼛㼚㼒㼕㼐㼑㼚㼠㼕㼍㼘 The label is attached inside of the battery cover which is readily removed. The FCCID and IC No. can be easily recognized by users.

（1/1） Internal Photos COIL Type ANTENNA NFC IC MITSUMI ELECTRIC CO.,LTD Confidential

Test report No. : 10614993S-A Page : 1 of 22 Issued date : January 30, 2015 FCC ID : POOCTR012 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10614993S-A Applicant : MITSUMI ELECTRIC CO., LTD. Type of Equipment : RFID Product Model No. : CTR-012 FCC ID : POOCTR012 Test regulation : FCC Part15 Subpart C: 2015 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: January 13 to 26, 2015 Tested by: Hikaru Shirasawa Engineer Consumer Technology Division Approved by : Toyokazu Imamura Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10614993S-A Page : 2 of 22 Issued date : January 30, 2015 FCC ID : POOCTR012 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10614993S-A Revision Test report No. Date Page revised Contents - (Original) 10614993S-A January 30, 2015 - - Test report No. : 10614993S-A Page : 3 of 22 Issued date : January 30, 2015 FCC ID : POOCTR012 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ....................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ......................................................................... 4 SECTION 3: Test specification, procedures & results .......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................... 7 SECTION 5: Radiated emission (Fundamental and Spurious emission) ............................ 8 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ............................................. 9 SECTION 7: Frequency tolerances ....................................................................................... 10 Contents of APPENDIXES ...................................................................................................... 11 APPENDIX 1: Data of radio tests .......................................................................................... 12 APPENDIX 2: Test instruments ............................................................................................ 20 APPENDIX 3: Photographs of test setup .............................................................................. 21 Test report No. : 10614993S-A Page : 4 of 22 Issued date : January 30, 2015 FCC ID : POOCTR012 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : MITSUMI ELECTRIC CO., LTD. Address : 2-11-2 Tsurumaki, Tama-shi, Tokyo, 206-8567 Japan Telephone Number : +81-42-310-5768 Facsimile Number : +81-42-310-5582 Contact Person : Hironori Matsunuma SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RFID Product Model Number : CTR-012 Serial Number : Refer to Section 4.2 Rating : DC 3.0V (battery) Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : January 10, 2015 Modification of EUT : No modification by the test lab. 2.2 Product description Model: CTR-012 (referred to as the EUT in this report) is a RFID Product. The clock frequencies used in the EUT: 13MHz, 26MHz <Radio part> Radio Type : Transceiver Frequency of Operation : 13.56MHz Modulation : ASK Antenna type : Loop ITU code : A1D Operating Temperature : +5 to +35 deg C. Card type : Type A / B / F FCC 15.31 (e) The test was performed with a new battery. Therefore, this EUT complies with the requirement. FCC 15.203 The equipment and its antenna comply with this requirement since the antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 10614993S-A Page : 5 of 22 Issued date : January 30, 2015 FCC ID : POOCTR012 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2015, final revised on January 21, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.215 Additional provisions to the general radiated emission limitations Section 15.225 Operation within the band 13.110-14.010MHz * The revision on January 21, 2015 does not affect the test specification applied to the EUT. 3.2 Procedures & Results Item Test Procedure SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.207 - N/A *1) - N/A Electric field strength of Fundamental emission ANSI C63…

Text truncated - open the document above for the full version.

Test report No. : 10005707S-A Page : 21 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front Rear (9kHz-30MHz) Rear (30-1000MHz) Test Report No 10614993S-A 21 of 22 Test report No. : 10005707S-A Page : 22 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst case Without tag With tag X-axis X-axis Y-axis Y-axis Z-axis Z-axis END OF REPORT Test Report No 10614993S-A 22 of 22
