POOWML-C40Bluetooth Module

Page 1 of 6 WML-C40##_User_Manual Feb. 13. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. WML- 40## User Manual The purpose of this manual is to explain correct way how to integrate module WML- 40## to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and OEM product, where module integrated, complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. Content 1.General 2. Regulatory and Safety Compliance. European Union. 2.1 Declaration about performed tests. 2.2. Labelling 2. FCC Regulatory Information 3.1 Labelling. 3.2 Antenna implementation notes. 4. Other regulatory notes for OEM. 5. A separate approval. 1. General This Bluetooth radio module has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. This Bluetooth radio module is intended to be placed on the market in all States, where the Bluetooth™ technology and the used frequency band is released. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the authorised local distributor or the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Page 2 of 6 WML-C40##_User_Manual Feb. 13. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. 2. Regulatory and Safety Compliance . European Union. 2.1 Declaration about performed tests. The Mitsumi module WML-C40## is wireless data transmission system. This ‘Bluetooth’ module can be integrated into various end products. MITSUMI declares that The Mitsumi module WML-C40## complies with the following directive and standards: Directive 1999/5/EG (R&TTE Directive): EN 300328-2 V1.2.1 (11-2001), Radio Equipment and Systems (RES); Wideband transmission systems; Technical characteristics and test conditions for data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques. Part 2: Harmonized EN covering essential requirements under article 3(2) of the R&TTE directive. EN 301489-01 V1.3.1 (09/2001), Electromagnetic Compatibility and radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301489-17 V1.1.1 (09-2000), Electromagnetic Compatibility and radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for wideband data HyperLAN equipment We hereby declare that the human exposure of the Mitsumi module WML-C40## is below the SAR limits specified in the EU recommendation 1999/519/EC (the applicable limits are specified in table 1 with 2W/kg). SAR testing must be performed to the end user devise, where WML-40## module integrated. More detail information present on chapter 4. The technical documentation as required by the Conformity Assessment procedure is kept at the following address: 2-11-2,TSURUMAKI,TAMA-SHI,TOKYO,206-8567 JAPAN. MITSUMI ELECTRIC CO.,LTD. ACCESS DEVICE ENGINEERING DEPT. INTERFACE EQUIPMENT BUSINESS DIVISION COMPONENT DEVICES BUSINESS HQ TEL:+81-42-310-5829 FAX:+81-42-310-5582 Page 3 of 6 WML-C40##_User_Manual Feb. 13. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. 2.2 Labelling CE conformity marking for product. OEM product / application, where this radio module is integrated/ installed in , has to be labelled in accordance to R&TTE directive, Article 12. An auxiliary label is included in the packaging to the radio module, which can be used for that purpose and has to be permanently affixed to the OEM product/ application. Regulatory information on the OEM devise should contain following labelling : Approved in accordance to R&TTE directive transmitter module marked by “ CE product label”, manufactured by MITSUMI incorporated to OEM product. More detail information present below in chapter 5. 3. FCC Regulatory Information The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: This equipment has been tested and found to comply with the limits pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and radiates radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio / TV technician for help. FCC RF Radiation Exposure Statement: This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users…

Text truncated - open the document above for the full version.

Modular Approval Request Letter Feb. 06, 2006 Dear Application Examiner, MITSUMI ELECTRIC CO., LTD. / Bluetooth Module, FCC ID: POOWML-C40 would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, The EUT does provide a RF shielding. Refer to EUT Picture. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data input it’s integrated in chip IC1 (Bluetooth Module BC417) 3. The modular transmitter must have its own power supply regulation. The EUT has its own power supply regulation it’s integrated in chip IC1 (Bluetooth Modular BC417) 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The EUT meets the FCC antenna requirements, integral antenna (no user changeable) refer to picture and antenna spec for the detail. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The EUT was tested in a stand-alone configuration via a test kit. Please see section photographs of test configuration in the test report. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please see exhibition label sample for the FCC ID of this module. And also in the exhibition Users manual, there are instructions give to the OEM on how to label the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual.

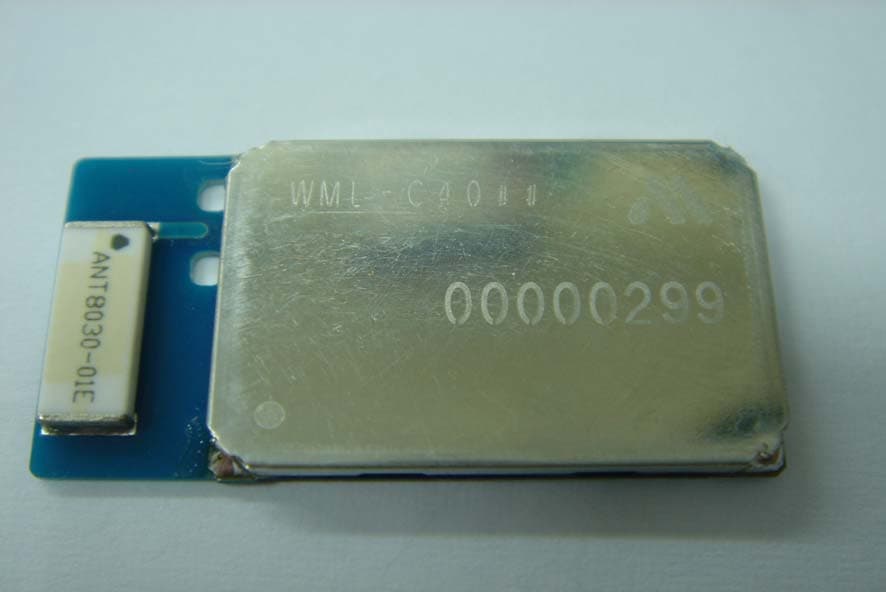

Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 1 Internal of EUT – 2

FCC ID LABEL FORMAT AND LOCATION Applicant: MITSUMI ELECTRIC CO., LTD. FCC ID: POOWML-C40

Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 1 Internal of EUT – 2 Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 3

RF EXPOSURE STATEMENT 1. Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the Max peak output power is 11.15dBm (0.01303W) lower than low threshold 60/fGHz mW (24.48mW), d<2.5cm in general population category. The SAR measurement is not necessary.

Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 Page: 1 of 53 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT FULL MODULAR APPROVAL OF Product Name: Bluetooth Module Brand Name: Mitsumi Model Name: WML-C40NB, WML-C40NH, WML-C40NU, WML-C40AB, WML-C40AH, WML-C40AU FCC ID: POOWML-C40 Report No.: EF/2006/10010 Issue Date: Feb. 03, 2006 FCC Rule Part: §15.247 Prepared for: MITSUMI ELECTRIC CO., LTD. 2-11-2,Tsurumaki,Tama-shi,Tokyo Japan Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: MITSUMI ELECTRIC CO., LTD. 2-11-2,Tsurumaki,Tama-shi,Tokyo Japan Equipment Under Test: Bluetooth Module Brand Name: Mitsumi FCC ID Number: POOWML-C40 Model No.: WML-C40NB, WML-C40NH, WML-C40NU, WML-C40AB, WML-C40AH, WML-C40AU Model Difference: N: external antenna , A: internal antenna B:BCSP; H:UART; U: USB interface File Number: EF/2006/10010 Date of test: Jan. 20, 2006 ~ Feb. 02, 2006 Date of EUT Received: Jan. 19, 2006 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Apr. 24, 2006 Sky Wang Prepared By: Date Apr. 24, 2006 Gigi Yeh Approved By: Date Apr. 24, 2006 Vincent Su Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Apr. 24, 2006 Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................7 1.1. Product Description ............................................................................................................................7 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................7 1.3. Test Methodology ...............................................................................................................................7 1.4. Test Facility.........................................................................................................................................7 1.5. Special Accessories .............................................................................................................................7 1.6. Equipment Modifications....................................................................................................................7 2. SYSTEM TEST CONFIGURATION ............................................................................................8 2.1. EUT Configuration .............................................................................................................................8 2.2. EUT Exercise ......................................................................................................................................8 2.3. Test Procedure.....................................................................................................................................8 2.4. Configuration of Tested System..........................................................................................................9 3. SUMMARY OF TEST RESULTS ...............................................................................................10 4. DESCRIPTION OF TEST MODES ............................................................................................10 5. CONDUCTED EMISSION TEST................................................................................................11 5.1. Standard Applicable ..................................................................................................................…

Text truncated - open the document above for the full version.

Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No: EF/2006/10010 FCC ID: POOWML-C40 Issue Date: Apr. 24, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photo
