Page 1 of 6 WML-C43_User_Manual Jun. 6. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. WML- 43 User Manual The purpose of this manual is to explain correct way how to integrate module WML- 43 to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and OEM product, where module integrated, complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. Content 1.General 2. European Community Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC 3. FCC Regulatory Information 4. Canada-Industry Canada (IC) 5. DGT Warning Statement 1. General This Bluetooth radio module has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. This Bluetooth radio module is intended to be placed on the market in all States, where the Bluetooth™ technology and the used frequency band is released. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Page 2 of 6 WML-C43_User_Manual Jun. 6. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. 2. European Community Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC Hereby,MITSUMI declares that The Mitsumi module WML-C43 complies with the following directive and standards: Directive 1999/5/EG (R&TTE Directive): EN 300 328 V1.6.1(2004-11), Electromagnetic compatibility and Radio spectrum Matters (ERM);Wideband transmission systems;Data transmission equipment operatingin the 2,4GHz ISM band and using wide band modulation techniques;Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive EN 301 489-01 V1.4.1 (2002-08), Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301 489-17 V1.2.1 (2002-08), Electromagnetic Compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for wideband data HyperLAN equipment EN 60950-1, Safety of Information Technology Equipment. We hereby declare that the human exposure of the Mitsumi module WML-C43 is below the SAR limits specified in the EU recommendation 1999/519/EC (the applicable limits are specified in table 1 with 2W/kg). The technical documentation as required by the Conformity Assessment procedure is kept at the following address : 2-11-2,TSURUMAKI,TAMA-SHI,TOKYO,206-8567 JAPAN. MITSUMI ELECTRIC CO.,LTD. ACCESS DEVICE ENGINEERING DEPT. INTERFACE EQUIPMENT BUSINESS DIVISION COMPONENT DEVICES BUSINESS HQ TEL:+81-42-310-5829 FAX:+81-42-310-5582 Labelling CE conformity marking for product. Page 3 of 6 WML-C43_User_Manual Jun. 6. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. 3. FCC Regulatory Information The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: This equipment has been tested and found to comply with the limits pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and radiates radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio / TV technician for help. FCC RF Radiation Exposure Statement: This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Not Authorized modification could void authority to use this equipment. Labelling. MITSUMI module WML-43 labelled as below. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID:POOWML-C43” shall be placed on the outside of final host system. “POOWML-C43” is the ID of the module. Page 4 of 6 WML-C43_User_Manual Jun. 6. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to thir…
Text truncated - open the document above for the full version.

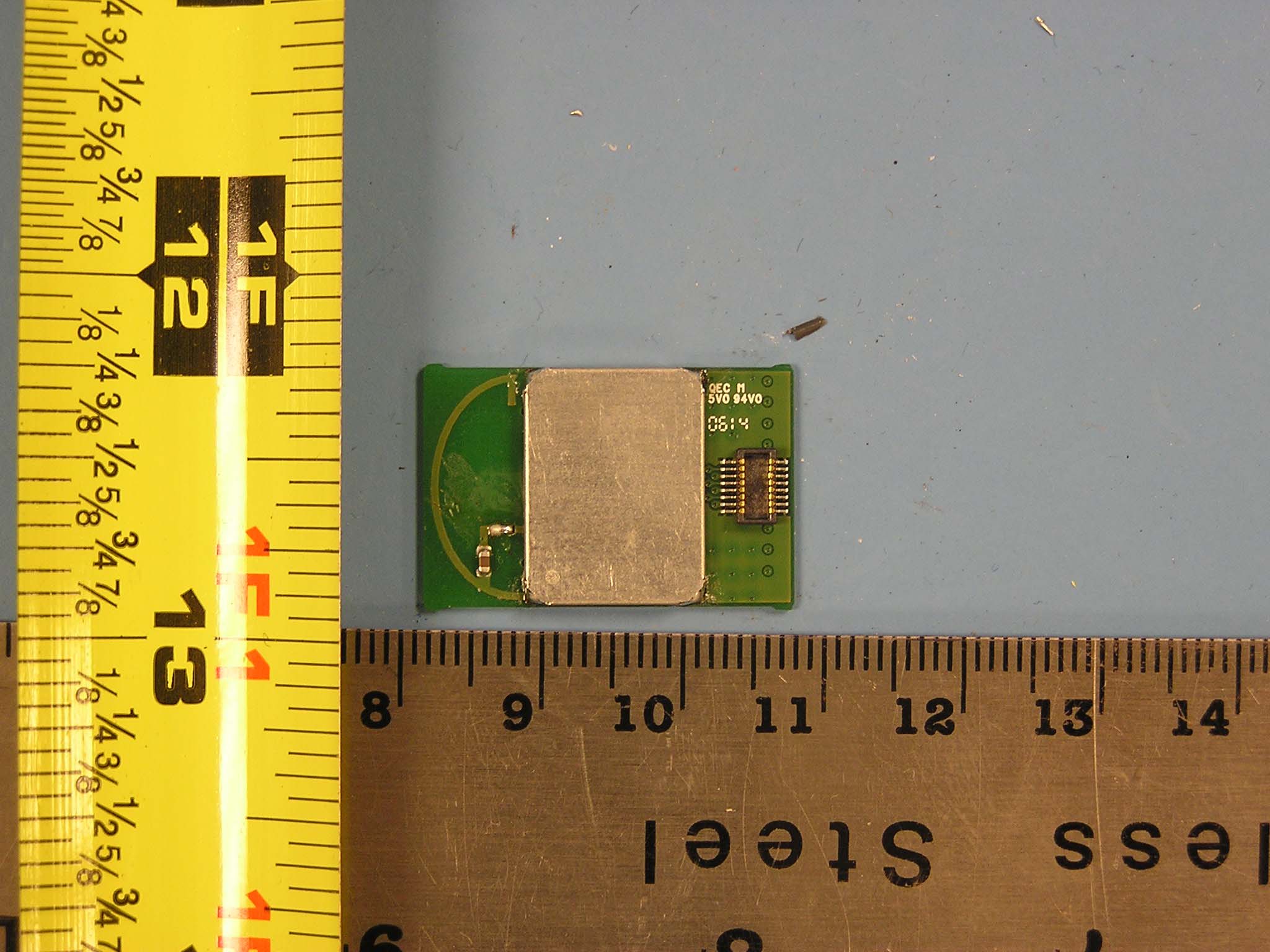

Company: Mitsumi Electric CO., LTD. FCC ID: POOWML-C43 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements Does the EUT meet the requirement? 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic (BCM2045) inputs. 3 Have it own power supply regulation Internal 1.5 V power regulator. Refer to Block diagram. 4 Meet the antenna requirements of Section 15.203 Device is equipped with pattern antenna. Any connector isn’t used. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside of the PC for full modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID:POOWML-C43” shall be placed on the outside of final host system. “POOWML- C43” is the ID of the module. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Meet RF exposure compliance requirement
PROPOSED ID LABEL AND LOCATION MITSUMI ELECTRIC CO.,LTD FCC ID: POOWML-C43 ID LABEL LOCATION Back of Module PROPOSED FCC ID LABEL FOR HOST DEVICE THIS DEVICE CONTAINS FCC ID: POOWML-C43
FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR BLUETOOTH MODULE MODEL NUMBER: WML-C43 FCC ID: POOWML-C43 REPORT NUMBER: 06J10249-1 ISSUE DATE: JUNE 02, 2006 Prepared for MITSUMI ELECTRIC CO., LTD. 2-11-2, TSURUMAKI, TAMA-SHI TOKYO 206-8567, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06J10249-1 DATE: JUNE 02, 2006 EUT: BLUETOOTH MODULE FCC ID: POOWML-C43 Page 2 of 91 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 6/02/06 Initial Issue A. Ilarina REPORT NO: 06J10249-1 DATE: JUNE 02, 2006 EUT: BLUETOOTH MODULE FCC ID: POOWML-C43 Page 3 of 91 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 5 2. TEST METHODOLOGY .................................................................................................................. 6 3. FACILITIES AND ACCREDITATION .......................................................................................... 6 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 6 5. EQUIPMENT UNDER TEST............................................................................................................7 5.1. DESCRIPTION OF EUT ..............................................................................................................7 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 7 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT .............................................................................. 10 7. LIMITS AND RESULTS ................................................................................................................. 11 7.1. ANTENNA PORT CHANNEL TESTS FOR 8PSK MODULATION............................................ 11 7.1.1. 20 dB BANDWIDTH ......................................................................................................... 11 7.1.2. PEAK OUTPUT POWER .................................................................................................. 15 7.1.3. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 19 7.1.4. AVERAGE POWER........................................................................................................... 22 7.1.5. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 23 7.2. ANTENNA PORT CHANNEL TESTS FOR GFSK MODULATION ........................................... 32 7.2.1. 20 dB BANDWIDTH ......................................................................................................... 32 7.2.2. PEAK OUTPUT POWER .................................................................................................. 36 7.2.3. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 40 7.2.4. AVERAGE POWER........................................................................................................... 43 7.2.5. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 44 7.3. RADIATED EMISSIONS.............................................................................................................53 7.3.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 53 7.3.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ WITH 8PSK MODULATION ................................................................................................................................. 56 7.3.3. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ WITH GFSK MODULATION ................................................................................................................................. 65 7.3.4. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH 8PSK MODULATION 74 REPORT NO: 06J10249-1 DATE: JUNE 02, 2006 EUT: BLUETOOTH MODULE FCC ID: POOWML-C43 Page 4 of 91 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.3.5. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH GFSK MODULATION ................................................................................................................................. 78 7.4. POWERLINE CONDUCTED EMISSIONS ................................................................................ 82 8. SETUP PHOTOS .............................................................................................................................. 86 R…
Text truncated - open the document above for the full version.
REPORT NO: 06J10249-1 DATE: JUNE 02, 2006 EUT: BLUETOOTH MODULE FCC ID: POOWML-C43 Page 86 of 91 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06J10249-1 DATE: JUNE 02, 2006 EUT: BLUETOOTH MODULE FCC ID: POOWML-C43 Page 87 of 91 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP X-AXIS PHOTO REPORT NO: 06J10249-1 DATE: JUNE 02, 2006 EUT: BLUETOOTH MODULE FCC ID: POOWML-C43 Page 88 of 91 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS PHOTO REPORT NO: 06J10249-1 DATE: JUNE 02, 2006 EUT: BLUETOOTH MODULE FCC ID: POOWML-C43 Page 89 of 91 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Z-AXIS PHOTO REPORT NO: 06J10249-1 DATE: JUNE 02, 2006 EUT: BLUETOOTH MODULE FCC ID: POOWML-C43 Page 90 of 91 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 06J10249-1 DATE: JUNE 02, 2006 EUT: BLUETOOTH MODULE FCC ID: POOWML-C43 Page 91 of 91 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 3.83 mW |
