PPQ-AWOXMII0Mozart II

AWOX, S.A. 93 Place Pierre Duhem 34000 MONTPELLIER, France Tel: +33 4 67 47 10 00, Fax: +33 4 67 47 10 15 www.awox.com [email protected] T-0000-0005-V2.1: Digital Mozart II Module Page: 1 / 4 Technical Note Digital Mozart II Module 1 Introduction The original design of Mozart II includes everything an audio system designer needs in terms of digital to analog conversion and analog signal management ready to feed to analog amplifiers or outputs. Basically, ADC,DAC, FM tuner and all volume control and equalization are built-in. Some applications do not make use of analog output (for instance, connecting the module to some digital audio processor does not require analog) or will make use of their own converters for feature or cost reasons. Therefore, Mozart II can be delivered as “digital only”, which means only the digital stream is provided to the outside world. The general considerations on Mozart II use can be found in the master documentation for the full- fledged module. This document only describes the changes between the two versions. It is therefore recommended to read the full-fledged version documentation before this one. A reference schematic for Mozart II Digital implementation is provided. 2 Clocking As in any digital audio system, clocking is an important point. Mozart II is using I2S 3-Wire protocol by default and needs a Master Clock frequency to be provided on I2S_REF pin and equal to 11.2896MHz or 12.288MHz. The internal module dividers provide the according I2S_LRCK, I2S_BCLK and the I2S_DATA is latched conforming to I2S 16 bits per channel standard. Awox may carry on particular studies upon customer request for specific unsupported sound peripherals. 3 DACs and amplifiers 3.1 SUPPORTED DACS The reference DAC for use with Mozart II Digital is Wolfson Micro WM8711. This low-cost DAC allows simple and easy construction of analog products using Mozart II Digital. It is the one that is used on the Analog variant of the module and is therefore not part of the reference schematic for sake of explanation; Mozart II Digital makes little sense versus the analog variant if the same peripherals are used; the goal is to be able to use feature-rich peripherals for mid to high-end devices. Please contact AwoX for more information. 3.2 AMPLIFIERS The reference digital amplifier, Class-D, for use with Mozart II Digital is the Cirrus Logic CS4525. It has provision for analog parts without adding external circuitry while still giving the benefit of the low- cost and simplicity of Mozart II Digital. T-0000-0005-V2.1: Digital Mozart II Module T-0000-0005-V2.1: Digital Mozart II Module Page: 2 / 4 4 Other Peripherals 4.1 S/PDIF The optical and coaxial outputs for S/PDIF are driven by a Cirrus Logic CS8406 S/PDIF encoder. Software re-sampling is used for non-native frequencies. The Quartet II reference schematic includes this part configured to drive an optical transmitter. To support coaxial SPDIF output, please contact AwoX for more information. 4.2 FM TUNER The reference tuner for use with Mozart II Digital is the Silicon Labs Si4704. The tuner has analog outputs, which means that its use on a daughterboard requires proper analog signal handling. The part is the same that is used on the analog variant of Mozart. 5 Daughterboard Schematic Description Front Panel, iPod , and Rear Panel Interface are identical to the digital version (with the exception of the Line Out replaced by Line In for demonstration purposes, but this input is directly managed by the amplifier used). Therefore, the description only highlights the Main Board which is quite simple. 5.1 AUDIO AMP SECTION (PAGE 1) The amplifier U4 and the module use external I2S clocking, providing the main frequency from crystal Y2. 5.2 FM TUNER & INTERCONNECT (PAGE 2) The FM tuner requires the use of a band-pass filter for proper FM reception. It uses its own external clock (Y3). Note that the interrupt line to the processor is shared and therefore open-drain, J20 is the connection to interface board. 5.3 5.3 POWER & CONNECTORS (PAGE 3) Strictly identical to analog version. AWOX, S.A. 93 Place Pierre Duhem 34000 MONTPELLIER, France Tel: +33 4 67 47 10 00, Fax: +33 4 67 47 10 15 www.awox.com [email protected] T-0000-0004-V2.1: Using Mozart II Page: 1 / 24 Technical Note Using Mozart II 1 Introduction to Mozart II Module HARDWARE FEATURES • R aLink RT3050/RT3052 system-on-chip • Memory - 32 MB 133 MHZ SDRAM (64 MB optional) - 32 MB NAND flash memory for system • FM Tuner • Audio - Stereo output (L/R RCA, daughterboard*) w/ headphones and line level - Stereo input (L/R RCA, daughterboard*) - I2S output, 16bits stereo - SPDIF output (Optical/RCA, daughterboard*) • Storage - USB 2.0 host (daughterboard*) • Network - 10/100Mb Ethernet MAC & PHY - Onboard Wireless LAN 802.11b/g/n - Encryption support: 40- and 128- bit WEP, WPA, CCX, TKIP & AES - WPS 2.0 security • Interface - Control LCD screen via SPI; supports monochrome and color TFT - Support for keyboard, up to 16 keys and one rotary encoder - Infrared decoder function for RC5 & NEC - Adjustable analog output within 0 ~ 3,3V range - External FM antenna (mini jack, daughterboard*) • Clock - Alarm, wake-up, snooze and sleep features • Power Supply required - 3.3V for main activity • Dimensions - 80 x 60 x 17 mm S OFTWARE FEATURES • S tored in NAND flash memory, fully upgradable via the Internet • Audio decoders - MP3 - WMA - WAV - AAC-LC - Real • AwoX streaming engine - HTTP - MMS • I nternet Radio Directory - vTuner Internet - baracoda • Digital Media Player (compliant with DLNA 1.5 guidelines) • Digital Media Renderer (compliant with DLNA 1.5 guidelines) • Linux Kernel 2.6.21 • Linux Drivers - Monochrome 128x64 LCD and QVGA TFT - Keyboard/keypad input - Wi-Fi Interface - FM tuner with optional RDS - Full-speed USB 2.0 host - Ethernet - SPDIF transmitter - Wi-Fi STA and AP 2 Introduction to Mozart II Module AwoX S.A. has developed and is manufacturing an electronic module, codenamed “Mozart II”…

Text truncated - open the document above for the full version.

Lite-On Technology Corp. FCC ID.: PPQ-AWOXMII0 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C.Tel : 886-2-2222-6181 Federal Communications Commission Jan. 03, 2012 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-AWOXMII0 Product: Mozart II Model: AWOXMII0A32, AWOXMII0D32 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------- TC Wu / Director Lite-On Technology Corp.

RF_160, Issue 03 Lite-On Technology Corp. Declaration of Authorization We Name: Lite-On Technology Corp. Address: 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. City: Taipei Hsien  .  Country: Taiwan,R.O.C.  Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Mozart II Type designation: AWOXMII0A32, AWOXMII0D32 Trademark: AWOX S.A. on our behalf. Date:  2012/01/03  .  . City:  Taipei Hsien  Name:  TC Wu  . (2) Function: Director Signature: -------------------------------------- Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Lite-On Technology Corp. FCC ID.: PPQ-AWOXMII0 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Lite-On Technology Corp. 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Federal Communications Commission Jan. 03, 2012 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (AWOXMII0A32) Schem Block Diagram: (AWOXMII0A32) BlkDia Operational Description : (AWOXMII0A32) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------------- TC Wu / Director Lite-On Technology Corp.

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: PPQ-AWOXMII0 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Please review external photos. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The buffered integrated in chip RT3050F. 3. The modular transmitter must have its own power supply regulation. There are regulators in front of these chips; the part number of this regulator is SY8009AAAC. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Please review external photos or test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Please review test setup photos. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please review label sample. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): TC Wu / Director Date: Jan. 02, 2012 Signature:

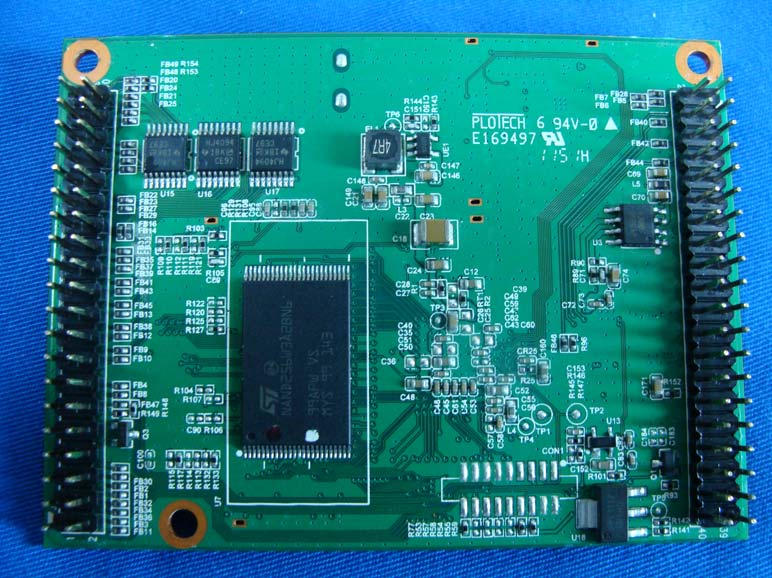

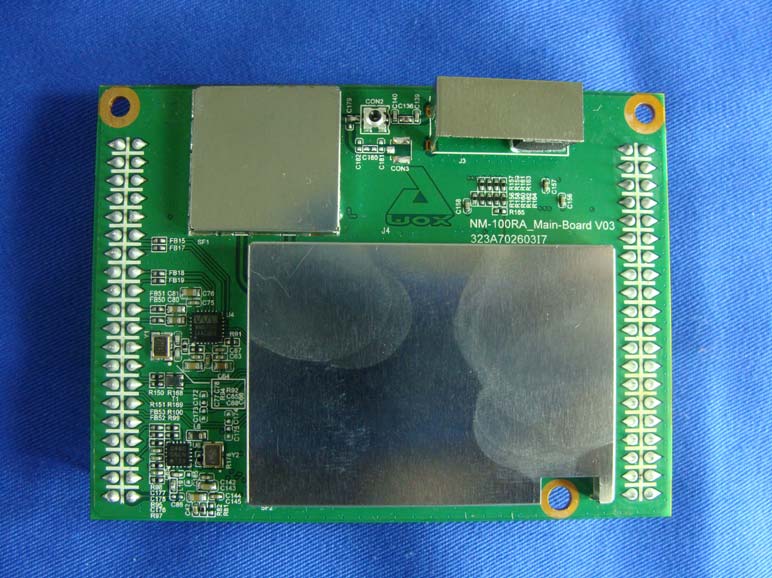

Report No.: 11C203R-RFUSP29V01 Page : 1 of 12 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (M/N: AWOXMII0A32) (2) EUT Photo Report No.: 11C203R-RFUSP29V01 Page : 2 of 12 (3) EUT Photo (M/N: AWOXMII0D32) (4) EUT Photo

Lite-On Technology Corp. FCC ID.: PPQ-AWOXMII0 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-2222-6181 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Lite-On Technology Corp. FCC ID.: PPQ-AWOXMII0 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-2222-6181 FCC ID Label Model :AWOXMII0A32 Model : AWOXMII0D32

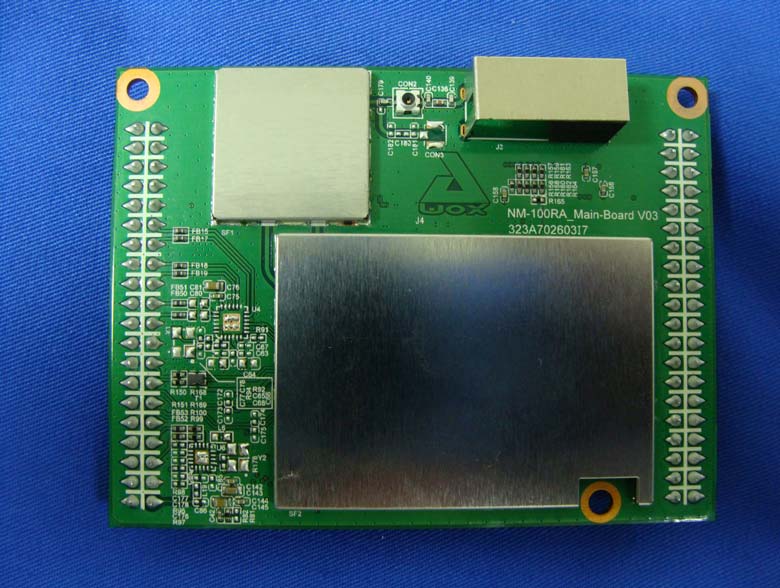

Report No.: 11C203R-RFUSP29V01 Page : 3 of 12 (5) EUT Photo (M/N: AWOXMII0A32) (6) EUT Photo Report No.: 11C203R-RFUSP29V01 Page : 4 of 12 (7) EUT Photo (8) EUT Photo Audio DAC FM IC & circuit Report No.: 11C203R-RFUSP29V01 Page : 5 of 12 (9) EUT Photo (10) EUT Photo Report No.: 11C203R-RFUSP29V01 Page : 6 of 12 (11) EUT Photo (12) EUT Photo DAC Avdd 2.8V regulator IC Report No.: 11C203R-RFUSP29V01 Page : 7 of 12 (13) EUT Photo (14) EUT Photo Antenna Report No.: 11C203R-RFUSP29V01 Page : 8 of 12 (15) EUT Photo (M/N: AWOXMII0D32) (16) EUT Photo Report No.: 11C203R-RFUSP29V01 Page : 9 of 12 (17) EUT Photo (18) EUT Photo Without Audio DAC Without FM IC & circuit Report No.: 11C203R-RFUSP29V01 Page : 10 of 12 (19) EUT Photo (20) EUT Photo Report No.: 11C203R-RFUSP29V01 Page : 11 of 12 (21) EUT Photo (22) EUT Photo Report No.: 11C203R-RFUSP29V01 Page : 12 of 12 (23) EUT Photo (24) EUT Photo Without DAC Avdd 2.8V regulator IC

Report No. 11C203R-RFUSP29V01 Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Mozart II Model No. : AWOXMII0A32, AWOXMII0D32 FCC ID : PPQ-AWOXMII0 Applicant : Lite-On Technology Corp. Address : 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt : Dec. 09, 2011 Date of Declaration: Dec. 28, 2011 Report No. : 11C203R-RFUSP29V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 11C203R-RFUSP29V01 Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 11C203R-RFUSP29V01 Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Mozart II Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.79dBi in logarithm scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (3.79 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 90.7821 0.043225 6 2437.00 90.1571 0.042927 11 2462.00 91.2011 0.043424 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (3.79 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 225.4239 0.107332 6 2437.00 216.7704 0.103212 11 2462.00 237.6840 0.113170 802.11n-20BW_14.4Mbps(2.4G Band) Output Power Into Antenna & RF Exposure Evaluation Distance (3.79 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 172.5838 0.082173 6 2437.00 189.6706 0.090309 11 2462.00 153.8155 0.073237 Report No. 11C203R-RFUSP29V01 Page: 4 of 4 Version: 1.0 802.11n-40BW_30Mbps(2.4G Band) Output Power Into Antenna & RF Exposure Evaluation Distance (3.79 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2422.00 169.8244 0.080859 4 2437.00 190.1078 0.090517 7 2452.00 153.8155 0.073237 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 11C203R-RFUSP29V01 Page : 1 of 118 Test Report Product Name Mozart II Model No AWOXMII0A32, AWOXMII0D32 FCC ID. PPQ-AWOXMII0 Applicant Lite-On Technology Corp. Address 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt Dec. 09, 2011 Issue Date Dec. 28, 2011 Report No. 11C203R-RFUSP29V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 11C203R-RFUSP29V01 Page : 2 of 118 Test Report Certification Issue Date: Dec. 28, 2011 Report No.: 11C203R-RFUSP29V01 Product Name Mozart II Applicant Lite-On Technology Corp. Address 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD Model No. AWOXMII0A32, AWOXMII0D32 FCC ID. PPQ-AWOXMII0 EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name AWOX S.A. Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : (Senior Adm. Specialist / Leven Huang ) Tested By : ( Engineer / Jack Hsu ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 11C203R-RFUSP29V01 Page : 3 of 118 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Test Procedure .............................................................................................................................16 3.5. Uncertainty ..................................................................................................................................16 3.6. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................21 4.1. Test Equipment............................................................................................................................21 4.2. Test Setup ....................................................................................................................................22 4.3. Limits ..........................................................................................................................................23 4.4. Test Procedure .............................................................................................................................24 4.5. Uncertainty ..................................................................................................................................24 4.6. Test Result of Radiated Emission................................................................................................25 5. RF antenna conducted test........................................................................................................45 5.1. Test Equipment............................................................................................................................4…

Text truncated - open the document above for the full version.

Report No. 11C203R-RFUSP29V01 Page : 71 of 118 6. Band Edge 6.1. Test Equipment RF Conducted Measurement The following test equipments are used during the band edge tests: Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. RF Radiated Measurement: The following test equipments are used during the band edge tests: Test Site Equipment Manufacturer Model No./Serial No. Last Cal. Bilog Antenna Schaffner Chase CBL6112B/2673 Sep., 2011 X Horn Antenna Schwarzbeck BBHA9120D/D305 Sep., 2011 Horn Antenna Schwarzbeck BBHA9170/208 Jul., 2011 X Pre-Amplifier Agilent 8447D/2944A09549 Sep., 2011 X Spectrum Analyzer Agilent E4407B / US39440758 May, 2011 Test Receiver R & S ESCS 30/ 825442/018 Sep., 2011 X Coaxial Cable QuieTek QTK-CABLE/ CAB5 Feb., 2011 X Controller QuieTek QTK-CONTROLLER/ CTRL3 N/A Site # 3 X Coaxial Switch Anritsu MP59B/6200265729 N/A Note: 1. All instruments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. Report No. 11C203R-RFUSP29V01 Page : 72 of 118 6.2. Test Setup RF Conducted Measurement RF Radiated Measurement: 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. EUT FRP Dome The height of broad band or Dipole Antenna was scanned from 1M to 4M. The distance between antenna and turn table was 3M regards to the standard ado pted. 3m 80cm To Receiver Pre- Amplifier SMA EUT Spectrum Analyzer RF Cable Report No. 11C203R-RFUSP29V01 Page : 73 of 118 6.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003 and tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.4:2003 on radiated measurement. 6.5. Uncertainty ± 3.9 dB above 1GHz ± 3.8 dB below 1GHz Report No. 11C203R-RFUSP29V01 Page : 74 of 118 6.6. Test Result of Band Edge Product : Mozart II Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) RF Radiated Measurement (Horizontal): Channel No. Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Emission Level (dBuV/m) Peak Limit (dBuV/m) Average Limit (dBuV/m) Result 01 (Peak) 2390.000 31.509 24.501 56.010 74.00 54.00 Pass 01 (Peak) 2413.000 31.646 68.442 100.088 -- -- -- 01 (Average) 2390.000 31.509 15.609 47.118 74.00 54.00 Pass 01 (Average) 2409.400 31.621 64.985 96.605 -- -- -- Figure Channel 01: Horizontal (Peak) Figure Channel 01: Horizontal (Average) Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No. 11C203R-RFUSP29V01 Page : 75 of 118 Product : Mozart II Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) RF Radiated Measurement (Vertical): Channel No. Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Emission Level (dBuV/m) Peak Limit (dBuV/m) Average Limit (dBuV/m) Result 01 (Peak) 2390.000 30.915 28.498 59.413 74.00 54.00 Pass 01 (Peak) 2413.200 30.957 76.195 107.152 -- -- -- 01 (Average) 2390.000 30.915 20.909 51.824 74.00 54.00 Pass 01 (Average) 2414.800 30.968 72.801 103.769 -- -- -- Figure Channel 01: Vertical (Peak) Figure Channel 01: Vertical (Average) Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No. 11C203R-RFUSP29V01 Page : 76 of 118 Product : Mozart II Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) RF Radiated Measurement (Horizontal): Channel No. Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Emission Level (dBuV/m) Peak Limit (dBuV/m) Average Limit (dBuV/m) Result 11 (Peak) 2460.900 32.011 68.040 100.051 -- -- -- 11 (Peak) 2483.500 32.182 24.264 56.446 74.00 54.00 Pass 11 (Average) 2459.100 31.998 63.472 95.469 -- -- -- 11 (Average) 2483.500 32.182 12.677 44.859 74.00 54.00 Pass Figure Channel 11: Horizontal (Peak) Figure Channel 11: Horizontal (Average) Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The av…
