PPQ-CHS888Door Window Sensor

The Lite-On Door Sensor (CHS-888) can be easily installed on a door, window cabinet, garage door or anywhere that can be opened. Before Installation Activate Battery 1. Press the release catch on top (g.1). 2. Remove the top case (g.2). 3. Pull the plastic tab o to activate the sensor (g. 3). The door sensor will start to scan for the network and ash LED 3 times. Pair & Register 1. Follow the instructions on your Touchstone Hub or Touchscreen, to add new Door Sensor (CHS-888). 2. During the pairing mode, the status LED will ash until the sensor is connected. (g. 4) Notes: A scan is performed every 5 seconds. The LED ashes 3 times when each scan is initiated. The sensor sleeps between scans to conserve battery. If after 20 scans a network is not found, the sensor enters into sleep mode. The sensor resumes scanning the next time a zone status change occurs (e.g. fault, restore, tamper, tamper restore, test button pressed, etc.) This allows user interaction to cause the sensor to resume scanning. If you still have problems to pair the sensor, you may follow the factory reset procedure to reset to factory defaults. Installation 1. There are four key parts inside the pack. Starting from left to right: Door Sensor, Door Sensor Mounting Bracket, Magnet Mounting Bracket and Magnet. (Photo 3) 2. Depending on the installation location, you may decide to use double-sided tape or self-tapping screws to install the door sensor. The tamper hole on the rear case (red circle in g. 6) must be screwed in for tamper protection. 3. Test the door sensor before installation 4. If the installation locations are not level (g. 6), you can add a bracket to the door sensor or the magnet to rectify this. 5. The sensor has an alignment mark on one side of the case indicating where the magnetic switch is located. The magnet should be mounted adjacent to the magnetic switch (g. 8) 6. The distance between the magnetic switch and the magnet should be less than 1.25” (g. 8). 7. The movement of the magnet away from the magnetic switch causes the zone to fault or sets o the alarm. Battery replacement 1. Press the release catch on top (g. 1) 2. Remove the case cover (g. 2) 3. Remove the battery and replace with a CR2 type battery ensuring that you orient the battery so that the positive pole matches the positive mark on the case. (gs. 9 & 10) Door Window Sensor (CHS-888) User Guide g. 1 g. 3 g. 5g. 6 g. 7g. 8 g. 9g. 10 g. 2 g. 4 Factory reset 1. Open unit and remove battery 2. While holding down the tamper switch (g. 11), install battery 3. Wait for 4 seconds 4. Release tamper switch 5. The LED will ash for 2 seconds and wait to join the network. 6. If the sensor is NOT enrolled (i.e. does not have a CIEAddress and ZoneState = Enrolled) a. Illuminate the LED for 2 seconds to indicate a successful boot b. Remove any existing network parameters from previous network commissioning attempts c. Reset to factory defaults LED indications LED Status Description Illuminated the LED is on Flashing the LED should turn on for 300 mS and then turn o for 300 m O the LED is turned o FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. IC Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Industry Canada - Class B This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada. Cet appareil numérique respecte les…

Text truncated - open the document above for the full version.

Lite LiteLite Lite- -- -On Technology Corp. On Technology Corp.On Technology Corp. On Technology Corp. Date: July 3, 2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: PPQ-CHS888 To Whom It May Concern: We, Lite-On Technology Corp. hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 E-Mail: [email protected]

Example of Agents letter (for TCB – TCB approval): Lite LiteLite Lite- -- -On Technology Corp. On Technology Corp.On Technology Corp. On Technology Corp. Date (06/10/2015) TUV SUD BABT TCB/FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, (Lite-On Technology Corp.,and Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C.), hereby authorize (Compliance Certification Services Inc./ David Wang., No.11,Wugong 6th Rd., Wugu Dist. New Taipei City 24891,Taiwan and 02-2299-9720) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2016/06/10 Sincerely, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 E-Mail: [email protected]

Lite LiteLite Lite- -- -On Technology Corp. On Technology Corp.On Technology Corp. On Technology Corp. Date (06/10/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: PPQ-CHS888 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Lite-On Technology Corp. . hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 E-Mail: [email protected]

Here is the response from the laboratory:- Thanks. We re-check the test data that was correct. Please kindly find the comments as below. 1. Specifically, the test results on pages 28 and 29 for PPQ-CHS888 show similar waveforms for the low and mid channels as PPQ-CHK001 (test report pages 28-29), even though the power for this device is much higher (21.5 dBm versus 2.89 dBm). ANS: Although the waveforms are similar with these two projects, but we can see the peak level are different, for example, the test results on page 28 for PPQ-CHS888 show the peak level 17.22 dBm for the low CH, and the test results on page 28 for PPQ-CHK001 show the peak level -0.28 dBm for the low CH. 2. Additionally, the waveforms in PPQ-CHS888 are different for the low channel when compared to the mid and high channels. For PPQ-CHK001, the waveform for the mid channel when compared to the low and high channels, are different. ANS: For the waveforms in PPQ-CHS888, the waveform for the low channel which includes the marker table but there are no marker tables on the waveforms for the mid, high channels, so that's why they're look like some different. It is the same situation for the PPQ-CHK001. 3. Furthermore, PPQ-CHK001 shows an unusually high side-lobe given the small power level of the device. ANS: For the issue, I think that we used the attenuator for the high power device in the test that let the waveform similar with these two projects. For the test item on page 28, the limit is 20 dBc from the peak level, so whatever how much the power level, if the device has the high side-lobe, the level will close the limit.

LITE-ON Technology Corp. Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C Date: August 16, 2016 SUBJECT: Extension of marketing surveillance for FCC ID: PPQ-CHS888 To Whom It May Concern: We hereby declare the certified product, FCC ID: PPQ-CHS888, granted on 07/02/2015, has not been in mass production of the item you requested , we cannot provide the samples as schedule. Therefore, we request to extend the cut-off date of this marketing surveillance to 09/28/2016. Sincerely yours, Ta. Chuan Wu/ Director Name/Title: Company Name: ITE-ON Technology Corp. Address: 4F, No.90, Chien 1Rd., Chung-Ho, Taipei Hsien235, Taiwan, R.O.C TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected]

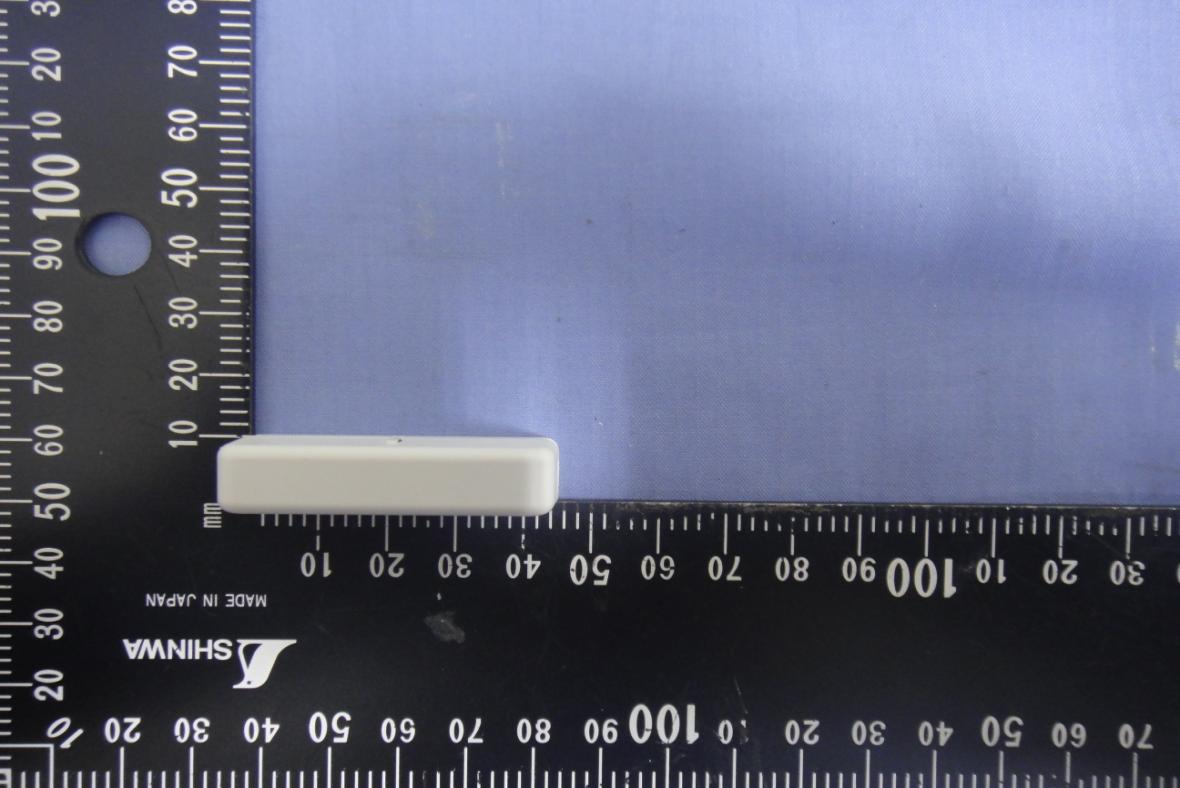

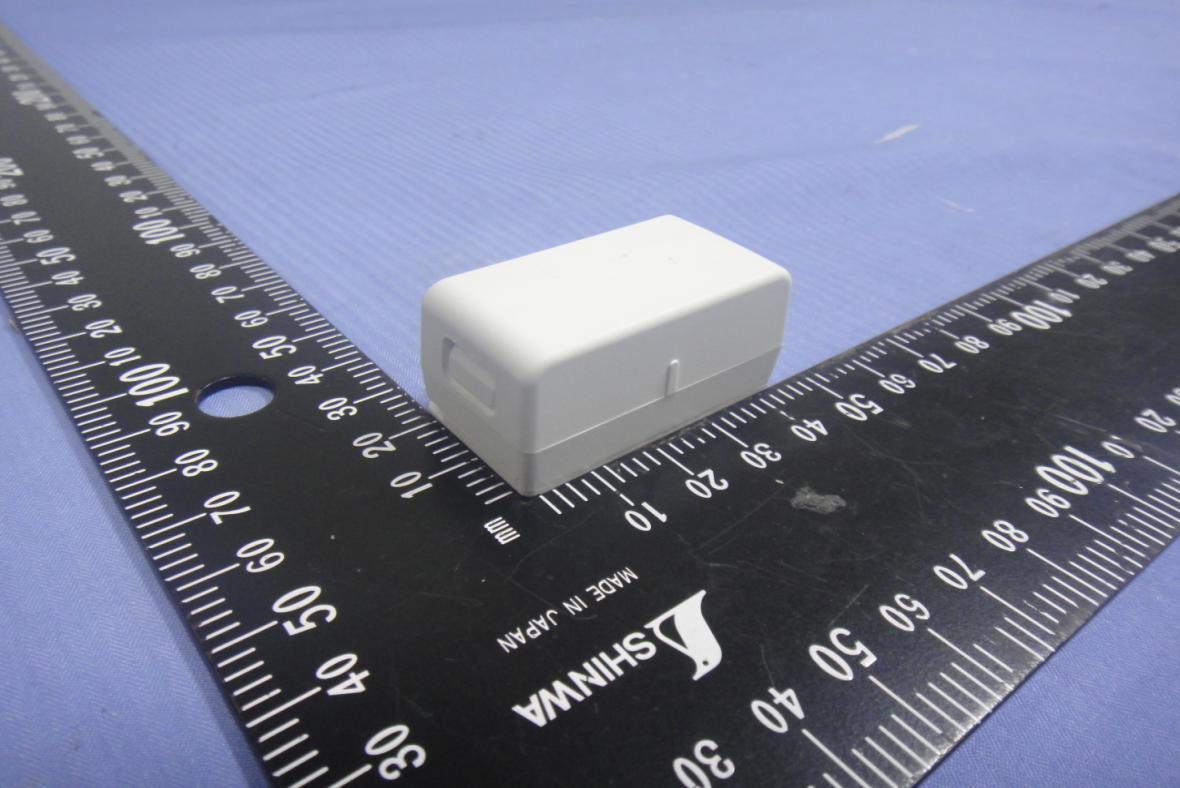

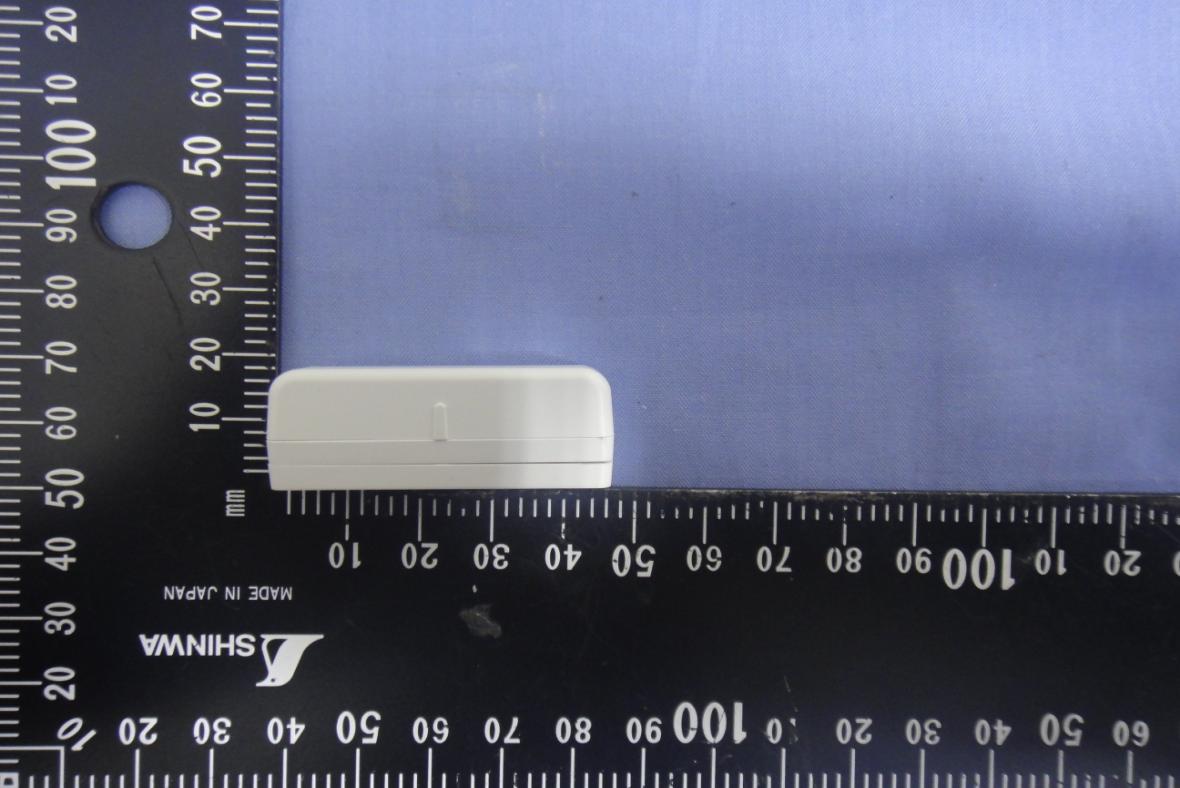

Compliance Certification Services Inc. Report No.: T150309W05 Date of Issue: June 17, 2015 A1 - 1 / 7 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150309W05 Date of Issue: June 17, 2015 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T150309W05 Date of Issue: June 17, 2015 A1 - 3 Rev. 00

(客戶): (材質):50#白色特多龍 (上光方式):PP (顏色):白底黑字 (尺寸):40x16mm (公差):+-0.2mm 李采婕 BLUE 2015.06.26 CHS-888 509 Label A0 1.5Rx4 1:1 16mm 40mm Model: CHS-888 FCC ID:PPQ-CHS888 IC: 4491A-CHS888 1.5Rx4 2:1 16mm 40mm Model: CHS-888 FCC ID:PPQ-CHS888 IC: 4491A-CHS888

Compliance Certification Services Inc. Report No.: T150309W05 Date of Issue: June 17, 2015 A1 - 4 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150309W05 Date of Issue: June 17, 2015 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T150309W05 Date of Issue: June 17, 2015 A1 - 6 Rev. 00 Battery Compliance Certification Services Inc. Report No.: T150309W05 Date of Issue: June 17, 2015 A1 - 7 Rev. 00 Antenna Module

Compliance Certification Services Inc. Report No.: T150309W05-MF Date of Issue: June 22, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Door Window Sensor Model CHS-888 Trade Name LITE-ON Frequency band (Operating) Zigbee: 2405~2475MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Antenna Gain :3.10 dBi (Numeric gain:2.04) Maximum Average output power Zigbee Mode : 21.50 dBm(141.254 mW) Maximum Tune up Power Zigbee Mode : 23.00 dBm(199.526 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T150309W05-MF Date of Issue: June 22, 2015 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 22, 2015 Initial Issue ALL Doris Chu Compliance Certification Services Inc. Report No.: T150309W05-MF Date of Issue: June 22, 2015 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T150309W05-MF Date of Issue: June 22, 2015 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Zigbee mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) High2475199.5262.04200.08101

Compliance Certification Services Inc. FCC ID: PPQ-CHS888 IC ID: 4491A-CHS888 Report No.: T150309W05-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 53 Rev.00 FCC 47 CFR PART 15 SUBPART C & INDUSTRY CANADA RSS-247 TEST REPORT For Door Window Sensor Model: CHS-888 Trade Name: LITE-ON Issued to Lite-On Technology Corp. Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: June 17, 2015 Compliance Certification Services Inc. FCC ID: PPQ-CHS888 IC ID: 4491A-CHS888 Report No.: T150309W05-RP Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 17, 2015 Initial Issue ALL Doris Chu Compliance Certification Services Inc. FCC ID: PPQ-CHS888 IC ID: 4491A-CHS888 Report No.: T150309W05-RP Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................ 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4 INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5 FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ....................................................................................................................................... 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7 FCC PART 15.247 REQUIREMENTS& RSS-247 REQUIREMENTS ..................................... 14 7.1 99% BANDWIDTH ............................................................................................................................ 14 7.2 6DB BANDWIDTH ............................................................................................................................. 17 7.3 PEAK POWER .................................................................................................................................... 20 7.4 AVERAGE POWER ............................................................................................................................ 21 7.5 BAND EDGES MEASUREMENT ................................................................................................ 22 7.6 PEAK POWER SPECTRAL DENSITY .................................................................................................... 30 7.7 SPURIOUS EMISSIONS ................................................................................................................. 33 7.8 RADIATED EMISSIONS ..................................................................................................................... 36 7.9 POWERLINE CONDUCTED EMISSIONS ............................................................................................... 51 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................... 52 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: PPQ-CHS888 IC ID: 4491A-CHS888 Report No.: T150309W05-RP Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: Lite-On Technology Corp. Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C Manufacturer: Lite-On Network Communication (Dongguan) Limited 30#Keji Rd.,Yin Hu Industrial Area,Qingxi Town,DongGuan City,Guangdong,China Equipment Under Test: Door Window Sensor Trade Name: LITE-ON Model: CHS-888 Date of Test: June 11, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C & Industry Canada RSS-247 Issue 1 No non-compliance noted Deviation from Applicable Standard N/A We hereby certify that: The above equipment was te…
