PPQ-CR8702GJUKEBLOX NETWORKED MEDIA MODULE

Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10 th 2010 - Page 1 of 13 JukeBlox Networked Media Module CR Series Datasheet Complete audio networking system on a small module Integrated Ethernet + USB2.0 WiFi-certified 802.11b/g (optional) Built-in PIFA antenna DAB radio receiver (optional) Glueless audio, video and control ports FCC certified CONFIDENTIAL Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10 th 2010 - Page 2 of 13 Introduction The CR-series module is a single-board networked media player module, based on BridgeCo’s DM860 and DM870 media processors, and enables fast product developments with Ethernet, USB and optional WiFi and/or DAB radio connectivity. The module connects to standard legacy components in various audio, video/LCD and control formats. Block Diagram Ethernet PHY DM860 or DM870 256 Mbit SDRAM JTAG RJ-45 100B-T Mem USB GPIO 24.000 MHz Reset In NAND 1 GB NAND flash 802.11 RF amp (optional) 802.11 RMII SPI RTC 32.768 kHz USB (Host) USB RST UART 5V 3.3V JukeBlox Networked Media Module – CR Series Reset Out 1.2V Stereo Out Video Out Audio I/O 4/8bit MMC 3x6bit RGB 2 x UART SPI Ctrl. max. 20 GPIOs 3.3V (RTC) SuperCap IR sensor reset signals analog mute I 2 C bus shift register IC control serial control A/D, D/A S/PDIF CCIR-656 LP 2 HP out Display SD-Card AV Ports LCD SSM DAC PIFA Antenna Switcher 1.9V AV Ports DAB Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10 th 2010 - Page 3 of 13 Overview Top View Bottom View PIFA antenna 802.11b/g front-end BridgeCo processor Ethernet DAB FLASH (optional socket) SDRAM antenna connector Media connector DAB connector LCD connector Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10 th 2010 - Page 4 of 13 Ordering Guide Part Number BridgeCo ICs WiFi Ethernet USB Real-Time Clock DAB / DAB+ / DMB Audio LCD PIFA Ant. Contains shield Incl. connector Incl. connector CR870-2A DM870+T6201 X X X X X X X CR870-2B DM870+T6201 X X X X X CR870-2C DM870+T6201 X X X X CR870-2D DM870+T6201 X X X X X CR870-2F DM870+T6201 X X X X X X CR860-2A DM860 n/a X X n/a CR860-2B DM860 n/a X X X X n/a Electrical Specifications Parameter State Model Component Symbol min. typ. max. Units Input Voltage Main VIN +2.97 +1.08 +3.3 +1.2 +3.63 +1.32 V V DAB VIN +1.62 +2.97 +1.35 +1.8 +3.3 +1.5 +1.98 +3.63 +1.65 V V V Reset State CR870 CR860 PIN tbd tbd tbd tbd tbd tbd W W Power Consumption WLAN Operating CR870 CR860 PIN tbd tbd tbd tbd tbd tbd W W Operating Conditions Parameter min. max. Units Operating Temperature 0 +70 °C Operating Humidity 10 90 (non condensing) %RH Storage Temperature -10 +75 °C Storage Humidity 10 95 (non condensing) %RH Storage Temperature Cycle Test 24 hrs -10 +75 °C Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10 th 2010 - Page 5 of 13 WiFi Specification (CR870 only) Feature Description WLAN Standards IEEE 802.11b IEEE 802.11g Frequency Band 2.412 – 2.497 GHz (2.4GHz ISM Band, 14 Channels) Channel 1 - Channel 13, Channel 14 North America, Japan Telec, Europe ETSI Modulation 802.11b mode (DS-SS: IEEE 802.11b) 802.11g mode (OFDM: IEEE 802.11g) Transmission Speed 802.11b mode 11Mbps, 5.5Mbps, 1Mbps 802.11g mode 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps Tx Power 802.11b mode (16.5dBm, +/-1dBm) 802.11g mode (21dBm, +/-1dBm) Power-on Ramp < 2us RF Carrier Suppression < 15dBc TX EVM < -5dB Rx Sensitivity (incl. CE2 Mother board) 802.11b mode =<-88dBm @ 1Mbps, =<-85dBm @ 5.5Mbps, =<-83dBm @ 11Mbps 802.11g mode =<-86dBm @ 6Mbps, =<-75dBm @ 36Mbps, =<-69dBm @ 54Mbps Throughput Rate (measured for each module) See factory test specification Regulatory compliance Description Country Compliance Electromagnetic Compatibility (Prescan) USA Europe FCC CFR47 Part15B EN 55022 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-11 Radio Regulations (CM870 only) TBD TBD Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10 th 2010 - Page 6 of 13 RoHS Uses only RoHS compliant components Environmental Test Withstands 4 hours at 70°C, 90% RH ESD and Transient Test (Applies to LAN and USB external connections only) ESD: +/- 2kV operation, +/- 4kV no destruction (part of CE test) Fast electrical transients: +/- 500V operation, +/- 1000V no destruction (part of CE test) Magnetic Field Test Passes EN55022 and EN55024 (part of CE test) MTBF >10000 hours Mechanical Specifications Passes drop test according to I.E.C. 68-2-32, height 100 cm, 1 corner, 6 faces. Passes vibration test with sine, vertical, 60 minutes, 600 to 18000 cpm, 1G Module Quality Defect Rate: 7 months <0.5% failures, 14 months <1% failures AQL CR=0, MA=0.4, MI=0.4 Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10 th 2010 - Page 7 of 13 Board Dimensions Top View and Side View Bottom View (showing connector locations) Note: 1. All dimensions are measured in millimetres (mm). 2. PCB’s thickness: 1.00 +/- 0.10mm 3. Tolerance: +/-0.10mm 4. Outline Tolerance: +/-0.10mm 5. NPTH Hole: +/-0.05mm 6.PTH Hole: +/-0.075mm Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10 th 2010 - Page 8 of 13 Module weight CR860-1: 25g CR870-1: 25g Connectors WLAN Antenna Connectors (optional) One coaxial antenna connector is provided as an alternative to the built-in PIFA antenna. The choice between using the PIFA antenna or using the coaxial socket is a build option, determined by the position of a surface mount capacitor on the m…

Text truncated - open the document above for the full version.

Lite-On Technology Corp. FCC ID.: PPQ-CR8702G 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Federal Communications Commission March 31 , 2010 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-CR8702G Product: JukeBlox Networked Media Module Model: CR870-2G We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ----------------------------------------------- TC WU / Deputy Director(R & D Division) Lite-On Technology Corp.

Lite-On Technology Corp. FCC ID.: PPQ-CR8702G 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Lite-On Technology Corp. 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Federal Communications Commission March 31 , 2010 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (CR870-2G) Schem Block Diagram : (CR870-2G) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------------- TC WU / Deputy Director(R & D Division) Lite-On Technology Corp. Lite-On Technology Corp. FCC ID.: PPQ-CR8702G 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Lite-On Technology Corp. 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Gentlemen: Regarding to the FCC 15.212, Lite-On Technology Corp..would like to request modular approval for the submission FCC ID: PPQ-CR8702G. Lite-On Technology Corp.. confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding. (Please review external photos). 2. The modular transmitter have buffered modulation(/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. (The buffered integrated in chip 6201C). 3. The modular transmitter have its own power supply regulation. (There areregulators in front of these chips, the part number of this regulator is APL5910). 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). (Please review external photos or test report). 5. The modular transmitter is tested in a stand-alone configuration. (Please review test setup photos ). 6. The modular transmitter is labeled with its own FCC ID number. (Please review label sample ). 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual). 8. The modular transmitter complies with any applicable RF exposure requirements. (The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition). Sincerely, ----------------------------------------------- TC WU / Deputy Director(R & D Division) Lite-On Technology Corp.

Lite-On Technology Corp. FCC ID.: PPQ-CR8702G 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Lite-On Technology Corp. 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Gentlemen: Regarding to the FCC 15.212, Lite-On Technology Corp..would like to request modular approval for the submission FCC ID: PPQ-CR8702G. Lite-On Technology Corp.. confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding. (Please review external photos). 2. The modular transmitter have buffered modulation(/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. (The buffered integrated in chip 6201C). 3. The modular transmitter have its own power supply regulation. (There areregulators in front of these chips, the part number of this regulator is APL5910). 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). (Please review external photos or test report). 5. The modular transmitter is tested in a stand-alone configuration. (Please review test setup photos ). 6. The modular transmitter is labeled with its own FCC ID number. (Please review label sample ). 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual). 8. The modular transmitter complies with any applicable RF exposure requirements. (The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition). Sincerely, ----------------------------------------------- TC WU / Deputy Director(R & D Division) Lite-On Technology Corp.

RF_160, Issue 02 Lite-On Technology Corp. Declaration of Authorization We Name: Lite-On Technology Corp. Address: 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. City: Taipei ..................................................................................... Country: Taiwan.................................................................... ............ Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: JukeBlox Networked Media Module Type designation: CR870-2G Trademark: Micro Module on our behalf. Date: ......2010/03/31..... City: ...... Taipei ........ Name: ...... TC WU ........ (2) Function: Deputy Director(R & D Division) Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

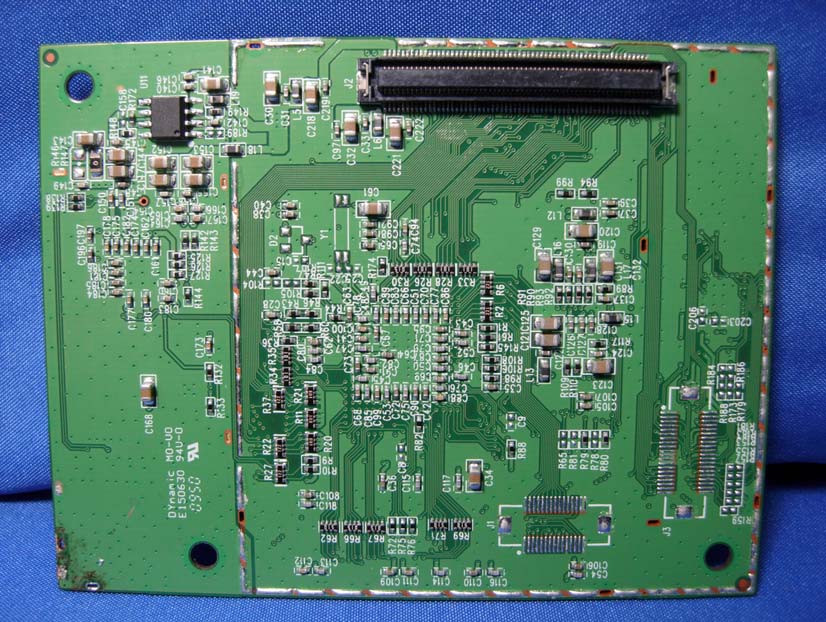

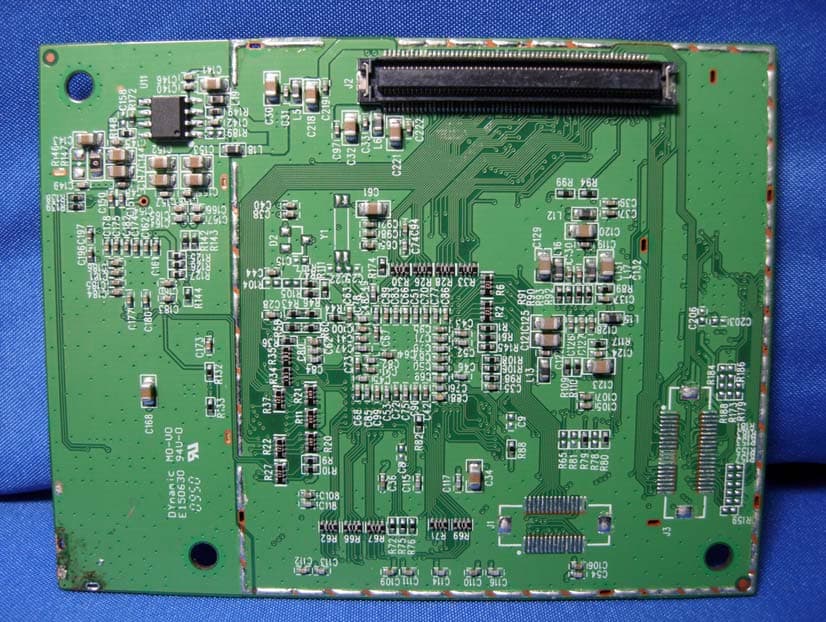

Report No.: 103207R-RFUSP42V01 Page : 1 of 6 Attachment 2 : EUT Detailed Photographs (1) EUT Photo - Sumsung (2) EUT Photo

Lite-On Technology Corp. FCC ID.: PPQ-CR8702G 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Lite-On Technology Corp. FCC ID.: PPQ-CR8702G 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 103207R-RFUSP42V01 Page : 2 of 6 (3) EUT Photo - Sumsung (4) EUT Photo - Sumsung Report No.: 103207R-RFUSP42V01 Page : 3 of 6 (5) EUT Photo - Sumsung (6) EUT Photo - Hynix Report No.: 103207R-RFUSP42V01 Page : 4 of 6 (7) EUT Photo - Hynix (8) EUT Photo - Hynix Report No.: 103207R-RFUSP42V01 Page : 5 of 6 (9) EUT Photo - Hynix (10) EUT Photo Report No.: 103207R-RFUSP42V01 Page : 6 of 6 (11) EUT Photo

Report No. 103207R-RFUSP42V01 Page : 7 of 65 1.2. Operational Description The EUT is an JukeBlox Networked Media Module with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). This JukeBlox Networked Media Module, compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the JukeBlox Networked Media Module Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network. Mode 1: Transmit (802.11b 1Mbps) Test Mode: Mode 2: Transmit (802.11g 6Mbps)

Report No. 103207R-RFUSP42V01 Page: 1 of 3 RF Exposure Evaluation declaration Product Name JukeBlox Networked Media Module Model No. CR870-2G FCC ID PPQ-CR8702G Applicant Lite-On Technology Corp. Address 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt Feb. 01, 2010 Date of Declaration March 17, 2010 Report No. 103207R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 103207R-RFUSP42V01 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 103207R-RFUSP42V01 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : JukeBlox Networked Media Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS External Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.05 dBi in logarithm scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (2.05 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 31.2608 0.0100 6 2437.00 36.2243 0.0116 11 2462.00 37.8443 0.0121 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (2.05 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 141.5794 0.0452 6 2437.00 147.9108 0.0472 11 2462.00 138.9953 0.0443 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 103207R-RFUSP42V01 Page : 1 of 65 Test Report Product Name JukeBlox Networked Media Module Model No CR870-2G FCC ID. PPQ-CR8702G Applicant Lite-On Technology Corp. Address 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt Feb. 01, 2010 Issue Date March 17, 2010 Report No. 103207R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 103207R-RFUSP42V01 Page : 2 of 65 Test Report Certification Issue Date: March 17, 2010 Report No.: 103207R-RFUSP42V01 Product Name JukeBlox Networked Media Module Applicant Lite-On Technology Corp. Address 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD. Model No. CR870-2G EUT Rated Voltage DC 3.3V EUT testing Voltage AC 120V/60Hz Trade Name Micro Module Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2008 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Engineering Adm. Specialist / Rita Huang ) Tested By : (Engineer / Johnson Liao ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 103207R-RFUSP42V01 Page : 3 of 65 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................17 4.1. Test Equipment............................................................................................................................17 4.2. Test Setup ....................................................................................................................................18 4.3. Limits ..........................................................................................................................................19 4.4. Test Procedure .............................................................................................................................20 4.5. Uncertainty ..................................................................................................................................20 4.6. Test Result of Radiated Emission................................................................................................21 5. RF antenna conducted test........................................................................................................31 5.1. Test Equipment......................................................................................................................…
