PPQ-CR8702NJUKEBLOX NETWORKED MEDIA MODULE

Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_3_5_datasheet_b.doc CONFIDENTIAL Version 3.5 – May 15 th 2011 - Page 1 of 26 JukeBlox Networked Media Module CR Series Datasheet Complete audio networking system on a small module Integrated Ethernet + USB2.0 WiFi-certified 802.11b/g (optional) Built-in PIFA antenna Glueless audio, video and control ports FCC certified Ideal for enabling network and USB audio playback for iPod docks, audio systems, AV Receivers, active speaker systems, internet radios, network playback adaptors CONFIDENTIAL Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_3_5_datasheet_b.doc CONFIDENTIAL Version 3.5 – May 15 th 2011 - Page 2 of 26 Table of Contents 1. Introduction 4 2. Block Diagram 4 3. Board Pictures 5 3.1 Top View of CR870-2A 5 3.2 Bottom View of CR870-2A 5 3.3 Top View of CR870 types 2C, 2F, 2G, 2I, 2J, 2K & 2R 6 3.4 Bottom View of CR870 types 2C, 2G, 2I, 2J, 2K, 2L, 2N, 2O, 2P & 2R 6 3.5 Top View of CR870 types 2D, 2L, 2N, 2O, 2P & 2Q 7 4. Ordering Guide 8 5. Electrical Specifications 9 5.1 Absolute Maximum Ratings 9 5.2 Operating Conditions 10 5.3 WiFi Specification (CR870 only) 10 6. Regulatory Compliance and Quality 11 6.2 Environmental Test 12 6.3 ESD and Transient Test (Applies to LAN and USB external connections only) 12 6.4 Magnetic Field Test 12 6.5 MTBF 12 6.6 Mechanical Specifications 12 6.7 Module Quality 12 Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_3_5_datasheet_b.doc CONFIDENTIAL Version 3.5 – May 15 th 2011 - Page 3 of 26 7. Board Dimensions and Weight 13 7.1 Top View and Side View of CR870 modules with PIFA antenna & no shields 13 7.2 Bottom View of CR870 modules with no bottom shield 13 7.3 Top View and Side View of CR870 modules without PIFA antenna 14 7.4 Top View and Side View of CR870 modules with PIFA antenna & top shield 14 7.5 Module weight 15 8. Connectors and Connections 15 8.1 WLAN UFL Antenna Connector (optional) 15 8.1.1 Coaxial antenna connector dimensions 15 8.2 Module Connectors 15 8.2.1 Pin Descriptions 16 8.2.2 Connector PIN Assignments 20 9. Application Guidelines 21 9.1 Power Supply sequencing and Reset Timing 21 9.1.1 Power up, Reset and Power Down Timing 22 9.2 RF Considerations 22 10. Revision Control 23 Module Revision History 26 Trademarks 26 Warranty Limitations 26 Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_3_5_datasheet_b.doc CONFIDENTIAL Version 3.5 – May 15 th 2011 - Page 4 of 26 1. Introduction The CR-series module is a single-board networked media player module, based on BridgeCo’s DM860 and DM870 media processors, and enables fast product developments with Ethernet, USB and optional WiFi connectivity. The module connects to standard legacy components in various audio, video/LCD and control formats. 2. Block Diagram Ethernet PHY DM860 or DM870 256 Mbit SDRAM JTAG RJ-45 100B-T Mem USB GPIO 24.000 MHz Reset In NAND 1 GB NAND flash 802.11 RF amp (optional) 802.11 RMII SPI RTC 32.768 kHz USB (Host) USB RST UART 5V 3.3V JukeBlox Networked Media Module – CR Series 1.2V Stereo Out Video Out Audio I/O 4/8bit MMC 3x6bit RGB 2 x UART SPI Ctrl. max. 20 GPIOs 3.3V (RTC) SuperCap IR sensor reset signals analog mute I 2 C bus shift register IC control serial control A/D, D/A S/PDIF CCIR-656 LP 2 HP out Display SD-Card AV Ports LCD SSM DAC PIFA Antenna Switcher 1.9V Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_3_5_datasheet_b.doc CONFIDENTIAL Version 3.5 – May 15 th 2011 - Page 5 of 26 3. Board Pictures 3.1 Top View of CR870-2A 3.2 Bottom View of CR870-2A PIFA antenna 802.11b/g front-end BridgeCo processor Ethernet FLASH SDRAM antenna connector Media connector LCD connector Note: Components and Socket to the right of the Ethernet and Flash sections are not installed in production modules. Please see Section 3.3 for example production module top view picture. Note: The connector shown to the left of the LCD connector is not installed on production modules. Please see section 3.4 for example production module bottom view picture. +1.9V DC to DC converter Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_3_5_datasheet_b.doc CONFIDENTIAL Version 3.5 – May 15 th 2011 - Page 6 of 26 3.3 Top View of CR870 types 2C, 2F, 2G, 2I, 2J, 2K & 2R 3.4 Bottom View of CR870 types 2C, 2G, 2I, 2J, 2K, 2L, 2N, 2O, 2P & 2R Versions with no bottom shield and no LCD connector. Please note that production version does not have exposed solder on the underside of the mounting holes. Version with no top shield. Please note that label text will change to show version, and versions 2I, 2J, 2K will have no Ethernet components mounted. Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_3_5_datasheet_b.doc CONFIDENTIAL Version 3.5 – May 15 th 2011 - Page 7 of 26 3.5 Top View of CR870 types 2D, 2L, 2N, 2O, 2P & 2Q Versions with top shield. For versions without PIFA antenna, PIFA antenna is not present and UFL connector is present, see the top view of CR870-2A for location of UFL connector. Data Sheet: CR Series JukeBlox Networked Media Modules dat_CR860_CR870_3_5_datasheet_b.doc CONFIDENTIAL Version 3.5 – May 15 th 2011 - Page 8 of 26 4. Ordering Guide Part Number BridgeCo ICs WiFi Ethernet USB Real- Time Clock LCD PIFA Antenna Ext. Antenna UFL Conn. SDRAM Top Module Shielding Contains shield Incl. connector CR870-2A DM870+T6201 X X X X X X (X)* 32MB CR870-2C DM870+T6201 X X X X 32MB CR870-2D DM870+T6201 X X X X X 32MB X CR870-2F DM870+T6201 X X X X X X (X)* 32MB CR870-2G DM870+T6201 X X X X 32MB CR870-2I DM870+T6201 X X X 16MB CR870-2J DM870+T6201 X X X X 16MB CR870-2K DM870+T6201 X X X X 16MB CR870-2L DM870+T6201 X X X X 32MB X CR870-2M DM870+T6201 X X X X X X (X)* 32MB X CR870-2N DM870+T6201 X X X 16MB X CR870-2O DM870+T6201 X X X X 16MB X CR870-2P DM870+T6201 X X X X 32MB X CR870-2Q DM870+T6201 X X X X 32MB X CR870-2R DM870+T6201 X X X X 16MB CR860-2A DM860 n/a X X n/a n/a 32MB CR860-2…

Text truncated - open the document above for the full version.

Lite-On Technology Corp. FCC ID.: PPQ-CR8702N 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-2222-6181 Federal Communications Commission June. 02, 2011 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-CR8702N Product: JukeBlox Networked Media Module Model: CR870-2N We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------------------- TC Wu / Director Lite-On Technology Corp.

Lite-On Technology Corp. FCC ID.: PPQ-CR8702N 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Lite-On Technology Corp. 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Federal Communications Commission June. 02, 2011 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (CR870-2N) Schem Block Diagram: (CR870-2N) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------------------- TC Wu / Director Lite-On Technology Corp.

RF_160, Issue 02 Lite-On Technology Corp. Declaration of Authorization We Name: Lite-On Technology Corp. Address: 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. City: Taipei Hsien  .  Country: Taiwan, R.O.C.  Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: JukeBlox Networked Media Module Type designation: CR870-2N Trademark: Micro Module on our behalf. Date:  2011/06/02  .  . City:  Taipei  .. Name:  TC Wu  .. (2) Function: Director Signature: -------------------------------------- Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Lite-On Technology Corp. FCC ID.: PPQ-CR8702N 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C.Tel : 886-2-2222-6181 Lite-On Technology Corp. 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Gentlemen: Regarding to the FCC 15.212, Lite-On Technology Corp..would like to request modular approval for the submission FCC ID: PPQ-CR8702N. Lite-On Technology Corp..confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding. (Please review external photos). 2. The modular transmitter have buffered modulation(/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. (The buffered integrated in chip 6201C). 3. The modular transmitter have its own power supply regulation. (There are regulators in front of these chips, the part number of this regulator is APL5910). 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). (Please review external photos or test report). 5. The modular transmitter is tested in a stand-alone configuration. (Please review test setup photos ). 6. The modular transmitter is labeled with its own FCC ID number. (Please review label sample ). 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual). 8. The modular transmitter complies with any applicable RF exposure requirements. (The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition). Sincerely, ------------------------------------------------------- TC Wu / Director Lite-On Technology Corp.

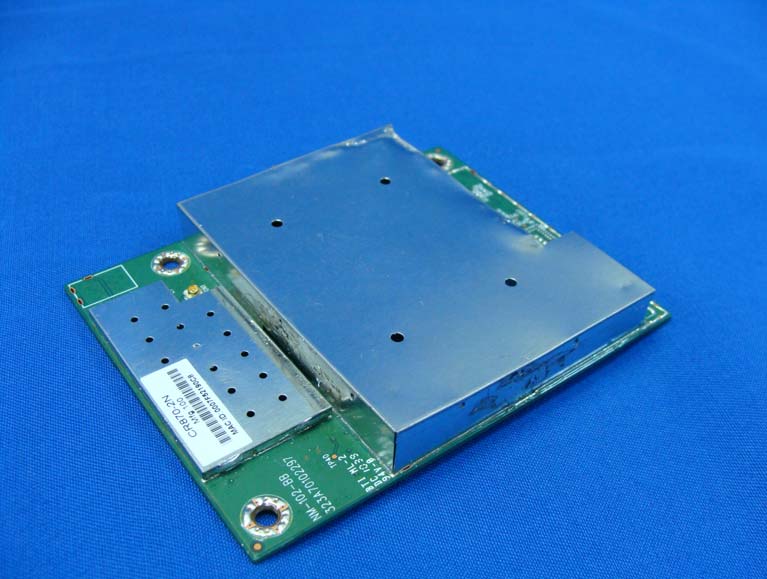

Report No.: 112045R-RFUSP42V01 Page : 1 of 10 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Lite-On Technology Corp. FCC ID.: PPQ-CR8702N 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-2222-6181 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. LABEL HERE

Lite-On Technology Corp. FCC ID.: PPQ-CR8702N 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-2222-6181 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. LABEL HERE

Report No.: 112045R-RFUSP42V01 Page : 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 112045R-RFUSP42V01 Page : 3 of 10 (5) EUT Photo (6) EUT Photo Report No.: 112045R-RFUSP42V01 Page : 4 of 10 (7) EUT Photo (8) EUT Photo Report No.: 112045R-RFUSP42V01 Page : 5 of 10 (9) EUT Photo (10) EUT Photo Report No.: 112045R-RFUSP42V01 Page : 6 of 10 (11) EUT Photo (LITE-ON / MOTL-50-420422-FEB2008) (12) EUT Photo (LITE-ON / MOTL-50-420422-FEB2008) Report No.: 112045R-RFUSP42V01 Page : 7 of 10 (13) EUT Photo (LITE-ON / MOTL-50-420422-FEB2008) (14) EUT Photo (INPAQ / WA-P-LA-03-034) Report No.: 112045R-RFUSP42V01 Page : 8 of 10 (15) EUT Photo (INPAQ / WA-P-LA-03-034) (16) EUT Photo (INPAQ / WA-P-LA-03-034) Report No.: 112045R-RFUSP42V01 Page : 9 of 10 (17) EUT Photo (MAGLAYERS / MSA-3810-2G4C1-A1) (18) EUT Photo (MAGLAYERS / MSA-3810-2G4C1-A1) Report No.: 112045R-RFUSP42V01 Page : 10 of 10 (19) EUT Photo

Report No. 112045R-RFUSP42V01 Page : 7 of 81 1.2. Operational Description The EUT is a JukeBlox Networked Media Module with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). This JukeBlox Networked Media Module, compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the JukeBlox Networked Media Module Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network.

Report No. 112045R-RFUSP42V01 Page: 1 of 3 RF Exposure Evaluation declaration Product Name JukeBlox Networked Media Module Model No. CR870-2N FCC ID PPQ-CR8702N Applicant Lite-On Technology Corp. Address 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt Feb. 01, 2010 Date of Declaration May. 23, 2011 Report No. 112045R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 112045R-RFUSP42V01 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 112045R-RFUSP42V01 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : JukeBlox Networked Media Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS External Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.19 dBi in logarithm scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (4.19 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 34.8337 0.018186 6 2437.00 36.3078 0.018955 11 2462.00 36.3915 0.018999 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (4.19 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 132.7394 0.069300 6 2437.00 133.9677 0.069941 11 2462.00 137.4042 0.071735 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 112045R-RFUSP42V01 Page : 1 of 81 Test Report Product Name JukeBlox Networked Media Module Model No CR870-2N FCC ID. PPQ-CR8702N Applicant Lite-On Technology Corp. Address 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt Feb. 01, 2010 Issue Date May. 23, 2011 Report No. 112045R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 112045R-RFUSP42V01 Page : 2 of 81 Test Report Certification Issue Date: May. 23, 2011 Report No.: 112045R-RFUSP42V01 Product Name JukeBlox Networked Media Module Applicant Lite-On Technology Corp. Address 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD. Model No. CR870-2N EUT Rated Voltage DC 3.3V EUT testing Voltage AC 120V/60Hz Trade Name Micro Module Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : (Senior Adm. Specialist / Leven Huang ) Tested By : (Engineer / Sabrina Tsai ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 112045R-RFUSP42V01 Page : 3 of 81 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Test Procedure .............................................................................................................................16 3.5. Uncertainty ..................................................................................................................................16 3.6. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................20 4.3. Limits ..........................................................................................................................................21 4.4. Test Procedure .............................................................................................................................22 4.5. Uncertainty ..................................................................................................................................22 4.6. Test Result of Radiated Emission................................................................................................23 5. RF antenna conducted test........................................................................................................39 5.1. Test Equipment............................................................................................................................3…
