PPQ-CR8702SBJukeBlox Networked Media

SMSC CR860/CR870 Revision 3.8 (01-11-12) SMSC CONFIDENTIAL JukeBlox Networked Media Module CR Series Datasheet • Complete audio networking system on a small module • Integrated Ethernet + USB2.0 • WiFi-certified 802.11b/g • Built-in PIFA antenna • Glueless audio, video and control ports • FCC certified • Ideal for enabling network and USB audio playback for iPod docks, audio systems, AV Receivers, active speaker systems, internet radios, network playback adaptors JukeBlox Networked Media Modules – CR Series Datasheet SMSC CR860/CR870 2 Revision 3.8 (01-11-12) SMSC CONFIDENTIAL 80 ARKAY DRIVE, HAUPPAUGE, NY 11788 (631) 435-6000 or 1 (800) 443-SEMI Copyright © 2011 SMSC or its subsidiaries. All rights reserved. Circuit diagrams and other information relating to SMSC products are included as a means of illustrating typical applications. Consequently, complete information sufficient for construction purposes is not necessarily given. Although the information has been checked and is believed to be accurate, no responsibility is assumed for inaccuracies. SMSC reserves the right to make changes to specifications and product descriptions at any time without notice. Contact your local SMSC sales office to obtain the latest specifications before placing your product order. The provision of this information does not convey to the purchaser of the described semiconductor devices any licenses under any patent rights or other intellectual property rights of SMSC or others. All sales are expressly conditional on your agreement to the terms and conditions of the most recently dated version of SMSC's standard Terms of Sale Agreement dated before the date of your order (the "Terms of Sale Agreement"). The product may contain design defects or errors known as anomalies which may cause the product's functions to deviate from published specifications. Anomaly sheets are available upon request. SMSC products are not designed, intended, authorized or warranted for use in any life support or other application where product failure could cause or contribute to personal injury or severe property damage. Any and all such uses without prior written approval of an Officer of SMSC and further testing and/or modification will be fully at the risk of the customer. Copies of this document or other SMSC literature, as well as the Terms of Sale Agreement, may be obtained by visiting SMSC’s website at http://www.smsc.com. SMSC is a registered trademark of Standard Microsystems Corporation (“SMSC”). Product names and company names are the trademarks of their respective holders. SMSC DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY AND ALL WARRANTIES ARISING FROM ANY COURSE OF DEALING OR USAGE OF TRADE. IN NO EVENT SHALL SMSC BE LIABLE FOR ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES; OR FOR LOST DATA, PROFITS, SAVINGS OR REVENUES OF ANY KIND; REGARDLESS OF THE FORM OF ACTION, WHETHER BASED ON CONTRACT; TORT; NEGLIGENCE OF SMSC OR OTHERS; STRICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE; WHETHER OR NOT ANY REMEDY OF BUYER IS HELD TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, AND WHETHER OR NOT SMSC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. JukeBlox Networked Media Modules – CR Series Datasheet SMSC CR860/CR870 3 Revision 3.8 (01-11-12) SMSC CONFIDENTIAL Table of Contents 1 INTRODUCTION...............................................................................................................4 2 BLOCK DIAGRAM.............................................................................................................4 3 BOARD PICTURES............................................................................................................5 3.1 TOP VIEW OF CR870-2A ................................................................................................... 5 3.2 BOTTOM VIEW OF CR870 TYPES 2A, 2D & 2S .......................................................................... 5 3.3 TOP VIEW OF CR870 TYPES 2C, 2F, 2G, 2I, 2J, 2K & 2R ........................................................... 6 3.4 BOTTOM VIEW OF CR870 TYPES 2C, 2G, 2I, 2J, 2K, 2L, 2N, 2O, 2P & 2R...................................... 6 3.5 TOP VIEW OF CR870 TYPES 2D, 2L, 2N, 2O, 2P, 2Q & 2S(INCLUDING 2S-B)............................... 7 3.6 TOP VIEW OF CR870-2J.................................................................................................... 8 3.7 BOTTOM VIEW OF CR870-2J............................................................................................... 8 3.8 TOP VIEW OF CR870-2R ................................................................................................... 9 3.9 BOTTOM VIEW OF CR870-2R ..............................................................................................9 4 ORDERING GUIDE .........................................................................................................10 5 ELECTRICAL SPECIFICATIONS.......................................................................................11 5.1 ABSOLUTE MAXIMUM RATINGS............................................................................................ 11 5.2 OPERATING CONDITIONS................................................................................................... 12 5.3 WIFI SPECIFICATION (CR870 ONLY).................................................................................... 12 6 REGULATORY COMPLIANCE AND QUALITY....................................................................13 6.1 ROHS ........................................................................................................................ 14 6.2 ENVIRONMENTAL TEST......................................................................................................14 6.3 ESD AND TRANSIENT TEST (APPLIES TO LAN AND USB EXT…

Text truncated - open the document above for the full version.

Lite-on Technology Corp. FCC ID.: PPQ-CR8702SB 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 Federal Communications Commission May 28 , 2012 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-CR8702SB Product: JukeBlox Networked Media Module Model: CR870-2S-B We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------------------ TC Wu / Director Lite-on Technology Corp.

Lite-on Technology Corp. FCC ID.: PPQ-CR8702SB 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 Lite-on Technology Corp. 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 Fax: 886-2-2223-6749 Federal Communications Commission May 28 , 2012 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: ( CR870-2S-B ) Schem Block Diagram: ( CR870-2S-B ) BlkDia Operational Description: ( CR870-2S-B ) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- TC Wu / Director Lite-on Technology Corp.

Lite-on Technology Corp. FCC ID.: PPQ-CR8702SB 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 Lite-on Technology Corp. 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 Fax: 886-2-2223-6749 Gentlemen: Regarding to the Pubic Notice 15.212 pertaining to PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL, Lite-on Technology Corp..would like to request modular approval for the submission FCC ID: PPQ-CR8702SB. Lite-on Technology Corp.. confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding. (Please review external photos). 2. The modular transmitter have buffered modulation(/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. (The buffered integrated in chip 6201C). 3. The modular transmitter have its own power supply regulation. (There areregulators in front of these chips, the part number of this regulator is APL5910). 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). (Please review external photos or test report). 5. The modular transmitter is tested in a stand-alone configuration. (Please review test setup photos ). 6. The modular transmitter is labeled with its own FCC ID number.(Please review label sample ). 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual). 8. The modular transmitter complies with any applicable RF exposure requirements. (The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition). Sincerely, ---------------------------------------------------- TC Wu / Director Lite-on Technology Corp.

RF_160, Issue 02 Declaration of Authorization We Name: Lite-On Technology Corp. .... Address: 4F, 90, Chien 1 Road, Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C.... City: Taipei .. Country: Taiwan .... Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: JukeBlox Networked Media Module Type designation: CR870-2S-B Trademark: Micro Module on our behalf. Date: 2012/05/28.. City:  Taipei .. Name:  TC Wu .. (2) Function: ......Director......................... Signature: ........... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

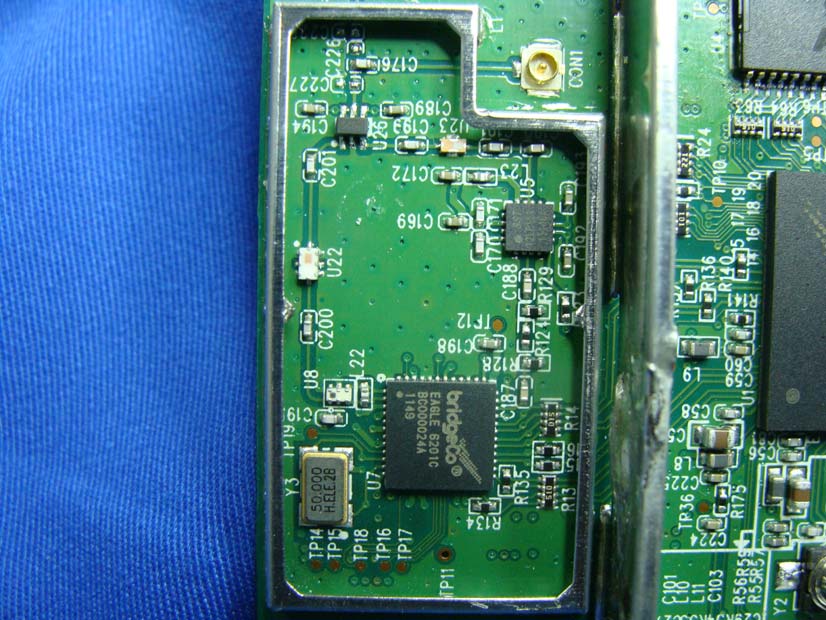

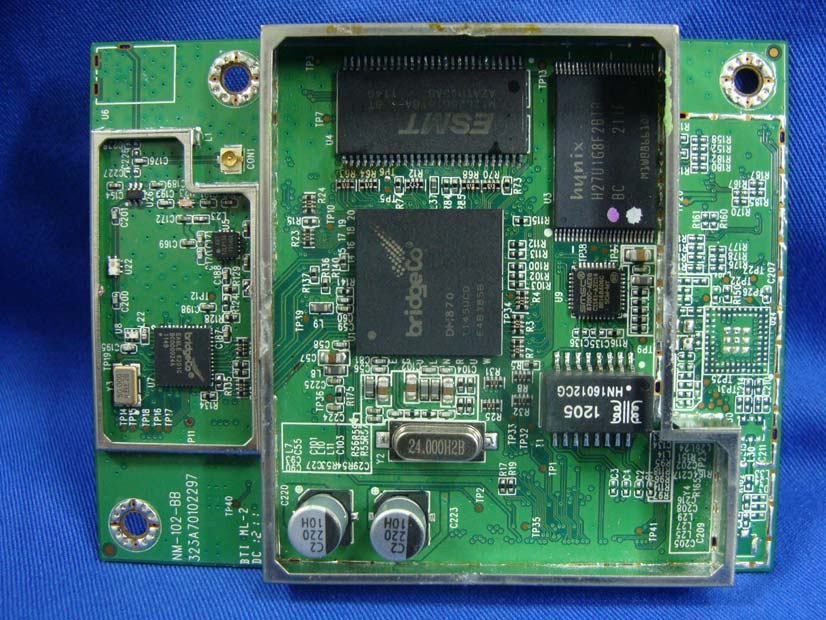

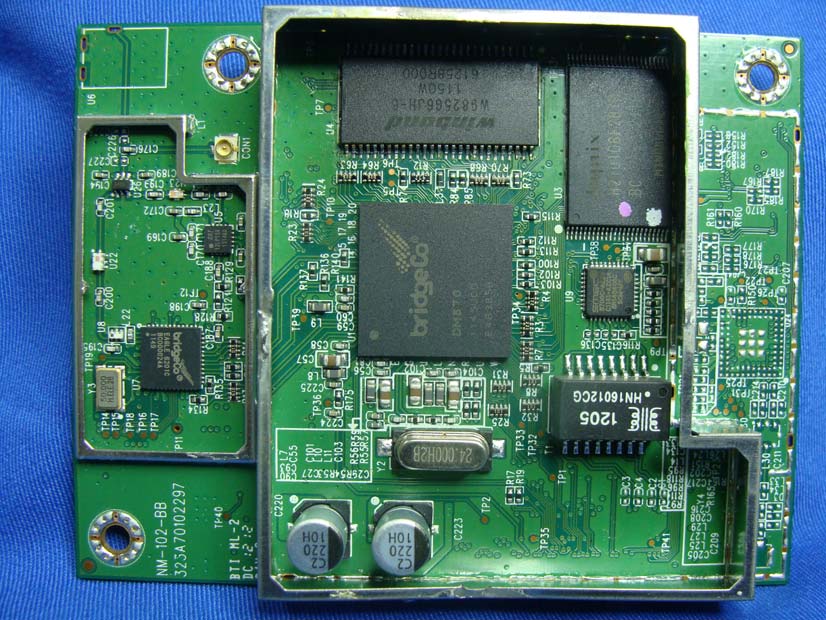

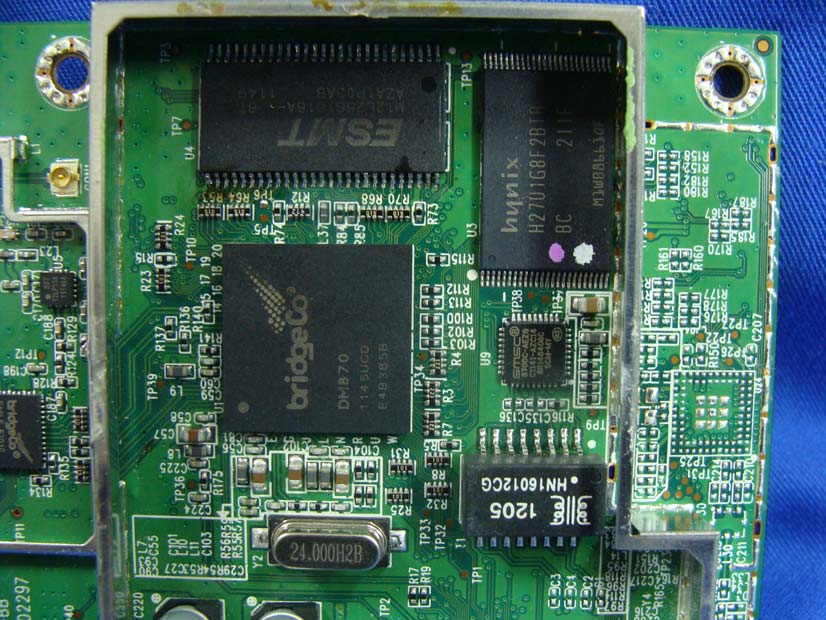

Report No.: 125030R-RFUSP42V01 Page : 1 of 12 Attachment 2 : EUT Detailed Photographs (1) EUT Photo – (ESMT) (2) EUT Photo Report No.: 125030R-RFUSP42V01 Page : 2 of 12 (3) EUT Photo (4) EUT Photo Report No.: 125030R-RFUSP42V01 Page : 3 of 12 (5) EUT Photo (6) EUT Photo Report No.: 125030R-RFUSP42V01 Page : 7 of 12 (13) EUT Photo – (Winbond) (14) EUT Photo Report No.: 125030R-RFUSP42V01 Page : 8 of 12 (15) EUT Photo (16) EUT Photo Report No.: 125030R-RFUSP42V01 Page : 9 of 12 (17) EUT Photo (18) EUT Photo

Lite-on Technology Corp. FCC ID.: PPQ-CR8702SB 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 FCC ID Label

Lite-on Technology Corp. FCC ID.: PPQ-CR8702SB 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

Report No.: 125030R-RFUSP42V01 Page : 4 of 12 (7) EUT Photo (8) EUT Photo Report No.: 125030R-RFUSP42V01 Page : 5 of 12 (9) EUT Photo (10) EUT Photo Report No.: 125030R-RFUSP42V01 Page : 6 of 12 (11) EUT Photo (12) EUT Photo Report No.: 125030R-RFUSP42V01 Page : 10 of 12 (19) EUT Photo (20) EUT Photo Report No.: 125030R-RFUSP42V01 Page : 11 of 12 (21) EUT Photo (22) EUT Photo Report No.: 125030R-RFUSP42V01 Page : 12 of 12 (23) EUT Photo (24) EUT Photo

Report No. 125030R-RFUSP42V01-A Page: 1 of 3 RF Exposure Evaluation declaration Product Name : JukeBlox Networked Media Module Model No. : CR870-2S-B FCC ID : PQ-CR8702SB Applicant : Lite-On Technology Corp. Address : 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt : Apr. 27, 2012 Date of Declaration: May 24, 2012 Report No. : 125030R-RFUSP42V01-A The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 125030R-RFUSP42V01-A Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 125030R-RFUSP42V01-A Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : JukeBlox Networked Media Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS (802.11b 1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 66.0693 0.020832 06 2437.00 67.7642 0.021366 11 2462.00 67.9204 0.021416 Power density in column 4 is much lower than the limit (1 mW/cm2). (802.11g 6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 209.4112 0.066028 06 2437.00 191.8669 0.060497 11 2462.00 178.6488 0.056329 Power density in column 4 is much lower than the limit (1 mW/cm2).

Report No. 125030R-RFUSP42V01 Page: 1 of 74 Test Report Product Name JukeBlox Networked Media Module Model No CR870-2S-B FCC ID. PPQ-CR8702SB Applicant Lite-On Technology Corp. Address 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt Apr. 27, 2012 Issue Date May 22, 2012 Report No. 125030R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 125030R-RFUSP42V01 Page: 2 of 74 Test Report Certification Issue Date: May 22, 2012 Report No.: 125030R-RFUSP42V01 Product Name JukeBlox Networked Media Module Applicant Lite-On Technology Corp. Address 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD Model No. CR870-2S-B FCC ID. PPQ-CR8702SB EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name Micro Module Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Assistant Engineer / Nowal Kuo ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 125030R-RFUSP42V01 Page: 3 of 74 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Test Procedure .............................................................................................................................16 3.5. Uncertainty ..................................................................................................................................16 3.6. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................20 4.3. Limits ..........................................................................................................................................21 4.4. Test Procedure .............................................................................................................................22 4.5. Uncertainty ..................................................................................................................................22 4.6. Test Result of Radiated Emission................................................................................................23 5. RF antenna conducted test........................................................................................................33 5.1. Test Equipment........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 125030R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 125030R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 125030R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
