PPQ-CX8703LBJukeBlox Networked Media Module

SMSC CX Module Revision 2.8 (09-30-12) SMSC CONFIDENTIAL JukeBlox Networked Media Module CX Series Datasheet • Complete audio networking system on a small module • Integrated Ethernet + USB 2.0 • WiFi-certified 802.11b/g • Built-in strip antenna • Optional 2X Diversity Antenna • Glueless audio, video and control ports • FCC certified • Ideal for enabling network and USB audio playback for iPod docks, audio systems, AV Receivers, active speaker systems, internet radios, network playback adaptors JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 2 Revision 2.8 (09-30-12) SMSC CONFIDENTIAL Copyright © 2012 SMSC or its subsidiaries. All rights reserved. Circuit diagrams and other information relating to SMSC products are included as a means of illustrating typical applications. Consequently, complete information sufficient for construction purposes is not necessarily given. Although the information has been checked and is believed to be accurate, no responsibility is assumed for inaccuracies. SMSC reserves the right to make changes to specifications and product descriptions at any time without notice. Contact your local SMSC sales office to obtain the latest specifications before placing your product order. The provision of this information does not convey to the purchaser of the described semiconductor devices any licenses under any patent rights or other intellectual property rights of SMSC or others. All sales are expressly conditional on your agreement to the terms and conditions of the most recently dated version of SMSC's standard Terms of Sale Agreement dated before the date of your order (the "Terms of Sale Agreement"). The product may contain design defects or errors known as anomalies which may cause the product's functions to deviate from published specifications. Anomaly sheets are available upon request. SMSC products are not designed, intended, authorized or warranted for use in any life support or other application where product failure could cause or contribute to personal injury or severe property damage. Any and all such uses without prior written approval of an Officer of SMSC and further testing and/or modification will be fully at the risk of the customer. Copies of this document or other SMSC literature, as well as the Terms of Sale Agreement, may be obtained by visiting SMSC’s website at http://www.smsc.com. SMSC is a registered trademark of Standard Microsystems Corporation (“SMSC”). Product names and company names are the trademarks of their respective holders. The Microchip name and logo, and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SMSC DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY AND ALL WARRANTIES ARISING FROM ANY COURSE OF DEALING OR USAGE OF TRADE. IN NO EVENT SHALL SMSC BE LIABLE FOR ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES; OR FOR LOST DATA, PROFITS, SAVINGS OR REVENUES OF ANY KIND; REGARDLESS OF THE FORM OF ACTION, WHETHER BASED ON CONTRACT; TORT; NEGLIGENCE OF SMSC OR OTHERS; STRICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE; WHETHER OR NOT ANY REMEDY OF BUYER IS HELD TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, AND WHETHER OR NOT SMSC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 3 Revision 2.8 (09-30-12) SMSC CONFIDENTIAL Table of Contents 1 INTRODUCTION............................................................................................................... 4 2 BLOCK DIAGRAM ............................................................................................................. 4 3 BOARD PICTURES............................................................................................................ 5 3.1 TOP VIEW OF CX MODULE................................................................................................... 5 3.2 BOTTOM VIEW OF CX MODULE.............................................................................................. 6 3.2.1 CX Module Bottom View w/64-pin Low Density Connector ........................................... 6 3.2.2 CX Module Bottom View w/120-pin Media Connector .................................................. 6 3.3 PRODUCTION MODULE WITH TOP AND RF SHIELDS IN PLACE – TOP VIEW............................................. 7 3.4 PRODUCTION MODULE WITH 64-PIN CONNECTOR OPTION – SIDE VIEW.............................................. 7 3.5 E XAMPLE P RODUCTION M ODULE S HOWING S OLDERED RF S HIELD ..................................................... 8 3.6 PRODUCTION MODULE WITH BOTTOM SHIELD (PART NUMBERS WITH A “B” AFTER THE CONFIGURATION LETTER)9 3.6.1 Including J3 Low Density 64-pin connector – Bottom View........................................... 9 3.6.2 Including J2 High Density 120-pin connector – Bottom View ........................................ 9 4 ORDERING GUIDE ......................................................................................................... 10 4.1 PART NUMBER SYNTAX..................................................................................................... 10 5 ELECTRICAL SPECIFICATIONS....................................................................................... 11 5.1 ABSOLUTE MAXIMUM RATINGS............................................................................................ 12 5.2 OPERATING CONDITIONS................................................................................................... 12 5.3 WIFI SPECIFICATION (CX870 ONLY).................................................................................... 13 6 REGULATORY COMPLIANCE AND QUALITY .................................................................... 14 6.0.1 Antenna Considerations .......…

Text truncated - open the document above for the full version.

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-CX8703LB 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C.Tel : 886-2-2222-6181 Federal Communications Commission Nov. 21., 2012 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-CX8703LB Product: JukeBlox Networked Media Module Model: CX870-3LB We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, TC WU / Director LITE-ON TECHNOLOGY CORP.

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-CX8703LB 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Tel : 886-2-2222-6181 LITE-ON TECHNOLOGY CORP. 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Federal Communications Commission Nov. 21., 2012 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (CX870-3LB) Schem Block Diagram: (CX870-3LB) BlkDia Operational Description: (CX870-3LB) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, TC WU / Director LITE-ON TECHNOLOGY CORP.

RF_160, Issue 02 LITE-ON TECHNOLOGY CORP. Declaration of Authorization We Name: LITE-ON TECHNOLOGY CORP. Address: 4F, 90 ,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. City: Taipei . Country: Taiwan..  Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: JukeBlox Networked Media Module Type designation: CX870-3LB Trademark: PICO Module on our behalf. Date: 2012/11/21.. City:  Taipei .. Name:  Tc Wu .. (2) Function: Director Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Modular Approval Request FCC (per FCC 15.212) FCC ID: PPQ-CX8703LB Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Please review external photos. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provi ded) t o ensure t hat the module will co mply w ith Part 15 requi rements under conditions of excessive data rates or over-modulation. The buffered integrated in chip 6201C. (Chip_U7). 3. The modular transmitter must have its own power supply regulation. Not have power regulation. 4. The modular transmitter must co mply with the an tenna r equirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Please review external photos or test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of t he device into which the module is installed must also di splay a label referring to the enclosed module. This exterior label can use wordi ng such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “C ontains FCC ID: XYZMODEL1 .” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an exa mple of which must be included in the application for equi pment authorization, or, m ust provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of t hese inst ructions must be i ncluded i n t he appli cation for equipment authorization. Please refer to the user manual instructions (page 39). 7. The modular transmitter must co mply w ith any speci fic rul e or operati ng requirements a pplicable to the transmitter and t he manufacturer must provi de adequate instructions along with the module to explain any such requirements. A copy of t hese i nstructions must be i ncluded i n t he ap plication for equi pment authorization. For exam ple, t here are very st rict operat ional and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case t here are separate fi eld strength level and timing requirements. Compliance with these requirements must be assured. The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): TC WU Date: Nov. 21, 2012 Signature:

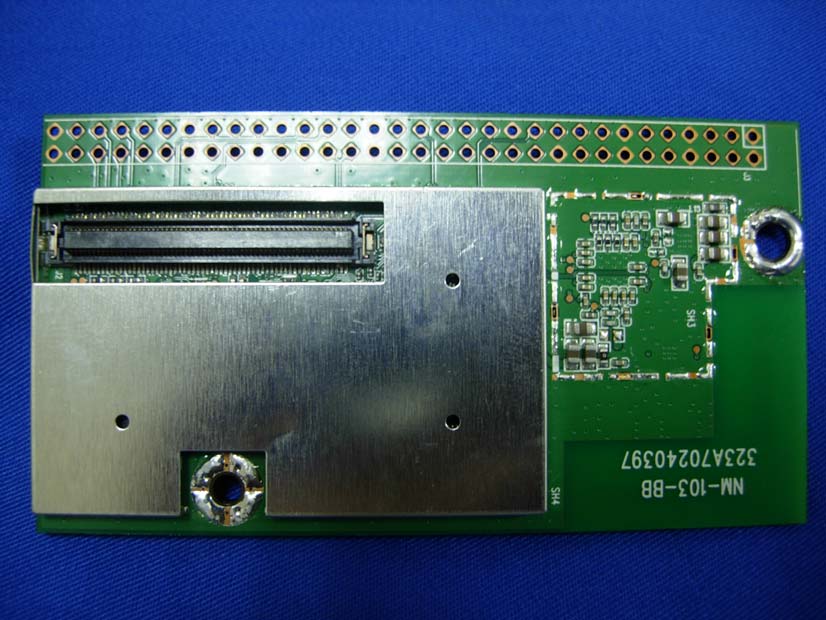

Report No.: 12B209R-RFUSP42V01 Page : 1 of 7 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-CX8703LB 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C.Tel : 886-2-2222-6181 FCC ID Label

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-CX8703LB 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C.Tel : 886-2-2222-6181 The FCC ID and will be placed on the equipment as shown in the photograph below.

Report No. 12B209R-RFUSP42V01 Page: 1 of 3 RF Exposure Evaluation declaration Product Name JukeBlox Networked Media Module Model No. CX870-3LB FCC ID PPQ-CX8703LB Applicant LITE-ON TECHNOLOGY CORP. Address 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Date of Receipt Sep. 04, 2012 Date of Declaration Nov. 19, 2012 Report No. 12B209R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12B209R-RFUSP42V01 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12B209R-RFUSP42V01 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : JukeBlox Networked Media Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS External Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.28 dBi in logarithm scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (1.28 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 72.6106 0.019397 6 2437.00 76.3836 0.020405 11 2462.00 76.5597 0.020452 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (1.28 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 164.8162 0.044028 6 2437.00 165.1962 0.044130 11 2462.00 174.5822 0.046637 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 12B209R-RFUSP42V01 Page : 1 of 70 Test Report Product Name JukeBlox Networked Media Module Model No CX870-3LB FCC ID. PPQ-CX8703LB Applicant LITE-ON TECHNOLOGY CORP. Address 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Date of Receipt Sep. 04, 2012 Issue Date Nov. 19, 2012 Report No. 12B209R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12B209R-RFUSP42V01 Page : 2 of 70 Test Report Certification Issue Date: Nov. 19, 2012 Report No.: 12B209R-RFUSP42V01 Product Name JukeBlox Networked Media Module Applicant LITE-ON TECHNOLOGY CORP. Address 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD. Model No. CX870-3LB FCC ID. PPQ-CX8703LB EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name PICO Module Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Nowal Kuo ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 12B209R-RFUSP42V01 Page : 3 of 70 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................17 4.1. Test Equipment............................................................................................................................17 4.2. Test Setup ....................................................................................................................................18 4.3. Limits ..........................................................................................................................................19 4.4. Test Procedure .............................................................................................................................20 4.5. Uncertainty ..................................................................................................................................20 4.6. Test Result of Radiated Emission................................................................................................21 5. RF antenna conducted test........................................................................................................29 5.1. Test Equipment...............................................................................…
