PPQ-IMP002imp Module

specification: imp002 version 20130221 http://www.electricimp.com 1.Product description 1.1 General description The imp is a complete wireless network node in a module. It is available both in a memory card form-factor (imp001) and in a solder-down module form-factor (imp002). It works in conjunction with the imp service to allow easy connection of any device to the internet. 1.2 Features • 802.11 b/g/n WiFi • 20MHz 11n channels, 1 x 1 • +16.75dBm max output power (802.11b) • -97dBm typical sensitivity (1Mbps) • Integrated antenna with 2.5dBi max gain • TX power • 802.11b 16.5dBm +/-1.5dBm • 802.11g 14.0dBm +/-1.5dBm • 802.11n 12.75dBm +/-1.5dBm • 32-bit Cortex M3 processor • Robust embedded operating system with fail-safe firmware updates • Virtual machine for vendor firmware • LED drive for red/green status LEDs • Phototransistor input for our patent-pending BlinkUp technology to provide optical configuration • 12 user selectable I/Os • GPIO, PWM, Analog input & output • SPI (2 channels), UART (4.5 channels), I2C (2 channels) • Low power 6uA sleep mode • FCC, CE, IC C-Tick certified electric imp, inc electric imp imp002 specification (confidential, not for distribution) 2 2.imp terminology TermDescription API The Application Programming Interface through which imp scripts may access hardware and cloud functions BlinkUp Our patent-pending optical programming process for commissioning an imp using a smart device (phone or tablet) CommissioningInitializing an imp by associating it with a user account and WiFi credentials, usually via BlinkUp electric imphttp://electricimp.com/aboutus/ (lower case by brand convention) Planner The imp cloud service which provides for the connection and configuration of imps and gateway communication with other devices RegistrationThe process by which an imp card or module becomes associated with host hardware ServerThe electric imp cloud service with which imps communicate FirmwareVendor provided code that runs within the imp’s virtual machine AgentVendor provided code that runs within the imp service electric imp, inc electric imp imp002 specification (confidential, not for distribution) 3 3.Pin assignments LPS 9'' 9'' 95() *1' *1' *1' *1' *1' *1' *1' *1' 3,1 3,1 3,1 3,1 3,1 3,1 3,1$ 3,1% 3,1& 3,1' 3,1( 3,1                               *1' *1' *1' *1' *1' *1' *1' 2372B%,$6 2372B,1   /('B5(' /('B*5((1   32:(5B(1  4.Pin description Pin numberPin nameDescription 1, 7, 13, 17, 23 to 32 & 35 GND1 to 15Ground 18, 33VDDPower input 2OPTO_BIASPhototransistor power; connects to collector of phototransistor 6OPTO_IN Phototransistor signal; connects to emitter of phototransistor, which is connected to ground via a bias resistor (typically 100k) 3LED_GREENGreen LED open-drain output (connect to cathode of LED) 4LED_REDRed LED open-drain output (connect to cathode of LED) 5POWER_EN Active-high output for boost DCDC enable. Is driven high when the module requires a 2.5-3.3v power supply, which is generally when WiFi is active. This pin has an internal pulldown. 34VREFADC reference voltage input. If unused, connect to VDD electric imp, inc electric imp imp002 specification (confidential, not for distribution) 4 8 to 12, 14 to 16 & 19 to 22 PIN1, 2, 5 to EI/O, please refer to Pin mux table 5.Pin mux In addition to acting as a GPIO, each pin on the imp002 can be configured to one of several specialized functions. While pins may only have one function at a time, they may be reconfigured during run-time to change function as needed. For example, a pin may first be configured as a DAC and then reconfigured as an ADC. Additionally, not all the pins in a hardware function need to be assigned to that function. For example, pins 8 and 9 could be used as UART and pins 1 and 2 could be used as I2C. All I/O pins are initially tri-stated. The imp002 can be woken from low power sleep mode with a rising edge on PIN1. If this signal is pulsed, the minimum pulse width is 20ms. PinGPIOUARTI2CSPIDACADCPWMPulse CountWake PIN 1YesU1-CTS, U3-TXI1-SCLSPI1-SCLKYesYesYesYesYes PIN 2YesU1-RTS, U3-RXI1-SDASPI2-MISOYesYes PIN 5YesU2-TXSPI2-SCLKYesYesYes electric imp, inc electric imp imp002 specification (confidential, not for distribution) 5 PIN 6YesU6-TX PIN 7YesU2-RXSPI2-MOSIYesYes PIN 8YesU1-TXI2-SCLSPI1-MOSIYesYes PIN 9YesU1-RXI2-SDASPI1-MSOYesYes PIN AYesYesYes PIN BYesU4-RXYesYes PIN CYesYes PIN DYesU1-RX PIN EYesU6-RX 7.Electrical characteristics ParameterConditionMinTypMaxUnit. Operating temperature-2055°C Operating voltage1.8[1]3.03.6V Sleep current WiFi is off, processor sleep, RTC on, nvram preserved 6μA Operating current Normal operation, WiFi on7080400[2]mA Operating current Power-save mode enabled25400[2]mA Pin driveMaximum current drive on I/O pins4mA VILI/O input low level voltageVSS-0.30.3VDDV VIHI/O input high level voltage0.7VDD3.6V LED current sink8mA Load capacitance Pins 1 to 920pF Load capacitance Pins 10 to 145pF electric imp, inc electric imp imp002 specification (confidential, not for distribution) 6 I/O input leakage currentVSS ≦ VIN ≦ VDD4μA [1] WiFi requires 2.5v minimum for operation, but user code can run at 1.8v. The POWER_EN pin is driven to enable an external boost converter that will provide 2.5v+ during WiFi usage. [2] 400mA current is during worst-case TX events. These are a maximum of ~4.8ms long (802.11b 1Mbps) 8.Package outline PCB dimensions electric imp, inc electric imp imp002 specification (confidential, not for distribution) 7 (all dimensions are in mm unless otherwise specified) Overall module dimensions electric imp, inc electric imp imp002 specification (confidential, not for distribution) 8 (all dimensions are in mm unless otherwise specified) electric imp, inc electric imp imp002 specification (confidential, not for distribution) 9 9.Recommended footprint PAU2023 PAU2024 PAU2025 PAU2026 PAU2027 PAU2028 PAU2029 PAU2030 PAU2031 PAU2032 PAU2033 PAU2034 PAU2035PAU201 P…

Text truncated - open the document above for the full version.

Modular Approval Request FCC (per DA 00-1407) FCC ID: _PPQ-IMP002 __ Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular transmitter has its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data inputs; it is integrated in chip 6201C. 3. The modular transmitter must have its own power supply regulation. The EUT have power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter is tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please refer to the user manual instructions 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The modular transmitter complies with any applicable RF exposure requirements. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): TC Wu Date: _Mar.18, 2013___ Signature: ___________________________

LITE-ON TECHNOLOGY CORP. 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2226-6749 Date 03/18/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: PPQ-IMP002 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, LITE-ON TECHNOLOGY CORP. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Operational Description Antenna Specification The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: TC Wu Telephone Number: 886-2-2222-6181 Email: [email protected]

LITE-ON TECHNOLOGY CORP. 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2226-6749 Date: 03/18/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, LITE-ON TECHNOLOGY CORP., hereby authorize A Test Lab Techno Corp / Mr.Murphy Wang, address: No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C., phone: +886-3-2710188 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 01/30/2014. Sincerely, ___________________________________ TC Wu / Director Tel: 886-2-2222-6181 E-mail: [email protected]

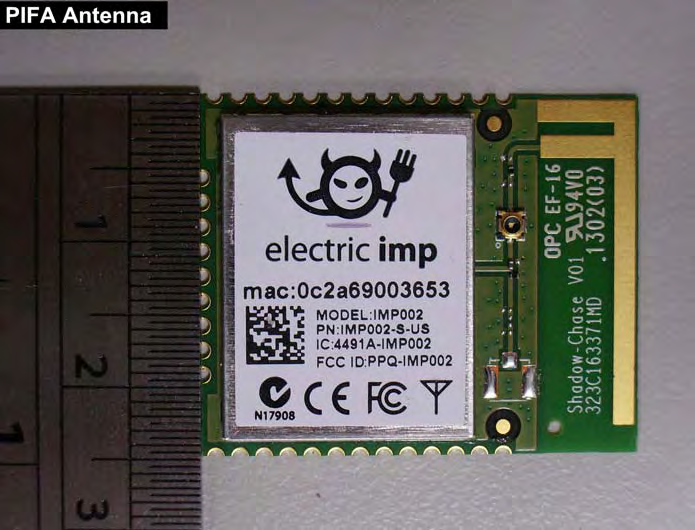

1 of 4 External Photos Model Number: IMP002 FCC ID: PPQ-IMP002 IC ID: 4491A-IMP002 2 of 4 EUT Photo 1 ) EUT Photo 2 ) 3 of 4 EUT Photo 3 ) EUT Photo 4 ) 4 of 4 EUT Photo 5 ) EUT Photo 6 )

Anny 谢丽丽 2012.11.20 MAD label 20*16mm (空白label): 50912107942D 耐高温材质XF-581 (客户):Electric imp MM11305640D 3:1 3 Chase 16mm 2 0 m m 1:1 (业务提供,)mac且列印字母用小写 固定 条码类型ECC200, 条码显示内容：L0c6a29000000 固定码 (代表US/CAN) (大写) A4 注：PN中,C=Chase US=USA/CAN 所有文字字型为：Arial 粗体 文字显示内容:0c6a29000000 mac MODEL:IMP002 PN:IMP002-C-US IC:4491A-IMP002 FCC ID:PPQ-IMP002 mac:0c6a29000000 16mm 2 0 m m MODEL:IMP002 PN:IMP002-C-US IC:4491A-IMP002 FCC ID:PPQ-IMP002 mac:0c6a29000000 Anny 谢丽丽 2012.11.20 MAD label 20*16mm (空白label): 50912107912D 耐高温材质XF-581 (客户):Electric imp MM11307020D 1:1 3 Shadow 16mm 2 0 m m 3:1 固定 (业务提供,)mac且列印字母用小写 条码类型ECC200, 条码显示内容：J0c6a29000000 J为固定 代表US/CAN (大写) A4 注:PN中S=Shadow,US=USA/CAN 所有自印文字字型为：Arial 粗体 文字显示内容:0c6a29000000 mac MODEL:IMP002 PN:IMP002-S-US IC:4491A-IMP002 FCC ID:PPQ-IMP002 mac:0c6a29000000 16mm 2 0 m m MODEL:IMP002 PN:IMP002-S-US IC:4491A-IMP002 FCC ID:PPQ-IMP002 mac:0c6a29000000 LITE-ON TECHNOLOGY CORP. FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

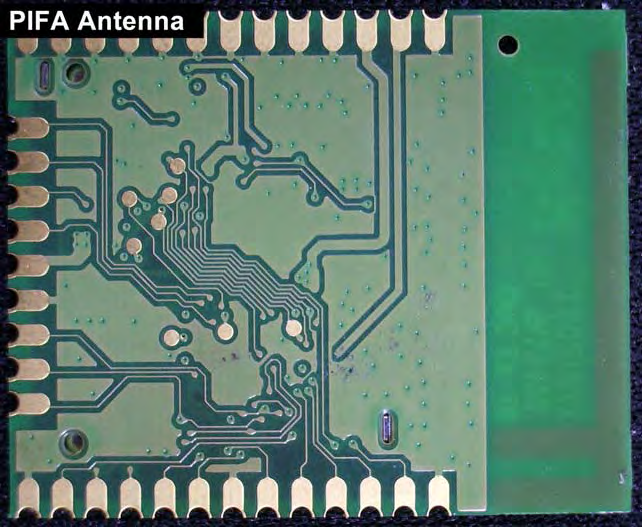

1 of 2 Internal Photos Model Number: IMP002 FCC ID: PPQ-IMP002 IC ID: 4491A-IMP002 2 of 2 EUT Photo 1 ) EUT Photo 2 )

©2013 A Test Lab Techno Corp. Report Number: 1302FS12Page 1 of 5 A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1302FS12 Applicant ： LITE-ON TECHNOLOGY CORP. Manufacturer ： electric imp, inc. Product Type ： imp Trade Name ： electric imp Model Number ： IMP002 Date of Received ： Feb. 05, 2013 Test Period ： Mar. 08, 2013 Date of Issued ： Mar. 13, 2013 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1992 H46-2/99-237E Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Yung Tan Tsai ) (Bill Hu) Contents 1. Description of Equipment under Test (EUT) ............................................................... 3 2. Human Exposure Assessment..................................................................................... 4 3. RF Output Power........................................................................................................... 5 4. Test Result .....................................................................................................................5 ©2013 A Test Lab Techno Corp. Report Number: 1302FS12Page 2 of 5 ©2013 A Test Lab Techno Corp. Report Number: 1302FS12Page 3 of 5 1. Description of Equipment under Test (EUT) Applicant LITE-ON TECHNOLOGY CORP. Applicant Address 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Manufacturer electric imp, inc. Manufacturer Address 5050 EI Camino Real, STE 221, Los Altos, CA94022, USA Product Type imp Trade Name electric imp Model Number IMP002 FCC ID PPQ-IMP002 IC 4491A-IMP002 Frequency Range IEEE 802.11b / IEEE 802.11g / 802.11n 2.4GHz (20MHz): 2412 ~ 2462 MHz Transmit Power IEEE 802.11 b: 0.037 W / 15.74 dBm (AVG. Conducted Power) IEEE 802.11 g: 0.019 W / 12.89 dBm IEEE 802.11n 2.4GHz (20MHz): 0.014 W / 11.61 dBm Antenna used Manufacturer Model Number Antenna Type Antenna Gain MAG.LAYERS SCIENTIFIC-TECHNICS EDA-8709-2G4R2-A37 External Antenna 2.00 dBi Lite-On Technology Corp.none PIFA Antenna 2.86 dBi Temperature Range -30 ~ +70°C The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Note: For evaluated 2G system, the transmission power P + G should be consider duty cycle. ©2013 A Test Lab Techno Corp. Report Number: 1302FS12Page 4 of 5 3. RF Output Power Conducted power (dBm) Band Date Rate CH Frequency (MHz) Avg. Peak Worst Case 01 2412 15.40 19.24 □ 06 2437 15.54 19.26 □ IEEE 802.11b 1 M 11 2462 15.74 19.32 ■ 01 2412 12.66 22.31 □ 06 2437 12.82 22.51 □ IEEE 802.11g 6 M 11 2462 12.89 22.56 ■ 01 2412 11.40 22.13 □ 06 2437 11.41 22.20 □ IEEE 802.11n 2.4GHz (20MHz) 6.5 M 11 2462 11.61 22.25 ■ 4. Test Result Band Data Rate Frequency (MHz) Limit (mw/cm 2 ) Distance [R] (cm) Tune-up power [P] (dBm) ANT Gain [G] (dBi) [P]+ [G] [TP] (W) Duty Cycle [TP] with duty cycle (W) Power Density [S] (mw/cm 2 ) Min. distance (cm) 2412 1.000 20 18.00 2.86 0.122 1 0.122 0.024 20cm 2437 1.000 20 18.00 2.86 0.122 1 0.122 0.024 20cm IEEE 802.11b 1 M 2462 1.000 20 18.00 2.86 0.122 1 0.122 0.024 20cm 2412 1.000 20 15.50 2.86 0.069 1 0.069 0.014 20cm 2437 1.000 20 15.50 2.86 0.069 1 0.069 0.014 20cm IEEE 802.11g 6 M 2462 1.000 20 15.50 2.86 0.069 1 0.069 0.014 20cm 2412 1.000 20 14.25 2.86 0.051 1 0.051 0.010 …

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C Product Type ： imp Applicant ： LITE-ON TECHNOLOGY CORP. Address ： 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Trade Name ： electric imp Model Number ： IMP002 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2012 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4-2009 Receive Date ： Feb. 05, 2013 Test Period ： Feb. 18 ~ Mar. 08, 2013 Issue Date ： Mar. 13, 2013 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1302FR12 1/82 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Mar. 13, 2013 Initial Issue Report Number: 1302FR12 2/82 A Test Lab Techno Corp. Verification of Compliance Issued Date: 03/13/2013 Product Type : imp Applicant : LITE-ON TECHNOLOGY CORP. Address : 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Trade Name : electric imp Model Number : IMP002 FCC ID : PPQ-IMP002 IC : 4491A-IMP002 EUT Rated Voltage : DC 3.3V Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2012 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4-2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Murphy Wang) (Testing Engineer) (Fly Lu) Report Number: 1302FR12 3/82 A Test Lab Techno Corp. TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 2 EUT Description ............................................................................................................................................. 7 3 Test Methodology .......................................................................................................................................... 8 3.1. Mode of Operation.................................................................................................................................. 8 3.2. EUT Exercise Software.......................................................................................................................... 8 3.3. Configuration of Test System Details ..................................................................................................... 9 3.4. Test Site Environment ...........................................................................................................................11 4 Conducted Emission Measurement ........................................................................................................... 12 4.1. Limit ...................................................................................................................................................... 12 4.2. Test Instruments ................................................................................................................................... 12 4.3. Test Setup............................................................................................................................................. 12 4.4. Test Procedure ..................................................................................................................................... 13 4.5. Test Result............................................................................................................................................ 14 5 Radiated Emission Measurement............................................................................................................... 16 5.1. Limit ...................................................................................................................................................... 16 5.2. Test Instruments ................................................................................................................................... 16 5.3. Setup .................................................................................................................................................... 17 5.4. Test Procedure ..................................................................................................................................... 18 5.5. Test Result............................................................................................................................................ 20 6 Maximum Conducted Output Power Measurement.................................................................................. 35 6.1. Limit ...................................................................................................................................................... 35 6.2. Test Setup..........................................................................…

Text truncated - open the document above for the full version.

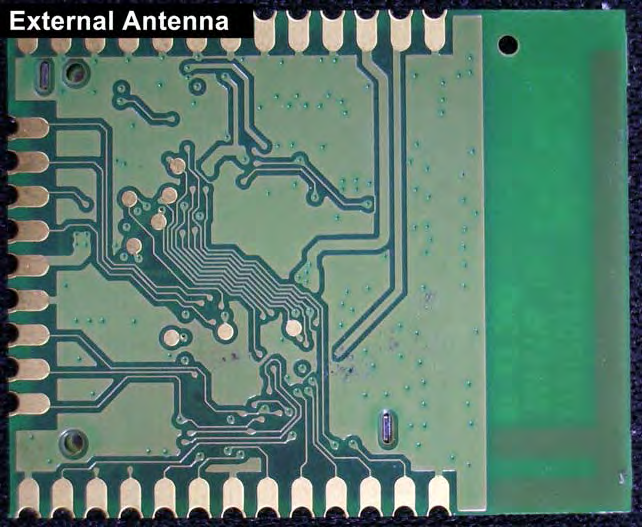

Part 15C Test Setup Photographs Conducted Emissions Test Configuration (none): Front View Rear View Report Number: 1302FR12 1/8 A Test Lab Techno Corp. Radiated Emissions Test Configuration (none): Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: 1302FR12 2/8 A Test Lab Techno Corp. Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: 1302FR12 3/8 A Test Lab Techno Corp. Close View Report Number: 1302FR12 4/8 A Test Lab Techno Corp. Conducted Emissions Test Configuration (EDA-8709-2G4R2-A37): Front View Rear View Report Number: 1302FR12 5/8 A Test Lab Techno Corp. Radiated Emissions Test Configuration (EDA-8709-2G4R2-A37): Below 1GHz _ Front View Below 1GHz _ Rear View Report Number: 1302FR12 6/8 A Test Lab Techno Corp. Above 1GHz _ Front View Above 1GHz _ Rear View Report Number: 1302FR12 7/8 A Test Lab Techno Corp. Close View Report Number: 1302FR12 8/8 A Test Lab Techno Corp.
