PPQ-MP1803M POCKET PROJECTOR

Pocket Projector Operator’s Guide 3M ™ MP180 3 3M ™ Pocket Projector MP180 © 2010 3M. All Rights Reserved. English 2 3M ™ Pocket Projector MP180 © 2010 3M. All Rights Reserved. English 3 Contents Intended Use Statement ..........................................................................4 Safety Information ...................................................................................4 Safety Labels .........................................................................................7 Introduction ............................................................................................8 Package Contents ...................................................................................9 Parts ....................................................................................................10 Remote Control ....................................................................................11 Getting Started .....................................................................................12 Making Connections ..............................................................................16 Basic Operating Instructions ..................................................................19 Basic File Operations .............................................................................24 Browsing the Internet ............................................................................26 Media Files ...........................................................................................27 Watching Video .....................................................................................28 Listening to Music .................................................................................30 Viewing Photos .....................................................................................31 Viewing Office and PDF Files .................................................................34 Viewing Microsoft Word and Adobe PDF Files ..........................................35 Favorites ..............................................................................................38 Transferring Files Through Bluetooth ......................................................38 Settings ................................................................................................39 Firmware Upgrade ................................................................................41 Cleaning the Projector ...........................................................................42 Troubleshooting ....................................................................................42 Specifications .......................................................................................44 Limited Warranty ...................................................................................46 Video and Audio Decoder Notices ...........................................................51 3M ™ Pocket Projector MP180 © 2010 3M. All Rights Reserved. English 4 Intended Use Statement The 3M ™ MP180 Projector is designed to operate with the 3M-specified battery and 3M power adapter in normal office or home environments. • 10 ̊–35 ̊C (50 ̊–95 ̊F) • 10–80% RH (without condensation) • 0–1829 m (0–6000 feet) above sea level The ambient operating environment should be free of airborne smoke, grease, oil and other contaminants that can affect the operation or performance of the projector. Use of this product in adverse conditions will void the product warranty. Safety Information Please read, understand, and follow all safety information contained in these instructions prior to the use of this projector. Retain these instructions for future reference. Explanation of Signal Word Consequences m Warning: Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury and/or property damage. m Caution: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury and/or property damage.  Warning: Hazardous voltage 3M ™ Pocket Projector MP180 © 2010 3M. All Rights Reserved. English 5 m Warning To reduce the risk associated with hazardous voltage: • Do not modify this product in any way. Use only 3M-approved replacement components. • Do not attempt to service this projector other than battery replacement. There are no user-serviceable parts other than the battery. Service to be performed only by a 3M-authorized service provider using 3M-approved system components. • Do not use the wall power supply in a wet environment. • Do not use with a damaged wall power supply. Replace damaged part prior to use. To reduce the risk associated with fire and explosion: • Do not immerse the projector or battery in any liquid or allow either to get wet. • Use only 3M-approved power supply and lithium ion battery provided. • Do not disassemble or short circuit the battery. • Do not dispose of the battery by incineration or fire. • Do not operate this projector in any environment above 35°C (95°F). • Do not expose the projector or battery to direct sunlight in a closed space such as a vehicle. • Do not carry the battery in pockets, purses or handbags where it may contact metal objects. • Do not place battery in contact with metal objects. • Do not expose or store battery in direct sunlight or excessive heat (>60°C [140°F]), or in moist or caustic environments. To reduce the risks associated with driver distraction: • Do not use this projector in a moving motor vehicle. To reduce the risks associated with choking: • Keep microSD card, AV adapters and other small parts away from young children. 3M ™ Pocket Projector MP180 © 2010 3M. All Rights Reserved. English 6 m Warning To reduce the risk associated with fire and explosion, battery leakage or overheating: • Do not immerse the battery in water or allow it to get wet. • Do not reverse the positive(+) and negative(-) terminals. • Do not connect the battery directly to a wall outlet. U…

Text truncated - open the document above for the full version.

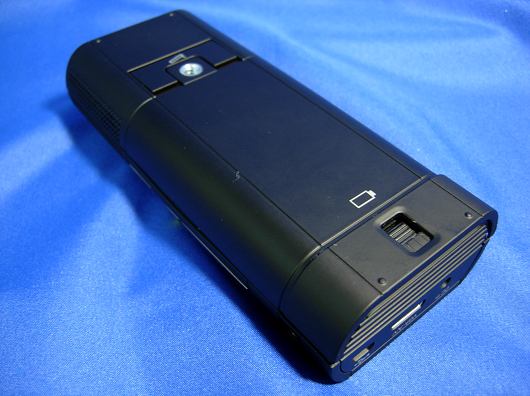

Report No.: 109301R-RFUSP42V01 Page : 1 of 18 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

LITE-ON TECHNOLOGY CORP FCC ID.: PPQ-MP180 22F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Tel : 886-3-601-1966#300 FCC ID Label LITE-ON TECHNOLOGY CORP FCC ID.: PPQ-MP180 22F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Tel : 886-3-601-1966#300 The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

LITE-ON TECHNOLOGY CORP FCC ID.: PPQ-MP180 22F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Tel : 886-3-601-1966#300 FCC ID Label LITE-ON TECHNOLOGY CORP FCC ID.: PPQ-MP180 22F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Tel : 886-3-601-1966#300 The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 109301R-RFUSP42V01 Page : 2 of 18 (3) EUT Photo (4) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 3 of 18 (5) EUT Photo (6) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 4 of 18 (7) EUT Photo (8) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 5 of 18 (9) EUT Photo (10) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 6 of 18 (11) EUT Photo (12) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 7 of 18 (13) EUT Photo (14) EUT Photo Bluetooth Antenna Report No.: 109301R-RFUSP42V01 Page : 8 of 18 (15) EUT Photo (16) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 9 of 18 (17) EUT Photo (18) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 10 of 18 (19) EUT Photo (20) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 11 of 18 (21) EUT Photo (22) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 12 of 18 (23) EUT Photo (24) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 13 of 18 (25) EUT Photo (26) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 14 of 18 (27) EUT Photo (28) EUT Photo WLAN Antenna Report No.: 109301R-RFUSP42V01 Page : 15 of 18 (29) EUT Photo (30) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 16 of 18 (31) EUT Photo (32) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 17 of 18 (33) EUT Photo (34) EUT Photo Report No.: 109301R-RFUSP42V01 Page : 18 of 18 (35) EUT Photo

Report No. 109301R-RFUSP42V01 Page : 7 of 97 1.2. Operational Description The EUT is a 3M Pocket Projector, This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). The device provided of eight kinds of transmitting speed 7.2,14.4,21.7,28.9,43.3,57.8,65 and 72.2Mbps in 802.11n(20M-BW) mode and 15,30,45,60,90,120,135 and 150 Mbps (40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n). The IEEE 802.11n is one antennas to support 1(Transmit) * 1(Receive) SISO (Single In, Single Out) technology. The 3M Pocket Projector, compliant with IEEE 802.11b and IEEE 802.11g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the 3M Pocket Projector Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g/n network. This equipment includes WLAN and Bluetooth, which cannot transmit signals simultaneously, no assessment of collocation.

Report No：109301R-HPUSP10V01 Page: 1 of 22 SAR Test Report Product Name ：3M Pocket Projector Model No. ：MP180 Applicant ： LITE-ON TECHNOLOGY CORP Address ： 22F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Date of Receipt ：2010/09/20 Issued Date ：2010/12/30 Report No. ：109301R-HPUSP10V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：109301R-HPUSP10V01 Page: 2 of 22 Test Report Certification Issued Date: 2010/12/30 Report No.:109301R-HPUSP10V01 Product Name ： 3M Pocket Projector Applicant ： LITE-ON TECHNOLOGY CORP Address ： 22F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Manufacturer ： 3M COMPANY PROJECTION SYSTEMS DEPT Model No. ： MP180 Trade Name ： 3M FCC ID ： PPQ-MP180 Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) 0.032 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Adm.Assistant / Anny Chou) Tested By ： (Engineer / Jung Chang) Approved By ： (Manager / Vincent Lin) Report No：109301R-HPUSP10V01 Page: 3 of 22 TABLE OF CONTENTS Description Page 1. General Information..........................................................................................5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System............................................................................7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid...............................................................................13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure.....................................................................15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits.....................................................................................17 6. Test Equipment List........................................................................................18 7. Measurement Uncertainty.............................................................................19 8. Peak Conducted Power Measurement......................................................20 9. Test Results......................................................................................................21 9.1 SAR Test Results Summary ......................................................................................... 21 Report No：109301R-HPUSP10V01 Page: 4 of 22 Appendix Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：109301R-HPUSP10V01 Page: 5 of 22 1. General Information 1.1 EUT Description Product Name 3M Pocket Projector Trade Name 3M Model No. MP180 FCC ID PPQ-MP180 TX Frequency 2412MHz ~ 2462MHz Number of Channel 11 Type of Modulation DSSS/OFDM WLAN Module MFR: LITE-ON, M/N: WN4605R Device Category Portable RF Exposure Environment Uncontrolled Max. Output Power (Conducted) 802.11b: 19.43 dBm 802.11g: 25.16 dBm 802.11n: 24.79 dBm Note: Test Procedures are according to KDB…

Text truncated - open the document above for the full version.

Report No. 109301R-RFUSP42V01 Page : 1 of 97 Test Report Product Name 3M Pocket Projector Model No MP180 FCC ID. PPQ-MP180 Applicant LITE-ON TECHNOLOGY CORP Address 22F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Date of Receipt Sep. 20, 2010 Issue Date Dec. 16, 2010 Report No. 109301R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 109301R-RFUSP42V01 Page : 2 of 97 Test Report Certification Issue Date: Dec. 16, 2010 Report No.: 109301R-RFUSP42V01 Product Name 3M Pocket Projector Applicant LITE-ON TECHNOLOGY CORP Address 22F, 392 RUEY KUANG RD NEIHU TAIPEI, 114 TAIWAN Manufacturer 3M COMPANY PROJECTION SYSTEMS DEPT Model No. MP180 FCC ID. PPQ-MP180 EUT Rated Voltage AC 100-240 V, 50-60 Hz EUT Test Voltage AC 120V/60Hz Trade Name 3M Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Eason Hung ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 109301R-RFUSP42V01 Page : 3 of 97 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................20 4.1. Test Equipment............................................................................................................................20 4.2. Test Setup ....................................................................................................................................21 4.3. Limits ..........................................................................................................................................22 4.4. Test Procedure .............................................................................................................................23 4.5. Uncertainty ..................................................................................................................................23 4.6. Test Result of Radiated Emission................................................................................................24 5. RF antenna conducted test........................................................................................................40 5.1. Test Equipment............................................................................................................................40 5.2. Test Setup ......................…

Text truncated - open the document above for the full version.

Report No. 109301R-RFUSP42V01 Page: 69 of 97 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2010 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. 7.5. Uncertainty ± 150Hz SMA EUT Spectrum Analyzer RF Cable Report No. 109301R-RFUSP42V01 Page: 70 of 97 7.6. Test Result of Occupied Bandwidth Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 12550 >500 Pass Figure Channel 1: Report No. 109301R-RFUSP42V01 Page: 71 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 12250 >500 Pass Figure Channel 6: Report No. 109301R-RFUSP42V01 Page: 72 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 12200 >500 Pass Figure Channel 11: Report No. 109301R-RFUSP42V01 Page: 73 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 16600 >500 Pass Figure Channel 1: Report No. 109301R-RFUSP42V01 Page: 74 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 16650 >500 Pass Figure Channel 6: Report No. 109301R-RFUSP42V01 Page: 75 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 16600 >500 Pass Figure Channel 11: Report No. 109301R-RFUSP42V01 Page: 76 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 17700 >500 Pass Figure Channel 1: Report No. 109301R-RFUSP42V01 Page: 77 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 17700 >500 Pass Figure Channel 6: Report No. 109301R-RFUSP42V01 Page: 78 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 17700 >500 Pass Figure Channel 11: Report No. 109301R-RFUSP42V01 Page: 79 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2422.00 36400 >500 Pass Figure Channel 1: Report No. 109301R-RFUSP42V01 Page: 80 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 4 2437.00 36450 >500 Pass Figure Channel 4: Report No. 109301R-RFUSP42V01 Page: 81 of 97 Product : 3M Pocket Projector Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2452MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 7 2452.00 36450 >500 Pass Figure Channel 7: Report No. 109301R-RFUSP42V01 Page: 82 of 97 8. Power Density 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2010 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 8.2. Test Setup 8.3. Limits The transmitted power density averaged over any 1 second interval shall not be greater +8dBm in any 3kHz bandwidth. 8.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 3 kHz, VBW=10KHz, Sweep time=(SPAN/3KHz), detector=Peak detector 8.5. Uncertainty ± 1.27 dB SMA EUT Spectrum Analyzer RF Cable Report No. 109301R-RFUSP42V01 Page: 83…

Text truncated - open the document above for the full version.

Report No.: 109301R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 109301R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 109301R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
