PPQ-MW0100RLow Power Wi-Fi Module

MW0100R Product Specification Page 1/9 LTC Network Access Confidential PRODUCT SPECIFICATION MW0100R Low Power Wi‐Fi Module Version 1.1 Author : Rocky CC Chen Editor : Project Leader: Approved by: Change History Revision Date Author Change List 1.0 May 5 th , 2015 Rocky CC Chen Draft 1.1 May 25 th , 2015 Rocky CC Chen Update Tx, Rx and power consumption * This document contains confidential proprietary information and is property of LTC . The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC . MW0100R Product Specification Page 2/9 LTC Network Access Confidential CONTENT 1. PRODUCT OVERVIEW ...................................................................................................................... 3 1.1 DESCRIPTION .............................................................................................................................. 3 1.2 FEATURES ................................................................................................................................... 3 1.3 GENERAL SPECIFICATIONS ...................................................................................................... 3 1.4 BLOCK DIAGRAM ....................................................................................................................... 5 2. PIN ASSIGNMENT AND DESCRIPTION ............................................................................................. 5 3. RECOMMENDED FOOTPRINT ..................................................................... 錯誤! 尚未定義書籤。 MW0100R Product Specification Page 3/9 LTC Network Access Confidential 1. Product Overview 1.1 Description MW0100R is Low Power Wi‐Fi Module uses IEEE 802.11 b/g/n standard to network the low‐power mobile application on Apple HomeKit platform. It also integrates ARM‐Cortex M3 MCU, WLAN MAC, 1T1R capable WLAN baseband, internal memories and PCB Antenna. Developers can be benefit from the quick‐installed module without RF expertise to enter HomeKit application market. 1.2 Features  Apple HomeKit Compatible  IEEE 802.11 b/g/n (1x1) for up to 150Mbps  SoC with MCU and WLAN IC  Lower power consumption  On‐board printed antenna  RF feed point, optional external antenna  u.fl connector, optional external antenna  Operating temp: 0~70 o C  Total 33‐pin Stamp Holes, SMT  Type A form factor: 24x17mm 1.3 General Specifications WLAN SoC Realtek RTL8711AM CPU ARM Cortex M3 (166MHz) RAM/Flash 64KB+448KB/1MB (external) Frequency Range 2.412GHz ~ 2.4835GHz, ISM band Frequency Band IEEE 802.11 b/g/n, Wi‐Fi compliant 11 for North America, 13 for CE, 14 for Japan Data Rate 802.11 b:1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11 n(20MHz, normal GI, 800ns):6.5, 13, 19.5, 26, 39, 52, 58.5, 65MHz 802.11 n(20MHz, short GI, 400ns):7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2 MHz Power Amplify Internal Transmit Power 802.11b /11Mbps: 17dBm ± 1dB 802.11g /54Mbps: 15dBm ± 1dB 802.11n /65Mbps: 14dBm ± 1dB Receiver Sensitivity 802.11n MW0100R Product Specification Page 4/9 LTC Network Access Confidential  MCS=7 PER @ ‐85dBm ± 1dB 802.11g  54Mbps PER @ ‐75dBm ± 1dB 802.11b  11Mbps PER @ ‐70dBm ± 1dB Power Consumption Deep Sleep: 0.04mW Idle: 8.2mW Rn in Active Clock: 56mW 11n RX Mode: 237mW 11n TX Mode: 690mW Network features TCP, UDP, DHCP, ARP, HTTP, SSL, and DNS Encryption Supports IEEE 802.11 WEP, WPA, WPA2 Security Serial Data Interface I2C ,UART,SPI Antenna Printing ANT or EXT ANT Operating Temperature 0 o C ~70 o C Dimensions 24mm x17mm Power Requirements 3.3V Certification & Environmental Requirements HomeKit FCC/IC/CE Wi‐Fi RoHS MW0100R Product Specification Page 5/9 LTC Network Access Confidential 1.4 Block Diagram 2. Pin Assignment and Description Pin Number Pin Name Pin Description I/O 1 GND Ground P 2 GND Ground P 3 PIO_8_MISO SPI_MISO when pin25 is H. GPIO8 when pin25 is L. I/O 4 PIO_5_CLK SPI_CLK when pin25 is H. GPIO5 when pin25 is L. I/O 5 NC NC ‐‐ 6 NC NC ‐‐ 7 PIO_4 GPIO4 I/O 8 NC NC ‐‐ 9 NC NC ‐‐ 10 PIO_10 GPIO10 I/O 11 PIO_11 GPIO11 I/O 12 GND Ground P 13 VDD Power Source for Module P 14 PIO_9 GPIO9 I/O MW0100R Product Specification Page 6/9 LTC Network Access Confidential 15 PIO_8_MISO SPI_MISO when pin25 is H. GPIO8 when pin25 is L. I/O 16 NC NC ‐‐ 17 NC NC ‐‐ 18 PIO_3 GPIO3 I/O 19 PIO_0/UART_TX GPIO0 or UART_Tx I/O 20 PIO_1/UART_RX GPIO1 or UART_Rx I/O 21 PIO_6_CS SPI_CS when pin25 is H. GPIO6 when pin25 is L. I/O 22 NC NC ‐‐ 23 NC NC ‐‐ 24 PIO_7_MOSI SPI_MOSI when pin25 is H. GPIO7 when pin25 is L. I/O 25 SPI_PIO#_SEL H to select GPIO5~8 for SPI(Debug use) L to select programmable GPIO I/O 26 WAKEUP L to wake module from hibernate or dormant I/O 27 NC NC ‐‐ 28 AIO_2 AIO_2(Voltage not exceed to 1.35V) I/O 29 AIO_1 AIO_1(Voltage not exceed to 1.35V) I/O 30 AIO_0 AIO_0(Voltage not exceed to 1.35V) I/O 31 GND Ground P 32 RF RF feed point. Connect to Antenna O 33 GND Ground P Liteon Type A module MW0100R Product Specification Page 7/9 LTC Network Access Confidential 3. Recommended FootPrint FCC FEDERAL COMMUNICATIONS COMMISION (FCC) STATEMENT 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 December 9, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Lite-On Technology Corp. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Low Power Wi-Fi Module / MW0100R FCC ID: PPQ-MW0100R Sincerely, Client’s signature Client’s name & title: TC Wu & Director Applicant: Lite-On Technology Corp. ADDRESS: Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C TEL: 886-2-2222-6181 FAX: 886-2-2222-6181 Email: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 4 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 3 of 4 Rev 5.0 December 9, 2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: PPQ-MW0100R To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47, and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of / / not to exceed 180 days from the Grant Date. See KDB 726920.. - User Manual - Setup Photos - External Photos - Internal Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature: Client’s name & title: TC Wu & Director Applicant: Lite-On Technology Corp. ADDRESS: Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C TEL: 886-2-2222-6181 FAX: 886-2-2222-6181 Email: [email protected] SCS-F19: Confidentiality Request Letter Page 2 of 4 Rev 5.0 December 9, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PPQ-MW0100R Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description - Operational Description - Antenna Specification The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name & title: TC Wu & Director Applicant: Lite-On Technology Corp. ADDRESS: Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C TEL: 886-2-2222-6181 FAX: 886-2-2222-6181 Email: [email protected]

SCS-F26 Modular Approval Letter Page 1 of 3 Rev 9.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (obsolete) 6.0 7.0 Jan-31-2012 Updated modular requirement (obsolete) 7.0 8.0 Sept 05 2014 Updated template to meet RSP 100 issue 10 (current) 8.0 9.0 Nov 20 2014 SCS-F26 Modular Approval Letter Page 2 of 3 Rev 9.0 December 9, 2015 (Product name) FCC ID : PPQ-MW0100R is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: * Please provide a detailed explanation if the answer is “No.” Item Modular requirement Yes No 1 The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; v 2 The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; v 3 The module must contain power supply regulation on the module; v 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); v 5 The module must demonstrate compliance in a stand-alone configuration; v 6 The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); v 7 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; v 8 The module must comply with RF exposure requirements v Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s signature Client’s name & title: TC Wu & Director Applicant: Lite-On Technology Corp. ADDRESS: Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C TEL: 886-2-2222-6181 FAX: 886-2-2222-6181 SCS-F26 Modular Approval Letter Page 3 of 3 Rev 9.0 Email: [email protected]

WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : PPQ-MW0100R Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. _________________ Others Pls explain detail here. Client’s signature Client’s name & title: TC Wu & Director Applicant: Lite-On Technology Corp. ADDRESS: Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C TEL: 886-2-2222-6181 FAX: 886-2-2222-6181 Email: [email protected]

Issue Date: Dec. 09, 2015 Page: 1 of 3 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group EXTERNAL PHOTOGRAPHS OF EUT Front View of EUT Back View of EUT Issue Date: Dec. 09, 2015 Page: 2 of 3 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Side View of EUT – 1 Side View of EUT – 2 Issue Date: Dec. 09, 2015 Page: 3 of 3 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Side View of EUT – 3 Side View of EUT – 4

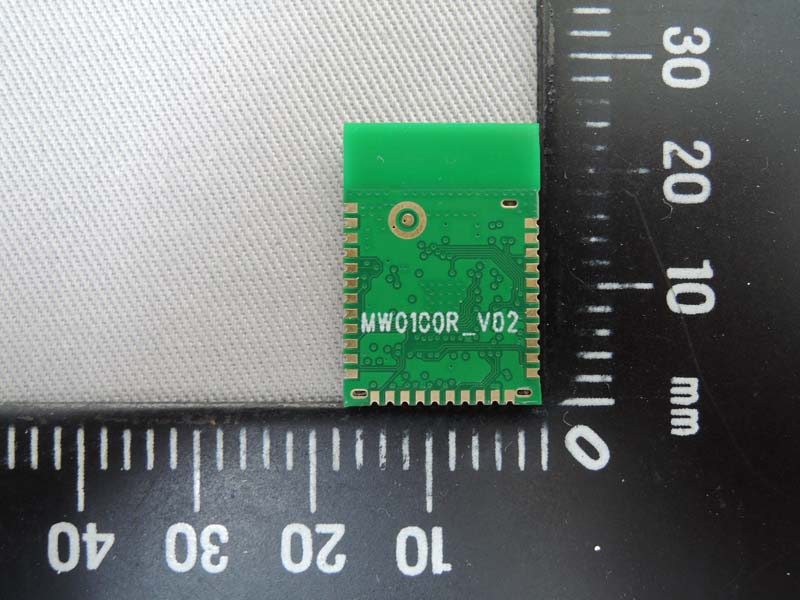

Label & Location Front Side

Issue Date: Dec. 09, 2015 Page: 1 of 1 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group INTERNAL PHOTOGRAPHS OF EUT Internal View of EUT WLAN Antenna

Report No.:E2/2015/B0047 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group 1 MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be op- erated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density Report No.:E2/2015/B0047 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group 1.2 Maximum Permissible Exposure (MPE) Evaluation MPE Prediction (802.11b 2412~2462) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Max. output power including tune-up tolerancel: 18.00 (dBm) Max. output power including tune-up tolerancel: 63.095734 (mW) Duty cycle: 100 (%) Maximum Pav : 63.095734 (mW) Peak Antenna gain (Maximum): 2.55 (dBi) Peak Antenna gain (linear): 1.7988709 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.023 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.023 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2462MHz. Report No.:E2/2015/B0047 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any u…

Text truncated - open the document above for the full version.

Report No.:E2/2015/B0047 Page 1 of 96 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-327 9f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT AND INDUSTRY CANADA RSS 247 OF Product Name: Low Power Wi-Fi Module Brand Name: LITE-ON Model No.: MW0100R Model Difference: N/A FCC ID: PPQ-MW0100R IC: 4491A-MW0100R Report No.: …

Text truncated - open the document above for the full version.
