PPQ-MZ0100S-1Zigbee Module

MZ0100S-1 Product Specification Page 1/9 LTC Network Access Confidential PRODUCT REQUIREMENT SPECIFICATION MZ0100S-1 ZigBee Module Version 1.2 Author: Javon Tseng Editor: Javon Tseng Project Leader: Daniel KW Yang Approved by: Daniel KW Yang Change History Revision Date Author Change List 1 Nov, 01, 2014 Javon Tseng Initial 1.1 Dec. 31, 2014 Jesse Yang Added PA feature 1.2 Apr.26, 2015 Rocky Chen Update * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. MZ0100S-1 Product Specification Page 2/9 LTC Network Access Confidential CONTENT 1 PRODUCT OVERVIEW.................................................................................................................3 1.1 DESCRIPTION........................................................................................................................3 1.2 FEATURES.............................................................................................................................3 1.3 GENERAL SPECIFICATIONS.................................................................................................3 2. PIN ASSIGNMENT AND DESCRIPTION.........................................................................................5 3. RECOMMENDED FOOTPRINT.....................................................................................................6 MZ0100S-1 Product Specification Page 3/9 LTC Network Access Confidential 1 Product Overview 1.1 Description The MZ0100S-1, ZigBee Module is using 32-bit ARM® Cortex®-M3 microprocessor and an integrated ultra-low power 2.4GHz ISM band, compliance with IEEE 802.15.4 transceiver. These ZigBee Module is available in 33-pin stamp holes packages with up to 512KB Flash, and 64KB of SRAM. MZ0100S is based on SILICON LABS EM3585 single chip ZigBee solution the Wireless sensor networking, Industrial control, Machine-to-Machine (M2M) and emerging Internet of Things (IoT) markets. 1.2 Features
32-bit ARM Cortex-M3 Processor
Frequency 2.4 GHz, IEEE 802.15.4 compliant RF transceiver
64KB of RAM
512KB Flash
External PA integrated
Support on-chip OTA, over-the-air, upgrade
Excellent Receiver Sensitivity of -101dBm
Programmable Output Power up to +19dBm, configurable
Operating temp: -40~85 o C
Total 33-pin Stamp Holes, SMT
Type A form factor: 24x17mm
RoHS Compliant 1.3 General Specifications RF Chipset SILICON LABS EM3585 Standard 2.4 GHz IEEE 802.15.4-2003 ZigBee Bus Interface Data: SPI, UART and I2C (SW configurable) RF Frequency Range 2.405~2.475 GHz (channel 11 -26) Power Amplify External Transmit Output Power +19dBm Receiver Sensitivity -101dBm Operating Voltage 2.1V~3.6V Operation temperature -40~+85 o C Power Consumption Transmit Mode: 54.4mA Receive Mode: 29.4mA Deep Sleep Mode: 7uA MZ0100S-1 Product Specification Page 4/9 LTC Network Access Confidential Antenna Type 1. Print Antenna 2. Feed Point Certification & Environmental Requirements FCC/IC/CE ZigBee RoHS MZ0100S-1 Product Specification Page 5/9 LTC Network Access Confidential 2. Pin Assignment and Description Pin Number Module Pin Name Pin Description I/O 1 GND Ground P 2 GND Ground P 3 NC NC -- 4 nRST Reset Pin. Active Low I 5 PC6 Digital I/O I/O 6 PC7 Digital I/O I/O 7 PA7 Digital I/O I/O 8 PB3 Digital I/O I/O 9 PB4 Digital I/O I/O 10 PA0 Digital I/O I/O 11 PA1/I2C_SDA Digital I/O. I2C_Serial Data I/O 12 GND Ground P 13 VDD Power Source for Module P 14 PA2/I2C_SCL Digital I/O. I2C_Serial Clock I/O 15 PA3 Digital I/O I/O 16 PA4 Digital I/O I/O 17 PA5 Digital I/O I/O 18 PA6 Digital I/O I/O 19 PB1/UART_TX Digital I/O . UART_Tx I/O 20 PB2/UART_RX Digital I/O . UART_Rx I/O 21 JTCLK JTAG Clock Pin. For Debug and programming. I 22 PC2 Digital I/O I/O 23 PC3 Digital I/O I/O 24 PC4 JTAG Data Pin. For Debug and programming. I/O 25 PB0 Digital I/O I/O 26 PC1 Digital I/O I/O 27 PC0 Digital I/O I/O 28 PB7 Digital I/O I/O 29 PB6 Digital I/O I/O 30 PB5 Digital I/O I/O 31 GND Ground P 32 RF RF feed point. Connect to Antenna O 33 GND Ground P MZ0100S-1 Product Specification Page 6/9 LTC Network Access Confidential Liteon Type A module Dimension : 24 x 17 x 2.5mm 3. Recommended FootPrint MZ0100S-1 Product Specification Page 7/9 LTC Network Access Confidential FCC WARING STATEMENT This equipment has been tested and found to comply with the limit s for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the p arty responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other an…

Text truncated - open the document above for the full version.

Example of Agents letter (for TCB – TCB approval): Lite LiteLite Lite- -- -On Technolo On TechnoloOn Technolo On Technology Corp. gy Corp.gy Corp. gy Corp. Date (09/08/2015) TUV SUD BABT TCB/FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL FCC ID：PPQ-MZ0100S-1 Dear Sir or Madam, We, (Lite-On Technology Corp.,and Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C.), hereby authorize (Compliance Certification Services Inc./ David Wang., No.11,Wugong 6th Rd., Wugu Dist. New Taipei City 24891,Taiwan and 02-2299-9720) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2016/09/08 Sincerely, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 E-Mail: [email protected]

Lite LiteLite Lite- -- -On Technology Corp. On Technology Corp.On Technology Corp. On Technology Corp. Date (09/08/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: PPQ-MZ0100S-1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Lite-On Technology Corp. . hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 E-Mail: [email protected]

Lite-On Technology Corp. Date (09/08/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Modular Approval Request FCC ID: PPQ-MZ0100S-1 The following attestation addresses the requirements to support modular approval: Modular approval requirement Yes (provide brief statement) No * (a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Yes, the module in the radio frequency component part use metal sheet shield. (b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Yes, the modules use the wireless transceiver module as buffer Modulation / data input. (c) The module must contain power supply regulation on the module Yes, the module use power as 5VDC, can regulation power module model is EM3585. (d) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Yes, antenna type is PCB antenna. (e) The module must demonstrate compliance in a stand-alone configuration Yes, the module is in a stand- alone configuration, as the schematic and internal photos. (f) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) Yes, the module is labeled with its own FCC ID PPQ-MZ0100S-1, as the label. (g) The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements Yes,the module is comply the Transmitter rules. And provide Instruction for application. (h) The module must comply with RF Yes,the module is comply the exposure requirements applicable RF exposure requirements in its final configuration. * Please provide a detailed explanation if the answer is “No.” Yours sincerely, TC Wu Title:Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX:886-2-2226-6749 E-Mail:[email protected]

Here is the response from the laboratory:- Thanks. We re-check the test data that was correct. Please kindly find the comments as below. 1. Specifically, the test results on pages 28 and 29 for PPQ-CHS888 show similar waveforms for the low and mid channels as PPQ-CHK001 (test report pages 28-29), even though the power for this device is much higher (21.5 dBm versus 2.89 dBm). ANS: Although the waveforms are similar with these two projects, but we can see the peak level are different, for example, the test results on page 28 for PPQ-CHS888 show the peak level 17.22 dBm for the low CH, and the test results on page 28 for PPQ-CHK001 show the peak level -0.28 dBm for the low CH. 2. Additionally, the waveforms in PPQ-CHS888 are different for the low channel when compared to the mid and high channels. For PPQ-CHK001, the waveform for the mid channel when compared to the low and high channels, are different. ANS: For the waveforms in PPQ-CHS888, the waveform for the low channel which includes the marker table but there are no marker tables on the waveforms for the mid, high channels, so that's why they're look like some different. It is the same situation for the PPQ-CHK001. 3. Furthermore, PPQ-CHK001 shows an unusually high side-lobe given the small power level of the device. ANS: For the issue, I think that we used the attenuator for the high power device in the test that let the waveform similar with these two projects. For the test item on page 28, the limit is 20 dBc from the peak level, so whatever how much the power level, if the device has the high side-lobe, the level will close the limit.

LITE-ON Technology Corp. Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C Date: August 22, 2016 SUBJECT: Extension of marketing surveillance for FCC ID: PPQ-MZ0100S-1 To Whom It May Concern: We hereby declare the certified product, FCC ID: PPQ-MZ0100S-1, granted on 09 / 18 / 2015, has not been in mass production of the item you requested , we cannot provide the samples as schedule. Therefore, we request to extend the cut-off date of this marketing surveillance to 09/28/2016. Sincerely yours, Ta. Chuan Wu/ Director Name/Title: Company Name: LITE-ON Technology Corp. Address: 4F, No.90, Chien 1Rd., Chung-Ho, Taipei Hsien235, Taiwan, R.O.C TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected]

Compliance Certification Services Inc. Report No.: T150820W02 A1 - 1 / 3 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150820W02 A1 - 2 / 3 Rev. 00

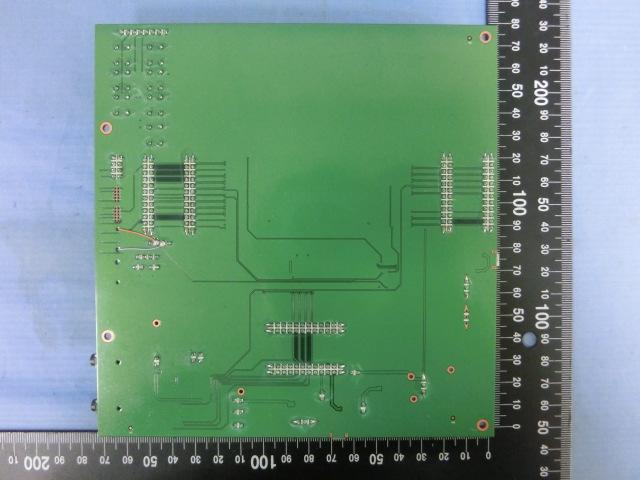

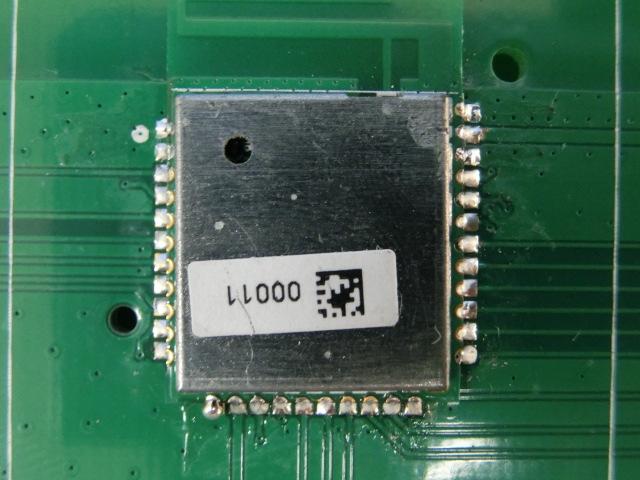

Compliance Certification Services Inc. Report No.: T150820W02 A1 - 3 / 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Antenna RF IC
