PPQ-OKILAN410W802.11 b/g WLAN Printer Server Module

1 Manual of WiSoC-based 802.11g/b WLAN Pocket-Sized Print Server Module Rev. 1.0 Product Description Pocket-sized 802.11g/b 1-USB 2.0 High-speed-port print server Module Draft Specifications A. Hardware WiSoC ARM9-based highly-integrated WiSoC (Marvell 88W8510H), operating at 160MHz. RF Companion RF transceiver of WiSoC (Marvell 88W8000G) Flash (Default) 2Mbytes SDRAM (Default) 8Mbytes (2Mbits x 32) USB Host Controller USB 2.0 High-speed PCI-based host controller (NEC μPD720101) 1. Provides standard 5V, 500mA bus power 2. Supports 1.5Mbps (low speed), 12Mbps (full speed), and 480Mbps (high-speed) data transmission rates. This port automatically detects the make and model of the USB printer Antenna (Default) Internal PIFA antenna x 2 (Reserved) 1 IPEX antenna connector to external SMA antenna LAN Port (Optional) 10/100Mbps RJ-45 connector, with 2 LED lights, indicating 10 or 100Mbps network connectivity Power (Input) 5V DC, 2A (mini power jack) LED Lights Status, WLAN Active, USB Active, 10/100Mbps (on RJ-45 connector) DIP Switch Yes (Normal & Diagnostic modes) PCB board Type: Double-sided SMT 6-layered PCB Dimensions: 53.5 x 85 mm EMI / Radio Frequency CE/ETSI, FCC Class B, VCCI Class B, Telec Others Reset button * This product does not support use of USB hubs for daisy-chained connection, USB-to-Parallel connectors, or USB cable extenders. ** The LAN port is not available due to the target size of the PCB board. 2 B. Hardware System Block Diagram WiSoC (Marvell ARM9-based 88W8510) Flash (2Mbytes) SDRAM (8Mbytes) USB 2.0 HS Host Controller 802.11g(b) WLAN RF Transceiver (Marvell 88W8000G) & Other RF Components USB Internal PIFA Antenna 10/100M 3 C. Connect 802.11 b/g Printer Server Module with Printer Mainboard 1) Connect 802.11 b/g printer server module with printer mainboard via USB 2.0 cable with Type A connectors on both sides. 11 b/g Printer Server Module Printer Mainboard USB Type A Connector Marvell RF Transceiver & Other RF parts (Shielded) Marvell 88W8510 WiSoc DIP Switch Reset Power Jack (Input: 5VDC, 2A) Flash (2Mbytes) SDRAM (8Mbytes) PIFA Antenna - P PIFA Antenna - S LAN board Connector Main board connector 10/100Mbps RJ-45 Connector USB Type A Connector 4 802.11g(b) Wireless Standard Complies with IEEE 802.11g and 802.11b standard Radio Frequency 2.4GHz ISM Band Radio Frequency Band 2400 - 2483.5 MHz (U. S., Canada ; Channel 1 ~ 11) 2400 – 2483.5 MHz (Europe ; Channel 1 ~ 13) 2400 – 2497 MHz (Japan; 802.11b: Channel 1 ~ 14; 802.11g: Channel 1 ~ 13) Media Access Control Method Carrier Sense Multiple Access / Collision Avoidance (CSMA/CA), with ACK Modulation Types 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) 802.11b: CCK (11 & 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) Operating Channels 11 Channels (U. S. & Canada); 13 Channels (Europe) ; 14 Channels (Japan) Output Power 802.11g: 13 +/- 1 dBm 802.11b: 13 +/- 1 dBm Sensitivity 802.11g 54Mbps: -69 ~ -70dBm @PER<10% 802.11b 11Mbps: -85dBm @PER<8% Modes 802.11b Ad-Hoc and 802.11g/b Infrastructure (User-definable via Web management interface) Supported Data Transmission Rate 1Mbps, 2Mbps, 5.5Mbps, 6Mbps, 9Mbps, 11Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps D. Software Real-time OS & Protocol Stack eCos-based RTOS/BSD-based Protocol Stack WLAN Security 1. WEP Encryption: 40- and 104-bit (alphanumeric & hexadecimal key format) 2. WPA (Wi-Fi Protected Access): WPA-Preshared Key (PSK) and WPA2-Preshared Key, including TKIP / AES - CCMP encryption (compliant with IEEE 802.11i standard) Advanced 802.11 Settings Authentication methods (Open System / Shared Key), Beacon Interval, Preamble Easy-to-Use Windows Setup Wizard Yes (Print Server Setup Wizard) Network Operating System Support Windows 95/98/98SE/Me, Windows NT 4.0/2000/XP/2003, Mac OS 8.1 or higher, UNIX/Linux LPR printing (RFC1179), NetWare (Bindery/NDS) 5 Network Protocol Support TCP/IP, IPX, NetBEUI, AppleTalk, LPR, RAW TCP Port 9100 Internet Printing Protocol (IPP) Support Yes Windows Print Monitor Technology Yes DHCP (client) Support Yes Management Interfaces 1. Web Interface 2. Windows-based Setup Program Software Upgradeable Yes (Web browser, Windows-based Setup Program, and TFTP) SNMP & HP Web JetAdmin Support Yes 6 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm b…

Text truncated - open the document above for the full version.

FCC ID: PPQ-OKILAN410W Report No.: RF951025L18 Modular Approval Request Letter Advance Data Technology Nov. 14, 2006 Dear Application Examiner, LITE-ON TECHNOLOGY CORP., It’s 802.11 b/g WLAN Printer Server Module, FCC ID: PPQ-OKILAN410W would like to have your authorization as a modular approval specific to the mobile device such as Printer server, PC peripheral requirements, etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip 88W83510H. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is MVPG31-NAE1, FMMT591TA. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. FCC ID: PPQ-OKILAN410W Report No.: RF951025L18 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Supervisor Advance Data Technology

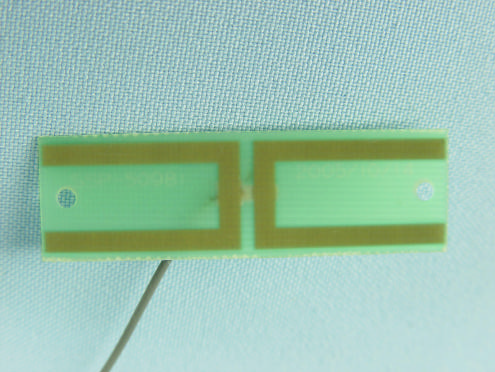

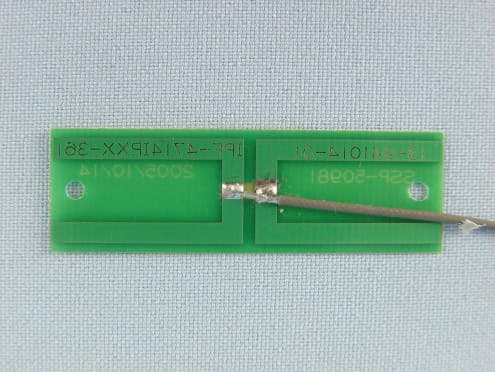

Page 1 CONSTRUCTION PHOTOS OF EUT Antenna 1 Page 2 Page 3 Antenna 2 Page 4 Page 5 Antenna 3

FCC ID .: PPQ-OKILAN410W Label Location

Page 6 Page 7 Page 8 Page 9

FCC ID: PPQ-OKILAN410W Report No.: RF951025L18 OPERATIONAL DESCRIPTION This device is a 802.11 b/g WLAN Printer Server Module, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antennas are Dipole antenna with UFL antenna connector and PCB antenna with UFL antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: PPQ-OKILAN410W Report No: SA951025L18 1 RF EXPOSURE REPORT REPORT NO.: SA951025L18 MODEL NO.: OkiLAN 410w ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: LITE-ON TECHNOLOGY CORP. ADDRESS: 4F, No. 90, Chien 1 Road, Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: PPQ-OKILAN410W Report No: SA951025L18 2 RF EXPOSURE MEASUREMENT (Mobile Device) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: PPQ-OKILAN410W Report No: SA951025L18 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: PPQ-OKILAN410W Report No: SA951025L18 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 4dBi or 2.511886 (numeric); 1.873dBi or 1.539218 (numeric). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: For Antenna 1 & 2 with 1.873dBi gain: 802.11b DSSS CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 22.387 0.007 1.0 6 2437 22.699 0.007 1.0 11 2462 22.856 0.007 1.0 802.11g OFDM CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 30.620 0.009 1.0 6 2437 30.200 0.009 1.0 11 2462 30.339 0.009 1.0 FCC ID: PPQ-OKILAN410W Report No: SA951025L18 5 For Antenna 3 with 4dBi gain: 802.11b DSSS CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 22.387 0.011 1.0 6 2437 22.699 0.011 1.0 11 2462 22.856 0.011 1.0 802.11g OFDM CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 30.620 0.015 1.0 6 2437 30.200 0.015 1.0 11 2462 30.339 0.015 1.0

Report No.: RF951025L18 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF951025L18 MODEL NO.: OkiLAN 410w RECEIVED: Oct. 24, 2006 TESTED: Oct. 24 ~ Nov. 03, 2006 ISSUED: Nov. 08, 2006 APPLICANT: LITE-ON TECHNOLOGY CORP. ADDRESS: 4F, No. 90, Chien 1 Road, Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 71 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF951025L18 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION.............................................................................................................4 2 SUMMARY OF TEST RESULTS....................................................................................5 2.1 MEASUREMENT UNCERTAINTY.................................................................................5 3 GENERAL INFORMATION.............................................................................................6 3.1 GENERAL DESCRIPTION OF EUT...............................................................................6 3.2 DESCRIPTION OF TEST MODES.................................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST............................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................................10 3.4 DESCRIPTION OF SUPPORT UNITS.........................................................................10 4 TEST TYPES AND RESULTS......................................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT...............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................................11 4.1.2 TEST INSTRUMENTS..................................................................................................11 4.1.3 TEST PROCEDURES..................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD........................................................................12 4.1.5 TEST SETUP................................................................................................................13 4.1.6 EUT OPERATING CONDITIONS.................................................................................13 4.1.7 TEST RESULTS............................................................................................................14 4.2 RADIATED EMISSION MEASUREMENT....................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................20 4.2.2 TEST INSTRUMENTS..................................................................................................21 4.2.3 TEST PROCEDURES..................................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD........................................................................22 4.2.5 TEST SETUP................................................................................................................23 4.2.6 EUT OPERATING CONDITIONS.................................................................................23 4.2.7 TEST RESULTS............................................................................................................24 4.3 6dB BANDWIDTH MEASUREMENT...........................................................................39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................................39 4.3.2 TEST INSTRUMENTS..................................................................................................39 4.3.3 TEST PROCEDURE.....................................................................................................40 4.3.4 DEVIATION FROM TEST STANDARD........................................................................40 4.3.5 TEST SETUP................................................................................................................40 4.3.6 EUT OPERATING CONDITIONS.................................................................................40 4.3.7 TEST RESULTS............................................................................................................41 4.4 MAXIMUM PEAK OUTPUT POWER...........................................................................47 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........................47 4.4.2 TEST INSTRUMENTS..................................................................................................47 4.4.3 TEST PROCEDURES..................................................................................................48 4.4.4 DEVIATION FROM TEST STANDARD........................................................................48 4.4.5 TEST SETUP................................................................................................................48 4.4.6 EUT OPERATING CONDITIONS.................................................................................48 4.4.7 TEST RESULTS............................................................................................................49 4.5 POWER SPECTRAL DENSITY MEASUREMENT....................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Test Mode C 2 3 RADIATED EMISSION TEST Test Mode A 4 5 Test Mode B 6 7 Test Mode C 8
