PPQ-PLAYFIP1Play-Fi Player

Confidential - Do Not Distribute Revision 9 page 1 of 20 Bishop Product Requirement Document PHORUS-BIS-PRD-0001 April 12, 2011 Revision 9 Confidential - Do Not Distribute Revision 9 page 2 of 20 Document Change Summary Date: Revision: Changes: Author: 08/28/10 X1 Initial Release DL 09/17/10 X2 Revised with new block diagram DL 09/19/10 X3 Inserted ID, and BT RX requirements. Updated codename. DL 09/21/10 X4 Erroneous battery charging was removed DL 09/22/10 X5 Added subwoofer out. Removed hotkey. Specified 2 transducer configuration DL 11/23/10 X6 Added rechargeable battery attachment. Removed subwoofer out. Specified bi-color LEDs for system status and power/battery indication. Revised hardware block diagram to include rechargeable battery and wireless module. DJ 03/20/11 X7 Updated Power/LED status section Minor changes per LTC request Updated block diagram Added remote control button layout DJ 03/29/11 X8 Updated document format Moved LED feedback to UI spec Empty Bluetooth section removed from state summary D O’Brien 04/12/11 X9 Bluetooth LED changed to single color Blue. Aux Input LED changed to single color White. USB cable length changed to 12”. Other minor updates. D O’Brien Confidential - Do Not Distribute Revision 9 page 3 of 20 Table of Contents Table of Contents .......................................................................................................................................... 3 1 Document Scope ........................................................................................................................................ 4 1.1 Definition of Terms .............................................................................................................................. 4 1.2 Notation ............................................................................................................................................... 4 1.3 Highlight Color Codes.......................................................................................................................... 4 2 Applicable Documents ............................................................................................................................... 5 2.1 Reference Design Documents ............................................................................................................ 5 2.2 Order of Precedence ........................................................................................................................... 5 3 Product Overview ....................................................................................................................................... 6 3.1 Features List ........................................................................................................................................ 6 3.2 What is in the Box ................................................................................................................................ 6 4 User Interface (UI) ...................................................................................................................................... 7 4.1 Input Methods ...................................................................................................................................... 7 5 Localization ................................................................................................................................................ 8 5.1 Product SKUs ...................................................................................................................................... 8 5.2 Languages ........................................................................................................................................... 8 6 Hardware .................................................................................................................................................. 10 6.1 Mechanical Arrangement / Industrial Design .................................................................................... 11 6.2 Rear Panel ......................................................................................................................................... 11 6.3 Front Panel ........................................................................................................................................ 12 6.4 Printed Material ................................................................................................................................. 13 6.5 Serviceability ..................................................................................................................................... 13 6.6 Recyclability ....................................................................................................................................... 13 7 Features ................................................................................................................................................... 14 7.1 System Features ............................................................................................................................... 14 8 Product Options Matrix ............................................................................................................................. 17 9 State Summary ........................................................................................................................................ 17 9.1 Power On/Off/Standby....................................................................................................................... 17 9.2 Power Transitions .............................................................................................................................. 17 9.3 Volume States ................................................................................................................................... 17 9.4 Mute State .................................................................................…

Text truncated - open the document above for the full version.

LITE-ON Technology Corp. FCC ID.: PPQ-PLAYFIP1 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235Tel : 886-2-2222-6181 Federal Communications Commission June 15., 2012 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-PLAYFIP1 Product: Play-Fi Playerk Model: Play-Fi Player We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON Technology Corp.

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C. TEL No: 886-2-2222-6181 FAX No.: 886-2-2226-6749 Attestation for FCC Declaration of Conformity FCC ID: PPQ-PLAYFIP1 Data: June 15, 2012 Please be notified that we, the undersigned, Lite-On Technology Corp. .declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is (123300R-ITUSP02V02). Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, TC Wu / Director Lite-On Technology Corp. Tel: 886-2-2222-6181 Fax: 886-2-2226-6749 Email: [email protected]

RF_160, Issue 01 Declaration of Authorization We Name: LITE-ON Technology Corp. Address: 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 City: Taipei ............................................. . Country: Taiwan, R.O.C.. ................................................... Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Play-Fi Player Type designation: Play-Fi Player Trademark: Phorus on our behalf. Date: ...... 2012/06/15 ........................ . City: ...... Taipei... .................. .. ......... Name: ... ...TC Wu / Director. ... .............. Signature: .........................................................

LITE-ON Technology Corp. FCC ID.: PPQ-PLAYFIP1 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 LITE-ON Technology Corp. 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Federal Communications Commission June 15., 2012 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (Play-Fi Player) Schem Block Diagram: (Play-Fi Player) BlkDia Operational Description: (Play-Fi Player) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON Technology Corp.

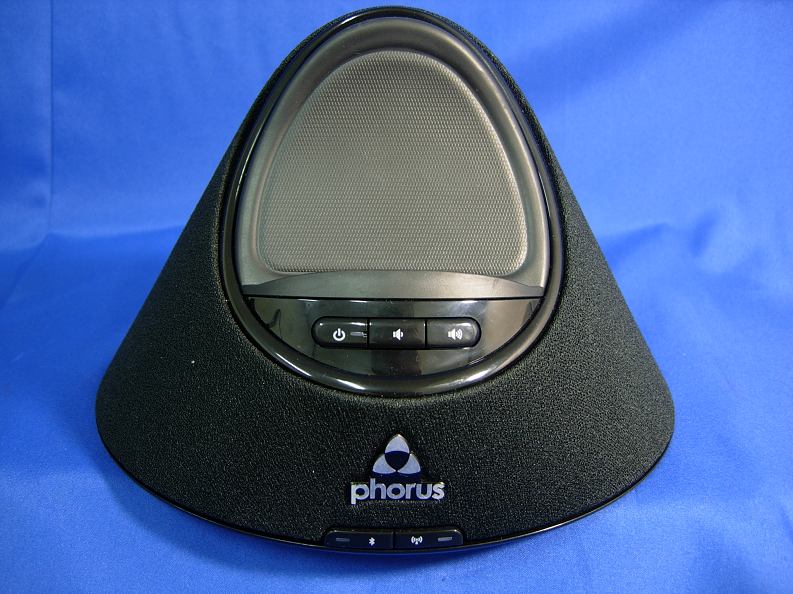

Report No.: 123300R-RFUSP42V01 Page : 1 of 16 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 2 of 16 (3) EUT Photo (4) EUT Photo

LITE-ON Technology Corp. FCC ID.: PPQ-PLAYFIP1 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235Tel : 886-2-2222-6181 FCC ID Label

LITE-ON Technology Corp. FCC ID.: PPQ-PLAYFIP1 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235Tel : 886-2-2222-6181 The FCC ID and DoC will be placed on the equipment as shown in the photograph below.

Report No.: 123300R-RFUSP42V01 Page : 3 of 22 (5) EUT Photo (6) EUT Photo WLAN Antenna Location WLAN Antenna Report No.: 123300R-RFUSP42V01 Page : 4 of 22 (7) EUT Photo (8) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 5 of 22 (9) EUT Photo (10) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 6 of 22 (11) EUT Photo (12) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 7 of 22 (13) EUT Photo (14) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 8 of 22 (15) EUT Photo (16) EUT Photo BT Antenna Report No.: 123300R-RFUSP42V01 Page : 9 of 22 (17) EUT Photo (Main chip-88AP162) -winbond (18) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 10 of 22 (19) EUT Photo (20) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 11 of 22 (21) EUT Photo (22) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 12 of 22 (23) EUT Photo (Main chip-88AP166) -Hynix (24) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 13 of 22 (25) EUT Photo (26) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 14 of 22 (27) EUT Photo (28) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 15 of 22 (29) EUT Photo (Main chip-88AP162)-Hynix (30) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 16 of 22 (31) EUT Photo (32) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 17 of 22 (33) EUT Photo (34) EUT Photo (Main chip-88AP166)-winbond Report No.: 123300R-RFUSP42V01 Page : 18 of 22 (35) EUT Photo (36) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 19 of 22 (37) EUT Photo (38) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 20 of 22 (39) EUT Photo (40) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 21 of 22 (41) EUT Photo (42) EUT Photo Report No.: 123300R-RFUSP42V01 Page : 22 of 22 (43) EUT Photo

Report No. 123300R-RFUSP29V01 Page: 1 of 3 RF Exposure Evaluation declaration Product Name Play-Fi Player Model No. Play-Fi Player FCC ID PPQ-PLAYFIP1 Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C. Date of Receipt Mar. 19, 2012 Date of DeclarationApr. 27, 2012 Report No. 123300R-RFUSP29V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 123300R-RFUSP29V01 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 123300R-RFUSP29V01 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Play-Fi Player Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.52 dBi in logarithm scale. 1Mbps (GFSK) Output Power Into Antenna & RF Exposure Evaluation Distance ( 2.52 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 00 2402.00 3.2359 0.001150 38 2441.00 2.8774 0.001023 79 2480.00 2.9512 0.001049 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 3Mbps (8DPSK) Output Power Into Antenna & RF Exposure Evaluation Distance (2.52 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 00 2402.00 2.8249 0.001004 38 2441.00 2.4322 0.000864 79 2480.00 2.4099 0.000857 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 123300R-RFUSP29V01 Page: 1 of 75 Test Report Product Name Play-Fi Player Model No. Play-Fi Player FCC ID. PPQ-PLAYFIP1 Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C. Date of Receipt Mar. 19, 2012 Issued Date Apr. 27, 2012 Report No. 123300R-RFUSP29V01 Report Version V1.0 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 123300R-RFUSP29V01 Page: 2 of 75 Test Report Certification Issued Date: Apr. 27, 2012 Report No.: 123300R-RFUSP29V01 Product Name Play-Fi Player Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD. Model No. Play-Fi Player FCC ID. PPQ-PLAYFIP1 EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/ 60Hz Trade Name Phorus Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Nowal Kuo ) Approved By : ( Manager / Vincent Lin) Report No. 123300R-RFUSP29V01 Page: 3 of 75 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 1.4. Configuration of Tested System ..............................................................................................................9 1.5. EUT Exercise Software ...........................................................................................................................9 1.6. Test Facility ...........................................................................................................................................10 2. CONDUCTED EMISSION ................................................................................................................ 11 2.1. Test Equipment ......................................................................................................................................11 2.2. Test Setup ..............................................................................................................................................11 2.3. Limits.....................................................................................................................................................12 2.4. Test Procedure .......................................................................................................................................12 2.5. Uncertainty ............................................................................................................................................12 2.6. Test Result of Conducted Emission .......................................................................................................13 3. PEAK POWER OUTPUT ..................................................................................................................15 3.1. Test Equipment ......................................................................................................................................15 3.2. Test Setup ..............................................................................................................................................15 3.3. Limit .....................................................................................................................................................15 3.4. Test Procedure .......................................................................................................................................15 3.5. Uncertainty ............................................................................................................................................15 3.6. Test Result of Peak Power Output .........................................................................................................16 4. RADIATED EMISSION .....................................................................................................................18 4.1. Test Equipment ......................................................................................................................................18 4.2. Test Setup ..............................................................................................................................................18 4.3. Limits.....................................................................................................................................................19 4.4. Test Procedure .......................................................................................................................................20 4.5. Uncertainty ............................................................................................................................................20 4.6. Test Result of Radiated Emission ..........................................................................................................21 5. RF ANTENNA CONDUCTED TEST......................................…

Text truncated - open the document above for the full version.

Report No. 123300R-RFUSP29V01 Page: 53 of 75 7. Channel Number 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. 7.2. Test Setup 7.3. Limit Frequency hopping systems operating in the 2400-2483.5 MHz bands shall use at least 75 hopping frequencies. 7.4. Test Procedure The EUT was setup to ANSI C63.4, 2003; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 7.5. Uncertainty N/A SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 123300R-RFUSP29V01 Page: 54 of 75 7.6. Test Result of Channel Number Product : Play-Fi Player Test Item : Channel Number Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK) Frequency Range (MHz) Measurement (Hopping Channel) Required Limit (Hopping Channel) Result 2402 ~ 2480 79 >75 Pass 2402-2421MHz 2422-2441MHz 2442-2461MHz 2462-2480MHz Report No. 123300R-RFUSP29V01 Page: 55 of 75 Product : Play-Fi Player Test Item : Channel Number Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) Frequency Range (MHz) Measurement (Hopping Channel) Required Limit (Hopping Channel) Result 2402 ~ 2480 79 >75 Pass 2402-2421MHz 2422-2441MHz 2442-2461MHz 2462-2480MHz Report No. 123300R-RFUSP29V01 Page: 56 of 75 8. Channel Separation 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated every one year. 2. The test instruments mark by “X” are used to measure the final test results. 8.2. Test Setup 8.3. Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. 8.4. Test Procedure The EUT was setup to ANSI C63.4, 2003; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 8.5. Uncertainty ± 150Hz SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 123300R-RFUSP29V01 Page: 57 of 75 8.6. Test Result of Channel Separation Limit Limit of (2/3)*20dB Channel No. Frequency (MHz) Measurement Level (kHz) (kHz) Bandwidth (kHz) Result 00 2402 1000 >25 kHz 740.0 Pass 39 2441 1000 >25 kHz 740.0 Pass 78 2480 1000 >25 kHz 740.0 Pass NOTE: The 20dB Bandwidth is refer to section 10. Channel 00 2402MHz Product : Play-Fi Player Test Item : Channel Separation Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK) Report No. 123300R-RFUSP29V01 Page: 58 of 75 Channel 39 2441MHz Channel 78 2480 MHz Report No. 123300R-RFUSP29V01 Page: 59 of 75 Limit Limit of (2/3)*20dB Channel No. Frequency (MHz) Measurement Level (kHz) (kHz) Bandwidth (kHz) Result 00 2402 1000 >25 kHz 933.3 Pass 39 2441 1000 >25 kHz 926.7 Pass 78 2480 1000 >25 kHz 920.0 Pass NOTE: The 20dB Bandwidth is refer to section 10. Channel 00 2402MHz Channel 39 2441MHz Product : Play-Fi Player Test Item : Channel Separation Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) Report No. 123300R-RFUSP29V01 Page: 60 of 75 Channel 78 2480 MHz Report No. 123300R-RFUSP29V01 Page: 61 of 75 9. Dwell Time 9.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. 9.2. Test Setup 9.3. Limit The dwell time shall be the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 30 second period. 9.4. Test Procedure The EUT was setup to ANSI C63.4, 2003; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 9.5. Uncertainty ± 25msec SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 123300R-RFUSP29V01 Page: 62 of 75 9.6. Test Result of Dwell Time Product : Play-Fi Player Test Item : Dwell Time Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK) (Channel 00,39,78 –DH5) Frequency (MHz) Time slot length (ms) Hopping of Number Sweep time (ms) Duty cycle Dwell Time (Sec) Limit (Sec) Result 2402 2.900 14 50 0.81 0.325 0.4 Pass 2441 2.900 14 50 0.81 0.325 0.4 Pass 2480 2.900 13 50 0.75 0.302 0.4 Pass Duty cycle =((Time slot length(ms)*Hopping of Number) / Sweep time (ms) Dwell time = (Duty cycle /79) * (79*0.4) CH 00 Time Interval between hops CH 00 Transmission Time CH39 Time Interval between hops CH 39Transmission Time Report No. 123300R-RFUSP29V01 Page: 63 of 75 CH 78 Time Interval between hops CH 78 Transmission Time Note: The dwell times of the packet type of DH1, DH3, and DH5 are tested. Only the worst case is shown on the report. Report No. 123300R-RFUSP29V01 Page: 64 of 75 Product : Play-Fi Player Test Item : Dwell Time Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) (Channel 00,39,78 –DH5) Frequency (MHz) Time slot length (ms) Hopping of Number Sweep time (ms) Duty cycle Dwell Time (Sec) Limit (Sec) Result 2402 2.910 13 50 0.76 0.303 0.4 Pass 2441 2.900 13 50 0.75 0.302 0.4 Pass 2480 2.900 14 50 0.81 0.325 0.4 Pass Duty cycle =((Time slot length(ms)*Hopping of Number) / Sweep time (ms) Dwell time = (Duty cycle /79) * (79*0.4) CH 00 Time Interval between hops CH 00 Transmission Time CH39 Time Interval between hops CH 39Transmission Time Report No. 123300R-RFUSP29V01 Page: 65 of 75 CH 78 Time Interval between hops CH 78 Transmission Time Note: The dwell times of the packet type of DH1, DH3, and DH5 are te…

Text truncated - open the document above for the full version.

Report No.: 123300R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 123300R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 123300R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
