PPQ-WB117CBT V4.0 LE Dual Mode Bluetooth Stereo Audio Module

Page 1/15 PRODUCT SPECIFICATION BT V4.0 LE Dual Mode Bluetooth Stereo Audio Module WB117C CSR 8645 Version 1.7 User Manual * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Page 2/15 PRODUCT SPECIFICATION BT V4.0 LE Dual Mode Bluetooth Stereo Audio Module WB117C CSR 8645 Version 1.7 Networking B.U. Lite-on Technology Corporation 4F, No. 90, Chien I Rd., Chung Ho, New Taipei City 235, Taiwan, R.O.C. Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) Page 3/15 CONTENT FCC WARING STATEMENT .......................................................................................................... 4 IC WARING STATEMENT .............................................................................................................. 4 CAN ICES-3 (B)/NMB-3(B) ............................................................................................................... 6 低功率電波輻射性電機管理辦法 ....................................................................................................... 6 PRODUCT FEATURES .................................................................................................................... 7 PRODUCT SPECIFICATIONS ........................................................................................................ 8 MAIN CHIPSET ....................................................................................................................................... 8 FUNCTIONAL SPECIFICATIONS ............................................................................................................... 8 PIN ASSIGNMENT ............................................................................................................................ 9 CONNECTOR SPEC ....................................................................................................................... 10 MECHANICAL ................................................................................................................................ 11 BLOCK DIAGRAM ......................................................................................................................... 11 ANTENNA SPEC ............................................................................................................................. 12 LABEL DRAWING .......................................................................................................................... 13 MODULE PHOTO ........................................................................................................................... 14 BT BEHAVIOR ................................................................................................................................ 15 LED BEHAVIOR ............................................................................................................................. 15 EEPROM INFORMATION ............................................................................................................ 15 ENVIRONMENTAL ........................................................................................................................ 15 OPERATING .......................................................................................................................................... 15 STORAGE .............................................................................................................................................. 15 Page 7/15 PRODUCT FEATURES  Bluetooth V4.0 specification compliant Backwards compatible with BT version of 1.1, 1.2, 2.0, 2.1+EDR  Dual-mode Bluetooth low energy radio  80MHz RISC MCU and 80MIPS Kalimba DSP  BT using SPI interface  Bluetooth Profiles: - HFP v1.6 - HSP v1.2 - A2DP v1.2 - AVRCP v1.4  Stereo codec with 2 microphone inputs  Multipoint HFP connection to 2 phones for voice  Multipoint A2DP connection enables a headset(A2DP) connection to 2 A2DP source devices for music playback  Secure simple paring, CSR’s proximity pairing and CSR’s proximity connection  aptX, SBC, MP3 and AAC decoder support  Reconnect on Power-on  Fast AGC for enhanced dynamic range  Memorize up to 8 paired devices  RoHS compliance  Low Halogen compliance Page 8/15 PRODUCT SPECIFICATIONS MAIN CHIPSET CSR 8645 FUNCTIONAL SPECIFICATIONS BT Function Standard Bluetooth V4.0 LE Bus Interface SPI Data Rate 1 Mbps, 2Mbps and Up to 3Mbps Modulation Scheme GFSK, π/4-DQPSK and 8-DPSK Frequency Range 2.402~2.480 GHz Transmit Output Power -3 ≤ Output Power ≤ +3 ; Class 2 Device Receiver Sensitivity < 0.1% BER at -80 dBm Operating Voltage 3.3 V ±9% I/O supply voltage Power Consumption Paring Mode: 10 mA Stereo high quality SBC: 65 mA Associated Idle Mode: 14 mA Antenna Type Metal Antenna Page 9/15 PIN ASSIGNMENT Pin. Pin Name Type Description 1 VBUS P 3.3V Power supply 2 GND G Ground 3 SPKL_P O Speaker differential output positive, left 4 SPKL_N O Speaker differential output negative, left 5 SPKR_P O Speaker differential output positive, right 6 SPKR_N O Speaker differential output negative, right 7 GND G Ground 8 Paring I Active High(1.8V) to enter paring mode 9 LED O LED driver, Open-Drain 10 VREGENABLE I Active High(3.3V) to enable BT or disable BT 11 MIC1_B G Connect to Ground(Black cable) 12 MIC1_R I Microphone input(Red cable) 13 MIC1_B G Connect to Ground(Black cable) 14 MIC2_R I Microphone input(Red cable) Page 10/15 CONNECTOR SPEC Page 11/15 MECHANICAL BLOCK DIAGRAM Page 12/15 ANTENNA SPEC Page 13/15 LABEL DRAWING Page 14/15 MODULE PHOTO Top Side Bottom Side Page 15/15 BT BEHAVIOR Item BT Status Press Button Timing/Description 1 Power On 500ms~1s 2 Enter Paring Mode 1s~2s. Keep paring status up to 120s 3 Reconnection BT will reconnect with paired device after Power On.TV FW will turn off BT within 120s if no paire…

Text truncated - open the document above for the full version.

Applicant/Grantee FCC ID: Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The modular have RF own shielding Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter have buffered modulation/data inputs Y 3 The modular transmitter must have its own power supply regulation. The EUT module needs another external power supply to provide the required working voltage. This EUT module is just a RF transceiver which has no power related circuit design therein. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The modular must to built-in PIFA applicant together and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length The EUT module can’t be operated by its own due to its power-less characteristic and hence needs external power supply to make it function. Under testing condition, no matter in pure verification or manufacturing stage, the specified test fixture must be provided to help testing the function and performance of the EUT sample. Y typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The FCC identification number can put on the modular with either a permanently affixed label Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with The modular have specific rules or operating requirements Y the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y A modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always…

Text truncated - open the document above for the full version.

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. DateMay 14, 2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Lite-On Technology Corp. hereby authorize Compliance Certification Services Inc./ David Wang. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2015/05/05 Your Sincerely, Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected] Date: May 5, 2014

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. DateMay 14, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Lite-On Technology Corp. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected] Date: May 6, 2014

Compliance Certification Services Inc. Report No.: T140429W01 Date of Issue: May 15, 2014 A1 - 1 / 3 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

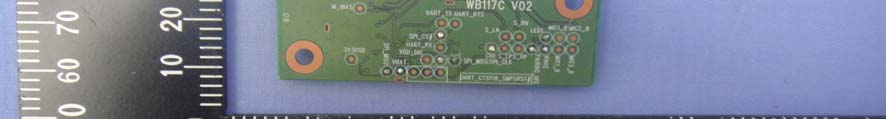

Compliance Certification Services Inc. Report No.: T140429W01 Date of Issue: May 15, 2014 A1 - 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140429W01 Date of Issue: May 15, 2014 A1 - 3 Rev. 00 Antenna Module

Compliance Certification Services Inc. Report No.: T140429W01-MF Date of Issue: May 06, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT BT V4.0 LE Dual Mode Bluetooth Stereo Audio Module Model WB117C Frequency band (Operating) Bluetooth 2.1 + EDR / 4.0: 2402 ~ 2480 MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Antenna Gain :0.00 dBi (Numeric gain:1.00) Maximum Average output power Bluetooth Mode : 1.63 dBm(1.455 mW) Maximum Tune up Power Bluetooth Mode : 3.00 dBm(1.995 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140429W01-MF Date of Issue: May 06, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/05/06 Initial Issue ALL Scott Hsu Compliance Certification Services Inc. Report No.: T140429W01-MF Date of Issue: May 06, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140429W01-MF Date of Issue: May 06, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Bluetooth mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 7824801.9951200.00041

Compliance Certification Services Inc. FCC ID: PPQ-WB117C IC: 4491A-WB117C Report No.: T140429W01-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 87 Rev.00 FCC 47 CFR PART 15 SUBPART C & INDUSTRY CANADA RSS-210 TEST REPORT For BT V4.0 LE Dual Mode Bluetooth Stereo Audio Module Model: WB117C Trade Name: LITE-ON Issued to Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: May 10, 2014 Compliance Certification Services Inc. FCC ID: PPQ-WB117C IC: 4491A-WB117C Report No.: T140429W01-RP1 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 10, 2014 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: PPQ-WB117C IC: 4491A-WB117C Report No.: T140429W01-RP1 Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................4 2. EUT DESCRIPTION ........................................................................................................................5 3. TEST METHODOLOGY .................................................................................................................6 3.1 EUT CONFIGURATION .....................................................................................................................6 3.2 EUT EXERCISE .................................................................................................................................6 3.3 GENERAL TEST PROCEDURES ..........................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................8 4. INSTRUMENT CALIBRATION .....................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................9 4.3 MEASUREMENT UNCERTAINTY .......................................................................................... 10 5. FACILITIES AND ACCREDITATIONS ..................................................................................... 11 5.1 FACILITIES .................................................................................................................................... 11 5.2 EQUIPMENT ................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS .................................................................................. 12 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT .................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................ 13 7. FCC PART 15.247 REQUIREMENTS & RSS 210 REQUIREMENTS .................................... 14 7.1 99% BANDWIDTH ......................................................................................................................... 14 7.2 20 DB BANDWIDTH .................................................................................................................. 18 7.3 PEAK POWER ................................................................................................................................. 25 7.4 BAND EDGES MEASUREMENT ............................................................................................. 26 7.5 FREQUENCY SEPARATION .................................................................................................... 45 7.6 NUMBER OF HOPPING FREQUENCY .................................................................................... 50 7.7 TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 55 7.8 SPURIOUS EMISSIONS ............................................................................................................. 64 7.9 POWERLINE CONDUCTED EMISSIONS ............................................................................................ 82 APPENDIX II PHOTOGRAPHS OF TEST SETUP .......................................................................... 85 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: PPQ-WB117C IC: 4491A-WB117C Report No.: T140429W01-RP1 Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. Manufacturer: LITE-ON TECHNOLOGY (Changzhou) CO., LTD A9 Building,No.88 Yanghu Road, Wujin Hi-Tech Industrial Development Zone ,Changzhou City, Jiangsu Province 213100 China Equipment Under Test: BT V4.0 LE Dual Mode Bluetooth Stereo Audio Module Tr a d e N a m e : LITE-ON Model: WB117C Date of Test: May 1 ~ 6, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C Industry Canada RSS-210 Issue 8 Annex 8 Industry Canada RSS-GEN Issue 3 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, da…
