PPQ-WCBN4507RWi-Fi, BT, USB Combo Module

Page 1/11 PRODUCT SPECIFICATION Wi-Fi (11a/b/g/n/ac 2Tx2R)+BT (V4.1LE) USB Combo Module WCBN4507R MediaTek MT7662U Version 1.1 Change History Revision Date Author Change List Version 1.0 2015/04/10 Ben J Chen Preliminary Version 1.1 2015/05/20 Ben J Chen Update Mechanical Update Label Drawing * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Page 2/11 PRODUCT SPECIFICATION Wi-Fi (11a/b/g/n/ac 2Tx2R)+BT (V4.1LE) USB Combo Module WCBN4507R MediaTek MT7662U Version 1.1 Networking B.U. Lite-on Technology Corporation 4F, No. 90, Chien 1 Rd., Chung Ho, New Taipei City 235, Taiwan, R.O.C. Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) Page 4/11 PRODUCT FEATURES BT FEATURE:  Bluetooth V4.1 LE system Backwards compatible with BT version of 1.1, 1.2, 2.0, 2.1 and 3.0+HS  Bluetooth Class 1 transmission power  Best-in-class BT/Wi-Fi coexistence performance  Support for Simple Pairing (SP) and Enhanced Inquiry Response (EIR) function  Support for SCATTERNET and up to piconets simultaneously with background inquiry/page scan  Support wide-band speech and hardware accelerated SBC codec for A2DP streaming  Support Wake On Bluetooth WI-FI FEATURE:  Operate at ISM frequency Band (2.4/5GHz)  IEEE Standards Support, 802.11a ,802.11b, 802.11g, 802.11n and 802.11ac  Support for both 20 MHz/40 MHz channel width in 2.4GHz and 20 MHz/40 MHz/80MHz channel width in 5GHz  Enterprise level security supporting: WPS2.0,WAPI, WPA, WPA2  Dual-stream IEEE 802.11ac support for 80MHz channels provides PHY layer rates up to 867Mbps  QoS support of WFA WMM, WMMPS  Support for WI-Fi Direct  Support Wake On WLAN COMMON FEATURE:  MT7662U is a single chip integrated IEEE 802.11 a/b/g/n/ac and Bluetooth 4.1LE with a single USB interface  PA, LNA, and T/R switch integration for Wi-Fi and Bluetooth  Best-in-class active and idle power consumption performance  Fully compliance with USB v2.0 specification  Support OS: Linux based  RoHS compliance  Low Halogen compliance Page 5/11 PRODUCT SPECIFICATIONS MAIN CHIPSET MediaTek MT7662U FUNCTIONAL SPECIFICATIONS BT Function Standard Bluetooth V4.0LE Bus Interface USB2.0 Data Rate 1 Mbps, 2Mbps and Up to 3Mbps Modulation Scheme GFSK, π/4-DQPSK and 8-DPSK Frequency Range 2.402~2.480 GHz Transmit Output Power +4 ≤ Output Power ≤ +10dBm; Class 1 Device Receiver Sensitivity < 0.1% BER at -80dBm Wi-Fi Function Standard IEEE802.11a; IEEE802.11b; IEEE 802.11g; IEEE 802.11n; IEEE802.11ac Bus Interface USB2.0 Data Rate 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 15 for HT20MHz MCS 0 to 15 for HT40MHz 802.11ac: MCS 0 to 8 for HT20MHz MCS 0 to 9 for HT40MHz MCS 0 to 9 for HT80MHz Media Access Control CSMA/CA with ACK Modulation Technique 802.11a: 64QAM, 16QAM, QPSK, BPSK 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: 64QAM, 16QAM, QPSK, BPSK 802.11ac: 256QAM, 64QAM, 16QAM, QPSK, BPSK Page 6/11 Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan 5GHz 21: USA 19: EU 8: Japan Frequency Range 802.11bg 2.400 ~ 2.4835 GHz 802.11a/ac 5.15 ~ 5.85 GHz Transmit Output Power – 2x2 (Tolerance: ±1.5dBm) 802.11a: 13 dBm@6Mbps 13 dBm@54Mbps 802.11b: 15 dBm@1Mbps 15 dBm@11Mbps 802.11g: 14 dBm@6Mbps 14 dBm@54Mbps 802.11n(2.4G): 20MHz: 14 dBm@MCS0 14 dBm@MCS7 40MHz: 12 dBm@MCS0 12 dBm@MCS7 802.11n(5G): 20MHz: 13 dBm@MCS0 13 dBm@MCS7 40MHz: 11 dBm@MCS0 11 dBm@MCS7 802.11ac: 20MHz: 11 dBm@MCS0 11 dBm@MCS8 40MHz: 11 dBm@MCS0 11 dBm@MCS8 11 dBm@MCS9 80MHz: 11 dBm@MCS0 11 dBm@MCS8 11 dBm@MCS9 Receiver Sensitivity 802.11a: -86 dBm@6Mbps -70 dBm@54Mbps 802.11b: -88 dBm@1Mbps -82 dBm@11Mbps 802.11g: -86 dBm@6Mbps Page 7/11 -71 dBm@54Mbps 802.11n: 2.4G/5G 20MHz -86 dBm@MCS0 -70 dBm@MCS7 -68 dBm@MCS15 40MHz -83 dBm@MCS0 -67 dBm@MCS7 -65 dBm@MCS15 802.11ac: 20MHz -64 dBm@MCS8 40MHz -62 dBm@MCS8 -59 dBm@MCS9 80MHz -59 dBm@MCS8 -56 dBm@MCS9 Security WPS, WPA, WPA2, WEP 64bit & 128bit, IEEE 802.1X, IEEE 802.11i Common Function Operating Voltage 5 V ±5% I/O supply voltage Power Consumption TX Mode: TBD mA RX Mode: TBD mA Standby Mode: WiFi+BT: TBD mA WiFi only: TBD mA BT only: TBD mA Disable Model: TBD mA Antenna Type Triple U.FL connectors for plugging WiFi&BT external antenna Page 8/11 PIN ASSIGMENT Pin. Pin Define Pin. Pin Define 1 GND 2 GND 3 D- 4 WOW 5 D+ 6 RESET# 7 GND 8 VCC 9 WOB 10 VCC 11 GND 12 GND Top View USB CONNECTOR SPEC Page 10/11 U.FL CONNECTOR SPEC LABEL DRAWING Page 11/11 EEPROM INFORMATION BT Vendor ID 0x0E8D Product ID 0x7662 WI-FI Reg Domain World Wide 2.4G/5G Read from registry; Control by driver Offset 0x38 for 5G: 0xFF Offset 0x39 for 2.4G: 0xFF Vendor ID 0x0E8D Device ID 0x7662 ENVIRONMENTAL OPERATING Operating Temperature: 0 to 70 C (32 to 158 F) Relative Humidity: 5-90% (non-condensing) STORAGE Temperature: -40 to 80 C (-40 to 176 F) Relative Humidity: 5-95% (non-condensing)

Page 1/17 PRODUCT SPECIFICATION Wi-Fi (11a/b/g/n 2Tx2R)+BT (V4.1LE) USB Combo Module WCBN4507R(32U) MediaTek MT7632U Version 1.0 Change History Revision Date Author Change List Version 1.0 2015/07/24 Ben J Chen Preliminary * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Page 2/21 PRODUCT SPECIFICATION Wi-Fi (11a/b/g/n 2Tx2R)+BT (V4.1LE) USB Combo Module WCBN4507R(32U) MediaTek MT7632U Version 1.0 Networking B.U. Lite-on Technology Corporation 4F, No. 90, Chien 1 Rd., Chung Ho, New Taipei City 235, Taiwan, R.O.C. Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) Page 4/17 PRODUCT FEATURES BT FEATURE:  Bluetooth V4.1 LE system Backwards compatible with BT version of 1.1, 1.2, 2.0, 2.1, 3.0+HS and 4.0  Bluetooth Class 1 transmission power  Best-in-class BT/Wi-Fi coexistence performance  Support for Simple Pairing (SP) and Enhanced Inquiry Response (EIR) function  Support for SCATTERNET and up to piconets simultaneously with background inquiry/page scan  Support wide-band speech and hardware accelerated SBC codec for A2DP streaming  Support Wake On Bluetooth WI-FI FEATURE:  Operate at ISM frequency Band (2.4/5GHz)  IEEE Standards Support, 802.11a ,802.11b, 802.11g and 802.11n  Support for both 20 MHz/40 MHz channel width in 2.4GHz and 5GHz  Enterprise level security supporting: WPS2.0,WAPI, WPA, WPA2  Dual-stream IEEE 802.11n support for 40MHz channels provides PHY layer rates up to 300Mbps  QoS support of WFA WMM, WMMPS  Support for WI-Fi Direct  Support Wake On WLAN COMMON FEATURE:  MT7632U is a single chip integrated IEEE 802.11 a/b/g/n and Bluetooth 4.1LE with a single USB interface  PA, LNA, and T/R switch integration for Wi-Fi and Bluetooth  Best-in-class active and idle power consumption performance  Fully compliance with USB v2.0 specification  Support OS: Linux based  RoHS compliance  Low Halogen compliance Page 5/17 PRODUCT SPECIFICATIONS MAIN CHIPSET MediaTek MT7632U FUNCTIONAL SPECIFICATIONS BT Function Standard Bluetooth V4.1LE Bus Interface USB2.0 Data Rate 1 Mbps, 2Mbps and Up to 3Mbps Modulation Scheme GFSK, π/4-DQPSK and 8-DPSK Frequency Range 2.402~2.480 GHz Transmit Output Power +4 ≤ Output Power ≤ +10dBm; Class 1 Device Receiver Sensitivity < 0.1% BER at -80dBm Wi-Fi Function Standard IEEE802.11a; IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface USB2.0 Data Rate 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 15 for HT20MHz MCS 0 to 15 for HT40MHz Media Access Control CSMA/CA with ACK Modulation Technique 802.11a: 64QAM, 16QAM, QPSK, BPSK 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: 64QAM, 16QAM, QPSK, BPSK Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan 5GHz Page 6/17 21: USA 19: EU 8: Japan Frequency Range 802.11bg 2.400 ~ 2.4835 GHz 802.11a/ac 5.15 ~ 5.85 GHz Transmit Output Power – 2x2 (Tolerance: ±1.5dBm) 802.11a: 13 dBm@6Mbps 13 dBm@54Mbps 802.11b: 15 dBm@1Mbps 15 dBm@11Mbps 802.11g: 14 dBm@6Mbps 14 dBm@54Mbps 802.11n(2.4G): 20MHz: 14 dBm@MCS0 14 dBm@MCS7 40MHz: 12 dBm@MCS0 12 dBm@MCS7 802.11n(5G): 20MHz: 13 dBm@MCS0 13 dBm@MCS7 40MHz: 11 dBm@MCS0 11 dBm@MCS7 Receiver Sensitivity 802.11a: -86 dBm@6Mbps -70 dBm@54Mbps 802.11b: -88 dBm@1Mbps -82 dBm@11Mbps 802.11g: -86 dBm@6Mbps -71 dBm@54Mbps 802.11n: 2.4G/5G 20MHz -86 dBm@MCS0 -70 dBm@MCS7 -68 dBm@MCS15 40MHz -83 dBm@MCS0 -67 dBm@MCS7 -65 dBm@MCS15 Security WPS, WPA, WPA2, WEP 64bit & 128bit, IEEE 802.1X, IEEE 802.11i Common Function Operating Voltage 5 V ±5% I/O supply voltage Page 7/17 OS Supported Linux Based Power Consumption Mode Average Peak 2.4G 5G 2.4G 5G TX RX Idle Standby Antenna Type Triple U.FL connectors for plugging WiFi&BT external antenna Page 8/17 PIN ASSIGMENT Pin. Pin Define Pin. Pin Define 1 GND 2 GND 3 D- 4 WOW 5 D+ 6 RESET# 7 GND 8 VCC 9 WOB 10 VCC 11 GND 12 GND Top View USB CONNECTOR SPEC Page 10/17 PCB UL CERTIFICATE Manufacturer: APCB Page 11/17 Page 12/17 Manufacturer: BROAD Page 13/17 Manufacturer: Tripod Page 14/17 Page 15/17 Page 17/17 EEPROM INFORMATION BT Vendor ID 0x0E8D Product ID 0x7632 WI-FI Reg Domain World Wide 2.4G/5G Read from registry; Control by driver Offset 0x38 for 5G: 0xFF Offset 0x39 for 2.4G: 0xFF Vendor ID 0x0E8D Device ID 0x7632 ENVIRONMENTAL OPERATING Operating Temperature: 0 to 70 C (32 to 158 F) Relative Humidity: 5-90% (non-condensing) STORAGE Temperature: -40 to 80 C (-40 to 176 F) Relative Humidity: 5-95% (non-condensing)

Page 1/11 PRODUCT SPECIFICATION Wi-Fi (11a/b/g/n 2Tx2R)+BT (V4.1LE) USB Combo Module WCBN4508R(32U) MediaTek MT7632U Version 1.0 Change History Revision Date Author Change List Version 1.0 2015/05/25 Ben J Chen Preliminary * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Page 2/11 PRODUCT SPECIFICATION Wi-Fi (11a/b/g/n 2Tx2R)+BT (V4.1LE) USB Combo Module WCBN4508R(32U) MediaTek MT7662U Version 1.0 Networking B.U. Lite-on Technology Corporation 4F, No. 90, Building C, Chien 1 Rd., Chung Ho, New Taipei City 235, Taiwan, R.O.C. Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) Page 3/11 CONTENT PRODUCT FEATURES .................................................................................................................... 4 BT FEATURE: ......................................................................................................................................... 4 WI-FI FEATURE: ..................................................................................................................................... 4 COMMON FEATURE: ............................................................................................................................... 4 PRODUCT SPECIFICATIONS ........................................................................................................ 5 MAIN CHIPSET ....................................................................................................................................... 5 FUNCTIONAL SPECIFICATIONS ............................................................................................................... 5 RECOMMENDED OPERATION CONDITIONS .......................................................................... 8 DC CHARACTERISTICS ................................................................................................................. 8 RESET TIMING SPEC ...................................................................................................................... 8 PIN ASSIGMENT ............................................................................................................................... 9 USB CONNECTOR SPEC ................................................................................................................. 9 MECHANICAL ................................................................................................................................ 10 EEPROM INFORMATION ............................................................................................................ 11 BT ........................................................................................................................................................ 11 WI-FI ................................................................................................................................................... 11 ENVIRONMENTAL ........................................................................................................................ 11 OPERATING .......................................................................................................................................... 11 STORAGE .............................................................................................................................................. 11 Page 4/11 PRODUCT FEATURES BT FEATURE:  Bluetooth V4.1 LE system Backwards compatible with BT version of 1.1, 1.2, 2.0, 2.1 and 3.0+HS  Bluetooth Class 1 transmission power  Best-in-class BT/Wi-Fi coexistence performance  Support for Simple Pairing (SP) and Enhanced Inquiry Response (EIR) function  Support for SCATTERNET and up to piconets simultaneously with background inquiry/page scan  Support wide-band speech and hardware accelerated SBC codec for A2DP streaming  Support Wake On Bluetooth WI-FI FEATURE:  Operate at ISM frequency Band (2.4/5GHz)  IEEE Standards Support, 802.11a ,802.11b, 802.11g, and 802.11n  Support for both 20 MHz and 40 MHz channel width  Enterprise level security supporting: WPS2.0,WAPI, WPA, WPA2  Support 2 transmission and 2 receiving, transmission rate can up to 300Mbps (Physical Rate) in downstream and upstream  QoS support of WFA WMM, WMMPS  Support for WI-Fi Direct  Support Wake On WLAN COMMON FEATURE:  MT7632U is a single chip integrated IEEE 802.11 a/b/g/n and Bluetooth 4.1LE with a single USB interface  PA, LNA, and T/R switch integration for Wi-Fi and Bluetooth  Best-in-class active and idle power consumption performance  Fully compliance with USB v2.0 specification  Support OS: Linux based  RoHS compliance  Low Halogen compliance Page 5/11 PRODUCT SPECIFICATIONS MAIN CHIPSET MediaTek MT7632U FUNCTIONAL SPECIFICATIONS BT Function Standard Bluetooth V4.1LE Bus Interface USB2.0 Data Rate 1 Mbps, 2Mbps and Up to 3Mbps Modulation Scheme GFSK, π/4-DQPSK and 8-DPSK Frequency Range 2.402~2.480 GHz Transmit Output Power +4 ≤ Output Power ≤ +10dBm; Class 1 Device Receiver Sensitivity < 0.1% BER at -80dBm Wi-Fi Function Standard IEEE802.11a; IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface USB2.0 Data Rate 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 15 for HT20MHz MCS 0 to 15 for HT40MHz Media Access Control CSMA/CA with ACK Modulation Technique 802.11a: 64QAM, 16QAM, QPSK, BPSK 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: 64QAM, 16QAM, QPSK, BPSK Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan 5GHz Page 6/11 21: USA 19: EU 8: Japan Frequency Range 802.11bgn 2.400 ~ 2.4835 GHz 802.11a 5.15 ~ 5.85 GHz Transmit Out…

Text truncated - open the document above for the full version.

Page 1/11 PRODUCT SPECIFICATION Wi-Fi (11a/b/g/n/ac 2Tx2R)+BT (V4.1LE) USB Combo Module WCBN4508R MediaTek MT7662U Version 1.0 Change History Revision Date Author Change List Version 1.0 2015/05/25 Ben J Chen Preliminary * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Page 2/11 PRODUCT SPECIFICATION Wi-Fi (11a/b/g/n/ac 2Tx2R)+BT (V4.1LE) USB Combo Module WCBN4508R MediaTek MT7662U Version 1.0 Networking B.U. Lite-on Technology Corporation 4F, No. 90, Chien 1 Rd., Chung Ho, New Taipei City 235, Taiwan, R.O.C. Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) Page 4/11 PRODUCT FEATURES BT FEATURE:  Bluetooth V4.1 LE system Backwards compatible with BT version of 1.1, 1.2, 2.0, 2.1 and 3.0+HS  Bluetooth Class 1 transmission power  Best-in-class BT/Wi-Fi coexistence performance  Support for Simple Pairing (SP) and Enhanced Inquiry Response (EIR) function  Support for SCATTERNET and up to piconets simultaneously with background inquiry/page scan  Support wide-band speech and hardware accelerated SBC codec for A2DP streaming  Support Wake On Bluetooth WI-FI FEATURE:  Operate at ISM frequency Band (2.4/5GHz)  IEEE Standards Support, 802.11a ,802.11b, 802.11g, 802.11n and 802.11ac  Support for both 20 MHz/40 MHz channel width in 2.4GHz and 20 MHz/40 MHz/80MHz channel width in 5GHz  Enterprise level security supporting: WPS2.0,WAPI, WPA, WPA2  Dual-stream IEEE 802.11ac support for 80MHz channels provides PHY layer rates up to 867Mbps  QoS support of WFA WMM, WMMPS  Support for WI-Fi Direct  Support Wake On WLAN COMMON FEATURE:  MT7662U is a single chip integrated IEEE 802.11 a/b/g/n/ac and Bluetooth 4.1LE with a single USB interface  PA, LNA, and T/R switch integration for Wi-Fi and Bluetooth  Best-in-class active and idle power consumption performance  Fully compliance with USB v2.0 specification  Support OS: Linux based  RoHS compliance  Low Halogen compliance Page 5/11 PRODUCT SPECIFICATIONS MAIN CHIPSET MediaTek MT7662U FUNCTIONAL SPECIFICATIONS BT Function Standard Bluetooth V4.1LE Bus Interface USB2.0 Data Rate 1 Mbps, 2Mbps and Up to 3Mbps Modulation Scheme GFSK, π/4-DQPSK and 8-DPSK Frequency Range 2.402~2.480 GHz Transmit Output Power +4 ≤ Output Power ≤ +10dBm; Class 1 Device Receiver Sensitivity < 0.1% BER at -80dBm Wi-Fi Function Standard IEEE802.11a; IEEE802.11b; IEEE 802.11g; IEEE 802.11n; IEEE802.11ac Bus Interface USB2.0 Data Rate 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 15 for HT20MHz MCS 0 to 15 for HT40MHz 802.11ac: MCS 0 to 8 for HT20MHz MCS 0 to 9 for HT40MHz MCS 0 to 9 for HT80MHz Media Access Control CSMA/CA with ACK Modulation Technique 802.11a: 64QAM, 16QAM, QPSK, BPSK 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: 64QAM, 16QAM, QPSK, BPSK 802.11ac: 256QAM, 64QAM, 16QAM, QPSK, BPSK Page 6/11 Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan 5GHz 21: USA 19: EU 8: Japan Frequency Range 802.11bgn 2.400 ~ 2.4835 GHz 802.11a/ac 5.15 ~ 5.85 GHz Transmit Output Power – 2x2 (Tolerance: ±1.5dBm) 802.11a: 13 dBm@6Mbps 13 dBm@54Mbps 802.11b: 15 dBm@1Mbps 15 dBm@11Mbps 802.11g: 14 dBm@6Mbps 14 dBm@54Mbps 802.11n(2.4G): 20MHz: 14 dBm@MCS0 14 dBm@MCS7 40MHz: 12 dBm@MCS0 12 dBm@MCS7 802.11n(5G): 20MHz: 13 dBm@MCS0 13 dBm@MCS7 40MHz: 11 dBm@MCS0 11 dBm@MCS7 802.11ac: 20MHz: 11 dBm@MCS0 11 dBm@MCS8 40MHz: 11 dBm@MCS0 11 dBm@MCS8 11 dBm@MCS9 80MHz: 11 dBm@MCS0 11 dBm@MCS8 11 dBm@MCS9 Receiver Sensitivity 802.11a: -86 dBm@6Mbps -70 dBm@54Mbps 802.11b: -88 dBm@1Mbps -82 dBm@11Mbps 802.11g: -86 dBm@6Mbps Page 7/11 -71 dBm@54Mbps 802.11n(2.4/5G): 20MHz -86 dBm@MCS0 -70 dBm@MCS7 -68 dBm@MCS15 40MHz -83 dBm@MCS0 -67 dBm@MCS7 -65 dBm@MCS15 802.11ac: 20MHz -64 dBm@MCS8 40MHz -62 dBm@MCS8 -59 dBm@MCS9 80MHz -59 dBm@MCS8 -56 dBm@MCS9 Security WPS, WPA, WPA2, WEP 64bit & 128bit, IEEE 802.1X, IEEE 802.11i Common Function Operating Voltage 5 V ±5% I/O supply voltage Power Consumption Mode Average Peak 2.4G 5G 2.4G 5G TX TBDmA TBDmA 1A 1A RX TBDmA TBDmA Unassocia ted Idle TBDmA Standby WiFi+BT TBDmA Antenna Type Printed Antenna for WiFi&BT Page 8/11 RECOMMENDED OPERATION CONDITIONS For Module Symbol Rating Min Typ Max Units VCC 5V Supply Voltage 4.75 5 5.25 V For IC Symbol Rating Min Typ Max Units VDD33 3.3V Supply Voltage 2.97 3.3 3.63 V VDD12 1.2V Supply Voltage 1.14 1.2 1.26 V VDD15 1.5V Supply Voltage 1.425 1.5 1.575 V DC CHARACTERISTICS Symbol Parameter Min Typ Max Units V IL Input Low Voltage -0.28 - 0.6 V V IH Input High Voltage 2.0 - 3.63 V V OL Output Low Voltage -0.28 - 0.4 V OH Output High Voltage 2.4 - 3.63 V RESET TIMING SPEC Page 9/11 PIN ASSIGMENT Pin. Pin Define Description Status 1 +5VCC 5V source YES 2 WoBT Wake up system via BT, low active YES 3 WoWLAN Wake up system via wifi, low active YES 4 RESET# System reset MT7662U, low active YES 5 GND Ground YES 6 USB_D+ USB Data+ YES 7 USB_D- USB Data- YES 8 GND Ground YES USB CONNECTOR SPEC Page 11/11 EEPROM INFORMATION BT Vendor ID 0x0E8D Product ID 0x7662 WI-FI Reg Domain World Wide 2.4G/5G Read from registry; Control by driver Offset 0x38 for 5G: 0xFF Offset 0x39 for 2.4G: 0xFF Vendor ID 0x0E8D Device ID 0x7662 ENVIRONMENTAL OPERATING Operating Temperature: 0 to 70 C (32 to 158 F) Relative Humidity: 5-90% (non-condensing) STORAGE Temperature: -40 to 80 C (-40 to 176 F) Relative Humidity: 5-95% (non-condensing)

Example of Agents letter (for TCB – TCB approval): Lite LiteLite Lite- -- -On Technology Corp. On Technology Corp.On Technology Corp. On Technology Corp. Date (08/28/2015) TUV SUD BABT TCB/FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL FCC ID:PPQ-WCBN4507R Dear Sir or Madam, We, (Lite-On Technology Corp.,and Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C.), hereby authorize (Compliance Certification Services Inc./ David Wang., No.11,Wugong 6th Rd., Wugu Dist. New Taipei City 24891,Taiwan and 02-2299-9720) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2016/08/28 Sincerely, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 E-Mail: [email protected]

Lite LiteLite Lite- -- -On Technology Corp. On Technology Corp.On Technology Corp. On Technology Corp. Date (08/28/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: PPQ-WCBN4507R Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Lite-On Technology Corp. .hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX:886-2-2226-6749 E-Mail:[email protected]

Lite-On Technology Corp. Date (08/28/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Modular Approval Request FCC ID: PPQ-WCBN4507R The following attestation addresses the requirements to support modular approval: Modular approval requirement Yes (provide brief statement) No * (a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Yes, the module in the radio frequency component part use metal sheet shield. (b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Yes, the modules use the wireless transceiver module as buffer Modulation / data input. (c) The module must contain power supply regulation on the module Yes, the module use power as 5VDC, can regulation power module model is Media Tek MT7662U / MT7632U (d) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Yes, antenna brand name/Model name/Antenna type: BT- 1. Tyco / 2195488-1 / PCB ANT 2. Walsin / RFPCA311147IMAB701 / PCB ANT 2.4G & 5G- 1. Tyco / 2195488-2 / PCB ANT 2. Tyco / 2195488-3 / PCB ANT 3. Walsin / RFPCA311131IMLB701 / PCB ANT 4. Walsin / RFPCA311148IMLB701 / PCB ANT (e) The module must demonstrate compliance in a stand-alone configuration Yes, the module is in a stand- alone configuration, as the schematic and internal photos. (f) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See Yes, the module is labeled with its own FCC ID PPQ-WCBN4507R, as the label. KDB Publication 784748 about labelling requirements) (g) The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements Yes,the module is comply the Transmitter rules. And provide Instruction for application. (h) The module must comply with RF exposure requirements Yes,the module is comply the applicable RF exposure requirements in its final configuration. * Please provide a detailed explanation if the answer is “No.” Yours sincerely, TC Wu Title:Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX:886-2-2226-6749 E-Mail:[email protected]

Lite LiteLite Lite- -- -On Technology Corp. On Technology Corp.On Technology Corp. On Technology Corp. Date (08/28/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL We, Lite-On Technology Corp.declare that This module support a/b/g/n/ac function that 2.4GHz/5GHz bands as the below: This module is not operating as a master device in the DFS bands (5250-5350 MHz, 5470-5725 MHz, 5600-5650MHz) only act as station/client. Yours sincerely, Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. TEL: 886-2-2222-6181 / FAX: 886-2-2226-6749 Email: [email protected]

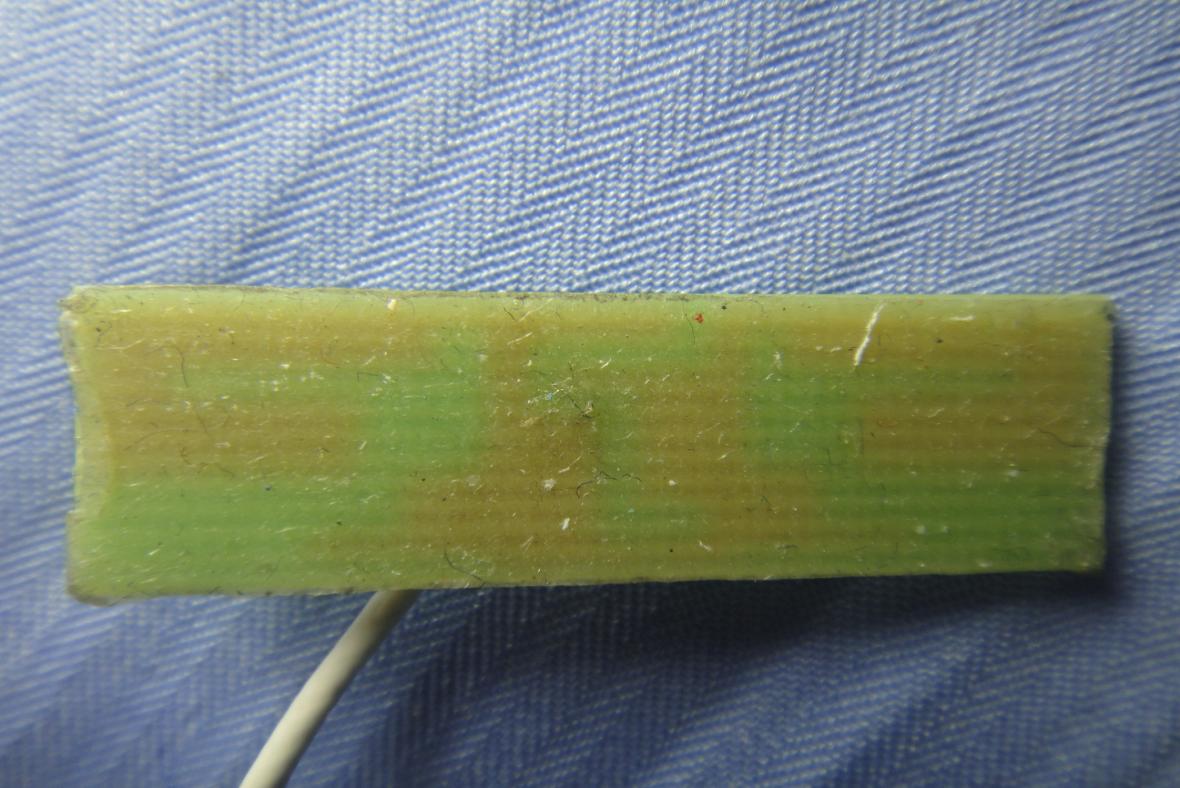

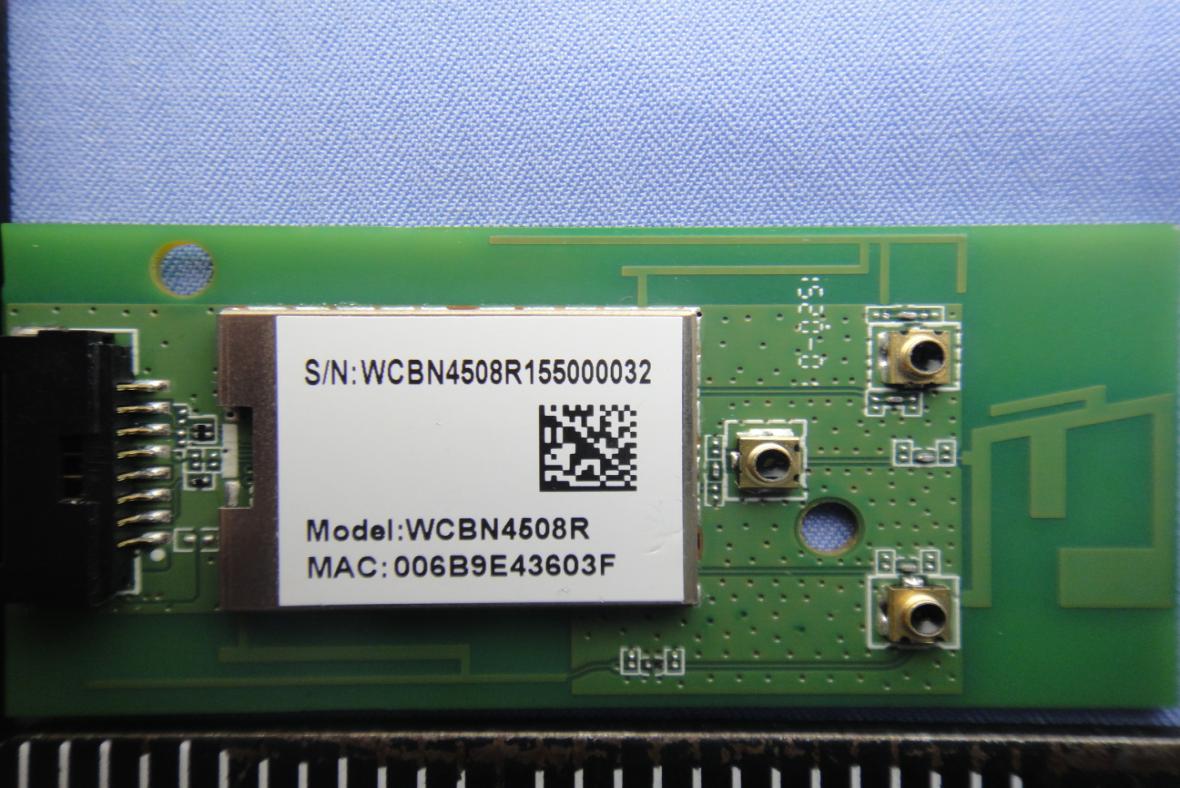

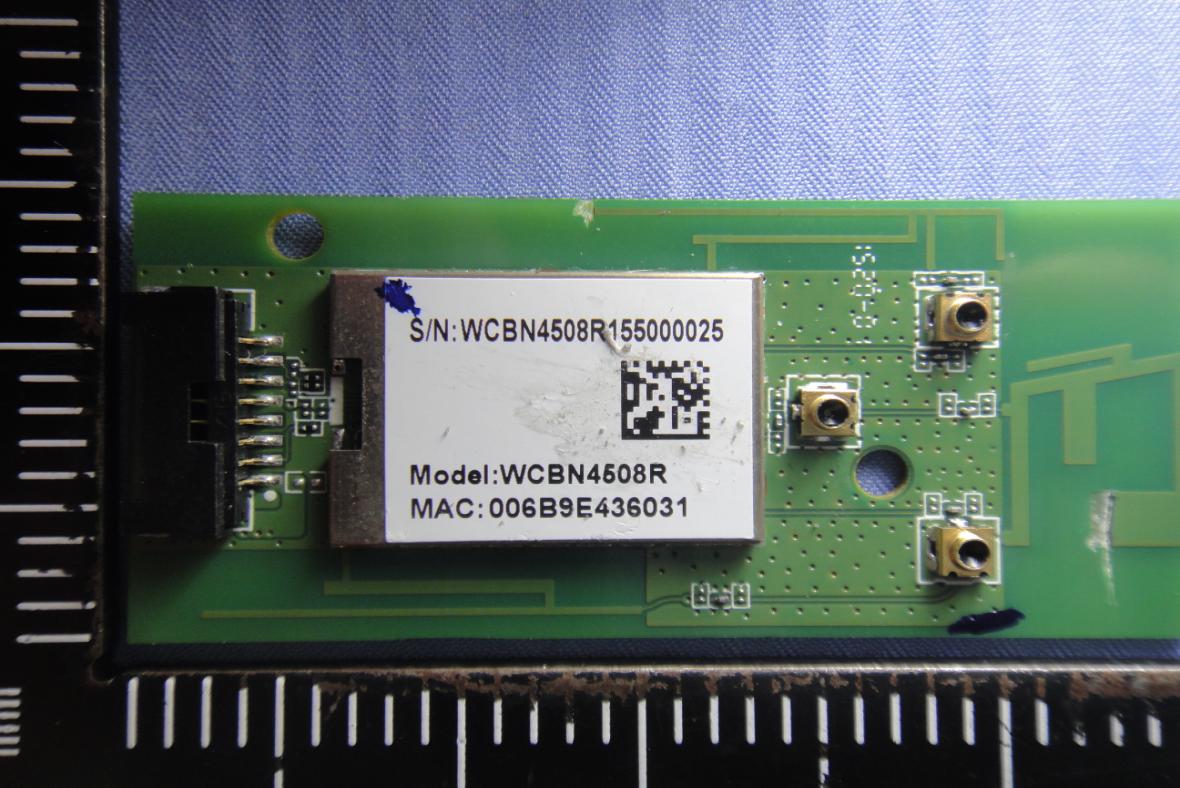

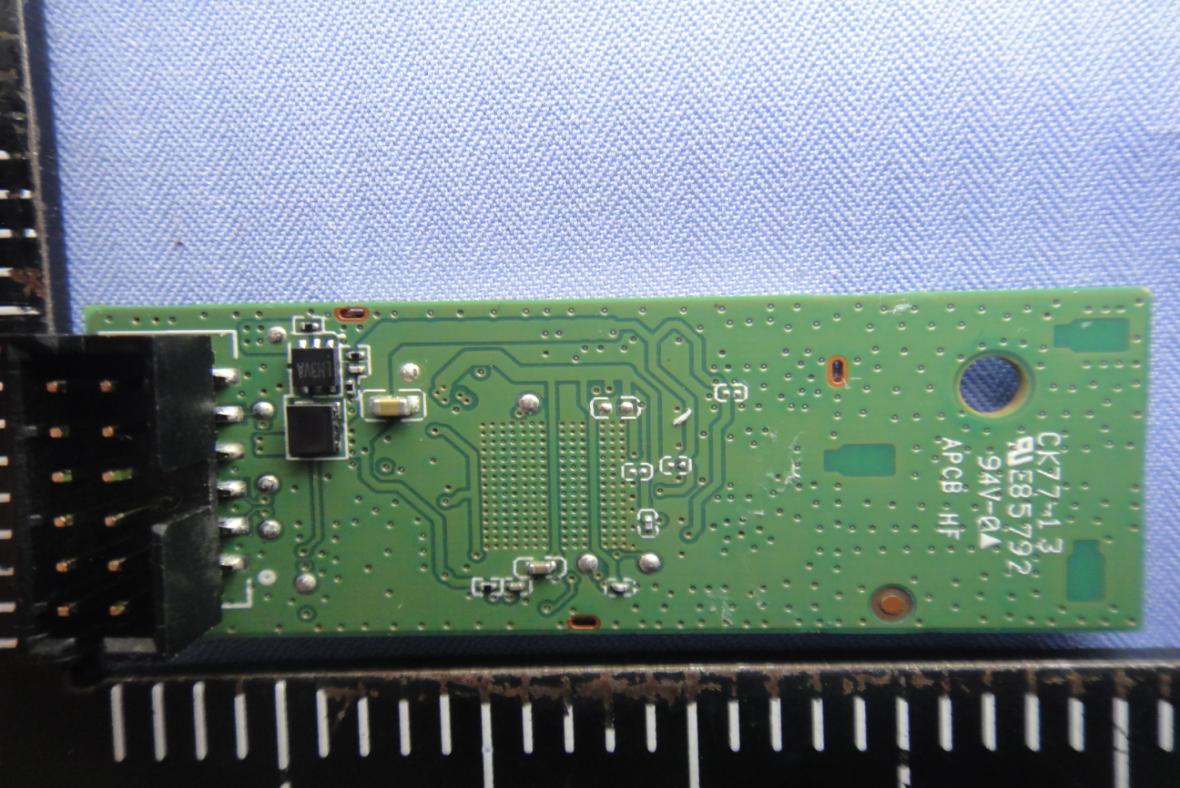

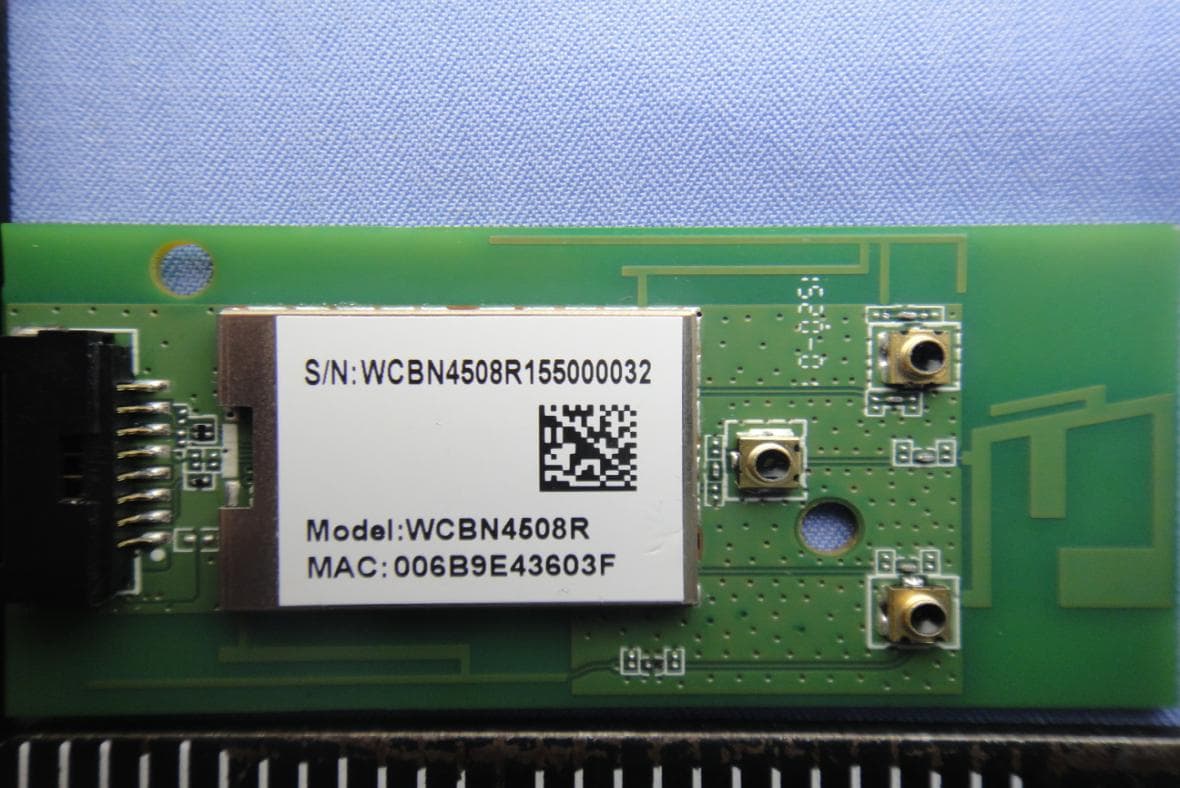

Compliance Certification Services Inc. Report No.: T150727W02 A1 - 1 / 13 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150727W02 A1 - 2 / 13 Rev. 00 WCBN4507R Compliance Certification Services Inc. Report No.: T150727W02 A1 - 3 / 13 Rev. 00 WCBN4508R Compliance Certification Services Inc. Report No.: T150727W02 A1 - 4 / 13 Rev. 00 WCBN4507R(32U) Compliance Certification Services Inc. Report No.: T150727W02 A1 - 5 / 13 Rev. 00 WCBN4508R(32U) Compliance Certification Services Inc. Report No.: T150727W02 A1 - 6 / 13 Rev. 00 Antenna Tyco Compliance Certification Services Inc. Report No.: T150727W02 A1 - 7 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150727W02 A1 - 8 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150727W02 A1 - 9 / 13 Rev. 00 Walsin Compliance Certification Services Inc. Report No.: T150727W02 A1 - 10 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150727W02 A1 - 11 / 13 Rev. 00

Compliance Certification Services Inc. FCC ID: PPQ-WCBN4507R Report No.: T150727W02-MF Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE C95.1 KDB447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For Product Model Wi-Fi (11a/b/g/n/ac 2Tx2R)+BT (V4.1LE) USB Combo Module WCBN4507R WCBN4508R Wi-Fi (11a/b/g/n 2Tx2R)+BT (V4.1LE) USB Combo Module WCBN4507R(32U) WCBN4508R(32U) Trade Name: LITE-ON Issued to Lite-On Technology Cop. Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: September 2, 2015 Compliance Certification Services Inc. FCC ID: PPQ-WCBN4507R Report No.: T150727W02-MF Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 2, 2015 Initial Issue ALL Doris Chu Compliance Certification Services Inc. FCC ID: PPQ-WCBN4507R Report No.: T150727W02-MF Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. LIMIT .................................................................................................................... 4 2. EUT SPECIFICATION .......................................................................................... 4 3. TEST RESULTS ................................................................................................... 7 4. MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 8 Compliance Certification Services Inc. FCC ID: PPQ-WCBN4507R Report No.: T150727W02-MF Page 4 Rev.00 Thi…

Text truncated - open the document above for the full version.
