PPQ-WCBN603MH802.11 abgn 2.4G and 5G WiFi and BT SDIO Half Size Card

Kaysa Lee Page 1 2/1/2013 8 8 0 0 2 2 . . 1 1 1 1 a a / / b b / / g g / / n n , , 2 2 . . 4 4 G G / / 5 5 G G 1 1 T T 1 1 R R W W i i r r e e l l e e s s s s + + B B T T M M o o d d u u l l e e W W C C B B N N 6 6 0 0 3 3 M M H H U U s s e e r r ’ ’ s s M M a a n n u u a a l l Kaysa Lee Page 2 2/1/2013 REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Kaysa Lee Page 3 2/1/2013 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. The operation frequency of the device is in the 5150-5250 MHz band is for indoor use only. A warning message should be provided in the user’s manual. FCC Label Instructions: The outside of final products that contains this module device must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: PPQ-WCBN603MH” or “Contains FCC ID: PPQ-WCBN603MH” Any similar wording that expresses the same meaning may be used. Kaysa Lee Page 4 2/1/2013 Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body). This device has been certified for use in Canada. Status of the listing in the Industry Canada’s REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng Additional Canadian information on RF exposure also can be found at the following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil Dell est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil Dell de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du corps d'une personne). Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée correspondant à l’appareil dans la liste d'équipement radio (REL - Radio Equipment List) d'Industry Canada rendez-vous sur: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng Pour des informations supplémentaires concernant l'exposition aux RF au Canada rendez-vo…

Text truncated - open the document above for the full version.

LITE-ON Technology Corporation 4F, No. 90, Chien 1 Rd., Chung-Ho 235, Taipei Hsien, Taiwan Confidentiality Request Letter Confidentiality Request regarding application for certification of FCC ID: PPQ-WCBN603MH Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, and IC RSP-100, Section 10, we hereby request Long Term confidential treatment (Permanent Confidentiality) of information accompanying this application as outlined below: Exhibit Type Block Diagram, Schematics, Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, and IC RSP-100, Section 10, we also request temporary confidential treatment (Short Term Confidentiality) of information accompanying this application as outlined below: Exhibit Type Time of confidentiality: days Sincerely, (Grantee Contact’s Signature) T.C. Wu Deputy Director(R & D Division)

Request for Modular Transmitter Module Approval Module Characteristics declaration for FCC ID: PPQ-WCBN603MH: Item No. Yes /No Requirements Declaration of the final design 1 Yes Have its own RF shielding Yes, see photos 2 Yes Have buffered modulation/data inputs (if such inputs are provided) , modulation/data inputs buffered 3 Yes Have it own power supply regulation Output power is controlled. Frequency controlled by crystal 4 Yes Meet the antenna requirements of Section 15.203 Approved with two antennae, see Photo Documentation and Exhibits 5 Yes Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Tested on Interface board external to Laptop Computer 6 Yes Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. FCC ID on Module. Labeling instructions in user manual 7 Yes The modular transmitter must comply with all specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Instructions in User Manual 8 Yes Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Instructions in User Manual that a distance of 20 cm to user must be maintained. Certified By: 2013/2/4

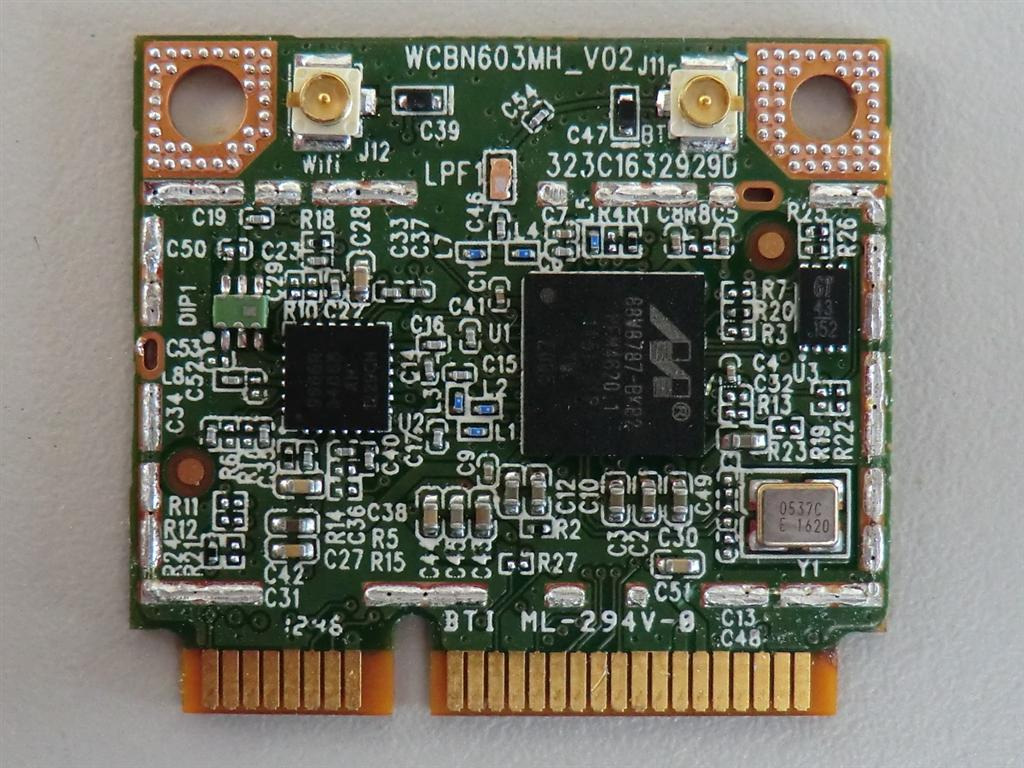

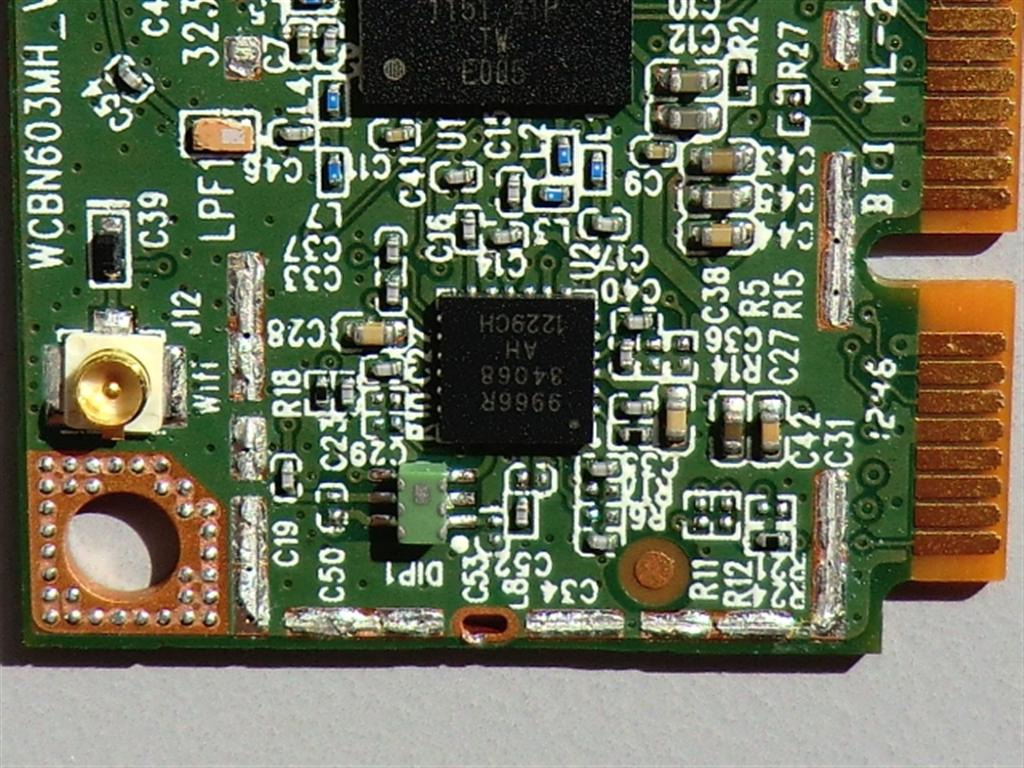

ATTACHMENT Photo Documentation Page 1 of 4 Product: Combo module Type Designation: WCBN603MH FCC ID: WCBN603MH ATTACHMENT Photo Documentation Page 2 of 4 Product: Combo module Type Designation: WCBN603MH FCC ID: WCBN603MH ATTACHMENT Photo Documentation Page 3 of 4 Product: Combo module Type Designation: WCBN603MH FCC ID: WCBN603MH Main Antenna (WLAN TX) ATTACHMENT Photo Documentation Page 4 of 4 Product: Combo module Type Designation: WCBN603MH FCC ID: WCBN603MH Auxiliary Antenna (BT TX):

MM11306850D MAC ID LABEL WCBN603MH Quanta A1 (客 户):Quanta (空白Label料 号): (材质):50#白 色特多龙 (上光方式):NO (尺寸):27*15mm (公差):+-0.3mm 50900005763D WI-CQES-002 Rita Huang 2013.01.17 1:1 3:1 S/N 編 S/N使用一維條碼CODE 128B 條碼顯示內容為：LYMDGXXXXXX 碼原則: L: 固定碼代表LITEON Y:年,取西元年最後一碼(如2010為0) M:月("1~9" A:Oct. B:Nov. C:Dec.) D:日期"1~9" 10~31請 用字母A~V表 示 G:Manufacture Factory Code XXXXXX:流水號十進制按日期歸零 BD ID 為MAC+1 MAC ID使用一維條碼CODE128B 顯示內容為：XXXXXXXXXXXX(業務提供) Verdor LITEON P/N (成品料號) Customer P/N 27mm 27mm 15mm 15mm FCC ID:PPQ-WCBN603MH MAC ID:XXXXXXXXXXXX C/PN:ADPC603M000 L/PN:A55161548D Model:WCBN603MH SN:LYMDGXXXXXX 5.00mm FCC ID:PPQ-WCBN603MH MAC ID:XXXXXXXXXXXX C/PN:ADPC603M000 L/PN:A55161548D Model:WCBN603MH SN:LYMDGXXXXXX

ATTACHMENT Photo Documentation Page 1 of 4 Product: Combo module Type Designation: WCBN603MH FCC ID: WCBN603MH ATTACHMENT Photo Documentation Page 2 of 4 Product: Combo module Type Designation: WCBN603MH FCC ID: WCBN603MH ATTACHMENT Photo Documentation Page 3 of 4 Product: Combo module Type Designation: WCBN603MH FCC ID: WCBN603MH Main Antenna (WLAN TX) ATTACHMENT Photo Documentation Page 4 of 4 Product: Combo module Type Designation: WCBN603MH FCC ID: WCBN603MH Auxiliary Antenna (BT TX):

Produkte Products FCC ID: PPQ-WCBN603MH Seite 1 von 1 Page 1 of 1 1. Safety Human exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Frequency Band: 2400-2483.5 MHz S=PG/4πR^2 Max Power to Antenna (mW) Antenna Gain (dBi) Antenna Gain (numeric) Power Density at 20cm (mW/cm^2) Limit (mW/cm^2) Result 246 2.95 1.97 0.097 1.0 Pass

Test Report No.10039978 001 Appendix 1: IUT Photos (File: 10039978Appendix1) ATTACHMENT Photo Documentation Page 1 of 3 Product: Combo module Type Designation: WBCN603MH ATTACHMENT Photo Documentation Page 2 of 3 Product: Combo module Type Designation: WBCN603MH ATTACHMENT Photo Documentation Page 3 of 3 Product: Combo module Type Designation: WBCN603MH Test Report No.10039978 001 Appendix 2: Test Result of Radiated Emissions and Radiated Band Edge (File: 10039978Appendix2) Service No.: 113161892-FCC wifi Test Distance: 3M Test Standard: FCC Class B 3M Radiation Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2012/12/31 AM 09:41:52 Applicant: Lite-On Test Rating: DC 3.3V Product: Wireless module Temp.(°C °C°C °C)/Hum.(%): 19(°C °C°C °C)/50% Model No.: WBCN603MH Test Engineer: Hugo Chang Test Mode: Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 124.9100 -13.88 52.12 38.24 43.50 -5.26 QP 200 149 2 174.2400 -15.83 54.22 38.39 43.50 -5.11 QP 200 335 3 224.8600 -15.18 47.06 31.88 46.00 -14.12 QP 100 0 4 248.2500 -13.06 52.69 39.63 46.00 -6.37 QP 100 161 5 322.9399 -10.78 49.85 39.07 46.00 -6.93 QP 100 191 6 373.3798 -9.59 49.70 40.11 46.00 -5.89 QP 100 311 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Service No.: 113161892-FCC wifi Test Distance: 3M Test Standard: FCC Class B 3M Radiation Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2012/12/31 AM 09:46:51 Applicant: Lite-On Test Rating: DC 3.3V Product: Wireless module Temp.(°C °C°C °C)/Hum.(%): 19(°C °C°C °C)/50% Model No.: WBCN603MH Test Engineer: Hugo Chang Test Mode: Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 124.0900 -13.91 47.25 33.34 43.50 -10.16 QP 200 84 2 174.5300 -15.83 48.10 32.27 43.50 -11.23 QP 200 241 3 374.3500 -9.57 43.86 34.29 46.00 -11.71 QP 100 219 4 497.5400 -7.66 39.32 31.66 46.00 -14.34 QP 100 242 5 602.3000 -5.84 38.54 32.70 46.00 -13.30 QP 100 106 6 719.6700 -4.30 36.93 32.63 46.00 -13.37 QP 100 186 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Service No.: 113161892-FCC wifi Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2012/12/31 PM 01:52:51 Applicant: Lite-On Test Rating: DC 3.3V Product: Wireless module Temp.(°C °C°C °C)/Hum.(%): 19(°C °C°C °C)/50% Model No.: WBCN603MH Test Engineer: Hugo Chang Test Mode: B CH2412 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 6856.000 5.37 45.33 50.70 74.00 -23.30 peak 100 360 2 7563.000 7.54 43.01 50.55 74.00 -23.45 peak 100 360 3 6122.000 3.31 45.62 48.93 74.00 -25.07 peak 100 360 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Service No.: 113161892-FCC wifi Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2012/12/31 PM 01:56:48 Applicant: Lite-On Test Rating: DC 3.3V Product: Wireless module Temp.(°C °C°C °C)/Hum.(%): 19(°C °C°C °C)/50% Model No.: WBCN603MH Test Engineer: Hugo Chang Test Mode: B CH2412 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4816.000 -4.07 55.51 51.44 74.00 -22.56 peak 100 0 2 6720.000 5.20 43.72 48.92 74.00 -25.08 peak 100 0 3 6067.000 3.07 45.56 48.63 74.00 -25.37 peak 100 0 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Service No.: 113161892-FCC wifi Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2012/12/31 PM 01:59:18 Applicant: Lite-On Test Rating: DC 3.3V Product: Wireless module Temp.(°C °C°C °C)/Hum.(%): 19(°C °C°C °C)/50% Model No.: WBCN603MH Test Engineer: Hugo Chang Test Mode: B CH2437 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 6747.000 5.23 44.90 50.13 74.00 -23.87 peak 100 360 2 6992.000 5.54 45.43 50.97 74.00 -23.03 peak 100 360 3 6639.000 5.11 44.42 49.53 74.00 -24.47 peak 100 360 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Service No.: 113161892-FCC wifi Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2012/12/31 PM 02:00:52 Applicant: Lite-On Test Rating: DC 3.3V Product: Wireless module Temp.(°C °C°C °C)/Hum.(%): 19(°C °C°C °C)/50% Model No.: WBCN603MH Test Engineer: Hugo Chang Test Mode: B CH2437 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4871.000 -3.83 58.80 54.97 74.00 -19.03 peak 100 0 2 6938.000 5.46 45.16 50.62 74.00 -23.38 peak 100 0 3 7346.000 6.94 44.40 51.34 74.00 -22.66 QP 100 0 4 4873.944 -3.82 57.20 53.38 54.00 -0.62 AVG 100 138 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Service No.: 113161892-FCC wifi Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2012/12/31 PM 02:05:01 Applicant: Lite-On Test Rating: DC 3.3V Product: Wireless module Temp.(°C °C°C °C)/Hum.(%): 19(°C °C°C °C)/50% Model No.: WBCN603MH Test Engineer: Hugo Chang Test Mode: B CH2462 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 6397.000 4.50 45.48 49.98 74.00 -24.02 peak 100 360 2 6832.000 5.34 45.91 …

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10039978 001 Seite 2 von 83 Page 2 of 83 TEST SUMMARY 5.1.1 ANTENNA PORT (2.4GHZ BAND) 5.1.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.1.2 OUTPUT POWER RESULT: Passed 5.1.1.3 6DB BANDWIDTH RESULT: Passed 5.1.1.4 POWER DENSITY RESULT: Passed 5.1.1.5 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.2 SPURIOUS EMISSION RESULT: Passed 5.2.1 ANTENNA PORT (5GHZ BAND) 5.2.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.2.1.2 OUTPUT POWER RESULT: Passed 5.2.1.3 6DB BANDWIDTH RESULT: Passed 5.2.1.4 POWER DENSITY RESULT: Passed 5.2.1.5 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.2.2 SPURIOUS EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10039978 001 Seite 3 von 83 Page 3 of 83 Contents 1. GENERAL REMARKS ......................................................................................................... 5 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 5 2. TEST SITES ...................................................................................................................... 6 2.1 TEST FACILITIES ............................................................................................................... 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 7 2.3 TRACEABILITY .................................................................................................................. 7 2.4 CALIBRATION ................................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 8 3. GENERAL PRODUCT INFORMATION .................................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 9 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 9 3.3 INDEPENDENT OPERATION MODES .................................................................................. 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ..................................................... 11 3.5 SUBMITTED DOCUMENTS ................................................................................................ 11 4. TEST SET-UP AND OPERATION MODES ............................................................................ 12 4.1 PRINCIPLE OF CONFIGURATION SELECTION ...................................................................... 12 4.2 TEST OPERATION AND TEST SOFTWARE .......................................................................... 12 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 13 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 14 4.5 TEST SETUP DIAGRAM .................................................................................................... 14 5. TEST RESULTS ............................................................................................................... 16 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 16 5.1.1 Antenna Port (2.4GHz Band) ..................................................................................................... 16 5.1.1.1 Antenna Requirement .................................................................................... 16 5.1.1.2 Output Power ................................................................................................. 17 5.1.1.3 6dB Bandwidth .............................................................................................. 27 5.1.1.4 Power Density ............................................................................................... 37 5.1.1.5 Conducted spurious emissions measured in 100kHz Bandwidth ................... 47 5.1.2 Spurious Emission ..................................................................................................................... 52 5.2 5GHZ BAND TRANSMITTER REQUIREMENT & TEST SUITES ............................................... 53 5.2.1 Antenna Port (5GHz Band) ........................................................................................................ 53 5.2.1.1 Antenna Requirement .................................................................................... 53 5.2.1.2 Output Power ................................................................................................. 54 5.2.1.3 6dB Bandwidth .............................................................................................. 61 5.2.1.4 Power Density ............................................................................................... 68 5.2.1.5 Conducted spurious emissions measured in 100kHz Bandwidth ................... 75 5.2.2 Spurious Emission ..................................................................................................................... 79 PHOTOGRAPHS OF THE TEST SET-UP .......................................................................................... 80 6. LIST OF TABLES ............................................................................................................. 83 Produkte Products Prüfbericht - Nr.: Test Report No. 10039978 001 Seite 4 von 83 Page 4 of 83 7. LIST OF PHOTOGRAPHS .................................................................................................. 83 Produkte Products Prüfbericht - Nr.: Test Report No. 10039978 001 Seite 5 von 83 Page 5 of 83 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Ap…

Text truncated - open the document above for the full version.

Pr odukte Produc ts T estR eportN o. S e i t e8 0von 8 3 P age8 0 o f 8 3 Ph o t ograp h1 :S e t7u pfor S p u r i o u sEm i ss i ons(Fron tV i e w) Pr odukte Produc ts T estR eportN o. S e i t e8 1von 8 3 P age8 1 o f 8 3 Ph o t ograp h2:S e t{u pfor S p u r i o u sEm i ss i ons(BackV i e w1 ) Pr odukte Produc ts T estR eportN o. S e i t e8 2von 8 3 P age8 2of 8 3 Ph o t ograp h3:S e tÄu pfor S p u r i o u sEm i ss i ons(BackV i e w2 ) Ph o t ograp h4:S e tÄu pforCon d u c t e d t es t i ng
