PPQ-WN4501L802.11n, Dual Band 2T2R Wireless Module

Page 1/11 User manual 802.11n, Dual Band 2T2R Wireless USB Module WN4501L Version 1.1 Author: Ben J. Chen Editor: Ben J. Chen Project Leader: Jason Chien Approved by: Jason Chien Change History Revision Date Author Change List Version 1.0 2012/03/29 Ben J. Chen Preliminary Version 1.1 2012/06/05 Ben J. Chen Update Power Consumption Update Antenna Type Update Label Drawing Update Module Photo Update EEPROM information Update Packing Drawing * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Page 3/11 CONTENT PRODUCT FEATURES .................................................................................................................... 4 WI-FI FEATURE ...................................................................................................................................... 4 PRODUCT SPECIFICATIONS ........................................................................................................ 5 MAIN CHIPSET ....................................................................................................................................... 5 FUNCTIONAL SPECIFICATIONS ............................................................................................................... 5 PIN ASSIGNMENT ............................................................................................................................ 7 MECHANICAL .................................................................................................................................. 7 BLOCK DIAGRAM ........................................................................................................................... 8 LABEL DRAWING ............................................................................................................................ 8 MODULE PHOTO ............................................................................................................................. 9 EEPROM INFORMATION ............................................................................................................ 10 ENVIRONMENTAL ........................................................................................................................ 10 OPERATING .......................................................................................................................................... 10 STORAGE .............................................................................................................................................. 10 PACKING DRAWING .................................................................................................................... 11 Page 4/11 PRODUCT FEATURES Wi-Fi Feature  Operate at ISM frequency Band (2.4GHz/5GHz)  IEEE Standards Support, 802.11a, 802.11b, 802.11g and 802.11n  The WN4501L is developed using single-chip designed by Realtek Semiconductor Corp.  Complies with USB Specification 2.0, support Full-speed(12Mbps) and High-speed(480Mbps)  Enterprise level security supporting: WPA, WPA2  Support 2 transmission and 2 receiving, transmission rate can up to 300Mbps (Physical Rate) in downstream and upstream  WAPI (Wireless Authentication Privacy Infrastructure) certified  RoHS compliance  Low Halogen compliance Page 5/11 PRODUCT SPECIFICATIONS MAIN CHIPSET Realtek RTL8192DU FUNCTIONAL SPECIFICATIONS Wi-Fi Function Standard IEEE802.11a; IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface USB Interface Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 15 for HT20MHz MCS 0 to 15 for HT40MHz Media Access Control CSMA/CA with ACK Modulation Techniques 802.11b: CCK, DQPSK, DBPSK 802.11a/g: 64QAM, 16QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16QAM, 64QAM Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan 5GHz 12: United States 19: Europe 8: Japan Frequency Range 802.11bg 2.412 ~ 2.4835 GHz 802.11a 5.15 ~ 5.85 GHz Transmit Output Power – 2x2 (Tolerance: ±1.5dBm) 802.11a: 13 dBm@54Mbps 802.11b: 17 dBm@11Mbps 802.11g: 17 dBm@6Mbps 14 dBm@54Mbps 802.11n(2.4GHz): 20MHz: 17 dBm@MCS0 13 dBm@MCS7 13 dBm@MCS15 40MHz: Page 6/11 13 dBm@MCS0 13 dBm@MCS7 13 dBm@MCS15 802.11n(5GHz): 20MHz: 15 dBm@MCS0 11 dBm@MCS7 11 dBm@MCS15 40MHz: 15 dBm@MCS0 11 dBm@MCS7 11 dBm@MCS15 Receiver Sensitivity 802.11a: -76 dBm@54Mbps 802.11b: -86 dBm@11Mbps 802.11g: -77 dBm@54Mbps 802.11n(2.4GHz): 20MHz -74 dBm@MCS7 -71 dBm@MCS15 40MHz -70 dBm@MCS7 -67 dBm@MCS15 802.11n(5GHz): 20MHz -72 dBm@MCS7 -69 dBm@MCS15 40MHz -69 dBm@MCS7 -66 dBm@MCS15 Security WEP 64&128bit, WPA, WPA2, WPS, IEEE 802.1X, IEEE 802.11i Operating Voltage 3.3 V ±5% I/O supply voltage OS Supported Microsoft Windows XP/Vista/Win7/Win8; Linux based Power Consumption TX Mode: 5G: 330mA 2.4G: 270mA RX Mode: 5G: 240mA 2.4G: 190mA Associate Idle Mode: 5G: 180mA 2.4G: 150mA Un-associate Idle Mode: 130mA Radio Off: 20mA Antenna Type Dual Metal Antennas Page 7/11 PIN ASSIGNMENT Pin. Pin Define Status 1 +5V YES 2 USB D- YES 3 USB D+ YES 4 GND YES 5 Reset YES MECHANICAL Page 10/11 EEPROM INFORMATION Reg Domain World Wide 2.4GHz Channels 1-11 with active scan Channels 12,13 with passive scan Chanel 14 with no scan 5GHz: (all passive scan) 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165 0x13 Customer ID 0x00 Vendor ID 0x0BDA Device ID 0x8194 ENVIRONMENTAL OPERATING Operating Temperature: 0 to 70 C (32 to 158 F) Relative Humidity: 5-90% (non-condensing) STORAGE Temperature: -40 to 80 C (-40 to 176 F) Relative Humidity: 5-95% (non-condensing) Page 11/11 PACKING DRAWING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference a…

Text truncated - open the document above for the full version.

Applicant/Grantee Lite-On Technology Corp. FCC ID: PPQ-WN4501L Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The modular have RF own shielding Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter have buffered modulation/data inputs Y 3 The modular transmitter must have its own power supply regulation. The EUT module needs another external power supply to provide the required working voltage. This EUT module is just a RF transceiver which has no power related circuit design therein. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The modular must to built-in PIFA applicant together and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length The EUT module can’t be operated by its own due to its power-less characteristic and hence needs external power supply to make it function. Under testing condition, no matter in pure verification or manufacturing stage, the specified test fixture must be provided to help testing the function and performance of the EUT sample. Y typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The FCC identification number can put on the modular with either a permanently affixed label Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with The modular have specific rules or operating requirements Y the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y A modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full co…

Text truncated - open the document above for the full version.

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Date：September 24, 2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Lite-On Technology Corp. hereby authorize Compliance Certification Services Inc./ David Wang. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2014/09/24 Your Sincerely, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 E-Mail: [email protected]

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Date：September 18, 2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: PPQ-WN4501L Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Lite-On Technology Corp. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 E-Mail: [email protected]

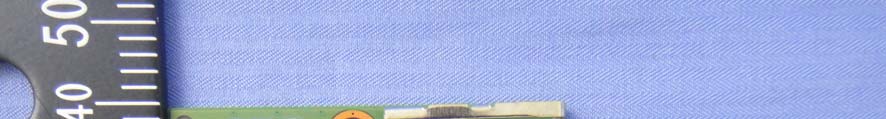

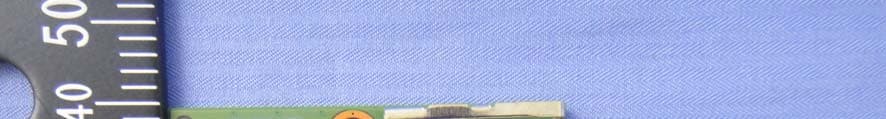

Compliance Certification Services Inc. Report No.: T130718W01 Date of Issue: September 13, 2013 A1 - 1 Total Page: 5 Rev.00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T130718W01 Date of Issue: September 13, 2013 A1 - 2 Rev.00

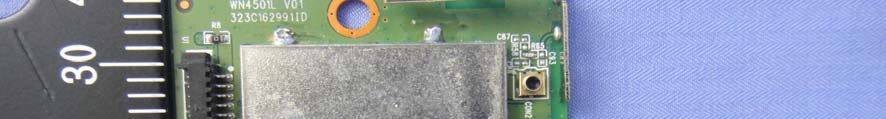

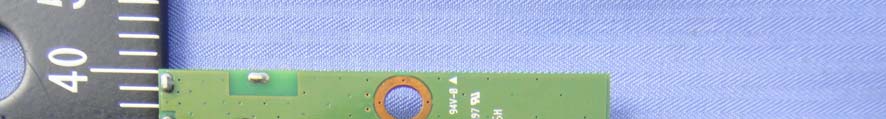

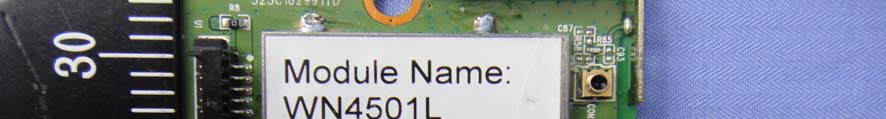

Compliance Certification Services Inc. Report No.: T130718W01 Date of Issue: September 13, 2013 A1 - 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T130718W01 Date of Issue: September 13, 2013 A1 - 4 Rev.00 PIFA Antenna Compliance Certification Services Inc. Report No.: T130718W01 Date of Issue: September 13, 2013 A1 - 5 Rev.00

Compliance Certification Services Inc. Report No.: T130718W01 Date of Issue: August 12, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 802.11n, Dual Band 2T2R Wireless USB Module Trade Name LITE-ON Model Number WN4501L Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11a/HT20: 5.150GHz ~ 5.250GHz 802.11a/HT20: 5.470GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification PIFA Antenna, Antenna L: 2.4GHz Gain: 2.97 dBi, 5GHz Gain: 1.74 dBi, Antenna R: 2.4GHz Gain: 3.36 dBi, (Numeric gain: 2.17); 5GHz Gain: 1.74 dBi, (Numeric gain: 1.49) Average output power IEEE 802.11b : 12.89 dBm (19.454mW) IEEE 802.11g : 17.35 dBm (54.325mW) IEEE 802.11n HT20 : 16.00 dBm (39.811mW) IEEE 802.11n HT40 : 14.94 dBm (31.189mW) IEEE 802.11a : 11.83 dBm (15.241mW) IEEE 802.11a HT20 : 15.42 dBm (34.834mW) IEEE 802.11a HT40 : 16.01 dBm (39.902mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum average output power is 17.35dBm (54.325mW) at 2442MHz (without 2.0 numeric antenna gain.) Compliance Certification Services Inc. Report No.: T130718W01 Date of Issue: August 12, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d G P E    30 & 377 2 E S  Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d G P S    Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 377 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T130718W01 Date of Issue: August 12, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: G P S    000199 . 0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 11 2462 19.454 2.17 20 0.0084 1 IEEE 802.11g mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 6 2437 54.325 2.17 20 0.0235 1 IEEE 802.11n HT20 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 11 2462 39.811 2.17 20 0.0172 1 IEEE 802.11n HT40 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 3 2422 31.189 2.17 20 0.0135 1 IEEE 802.11a mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 36 5180 15.241 1.49 20 0.0045 1 IEEE 802.11a HT20 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 116 5580 34.834 1.49 20 0.0103 1 IEEE 802.11a HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 102551039.9021.49200.01181

Compliance Certification Services Inc. FCC ID: PPQ-WN4501L Report No.: T130718W01-RP2 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 246 Rev.00 FCC 47 CFR PART 15 SUBPART E TEST REPORT For 802.11n, Dual Band 2T2R Wireless USB Module Model: WN4501L Trade Name: LITE-ON Issued to Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: September 12, 2013 Compliance Certification Services Inc. FCC ID: PPQ-WN4501L Report No.: T130718W01-RP2 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 12, 2013 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: PPQ-WN4501L Report No.: T130718W01-RP2 Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................................. 4 2. EUT DESCRIPTION .................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................. 7 3.1 EUT CONFIGURATION .............................................................................................................. 7 3.2 EUT EXERCISE ......................................................................................................................... 7 3.3 GENERAL TEST PROCEDURES .................................................................................................. 7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 8 3.5 DESCRIPTION OF TEST MODES ................................................................................................. 9 4. INSTRUMENT CALIBRATION ............................................................................................... 10 4.1 MEASURING INSTRUMENT CALIBRATION ......................................................................... 10 4.2 MEASUREMENT EQUIPMENT USED ............................................................................ 11 4.3 MEASUREMENT UNCERTAINTY .................................................................................. 12 5. FACILITIES AND ACCREDITATIONS ................................................................................. 13 5.1 FACILITIES ............................................................................................................................ 13 5.2 EQUIPMENT ........................................................................................................................... 13 5.3 TABLE OF ACCREDITATIONS AND LISTINGS .......................................................................... 14 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 15 6.1 SETUP CONFIGURATION OF EUT ............................................................................................ 15 6.2 SUPPORT EQUIPMENT ............................................................................................................ 15 7. FCC PART 15 REQUIREMENTS............................................................................................. 16 7.1 26 DB EMISSION BANDWIDTH ............................................................................................... 16 7.2 MAXIMUM CONDUCTED OUTPUT POWER .............................................................................. 61 7.3 BAND EDGES MEASUREMENT ...................................................................................... 68 7.4 PEAK POWER SPECTRAL DENSITY ......................................................................................... 81 7.5 PEAK EXCURSION ................................................................................................................ 126 7.6 RADIATED UNDESIRABLE EMISSION .................................................................................... 151 7.7 POWERLINE CONDUCTED EMISSIONS .................................................................................. 181 7.8 FREQUENCY STABILITY ....................................................................................................... 184 7.9 DYNAMIC FREQUENCY SELECTION .......................................................................... 203 APPENDIX I PHOTOGRAPHS OF TEST SETUP ..................................................................... 243 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: PPQ-WN4501L Report No.: T130718W01-RP2 Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Equipment Under Test: 802.11n, Dual Band 2T2R Wireless USB Module Tr a d e N a m e : LITE-ON Model: WN4501L Date of Test: September 3 ~ 13, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart E No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.407. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Section Manager Compli…
