PPQ-WN4505L802.11a/b/g/n/ac, 2T2R Wireless LAN USB2.0 Module

WN4505L Specification Page 1/8 2014/4/22 LTC Network Access Confidential User manual 802.11ac, 2T2R Wireless LAN USB2.0 Module WN4505L Version 1.2 Author: Kaysa Lee Editor: Kaysa Lee Change History Revision Date Author Change List Version 1.0 2013/03/04 Kaysa Lee Preliminary Version 1.1 2013/12/06 Kaysa Lee Update Pin definition for WOW function Version 1.2 2014/04/22 Kaysa Lee Update Power Consumption * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC WN4505L Specification Page 3/8 2014/4/22 LTC Network Access Confidential CONTENT PRODUCT FEATURES .................................................................................................................... 4 PRODUCT SPECIFICATIONS ........................................................................................................ 5 MAIN CHIPSET ....................................................................................................................................... 5 FUNCTIONAL SPECIFICATIONS ............................................................................................................... 5 CONNECTOR SPEC (CONNECTOR 1.25MM 1*5P 50271-0050N-001 SMD(宏致)) ................ 7 PIN ASSIGNMENT ............................................................................................................................ 7 BLOCK DIAGRAM ................................................................................................................................. 8 EEPROM INFORMATION .............................................................................................................. 8 ENVIRONMENTAL .......................................................................................................................... 8 OPERATING ............................................................................................................................................ 8 STORAGE ................................................................................................................................................ 8 WN4505L Specification Page 4/8 2014/4/22 LTC Network Access Confidential PRODUCT FEATURES  Operate at ISM frequency Band (2.4GHz)  IEEE Standards Support, 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac  The WN4505L is developed using single-chip designed by Realtek Technology Corporation  USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed  Enterprise level security supporting: WPA, WPA2, WEP 64/128  Support 2 transmission and 2 receiving, transmission rate can up to 867Mbps (Physical Rate) in downstream and upstream  Full feature software utility for easy configuration and management  RoHS compliance  Low Halogen compliance WN4505L Specification Page 5/8 2014/4/22 LTC Network Access Confidential PRODUCT SPECIFICATIONS MAIN CHIPSET MAC/ Baseband/ RF: Realtek 8812AU-VS-CG FUNCTIONAL SPECIFICATIONS WiFi Function Standard IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface Universal Serial Bus (USB2.0) Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 15 for HT20MHz MCS 0 to 15 for HT40MHz Media Access Control CSMA/CA with ACK Modulation Techniques 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16QAM, 64QAM Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan Frequency Range 802.11bg 2.412 ~ 2.462 GHz Transmit Output Power – 2x2 (Tolerance: +-1.5dBm) 802.11b: 16 dBm@1~11Mbps 802.11g: 16 dBm@6~24Mbps 15 dBm@36Mbps~54Mbps 802.11a: 16 dBm@6~24Mbps 15 dBm@36Mbps~54Mbps 802.11n: 2.4G 16dBm@MCS0~3 15dBm@MCS4 14dBm@MCS5 13dBm@MCS6 13dBm@MCS7 5G 16dBm@MCS0~3 15dBm@MCS4 WN4505L Specification Page 6/8 2014/4/22 LTC Network Access Confidential 14dBm@MCS5 13dBm@MCS6 13dBm@MCS7 13dBm@MCS9 EVM 802.11g mode (54Mbps) < -25dB HT20 (MCS7) < -28dB HT40(MCS7) < -28dB HT80(MCS9) < -32dB Transmit Spectrum flatness/Mask 802.11b at 11 MHz Offset -30dBr 802.11b at 22 MHz Offset-50dBr 802.11a/g at 9 MHz Offset0 dBr 802.11a/g at 11 MHz Offset -20 dBr 802.11a/g at 20 MHz Offset-28 dBr 802.11a/g at 30 MHz Offset-40 dBr 802.11n at 9 MHz offset0 dBr 802.11n at 11 MHz offset-20 dBr 802.11n at 20 MHz offset-28 dBr 802.11n at 30 MHz offset-45 dBr 802.11n above 30MHz offset-53dBm/MHz Transmit center frequency tolerance +/-20ppm(48kHz) frequency stability vs. temperature and aging. Receive Sensitivity 802.11b: -94dBm@1Mbps -82dBm@11Mbps 802.11g: -90dBm@6Mbps -68dBm@54Mbps 802.11n: 20MHz -89dBM@MCS0 -67dBm@MCS7 -65dBm@MCS15 40MHz -88dBm@MCS0 -64dBm@MCS7 -62dBm@MCS15 Security WPA, WPA2, WPS, WEP 64/128, IEEE 802.11x, IEEE 802.11i Operating Voltage 5V ±10% I/O supply voltage OS Supported Microsoft Windows XP/Vista/Win7/Win8/Linux Power Consumption TX Mode: 580mA RX Mode: 165mA Standby Mode: 165mA Antenna Type Two Metallic Antenna WN4505L Specification Page 7/8 2014/4/22 LTC Network Access Confidential CONNECTOR SPEC (CONNECTOR 1.25MM 1*5P 50271-0050N-001 SMD(宏致)) PIN ASSIGNMENT PIN. PIN DEFINE 1 +5V 2 D- 3 D+ 4 GND 5 WOW - Device wake Host function 6 Host inform Device function MECHANICAL WN4505L Specification Page 8/8 2014/4/22 LTC Network Access Confidential BLOCK DIAGRAM EEPROM INFORMATION Reg Domain World Wide_13 0x7F Vendor ID 0x0BDA Product ID 0x881A ENVIRONMENTAL Operating Operating Temperature: 0 to 75 C (32 to 167 F) Relevant Humidity: 5-90% (non-condensing) Storage Temperature: -40 to 85 C (-40 to 185 F) Relevant Humidity: 5-95% (non-condensing) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has…

Text truncated - open the document above for the full version.

Applicant/Grantee FCC ID: Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The modular have RF own shielding Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter have buffered modulation/data inputs Y 3 The modular transmitter must have its own power supply regulation. The module contains its own power supply regulation. Please refer to the schematic. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The modular must to built-in PIFA applicant together and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between The EUT module can’t be operated by its own due to its power-less characteristic and hence needs external power supply to make it function. Under testing condition, no matter in pure verification or manufacturing stage, the specified test fixture must be provided to help testing the function and performance of the EUT sample. Y the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The FCC identification number can put on the modular with either a permanently affixed label Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the The modular have specific rules or operating requirements Y application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y A modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien…

Text truncated - open the document above for the full version.

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. DateJuly 18, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Lite-On Technology Corp. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected] Date: Jul. 15, 2014

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. DateJuly 18, 2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Lite-On Technology Corp. hereby authorize Compliance Certification Services Inc./ David Wang. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2015/07/15 Your Sincerely, Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected] Date: Jul. 15, 2014

Compliance Certification Services Inc. Report No.: T140709W02 Date of Issue: July 11, 2014 A1 - 1 / 3 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

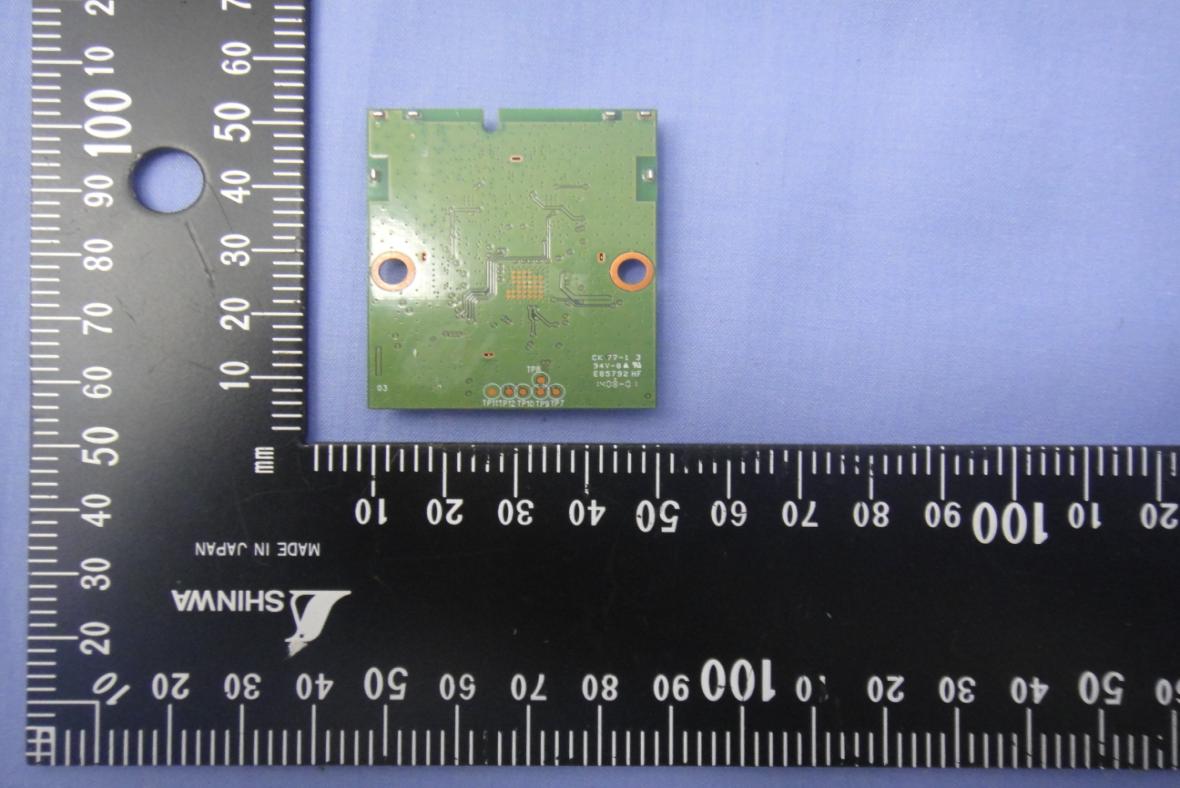

Compliance Certification Services Inc. Report No.: T140709W02 Date of Issue: July 11, 2014 A1 - 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140709W02 Date of Issue: July 11, 2014 A1 - 3 Rev. 00 Module

A20 A80

Compliance Certification Services Inc. Reference No.: T140416W01 Report No.: T140709W02-MF Date of Issue: July 17, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 802.11a/b/g/n/ac, 2T2R Wireless LAN USB2.0 Module Model WN4505L RF Module Realtek Model: RTL8812AU Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT20: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT40: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11AC HT80: 5170 ~ 5330 MHZ / 5490 ~ 5815 MHZ Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 5GHz: Antenna Gain :1.74 dBi (Numeric gain:1.49) 2.4GHz: Antenna Gain :3.36 dBi (Numeric gain:2.17) Maximum Average output power IEEE 802.11b Mode: 17.60 dBm(57.544 mW) IEEE 802.11g Mode: 17.70 dBm(58.884 mW) IEEE 802.11n HT 20 Mode: 16.81 dBm(47.973 mW) IEEE 802.11n HT 40 Mode: 17.14 dBm(51.761 mW) IEEE 802.11a Mode: 19.60 dBm(91.201 mW) IEEE 802.11n HT20 Mode: 18.15 dBm(65.313 mW) IEEE 802.11n HT40 Mode: 18.14 dBm(65.163 mW) IEEE 802.11ac HT80 Mode: 17.80 dBm(60.256 mW) Compliance Certification Services Inc. Reference No.: T140416W01 Report No.: T140709W02-MF Date of Issue: July 17, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Tune up Power IEEE 802.11b Mode: 19.00 dBm(79.433 mW) IEEE 802.11g Mode: 19.00 dBm(79.433 mW) IEEE 802.11n HT 20 Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT 40 Mode: 19.00 dBm(79.433 mW) IEEE 802.11a Mode: 20.00 dBm(100.000 mW) IEEE 802.11n HT20 Mode: 20.00 dBm(100.000 mW) IEEE 802.11n HT40 Mode: 20.00 dBm(100.000 mW) IEEE 802.11ac HT80 Mode: 19.50 dBm(89.125 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Reference No.: T140416W01 Report No.: T140709W02-MF Date of Issue: July 17, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/07/17 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. Reference No.: T140416W01 Report No.: T140709W02-MF Date of Issue: July 17, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Reference No.: T140416W01 Report No.: T140709W02-MF Date of Issue: July 17, 2014 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243779.4332.17200.03431 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243779.4332.17200.03431 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243763.0962.17200.02721 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 9243779.4332.17200.03431 IEEE 802.11a mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6453201001.49200.02971 IEEE 802.11a HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6453201001.49200.02971 IEEE 802.11a HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11055501001.49200.02971 IEEE 802.11ac HT80 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 106553089.1251.49200.02641

Compliance Certification Services Inc. Reference No.: T140416W01-RP1 FCC ID: PPQ-WN4505L Report No.: T140709W02-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 129 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 802.11a/b/g/n/ac, 2T2R Wireless LAN USB2.0 Module Model: WN4505L Trade Name: LITE-ON Issued to Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: July 17, 2014 Compliance Certification Services Inc. Reference No.: T140416W01-RP1 FCC ID: PPQ-WN4505L Report No.: T140709W02-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 17, 2014 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. Reference No.: T140416W01-RP1 FCC ID: PPQ-WN4505L Report No.: T140709W02-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................................. 4 2. EUT DESCRIPTION .................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................. 6 4.1 EUT CONFIGURATION ............................................................................................................ 6 4.2 EUT EXERCISE ........................................................................................................................ 6 4.3 GENERAL TEST PROCEDURES ................................................................................................. 6 4.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 7 4.5 DESCRIPTION OF TEST MODES ............................................................................................... 8 4. INSTRUMENT CALIBRATION ................................................................................................. 9 4.1 MEASURING INSTRUMENT CALIBRATION ............................................................................. 9 4.2 MEASUREMENT EQUIPMENT USED ............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................. 10 5 FACILITIES AND ACCREDITATIONS ................................................................................. 11 5.1 FACILITIES ........................................................................................................................... 11 5.2 LABORATORY ACCREDITATIONS AND LISTING .................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ......................................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST ................................................................................ 13 6.1 SETUP CONFIGURATION OF EUT ................................................................................. 13 6.2 SUPPORT EQUIPMENT ................................................................................................... 13 7 APPLICABLE RULES ............................................................................................................... 14 8 FCC PART 15 REQUIREMENTS............................................................................................. 14 8.1 6DB BANDWIDTH ................................................................................................................. 14 8.2 PEAK POWER ........................................................................................................................ 34 8.3 AVERAGE POWER ................................................................................................................ 36 8.4 BAND EDGES MEASUREMENT .................................................................................... 38 8.5 PEAK POWER SPECTRAL DENSITY ........................................................................................ 68 8.6 SPURIOUS EMISSIONS ..................................................................................................... 88 8.7 POWERLINE CONDUCTED EMISSIONS ................................................................................. 124 APPENDIX I PHOTOGRAPHS OF TEST SETUP ..................................................................... 127 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Reference No.: T140416W01-RP1 FCC ID: PPQ-WN4505L Report No.: T140709W02-RP1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Manufacturer: LITE-ON TECHNOLOGY (Changzhou) CO., LTD A9 Building,No.88 Yanghu Road, Wujin Hi-Tech Industrial Development Zone ,Changzhou City, Jiangsu Province 213100 China Equipment Under Test: 802.11a/b/g/n/ac, 2T2R Wireless LAN USB2.0 Module Trade Name: LITE-ON Model: WN4505L Date of Test: April 22, 2014 ~ May 9, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The test results of this report relate only to the tested sample identified in this report. Approved by Reviewed by Miller Lee Angel Cheng Se…
