PPQ-WN4507LAerialCast

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. TEL No: 886-2-2222-6181 FAX No: 886-2-2226-6749 Attestation for FCC Declaration of Conformity FCC ID: PPQ-WN4507L Data: Jan. 06, 2014 Please be notified that we, the undersigned, Lite-On Technology Corp. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 13B0101R-ITUSP03V00. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely,  TC Wu / Deputy Director(R & D Division) Lite-On Technology Corp. TEL No: 886-2-2222-6181 FAX No.: 886-2-2226-6749 Email: [email protected]

Lite-On Technology Corp. FCC ID.: PPQ-WN4507L 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C.Tel : 886-2-2222-6181 Federal Communications Commission Jan. 06, 2014 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-WN4507L Product: AerialCast Model: WN4507L We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------ TC Wu / Deputy Director(R & D Division) Lite-On Technology Corp.

Lite-On Technology Corp. FCC ID.: PPQ-WN4507L 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. Tel : 886-2-2222-6181 Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Federal Communications Commission Jan. 06, 2014 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WN4507L) Schem Block Diagram: (WN4507L) BlkDia Operational Description : (WN4507L) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------------- TC Wu / Deputy Director(R & D Division) Lite-On Technology Corp.

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. TEL No: 886-2-2222-6181 FAX No.: 886-2-2226-6749 DTS-UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID : PPQ-WN4507L (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 2412-2462 Yes , No Yes , No Yes , No Yes , No 2422-2452 Yes , No Yes , No Yes , No Yes , No 5745-5825 Yes , No Yes , No Yes , No Yes , No 5755-5795 Yes , No Yes , No Yes , No Yes , No 5180-5240 Yes , No Yes , No Yes , No Yes , No 5260-5320 Yes , No Yes , No Yes , No Yes , No 5500-5700 Yes , No Yes , No Yes , No Yes , No 5190-5230 Yes , No Yes , No Yes , No Yes , No 5270-5310 Yes , No Yes , No Yes , No Yes , No 5510-5670 Yes , No Yes , No Yes , No Yes , No This information when programmed into the EEPROM will not be accessible and can not be changed by the end user. If you have any questions please do not hesitate to contact us. Signature ------------------------------------------ TC Wu / Deputy Director(R & D Division) Lite-On Technology Corp. TEL No: 886-2-2222-6181 FAX No.: 886-2-2226-6749 Email: [email protected]

RF_160, Issue 03 Lite-On Technology Corp. Declaration of Authorization We Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. City: New Taipei City . Country: Taiwan, R.O.C . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: AerialCast FCC ID: PPQ-WN4507L Trademark: on our behalf. Date: 2014/01/06.. City:  New Taipei City .. Name: TC Wu .. (2) Function: ......Deputy Director(R & D Division)............. Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

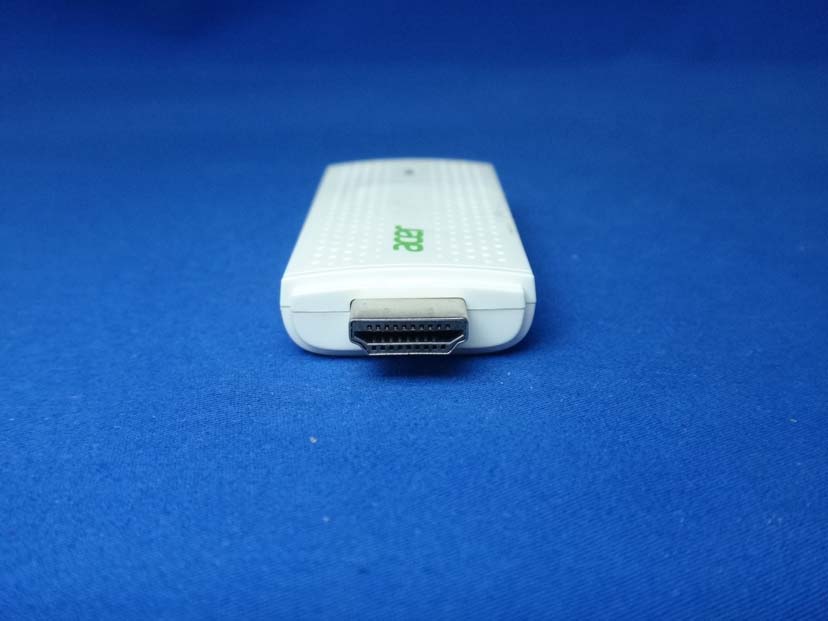

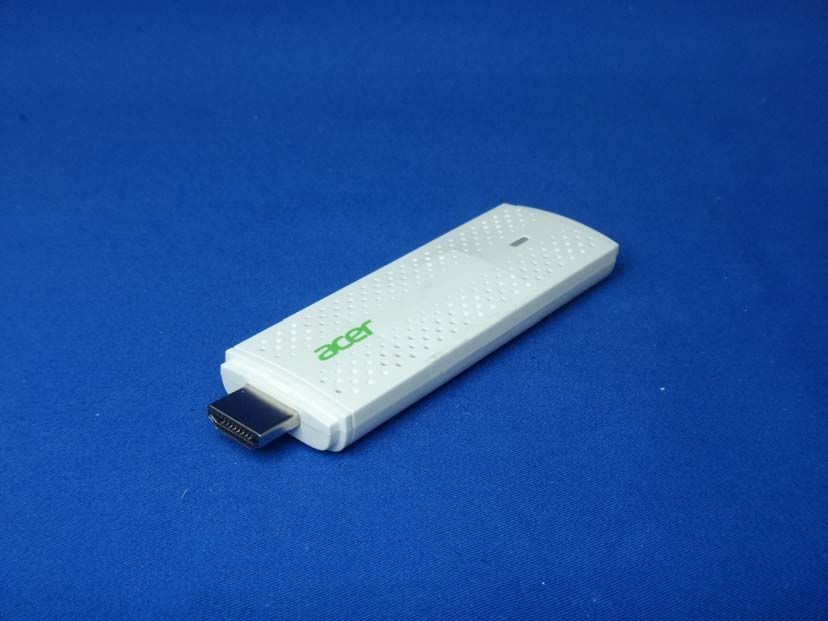

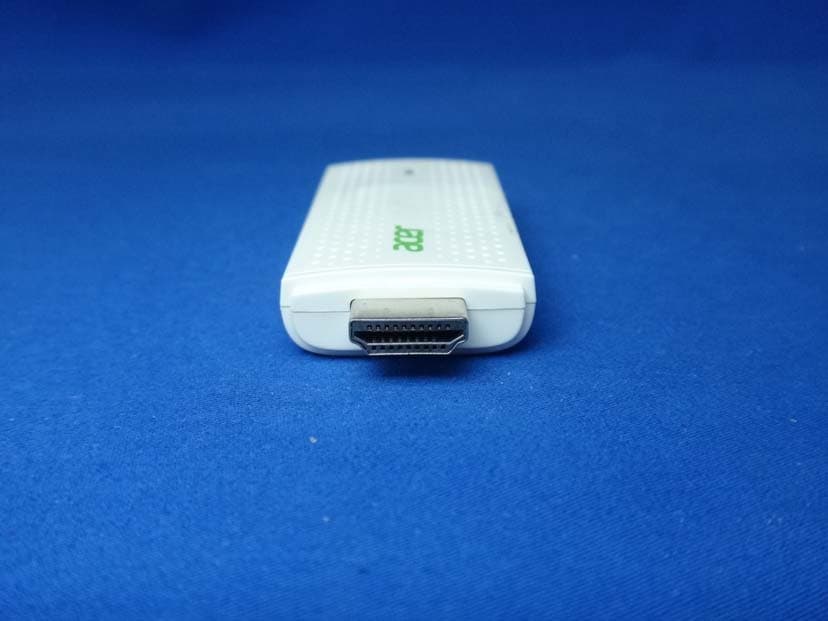

Report No.: 13B0101R-RFUSP52V00 Page : 1 of 11 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 13B0101R-RFUSP52V00 Page : 2 of 11 (3) EUT Photo (4) EUT Photo

Lite-On Technology Corp. FCC ID.: PPQ-WN4507L 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C..Tel : 886-2-2222-6181 FCC ID Label

Lite-On Technology Corp. FCC ID.: PPQ-WN4507L 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C..Tel : 886-2-2222-6181 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 13B0101R-RFUSP52V00 Page : 3 of 11 (5) EUT Photo (6) EUT Photo Report No.: 13B0101R-RFUSP52V00 Page : 4 of 11 (7) EUT Photo (8) EUT Photo Report No.: 13B0101R-RFUSP52V00 Page : 5 of 11 (9) EUT Photo (10) EUT Photo Report No.: 13B0101R-RFUSP52V00 Page : 6 of 11 (11) EUT Photo (12) EUT Photo Report No.: 13B0101R-RFUSP52V00 Page : 7 of 11 (13) EUT Photo (14) EUT Photo Report No.: 13B0101R-RFUSP52V00 Page : 8 of 11 (15) EUT Photo (16) EUT Photo Report No.: 13B0101R-RFUSP52V00 Page : 9 of 11 (17) EUT Photo (18) EUT Photo Report No.: 13B0101R-RFUSP52V00 Page : 10 of 11 (19) EUT Photo (20) EUT Photo Report No.: 13B0101R-RFUSP52V00 Page : 11 of 11 (21) EUT Photo (22) EUT Photo

Report No. 13B0101R-RFUSP52V00 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : AerialCast Model No. : WN4507L FCC ID : PPQ-WN4507L Applicant : Lite-On Technology Corp. Address : 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. Date of Receipt : Nov. 05, 2013 Date of Declaration: Jan. 06, 2014 Report No. : 13B0101R-RFUSP52V00 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 13B0101R-RFUSP52V00 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 13B0101R-RFUSP52V00 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : AerialCast Test Item : RF Exposure Evaluation Test Site : No.3 OATS Output Power Into Antenna & RF Exposure Evaluation Distance (2.70dBi): Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 355.6313 0.131744 Note: Power density in column 4 is much lower than the limit (1 mW/cm2).

Report No. 13B0101R-RFUSP52V00-A Page: 1 of 30 Dynamic Frequency Selection (DFS) Test Report Product Name AerialCast Model No WN4507L FCC ID PPQ-WN4507L Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Performed Location: Quietek Corporation (Linkou Laboratory) No. 5-22, Rueishu Keng, Linkou Dist., New Taipei City 24451, Taiwan. R.O.C. TEL:+866-2-8601-3788 / FAX:+886-2-8601-3789 Date of Receipt Nov. 05, 2013 Issued Date Dec. 09, 2013 Report No. 13B0101R-RFUSP52V00-A Report Version V1.0 Report No. 13B0101R-RFUSP52V00-A Page: 2 of 30 DFS Test Report Issued Date: Dec. 09, 2013 Report No.: 13B0101R-RFUSP52V00-A The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Product Name AerialCast Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. Manufacturer 1. Lite-On Technology (Changzhou) Co., Ltd. 2. DONG GUAN G-COM COMPUTER CO., LTD Model No. WN4507L FCC ID. PPQ-WN4507L EUT Rated Voltage DC 5V by USB EUT Test Voltage AC 120V/60Hz Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart E 15.407 (h): 2012 FCC 06-96 Test Result Complied Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Vice Supervisor / Tom Hsieh ) Approved By : ( Director / Vincent Lin ) Report No. 13B0101R-RFUSP52V00-A Page: 3 of 30 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................................4 1.1. EUT Description ............................................................................................................................................................................4 1.2. Standard Requirement....................................................................................................................................................................6 1.3. UNII Device Description ...............................................................................................................................................................6 1.4. Test Equipment ..............................................................................................................................................................................7 1.5. Test Setup ......................................................................................................................................................................................8 1.6. DFS Requirements Prior to Use of a Channel ...............................................................................................................................8 1.7. DFS requirements during normal operation...................................................................................................................................9 1.8. DFS Detection Thresholds.............................................................................................................................................................9 1.9. Radar Test Waveforms .................................................................................................................................................................10 1.10. Radar Waveform Calibration .......................................................................................................................................................14 1.11. Radar Waveform Calibration Result ............................................................................................................................................15 1.12. Slave Data Traffic Plot Result......................................................................................................................................................17 2. IN-SERVICE MONITORING FOR CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD ......................................................................18 2.1. Test Procedure .............................................................................................................................................................................18 2.2. Test Requirement .........................................................................................................................................................................18 2.3. Uncertainty ..................................................................................................................................................................................18 2.4. Test Result of Channel Move Time and Channel Closing Transmission Time and Non-Occupancy Period ...............................19 3. DFS TEST SETUP PHOTO......................................................................................................................29 Attachment 1: EUT Test Photographs Report No. 13B0101R-RFUSP52V00-A Page: 4 of 30 1. GENERAL INFORMATION 1.1. EUT Description Product Name AerialCast Trade Name FCC ID. PPQ-WN4507L Model No. WN4507L Frequency Range 802.11a/n-20MHz: 5180-5320MHz, 5500-5700MHz 802.11n-40MHz: 5190-5310, 5510-5670MHz Number of Channels 802.11a/n-20MHz: 16; 802.11n-40MHz: 7 Channel Control Auto Data Rate 802.11a: 6-54Mbps, 802.11n: up to 300Mbps Channel Bandwidth 802.11a/n-20MHz: 20MHz, 802.11n-40MHz: 40MHz Type of Modulation OFDM (BPSK, QPSK, 16QAM, 64QAM) DFS Function □ Master ■ Slave TPC Function ■ <500mW not required □ ≧ 500mW employ a TPC Communication Mode ■ IP Based Systems □ Frame…

Text truncated - open the document above for the full version.

Report No.: 13B0101R-RFUSP52V00 Page: 1 of 174 FCC Test Report Product Name AerialCast Model No WN4507L FCC ID PPQ-WN4507L Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. Date of Receipt Nov. 05, 2013 Issued Date Nov. 27, 2013 Report No. 13B0101R-RFUSP52V00 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Report No.: 13B0101R-RFUSP52V00 Page: 2 of 174 Test Report Certification Issued Date: Nov. 27, 2013 Report No.: 13B0101R-RFUSP52V00 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Product Name AerialCast Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. Manufacturer 1. Lite-On Technology (Changzhou) Co., Ltd. 2. DONG GUAN G-COM COMPUTER CO., LTD Model No. WN4507L FCC ID. PPQ-WN4507L EUT Rated Voltage DC 5V by USB EUT Test Voltage AC 120V/60Hz Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009, FCC KDB-789033 Test Result Complied Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Engineer / Andy Lin ) Approved By : ( Director / Vincent Lin ) Report No.: 13B0101R-RFUSP52V00 Page: 3 of 174 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .................................................................................................... 5 1.1. EUT Description ........................................................................................................................... 5 1.2. Operational Description ................................................................................................................ 7 1.3. Tested System Datails ................................................................................................................... 8 1.4. Configuration of tested System..................................................................................................... 8 1.5. EUT Exercise Software................................................................................................................. 8 1.6. Test Facility................................................................................................................................. 10 2. Conducted Emission ................................................................................................................. 11 2.1. Test Equipment ........................................................................................................................... 11 2.2. Test Setup.................................................................................................................................... 11 2.3. Limits .......................................................................................................................................... 12 2.4. Test Procedure............................................................................................................................. 12 2.5. Uncertainty.................................................................................................................................. 12 2.6. Test Result of Conducted Emission ............................................................................................ 13 3. Maximun conducted output power ......................................................................................... 19 3.1. Test Equipment ........................................................................................................................... 19 3.2. Test Setup.................................................................................................................................... 19 3.3. Limits .......................................................................................................................................... 20 3.4. Test Procedur .............................................................................................................................. 20 3.5. Uncertainty.................................................................................................................................. 20 3.6. Test Result of Maximum conducted output power ..................................................................... 21 4. Peak Power Spectral Density ................................................................................................... 50 4.1. Test Equipment ........................................................................................................................... 50 4.2. Test Setup.................................................................................................................................... 50 4.3. Limits .......................................................................................................................................... 50 4.4. Test Procedure............................................................................................................................. 51 4.5. Uncertainty.................................................................................................................................. 51 4.6. Test Result of Peak Power Spectral Density ............................................................................... 52 5. Peak Excursion.......................................................................................................................... 78 5.1. Test Equipment ..................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 13B0101R-RFUSP52V00 Page: 43 of 174 Channel 54 – Chain A Channel 62 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 44 of 174 Channel 102 – Chain A Channel 110 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 45 of 174 Channel 134 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 46 of 174 26dBc Occupied Bandwidth: Channel 38 – Chain B Channel 46 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 47 of 174 Channel 54 – Chain B Channel 62 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 48 of 174 Channel 102 – Chain B Channel 110 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 49 of 174 Channel 134 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 50 of 174 4. Peak Power Spectral Density 4.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2013 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2013 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr, 2013 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 4.2. Test Setup 4.3. Limits (1) For the band 5.15-5.25 GHz, the peak power spectral density shall not exceed 4 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. (2) For the band 5.25-5.35 GHz, the peak power spectral density shall not exceed 11 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. (3) For the band 5.725-5.825 GHz, the peak power spectral density shall not exceed 17 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. SMA Connector EUT Spectrum Analyzer RF Cable Report No.: 13B0101R-RFUSP52V00 Page: 51 of 174 4.4. Test Procedure The EUT was setup to ANSI C63.10, 2009; tested to DTS test procedure of FCC KDB-789033 for compliance to FCC 47CFR Subpart E requirements. The Peak Power Spectral Density using KDB 789033 section F) procedure, Create an average power spectrum for the EUT operating mode being tested by following the instructions in section E)2) for measuring maximum conducted output power using a spectrum analyzer. SA-1 method is selected to run the test. 4.5. Uncertainty ± 1.27 dB Report No.: 13B0101R-RFUSP52V00 Page: 52 of 174 4.6. Test Result of Peak Power Spectral Density Product : AerialCast Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11a-6Mbps) Channel Number Frequency (MHz) Data Rata (Mbps) Measurement Level (dBm) Required Limit (dBm) Result 36 5180 6 -2.600 <4 Pass 44 5220 6 -1.570 <4 Pass 48 5240 6 -1.830 <4 Pass 52 5260 6 -2.060 <11 Pass 60 5300 6 -2.920 <11 Pass 64 5320 6 -3.900 <11 Pass 100 5500 6 -3.950 <11 Pass 116 5580 6 -5.730 <11 Pass 140 5700 6 -5.820 <11 Pass Report No.: 13B0101R-RFUSP52V00 Page: 53 of 174 Channel 36: Channel 44: Report No.: 13B0101R-RFUSP52V00 Page: 54 of 174 Channel 48: Channel 52: Report No.: 13B0101R-RFUSP52V00 Page: 55 of 174 Channel 60: Channel 64: Report No.: 13B0101R-RFUSP52V00 Page: 56 of 174 Channel 100: Channel 116: Report No.: 13B0101R-RFUSP52V00 Page: 57 of 174 Channel 140: Report No.: 13B0101R-RFUSP52V00 Page: 58 of 174 Product : AerialCast Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11n-20BW 14.4Mbps) Channel Number Frequency (MHz) Chain PPSD/MHz (dBm) Total PPSD/MHz (dBm) 1 Required Limit (dBm) Result A -5.170 -2.160 <4 Pass 36 5180 B -2.860 0.150 <4 Pass A -4.870 -1.860 <4 Pass 44 5220 B -3.690 -0.680 <4 Pass A -3.770 -0.760 <4 Pass 48 5240 B -4.510 -1.500 <4 Pass A -5.610 -2.600 <11 Pass 52 5260 B -4.530 -1.520 <11 Pass A -5.780 -2.770 <11 Pass 60 5300 B -5.780 -2.770 <11 Pass A -5.380 -2.370 <11 Pass 64 5320 B -6.350 -3.340 <11 Pass A -5.390 -2.380 <11 Pass 100 5500 B -6.740 -3.730 <11 Pass A -4.670 -1.660 <11 Pass 116 5580 B -8.550 -5.540 <11 Pass A -7.370 -4.360 <11 Pass 140 5700 B -8.690 -5.680 <11 Pass Note 1: The quantity 10*log 2 (two antennas) is added to the spectrum peak value according to document 662911 D01. Report No.: 13B0101R-RFUSP52V00 Page: 59 of 174 Channel 36 – Chain A Channel 44 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 60 of 174 Channel 48 – Chain A Channel 52 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 61 of 174 Channel 60 – Chain A Channel 64 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 62 of 174 Channel 100 – Chain A Channel 116 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 63 of 174 Channel 140 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 64 of 174 Channel 36 – Chain B Channel 44 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 65 of 174 Channel 48 – Chain B Channel 52 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 66 of 174 Channel 60 – Chain B Channel 64 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 67 of 174 Channel 100 – Chain B Channel 116 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 68 of 174 Channel 140 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 69 of 174 Product : AerialCast Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n-40BW 30Mbps) Channel Number Frequency (MHz) Chain PPSD/MHz (dBm) Total PPSD/MHz (dBm) 1 Required Limit (dBm) Result A -10.450 -7.440 <4 Pass 38 5190 B -9.090 -6.080 <4 Pass A -9.820 -6.810 <4 Pass 46 5230 B -9.130 -6.120 <4 Pass A -9.650 -6.640 <11 Pass 54 5270 B -9.380 -6.370 <11 Pass A -9.900 -6.890 <11 Pass 62 5310 B -10.490 -7.480 <11 Pass A -9.500 -6.490 <11 Pass 102 5510 B -10.650 -7.640 <11 Pass A -8.950 -5.940 <11 Pass 110 5550 B -10.940 -7.930 <11 Pas…

Text truncated - open the document above for the full version.

Report No.: 13B0101R-RFUSP52V00 Page: 70 of 174 Channel 38 – Chain A Channel 46 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 71 of 174 Channel 54 – Chain A Channel 62 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 72 of 174 Channel 102 – Chain A Channel 110 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 73 of 174 Channel 134 – Chain A Report No.: 13B0101R-RFUSP52V00 Page: 74 of 174 Channel 38 – Chain B Channel 46 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 75 of 174 Channel 54 – Chain B Channel 62 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 76 of 174 Channel 102 – Chain B Channel 110 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 77 of 174 Channel 134 – Chain B Report No.: 13B0101R-RFUSP52V00 Page: 78 of 174 5. Peak Excursion 5.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2013 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2013 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2013 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 5.2. Test Setup Conduction Power Measurement 5.3. Limits The ratio of the peak excursion of the modulation envelope (measured suing a peak hold function) to the peak transmit power (measured as specified above) shall not exceed 13 dB across any 1 MHz bandwidth or the emission bandwidth whichever is less. SMA Connector EUT Spectrum Analyzer RF Cable Report No.: 13B0101R-RFUSP52V00 Page: 79 of 174 5.4. Test Procedure The EUT was setup to ANSI C63.10, 2009; tested to DTS test procedure of FCC KDB-789033 for compliance to FCC 47CFR Subpart E requirements. Step 1: Set the spectrum analyzer or EMI receiver span to view the entire emission bandwidth. Step 2: Find the maximum of the peak-max-hold spectrum. (Set RBW = 1 MHz, VBW ≥ 3 MHz, Detector = peak, Trace mode = max-hold, Allow the sweeps to continue until the trace stabilizes,Use the peak search function to find the peak of the spectrum.) Step 3: Use the procedure found under KDB-789033 F) to measure the PPSD. Step 4: Compute the ratio of the maximum of the peak-max-hold spectrum to the PPSD. 5.5. Uncertainty ± 1.27 dB Report No.: 13B0101R-RFUSP52V00 Page: 80 of 174 5.6. Test Result of Peak Excursion Product : AerialCast Test Item : Peak Excursion Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11a-6Mbps) Channel 100: Channel No. Frequency (MHz) Data Rate (Mbps) Measurement Level (dB) Required Limit (dB) Result MCS (0) 7.480 <13 Pass MCS (2) 8.370 <13 Pass MCS (4) 8.430 <13 Pass 100 5500 MCS (7) 9.480 <13 Pass Report No.: 13B0101R-RFUSP52V00 Page: 81 of 174 Report No.: 13B0101R-RFUSP52V00 Page: 82 of 174 Report No.: 13B0101R-RFUSP52V00 Page: 83 of 174 Product : AerialCast Test Item : Peak Excursion Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11n-20BW 14.4Mbps) Chain A Channel 100: Channel No. Frequency (MHz) Data Rate (Mbps) Measurement Level (dB) Required Limit (dB) Result MCS (0) 8.430 <13 Pass MCS (2) 8.090 <13 Pass MCS (4) 8.970 <13 Pass 100 5500 MCS (7) 8.820 <13 Pass Report No.: 13B0101R-RFUSP52V00 Page: 84 of 174 Report No.: 13B0101R-RFUSP52V00 Page: 85 of 174 Report No.: 13B0101R-RFUSP52V00 Page: 86 of 174 Report No.: 13B0101R-RFUSP52V00 Page: 87 of 174 Chain B Channel…
