PPQ-WN4508R802.11a/b/g/n 2T2R Wireless Lan USB Module

Page 1/13 PRODUCT SPECIFICATION 802.11a/b/g/n 2T2R Wireless LAN USB Module WN4508R(LA) RT5572 Version 1.0 User Manual * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC Page 2/13 PRODUCT SPECIFICATION 802.11a/b/g/n 2T2R Wireless LAN USB Module WN4508R(LA) RT5572 Version 1.0 Networking B.U. Lite-on Technology Corporation 4F, No. 90, Chien I Rd., Chung Ho, New Taipei City 235, Taiwan, R.O.C. Phone: +886-2-2222-6181 Fax: +886-2-2221-5288 Contact: Product Marketing Mr. ML Wu #8266 E-mail: [email protected] Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) Page 3/13 CONTENT FCC WARING STATEMENT .......................................................................................................... 4 PRODUCT FEATURES .................................................................................................................... 5 PRODUCT SPECIFICATIONS ........................................................................................................ 6 MAIN CHIPSET ....................................................................................................................................... 6 FUNCTIONAL SPECIFICATIONS ............................................................................................................... 6 PIN ASSIGMENT ............................................................................................................................... 8 USB CONNECTOR SPEC ................................................................................................................. 8 MECHANICAL .................................................................................................................................. 9 BLOCK DIAGRAM ........................................................................................................................... 9 ANTENNA SPEC ............................................................................................................................. 10 EEPROM INFORMATION ............................................................................................................ 11 ENVIRONMENTAL ........................................................................................................................ 11 OPERATING .......................................................................................................................................... 11 STORAGE .............................................................................................................................................. 11 PACKING DRAWING .................................................................................................................... 12 Page 4/13 FCC WARING STATEMENT FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Page 5/13 End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: PPQ-WN4508R ” Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions. This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor use only, Outdoor operations in the 5150~5250MHz is prohibit. This device is slave equipment, the device is not radar detection and not ad-hoc operation in the DFS band. PRODUCT FEATURES  Operate at ISM frequency Band (2.4 / 5GHz)  IEEE Standards Support, 802.11a , 802.11b, 802.11g and 802.11n…

Text truncated - open the document above for the full version.

Lite-On Technology Corp. FCC ID.: PPQ-WN4508R 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C..Tel : 886-2-2222-6181 Federal Communications Commission Sep. 30, 2013 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-WN4508R Product: 802.11a/b/g/n 2T2R Wireless Lan USB Module Model: WN4508R We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------ TC Wu / Deputy Director(R & D Division) Lite-On Technology Corp.

Lite-On Technology Corp. FCC ID.: PPQ-WN4508R 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. Tel : 886-2-2222-6181 Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Federal Communications Commission Sep. 30, 2013 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WN4508R) Schem Block Diagram: (WN4508R) BlkDia Operational Description : (WN4508R) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------------- TC Wu / Deputy Director(R & D Division) Lite-On Technology Corp.

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. TEL No: 886-2-2222-6181 FAX No.: 886-2-2226-6749 DTS-UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID : PPQ-WN4508R (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 2412-2462 Yes , No Yes , No Yes , No Yes , No 2422-2452 Yes , No Yes , No Yes , No Yes , No 5745-5825 Yes , No Yes , No Yes , No Yes , No 5755-5795 Yes , No Yes , No Yes , No Yes , No 5180-5240 Yes , No Yes , No Yes , No Yes , No 5260-5320 Yes , No Yes , No Yes , No Yes , No 5500-5700 Yes , No Yes , No Yes , No Yes , No 5190-5230 Yes , No Yes , No Yes , No Yes , No 5270-5310 Yes , No Yes , No Yes , No Yes , No 5510-5670 Yes , No Yes , No Yes , No Yes , No This information when programmed into the EEPROM will not be accessible and can not be changed by the end user. If you have any questions please do not hesitate to contact us. Signature ------------------------------------------ TC Wu / Deputy Director(R & D Division) Lite-On Technology Corp. TEL No: 886-2-2222-6181 FAX No.: 886-2-2226-6749 Email: [email protected]

Lite-On Technology Corp. FCC ID.: PPQ-WN4508R 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C.Tel : 886-2-2222-6181 Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Gentlemen: Regarding to the FCC 15.212, ThinkEco Inc.would like to request modular approval for the submission FCC ID: PPQ-WN4508R. Lite-On Technology Corp..confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding. (Please review external photos). 2. The modular transmitter have buffered modulation(/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. (The buffered integrated in chip RT5572.) 3. The modular transmitter have its own power supply regulation. (The power regulator is populated on module’s PCBA and integrated in chip RT5572 and an external regulator in chip AUR9713AGH, as block diagram.) 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). (Please review external photos or test report). 5. The modular transmitter is tested in a stand-alone configuration. (Please review test setup photos ). 6. The modular transmitter is labeled with its own FCC ID number. (Please review Users Manual) 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual). 8. The modular transmitter complies with any applicable RF exposure requirements. (The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition). Sincerely, ------------------------------------------------ TC Wu / Deputy Director(R & D Division) Lite-On Technology Corp.

RF_160, Issue 03 Lite-On Technology Corp. Declaration of Authorization We Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. City: New Taipei City . Country: Taiwan, R.O.C . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: 802.11a/b/g/n 2T2R Wireless Lan USB Module FCC ID: PPQ-WN4508R Trademark: LITE-ON on our behalf. Date: 2013/09/30.. City:  New Taipei City .. Name: TC Wu .. (2) Function: ......Deputy Director(R & D Division)............. Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

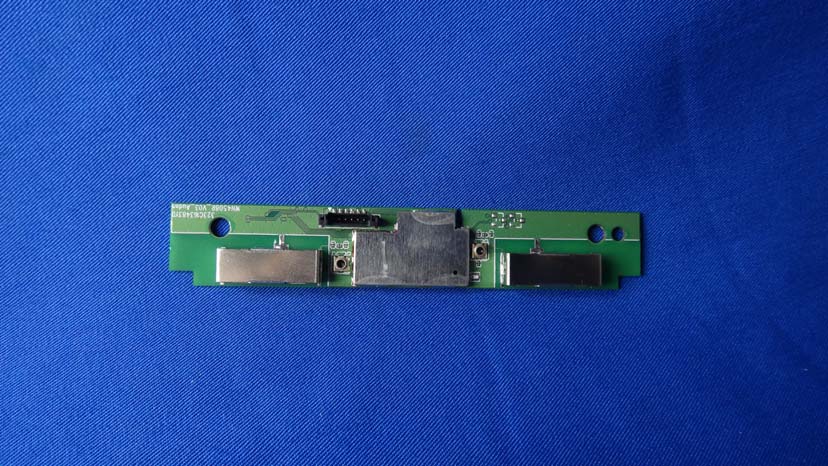

Report No.: 138472R-RFUSP31V01 Page : 1 of 7 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Lite-On Technology Corp. FCC ID.: PPQ-WN4508R 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C..Tel : 886-2-2222-6181 FCC ID Label

Lite-On Technology Corp. FCC ID.: PPQ-WN4508R 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C..Tel : 886-2-2222-6181 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 138472R-RFUSP31V01 Page : 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 138472R-RFUSP31V01 Page : 3 of 7 (5) EUT Photo (6) EUT Photo (Antenna - Auden) Report No.: 138472R-RFUSP31V01 Page : 4 of 7 (7) EUT Photo (Antenna - Auden) (8) EUT Photo (Antenna – HONG LIN) Report No.: 138472R-RFUSP31V01 Page : 5 of 7 (9) EUT Photo ( Antenna – HONG LIN) (10) EUT Photo (Antenna – HONG LIN) Report No.: 138472R-RFUSP31V01 Page : 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 138472R-RFUSP31V01 Page : 7 of 7 (13) EUT Photo

Report No. 138472R-RFUSP31V01 Page: 1 of 7 Version: 1.0 RF Exposure Evaluation declaration Product Name : 802.11a/b/g/n 2T2R Wireless Lan USB Module Model No. : WN4508R FCC ID : PPQ-WN4508R Applicant : Lite-On Technology Corp. Address : 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. Date of Receipt : Aug. 23, 2013 Date of Declaration: Sep. 30, 2013 Report No. : 138472R-RFUSP31V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 138472R-RFUSP31V01 Page: 2 of 7 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 138472R-RFUSP31V01 Page: 3 of 7 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : 802.11a/b/g/n 2T2R Wireless Lan USB Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS Output Power Into Antenna & RF Exposure Evaluation Distance (5.85dBi): Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 301.9952 0.231063 Note: Power density in column 4 is much lower than the limit (1 mW/cm2).

Report No. 138472R-RFUSP31V01-A Page: 1 of 30 Dynamic Frequency Selection (DFS) Test Report Product Name 802.11a/b/g/n 2T2R Wireless Lan USB Module Model No WN4508R FCC ID PPQ-WN4508R Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Performed Location: Quietek Corporation (Linkou Laboratory) No. 5-22, Rueishu Keng, Linkou Dist., New Taipei City 24451, Taiwan. R.O.C. TEL:+866-2-8601-3788 / FAX:+886-2-8601-3789 Date of Receipt Aug. 23, 2013 Issued Date Oct. 07, 2013 Report No. 138472R-RFUSP31V01-A Report Version V1.0 Report No. 138472R-RFUSP31V01-A Page: 2 of 30 DFS Test Report Issued Date: Oct. 07, 2013 Report No.: 138472R-RFUSP31V01-A The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name 802.11a/b/g/n 2T2R Wireless Lan USB Module Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. Manufacturer Lite-On Technology (Changzhou) CO., LTD Model No. WN4508R FCC ID. PPQ-WN4508R EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name LITE-ON Applicable Standard FCC CFR Title 47 Part 15 Subpart E 15.407 (h): 2012 FCC 06-96 Test Result Complied Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Vice Supervisor / Tom Hsieh ) Approved By : ( Manager / Vincent Lin ) Report No. 138472R-RFUSP31V01-A Page: 3 of 30 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................................4 1.1. EUT Description ............................................................................................................................................................................4 1.2. Standard Requirement....................................................................................................................................................................6 1.3. UNII Device Description ...............................................................................................................................................................6 1.4. Test Equipment ..............................................................................................................................................................................7 1.5. Test Setup ......................................................................................................................................................................................8 1.6. DFS Requirements Prior to Use of a Channel ...............................................................................................................................8 1.7. DFS requirements during normal operation...................................................................................................................................9 1.8. DFS Detection Thresholds.............................................................................................................................................................9 1.9. Radar Test Waveforms .................................................................................................................................................................10 1.10. Radar Waveform Calibration .......................................................................................................................................................14 1.11. Radar Waveform Calibration Result ............................................................................................................................................15 1.12. Slave Data Traffic Plot Result......................................................................................................................................................17 2. IN-SERVICE MONITORING FOR CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD ......................................................................18 2.1. Test Procedure .............................................................................................................................................................................18 2.2. Test Requirement .........................................................................................................................................................................18 2.3. Uncertainty ..................................................................................................................................................................................18 2.4. Test Result of Channel Move Time and Channel Closing Transmission Time and Non-Occupancy Period ...............................19 3. DFS TEST SETUP PHOTO......................................................................................................................29 Attachment 1: EUT Test Photographs Report No. 138472R-RFUSP31V01-A Page: 4 of 30 1. GENERAL INFORMATION 1.1. EUT Description Product Name 802.11a/b/g/n 2T2R Wireless Lan USB Module Trade Name LITE-ON FCC ID. PPQ-WN4508R Model No. WN4508R Frequency Range 802.11a/n-20MHz: 5180-5320MHz, 5500-5700MHz 802.11n-40MHz: 5190-5310, 5510-5670MHz Number of Channels 802.11a/n-20MHz: 16; 802.11n-40MHz: 7 Channel Control Auto Data Rate 802.11a:6-54MHz,802.11n:14.4–144Mbps-20MHz, 30 – 300Mbps- 40MHz Channel Separation 802.11a/n20: 20MHz, 802.11/n40: 40MHz Type of Modulation OFDM (BPSK, QPSK, 16QAM, 64QAM) DFS Function □ Master ■ Slave TPC Function ■ <500mW not requir…

Text truncated - open the document above for the full version.

Report No. 138472R-RFUSP31V01 Page: 1 of 168 FCC Test Report Product Name 802.11a/b/g/n 2T2R Wireless Lan USB Module Model No WN4508R FCC ID PPQ-WN4508R Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. Date of Receipt Aug. 23, 2013 Issued Date Sep. 24, 2013 Report No. 138472R-RFUSP31V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government. Report No. 138472R-RFUSP31V01 Page: 2 of 168 Test Report Certification Issued Date: Sep. 24, 2013 Report No.: 138472R-RFUSP31V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government. Product Name 802.11a/b/g/n 2T2R Wireless Lan USB Module Applicant Lite-On Technology Corp. Address 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 235, Taiwan, R.O.C. Manufacturer Lite-On Technology (Changzhou) CO., LTD Model No. WN4508R FCC ID. PPQ-WN4508R EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name LITE-ON Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009, FCC KDB-789033 Test Result Complied Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Engineer / Vincent Chu ) Approved By : ( Manager / Vincent Lin ) Report No. 138472R-RFUSP31V01 Page: 3 of 168 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Datails....................................................................................................................8 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Maximun conducted output power ..........................................................................................18 3.1. Test Equipment............................................................................................................................18 3.2. Test Setup ....................................................................................................................................18 3.3. Limits ..........................................................................................................................................19 3.4. Test Procedure .............................................................................................................................19 3.5. Uncertainty ..................................................................................................................................19 3.6. Test Result of Maximum conducted output power......................................................................20 4. Peak Power Spectral Density....................................................................................................47 4.1. Test Equipment............................................................................................................................47 4.2. Test Setup ....................................................................................................................................47 4.3. Limits ..........................................................................................................................................47 4.4. Test Procedure .............................................................................................................................48 4.5. Uncertainty ..................................................................................................................................48 4.6. Test Result of Peak Power Spectral Density ...............................................................................49 5. Peak Excursion ..........................................................................................................................72 5.1. Test Equipment.............................................................................................................…

Text truncated - open the document above for the full version.

Report No. 138472R-RFUSP31V01 Page: 41 of 168 Channel 54 – Chain A Channel 62 – Chain A Report No. 138472R-RFUSP31V01 Page: 42 of 168 Channel 102 – Chain A Channel 110 – Chain A Report No. 138472R-RFUSP31V01 Page: 43 of 168 Channel 134 – Chain A Channel 38 – Chain B Report No. 138472R-RFUSP31V01 Page: 44 of 168 Channel 46 – Chain B Channel 54 – Chain B Report No. 138472R-RFUSP31V01 Page: 45 of 168 Channel 62 – Chain B Channel 102 – Chain B Report No. 138472R-RFUSP31V01 Page: 46 of 168 Channel 110 – Chain B Channel 134 – Chain B Report No. 138472R-RFUSP31V01 Page: 47 of 168 4. Peak Power Spectral Density 4.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2013 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2013 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr, 2013 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 4.2. Test Setup 4.3. Limits (4) For the band 5.15-5.25 GHz, the peak power spectral density shall not exceed 4 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. (5) For the band 5.25-5.35 GHz, the peak power spectral density shall not exceed 11 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. (6) For the band 5.725-5.825 GHz, the peak power spectral density shall not exceed 17 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. SMA Connector EUT Spectrum Analyzer RF Cable Report No. 138472R-RFUSP31V01 Page: 48 of 168 4.4. Test Procedure The EUT was setup to ANSI C63.10, 2009; tested to DTS test procedure of FCC KDB-789033 for compliance to FCC 47CFR Subpart E requirements. The Peak Power Spectral Density using KDB 78…
