PPQ-WN4510L802.11a/b/g/n/ac, 2T2R Wireless LAN USB2.0 Module

Page 1/11 PRODUCT SPECIFICATION 802.11a/b/g/n/ac, 2T2R Wireless LAN USB2.0 Module WN4510L Realtek RTL8812AU Version 1.0 User Manual * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC Page 2/11 CONTENT FCC WARING STATEMENT .......................................................................................................... 3 IC WARING STATEMENT .............................................................................................................. 4 PRODUCT FEATURES .................................................................................................................... 5 PRODUCT SPECIFICATIONS ........................................................................................................ 6 MAIN CHIPSET ....................................................................................................................................... 6 FUNCTIONAL SPECIFICATIONS ............................................................................................................... 6 CONNECTOR SPEC ......................................................................................................................... 9 PIN ASSIGNMENT .......................................................................................................................... 10 MECHANICAL ................................................................................................................................ 10 BLOCK DIAGRAM ............................................................................................................................... 11 EEPROM INFORMATION ............................................................................................................ 11 ENVIRONMENTAL ........................................................................................................................ 11 OPERATING .......................................................................................................................................... 11 STORAGE .............................................................................................................................................. 11 Page 3/11 FCC WARING STATEMENT FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Page 4/11 End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: PPQ-WN4510L ” Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions. This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor use only, Outdoor operations in the 5150~5250MHz is prohibit. This device is slave equipment, the device is not radar detection and not ad-hoc operation in the DFS band. IC WARING STATEMENT Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Expos…

Text truncated - open the document above for the full version.

Applicant/Grantee FCC ID: Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The modular have RF own shielding Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter have buffered modulation/data inputs Y 3 The modular transmitter must have its own power supply regulation. The module contains its own power supply regulation. Please refer to the schematic. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The modular must to built-in PIFA applicant together and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between The EUT module can’t be operated by its own due to its power-less characteristic and hence needs external power supply to make it function. Under testing condition, no matter in pure verification or manufacturing stage, the specified test fixture must be provided to help testing the function and performance of the EUT sample. Y the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The FCC identification number can put on the modular with either a permanently affixed label Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the The modular have specific rules or operating requirements Y application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y A modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien…

Text truncated - open the document above for the full version.

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. DateMay 19, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Lite-On Technology Corp. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected] Date: May 6, 2014

Date (05/06//2014) BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Lite-On Technology Corp., hereby authorize Compliance Compliance Certification Services Inc / David.Wang. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 05/06/2015 Sincerely, Name/Title: TC Wu / Direc tor Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected] Date: May 6, 2014

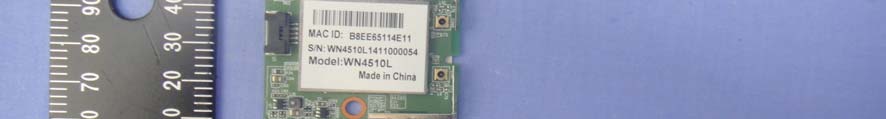

Compliance Certification Services Inc. Report No.: T140416W01 Date of Issue: May 15, 2014 A1 - 1 / 3 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

Compliance Certification Services Inc. Report No.: T140416W01 Date of Issue: May 15, 2014 A1 - 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140416W01 Date of Issue: May 15, 2014 A1 - 3 Rev. 00 Antenna IC PIFA Antenna

Compliance Certification Services Inc. Report No.: T140416W01-MI Date of Issue: April 29, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to H46-2/99-237E, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. EUT Specification EUT 802.11a/b/g/n/ac, 2T2R Wireless LAN USB2.0 Module Model WN4510L RF Module Realtek Model: RTL8812AU Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT20: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT40: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11AC HT80: 5170 ~ 5330 MHZ / 5490 ~ 5815 MHZ Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 5GHz: Antenna Gain :1.74 dBi (Numeric gain:1.49) 2.4GHz: Antenna Gain :3.36 dBi (Numeric gain:2.17) Maximum Average output power IEEE 802.11b Mode: 17.60 dBm(57.544 mW) IEEE 802.11g Mode: 17.70 dBm(58.884 mW) IEEE 802.11n HT 20 Mode: 16.81 dBm(47.973 mW) IEEE 802.11n HT 40 Mode: 17.14 dBm(51.761 mW) IEEE 802.11a Mode: 19.60 dBm(91.201 mW) IEEE 802.11n HT20 Mode: 18.15 dBm(65.313 mW) IEEE 802.11n HT40 Mode: 18.14 dBm(65.163 mW) IEEE 802.11ac HT80 Mode: 17.80 dBm(60.256 mW) Compliance Certification Services Inc. Report No.: T140416W01-MI Date of Issue: April 29, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Tune up Power IEEE 802.11b Mode: 19.00 dBm(79.433 mW) IEEE 802.11g Mode: 19.00 dBm(79.433 mW) IEEE 802.11n HT 20 Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT 40 Mode: 19.00 dBm(79.433 mW) IEEE 802.11a Mode: 20.00 dBm(100.000 mW) IEEE 802.11n HT20 Mode: 20.00 dBm(100.000 mW) IEEE 802.11n HT40 Mode: 20.00 dBm(100.000 mW) IEEE 802.11ac HT80 Mode: 19.50 dBm(89.125 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140416W01-MI Date of Issue: April 29, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/04/29 Initial Issue ALL Scott Hsu Compliance Certification Services Inc. Report No.: T140416W01-MI Date of Issue: April 29, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140416W01-MI Date of Issue: April 29, 2014 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243779.4332.17200.03431 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243779.4332.17200.03431 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243763.0962.17200.02721 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 9243779.4332.17200.03431 IEEE 802.11a mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6453201001.49200.02971 IEEE 802.11a HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6453201001.49200.02971 IEEE 802.11a HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11055501001.49200.02971 IEEE 802.11ac HT80 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 106553089.1251.49200.02641

Compliance Certification Services Inc. FCC ID: PPQ-WN4510L IC: 4491A-WN4510L Report No.: T140416W01-RP3 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 55 Rev.00 FCC 47 CFR PART 15 SUBPART E & INDUSTRY CANADA RSS-210 TEST REPORT For 802.11a/b/g/n/ac, 2T2R Wireless LAN USB2.0 Module Model: WN4510L Trade Name: LITE-ON Issued to Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: May 13, 2014 Compliance Certification Services Inc. FCC ID: PPQ-WN4510L IC: 4491A-WN4510L Report No.: T140416W01-RP3 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 13, 2014 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: PPQ-WN4510L IC: 4491A-WN4510L Report No.: T140416W01-RP3 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................................. 4 2. EUT DESCRIPTION .................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................. 7 3.1 EUT CONFIGURATION ...................................................................................................... 7 3.2 EUT EXERCISE .................................................................................................................... 7 3.3 GENERAL TEST PROCEDURES ........................................................................................ 7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 8 3.5 DESCRIPTION OF TEST MODES ...................................................................................... 9 4. INSTRUMENT CALIBRATION ............................................................................................... 10 4.1 MEASURING INSTRUMENT CALIBRATION................................................................ 10 4.2 MEASUREMENT EQUIPMENT USED ............................................................................ 10 4.3 MEASUREMENT UNCERTAINTY .................................................................................. 11 5. FACILITIES AND ACCREDITATIONS ................................................................................. 12 5.1 FACILITIES ......................................................................................................................... 12 5.2 EQUIPMENT ....................................................................................................................... 12 5.3 LABORATORY ACCREDITATIONS AND LISTING ..................................................... 12 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ........................................................... 13 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 14 6.1 SETUP CONFIGURATION OF EUT ................................................................................. 14 6.2 SUPPORT EQUIPMENT .................................................................................................... 14 7. FCC PART 15 REQUIREMENTS & RSS 210 REQUIREMENTS .................................... 15 7.1 DYNAMIC FREQUENCY SELECTION ........................................................................... 15 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP ....................................................................... 55 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: PPQ-WN4510L IC: 4491A-WN4510L Report No.: T140416W01-RP3 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Manufacturer: LITE-ON TECHNOLOGY (Changzhou) CO., LTD A9 Building,No.88 Yanghu Road, Wujin Hi-Tech Industrial Development Zone ,Changzhou City, Jiangsu Province 213100 China Equipment Under Test: Wireless LAN, Bluetooth Combo Module Trade Name: LITE-ON Model: WN4510L Date of Test: May 6 ~ 7, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart E & Industry Canada RSS-210 Issue 8 Annex 9 Industry Canada RSS-GEN Issue 3 No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.407 and Industry Canada RSS-210 Issue 8. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: PPQ-WN4510L IC: 4491A-WN4510L Report No.: T140416W01-RP3 Page 5 Rev. 00 2. EUT DESCRIPTION Product 802.11a/b/g/n/ac, 2T2R Wireless LAN USB2.0 Module Trade Name LITE-ON Model Number WN4510L Model Discrepancy N/A Received Date April 16, 2014 Power Supply Powered by host device Operating Frequency Range & Number of Channels Mode Frequency Range (MHz) Number of Channels UNII Band I IEEE 802.11a 5180 – 5240 4 Channels IEEE 802.11n HT 20 MHz 5180 – 5240 4 Channels IEEE 802.11n HT 40 MHz 5190 ~ 5230 2 Channels IEEE 802.11n HT 80 MHz 5210 1 Channe…
