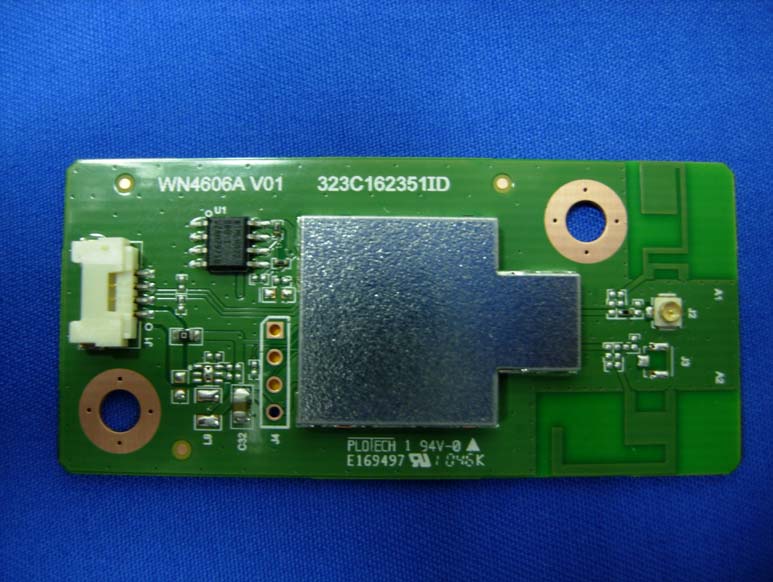

Report No.: 114113R-RFUSP29V01 Page : 1 of 6 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Lite-On Technology Corp. FCC ID.: PPQ-WN4606A 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-2222-6181 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Lite-On Technology Corp. FCC ID.: PPQ-WN4606A 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-2222-6181 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 114113R-RFUSP29V01 Page : 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 114113R-RFUSP29V01 Page : 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 114113R-RFUSP29V01 Page : 4 of 6 (7) EUT Photo (8) EUT Photo Report No.: 114113R-RFUSP29V01 Page : 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 114113R-RFUSP29V01 Page : 6 of 6 (11) EUT Photo (12) EUT Photo

Report No. 114113R-RFUSP29V01 Page : 7 of 97 1.2. Operational Description The EUT is a 802.11 b/g/n module, This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). The device provided of eight kinds of transmitting speed 7.2,14.4,21.7,28.9,43.3,57.8,65 and 72.2Mbps in 802.11n(20M-BW) mode and 15,30,45,60,90,120,135 and 150 Mbps(40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), The IEEE 802.11n is Single In, Single Out” (SISO) technology and two antennas to support 1(Transmit) * 1(Receive) SISO technology. This 802.11 b/g/n module, compliant with IEEE 802.11b and IEEE 802.11g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the 802.11 b/g/n module Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g/n network.

Report No. 114113R-RFUSP29V01 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : 802.11 b/g/n module Model No. : WN4606A FCC ID : PPQ-WN4606A Applicant : Lite-On Technology Corp. Address : 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt : Apr. 06, 2011 Date of Declaration: Apr. 14, 2011 Report No. : 114113R-RFUSP29V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 114113R-RFUSP29V01 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 114113R-RFUSP29V01 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : 802.11 b/g/n module Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (1.98dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 116.6810 0.036621 6 2437.00 127.6439 0.040062 11 2462.00 117.7606 0.036960 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (1.98dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 194.0886 0.060916 6 2437.00 306.9022 0.096323 11 2462.00 264.2409 0.082934 802.11n-20MHz Output Power Into Antenna & RF Exposure Evaluation Distance (1.98dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 171.3957 0.053794 6 2437.00 302.6913 0.095002 11 2462.00 243.2204 0.076336 802.11n-40MHz Output Power Into Antenna & RF Exposure Evaluation Distance (1.98dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2422.00 108.3927 0.034020 6 2437.00 310.4560 0.097438 11 2452.00 114.5513 0.035953

Report No. 114113R-RFUSP29V01 Page : 1 of 97 Test Report Product Name 802.11 b/g/n module Model No WN4606A FCC ID. PPQ-WN4606A Applicant Lite-On Technology Corp. Address 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt Apr. 06, 2011 Issue Date Apr. 14, 2011 Report No. 114113R-RFUSP29V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 114113R-RFUSP29V01 Page : 2 of 97 Test Report Certification Issue Date: Apr. 14, 2011 Report No.: 114113R-RFUSP29V01 Product Name 802.11 b/g/n module Applicant Lite-On Technology Corp. Address 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD Model No. WN4606A FCC ID. PPQ-WN4606A EUT Rated Voltage DC 5V (Power by USB) EUT Test Voltage DC 5V (Power by USB) Trade Name LITE-ON Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : (Senior Adm. Specialist / Leven Huang ) Tested By : ( Engineer / Henk Huang ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 114113R-RFUSP29V01 Page : 3 of 97 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................20 4.1. Test Equipment............................................................................................................................20 4.2. Test Setup ....................................................................................................................................21 4.3. Limits ..........................................................................................................................................22 4.4. Test Procedure .............................................................................................................................23 4.5. Uncertainty ..................................................................................................................................23 4.6. Test Result of Radiated Emission................................................................................................24 5. RF antenna conducted test........................................................................................................40 5.1. Test Equipment...........................................................................................................................…

Text truncated - open the document above for the full version.

Report No. 114113R-RFUSP29V01 Page: 50 of 97 6. Band Edge 6.1. Test Equipment RF Conducted Measurement The following test equipments are used during the band edge tests: Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. RF Radiated Measurement: The following test equipments are used during the band edge tests: Test Site Equipment Manufacturer Model No./Serial No. Last Cal. Bilog Antenna Schaffner Chase CBL6112B/2673 Sep., 2010 X Horn Antenna Schwarzbeck BBHA9120D/D305 Sep., 2010 Horn Antenna Schwarzbeck BBHA9170/208 Jul., 2010 X Pre-Amplifier Agilent 8447D/2944A09549 Sep., 2010 X Spectrum Analyzer Agilent E4407B / US39440758 May, 2010 Test Receiver R & S ESCS 30/ 825442/018 Sep., 2010 X Coaxial Cable QuieTek QTK-CABLE/ CAB5 Feb., 2011 X Controller QuieTek QTK-CONTROLLER/ CTRL3 N/A Site # 3 X Coaxial Switch Anritsu MP59B/6200265729 N/A Note: 1. All instruments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. Report No. 114113R-RFUSP29V01 Page: 51 of 97 6.2. Test Setup RF Conducted Measurement RF Radiated Measurement: 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. EUT FRP Dome The height of broad band or Dipole Antenna was scanned from 1M to 4M. The distance between antenna and turn table was 3M regards to the standard ado pted. 3m 80cm To Receiver Pre- Amplifier SMA EUT Spectrum Analyzer RF Cable Report No. 114113R-RFUSP29V01 Page: 52 of 97 6.4. Test Procedure The EUT was setup according to ANSI C63.4, 2009 and tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.4:2009 on radiated measurement. 6.5. Uncertainty ± 3.9 dB above 1GHz ± 3.8 dB below 1GHz Report No. 114113R-RFUSP29V01 Page: 53 of 97 6.6. Test Result of Band Edge Product : 802.11 b/g/n module Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 80.34 111.978 Peak Horizontal 2412 31.639 76.27 107.908 Average Vertical 2412 30.95 74.97 105.919 Peak Vertical 2412 30.95 71.05 101.999 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Detector Horizontal 2390 111.978 48.571 63.407 Peak Horizontal 2389.3 107.908 55.708 52.200 Average Vertical 2390 105.919 48.571 57.348 Peak Vertical 2389.3 101.999 55.708 46.291 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 114113R-RFUSP29V01 Page: 54 of 97 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 114113R-RFUSP29V01 Page: 55 of 97 Product : 802.11 b/g/n module Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 32.019 79.26 111.279 Peak Horizontal 2462 32.019 74.801 106.82 Average Vertical 2462 31.29 74.62 105.91 Peak Vertical 2462 31.29 70.6 101.89 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Detector Horizontal 2483.5 111.279 47.306 63.973 Peak Horizontal 2484.7 106.82 53.908 52.912 Average Vertical 2483.5 105.91 47.306 58.604 Peak Vertical 2484.7 101.89 53.908 47.982 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 114113R-RFUSP29V01 Page: 56 of 97 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 114113R-RFUSP29V01 Page: 57 of 97 Product : 802.11 b/g/n module Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 77 108.638 Peak Horizontal 2412 31.639 65.63 97.268 Average Vertical 2412 30.95 76.39…
