PPQ-WN4607R802.11 b/g/n 1x1 USB module

Ben J. Chen Page 1 7/25/2012 802.11n 2.4G 1T1R Wireless LAN USB Module WN4607R User’s Manual Ben J. Chen Page 2 7/25/2012 REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‧ Reorient or relocate the receiving antenna. ‧ Increase the separation between the equipment and receiver. ‧ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‧ Consult the dealer or an experienced radio/TV technician for help. Ben J. Chen Page 3 7/25/2012 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the user manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Ben J. Chen Page 4 7/25/2012 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p) is not more than that permitted for successful communication. Ben J. Chen Page 5 7/25/2012 INTRODUCTION The 802.11b/g/n 1T1R PCI-E x1 WLAN Card is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without physically attaching to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by other radio frequencies. This card also allows you to take full advantage of your computer’s mobility with access to real-time information and online services anytime and anywhere. In addition, this device eliminates the bother of pulling cable through walls and under furniture. It even allows you to place your system in locations where cabling is impossible. Modifying and augmenting networks has never been so easy. Wireless Network Options The Peer-to-Peer Network This network installation lets you set a small wireless workgroup easily and quickly. Equipped with wireless PC Cards or wireless PCI, you can share files and printers between each PC and laptop. You can also use one computer as an Internet Server to connect to a wired global network and share files and information with other computers via a wireless LAN. The Access Point Network The network installation allows you to share files, printers, and Internet access much more conveniently. With Wireless LAN Cards, you can connect wireless LAN to a wired global network via an Access Point. Ben J. Chen Pa…

Text truncated - open the document above for the full version.

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Tel：886-2-2222-6181 Fax：886-2-2226-6749 Attestation for FCC Declaration of Conformity Brand: Lite-On Model Number: WN4607R Date: 7/25/2012 FCC ID: PPQ-WN4607R Please be notified that we, Lite-On Technology Corp., declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report numbers supporting the DoC is 1207FE23. Testing in regards to this report was done by A Test Lab Techno Corp., located in No.140-1 Changan Str., Bade City Taoyuan County Taiwan, which has been accredited in accordance to all of the requirements of 47 CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Lite-On Technology Corp. TC Wu

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Tel：886-2-2222-6181 Fax：886-2-2226-6749 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: PPQ-WN4607R To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. (Delete any of items which is not applicable to your device) Schematic Diagram Block Diagram Operation Description Parts List Antenna Specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards TC Wu Director Lite-On Technology Corp. 7/25/2012

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Tel：886-2-2222-6181 Fax：886-2-2226-6749 Date:7/25/2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. PHOENIX TESTLAB Konigswinkel 10 D-32825 Blomberg, Germany To whom it may concern: I, the undersigned, hereby authorize Murphy Wang, Director of A Test Lab Techno Corp. and hereafter referred to as ATL, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Murphy Wang, Director of A Test Lab Techno Corp. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ATL as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, TC Wu / Director Lite-On Technology Corp. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Lite-On Technology Corp. 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Subject: Module Approval Date: 8/3/2012 FCC ID: PPQ-WN4607R IC: 4491A-WN4607R Regarding to the FCC 15.212 and RSS Gen Section 3.2, Lite-On Technology Corp..would like to request modular approval for the submission FCC ID / IC. Lite-On Technology Corp..confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding. (Please review external photos). 2. The modular transmitter have buffered modulation(/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 / RSS 210 requirements under conditions of excessive data rates or over-modulation. (This modular have buffered modulation/data inputs which is controlled by the WLan IC “RT5370＂). 3. This modular have its own power supply regulation which is controlled by the WLan IC “RT5370＂. 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). (Please review external photos or test report). 5. The modular transmitter is tested in a stand-alone configuration. (Please review test setup photos ). 6. The modular transmitter is labeled with its own FCC ID / IC number. (Please review label sample ). 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (The EUT is compliant with all applicable FCC / IC rules. Detail instructions for maintaining compliance are given in the Users Manual). 8. The modular transmitter complies with any applicable RF exposure requirements. (Please refer exhibition RF exposure for the compliance of MPE RF exposure rule.). Signature: Name : TC Wu Title : Director Company Name : Lite-On Technology Corp.

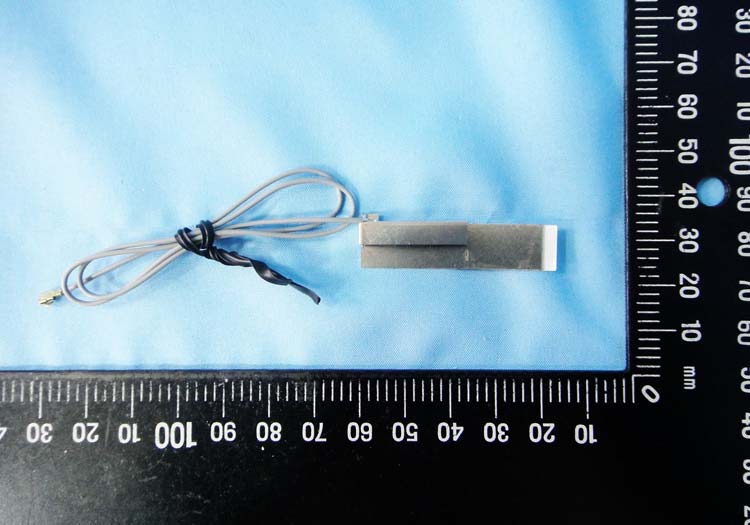

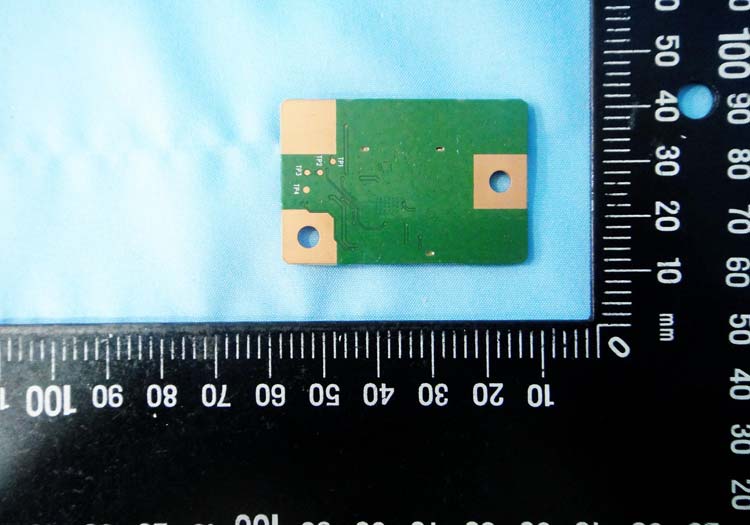

1 of 3 External Photos Model Number: WN4607R FCC ID: PPQ-WN4607R IC ID: 4491A-WN4607R 2 of 3 EUT Photo 1 ) EUT Photo 2 ) 3 of 3 EUT Photo 3 )

1 of 2 Internal Photos Model Number: WN4607R FCC ID: PPQ-WN4607R IC ID: 4491A-WN4607R 2 of 2 EUT Photo 1 ) EUT Photo 2 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1207FS23 Applicant ： Lite-On Technology Corp. Manufacturer ： DONG GUAN G-COM COMPUTER CO., LTD Product Type ： 802.11 b/g/n 1x1 USB module Trade Name ： Lite-On Model Number ： WN4607R FCC ID ： PPQ-WN4607R Date of Received ： Jul. 17, 2012 Date of Test ： Jul. 27, 2012 Date of Issued ： Jul. 27, 2012 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1992 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Yung Tan Tsai ) (Bill Hu) ©2012 A Test Lab Techno Corp. Report Number: 1207FS23Page 1 of 8 Contents 1. Description of Equipment under Test (EUT)............................................................... 3 2. Human Exposure Assessment .................................................................................... 4 3. RF Output Power........................................................................................................... 5 4. Test Result.....................................................................................................................8 ©2012 A Test Lab Techno Corp. Report Number: 1207FS23Page 2 of 8 1. Description of Equipment under Test (EUT) Applicant Lite-On Technology Corp. Applicant Address 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD Manufacturer Address 1st Row, Yin Shan Road, Yin Hwu Industrial Area, Qingxi Town, DongGuan City, GuangDong, China Product Type 802.11 b/g/n 1x1 USB module Trade Name Lite-On Model Number WN4607R FCC ID PPQ-WN4607R Frequency Range 2412 - 2462 MHz (IEEE 802.11b / IEEE 802.11g) 2412 - 2462 MHz (draft 802.11n Standard-20MHz) 2422 - 2452 MHz (draft 802.11n Wide-40MHz) Transmit Power IEEE 802.11b: 0.100 W / 20.00 dBm (mean conducted power) IEEE 802.11g: 0.195 W / 22.91 dBm draft 802.11n Standard-20MHz: 0.206 W / 23.14 dBm draft 802.11n Wide-40MHz: 0.209 W / 23.21 dBm Antenna Specification 2.88 dBi Antenna Designation Metal Stamping Antenna Temperature Range -30 ~ +70°C The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties ©2012 A Test Lab Techno Corp. Report Number: 1207FS23Page 3 of 8 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. ©2012 A Test Lab Techno Corp. Report Number: 1207FS23Page 4 of 8 3. RF Output Power Band Data Rate Frequency (MHz) Time-Average Power (dBm) Peak Power (dBm) Worst Case 2412 16.91 19.99 □ 2437 16.99 20.00 ■ 1M 2462 16.51 19.51 □ 2412 16.78 19.88 □ 2437 16.78 19.90 □ 2M 2462 16.31 19.44 □ 2412 16.89 19.55 □ 2437 16.94 19.55 □ 5.5M 2462 16.44 19.06 □ 2412 16.87 19.91 □ 2437 16.91 19.98 □ IEEE 802.11b 11M 2462 16.45 19.46 □ 2412 14.51 22.52 □ 2437 14.62 22.91 ■ 6M 2462 13.30 21.90 □ 2412 14.41 22.42 □ 2437 14.56 22.84 □ 9M 2462 13.20 22.02 □ 2412 14.34 22.57 □ 2437 14.52 22.82 □ 12M 2462 13.18 22.03 □ 2412 14.46 22.19 □ 2437 14.54 22.47 □ 18M 2462 13.25 21.56 □ 2412 12.84 21.82 □ 2437 12.86 21.90 □ 24M 2462 11.51 21.10 □ 2412 12.57 21.54 □ 2437 12.68 21.73 □ 36M 2462 11.36 20.73 □ 2412 10.78 21.01 □ 2437 10.84 20.28 □ 48M 2462 9.47 19.44 □ 2412 10.97 21.23 □ 2437 11.13 21.58 □ IEEE 802.11g 54M 2462 9.79 20.65 □ ©2012 A Test Lab Techno Corp. Report Number: 1207FS23Page 5 of 8 Band Data Rate Frequency (MHz) Time-Average…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C Product Type ： 802.11 b/g/n 1x1 USB module Applicant ： Lite-On Technology Corp. Address ： 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Trade Name ： Lite-On Model Number ： WN4607R Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2011 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4-2009 Application Purpose ： Original Receive Date ： Jul. 17, 2012 Issue Date ： Jul. 26, 2012 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number: 1207FR23 1/71 Revision History Rev. Issue Date Revisions Revised By 00 Jul. 26, 2012 Initial Issue A Test Lab Techno Corp. Report Number: 1207FR23 2/71 Verification of Compliance Issued Date: 07/26/2012 Product Type : 802.11 b/g/n 1x1 USB module Applicant : Lite-On Technology Corp. Address : 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Trade Name : Lite-On Model Number : WN4607R FCC ID : PPQ-WN4607R IC : 4491A-WN4607R EUT Rated Voltage : DC 3.3V Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2011 Canada RSS-210 ISSUE 8: Dec., 2010 Canada RSS-Gen ISSUE 3: Dec., 2010 ANSI C63.4-2009 Test Result : Complied Application Purpose : Original Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Murphy Wang) (Testing Engineer) (Fly Lu) A Test Lab Techno Corp. Report Number: 1207FR23 3/71 TABLE OF CONTENTS 1 General Information ....................................................................................................................................... 6 2 EUT Description ............................................................................................................................................. 7 3 Test Methodology .......................................................................................................................................... 8 3.1. Mode of Operation.................................................................................................................................. 8 3.2. EUT Exercise Software.......................................................................................................................... 8 3.3. Configuration of Test System Details ..................................................................................................... 9 3.4. Test Site Environment .......................................................................................................................... 10 4 Conducted Emission Measurement ........................................................................................................... 11 4.1. Limit .......................................................................................................................................................11 4.2. Test Instruments ....................................................................................................................................11 4.3. Test Setup..............................................................................................................................................11 4.4. Test Procedure ..................................................................................................................................... 12 4.5. Test Result............................................................................................................................................ 13 5 Radiated Emission Measurement............................................................................................................... 15 5.1. Limit ...................................................................................................................................................... 15 5.2. Test Instruments ................................................................................................................................... 15 5.3. Setup .................................................................................................................................................... 16 5.4. Test Procedure ..................................................................................................................................... 17 5.5. Test Result............................................................................................................................................ 19 6 Maximum Conducted Output Power Measurement.................................................................................. 27 6.1. Limit ...................................................................................................................................................... 27 6.2. Test Setup........…

Text truncated - open the document above for the full version.

Part 15C Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View A Test Lab Techno Corp. Report Number: 1207FR23 1/4 Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1207FR23 2/4 Above 1GHz _ Front View Above 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1207FR23 3/4 Close View A Test Lab Techno Corp. Report Number: 1207FR23 4/4
