PPQ-WN4614LWLAN USB Module

Page 1/12 PRODUCT SPECIFICATION 802.11n, 2.4G 1T1R Wireless LAN USB Module WN4614L Realtek RTL8188ETV Version 1.0 User Manual * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Page 2/12 CONTENT FCC WARING STATEMENT .......................................................................................................... 3 IC WARING STATEMENT .............................................................................................................. 4 PRODUCT FEATURES .................................................................................................................... 5 WI-FI FEATURE .................................................................................................................................... 5 INTRODUCTION .............................................................................................................................. 6 SOFTWARE INSTALLATION ........................................................................................................ 7 HARDWARE INSTALLATION ..................................................................................................... 10 NETWORK CONNECTION ........................................................................................................... 10 Page 3/12 FCC WARING STATEMENT FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Page 4/12 End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: PPQ-WN4614L ” Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions. This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor use only, Outdoor operations in the 5150~5250MHz is prohibit. This device is slave equipment, the device is not radar detection and not ad-hoc operation in the DFS band. IC WARING STATEMENT Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body). Page 5/12 Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du corps d'une personne). PRODUCT FEATURES Wi-Fi Feature  Operate at ISM frequency Band (2.4GHz)  IEEE Standards Support, 802.11b, 802.11g and 802.11n  CMOS MAC, Baseband PHY, and RF in a single chip for IEEE 802.11b/g/n compatible WLAN  Complies with USB Specification 2.0…

Text truncated - open the document above for the full version.

Date: May 6, 2014 Subject: Ad Hoc Mode Function Declaration FCC ID: PPQ-WN4614L IC: 4491A-WN4614L To Whom it may concern, We, LITE-ON Technology Corp., declare that the device (FCC ID: PPQ-WN4614L /IC: 4491A-WN4614L ) 1. is acting as slave and operating on 2.4GHz band. 2. Ad Hoc function is available. 3. is not able to operate in non-US/IC frequencies, country code selection will be disable for this device. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : LITE-ON Technology Corp. Address : 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien, 235 Taiwan Signature : _________________________________ Name and Job Title. : TC Wu / Deputy Director(R & D Division) E-mail [email protected] Tel. 86-769-7312821

Confidentiality Request Letter Date: 2014/5/6 Federal Communications Commission Authorization and Evaluation Division FCC ID：PPQ-WN4614L Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : LITE-ON Technology Corp. Applicant’s company address : 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien, 235 Taiwan Signature : _________________________________ Job Title and Dept. : TC Wu / Deputy Director(R & D Division) E-mail : [email protected] Tel. : 86-769-7312821

Module Approval Request Letter Subject: Module Approval request letter Date: 5/6/2014 FCC ID: PPQ-WN4614L Dear Reviewer, We, LITE-ON Technology Corp., would request 802.11n, 2.4G 1T1R Wireless LAN USB Module approved under module approval authorization. The requirements regulated in 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip (RTL8188ETV QFN46). 3. The requirement of power supply regulation: The part number of the power regulator is (G5725ADJTO1U). 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant’s company name : LITE-ON Technology Corp. Applicant’s company address : 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien, 235 Taiwan Signature : _________________________________ Job Title and Dept. : TC Wu / Deputy Director(R & D Division) E-mail : [email protected] Tel. : 86-769-7312821

Date: 2014/5/6 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PPQ-WN4614L Product name: 802.11n, 2.4G 1T1R Wireless LAN USB Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WN4614L to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : LITE-ON Technology Corp. Address : 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien, 235 Taiwan Signature : _________________________________ Name and Job Title. : TC Wu / Deputy Director(R & D Division) E-mail : [email protected] Tel. : 86-769-7312821

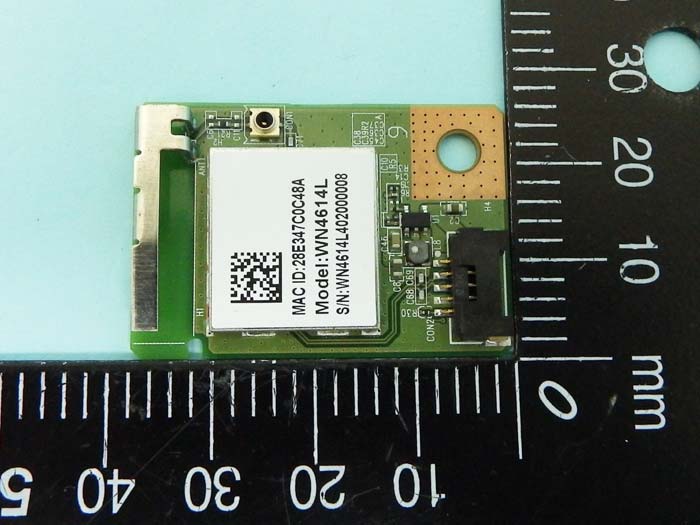

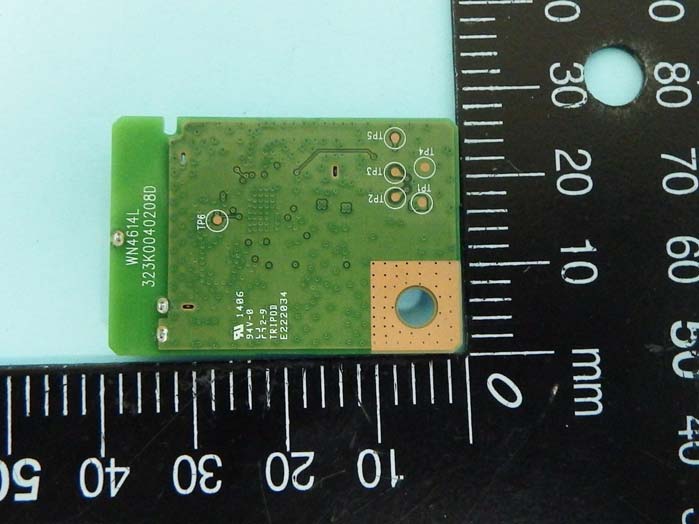

FCC Test Report Report No. : EP442111 SPORTON International Inc. PAGE NUMBER : B1 OF B3 TEL : 886-3-327-3456 ISSUED DATE : May 08, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP442111 SPORTON International Inc. PAGE NUMBER : B3 OF B3 TEL : 886-3-327-3456 ISSUED DATE : May 08, 2014 FAX : 886-3-327-0973

(上光方式):NO (材質):50#白色特多龙 (顔色):lackB (尺寸): 17.5*16mm (公差):+-0.3mm MAC ID label MM11313150D WN4614L 1 17.5mm 16mm (空 白label): 1:1 3:1 WI-CQES-002 50900007063D Rita Huang 2014.04.17 TC WuAE Liu 备注： 1,条码使用二维条码ECC 200 显示内容为：XXXXXXXXXXXX(由业务提供） 2, S/N編碼原則為 WN4614L Y MM XXXXXX MAC ID:XXXXXXXXXXXX Model: WN4614L Made In China S/N:WN4614LYMMXXXXXX TPV P/N:317GAAWF531LON FCC ID:PPQ-WN4614L IC:4491A-WN4614L COFETEL:XXXXXXXXXXX 17.5mm 16mm MAC ID:XXXXXXXXXXXX Model: WN4614L Made In China S/N:WN4614LYMMXXXXXX TPV P/N:317GAAWF531LON FCC ID:PPQ-WN4614L IC:4491A-WN4614L COFETEL:XXXXXXXXXXX

FCC Test Report Report No. : EP442111 SPORTON International Inc. PAGE NUMBER : B1 OF B3 TEL : 886-3-327-3456 ISSUED DATE : May 08, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP442111 SPORTON International Inc. PAGE NUMBER : B2 OF B3 TEL : 886-3-327-3456 ISSUED DATE : May 08, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP442111 SPORTON International Inc. PAGE NUMBER : B3 OF B3 TEL : 886-3-327-3456 ISSUED DATE : May 08, 2014 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA442111 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA442111 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA442111 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) b 1 1 Correlated 16.90 g 1 1 Correlated 15.93 n (HT20) 1 1 Uncorrelated 15.42 n (HT40) 1 1 Uncorrelated 15.35 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) Gain (dBi) EIRP Power PD (S) (mW/cm²) b 1 16.90 4.85 21.75 0.02977 g 1 15.93 4.85 20.78 0.02381 n (HT20) 1 15.42 4.85 20.27 0.02117 n (HT40) 1 15.35 4.85 20.20 0.02083 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : 1 of 57 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : 802.11n, 2.4G 1T1R Wireless LAN USB Module Brand Name : LITE-ON Model No. : WN4614L FCC ID : PPQ-WN4614L Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant : Lite-On Technology Corp 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Manufacturer : LITE-ON TECHNOLOGY (Changzhou) CO., LTD A9 Building, No.88 Yanghu Road, Wujin Hi-Tech Industrial Development Zone , Changzhou City, Jiangsu Province 213100 China The product sample received on Apr. 21, 2014 and completely tested on Apr. 25, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : 2 of 57 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Transmitter Bandedge Emissions ........................................................................................................ 24 3.6 Transmitter Unwanted Emissions......................................................................................................... 27 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 56 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : 3 of 57 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1965370MHz 43.90 (Margin 9.86dB) - AV 53.09 (Margin 10.67dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 9.07 / 40M: 36.32 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 20.79 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -10.27 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.94MHz: 25.96dB Restricted Bands [dBuV/m at 3m]: 2483.60MHz 69.64 (Margin 4.36dB) - PK 53.91 (Margin 0.09dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 237.58MHz 36.93 (Margin 9.07dB) - QP Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : 4 of 57 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR442111 Rev. 01 Initial issue of report May 08, 2014 2500-2690 FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : 5 of 57 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : A1 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : A2 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : A3 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : A4 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : A5 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : A6 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR442111 SPORTON INTERNATIONAL INC. Page No. : A7 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 EUT take a close-up FRONT VIEW
