PPQ-WN4615L802.11n, 2.4G 1T1R Wireless LAN USB Module

Page 1/12 USER MANUAL 802.11n, 2.4G 1T1R Wireless LAN USB Module WN4615L Realtek RTL8188ETV Version 1.1 Change History Revision Date Author Change List Version 1.0 2014/05/05 Ben J Chen Preliminary Version 1.1 2015/01/07 Ben J Chen Update Power Consumption Update Pin Assignment * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Page 3/12 CONTENT PRODUCT FEATURES .................................................................................................................... 4 WI-FI FEATURE ...................................................................................................................................... 4 PRODUCT SPECIFICATIONS ........................................................................................................ 5 MAIN CHIPSET ....................................................................................................................................... 5 FUNCTIONAL SPECIFICATIONS ............................................................................................................... 5 INRUSH CURRENT .......................................................................................................................... 6 PIN ASSIGNMENT ............................................................................................................................ 7 USB CONNECTOR SPEC ................................................................................................................. 7 MECHANICAL .................................................................................................................................. 8 BLOCK DIAGRAM ........................................................................................................................... 8 PRINTED ANTENNA SPEC ............................................................................................................. 9 EEPROM INFORMATION ............................................................................................................ 11 ENVIRONMENTAL ........................................................................................................................ 11 OPERATING .......................................................................................................................................... 11 STORAGE .............................................................................................................................................. 11 PACKING DRAWING .................................................................................................................... 11 Page 4/12 PRODUCT FEATURES Wi-Fi Feature  Operate at ISM frequency Band (2.4GHz)  IEEE Standards Support, 802.11b, 802.11g and 802.11n  CMOS MAC, Baseband PHY, and RF in a single chip for IEEE 802.11b/g/n compatible WLAN  Complies with USB Specification 2.0, support Full-speed(12Mbps) and High-Speed(480Mbps)  Enterprise level security supporting: WPA, WPA2  Support 1 transmission and 1 receiving, transmission rate can up to 150Mbps (Physical Rate) in downstream and upstream  RoHS compliance  Low Halogen compliance Page 5/12 PRODUCT SPECIFICATIONS MAIN CHIPSET Realtek RTL8188ETV FUNCTIONAL SPECIFICATIONS Wi-Fi Function Standard IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface USB 2.0 Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 7 for HT20MHz MCS 0 to 7 for HT40MHz Media Access Control CSMA/CA with ACK Modulation Techniques 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: 64QAM, 16QAM, QPSK, BPSK Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan Frequency Range 802.11bg 2.400 ~ 2.4835 GHz Transmit Output Power – 1x1 (Tolerance: ±1.5dBm) 802.11b: 15 dBm@1Mbps 15 dBm@11Mbps 802.11g: 14 dBm@6Mbps 14 dBm@54Mbps 802.11n: 20MHz: 14 dBm@MCS0 14 dBm@MCS7 40MHz: 12 dBm@MCS0 12 dBm@MCS7 Receiver Sensitivity 802.11b: -82 dBm@11Mbps 802.11g: -69 dBm@54Mbps 802.11n: 20MHz Page 6/12 -68 dBm@MCS7 40MHz -65 dBm@MCS7 Security WEP 64&128 bit, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS, IEEE 802.1X, IEEE 802.11i Operating Voltage 3.3 V ±9% I/O supply voltage OS Supported Microsoft Windows Win7/Win8/Win8.1; Linux based Power Consumption Test Condition: - Operate at HT40 - File Transmission Average Max TX Mode: 300 mA RX Mode: 180 mA Standby Mode: 160 mA 600mA Antenna Type Printed Antenna INRUSH CURRENT The MAX is about 1.45A and during time is about 1.7us. Page 7/12 PIN ASSIGNMENT USB CONNECTOR SPEC Pin. Pin Define Status 1 +3.3V YES 2 USB_D- YES 3 USB_D+ YES 4 GND YES Page 8/12 MECHANICAL BLOCK DIAGRAM Page 9/12 PRINTED ANTENNA SPEC Page 10/12 MODULE PHOTO Top Side Bottom Side Page 11/12 EEPROM INFORMATION Reg Domain WorldWide13 Channels 1-11 with active scan, 12-13 with passive scan 0x20 Vendor ID 0x0BDA Device ID 0x0179 ENVIRONMENTAL OPERATING Operating Temperature: 0 to 70 C (32 to 158 F) Relative Humidity: 5-90% (non-condensing) STORAGE Temperature: -40 to 80 C (-40 to 176 F) Relative Humidity: 5-95% (non-condensing) PACKING DRAWING Tray Page 12/12 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digi tal device, pursuant to part 15 of the FCC rules. These limits are designed to provide r easonable protection against harmful interference in a residential installation. This equ ipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, ma…

Text truncated - open the document above for the full version.

Example of Agents letter (for TCB – TCB approval): Freescale Semiconductor, Inc Date (28/04/2015) TUV SUD BABT TCB/FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, ( Lite-On Technology Corp.,and 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. ), hereby authorize (Compliance Certification Services Inc./ David Wang., No.11,Wugong 6th Rd., Wugu Dist. New Taipei City 24891,Taiwan and 02-2299-9720) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2016/04/28 Sincerely, Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected] Date: Apr. 28,2015

Lite-On Technology Corp. Date (28/04/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: PPQ-WN4615L Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Freescale Semiconductor, Inc hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected] Date: Apr. 28,2015

Lite-On Technology Corp. Date (28/04/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Modular Approval Request FCC ID: PPQ-WN4615L The following attestation addresses the requirements to support modular approval: Modular approval requirement Yes (provide brief statement) No * (a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Y (b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Y (c) The module must contain power supply regulation on the module Y (d) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Y (e) The module must demonstrate compliance in a stand-alone configuration Y (f) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) Y (g) The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements Y Modular approval requirement Yes (provide brief statement) No * (h) The module must comply with RF exposure requirements Y * Please provide a detailed explanation if the answer is “No.” Yours sincerely, Name/Title: TC Wu / Director Company Name: Lite-On Technology Corp. Address: 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 Email: [email protected] Date: Apr. 28,2015

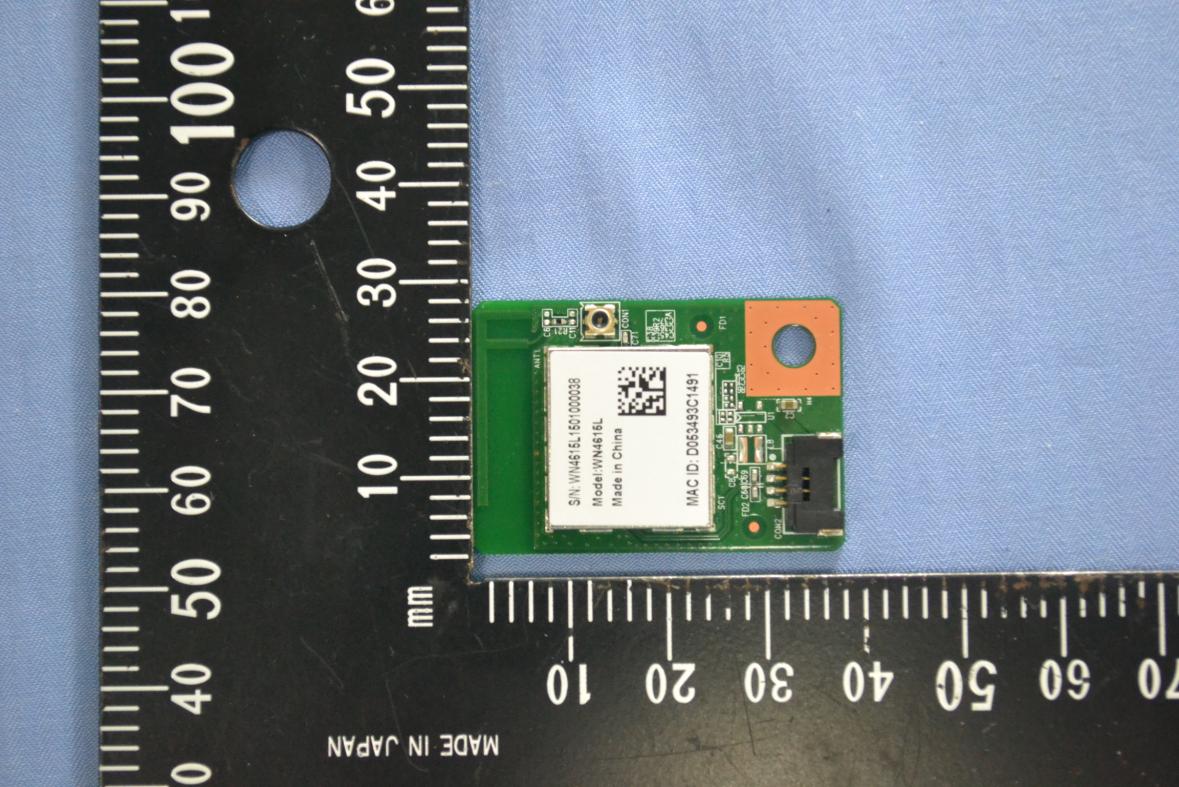

Compliance Certification Services Inc. Report No.: T150417W06 Date of Issue: April 27, 2015 A1 - 1 / 3 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

Compliance Certification Services Inc. Report No.: T150417W06 Date of Issue: April 27, 2015 A1 - 2 / 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT RF IC Compliance Certification Services Inc. Report No.: T150417W06 Date of Issue: April 27, 2015 A1 - 3 / 3 Rev. 00 Antenna

Compliance Certification Services Inc. Report No.: T150417W06-MF Date of Issue: April 27, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 802.11n, 2.4G 1T1R Wireless LAN USB Module Model WN4615L RF Module Realtek Model: RTL8188ETV Model Discrepancy N/A Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11 n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification LITE-ON / WN4615L 2.4GHz: Antenna Gain :2.43 dBi (Numeric gain:1.75) Maximum Average output power IEEE 802.11b Mode: 23.29 dBm(213.304 mW) IEEE 802.11g Mode:19.12 dBm(81.658 mW) IEEE 802.11n HT 20 Mode: 17.08 dBm(51.050 mW) IEEE 802.11n HT 40 Mode: 16.61 dBm(45.814 mW) Maximum Tune up Power IEEE 802.11b Mode: 25.00 dBm(316.228 mW) IEEE 802.11g Mode:21.00 dBm(125.893 mW) IEEE 802.11n HT 20 Mode: 19.00 dBm(79.433 mW) IEEE 802.11n HT 40 Mode: 18.00 dBm(63.096 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T150417W06-MF Date of Issue: April 27, 2015 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/4/27 Initial Issue ALL Becca Chen Compliance Certification Services Inc. Report No.: T150417W06-MF Date of Issue: April 27, 2015 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T150417W06-MF Date of Issue: April 27, 2015 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 62437213.3041.75200.07431 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243781.6581.75200.02841 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243751.0501.75200.01781 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243745.8141.75200.01601

Compliance Certification Services Inc. FCC ID: PPQ-WN4615L Report No.: T150417W06-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 105 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 802.11n, 2.4G 1T1R Wireless LAN USB Module Model: WN4615L Trade Name: Lite-On Issued to Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: April 27, 2015 Compliance Certification Services Inc. FCC ID: PPQ-WN4615L Report No.: T150417W06-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 27, 2015 Initial Issue ALL Becca Chen Compliance Certification Services Inc. FCC ID: PPQ-WN4615L Report No.: T150417W06-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ................................................................................................................. 6 3.2 EUT EXERCISE ............................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES .................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .................................................... 7 3.5 DESCRIPTION OF TEST MODES ................................................................................................. 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ............................................................................ 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ................................................................................................................................... 11 5.2 EQUIPMENT ................................................................................................................................. 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ...................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ............................................................................................ 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ....................................................................................................................... 14 7.2 PEAK POWER ............................................................................................................................... 28 7.3 AVERAGE POWER ...................................................................................................................... 30 7.4 BAND EDGES MEASUREMENT ................................................................................................ 32 7.5 PEAK POWER SPECTRAL DENSITY ........................................................................................ 58 7.6 SPURIOUS EMISSIONS ............................................................................................................... 72 7.7 RADIATED EMISSIONS .............................................................................................................. 85 7.8 POWERLINE CONDUCTED EMISSIONS ................................................................................ 102 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................. 104 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: PPQ-WN4615L Report No.: T150417W06-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Equipment Under Test: 802.11n, 2.4G 1T1R Wireless LAN USB Module Trade Name: Lite-On Model: WN4615L Date of Test: April 25, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee A…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: PPQ-WN4615L Report No.: T150417W06-RP Page 104 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: PPQ-WN4615L Report No.: T150417W06-RP Page 105 Rev. 00 Radiated Emissions Setup Photos
