PPQ-WN4616A1X1 802.11b/g/n WiFi Module

LITE-ON TECHNOLOGY CORP.
1X1 802.11b/g/n WiFi Module - FCC ID PPQ-WN4616A - LITE-ON TECHNOLOGY CORP.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 19, 2014
Application Purpose
Original Equipment
Date of Application
Feb 19, 2014
Equipment Note
1X1 802.11b/g/n WiFi Module
Frequency Range
2422.00000000 - 2452.00000000
Company
LITE-ON TECHNOLOGY CORP.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

ID Label/Location Info

↗

Internal Photos

↗

Parts List/Tune Up Info

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Kaysa Lee Page 1 1/24/2014 8 8 0 0 2 2 . . 1 1 1 1 b b / / g g / / n n , , 2 2 . . 4 4 G G 1 1 T T 1 1 R R W W i i r r e e l l e e s s s s M M o o d d u u l l e e W W N N 4 4 6 6 1 1 6 6 A A U U s s e e r r ’ ’ s s M M a a n n u u a a l l Kaysa Lee Page 2 1/24/2014 REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Kaysa Lee Page 3 1/24/2014 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. Kaysa Lee Page 4 1/24/2014 Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body). This device has been certified for use in Canada. Status of the listing in the Industry Canada’s REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng Additional Canadian information on RF exposure also can be found at the following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil Dell est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil Dell de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du corps d'une personne). Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée correspondant à l’appareil dans la liste d'équipement radio (REL - Radio Equipment List) d'Industry Canada rendez-vous sur: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng Pour des informations supplémentaires concernant l'exposition aux RF au Canada rendez-vous sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html Kaysa Lee Page 5 1/24/2014 INTRODUCTION The 802.11n Wireless Adapter is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without physically attaching to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by other radio frequencies. This card also allows you to take full advantage of your computer’s mobility with access to real-time information and online services anytime and anywhere. In addition, thi…

Text truncated - open the document above for the full version.

Attestation Statements

Applicant/Grantee Lite-On Technology Corp. FCC ID: Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The modular have RF own shielding Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter have buffered modulation/data inputs Y 3 The modular transmitter must have its own power supply regulation. The EUT module needs another external power supply to provide the required working voltage. This EUT module is just a RF transceiver which has no power related circuit design therein. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The modular must to built-in PIFA applicant together and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length The EUT module can’t be operated by its own due to its power-less characteristic and hence needs external power supply to make it function. Under testing condition, no matter in pure verification or manufacturing stage, the specified test fixture must be provided to help testing the function and performance of the EUT sample. Y typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The FCC identification number can put on the modular with either a permanently affixed label Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with The modular have specific rules or operating requirements Y the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y A modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of …

Text truncated - open the document above for the full version.

Cover Letter(s)

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. DateFebruary 11, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Lite-On Technology Corp. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 E-Mail: [email protected]

Cover Letter(s)

Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. DateFebruary 11, 2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Lite-On Technology Corp. hereby authorize Compliance Certification Services Inc./ David Wang. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2014/09/18 Your Sincerely, TC Wu Title: Director Lite-On Technology Corp. TEL: 886-2-2222-6181 FAX: 886-2-2226-6749 E-Mail: [email protected]

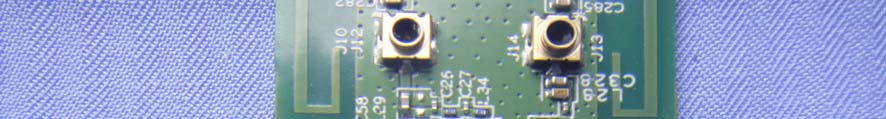

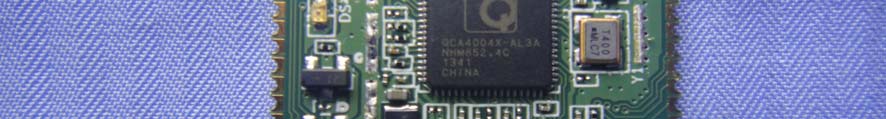

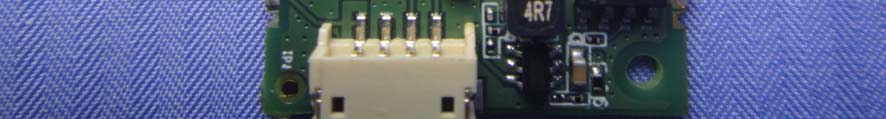

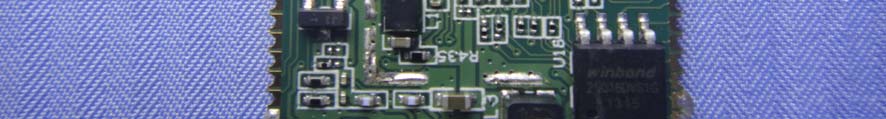

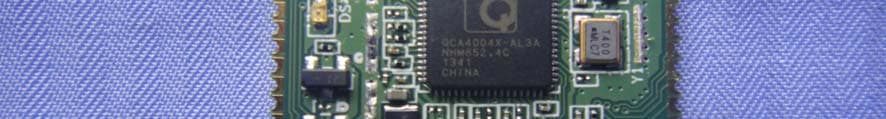

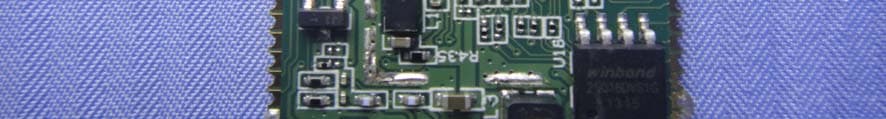

Internal Photos

Compliance Certification Services Inc. Report No.: T140121W04 Date of Issue: February 11, 2014 A1 - 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140121W04 Date of Issue: February 11, 2014 A1 - 4 Rev.00 PIFA Antenna

RF Exposure Info

Compliance Certification Services Inc. Report No.: T140121W04 - MF Date of Issue: February 10,2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 1X1 802.11b/g/n WiFi Module Trade Name LITE-ON Model Number WN4616A Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification WN4616A Antenna 1 Antenna Gain 2.4GHz0.00 dBi (Numeric gain: 1.00) Antenna 2 Antenna Gain 2.4GHz-0.58 dBi (Numeric gain: 0.87) Maximum Average output power IEEE 802.11b Mode: 16.27 dBm(42.364 mW) IEEE 802.11g Mode: 15.89 dBm(38.815 mW) IEEE 802.11n HT 20 Mode: 15.93 dBm(39.174 mW) IEEE 802.11n HT 40 Mode: 16.24 dBm(42.073 mW) Maximum Tune Up Produce IEEE 802.11b Mode: 16.50 dBm(44.668 mW) IEEE 802.11g Mode: 16.00 dBm(39.811 mW) IEEE 802.11n HT20 Mode: 16.00 dBm(39.811 mW) IEEE 802.11n HT40 Mode: 16.50 dBm(44.668 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140121W04 - MF Date of Issue: February 10,2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/2/10 Initial Issue All Jerry.Cheng Compliance Certification Services Inc. Report No.: T140121W04 - MF Date of Issue: February 10,2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. test results No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140121W04 - MF Date of Issue: February 10,2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 1241244.6681200.00891 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 6243739.8111200.00791 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 6243739.8111200.00791 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 6243744.6681200.00891

Test Report

Compliance Certification Services Inc. FCC ID: PPQ-WN4616A Report No.: T140121W04-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 105 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 1X1 802.11b/g/n WiFi Module Model: WN4616A Trade Name: LITE-ON Issued to Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: February 11, 2014 Compliance Certification Services Inc. FCC ID: PPQ-WN4616A Report No.: T140121W04-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 February 11, 2014 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: PPQ-WN4616A Report No.: T140121W04-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ....................................................................................................................................... 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ............................................................................................................................. 14 7.2 PEAK POWER .................................................................................................................................... 28 7.3 BAND EDGES MEASUREMENT ................................................................................................ 30 7.4 PEAK POWER SPECTRAL DENSITY .................................................................................................... 56 7.5 SPURIOUS EMISSIONS ............................................................................................................... 70 7.6 RADIATED EMISSIONS .............................................................................................................. 83 7.7 POWERLINE CONDUCTED EMISSIONS ............................................................................................. 100 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................. 103 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: PPQ-WN4616A Report No.: T140121W04-RP1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Lite-On Technology Corp. 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. Equipment Under Test: 1X1 802.11b/g/n WiFi Module Tr a d e N a m e : LITE-ON Model: WN4616A Date of Test: January 23 ~ February 7, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Man…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Sandra Liu(Associate Manager)
[email protected]86-2222-6181Fax: 86-2222-6749

Test Firm

Compliance Certification Services Inc.Winnie Chen
[email protected]886-3-5921698Fax: 886-3-5921108

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz276.70 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular Approval. Power Output is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons to satisfy the requirements of 2.1091 and must not be co-located or operated in conjunction with any other antenna or transmitter not described in this application. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
