PPQ-WN4616LWLAN USB Module

WN4616L Specification Page 1/10 2014/6/27 LTC Network Access Confidential PRODUCT SPECIFICATION 802.11n, 2T2R Single Band Wireless LAN USB Module WN4616L Version 1.1 User Manual This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. WN4616L Specification Page 2/10 2014/6/27 LTC Network Access Confidential PRODUCT DESCRIPTION The Wireless LAN USB Module is a sleek miniature Wireless LAN device working under 2.4GHz frequency band. Compatible with IEEE standards, 802.11b, 802.11g and support 802.11n. It provides full functional wireless access within wireless environments anytime, anywhere at a data rate of up to 300Mbps. The WN4616L comes with an USB 2.0 interface providing the maximum transfer rate of 480Mbps, the form factor is an embedded module. WN4616L embody 2 transmitter 2 receiver (2T2R) architecture to ensure reliable and cost-effective wireless connectivity at high throughput over an extended range. Optimized RF architecture and base band algorithms provide super performance with low-power consumption. PRODUCT FEATURES  Operate at 2.4GHz band  300Mbps PHY Rate Support  2T2R Modes  20MHz/40MHz Bandwidth Support  USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed  IEEE standards support: IEEE 802.11b/g and 802.11n  802.11i- WEP 64/128, AES, TKIP  Low power with advanced Power Management  Embedded CPU with host off-load capability  Support WoW function  RoHS compliance Product specifications Main chipset MAC/Baseband/RF: Realtek RTL8192EU WN4616L Specification Page 3/10 2014/6/27 LTC Network Access Confidential Functional Specifications Standard IEEE802.11b; IEEE 802.11g; IEEE802.11n Bus Interface Universal Serial Bus (USB2.0) Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 15 for HT20MHz MCS 0 to 15 for HT40MHz Media Access Control CSMA/CA with ACK Radio Technology 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16 QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16QAM, 64QAM Network architecture Ad-hoc mode (Peer-to-Peer ) Infrastructure mode Operating Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan Frequency Range 802.11 b & g 2.412 ~ 2.462 GHz – N. America 2.412 ~ 2.484 GHz – Japan 2.412 ~ 2.472 GHz – Europe ETSI Receiver Sensitivity 802.11b: Less than -76dBm 802.11g: Less than -82dBm @ 6Mpbs Less than -65dBm @54Mbps 802.11n: Less than -82dBm @ MCS0 Less than -64dBm @ MCS7 Security 64-bit, 128-bit WEP, TKIP, AES, WPA, WPA2, WPS IEEE 802.11i Operating Voltage 5V ±5% I/O supply voltage OS supported Windows, Linux(embedded system) Power Consumption Standby: 196mA TX: 369mA RX: 238mA Antenna Type Dual Metal Antenna *Environmental factors dependent WN4616L Specification Page 4/10 2014/6/27 LTC Network Access Confidential E NVIRONMENTAL Operating Operating Temperature: -10 to 75 C (14 to 167 F) Relative Humidity: 5-90% (non-condensing) Storage Temperature: -40 to 85 C (-40 to 185 F) Relevant Humidity: 5-95% (non-condensing) WN4616L Specification Page 5/10 2014/6/27 LTC Network Access Confidential REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WN4616L Specification Page 6/10 2014/6/27 LTC Network Access Confidential Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end pro…

Text truncated - open the document above for the full version.

Date: June 19, 2014 Subject: Ad Hoc Mode Function Declaration FCC ID: PPQ-WN4616L IC: 4491A-WN4616L To Whom it may concern, We, LITE-ON Technology Corp., declare that the device (FCC ID: PPQ-WN4616L /IC: 4491A-WN4616L ) 1. is acting as slave and operating on 2.4GHz band. 2. Ad Hoc function is available. 3. is not able to operate in non-US/IC frequencies, country code selection will be disable for this device. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : LITE-ON Technology Corp. Address : 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien, 235 Taiwan Signature : _________________________________ Name and Job Title. : TC Wu / Deputy Director(R & D Division) E-mail [email protected] Te l . 86-769-7312821

Confidentiality Request Letter Date: 2014/6/19 Federal Communications Commission Authorization and Evaluation Division FCC ID：PPQ-WN4616L Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : LITE-ON Technology Corp. Applicant’s company address : 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien, 235 Taiwan Signature : _________________________________ Job Title and Dept. : TC Wu / Deputy Director(R & D Division) E-mail : [email protected] Tel. : 86-769-7312821

Module Approval Request Letter Subject: Module Approval request letter Date: 6/19/2014 FCC ID: PPQ-WN4616L Dear Reviewer, We, LITE-ON Technology Corp., would request 802.11n, 2T2R Single Band Wireless LAN USB Module approved under module approval authorization. The requirements regulated in 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip (RTL8192EU). 3. The requirement of power supply regulation: The part number of the power regulator is (RTL8192EU). 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant’s company name : LITE-ON Technology Corp. Applicant’s company address : 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien, 235 Taiwan Signature : _________________________________ Job Title and Dept. : TC Wu / Deputy Director(R & D Division) E-mail : [email protected] Tel. : 86-769-7312821

Date: 2014/6/19 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PPQ-WN4616L Product name: 802.11n, 2T2R Single Band Wireless LAN USB Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WN4616L to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : LITE-ON Technology Corp. Address : 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien, 235 Taiwan Signature : _________________________________ Name and Job Title. : TC Wu / Deputy Director(R & D Division) E-mail : [email protected] Tel. : 86-769-7312821

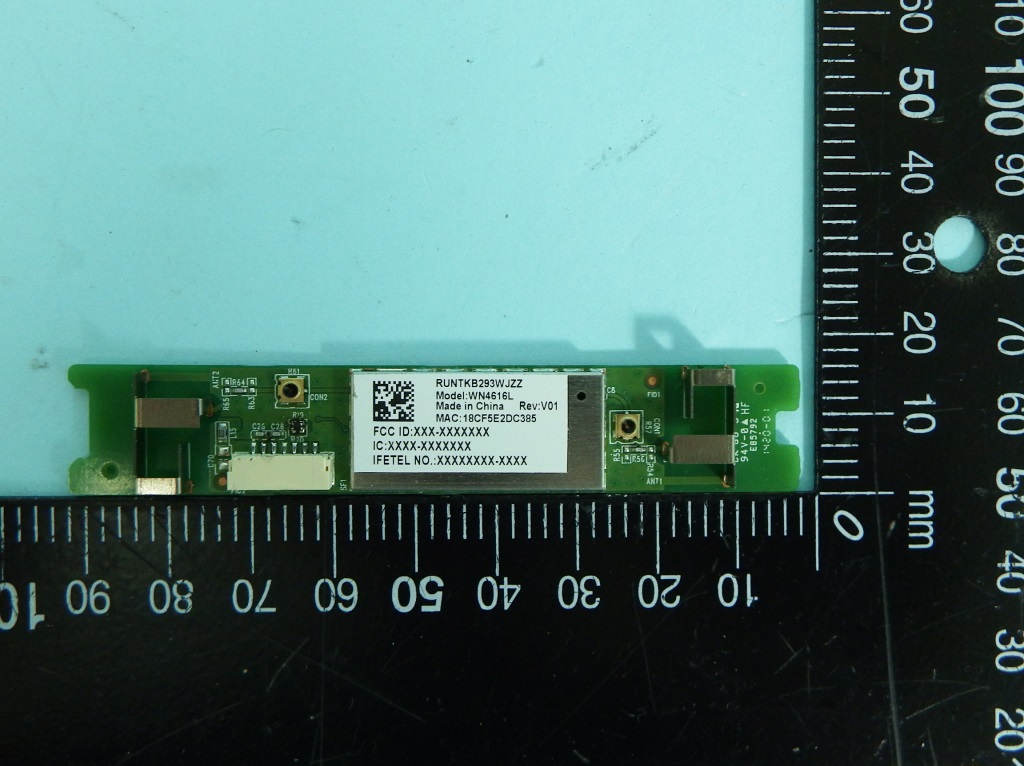

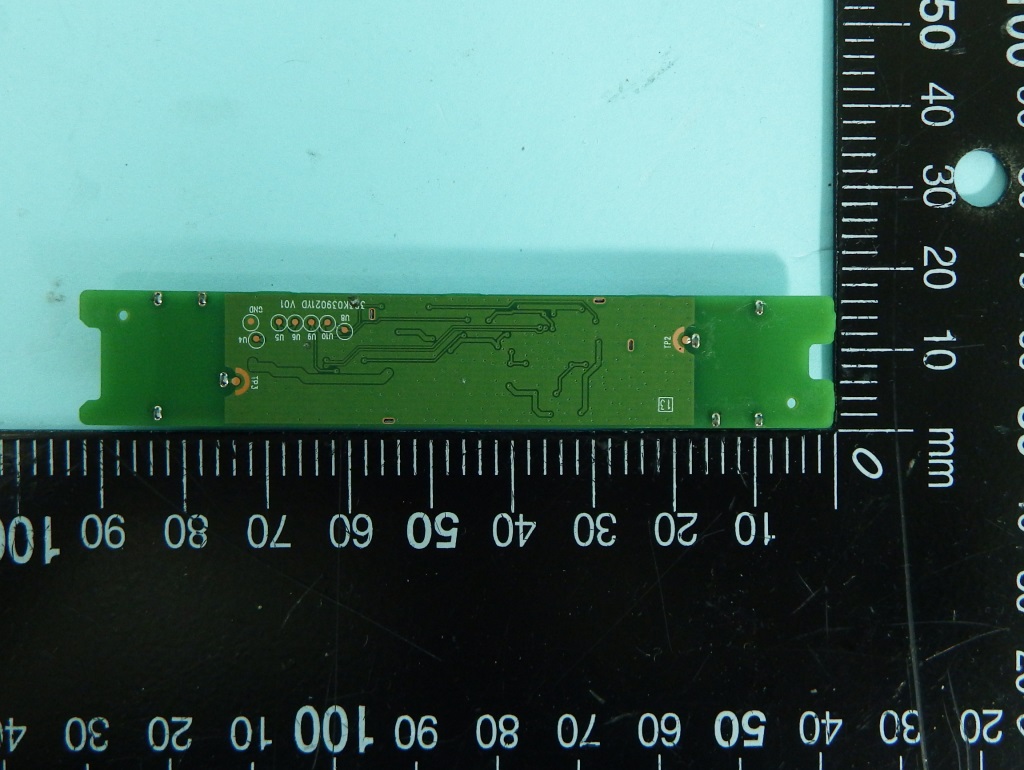

FCC Test Report Report No. : EP460708 SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP460708 SPORTON International Inc. PAGE NUMBER : B2 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2014 FAX : 886-3-327-0973

FCC Test Report Report No. : EP460708 SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP460708 SPORTON International Inc. PAGE NUMBER : B2 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP460708 SPORTON International Inc. PAGE NUMBER : B3 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2014 FAX : 886-3-327-0973 Antenna 2 FCC Test Report Report No. : EP460708 SPORTON International Inc. PAGE NUMBER : B4 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Jun. 27, 2014 FAX : 886-3-327-0973 Antenna 1

RF Exposure Report Report No. : FA460708 SPORTON INTERNATIONAL INC. Page No. : 1 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 F/300 6 1,500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1,500 F/1500 30 1,500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FA460708 SPORTON INTERNATIONAL INC. Page No. : 2 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 24.54 2400-2483.5 g 2412-2462 1-11 [11] 1 22.18 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 23.32 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 18.31 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) Ant. Gain (dBi)EIRP Power PD (S) (mW/cm²) 11b 1 24.54 2.21 26.75 0.094 11b 1 24.54 2.39 26.93 0.098 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : 1 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : 802.11n, 2T2R Single Band Wireless LAN USB Module Brand Name : SHARP Model No. : WN4616L FCC ID : PPQ-WN4616L Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant : Lite-On Technology Corp 4F, 90, Chien 1 Road, Chung Ho,New Taipei City 23585, Taiwan, R.O.C. Manufacturer : LITE-ON TECHNOLOGY (Changzhou) CO., LTD A9 Building, No.88 Yanghu Road, Wujin Hi-Tech Industrial Development Zone , Changzhou City, Jiangsu Province 213100 China The product sample received on Jun. 04, 2014 and completely tested on Jun. 19, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : 2 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Bandedge Emissions ........................................................................................................ 25 3.6 Transmitter Unwanted Emissions......................................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 57 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : 3 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.630479MHz 19.18 (Margin 26.82dB) - AV 35.42 (Margin 20.58dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 9.42 / 40M: 36.36 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 28.32 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -1.85 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2400.00MHz: 26.88dB Restricted Bands [dBuV/m at 3m]: 2483.72MHz 66.11 (Margin 7.89dB) - PK 53.92 (Margin 0.08dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 4824MHz 56.07 (Margin 17.93dB) - PK 53.62 (Margin 0.38dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : 4 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR460708 Rev. 01 Initial issue of report Jun. 27, 2014 2500-2690 FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : 5 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Num…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : A1 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : A2 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : A3 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : A4 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : A5 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : A6 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR460708 SPORTON INTERNATIONAL INC. Page No. : A7 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 EUT took a close view EUT took a close view
