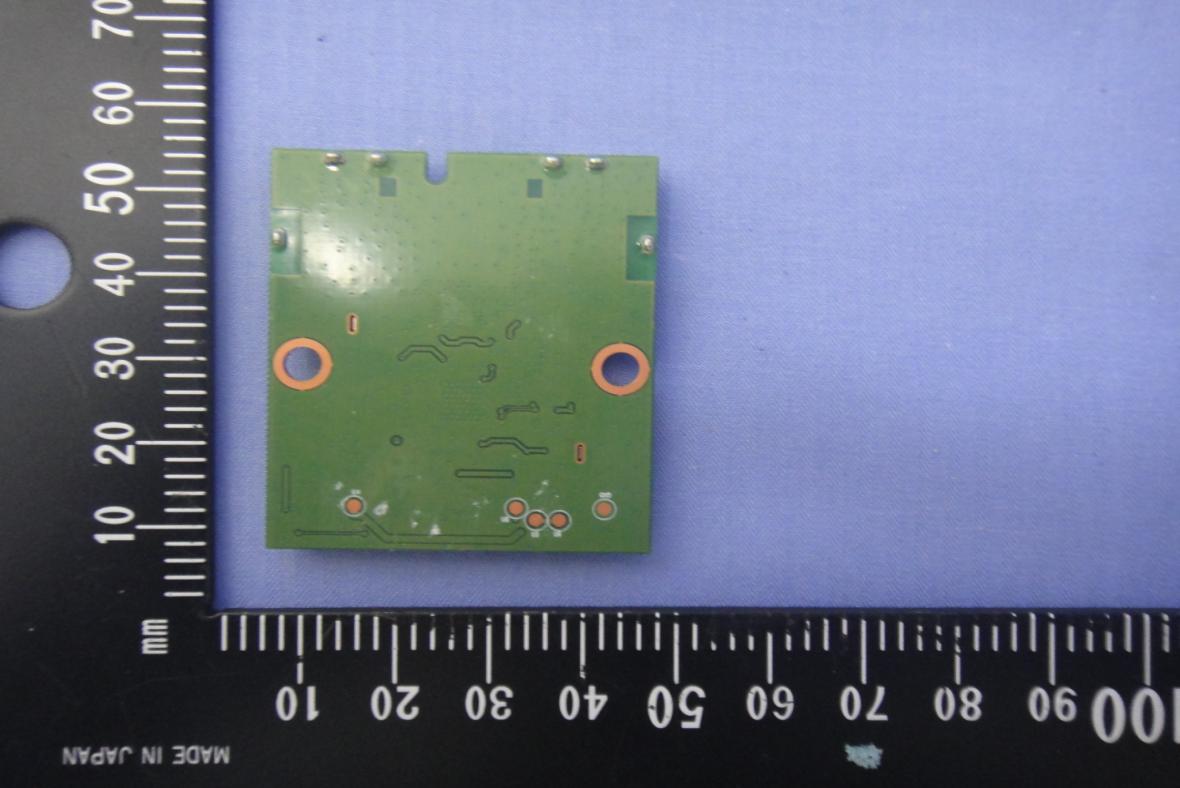

PPQ-WN461XL802.11n, 2T2R Single Band Wireless LAN USB Module

WN4611L Specification Page 1/9 2014/2/23 LTC Network Access Confidential User manual 802.11n, 2T2R Single Band Wireless LAN USB Module WN4611L Version 1.0 This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Change History: Revision Date Author Change List Version 1.0 2013/12/03 Kaysa Lee Preliminary Author: Kaysa Lee Approved by: Sunny Hsieh Editor: Kaysa Lee Project Leader: Sunny Hsieh WN4611L Specification Page 2/9 2014/2/23 LTC Network Access Confidential PRODUCT SPECIFICATION 802.11n, 2T2R Single Band Wireless LAN USB Module WN4611L Version 1.0 Networking B.U. Lite-On Technology Corporation 4F, 90, Chien I Rd. Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C. Phone: 886-2-2222-6181 Fax: 886-2-2221-5288 Contact: Product Marketing Mr. ML Wu #8266 E-mail: [email protected] Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) WN4611L Specification Page 3/9 2014/2/23 LTC Network Access Confidential CONTENT PRODUCT DESCRIPTION .............................................................................................................. 4 PRODUCT FEATURES..................................................................................................................... 4 PRODUCT SPECIFICATIONS ........................................................................................................ 4 MAIN CHIPSET ........................................................................................................................................ 4 FUNCTIONAL SPECIFICATIONS................................................................................................................ 5 MECHANICAL ......................................................................................................................................... 6 PRODUCT PICTURE ................................................................................................................................. 6 CONNECTOR SPEC (CONNECTOR 1.25MM 1*6P 50271-0060N-001 SMD(宏致)) ............................ 7 PIN DEFINITION ...................................................................................................................................... 7 PACKING ................................................................................................................................................ 7 BLOCK DIAGRAM ................................................................................................................................... 9 EEPROM INFORMATION .............................................................................................................. 9 ENVIRONMENTAL .......................................................................................................................... 9 WN4611L Specification Page 4/9 2014/2/23 LTC Network Access Confidential PRODUCT DESCRIPTION The WN4611L Wireless LAN USB Module is a sleek miniature Wireless LAN device working under 2.4GHz frequency band. The WN4611L is a compatible with IEEE standards, 802.11b, 802.11g and support 802.11n. It provides full functional wireless access within wireless environments anytime, anywhere at a data rate of up to 300Mbps. The WN4611L comes with an USB 2.0 interface providing the maximum transfer rate of 480Mbps, the form factor is an embedded module. WN4611L embody 2 transmitter 2 receiver (2T2R) architecture to ensure reliable and cost-effective wireless connectivity at high throughput over an extended range. Optimized RF architecture and base band algorithms provide super performance with low-power consumption. PRODUCT FEATURES  Operate at 2.4GHz band  300Mbps PHY Rate Support  2T2R Modes  20MHz/40MHz Bandwidth Support  USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed  IEEE standards support: IEEE 802.11b/g and 802.11n  802.11i- WEP 64/128, AES, TKIP  Low power with advanced Power Management  Embedded CPU with host off-load capability  Support WoW function  RoHS compliance  HF compliance Product specifications Main chipset MAC/Baseband/RF: Realtek 8192EU WN4611L Specification Page 5/9 2014/2/23 LTC Network Access Confidential Functional Specifications Standard IEEE802.11b; IEEE 802.11g; IEEE802.11n Bus Interface Universal Serial Bus (USB2.0) Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 15 for HT20MHz MCS 0 to 15 for HT40MHz Media Access Control CSMA/CA with ACK Radio Technology 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16 QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16QAM, 64QAM Network architecture Ad-hoc mode (Peer-to-Peer ) Infrastructure mode Operating Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan Frequency Range 802.11 b & g 2.412 ~ 2.462 GHz – N. America 2.412 ~ 2.484 GHz – Japan 2.412 ~ 2.472 GHz – Europe ETSI Transmit Output Power (Tolerance: +1.5dBm/-1.5dBm) 802.11b 16dBm 802.11g 14dBm@54Mbps 802.11n 13dBm@HT20 MCS0 13dBm@HT20 MCS7 12dBm@HT40 MCS0 12dBm@HT40 MCS7 Receiver Sensitivity 802.11b: Less than -76dBm 802.11g: Less than -82dBm @ 6Mpbs Less than -65dBm @54Mbps 802.11n: Less than -82dBm @ MCS0 Less than -64dBm @ MCS7 Security 64-bit, 128-bit WEP, TKIP, AES, WPA, WPA2, WPS IEEE 802.11i Operating Voltage 5V ±5% I/O supply voltage OS supported Windows, Linux(embedded system) Power Consumption Standby: 196mA TX: 369mA RX: 238mA Antenna Type Dual Metal Antenna *Environmental factors dependent WN4611L Specification Page 6/9 2014/2/23 LTC Network Access Confidential Mechanical Product Picture Top Bottom WN4611L Specification Page 7/9 2014/2/23 LTC Network Access Confidential Connector SPEC (CONNECTOR 1.25mm 1*6P 50271-0060N-001 SMD(宏致)) Pin Definition Pin Number Pin Name 1 +5V 2 D- 3 D+ 4 GND 5 WOW - Device wake Host function 6 Host info…
