PPQ-WN4646L802.11b/g/n 2T2R Wireless LAN USB Module

Page 1/9 USER’S MANUAL 802.11b/g/n 2T2R Wireless LAN USB Module WN4646L ICM S.B.U. LITE-ON Technology Corporation 11F, 392, Ruey Kuang Road, Neihu, Taipei 11492, Taiwan, R.O.C. Page 2/9 PRODUCT FEATURES  Operate at ISM frequency Band (2.4GHz)  IEEE Standards Support, 802.11b, 802.11g and 802.11n  CMOS MAC, Baseband PHY, and RF in a single chip for IEEE 802.11b/g/n compatible WLAN  Complete 802.11n MIMO solution for 2.4GHz band  Complies with USB Specification 2.0, support Full-speed(12Mbps) and High-Speed(480Mbps)  Enterprise level security supporting: IEEE 802.11i (W PA , W PA 2). Open shared key and pair-wise key authentication services  Wi-Fi Direct supports wireless peer to peer applications  Support 20MHz/40MHz bandwidth transmission  Support 2 transmission and 2 receiving, transmission rate can up to 300Mbps (Physical Rate) in downstream and upstream  Support Wake-On-WLAN via magic packet and wake-up frame  RoHS compliance  Low Halogen compliance Page 3/9 PRODUCT SPECIFICATIONS MAIN CHIPSET Realtek RTL8192FC FUNCTIONAL SPECIFICATIONS Wi-Fi Function Standard IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface USB 2.0 Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 7 for HT20MHz MCS 0 to 7 for HT40MHz Media Access Control CSMA/CA with ACK Modulation Techniques 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: 64QAM, 16QAM, QPSK, BPSK Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan Frequency Range 802.11bg 2.400 ~ 2.4835 GHz Transmit Output Power - single chain @ant; Tolerance: ±[email protected] 2.4GHz 802.11b 1Mbps 2Mbps 5.5Mbps 11Mbps Tgtpwr (dBm) 16 16 16 16 802.11g 6~24Mbps 36Mbps 48Mbps 54Mbps Tgtpwr (dBm) 15 15 15 15 802.11n HT20 MCS0 MCS1 MCS2 MCS3 MCS4 Tgtpwr (dBm) 14 14 14 14 14 MCS5 MCS6 MCS7 Page 4/9 14 14 14 802.11n HT40 MCS0 MCS1 MCS2 MCS3 MCS4 Tgtpwr (dBm) 14 14 14 14 14 MCS5 MCS6 MCS7 14 14 14 Receiver Sensitivity Frequency Band Rate Condition 1x1(1SS) (dBm) 2.4G 11b-1M PER < 8% -92 11b-11M PER < 8% -85 11g-6M PER < 10% -90 11g-54M PER < 10% -71 11n-HT20 MCS0 PER < 10% -90 11n-HT20 MCS7 PER < 10% -70 11n-HT40 MCS0 PER < 10% -87 11n-HT40 MCS7 PER < 10% -67 Security WEP 64&128 bit, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS, IEEE 802.1X, IEEE 802.11i Operating Voltage 5 V ±10% I/O supply voltage OS Supported Microsoft Windows; Linux based Power Consumption Test Condition: - Operate at HT40 - File Transmission Mode Average Peak 2.4GHz 2.4GHz TX 282mA 648mA RX 175mA 566mA Associated Idle 15mA Standby 13mA Antenna Type Dual Metal Antennas Page 5/9 RECOMMENDED OPERATION CONDITIONS Symbol Rating Min Ty p Max Units VCC 5V Supply Voltage 4.5 5 5.5 V VDD33 3.3V I/O Supply Voltage 3.0 3.3 3.6 V VDD10 1.05V Core Supply Voltage 0.95 1.05 1.15 V DC CHARACTERISTICS Symbol Parameter in Ty p Max Units V IL Input Low Voltage - 0 0.9 V V IH Input High Voltage 2.0 3.3 3.6 V V OL Output Low Voltage 0 - 0.33 V OH Output High Voltage 2.97 - 3.3 V RESET TIMING SPEC Symbol Min Ty p Max Units T on 0.25 1.5 5 ms T POR - 2 10 ms Page 6/9 P IN ASSIGNMENT Pin. Pin Define Description Status 1 +5VCC 5V source YES 2 +5VCC 5V source YES 3 USB_D- USB Data- YES 4 USB_D+ USB Data+ YES 5 GND Ground YES 6 RESET# System reset RTL8192FC, low active YES 7 WoWLAN# Wake up system via wi-fi, low active YES 8 GND Ground YES Page 7/9 EEPROM INFORMATION Reg Domain Worldwide Channels 1-13 with active scan 0x20 Vendor ID 0x0BDA Device ID 0xF192 ENVIRONMENTAL OPERATING Operating Temperature: 0 to 70 °C (32 to 158 °F) Relative Humidity: 5- 90% (non-condensing) S TORAGE Temperature: -25 to 75 °C (-13 to 167 °F) Relative Humidity: 5- 95% (non-condensing) Page 8/9 WARNINGS Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module compy with the requirement of the following standards 47 CFR FCC Part 15.247 This module has been approved to operate with the antenna types listed below, with the maximum permissible gain indicated. Frequency Band Antenna Type Model Number Gain(dBi) 2400-2483.5MHz PIFA RFMTA200700NNLB002 2.48 2400-2483.5MHz PIFA RFMTA200700NNLB002 -0.29 This module has been approved under stand-alone configuration. OEM integrator has be limited the operation channels in channel 1-11 for 2.4GHz band. The separate approval is required for all other operating configurations, including portable Page 9/9 configurations with respect to Part 2.1093 and different ante…

Text truncated - open the document above for the full version.

Date: January 6, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Ad Hoc Mode Function Declaration FCC ID: PPQ-WN4646L To Whom it may concern, We, LITE-ON Technology Corp. declare that the device (FCC ID: PPQ-WN4646L) 1. is acting as slave with Ad Hoc Mode (limited to operate on US/Canada frequencies only) supported within following frequency bands: a. 802.11bgn: 2412~2462MHz; 2422~2452MHz Sincerely, Applicant : LITE-ON Technology Corp. Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City, Taiwan 23585 Signature : _________________________________ Name and Job Title. : TC Wu, Deputy Director(R & D Division) E-mail : [email protected] Tel. : +886-2-2222-6181 #8301

Letter of Authorization Date: January 6, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PPQ-WN4646L Product Name: 802.11b/g/n 2T2R Wireless LAN USB Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : Manager e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : LITE-ON Technology Corp. Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City, Taiwan 23585 Signature : _________________________________ Name and Job Title. : TC Wu, Deputy Director(R & D Division) E-mail : [email protected] Tel. : +886-2-2222-6181 #8301

Date: January 6, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: declaration of composite/rated equipment for FCC ID: PPQ-WN4646L To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Class B personal computers and peripherals has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : LITE-ON Technology Corp. Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City, Taiwan 23585 Signature : _________________________________ Name and Job Title. : TC Wu, Deputy Director(R & D Division) E-mail : [email protected] Tel. : +886-2-2222-6181 #8301

Confidentiality Request Letter Date: January 6, 2020 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: PPQ-WN4646L To whom it may concern: Short-term Confidentiality pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : LITE-ON Technology Corp. Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City, Taiwan 23585 Signature : _________________________________ Name and Job Title. : TC Wu, Deputy Director(R & D Division) E-mail : [email protected] Tel. : +886-2-2222-6181 #8301

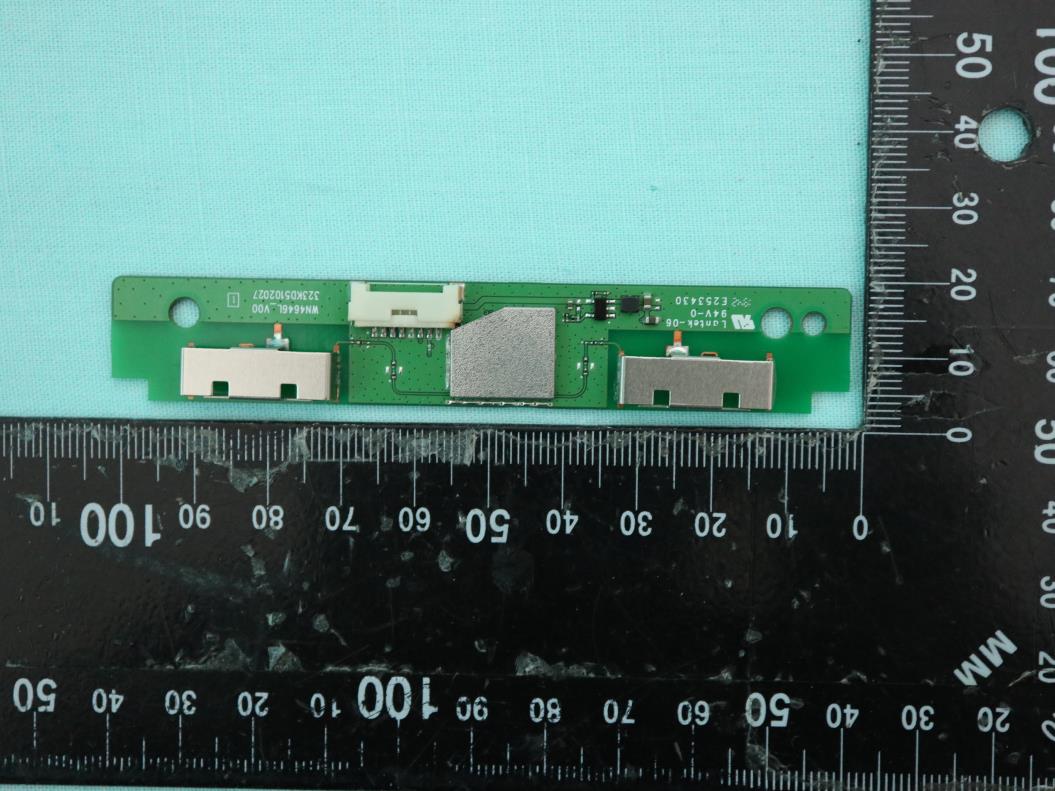

Photographs of EUT Report No. : EP9D2316 SPORTON International Inc. Page No. : 1 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Feb. 06, 2020 Photographs of EUT Report No. : EP9D2316 SPORTON International Inc. Page No. : 2 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Feb. 06, 2020 Photographs of EUT Report No. : EP9D2316 SPORTON International Inc. Page No. : 3 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Feb. 06, 2020 Photographs of EUT Report No. : EP9D2316 SPORTON International Inc. Page No. : 4 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Feb. 06, 2020

Photographs of EUT Report No. : EP9D2316 SPORTON International Inc. Page No. : 5 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Feb. 06, 2020 Photographs of EUT Report No. : EP9D2316 SPORTON International Inc. Page No. : 6 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Feb. 06, 2020 Photographs of EUT Report No. : EP9D2316 SPORTON International Inc. Page No. : 7 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Feb. 06, 2020 Photographs of EUT Report No. : EP9D2316 SPORTON International Inc. Page No. : 8 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Feb. 06, 2020 Photographs of EUT Report No. : EP9D2316 SPORTON International Inc. Page No. : 9 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Feb. 06, 2020 Photographs of EUT Report No. : EP9D2316 SPORTON International Inc. Page No. : 10 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Feb. 06, 2020 ─────THE END─────

Radio Exposure Evaluation Report Report No. : FA9D2316 TEL : 886-3-327-3456 Page Number : 1 of 7 FAX : 886-3-327-0973 Issued Date : Mar. 31, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: PPQ-WN4646L Radio Exposure Evaluation Report FCC ID : PPQ-WN4646L Equipment : 802.11b/g/n 2T2R Wireless LAN USB Module Brand Name : LITE-ON Model Name : WN4646L Applicant : Lite-On Technology Corp. Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C Manufacturer : LITE-ON TECHNOLOGY (Changzhou) CO., LTD A9 Building,No.88 Yanghu Road, Wujin Hi-Tech Industrial Development Zone ,Changzhou City,Jiangsu Province 213100 China Standard : 47 CFR Part 2.1091 The product was received on Dec. 24, 2019, and testing was started from Dec. 28, 2019 and completed on Mar. 11, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR Part 2.1091 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of United States government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA9D2316 TEL : 886-3-327-3456 Page Number : 2 of 7 FAX : 886-3-327-0973 Issued Date : Mar. 31, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: PPQ-WN4646L Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Testing Location ..................................................................................................................................... 5 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 6 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 6 2.2 MPE Calculation Method ........................................................................................................................ 6 2.3 Calculated Result and Limit .................................................................................................................... 7 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA9D2316 TEL : 886-3-327-3456 Page Number : 3 of 7 FAX : 886-3-327-0973 Issued Date : Mar. 31, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: PPQ-WN4646L History of this test report Report No. Version Description Issued Date FA9D2316 01 Initial issue of report Mar. 31, 2020 Radio Exposure Evaluation Report Report No. : FA9D2316 TEL : 886-3-327-3456 Page Number : 4 of 7 FAX : 886-3-327-0973 Issued Date : Mar. 31, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: PPQ-WN4646L Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. Reviewed by: Sam Tsai Report Producer: Yunha Liou Radio Exposure Evaluation Report Report No. : FA9D2316 TEL : 886-3-327-3456 Page Number : 5 of 7 FAX : 886-3-327-0973 Issued Date : Mar. 31, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: PPQ-WN4646L 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 1.2 Testing Location Testing Location HWA YA ADD : No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 FAX : 886-3-327-0973 Test site Designation No. TW1190 with FCC. JHUBEI ADD : No.8, Ln. 724, Bo'ai St., Zhubei City, Hsinchu County, Taiwan (R.O.C.) TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Radio Exposure Evaluation Report Report No. : FA9D2316 TEL : 886-3-327-3456 Page Number : 6 of 7 FAX : 886-3-327-0973 Issued Date : Mar. 31, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: PPQ-WN4646L 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density Note: …

Text truncated - open the document above for the full version.

FCC Test Report Report No. :FR9D2316AC TEL : 886-3-3273456 Page Number : 1 of 24 FAX : 886-3-3270973 Issued Date : Mar. 31, 2020 Report Template No.: HE1-C8 Ver3.8 Report Version : 01 FCC ID: PPQ-WN4646L FCC Test Report FCC ID : PPQ-WN4646L Equipment : 802.11b/g/n 2T2R Wireless LAN USB Module Brand Name : LITE-ON Model Name : WN4646L Applicant : Lite-On Technology Corp. Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C Manufacturer : LITE-ON TECHNOLOGY (Changzhou) CO., LTD A9 Building,No.88 Yanghu Road, Wujin Hi-Tech Industrial Development Zone ,Changzhou City,Jiangsu Province 213100 China Standard : 47 CFR FCC Part 15.247 The product was received on Dec. 24, 2019, and testing was started from Dec. 28, 2019 and completed on Mar. 11, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) FCC Test Report Report No. :FR9D2316AC TEL : 886-3-3273456 Page Number : 2 of 24 FAX : 886-3-3270973 Issued Date : Mar. 31, 2020 Report Template No.: HE1-C8 Ver3.8 Report Version : 01 FCC ID: PPQ-WN4646L Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 6 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT......................................................................................................... 8 2.1 Test Condition ........................................................................................................................................ 8 2.2 Test Channel Mode ................................................................................................................................ 8 2.3 The Worst Case Measurement Configuration ........................................................................................ 9 2.4 Support Equipment ............................................................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 DTS Bandwidth..................................................................................................................................... 14 3.3 Maximum Conducted Output Power .................................................................................................... 15 3.4 Power Spectral Density ........................................................................................................................ 17 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 18 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 19 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 23 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF DTS BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS APPENDIX F. TEST RESULTS OF EMISSIONS IN RESTRICTED FREQUENCY BANDS APPENDIX G. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Test Report Report No. :FR9D2316AC TEL : 886-3-3273456 Page Number : 3 of 24 FAX : 886-3-3270973 Issued Date : Mar. 31, 2020 Report Template No.: HE1-C8 Ver3.8 Report Version : 01 FCC ID: PPQ-WN4646L History of this test report Report No. Version Description Issued Date FR9D2316AC 01 Initial issue of report Mar. 31, 2020 FCC Test Report Report No. :FR9D2316AC TEL : 886-3-3273456 Page Number : 4 of 24 FAX : 886-3-3270973 Issued Date : Mar. 31, 2020 Report Template No.: HE1-C8 Ver3.8 Report Version : 01 FCC ID: PPQ-WN4646L Summary of Test Result Report Clause Ref. Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a)…

Text truncated - open the document above for the full version.

Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G1 of G4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 9D2316 1. Photographs of Conducted Emissions Test Configuration Front view Side view Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G2 of G4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 9D2316 Under table view Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G3 of G4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 9D2316 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G4 of G4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 9D2316 For radiated emissions above 1GHz Front view Rear view ─────THE END─────
